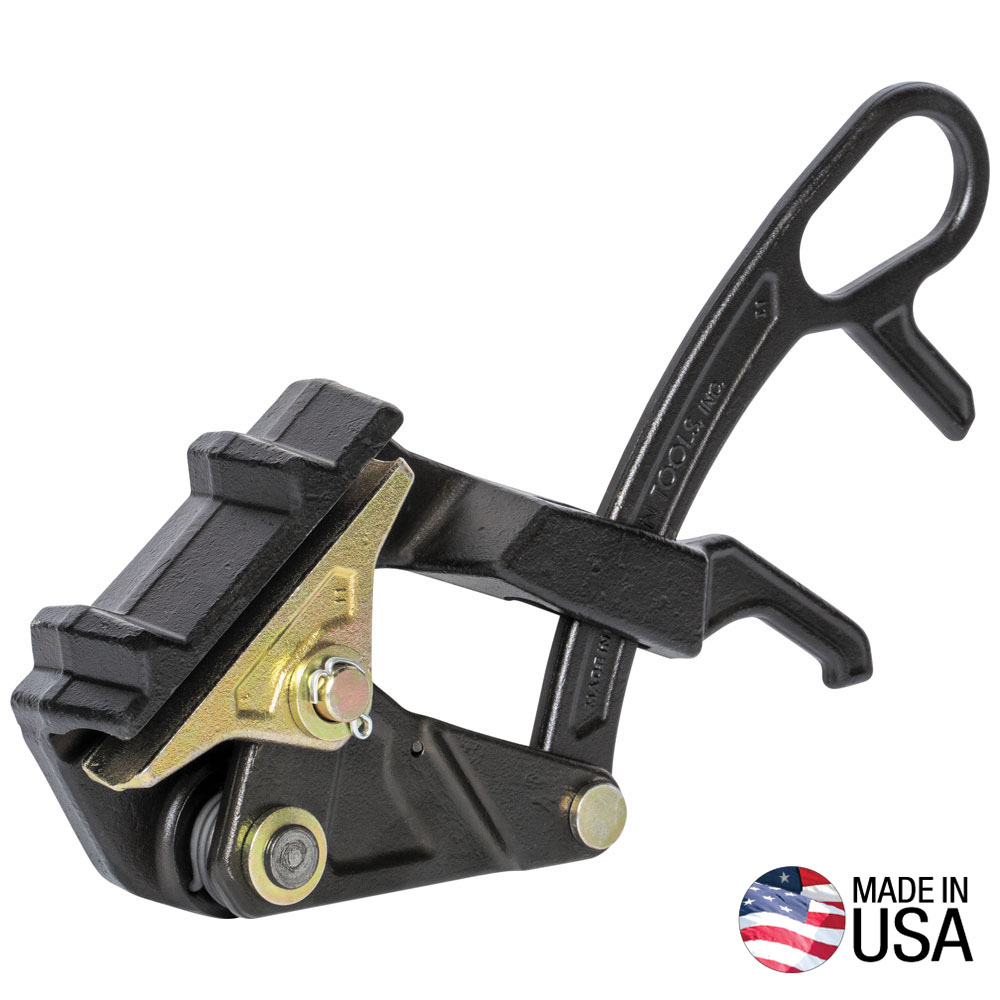

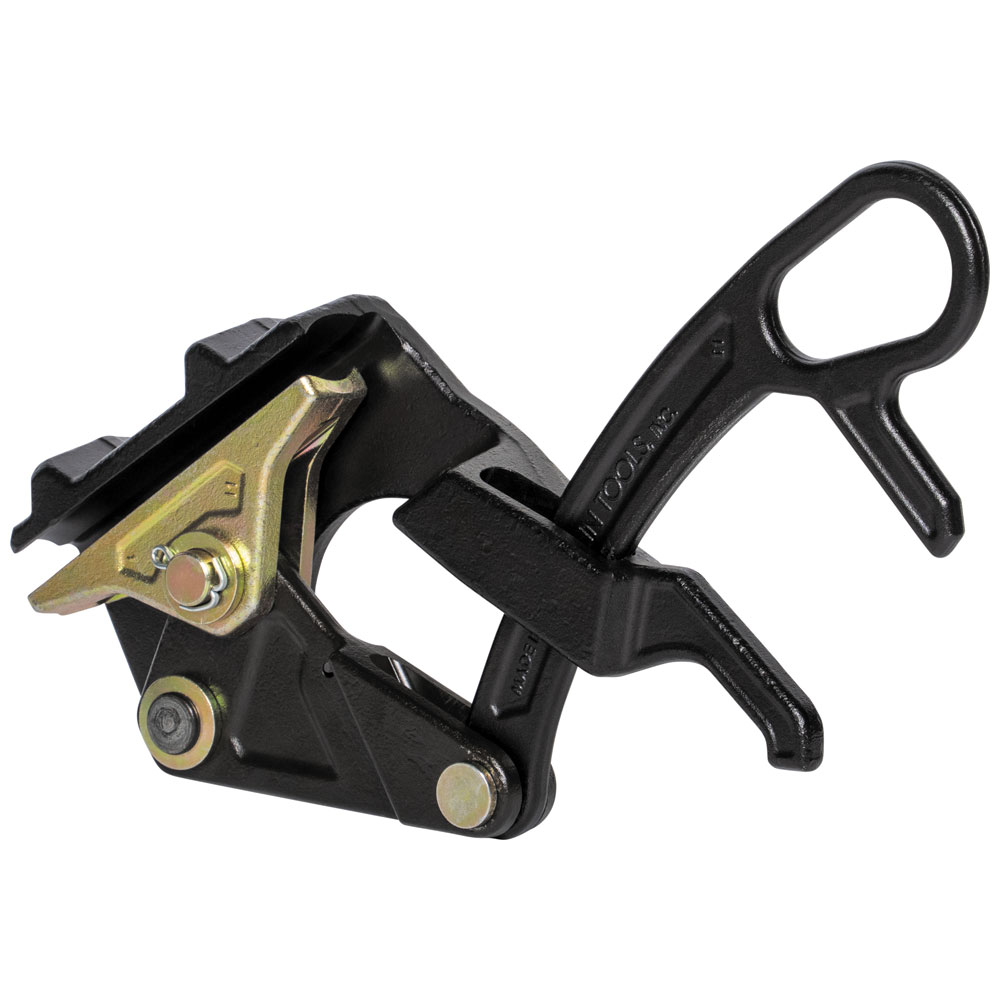

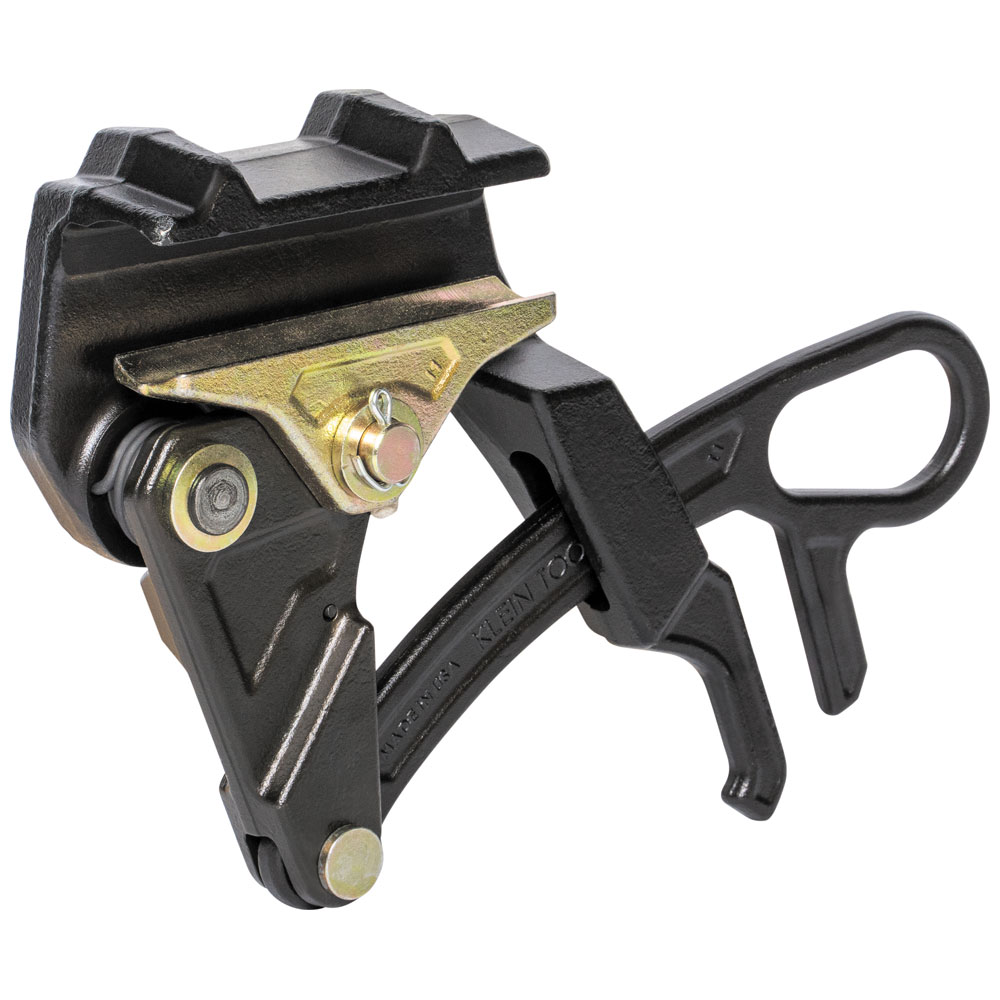

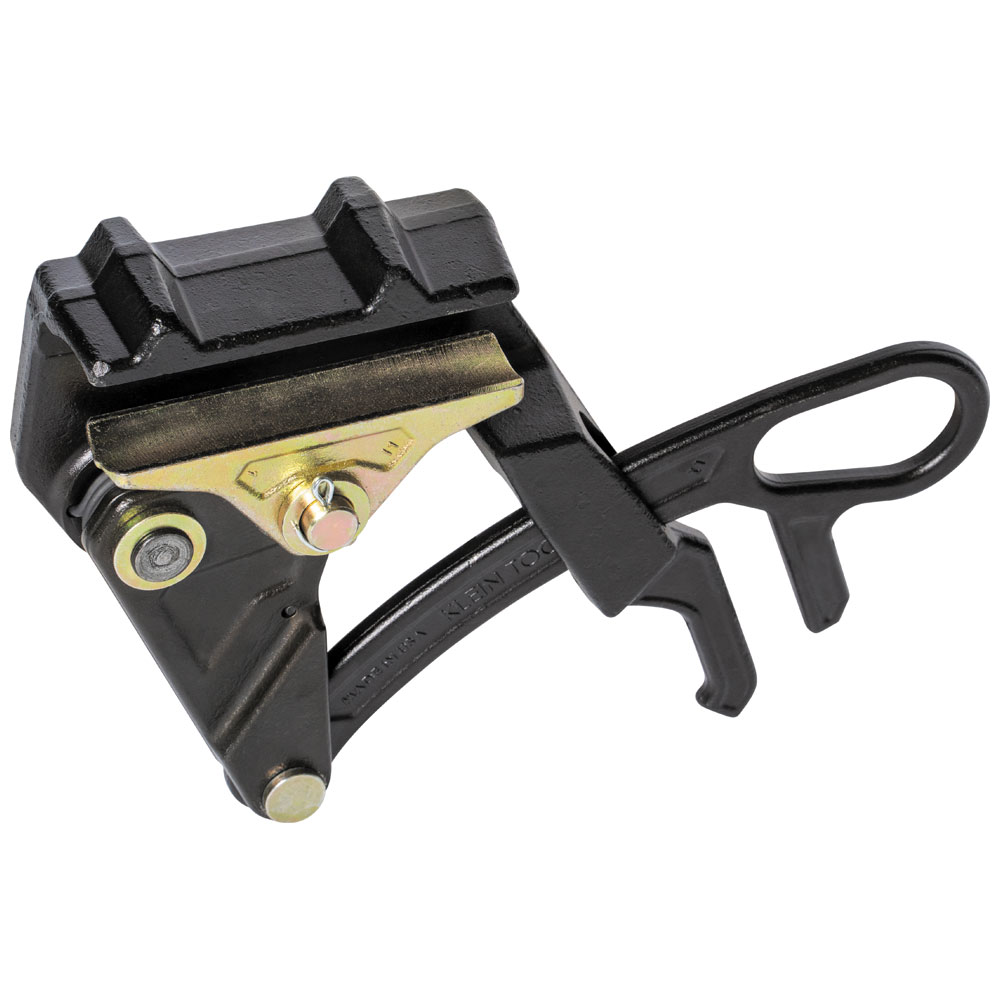

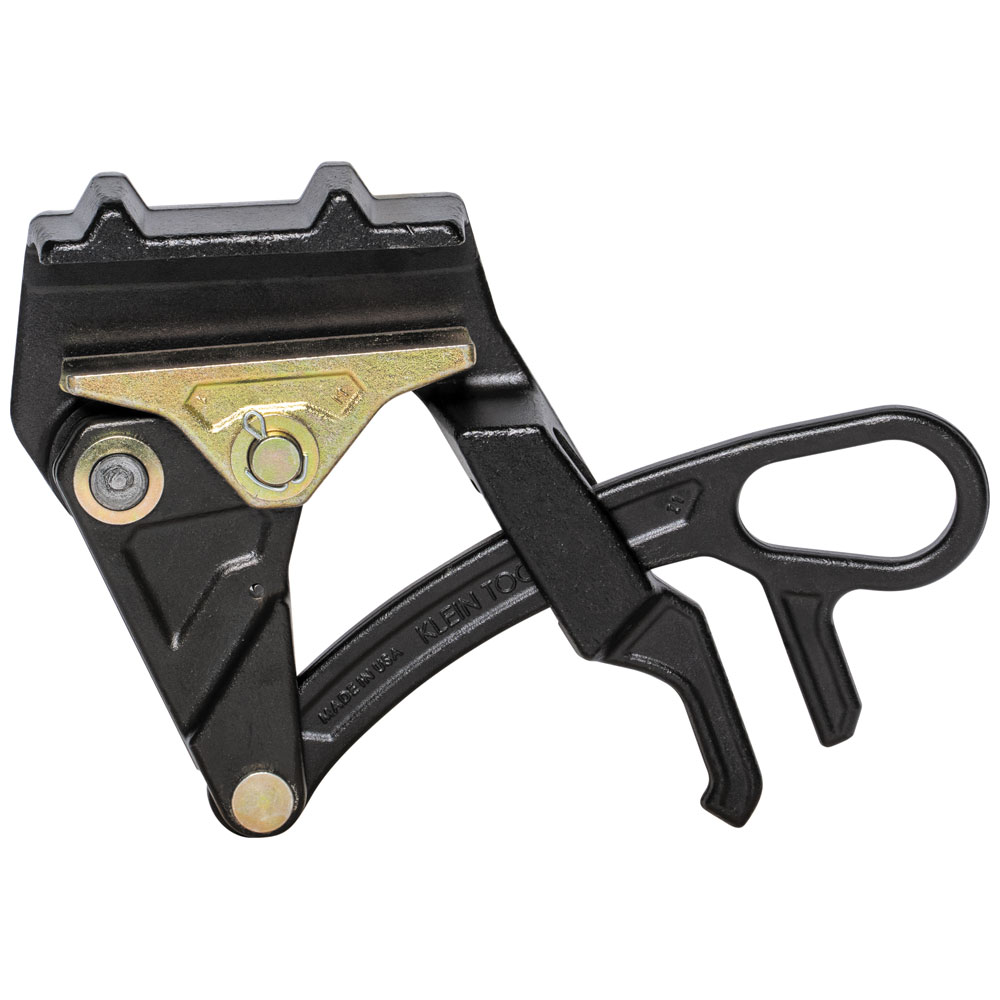

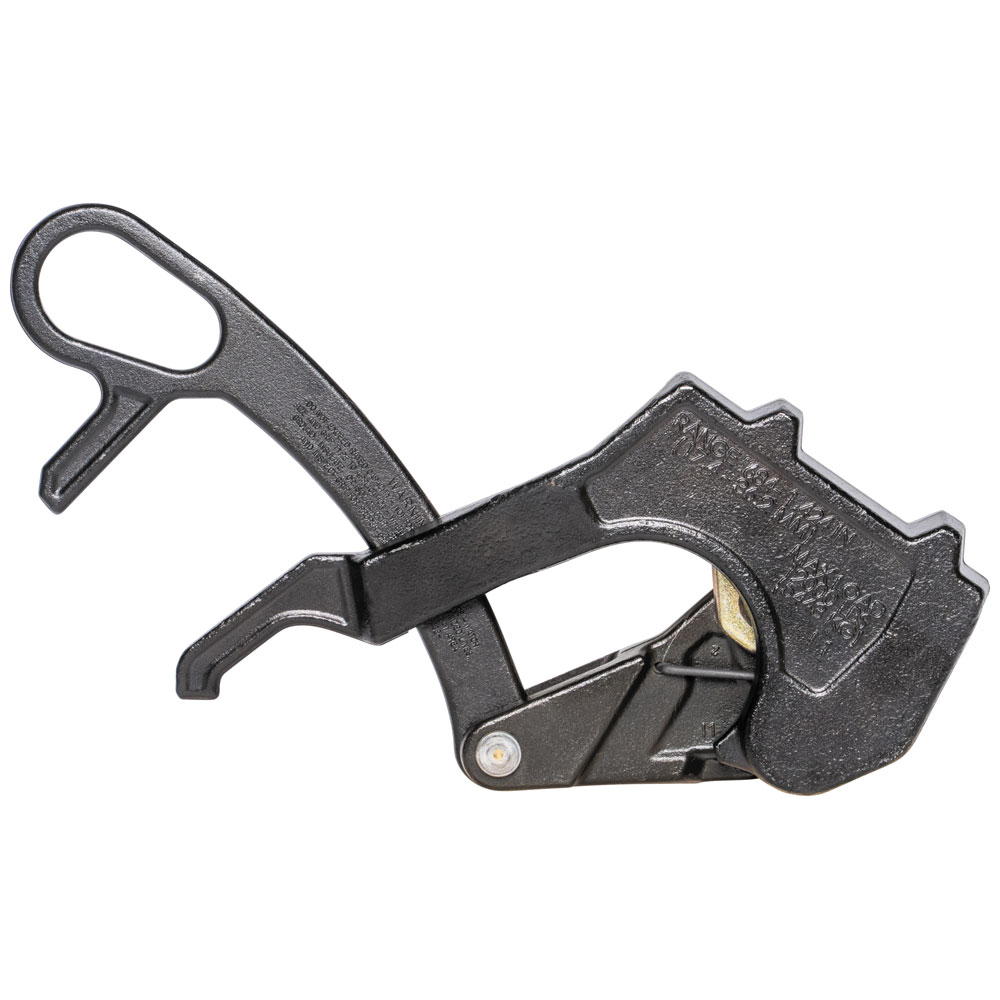

Wide Range Transmission Grip

16499

  • Securely pulls ACSR, AAC and bare copper cables

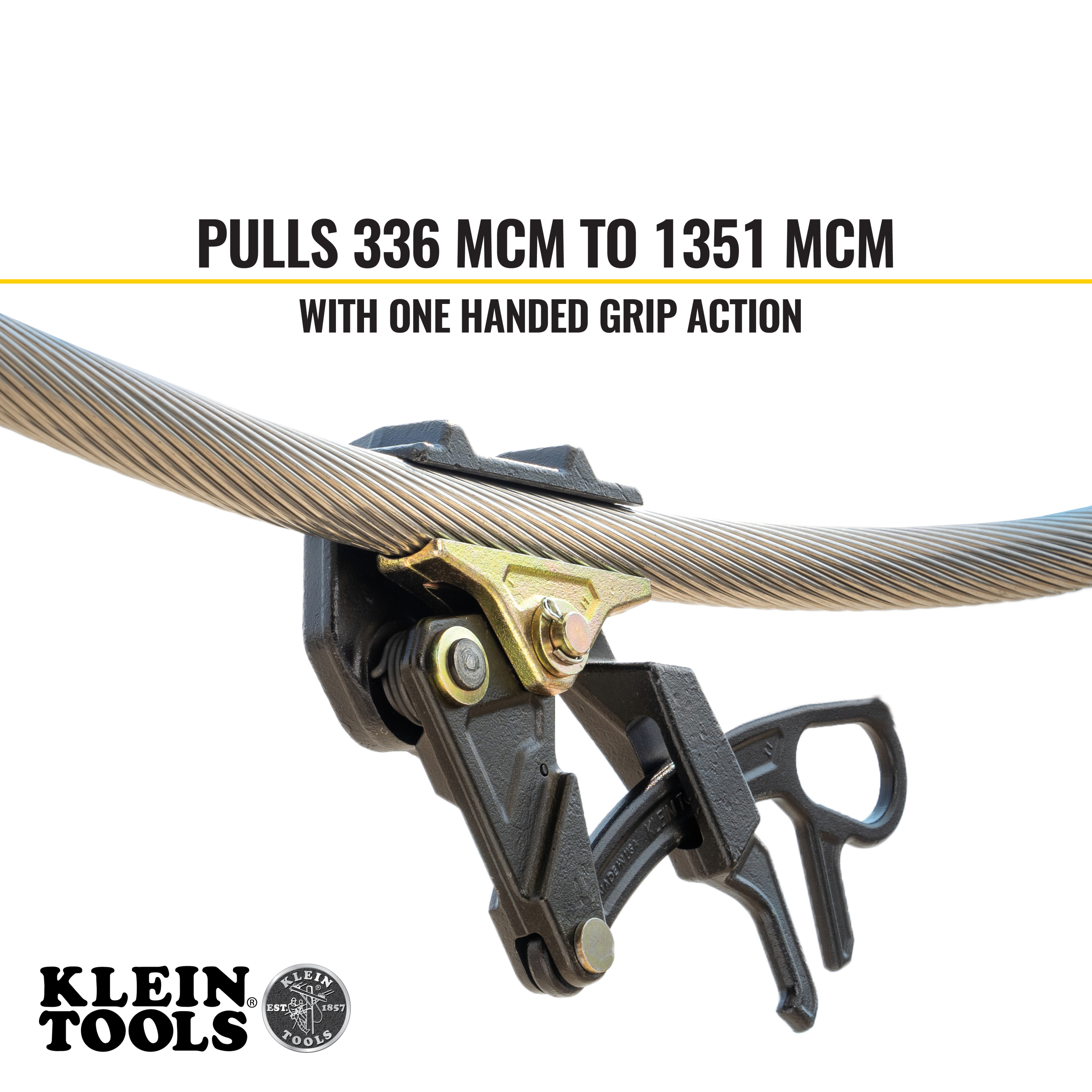

  • Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
  • Fine Sawtooth jaw geometry provides greater grip strength
  • Spring closes grip on cable to hold the initial position
  • Made in the USA

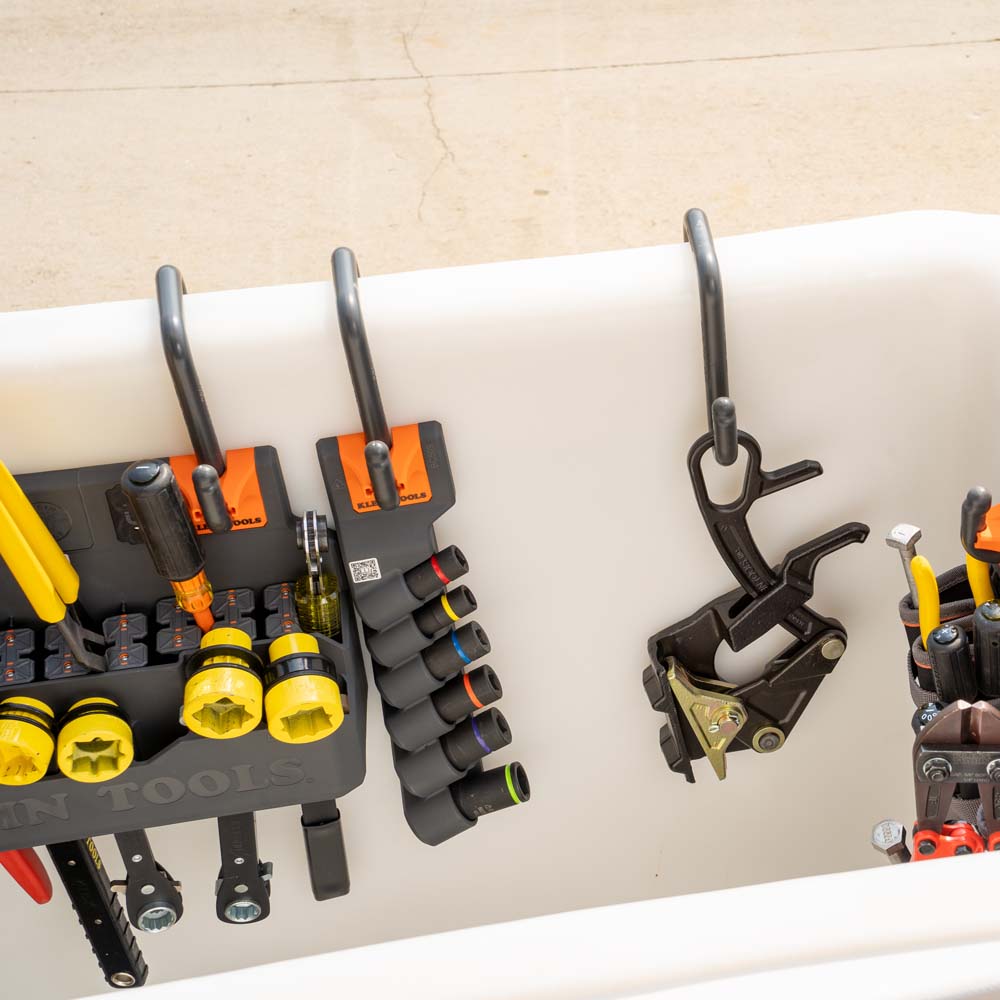

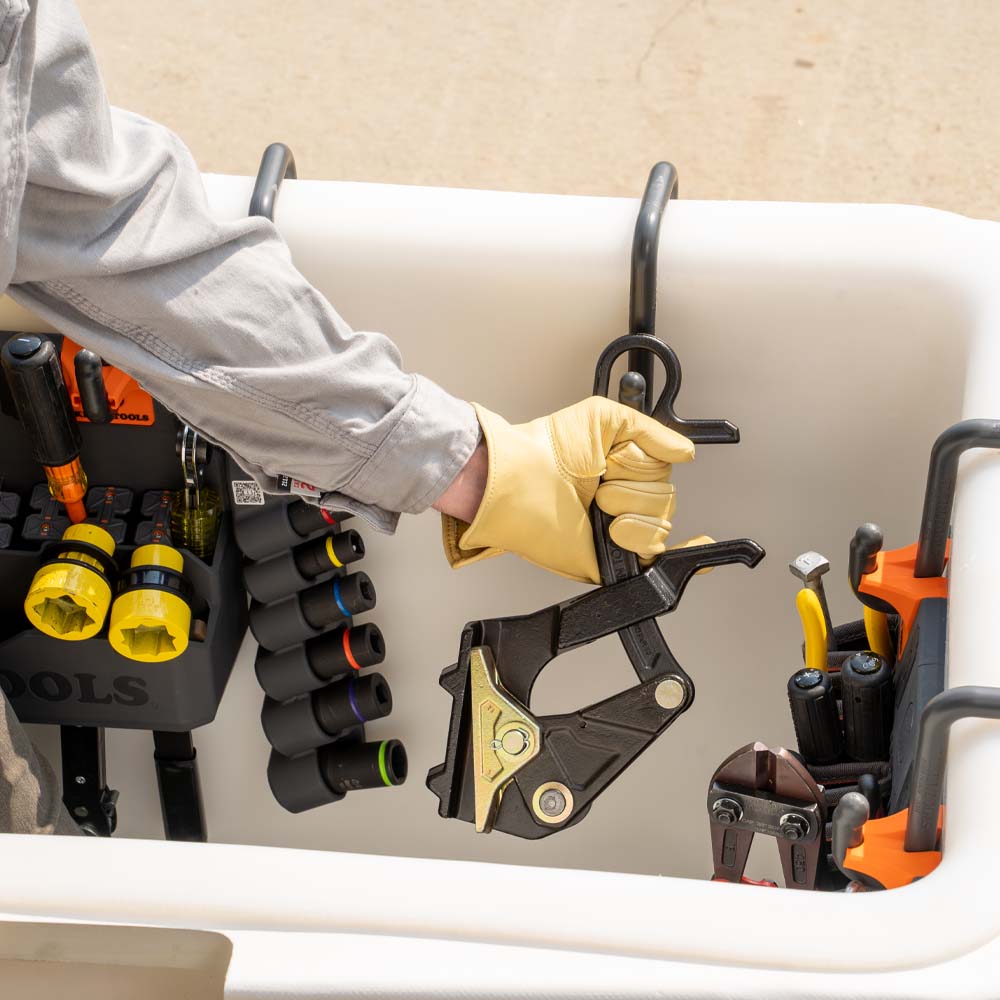

  • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 12,000-Pound (5443 kg)
  • Patent pending design
MADE-USA-EN Product Icon
Video
Downloads
Images
JPG (High Resolution) 16499_photo.jpg
PNG (Transparent Background) 16499.png

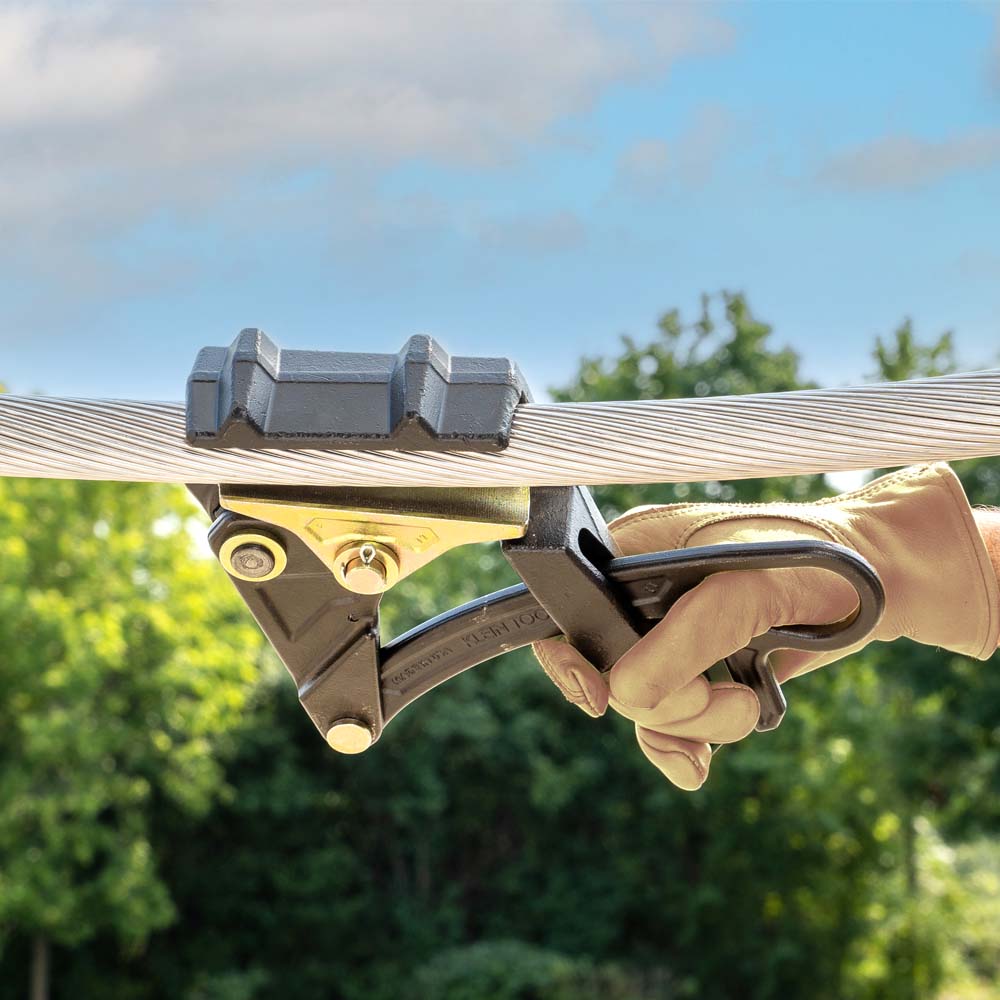

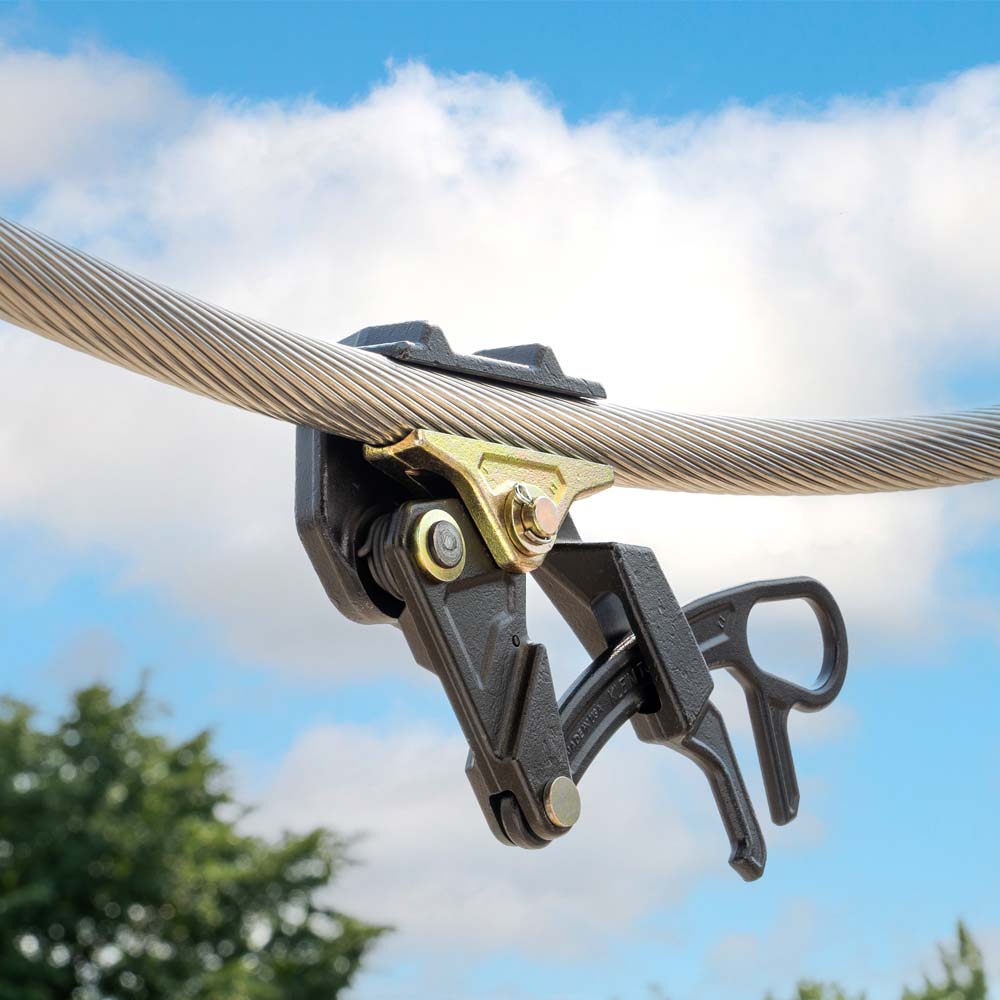

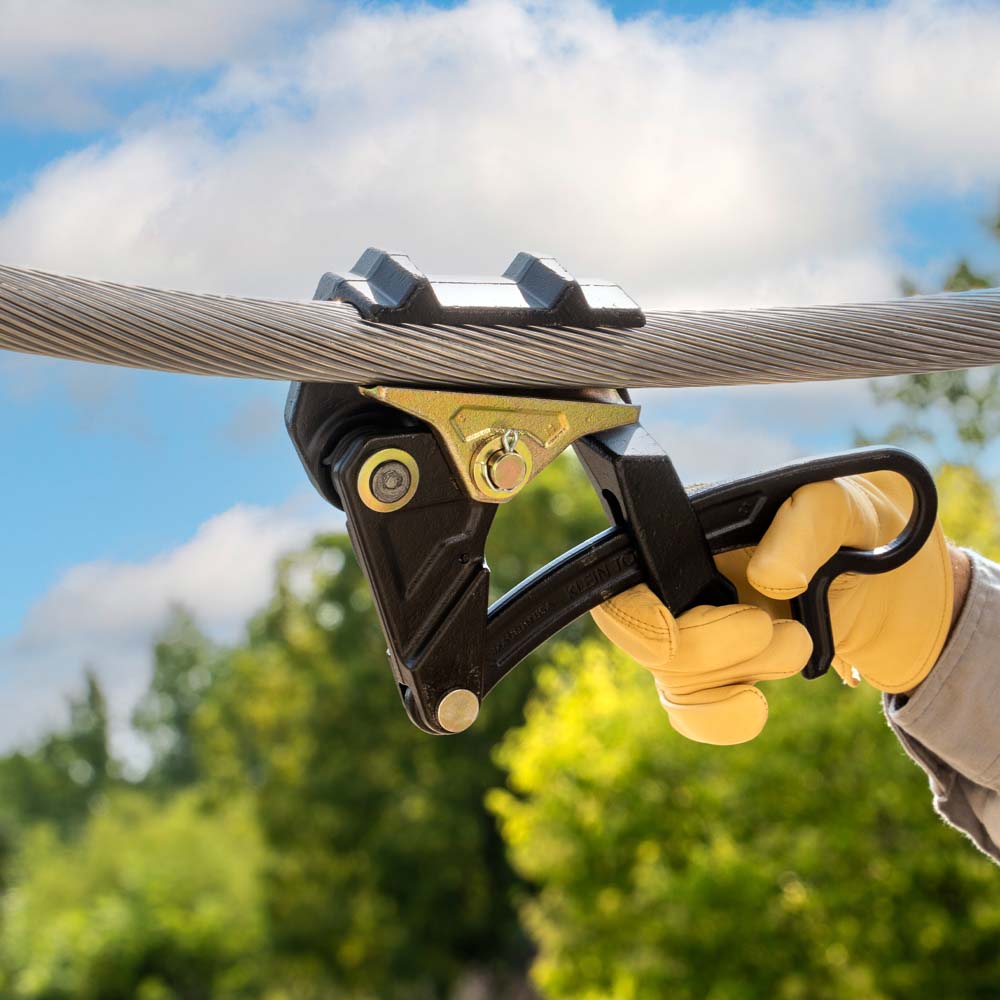

The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).

Specifications
Type:
Parallel Jaw Grip
Application:
Wire Pulling
Special Features:
One-Handed Grip
Overall Length:
13.1'' (33.3 cm)
Overall Height:
8.1'' (20.6 cm)
Overall Width:
2.4'' (6.1 cm)
Material:
Steel
Cable Type:
ACSR, AAC, Bare Copper
Cable Diameter:
0.68'' to 1.42'' (17.3 to 36.1 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Round
Jaw Length:
4.85'' (12.3 cm)
Maximum Safe Load:
12,000 lb (5443 kg)
Weight:
8.1 lb (3.7 kg)
UPC:
092644470769
Additional Information
Warnings
  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
