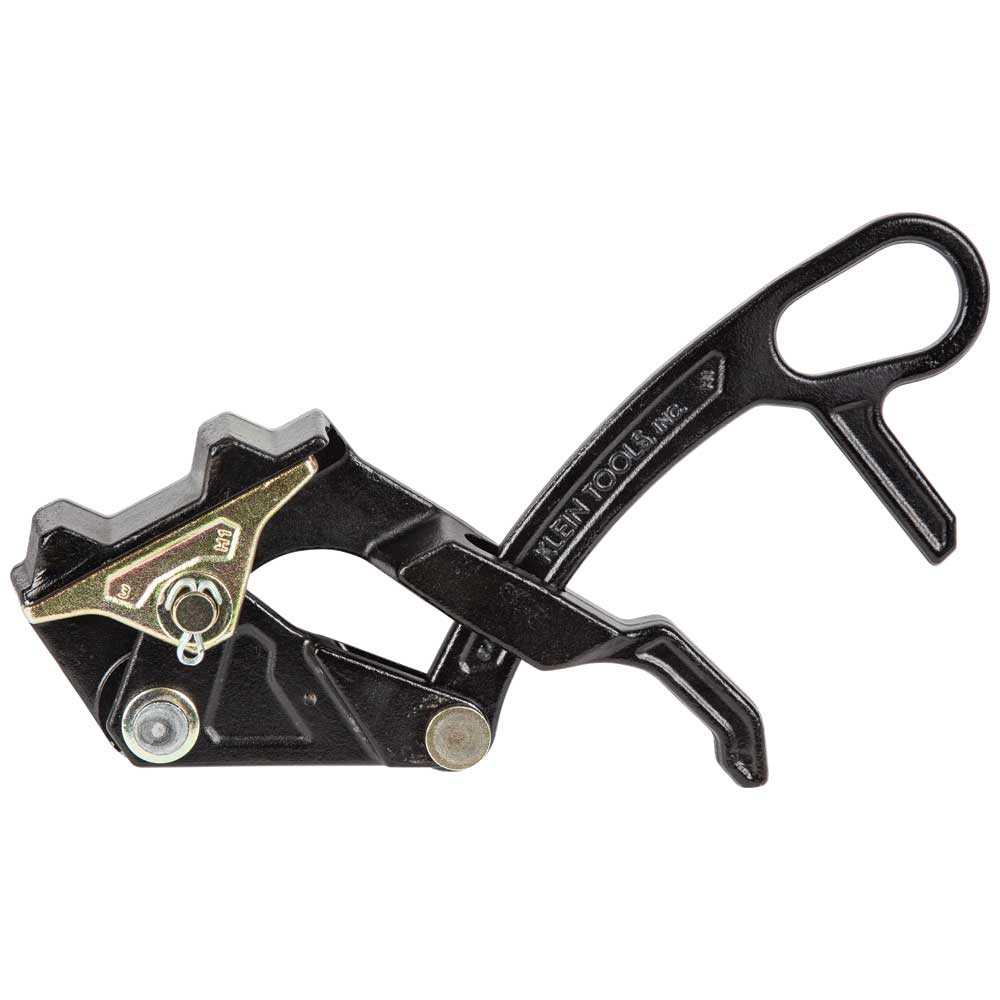

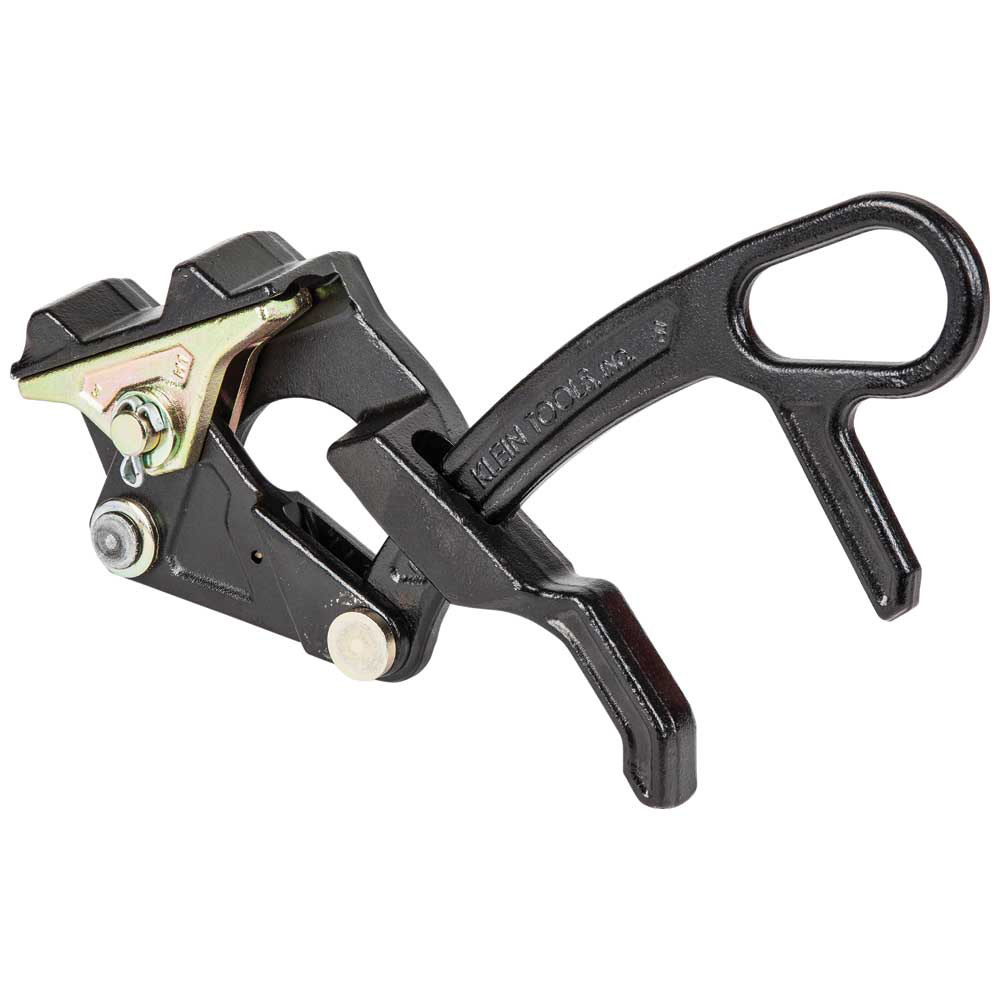

Wide Range Distribution Grip

16477

  • Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
  • 20-Percent lighter than the Cat. No. KT4500 grip

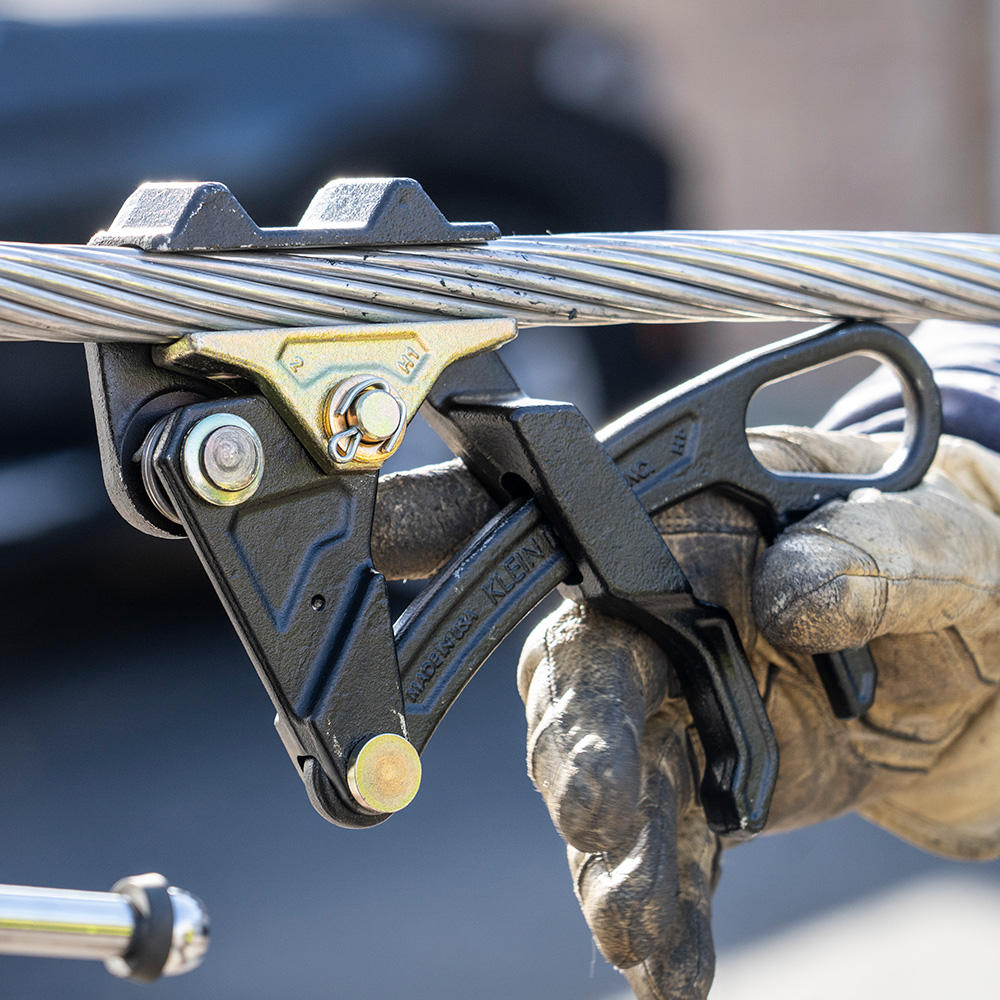

  • One-handed design makes for easier actuation

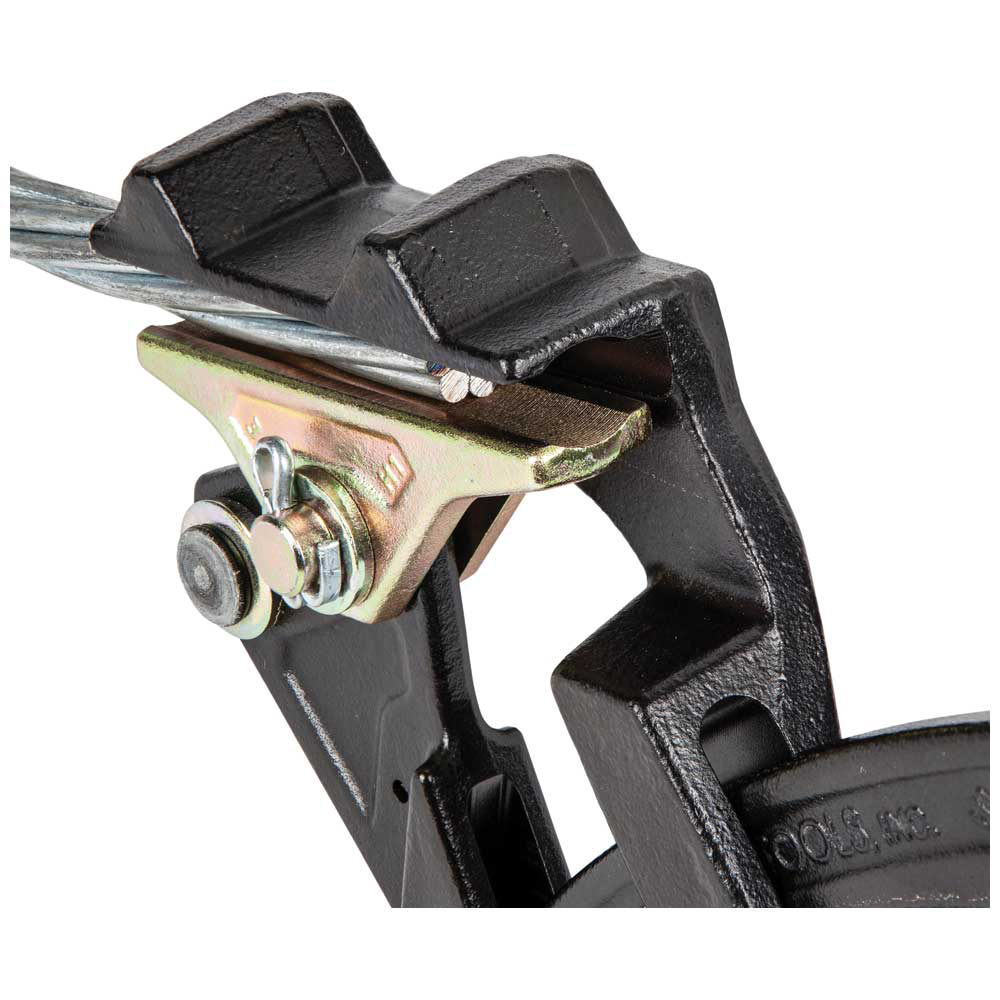

  • Spring closes grip on cable to hold the initial position
  • Made in the USA
  • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Patent pending design
made-usa-en Product Icon
Videos
Downloads
Images
High Res JPG 16477_photo_b.jpg
High Res EPS 16477_b.png
Interactive Catalog

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Specifications
Type:
Parallel Jaw Grip
Application:
Wire Pulling
Special Features:
One-Handed Grip
Overall Length:
10'' (25 cm)
Overall Height:
1.25'' (3.2 cm)
Overall Width:
6.5'' (16.5 cm)
Material:
Steel
Cable Type:
Bare Copper, Aluminum, ACSR
Cable Diameter:
0.162 to 0.883'' (4.11 to 22.42 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round
Jaw Length:
3.31'' (8.4 cm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
2.9 lb (1.3 kg)
UPC:
092644470721
Additional Information
Feature Icon klein/wf_grips-round-jaw.jpg
Warnings
  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
