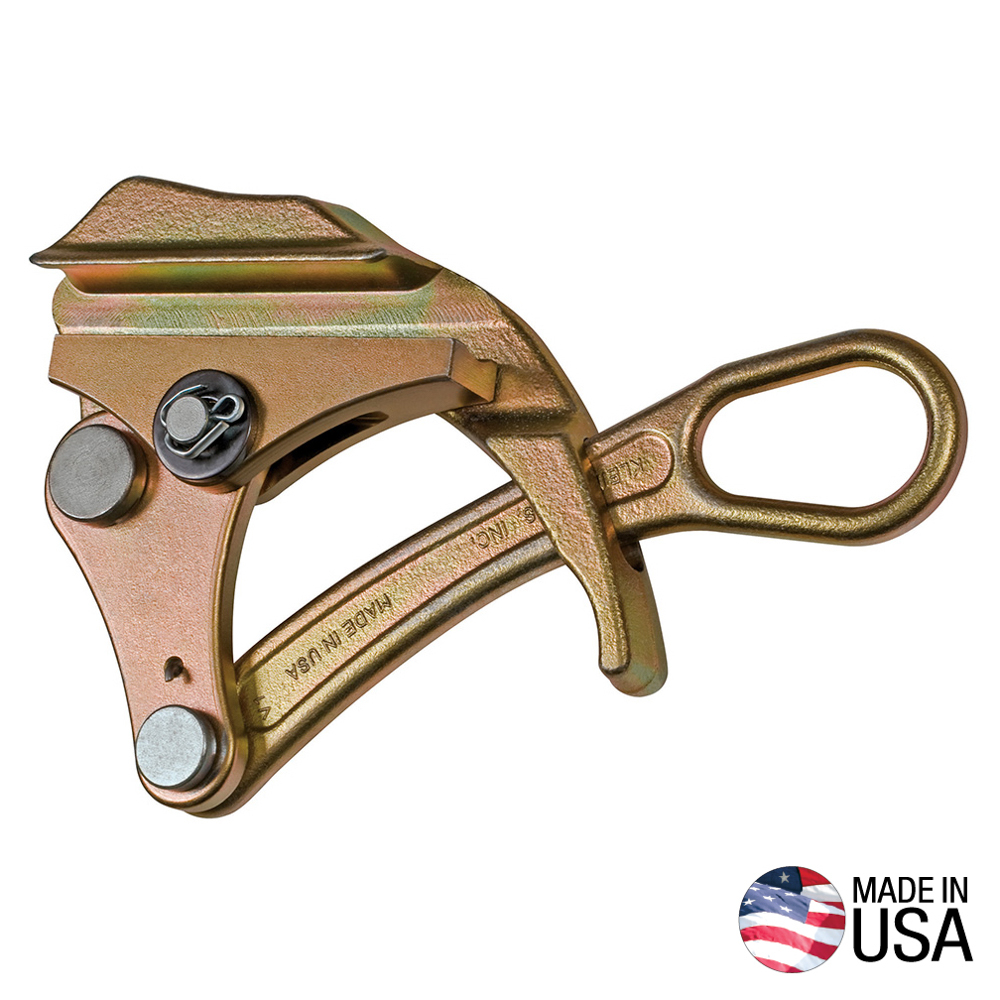

Parallel Jaw Grip 4800 Series

KT4800

  • Round jaw shape provides maximum contact with cable, helping to eliminate conductor damage
  • Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Lightweight, compact design perfect for pulling a wide range of cable types and sizes
  • Manufactured from drop-forged, heat-treated steel for excellent durability
  • Made in USA
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Videos
Images
High-Res JPG kt4600_photo.jpg
Interactive Catalog

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Specifications
Type:
Parallel Jaw Grip
Special Features:
Spring
Cable Type:
ACSR, AAC, Copper
Cable Diameter:
0.7'' to 1.25'' (17.78 to 31.75 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round - Serrated
Jaw Length:
5.125'' (13 cm)
Maximum Safe Load:
12,000 lb (5443 kg)
Weight:
9.0 lb (4.1 kg)
UPC:
092644477560
Additional Information
Feature Icon klein/wf_grips-round-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
