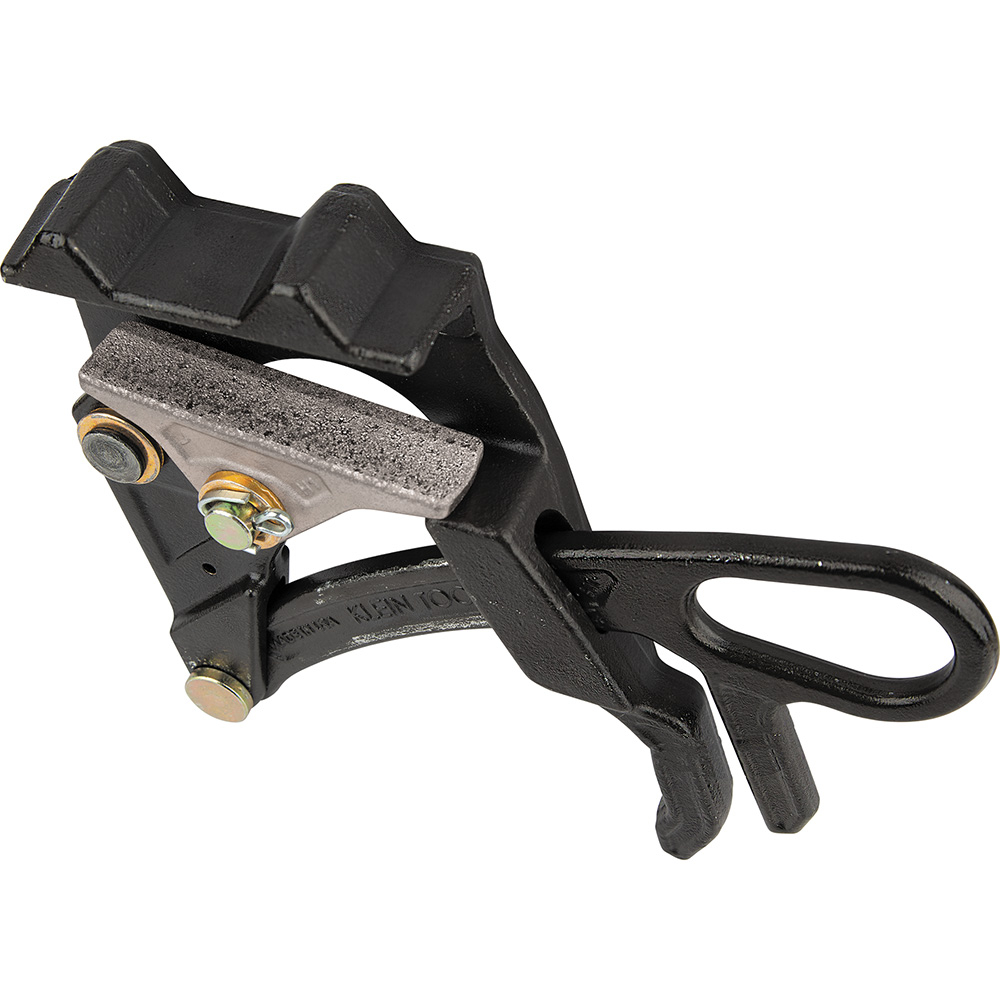

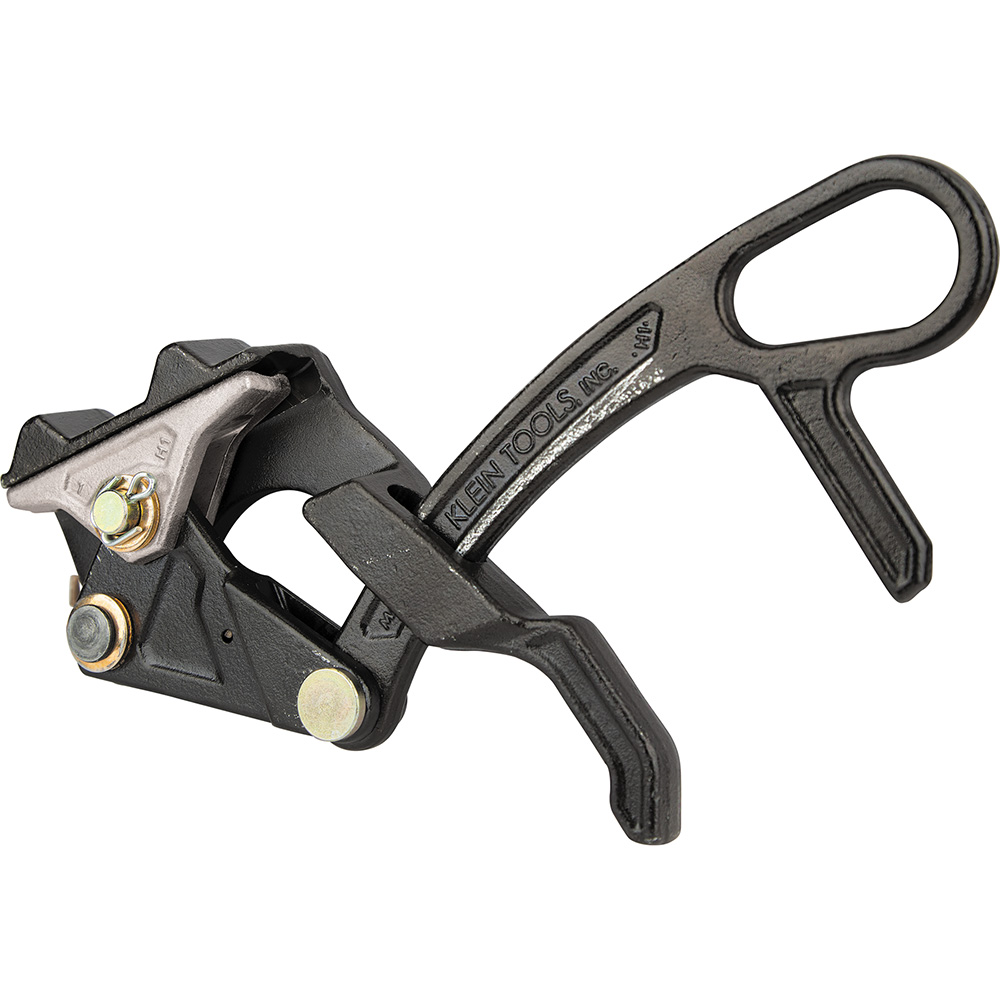

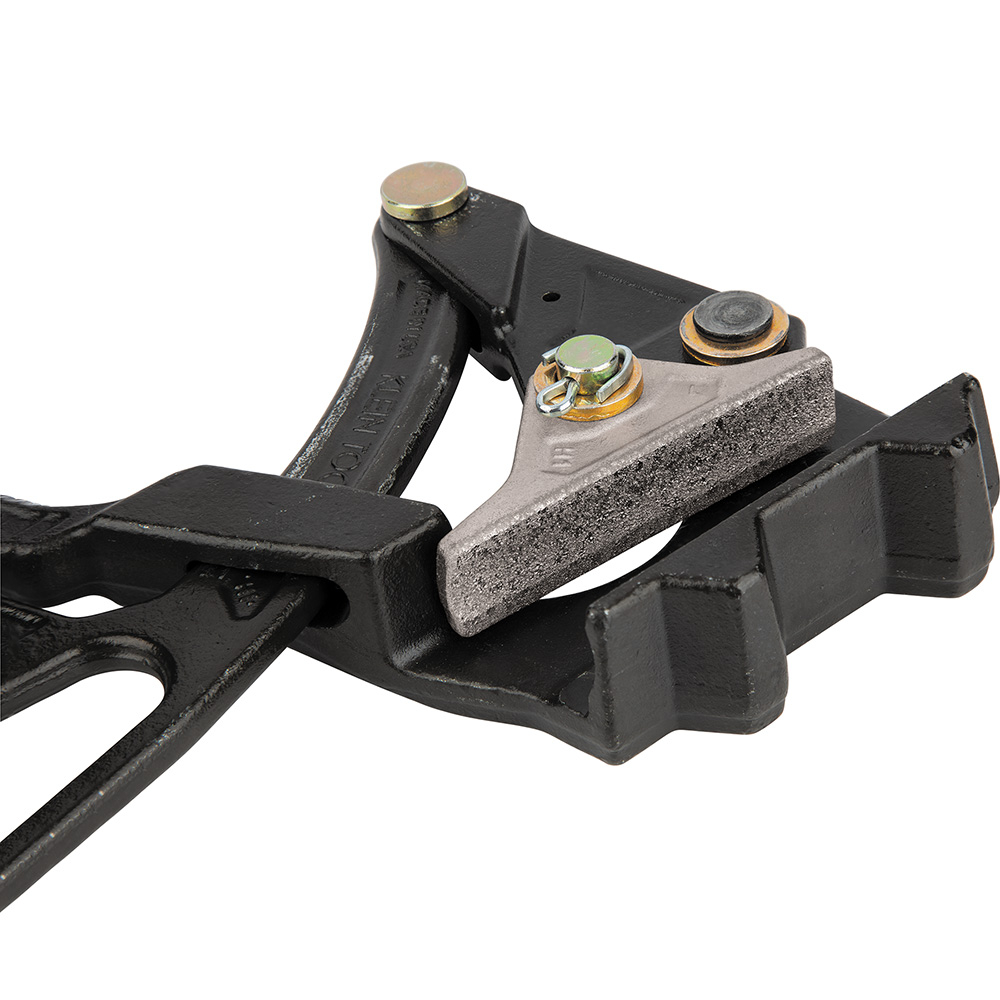

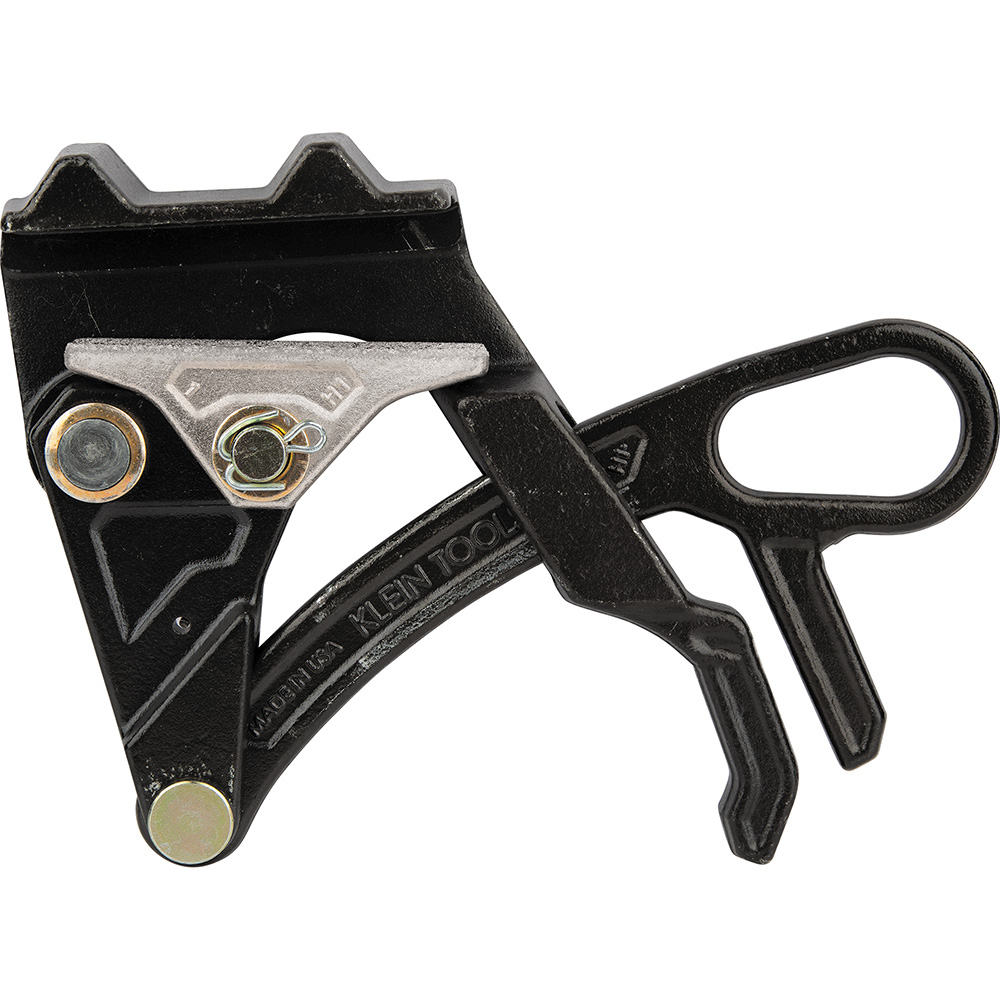

Wide Range Distribution Grip, Tree Wire

1647728

  • Securely pulls HDPE-coated cable commonly known as ''tree wire'' or ''fire wire''; holds cable sizes from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm)
  • 50-Percent lighter than the KT4600 grip
  • One-handed design makes for easier actuation
  • Spring closes grip on cable to hold the initial position
  • Made in the USA
  • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Patent pending design
MADE-USA-EN Product Icon
Video
Downloads
Images
JPG (High Resolution) 16477-28_photo.jpg
PNG (Transparent Background) 16477-28.png

Klein Tools' Wide Range Distribution Grip for Tree Wire was specifically designed to securely pull slippery HDPE-coated cable as known as tree wire or fire wire. Holds a wide range of cable sizes from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm). This versatile, one-handed actuation grip is 50-Percent lighter than the Klein's KT4600 grip with easy. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Specifications
Type:
Parallel Jaw Grip
Application:
Wire Pulling
Special Features:
One-Handed Grip
Overall Length:
10.25'' (26 cm)
Overall Height:
8'' (20.3 cm)
Overall Width:
1.75'' (4.4 cm)
Material:
Steel
Cable Type:
HDPE-Coated, PVC-Coated, Weatherproof
Cable Diameter:
0.162 to 0.883'' (4.11 to 22.42 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round
Jaw Length:
3.31'' (8.4 cm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
3.2 lb (1.5 kg)
UPC:
092644470752
Additional Information
Warnings
  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
