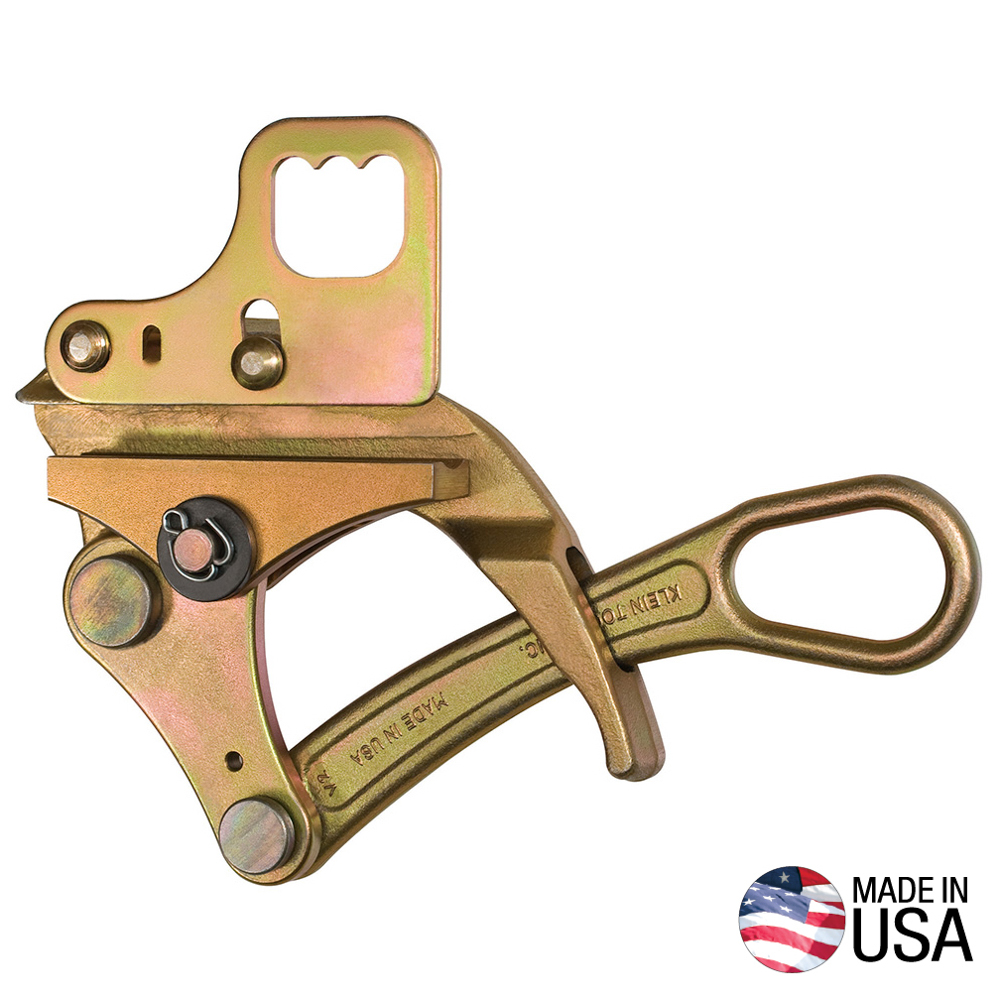

Parallel Jaw Grip 4502 Series with Hot Latch

KT4502

  • Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
  • Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Made in USA
  • Weight: 3.75 pounds
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Videos
Images
High-Res JPG kt4502_photo.jpg
Interactive Catalog

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.

Specifications
Type:
Parallel Jaw Grip
Application:
Accommodating a Wide Variety of Hooks on Hoists, Winches and Tackle Blocks
Special Features:
Hot Latch
Overall Length:
11'' (27.9 cm)
Overall Height:
1.5'' (3.8 cm)
Overall Width:
4'' (10.2 cm)
Cable Type:
ACSR, AAC, Copper
Cable Diameter:
0.18'' to 0.6'' (4.57 to 15.2 mm)
Hot Latch:
Y
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round - Serrated
Jaw Length:
4'' (10.2 cm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
3.8 lb (1.7 kg)
UPC:
092644477522
Additional Information
Feature Icon klein/wf_grips-round-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
