Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance

MM720

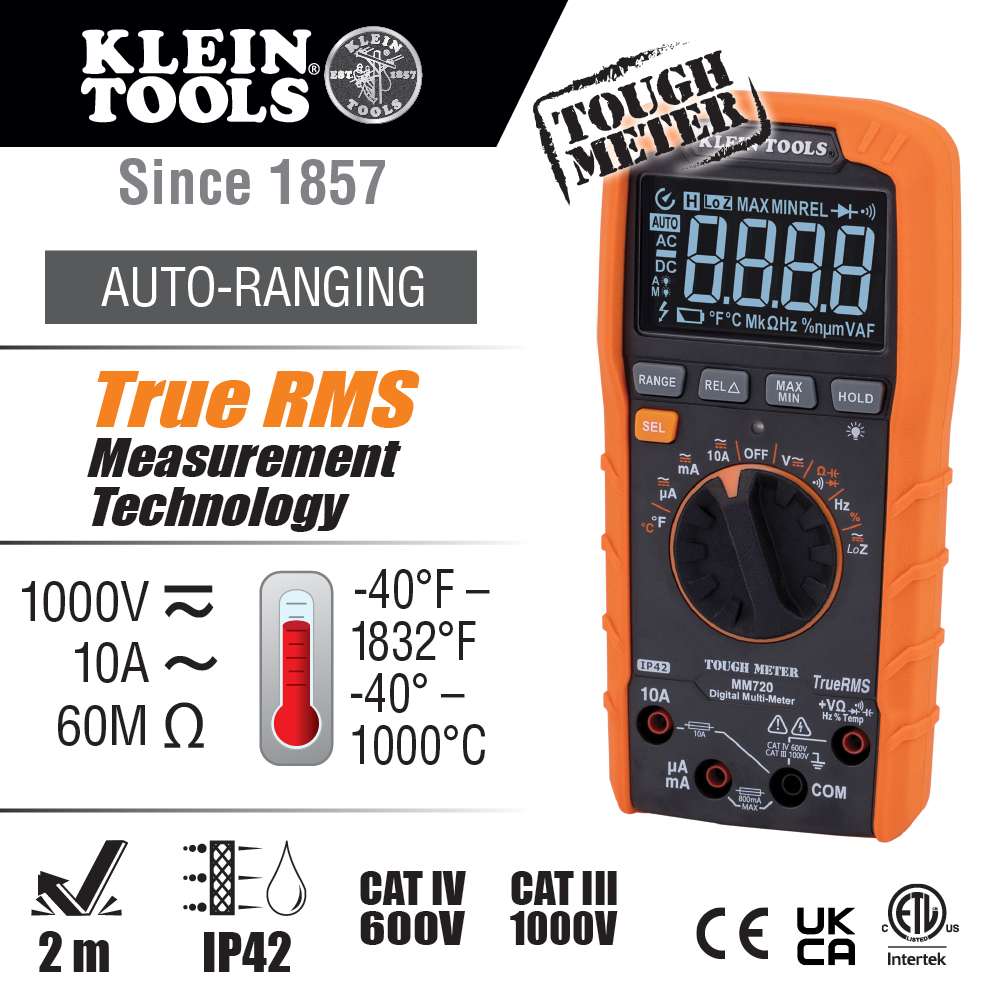

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity

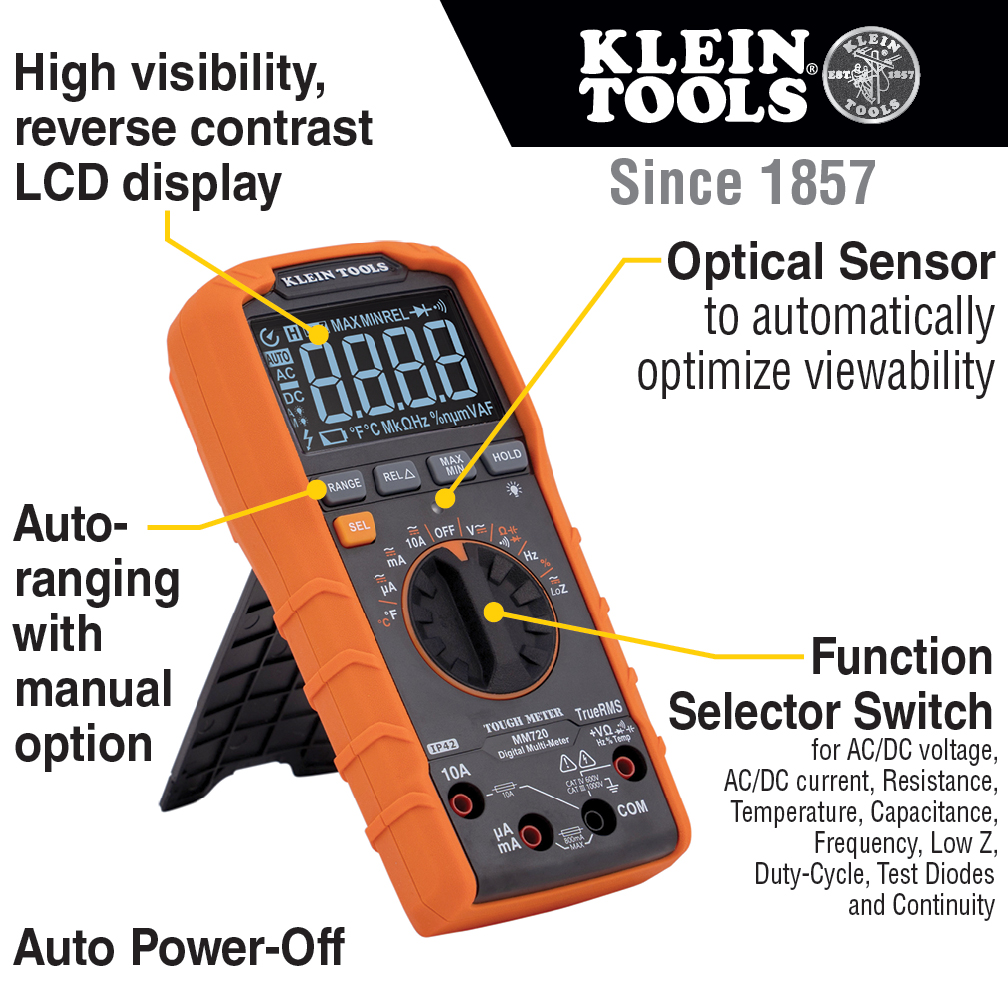

  • High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

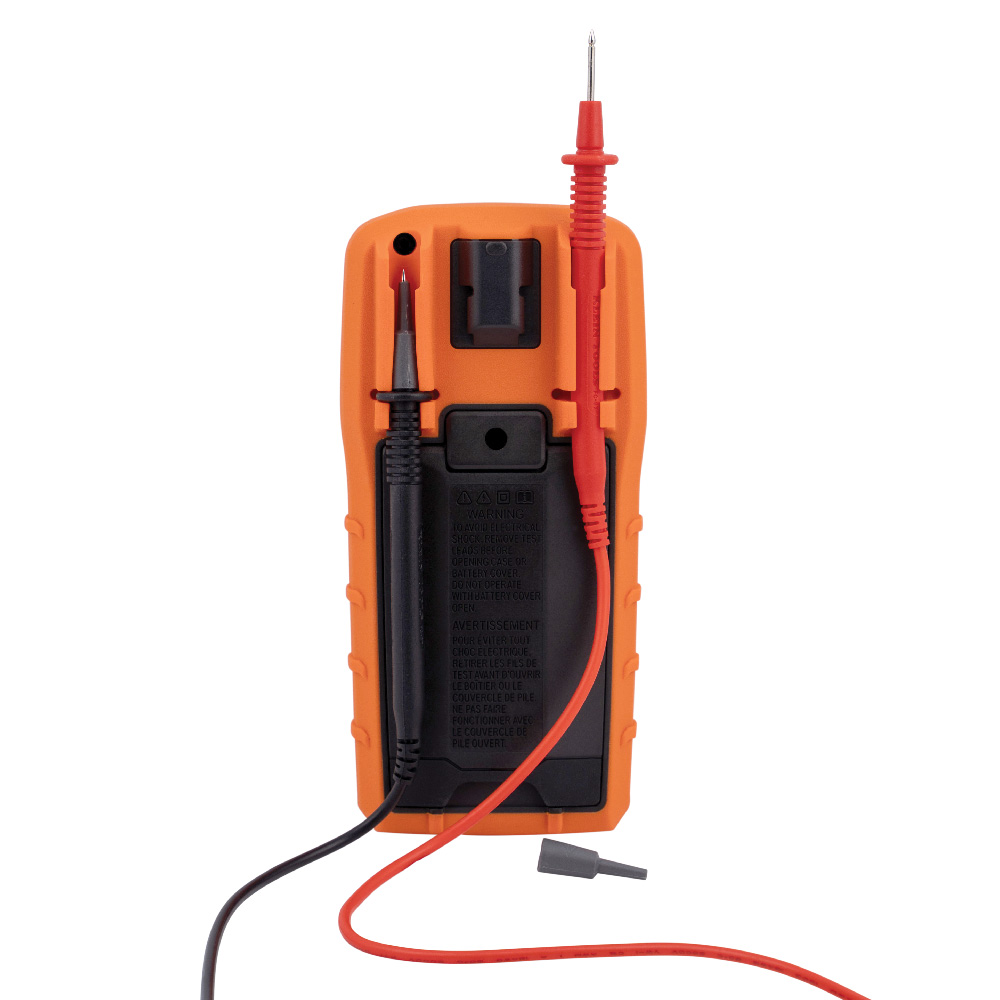

  • Low battery indicator and easily accessible battery and fuse compartment
  • Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42

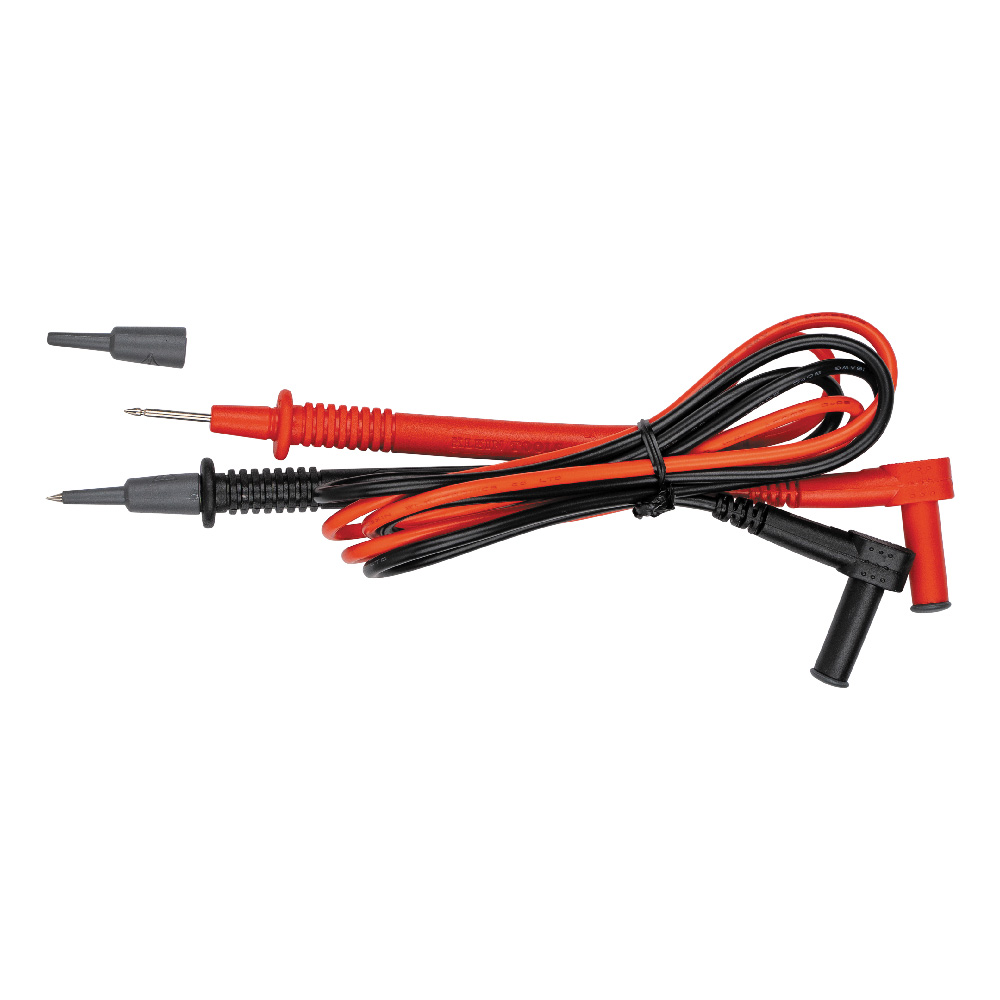

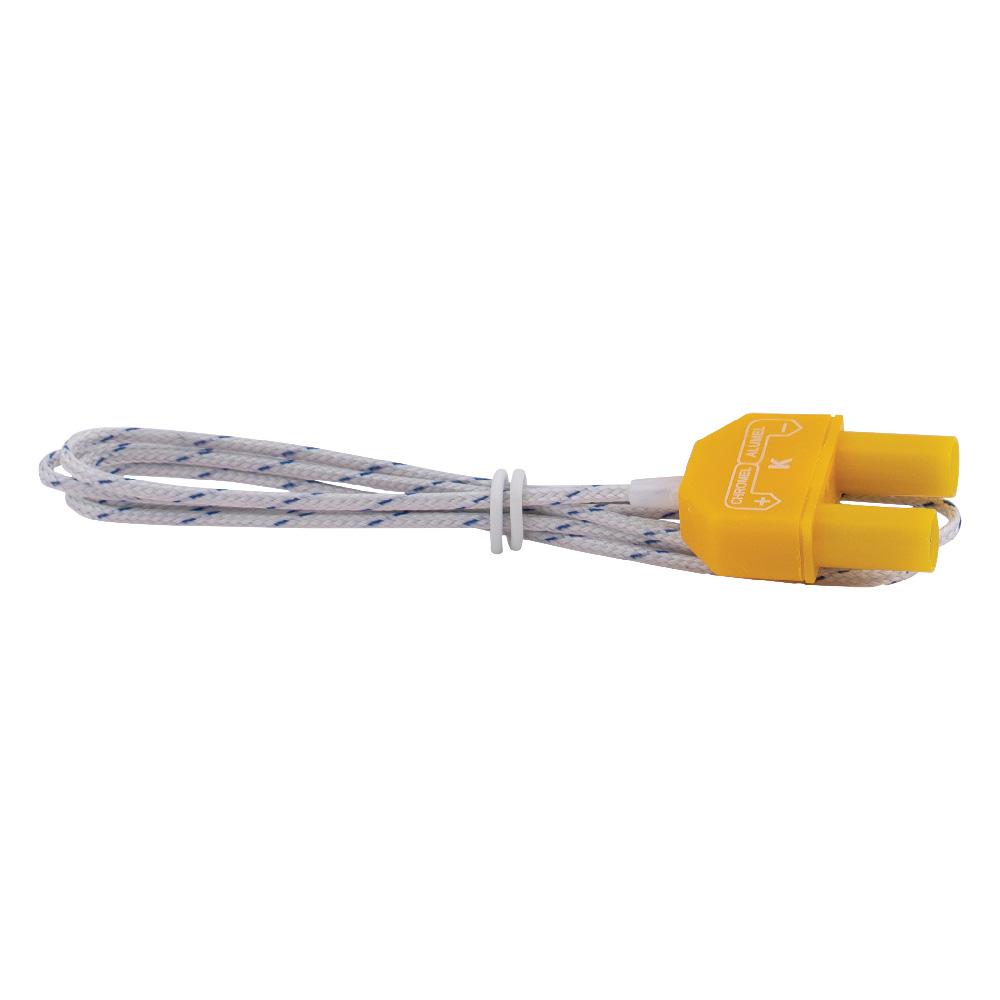

  • Includes carrying pouch, test leads, thermocouple with adapter, and batteries
  • CAT IV 600V Safety Rating
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Images
JPG (High Resolution) mm720_photo.jpg
PNG (Transparent Background) mm720.png

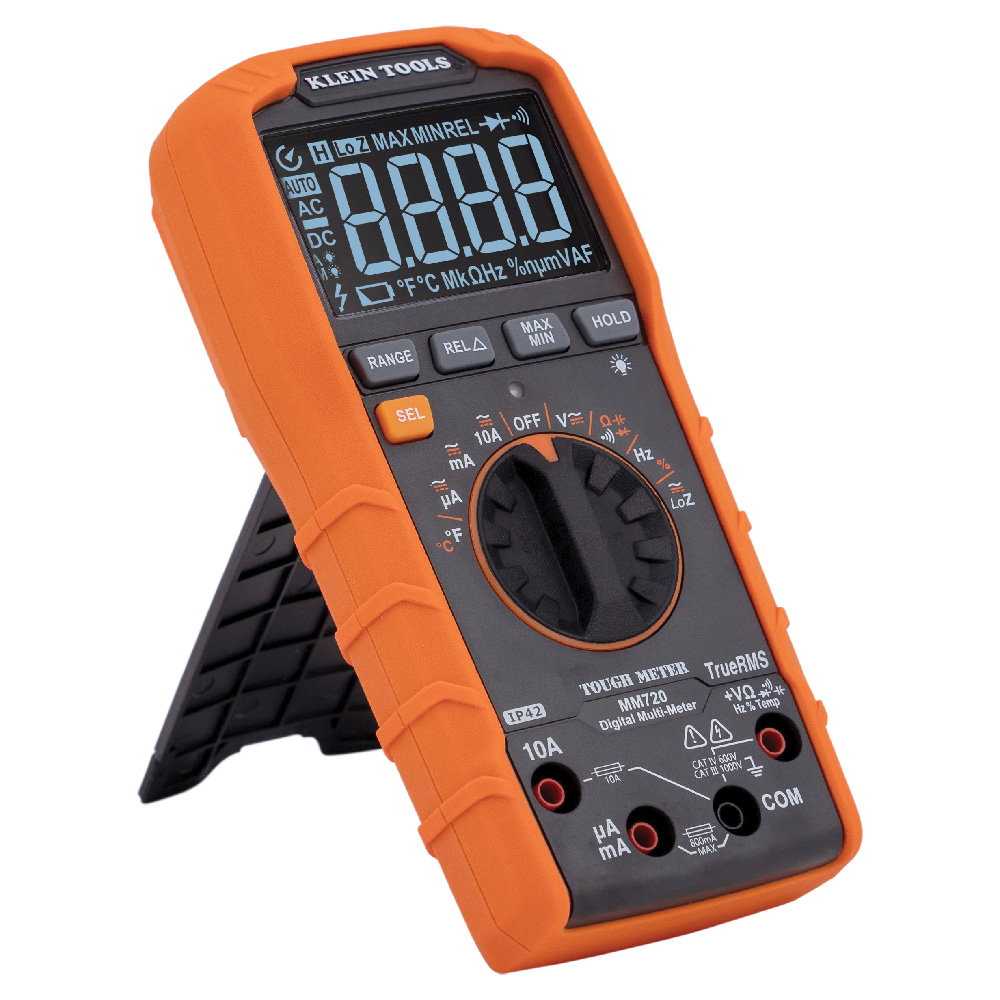

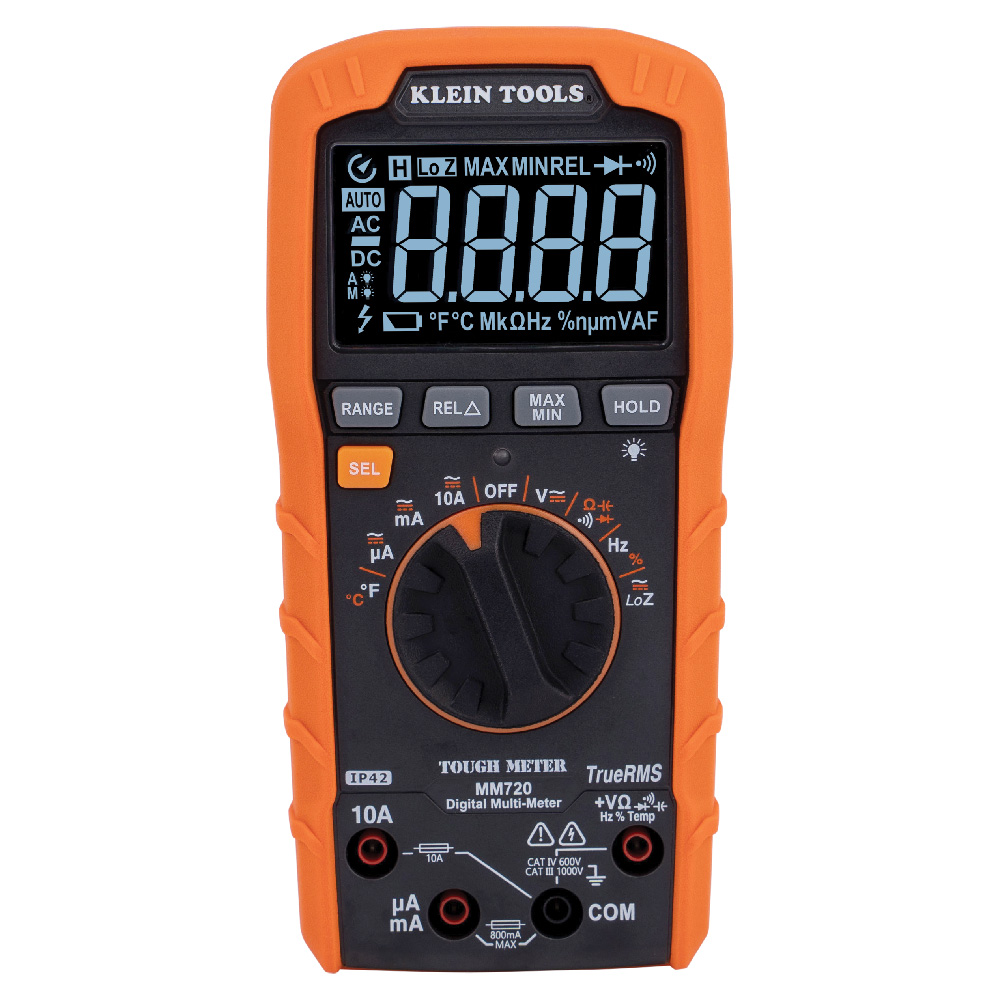

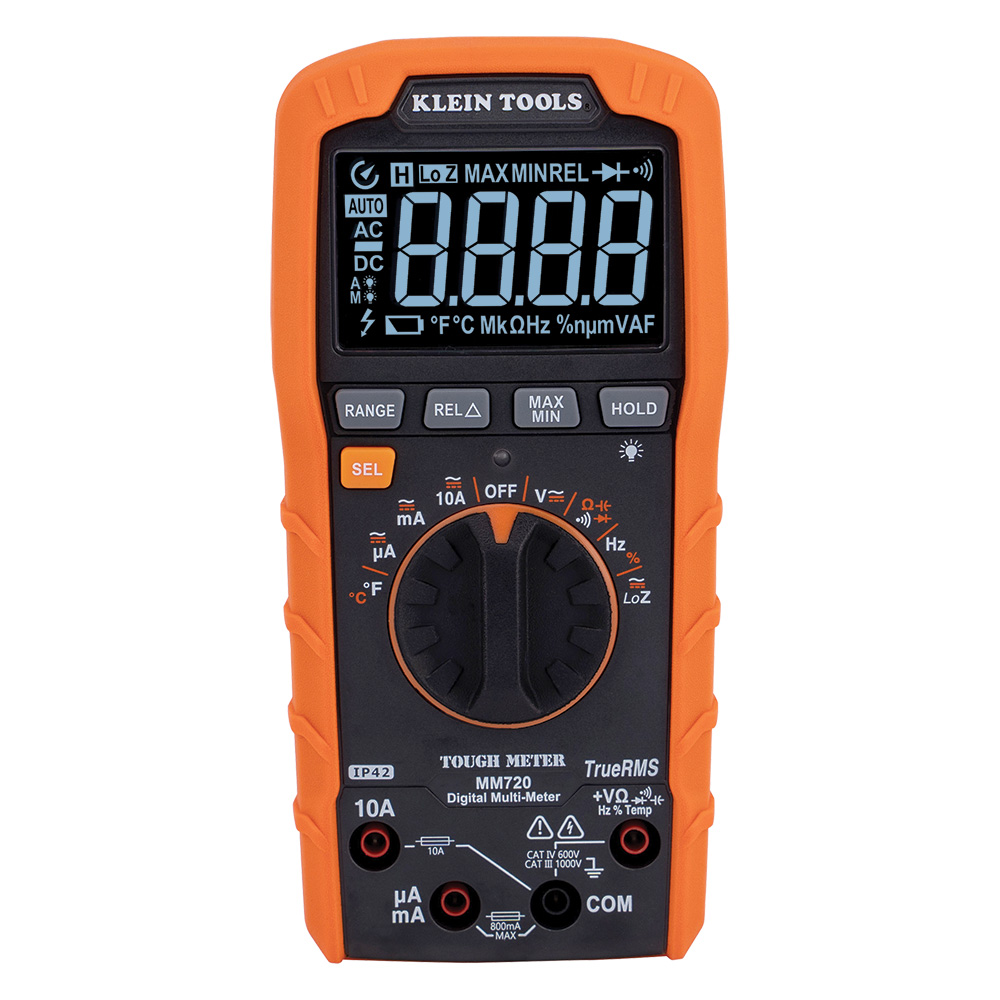

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.

Specifications
Type:
Digital Multimeter
Application:
Testing and Measuring Voltage
Special Features:
High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Material:
ABS, Electrical Components
Batteries:
2 x AAA
Drop Protection:
6.6' (2 m)
Display:
6000 Count LCD
Color:
Orange/Black
Functions:
Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current and 60MΩ Resistance Plus Temperature, Capacitance, Frequency, Duty-Cycle, Diodes and Continuity
Voltage:
1000V AC/DC
Frequency:
1 Hz - 500 KHz
Current:
10A AC/DC
Capacitance:
6000 µF
Ohms (Resistance):
60MΩ
Ingress Protection:
IP42
Standard:
CAT IV 600V; CAT III 1000V
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Included:
Carrying Case, Test Leads, Thermocouple, Batteries, and User Manual
Overall Length:
6.94'' (17.6 cm)
Overall Height:
1.88'' (4.7 cm)
Overall Width:
3.37'' (8.5 cm)
Weight:
12.2 oz (345 g)
UPC:
092644693762
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
