Insulation Resistance Tester

ET600

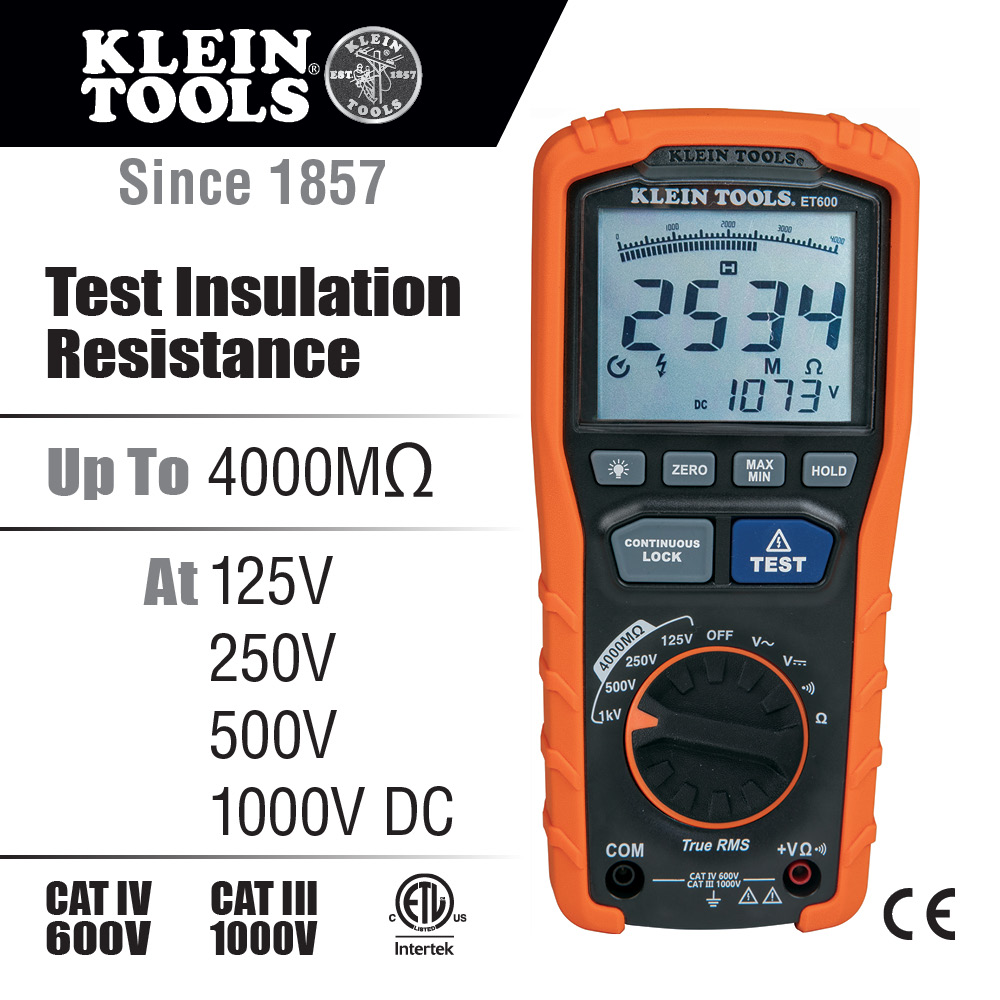

  • Test insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
  • Test and Lock buttons for simple insulation testing
  • Warning alarm and high voltage icon for detection of voltage
  • Measures up to 1000V AC/DC, low resistance, and continuity
  • Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

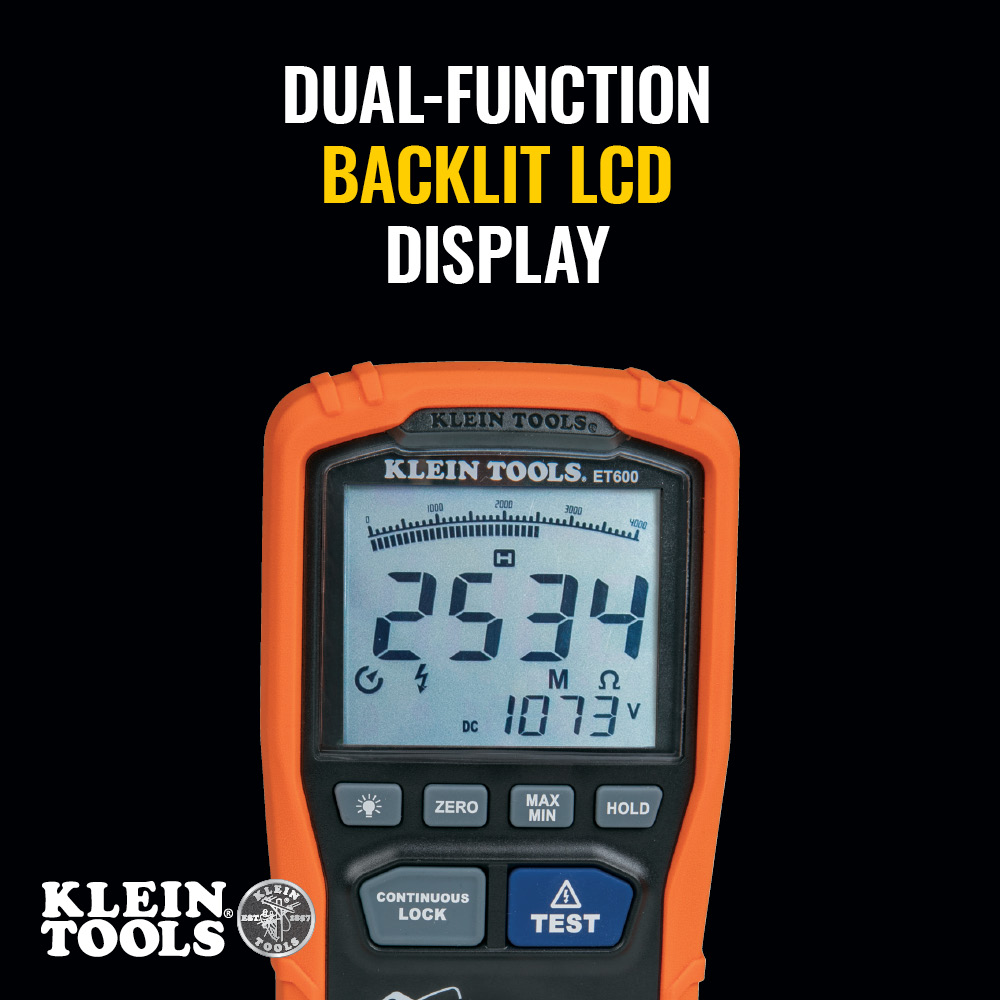

  • Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons

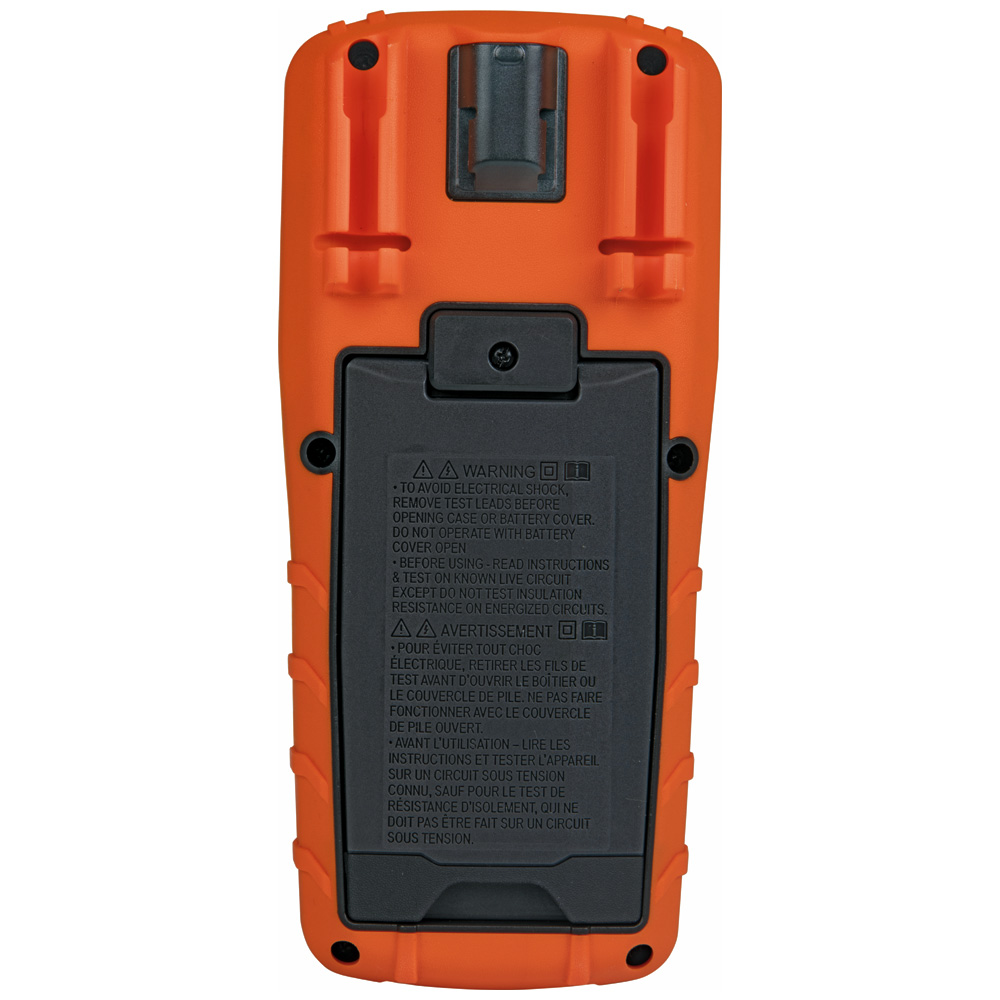

  • Low battery indicator with easily replaceable battery and fuse

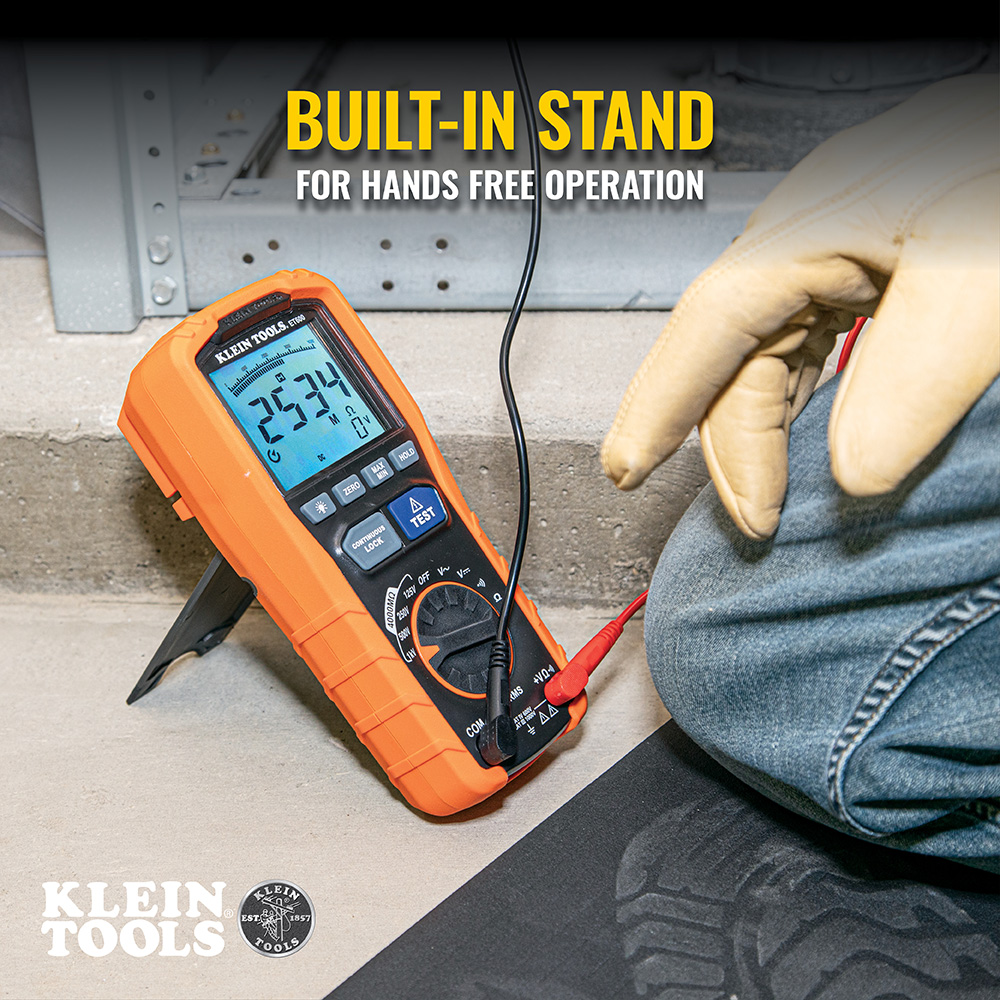

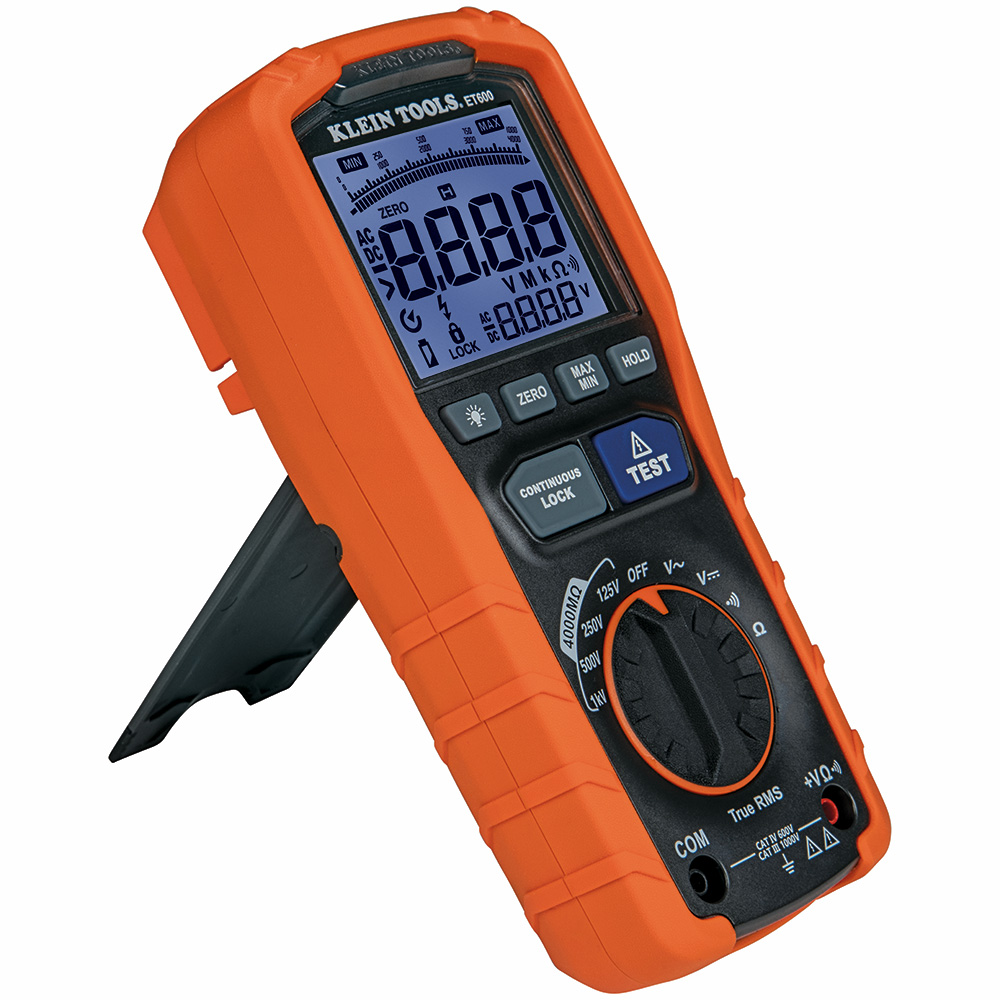

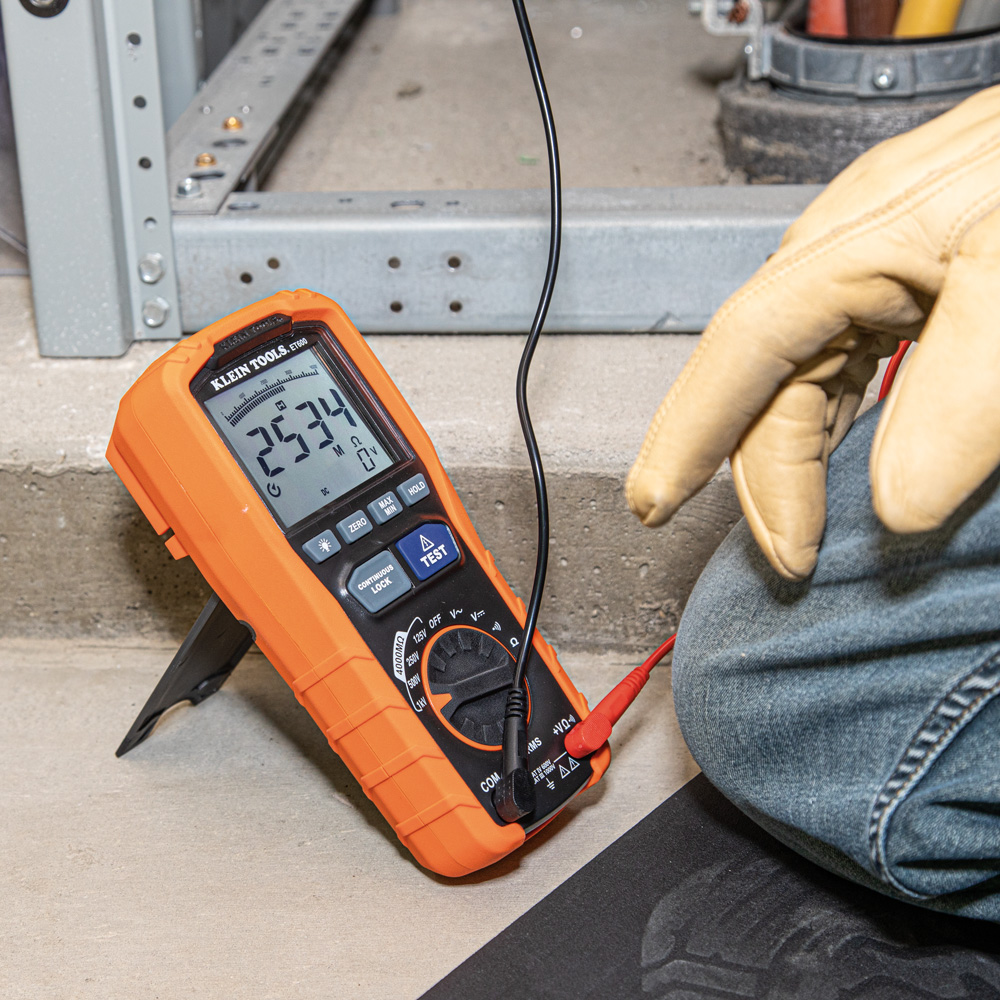

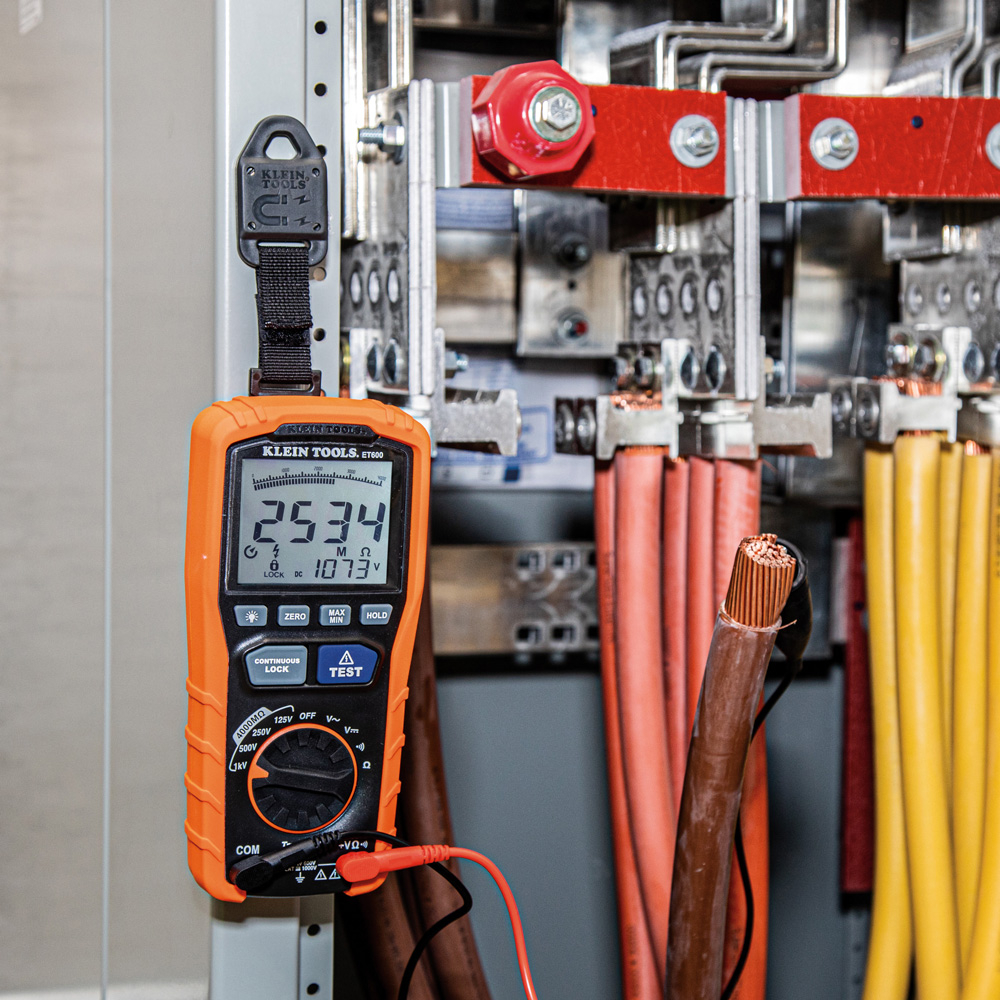

  • Built-in stand and optional magnetic hanger for hands free operation
  • Test verification of conformity to EN61557-1,-2,-4
  • CAT IV 600V and CAT III 1000V safety rating

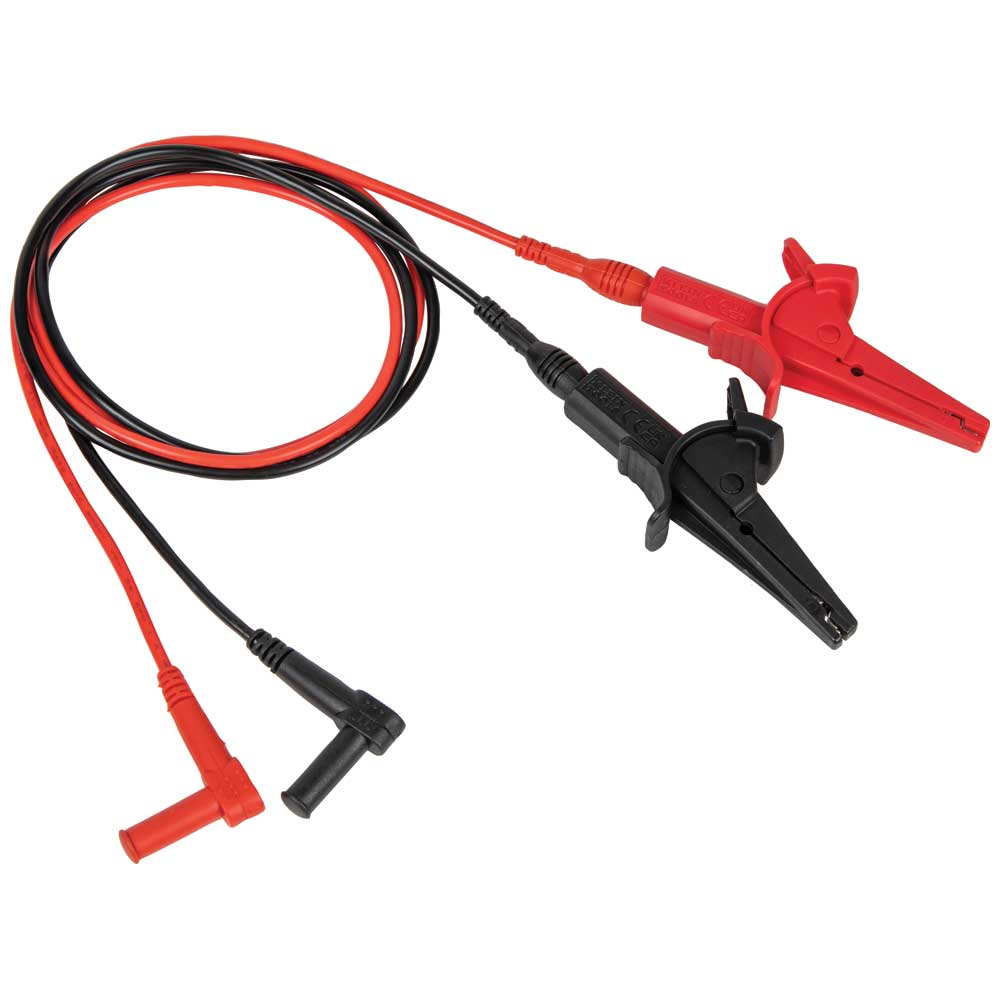

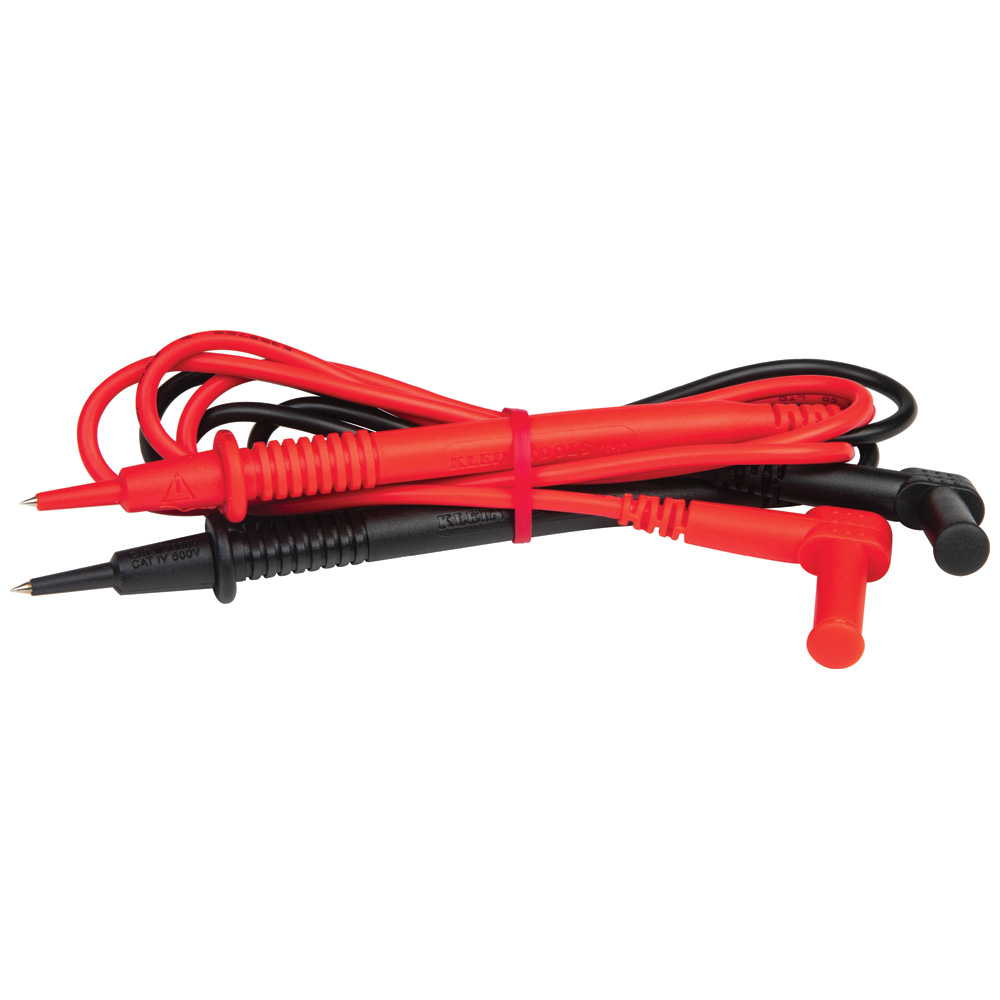

  • Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
Video
Images
JPG (High Resolution) et600_photo1.jpg
PNG (Transparent Background) et600.png

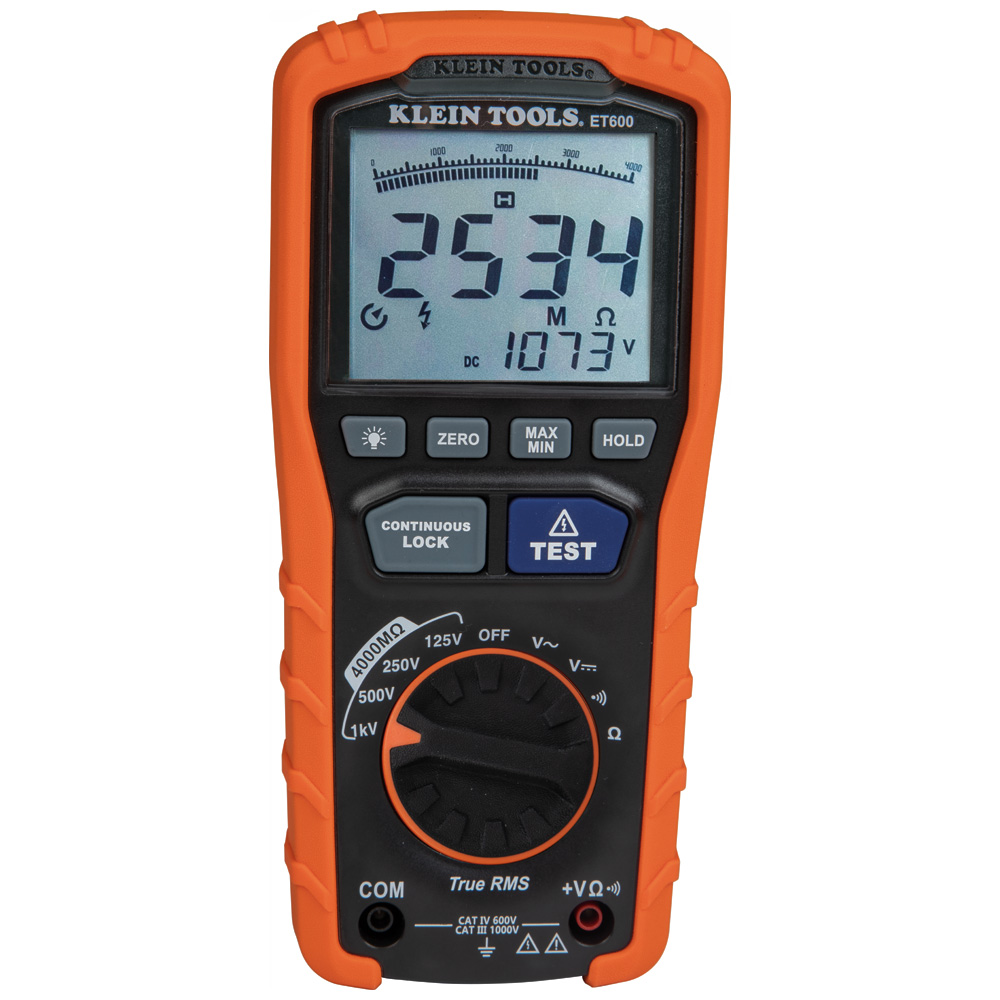

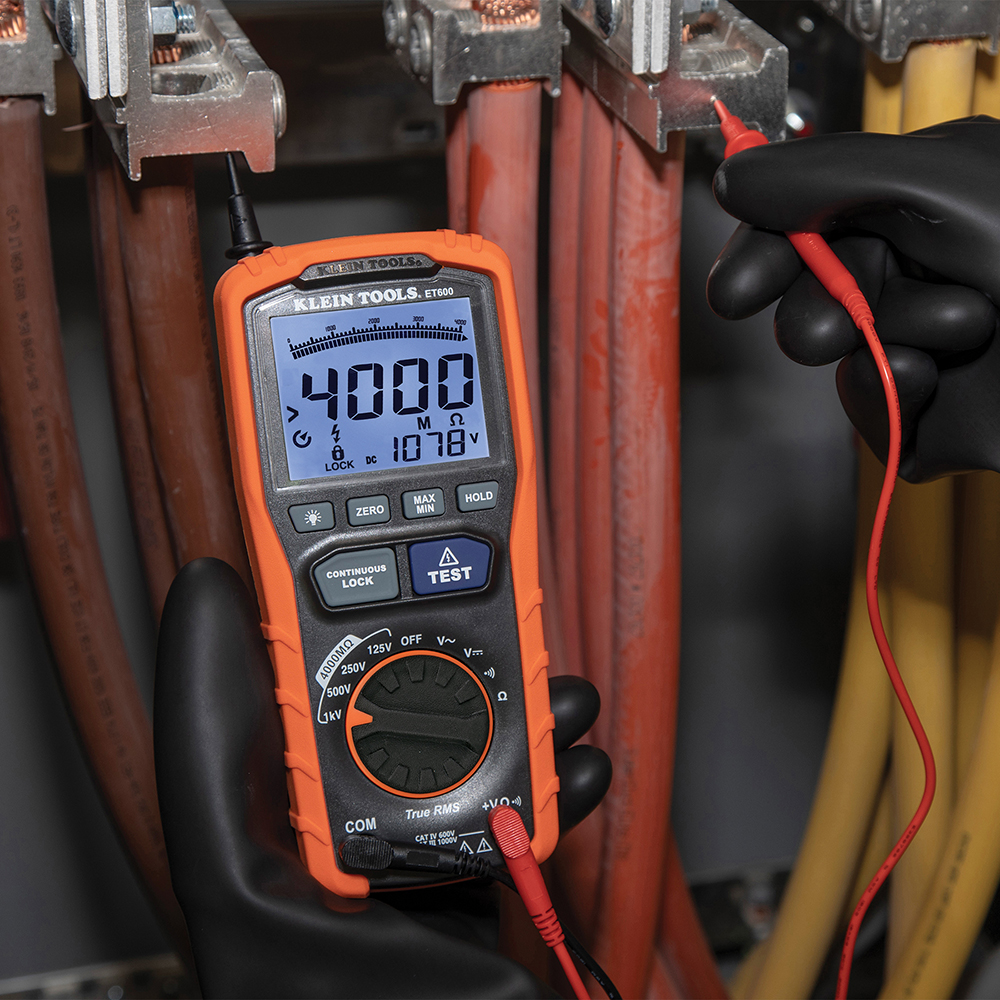

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Specifications
Type:
Insulation Resistance Tester
Application:
Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
Special Features:
Lock Button for Insulation Resistance Testing
Material:
ABS, Polycarbonate, Electrical Components
Batteries:
6 x AA
Display:
4000 Count LCD
Color:
Orange/Black
Functions:
Insulation Resistance, Voltage AC/DC, Low Resistance, and Continuity
Voltage:
125V, 250V, 500V, and 1000V DC; 1000V AC/DC
Ohms (Resistance):
4000Ω
Standard:
CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
Included:

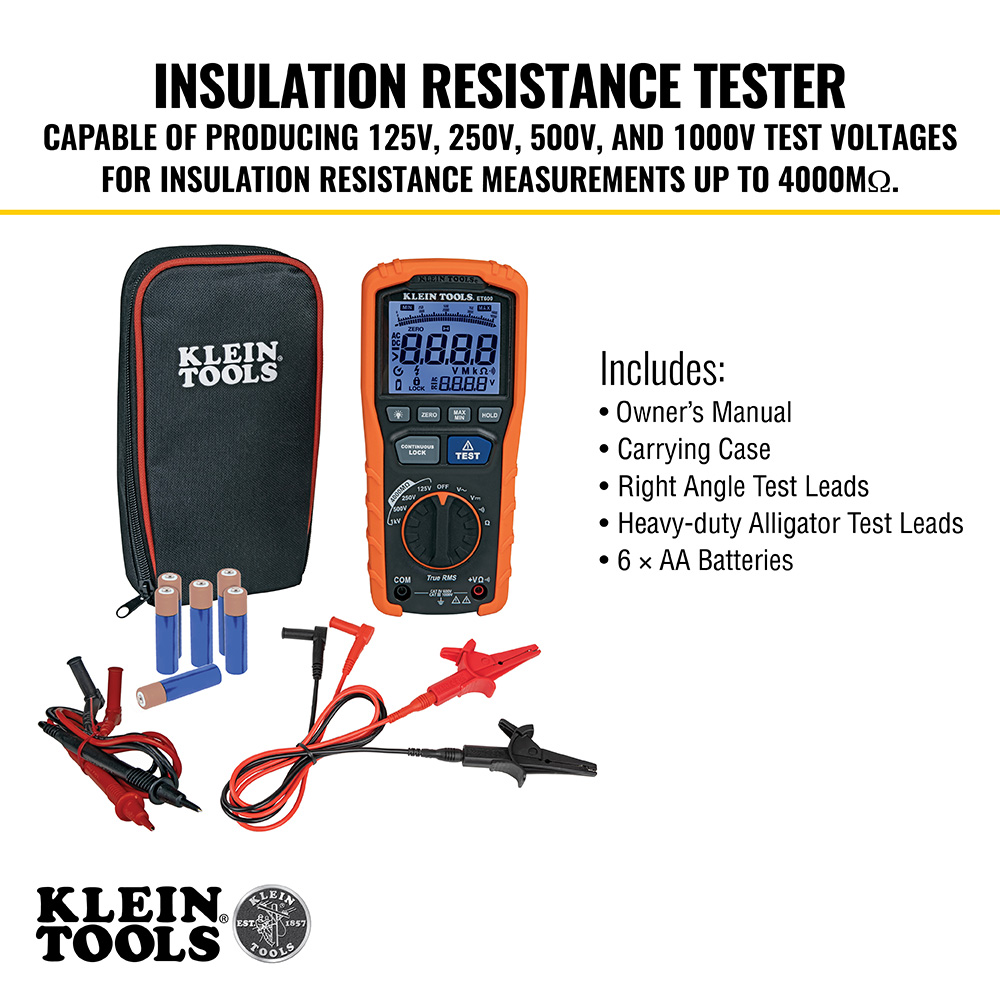

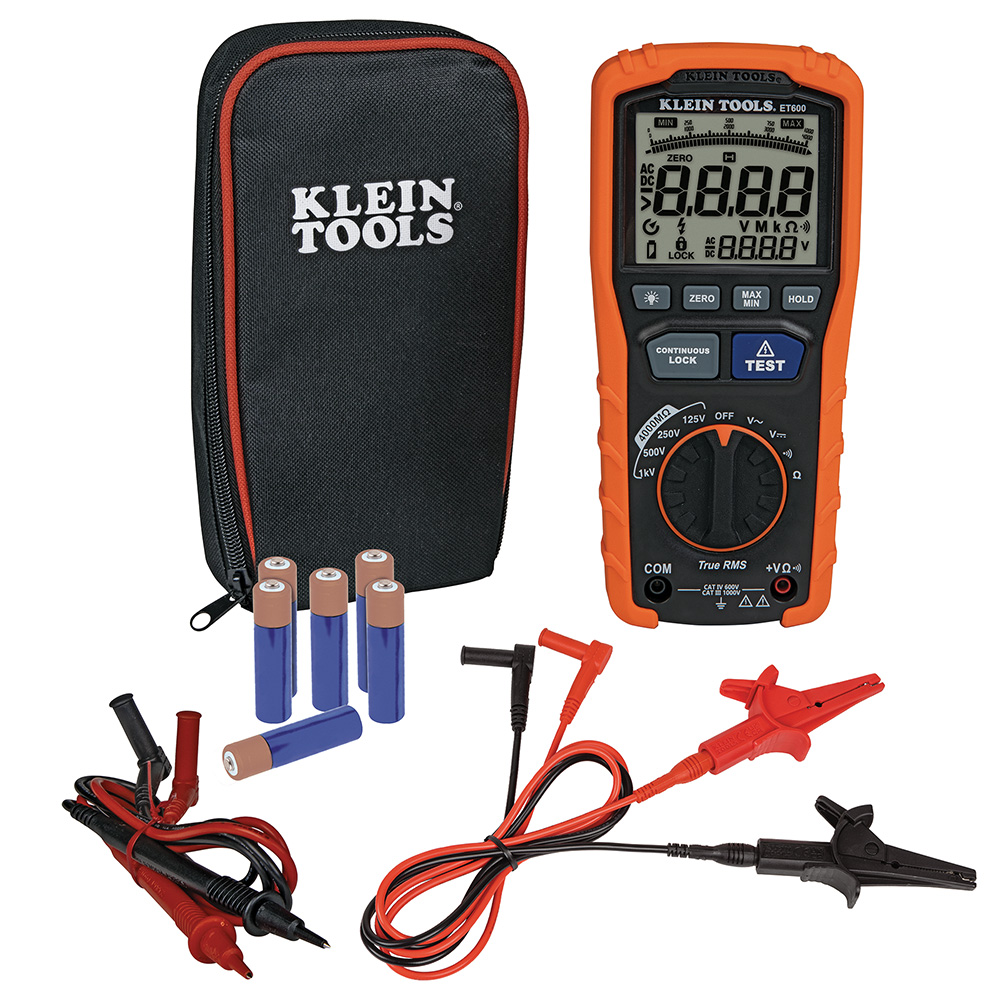

CAT III/CAT IV Safety Rated Test Leads, Heavy-duty Alligator Clip Test Leads, Batteries, Carrying Case, and Instruction Manual
Overall Length:
7.93'' (20.2 cm)
Overall Height:
2.32'' (5.9 cm)
Overall Width:
3.59'' (9.1 cm)
Weight:
1.4 lb (0.6 kg)
UPC:
092644692420
Additional Information
Warnings
  • Read, understand, and follow all warnings and instructions before operating testers.
  • Do not attempt to measure insulation resistance, resistance, or continuity on live circuits.
  • Before each use verify meter operation by measuring known voltage.
  • Do not use meter during electrical storms or in wet weather.
  • Use only CAT III/CAT IV safety rated test leads. Do use the meter if test leads appear to be damaged.
