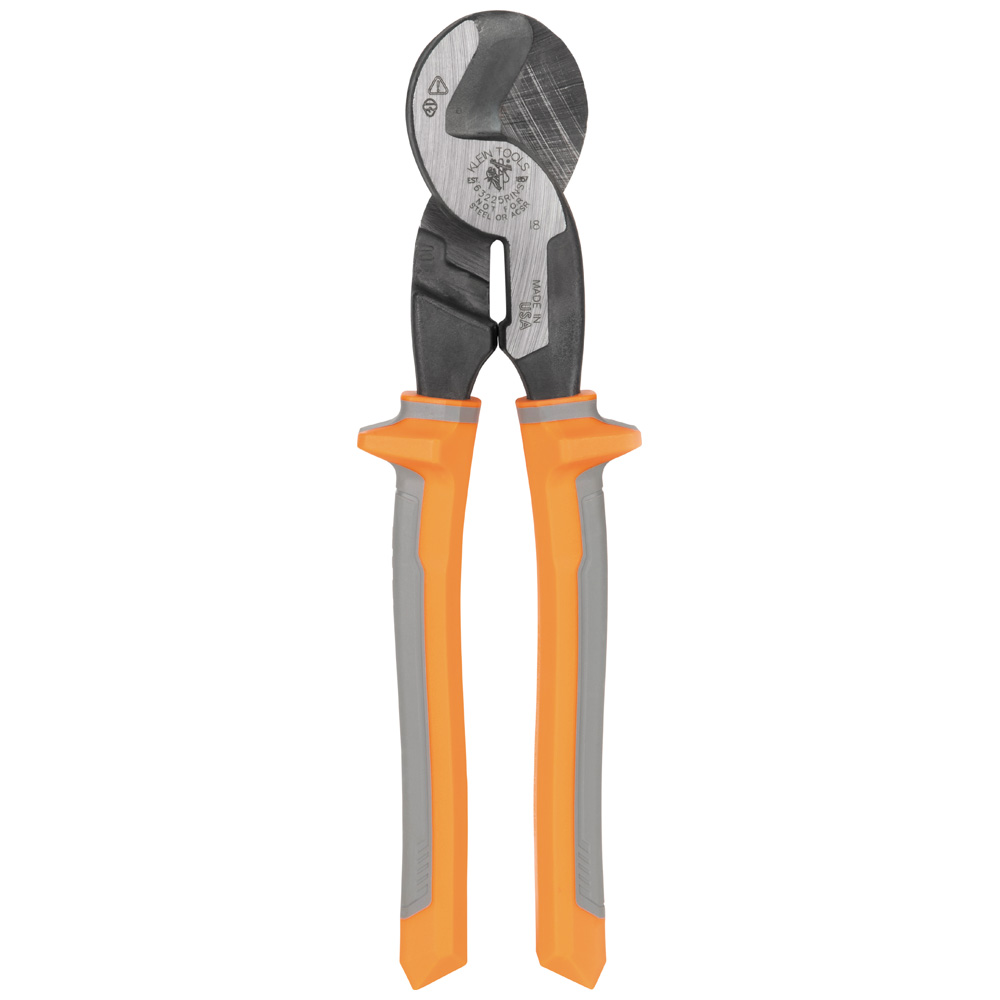

Cable Cutter, Insulated, High-Leverage, 9-Inch

63225RINS

  • Cable cutter cuts 4/0 aluminum, 2/0 soft copper, 100-Pair 24 AWG communications cable
  • Individually tested to meet or exceed ASTM F1506-16 and IEC 60900 standards for insulated tools, and clearly marked with the official 1000V rating symbol
  • Precision, one-hand shearing action perfect for working in confined spaces
  • Integral guards help prevent hand contact with conductive parts
  • Made in USA
  • Two layers of insulation on Cable Cutters provide protection against electric shock

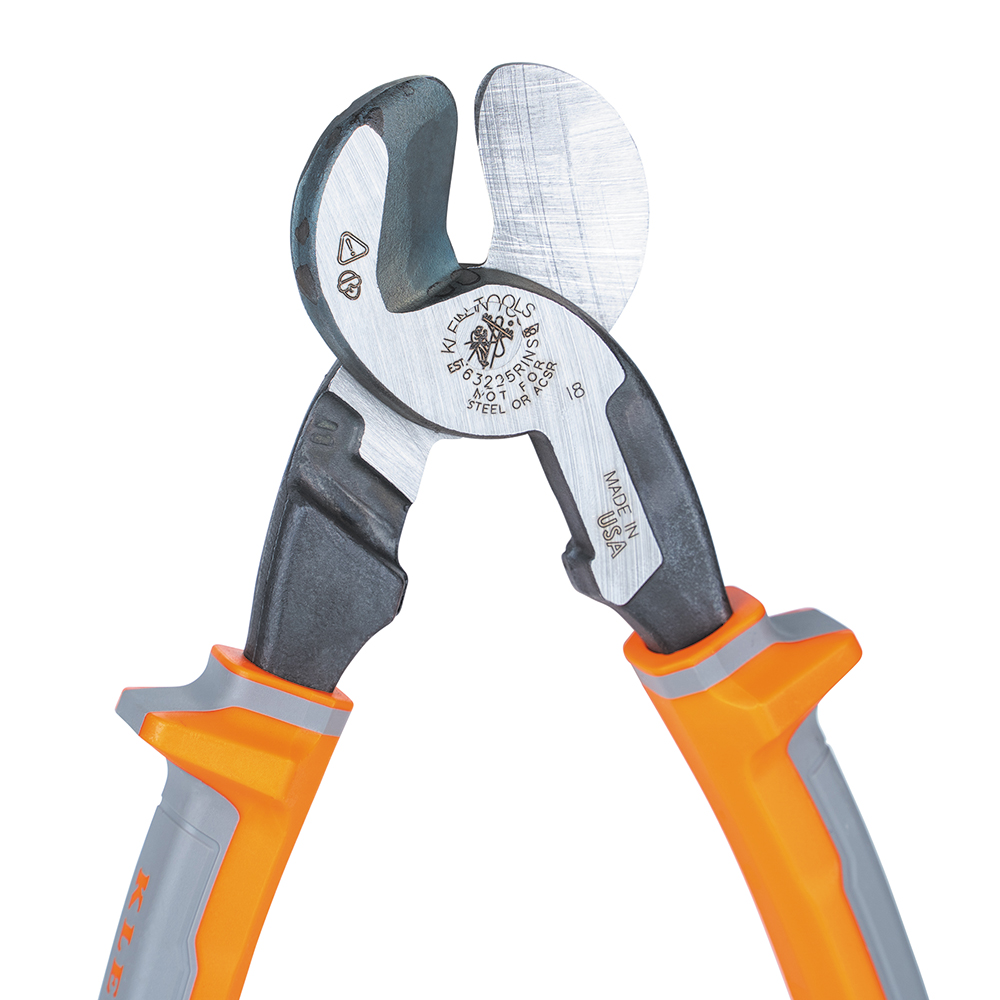

  • Cable-gripping shear-type jaws
Downloads
Images
High-Res JPG 63225rins_photo.jpg

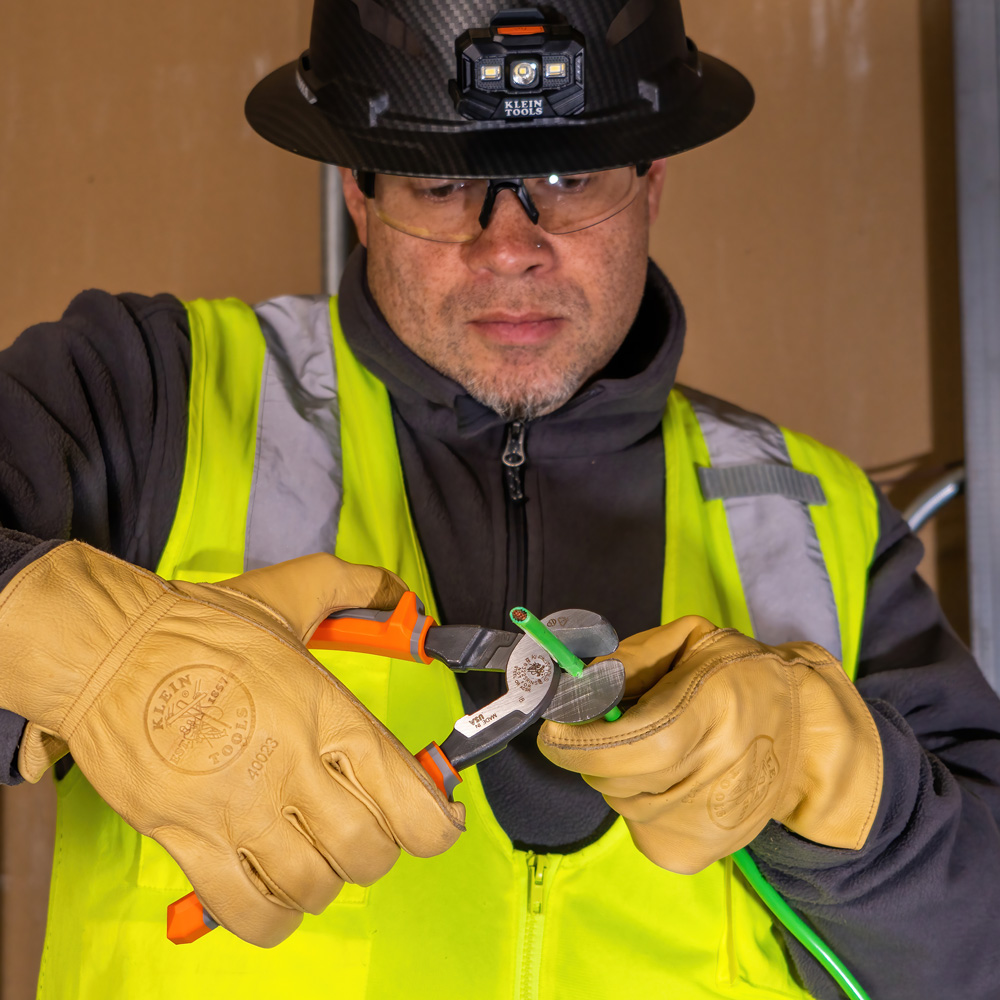

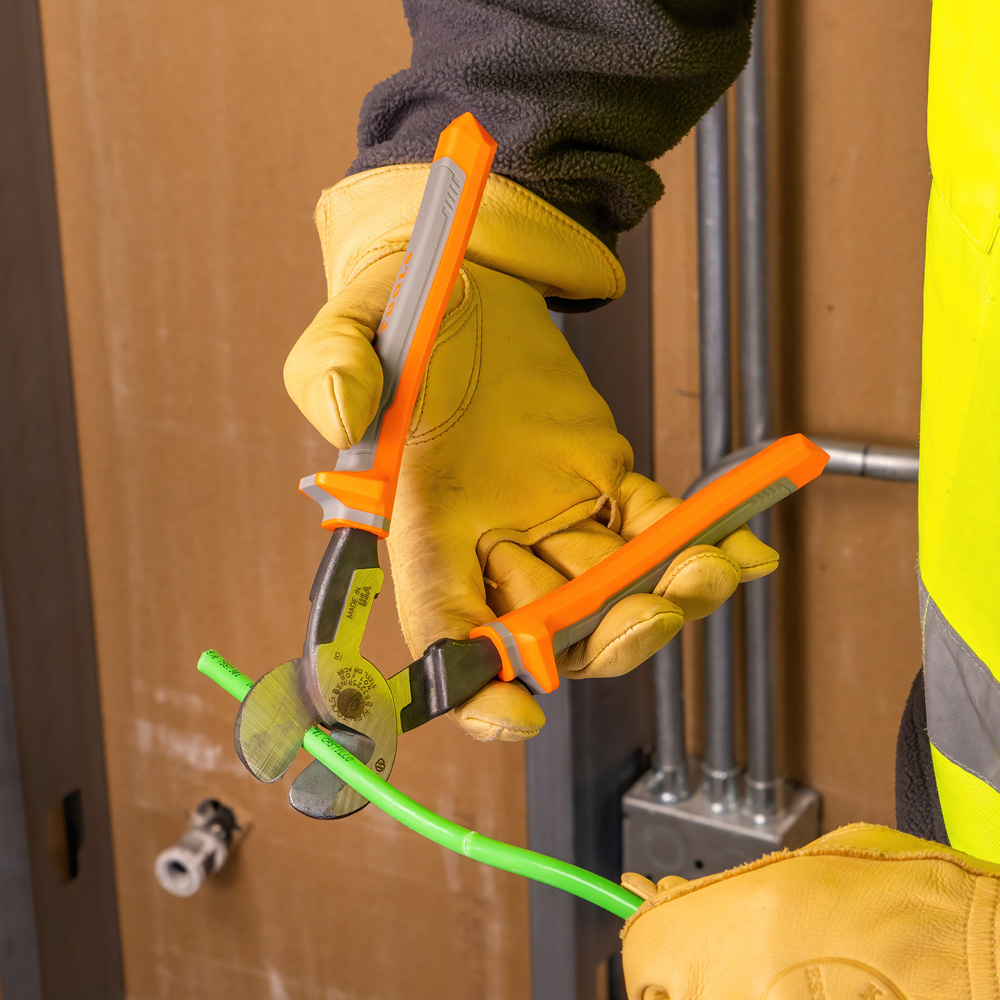

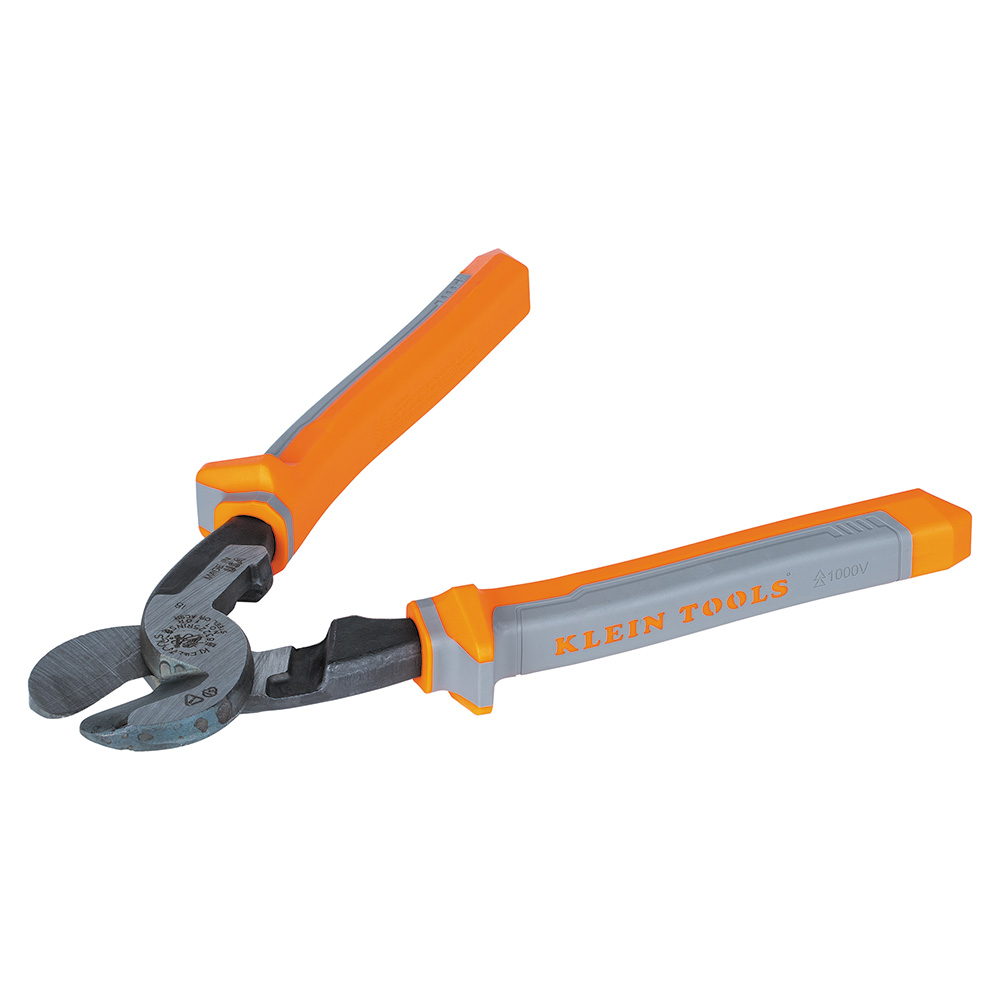

This insulated high-leverage cable cutter cuts aluminum, copper and communications cable. Cable-gripping shear-type jaws and a high-leverage design translate to 30-Percent less force needed to cut as compared to Klein's 63050 model. Through-hardened, not case-hardened, cutting surfaces increase the durability and life of this tool.

Specifications
Type:
Cable Cutter
Cutting Capacity:
4/0 Aluminum, 2/0 Soft Copper, 100-Pair 24 AWG Communications Cable
Jaw Capacity:
1.06'' (2.7 cm)
Application:
For Work Near Energized Sources
Special Features:
High-Leverage; 1000V Rated
Material:
Induction Hardened Steel
Handle Color:
Orange/Light Gray
Handle Finish:
2-Layer Insulation
Handle Length:
5.75'' (14.6 cm)
Handle Material:
Insulated
Insulated:
Yes
Joint Type:
Hot-Riveted
Tether Capable:
No
Standard:
ASTM F1506-16 and IEC 60900
Overall Length:
9.63'' (24.5 cm)
Overall Height:
1.28'' (3.25 cm)
Overall Width:
2.77'' (7.0 cm)
Weight:
1 lb (454 g)
UPC:
092644632297
Additional Information
Warnings
  • DO NOT use to cut steel or ACSR.
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
