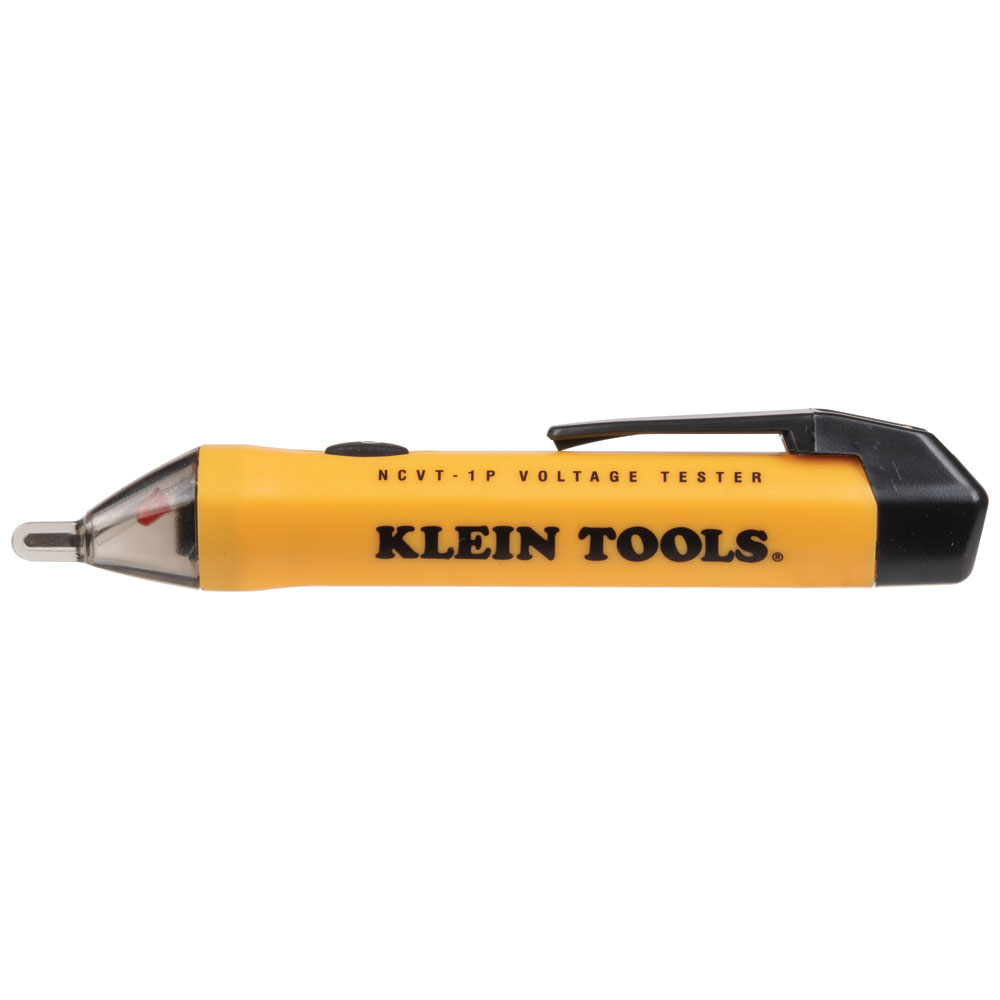

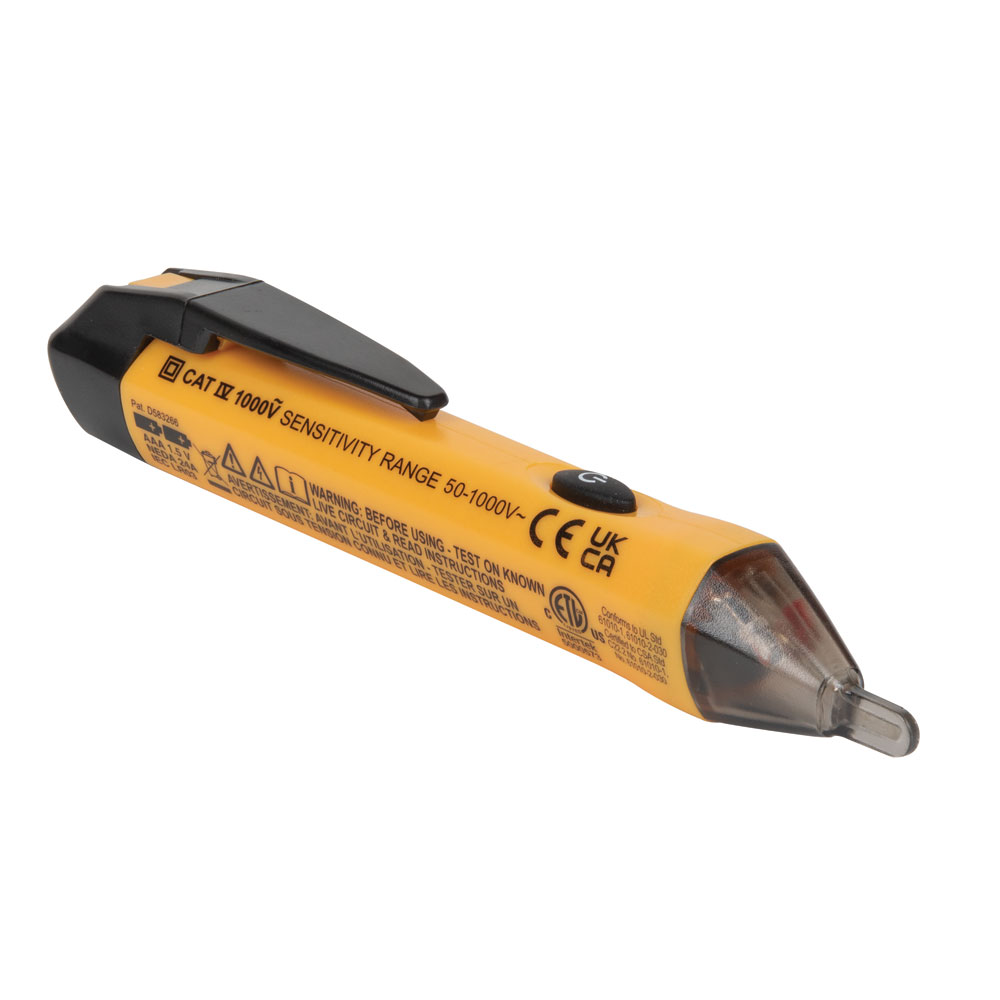

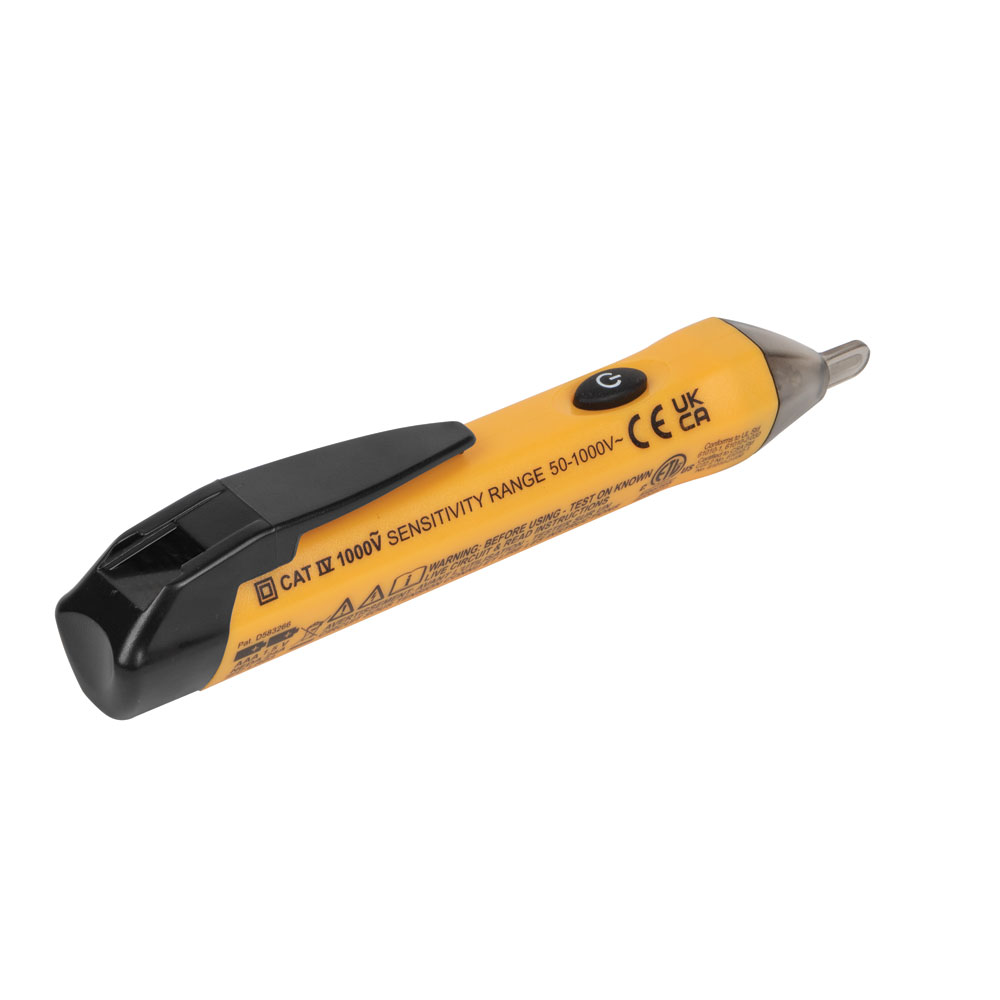

Non-Contact Voltage Tester Pen, 50 to 1000V AC

NCVT1P

  • Voltage Tester provides non-contact detection of voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
  • Volt Pen with high intensity, bright green LED indicates the tester is powered on
  • When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound
  • 50 to 1000 VAC power operating range allows broad application
  • Auto power-off feature conserves and extends battery life
  • CAT IV 1000V safety rating
  • Lightweight compact design with a convenient clip to fit securely in your pocket
  • Product not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode
  • Includes instructions and 2 x AAA 1.5 volt batteries
  • 6.6-Foot (2 m) drop protection
tough-meter Product Icon
drop_protection-2m Product Icon
ce Product Icon
wf_ukca Product Icon
Videos

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. A bright green LED indicates the tester is powered on. It changes to red and an audible tone sounds when voltage is detected.

Specifications
Type:
Voltage Tester Pen
Application:
Non-Contact Detection and Testing of AC Voltage; Not Recommended for Tamper-Resistant Outlets
Special Features:
LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Material:
Polymer Body and Electronic Components
Drop Protection:
6.6' (2 m)
Voltage:
50 - 1000V AC
Frequency:
50 - 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V
Included:
NCVT; Instructions; 2 x AAA 1.5 Volt Batteries
Batteries:
2 x AAA
Overall Length:
5.5'' (14 cm)
Overall Height:
0.72'' (1.8 cm)
Overall Width:
1'' (2.5 cm)
Weight:
0.8 oz (23 g)
UPC:
092644693700
Additional Information
Warnings
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
