Dual Range Non-Contact Voltage Tester with Flashlight, 12 - 1000V AC

NCVT3P

  • Non contact voltage tester's dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Detects voltage with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function
  • Green light indicates no voltage
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • Auto power-off feature conserves and extends battery life
  • CAT IV 1000V rating provides expanded operation and protection
  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
  • 6.6-Foot (2 m) drop protection
  • IP67: Dustproof and waterproof
  • Conforms to CE requirements
  • US Patent 10,073,142, D750,985 and other patents pending
tough-meter Product Icon
Videos

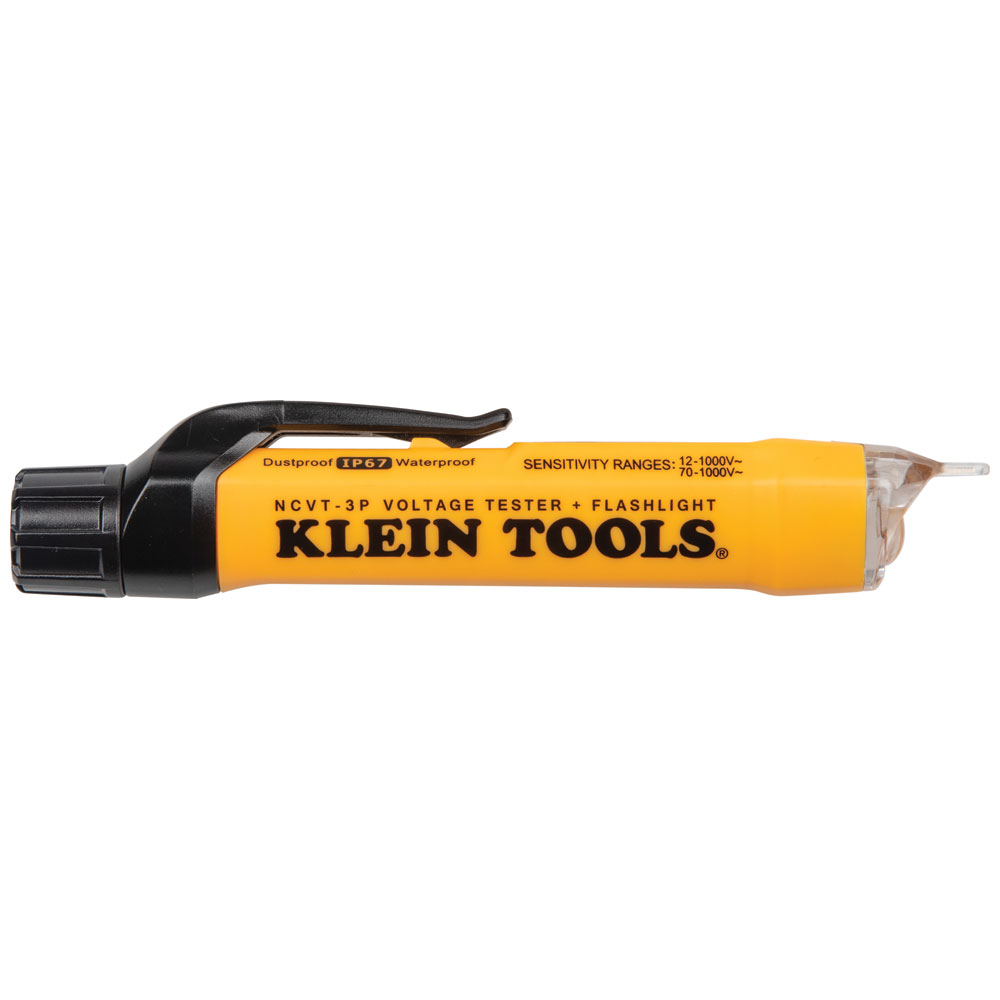

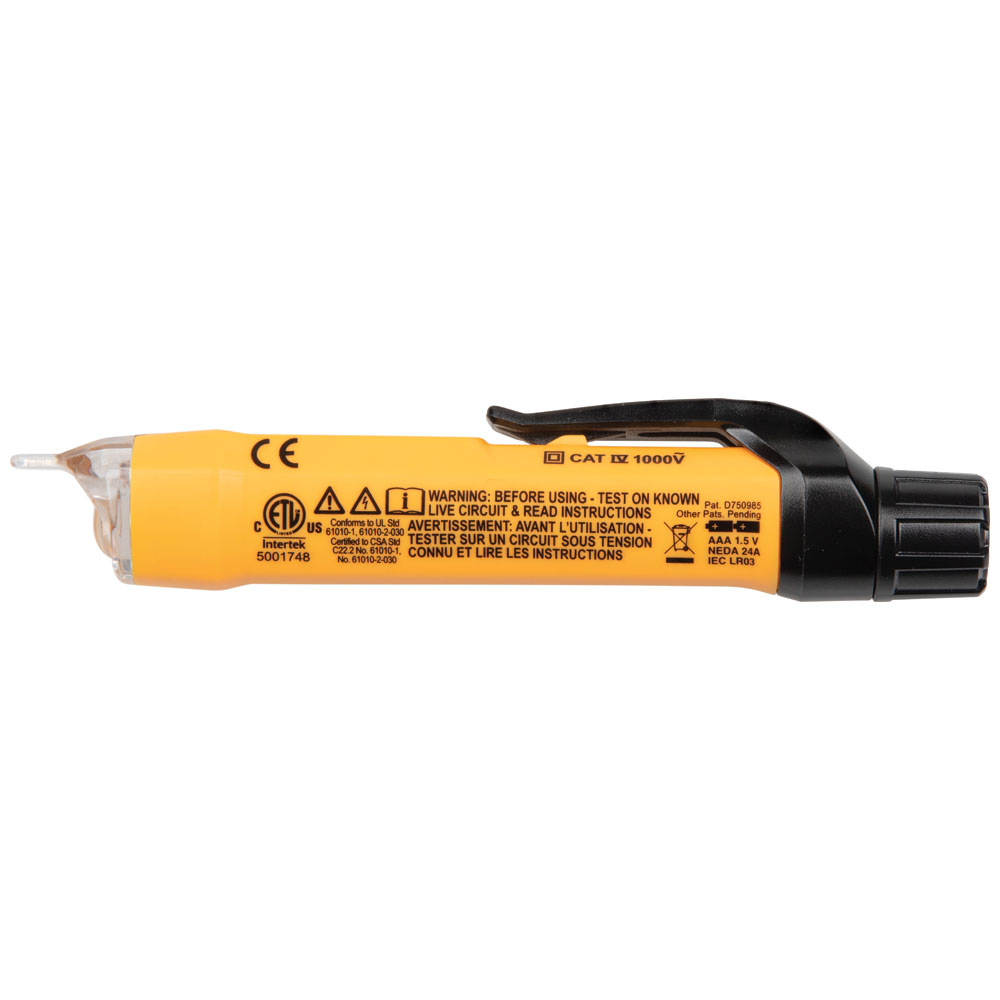

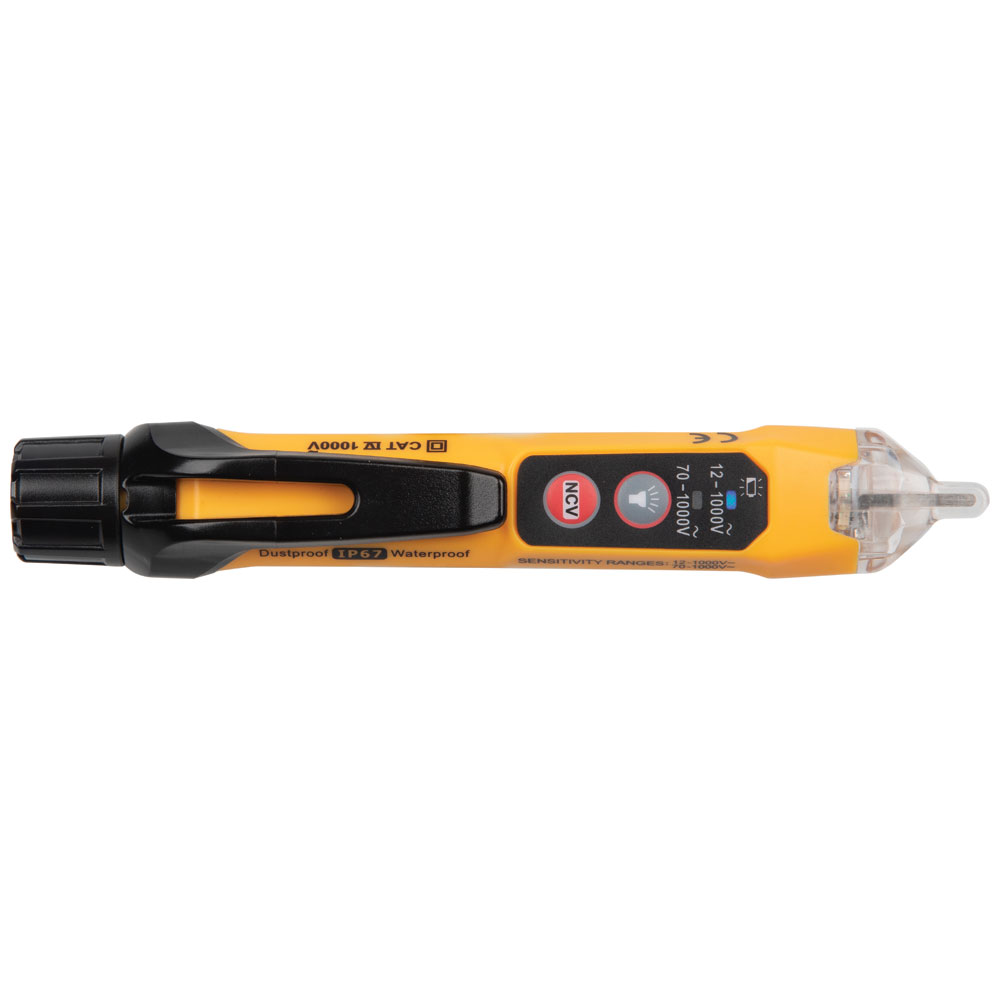

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.

Specifications
Type:
Dual Range with Flashlight
Application:
Non-Contact Detection and Testing of AC Voltage
Special Features:
Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Material:
Polycarbonate
Drop Protection:
6.6' (2 m)
Voltage:
Range 1: 12 – 1000V AC; Range 2: 70 – 1000V AC
Frequency:
50 - 500 Hz
Pollution Degree:
2
Ingress Protection:
IP67: Dustproof and Waterproof
Standard:
CAT IV 1000V
Included:
NCVT; Batteries
Batteries:
2 x AAA
Battery Life:
125 hr
Overall Length:
5.70'' (14.5 cm)
Overall Height:
0.93'' (2.4 cm)
Overall Width:
1.09'' (2.8 cm)
Weight:
1.9 oz (51.0 g)
UPC:
092644693236
Additional Information
Warnings
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
