Dual Range NCVT with Receptacle Tester Electrical Test Kit


  • Kit contains a non-contact voltage tester and receptacle tester
  • Dual range NCVT-2P automatically detects and indicates low voltage range and standard voltage (48-1000V AC)
  • NCVT-2P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
  • NCVT-2P is a lightweight, compact tool with pocket clip for convenient storage and quick access
  • CAT IV 1000 Volt rating provides expanded operation and protection
  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress for the NCVT-2P

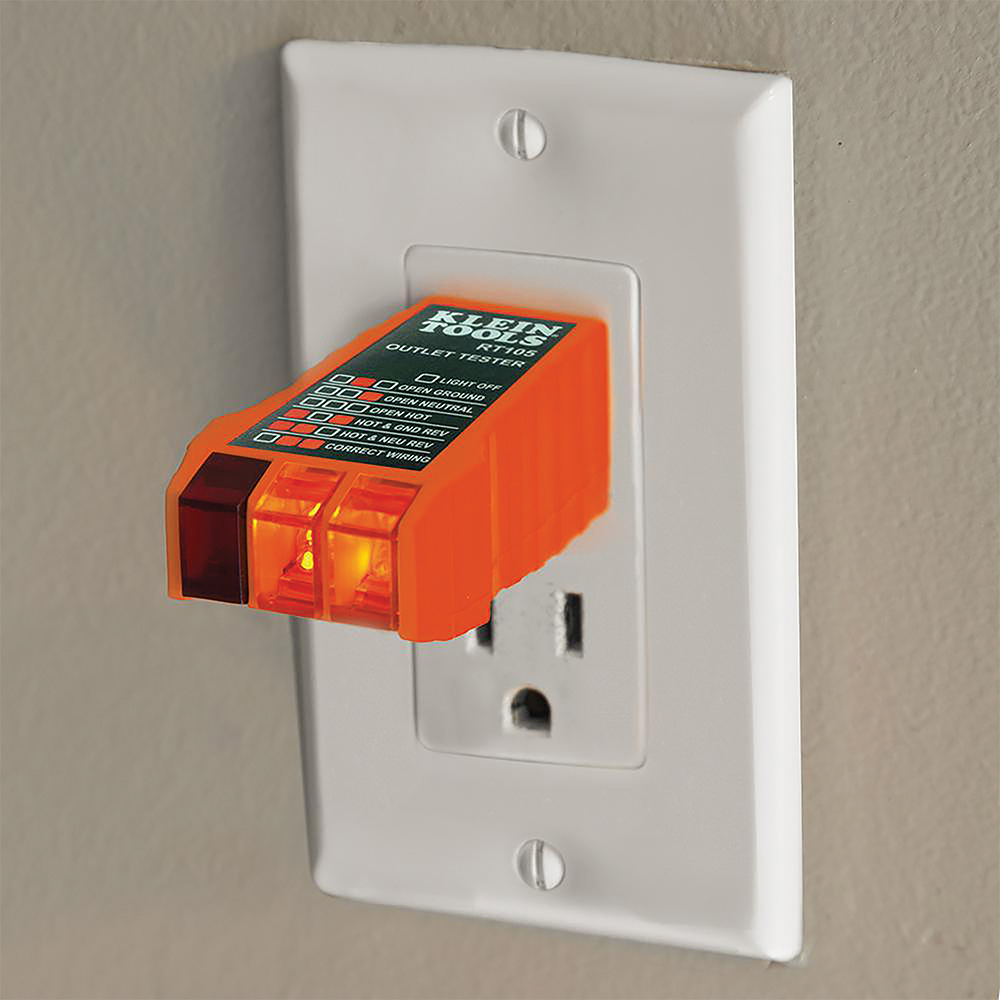

  • Receptacle Tester is designed to detect the most common wiring problems in standard receptacles
  • Conditions the Receptacle Tester indicates: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed

The NCVT2PKIT from Klein Tools includes a dual-range, non-contact voltage tester as well as a receptacle tester. The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The receptacle tester will troubleshoot standard 120V AC grounded outlets.

Dual Range for NCVT-2P
Detects and Indicates Low Voltage and Standard Voltage; Detects Most Common Wiring Problems in Standard Receptacles
Special Features:
Two Distinctive Modes on NCVT-2P: 70 to 1000V AC and 12 to 1000V AC
Drop Protection:
NCVT2P: 6.6' (2 m); RT105: 3.3' (1 m)
12 - 1000V AC
50 - 500 Hz
Pollution Degree:
NCVT-2P: 2
Ingress Protection:
NCVT-2P: CAT IV 1000V; RT105: CAT II 125V
NCVT2P Dual Range Non-Contact Voltage Tester; RT105 Receptacle Tester; Instructions; and All Required Batteries
2 x AAA
Battery Life:
142 hr
Overall Length:
5.8'' (14.8 cm)
Overall Height:
1.1'' (2.8 cm)
Overall Width:
0.9'' (2.2cm)
1.7 oz (48 g)
Additional Information
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
