Klein Tools - For Professionals Since 1857

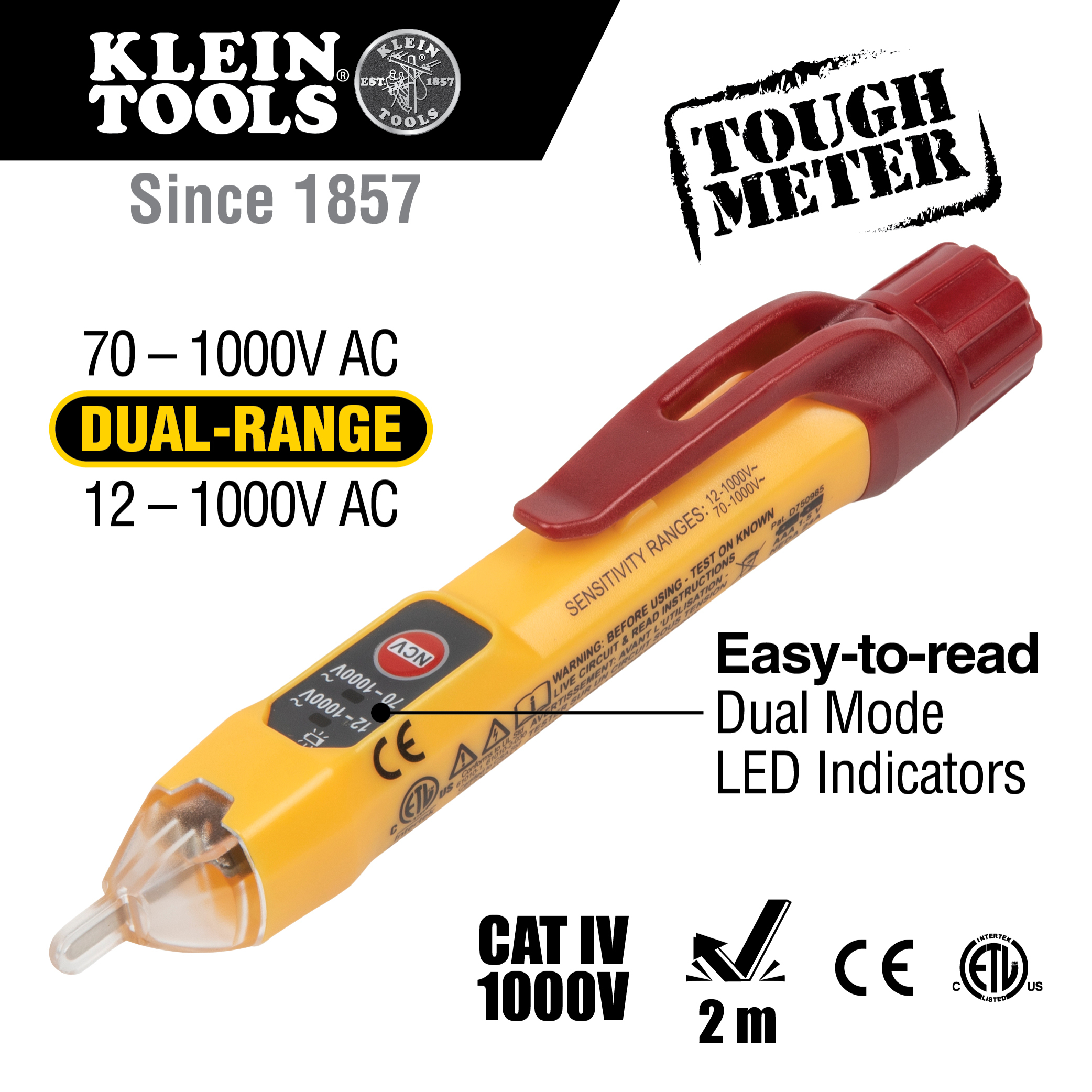

Dual Range Non-Contact Voltage Tester 12 - 1000V AC

NCVT2P

  • Dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Detects voltage with simultaneous visual and audible voltage indicators
  • Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
  • Green light indicates no voltage
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • Auto power-off feature conserves and extends battery life
  • CAT IV 1000 V rating provides expanded operation and protection

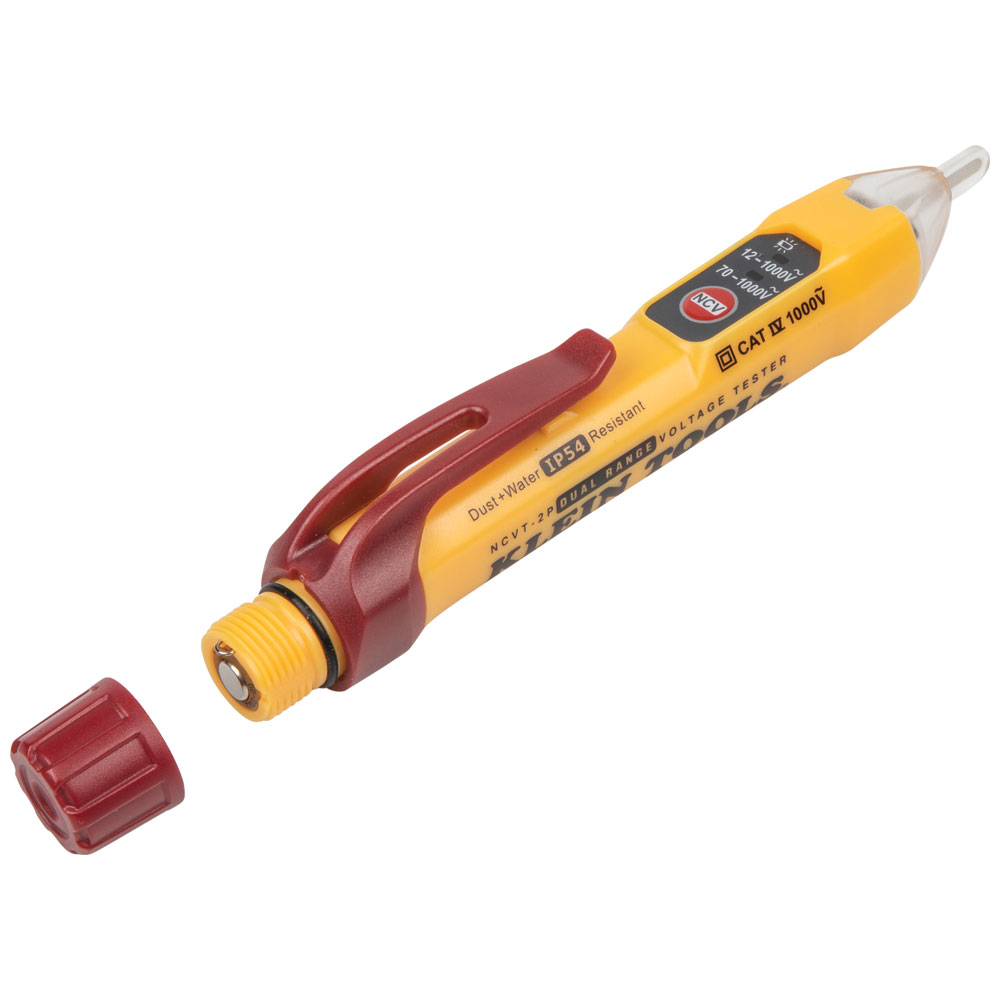

  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
  • 6.6-Foot (2 m) drop protection
  • IP54: Dustproof and waterproof
  • Conforms to CE requirements
  • US Patent 10,073,142, D750,985 and other patents pending
TOUGH-METER Product Icon
Video
Images
JPG (High Resolution) ncvt2p_photo.jpg
PNG (Transparent Background) ncvt2p.png

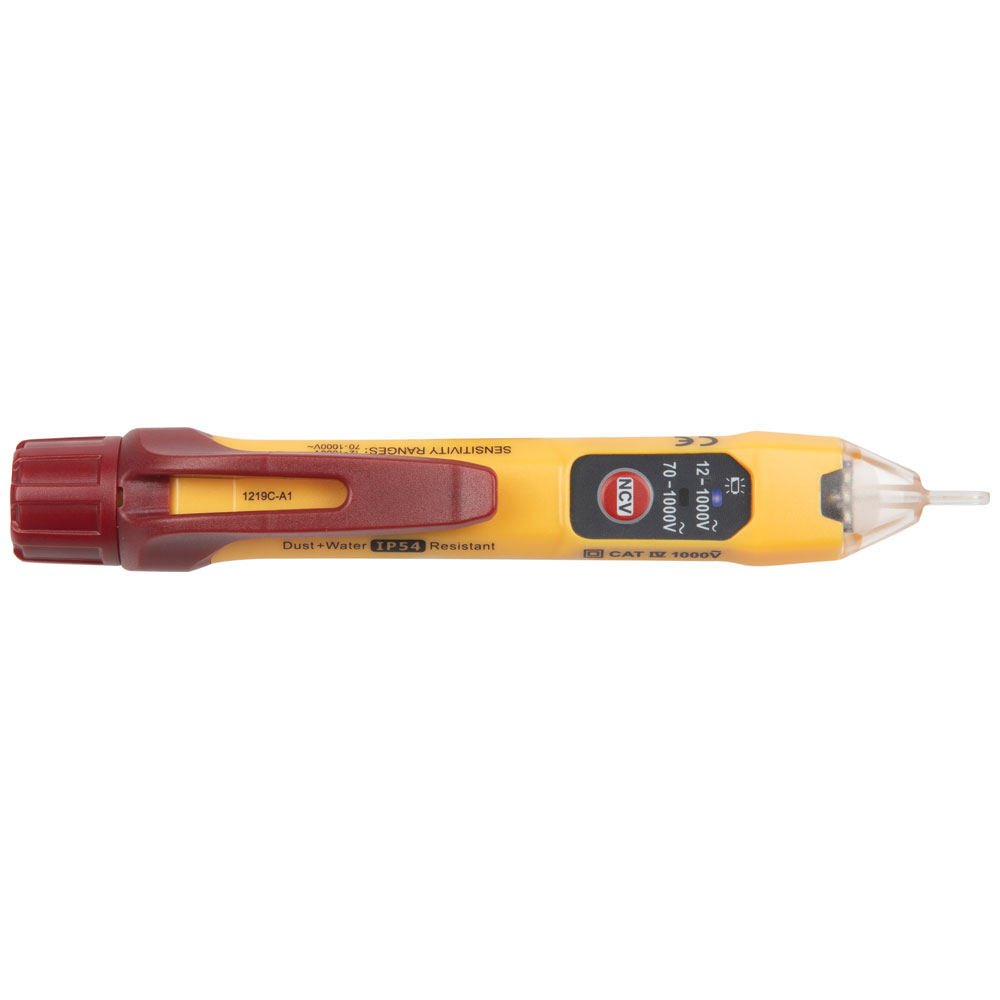

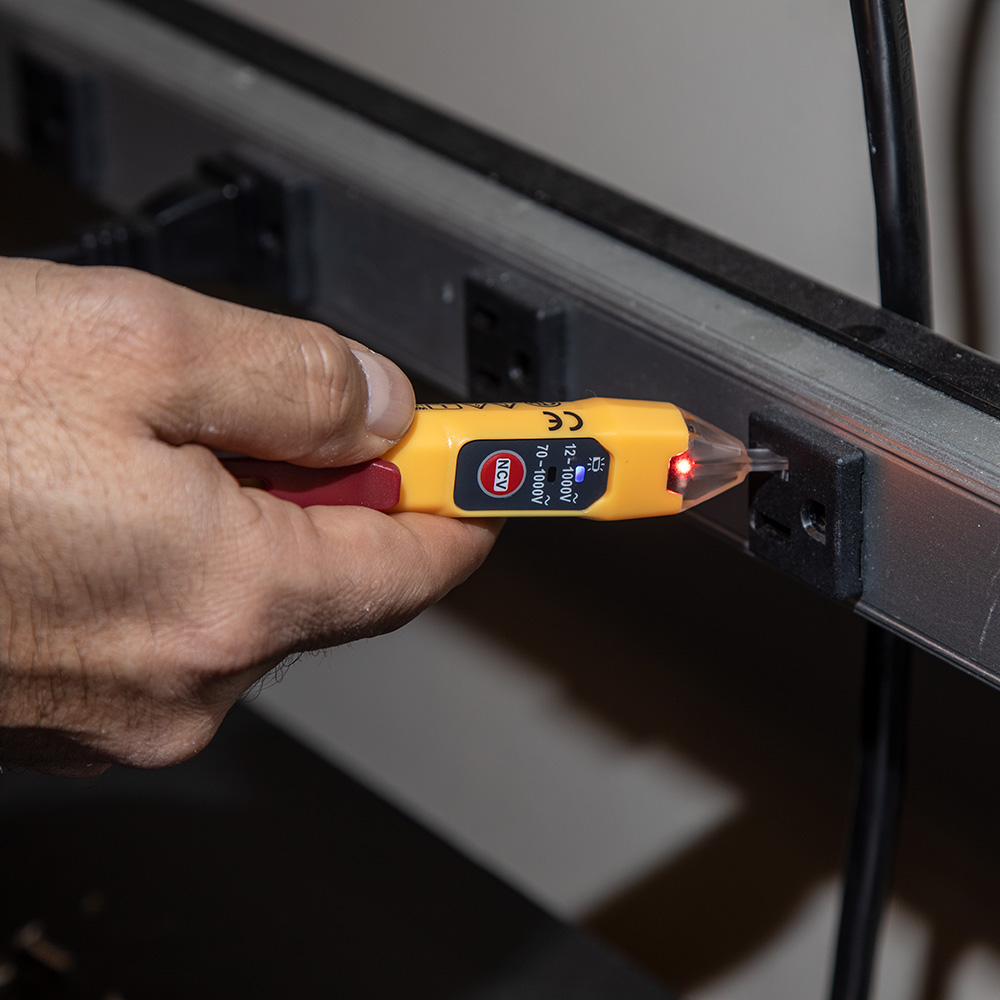

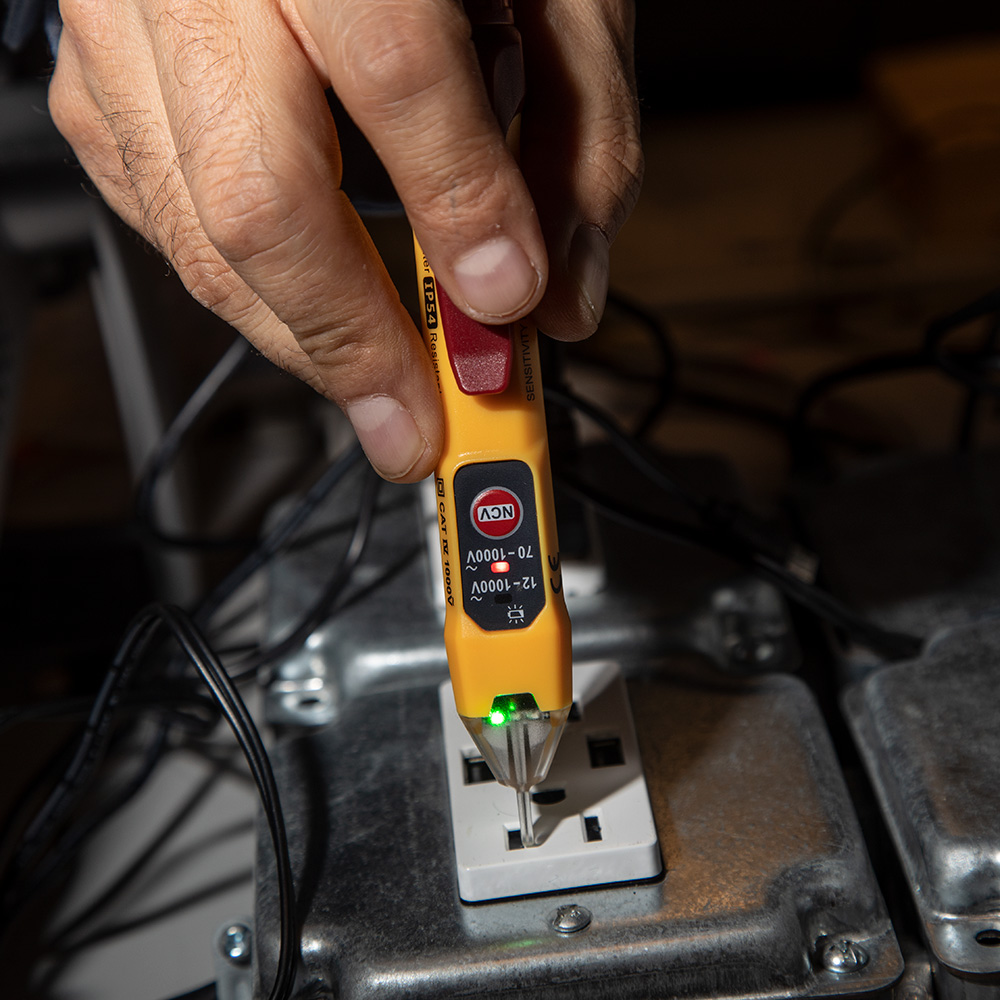

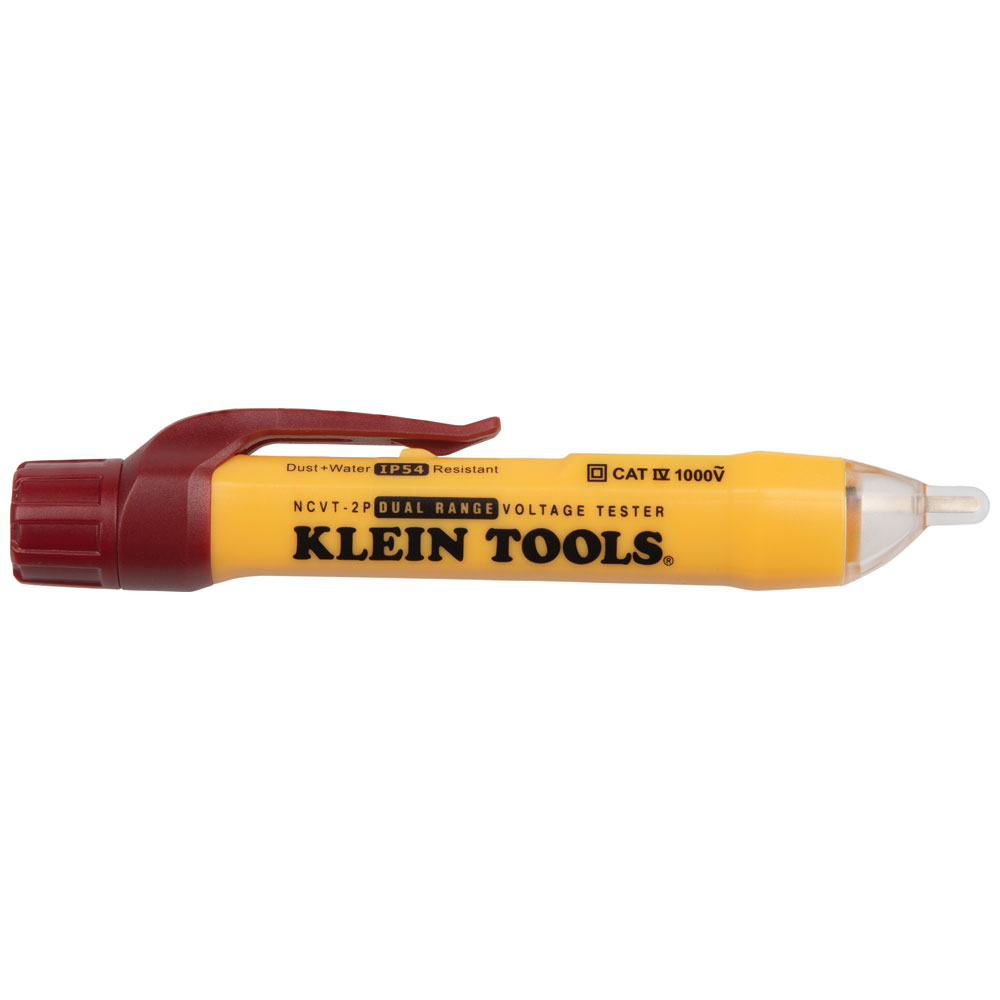

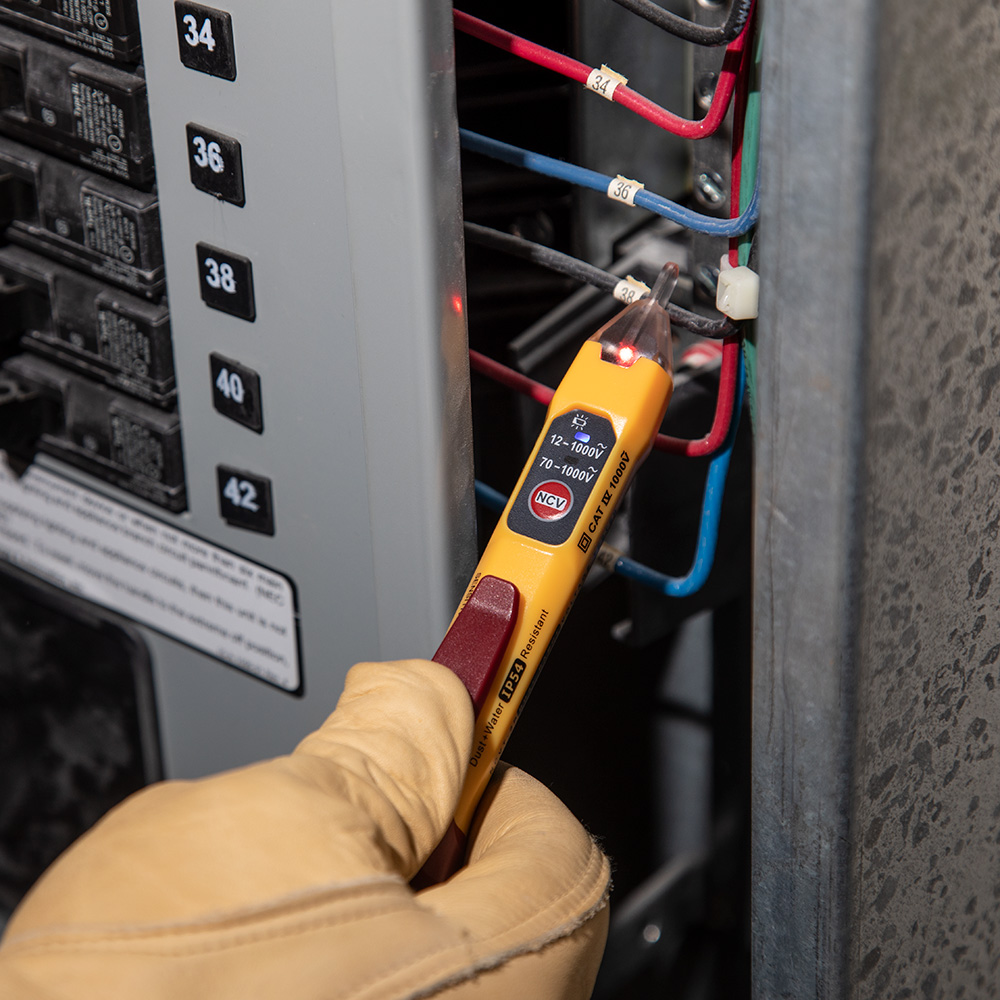

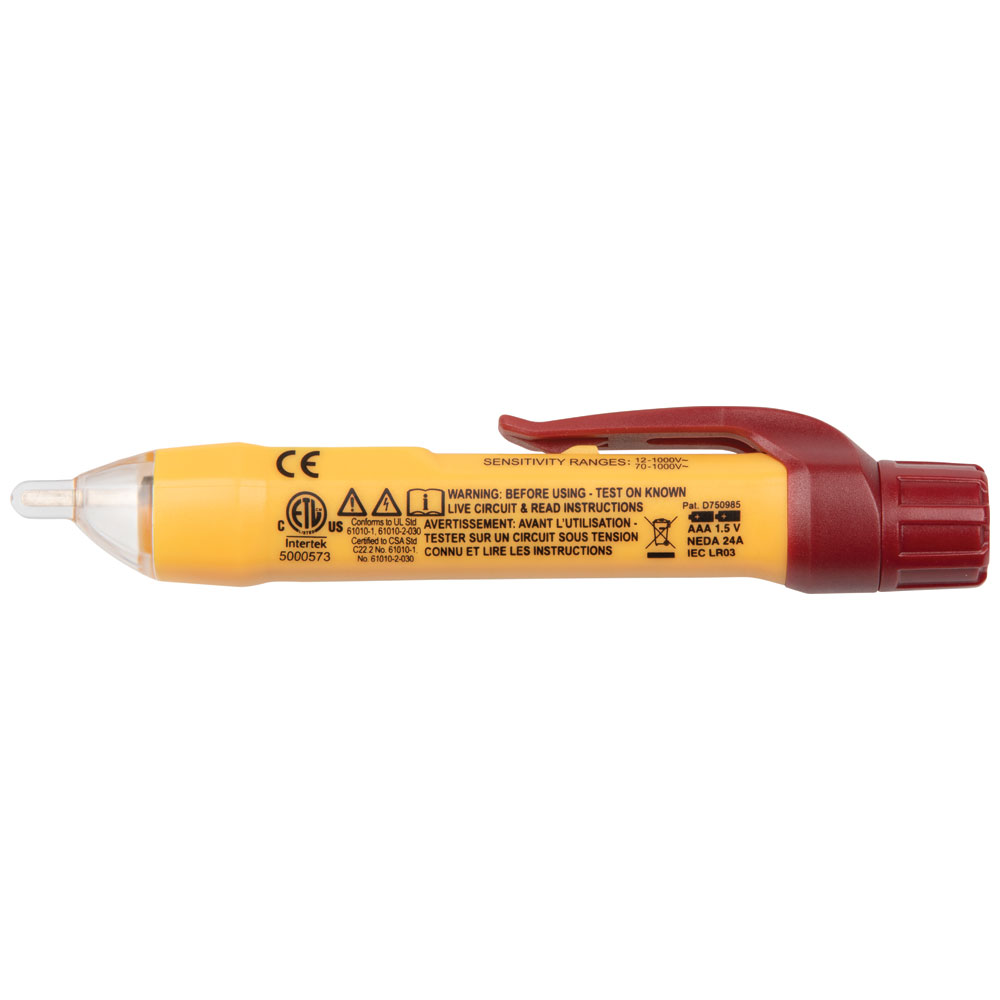

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.

Specifications
Type:
Dual Range
Application:
Non-Contact Detection and Testing of AC Voltage
Special Features:
Two Distinctive Modes: 70 to 1000V AC and 12 to 1000V AC
Material:
Polycarbonate
Drop Protection:
6.6' (2 m)
Voltage:
12 - 1000V AC
Frequency:
50 - 500 Hz
Pollution Degree:
2
Ingress Protection:
IP54
Standard:
CAT IV 1000V
Included:
Batteries
Batteries:
2 x AAA
Battery Life:
142 Hrs
Overall Length:
5.82'' (14.8 cm)
Overall Height:
1.09'' (2.8 cm)
Overall Width:
0.86'' (2.2cm)
Weight:
1.7 oz (48.1 g)
UPC:
092644692321
Additional Information
Warnings
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
