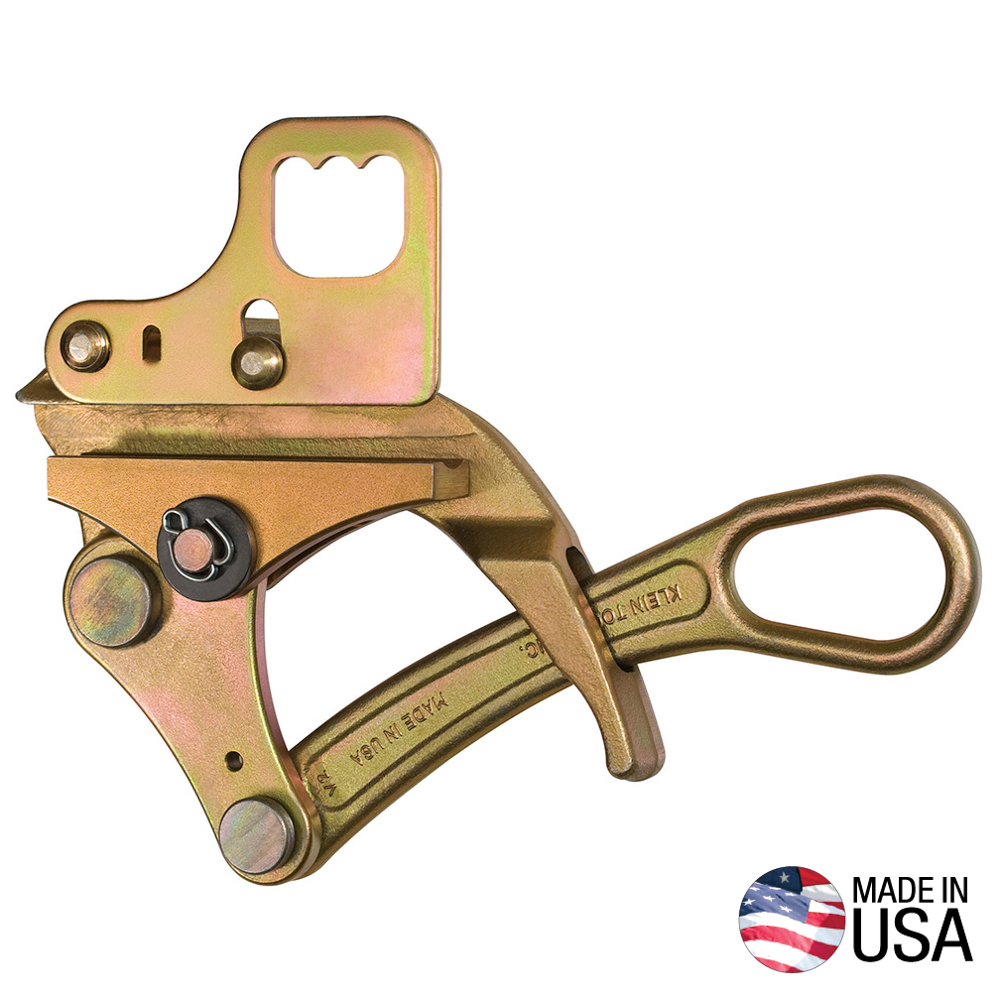

Parallel Jaw Grip 4602 Series with Hot Latch

KT4602

  • Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
  • Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Hot latch closes automatically to guard wire
  • Made in USA
  • Max Safe Load of 10,000-Pound (4536 kg)
  • Weight: 7.2 pounds
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Videos
Images
High-Res JPG kt4602_photo.jpg
Interactive Catalog

The Klein KT4602 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4602 has a jaw length of 5-Inches.

Specifications
Type:
Parallel Jaw Grip
Application:
Wide Variety of Hooks on Hoists, Winches and Tackle Blocks
Special Features:
Hot Latch
Overall Length:
13'' (33 cm)
Overall Height:
1.375'' (3.5 cm)
Overall Width:
6.5'' (16.5 cm)
Cable Type:
ACSR, AAC, Copper
Cable Diameter:
0.16'' to 0.9'' (4.06 to 22.86 mm)
Hot Latch:
Y
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round - Serrated
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
10,000 lb (4536 kg)
Weight:
7.0 lb (3.2 kg)
UPC:
092644477553
Additional Information
Feature Icon klein/wf_grips-round-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
