HVAC Clamp Meter with Differential Temperature

Cat. No.:
CL450
Product Features
Measures AC/DC voltage up to 1000V, 600A AC Current, 60MΩ Resistance, DC millivolts and microamps
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Clamp measures AC current and inrush current
Two K-Type thermocouple ports for differential temperature measurements
Test leads measure AC/DC voltage, DC micro amp, resistance, LoZ, continuity, frequency, duty-cycle, capacitance, and diodes
Dedicated mode for capturing DC micro amp and inrush current
Low-Pass filter and Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Dual backlit 6000 LCD display for clear visibility in environments with low ambient lighting
Rugged design with a 6.6-foot (2 m) drop protection and a CAT IV 600V Safety Rating

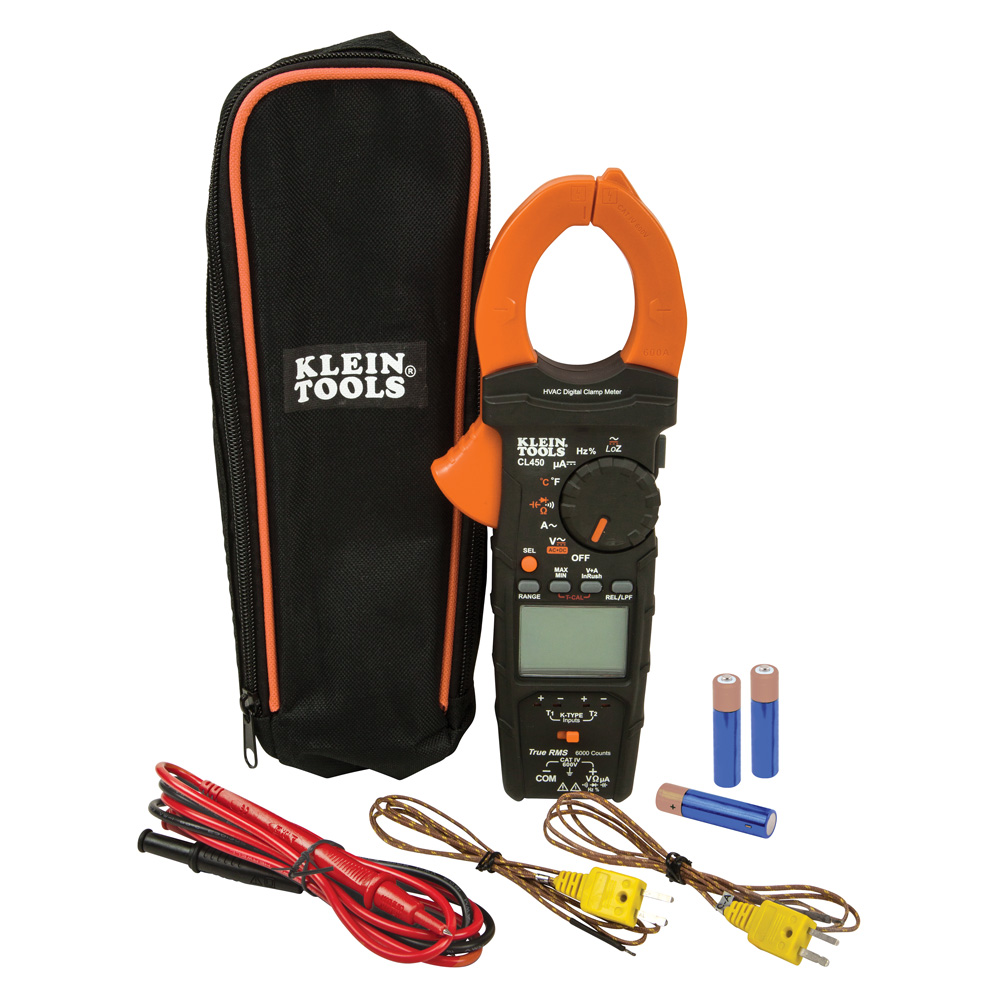

Includes carrying case, instruction manual, straight input test leads, two K-type thermocouples, and 3 x AAA batteries
Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
Use with K-Type Temperature Pipe Clamp Cat. No. 69140, and K-Type Temperature Probe Cat. No. 69144 (sold separately)
Specifications
Type:
HVAC Clamp Meter with Differential Temperature
Application:
HVAC
Special Features:
Differential Temperature with Digital Temperature Calibration; Dedicated Mode for Capturing DC Micro Amp and Inrush Current; Integrated Non-Contact Voltage Tester; Low-pass Filter and Low Impedance (LoZ) Mode; AC and DC Voltage
Material:
Plastic/Electronics
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
2” (50.4 mm)
Drop Protection:
6.6 ft (2 m)
Display:
6000 Count LCD
Functions:
Differential Temperature, Digital Temperature Calibration, DC Micro Amp, Inrush Current, Audible Continuity, Capacitance, Diode Test, Frequency and Duty Cycle, Low-pass Filter, Low Impedance, AC and DC Current, Min/Max, AVG, Data Hold Capability
Voltage:
1000V AC; 1000V DC
Frequency:
999.9kHz
Current:
600A AC
Capacitance:
6000µF
Ohms (Resistance):
60MΩ
AC Voltage:
1000
DC Voltage:
1000
DC Polarity Indicator:
Y
DC Micro-Amp:
200 μA with 1μA Resolution
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Standard:
CATIV 600V, CATIII 1000V
Included:
Carrying Case, Instruction Manual, Straight Input Test Leads, Two K-type Thermocouples, and 3 x AAA Batteries
Weight w/Batteries:
13.6 oz (386g)
Overall Length:
10'' (254.0 mm)
Overall Height:
1.59'' (40.4 mm)
Overall Width:
3.77'' (95.8 mm)
Weight:
12.5 oz (354 g)
UPC:
092644690631
Videos

Downloads
Warnings

Never use the meter on a circuit with voltages that exceed the category based rating of this meter.

Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Before each use verify meter operation by measuring a known voltage or current.

Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
