Klein Tools - For Professionals Since 1857

Replacement K-Type Thermocouple

69435

  • Excellent for temperature measurements for HVAC applications
  • Measures temperature from 32 to 482-degree F (0 to 250-degree C)
  • Extended reach with length of 40-Inch
  • Yellow PVC Type K plugs
  • Direct replacement for CL450 and IR10 meters
  • Works on any meter with mini-plug inputs for thermocouples
  • Works on any clamp meters or digital mutlimeters measuring temperature with lead inputs (banana plug adapter Cat. No. 69146 required)
Images
JPG (High Resolution) 69435_photo.jpg
PNG (Transparent Background) 69435.png

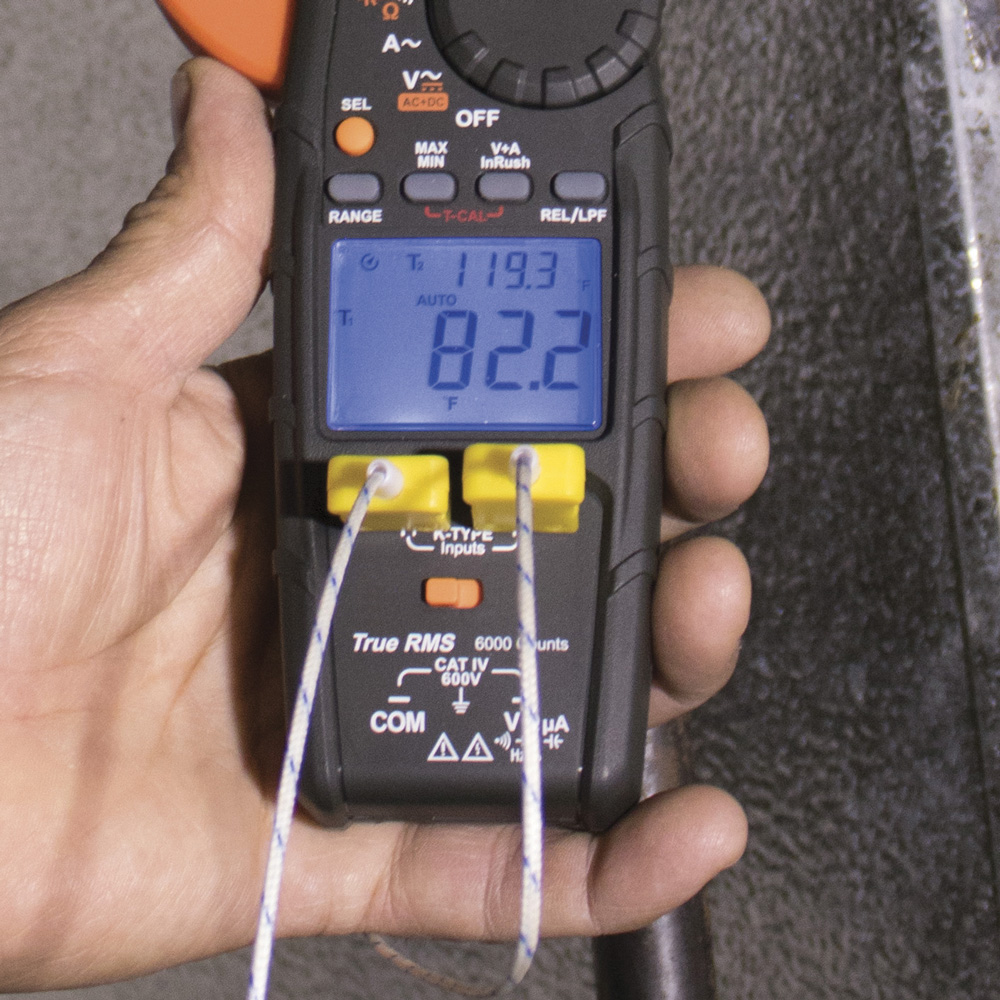

The Klein Tools K-Type Thermocouple is intended for use as a replacement for meters with mini-plug inputs for thermocouples, such as Cat. Nos.CL450 and IR10. It also works with any clamp meters or digital multimeters measuring temperature with lead inputs (banana plug adapter Cat. No. 69146 required). The 40-Inch wire measures temperature from 32 to 482-degree F (0 to 250-degree C). This replacement K-Type thermocouple is part of a full line of Klein Tools meters and testers, designed by electricians for electricians.

Specifications
Type:
K-Type Thermocouple
Application:
Temperature Measurement for Clamp and Digital Multimeters
Special Features:
40 Inches of Cord
Overall Length:
40'' (1016.0 mm)
Overall Height:
0.5'' (12.7 mm)
Overall Width:
1.5'' (38.1 mm)
Material:
Thermocouple Wire with PVC Connector
Temperature Range:
32 to 482° F (0 to 250° C)
For Use With:
Any Clamp or Digital Multimeter that Measures Temperature
Weight:
0.40 oz (11.0 g)
UPC:
092644692307
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
