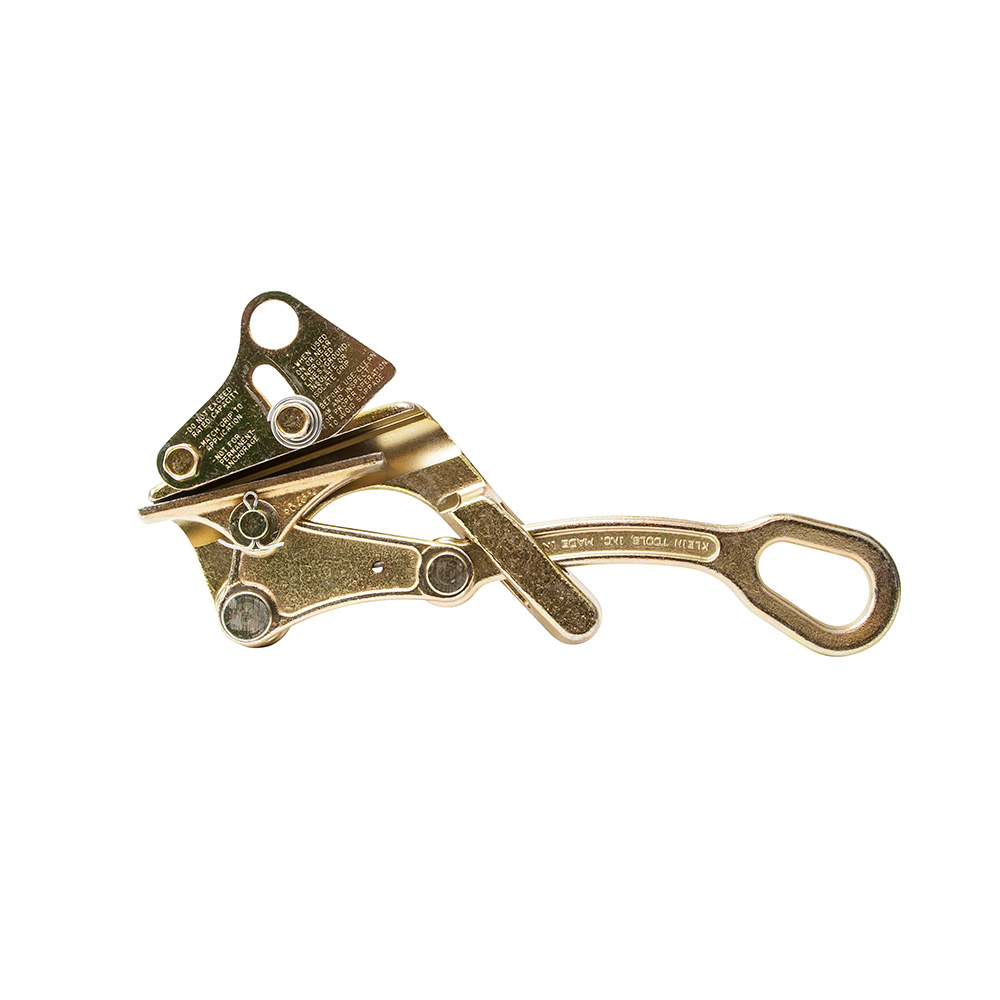

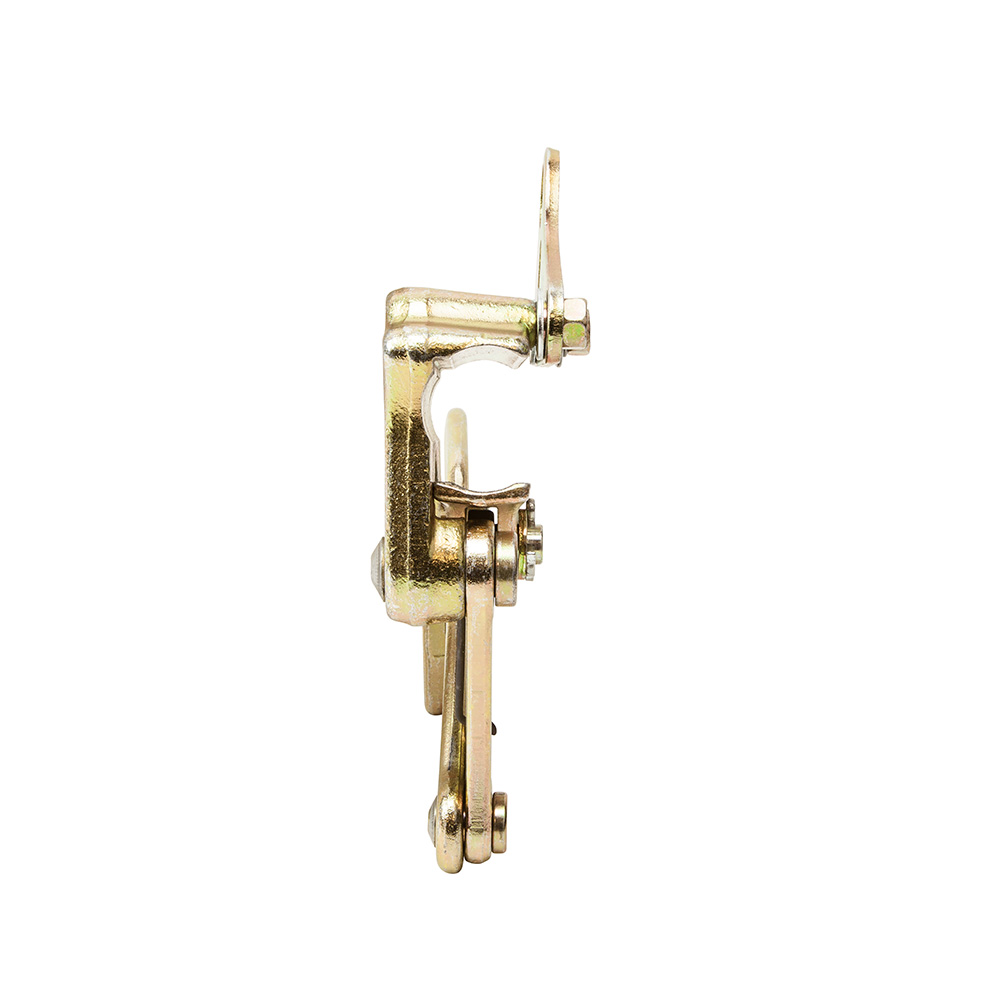

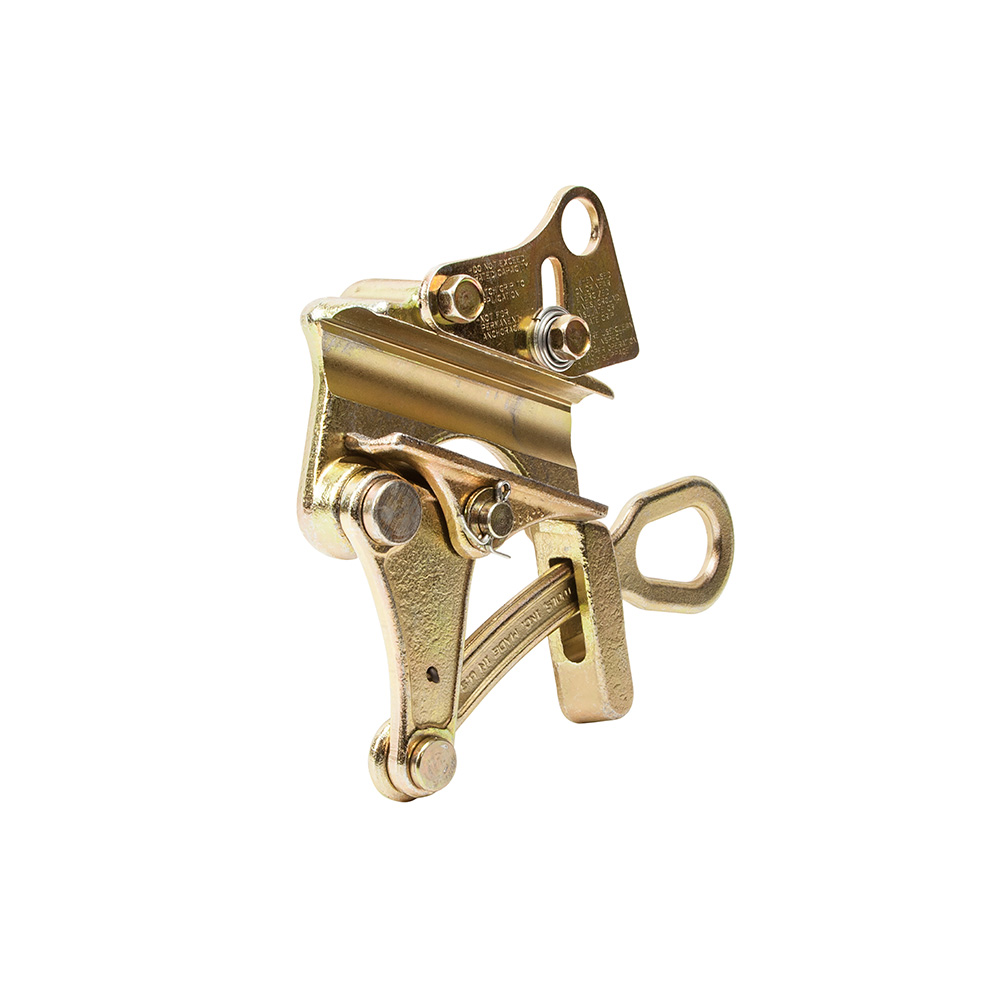

Parallel Jaw Grip, HDPE Wire to 1.362-Inch

1716-70

  • Securely pulls HDPE-coated cable commonly known as tree wire
  • Innovative high-traction surface grips the cable without damaging the outer jacket
  • Pulls cable diameters 0.625-Inch to 1.362-Inch (15.875 to 34.595 mm) with Max Safe Load: 4000-Pound (1814 kg)
  • Tough carbide grit technology withstands even the harshest jobsite conditions
  • Made in USA
  • Spring-loaded for one-handed operation and easy placement on the conductor
  • Common tree wire cable types include general cable, Hendrix® aerial systems, rite lite BLL conductor and Southwire® S2 covered cable
  • Hendrix® is a registered trademark of Marmon Utility, LLC
  • Southwire® is a registered trademark of Southwire Company, LLC
Videos
Images
High-Res JPG 171670_photo.jpg
Interactive Catalog

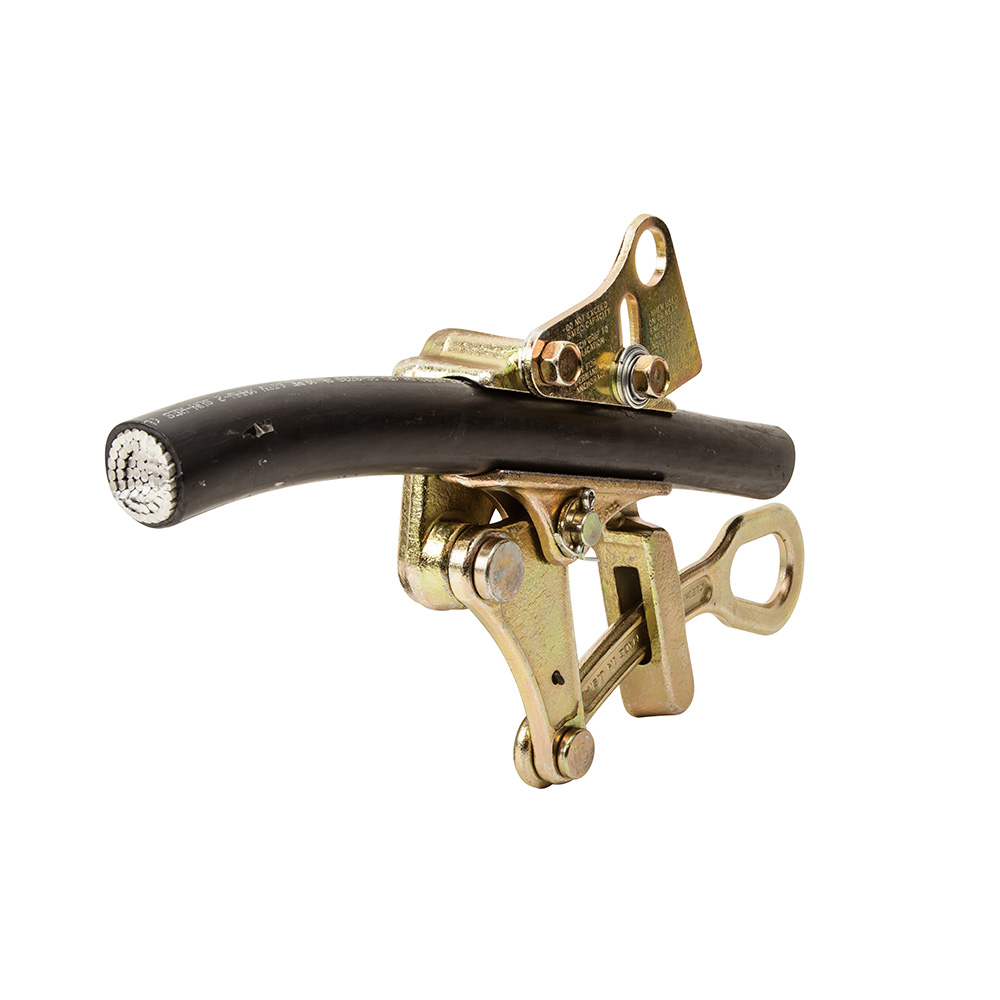

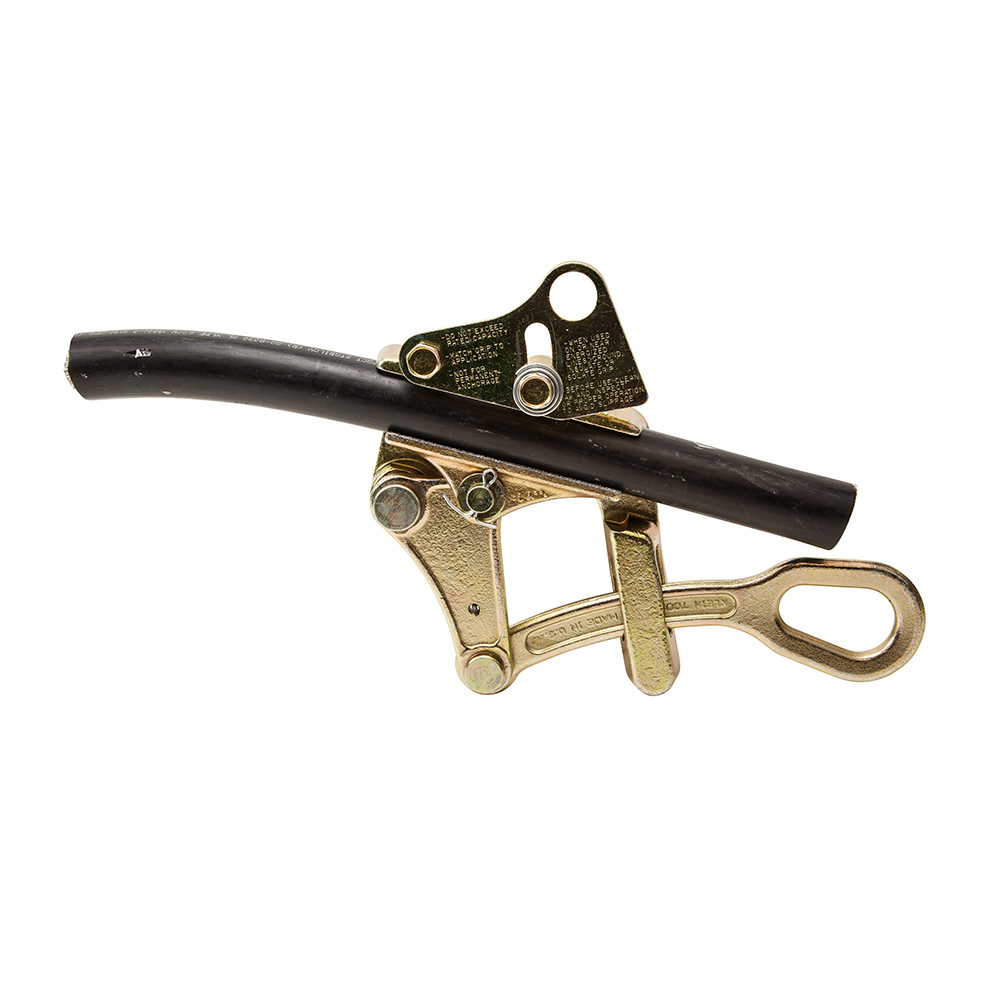

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Specifications
Type:
Parallel Jaw Grip
Application:
Wide Range Cable Pulling Grip
Special Features:
High Traction Grip Surface
Overall Length:
12.5'' (31.8 cm)
Overall Height:
8.5'' (21.6 cm)
Overall Width:
2.75'' (7 cm)
Material:
Forged Steel
Cable Type:
HDPE-Coated
Cable Diameter:
0.625'' to 1.362'' (15.9 to 34.6 mm)
Hot Latch:
Y
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Length:
4.5'' (11.4 cm)
Jaw Type:
Round
Maximum Safe Load:
4000 lb (1814 kg)
Standard:
OSHA
Weight:
5.10 lb (2.31 kg)
UPC:
092644471971
Additional Information
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
