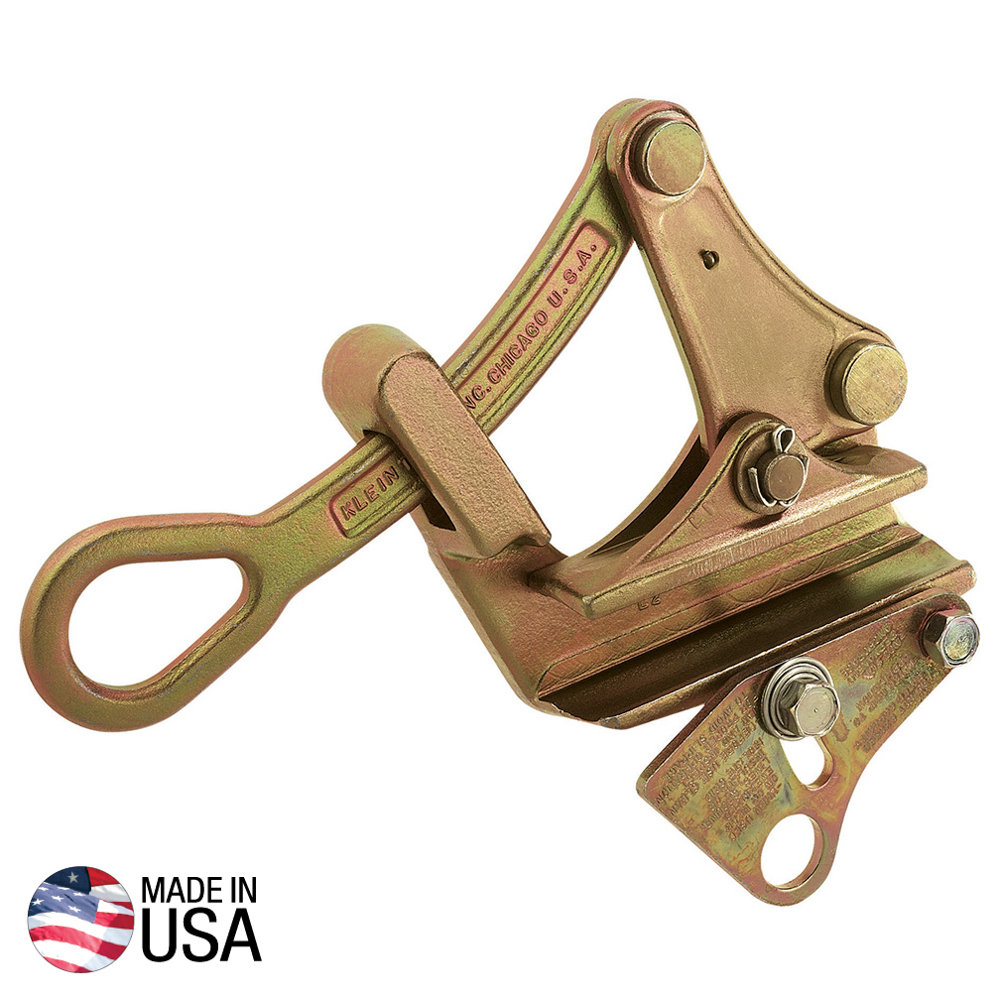

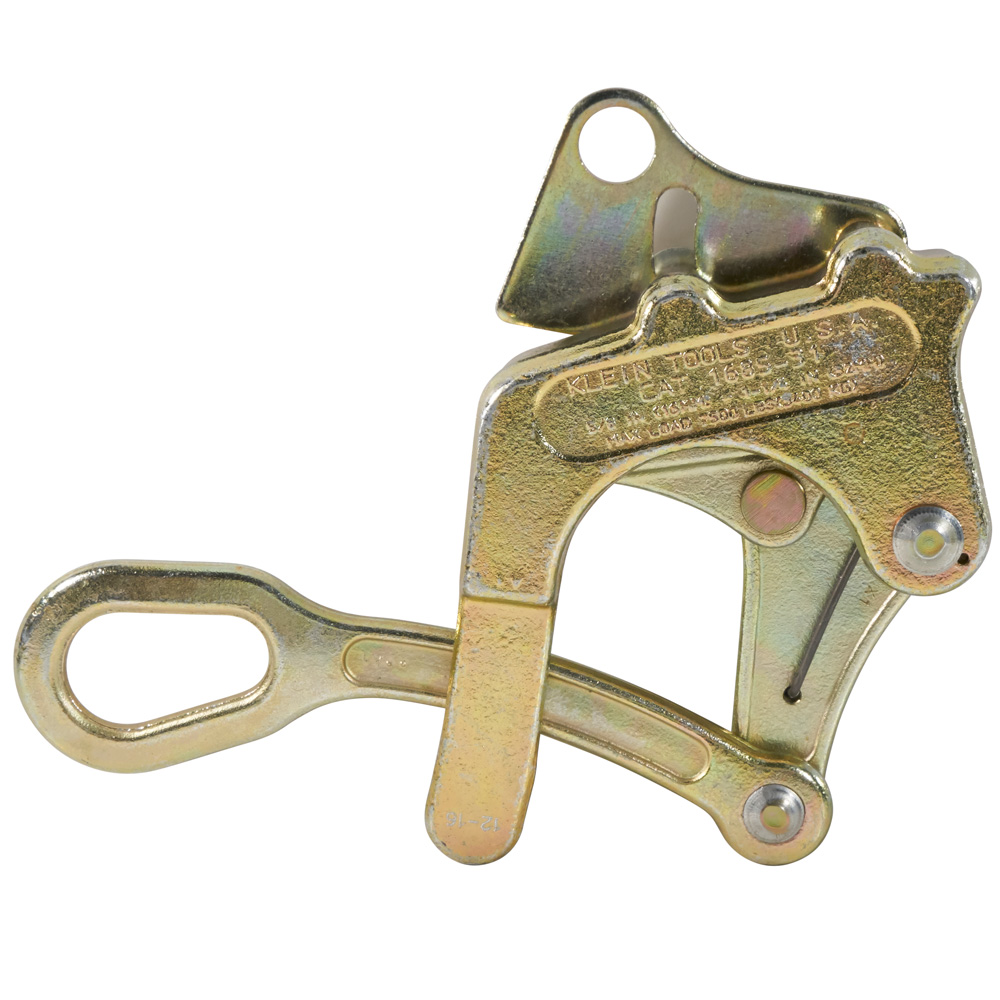

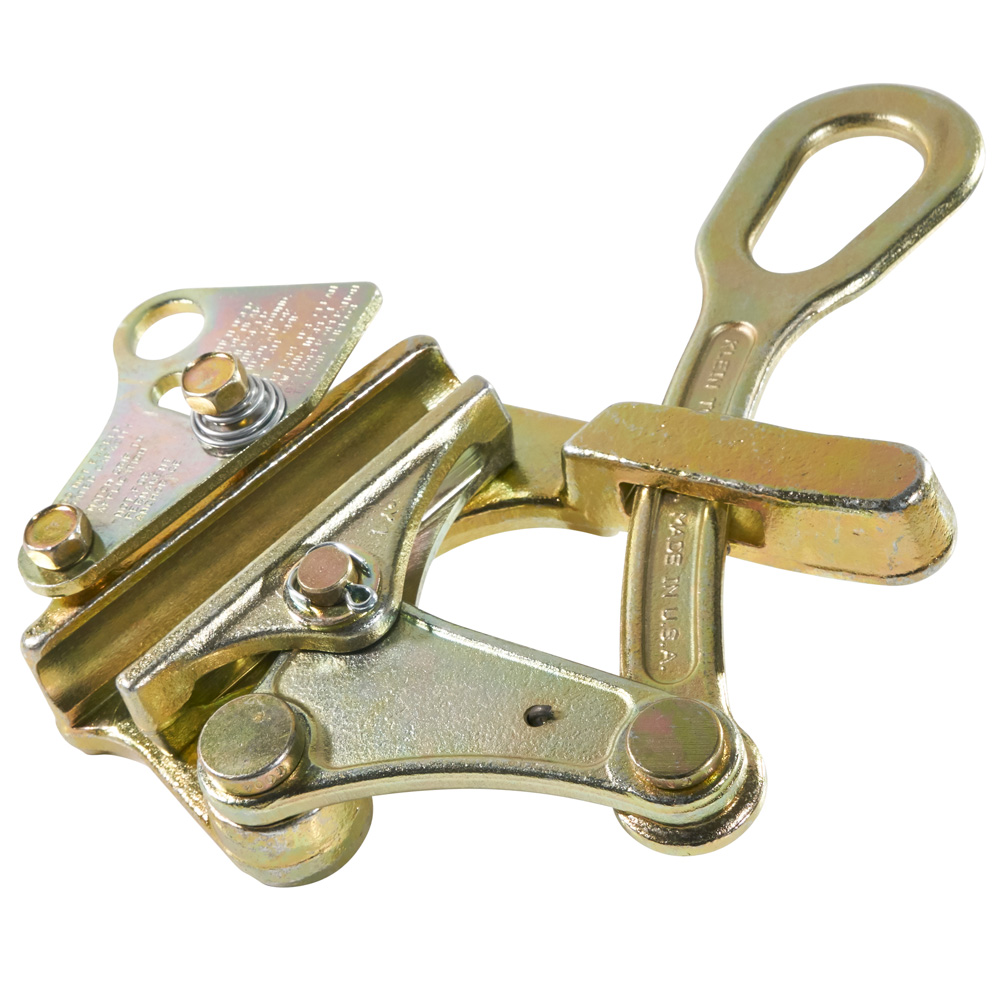

Parallel Jaw Grip 4-1/2-Inch Length

1685-31

  • Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
  • Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
  • Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
  • Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
  • Made in USA
Videos
Images
High-Res JPG 1685-31_photo.jpg
Interactive Catalog

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Specifications
Type:
Compact
Application:
Cable Pulling
Special Features:
Hot Latch, Spring
Overall Length:
11.7'' (29.7 cm)
Cable Type:
Messenger, EHS, Guy Strand
Cable Diameter:
0.625'' to 1.25'' (15.87 to 31.75 mm)
Hot Latch:
Y
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round - Serrated
Jaw Length:
4.5'' (11.4 cm)
Maximum Safe Load:
7500 lb (3400 kg)
Weight:
4.8 lb (2.2 kg)
UPC:
092644471780
Additional Information
Feature Icon klein/wf_grips-round-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
