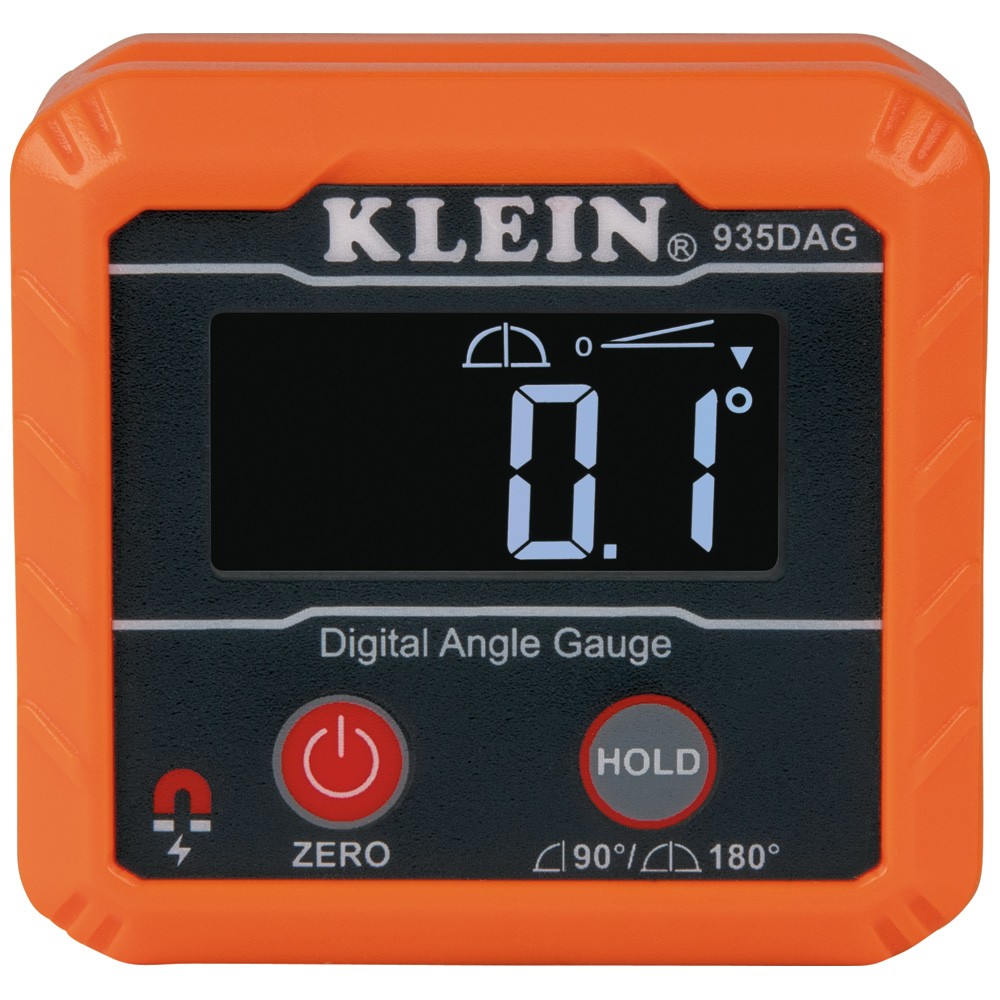

Digital Angle Gauge and Level


  • Digital Angle Gauge and Level can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level

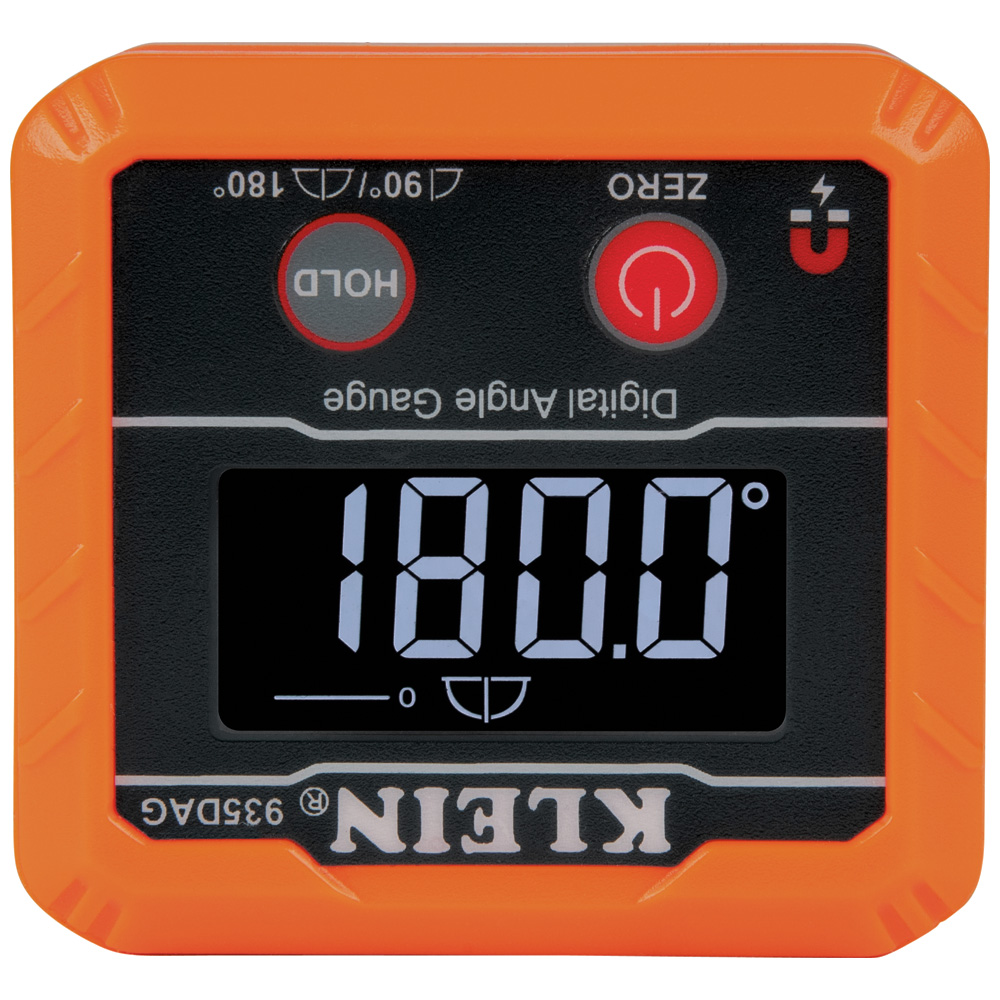

  • High visibility reverse contrast display improves visibility in dimly lit work environments

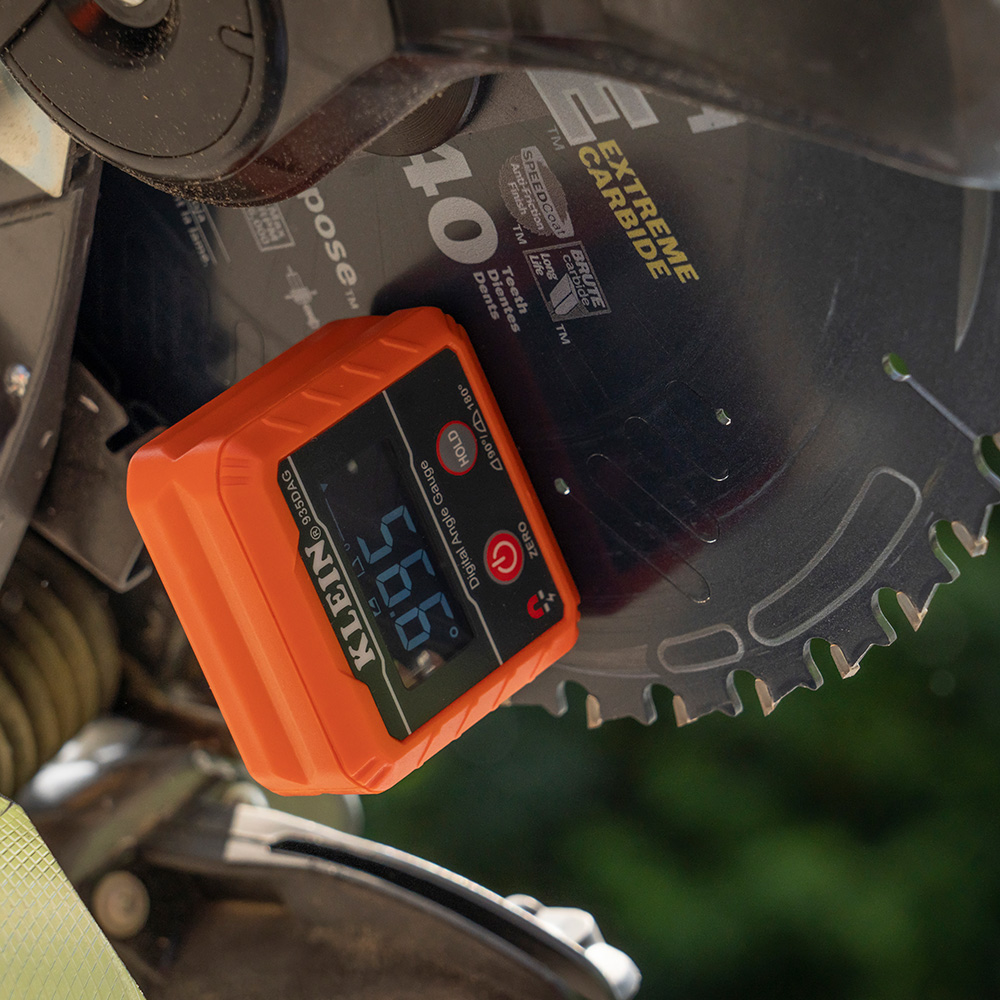

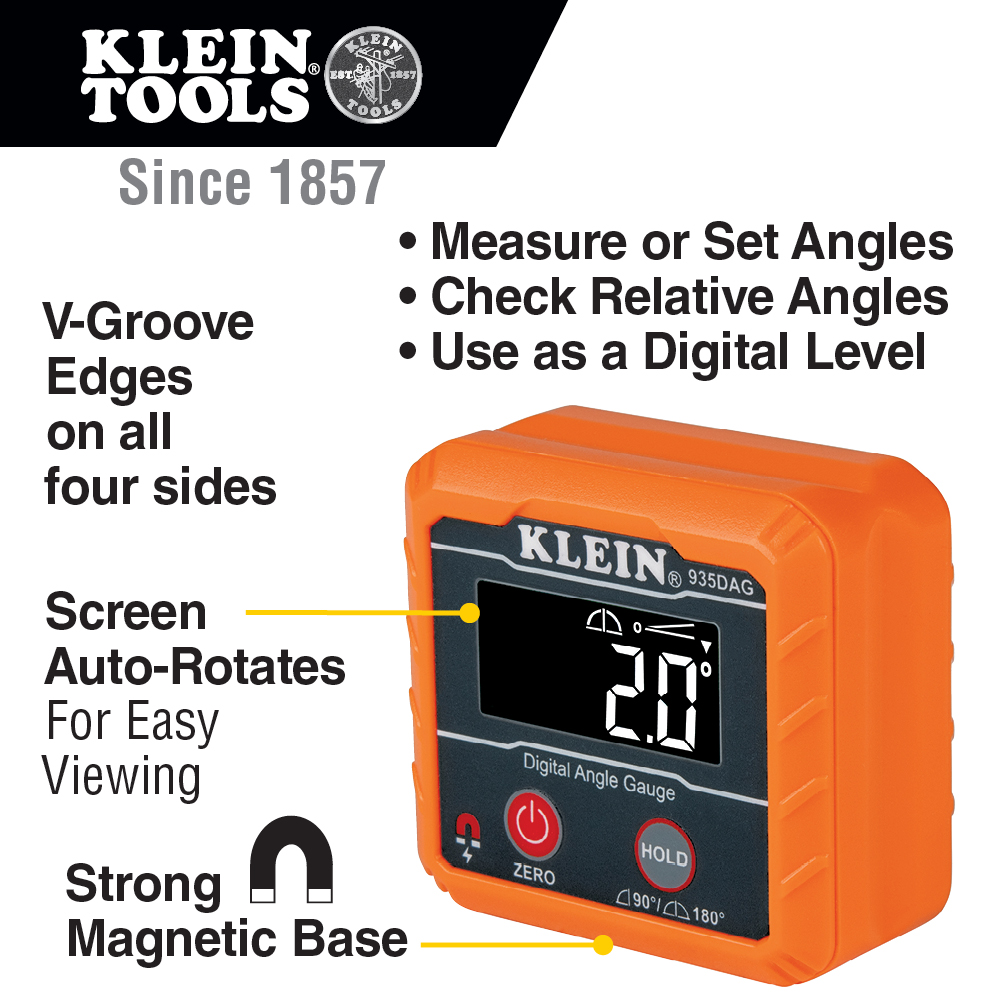

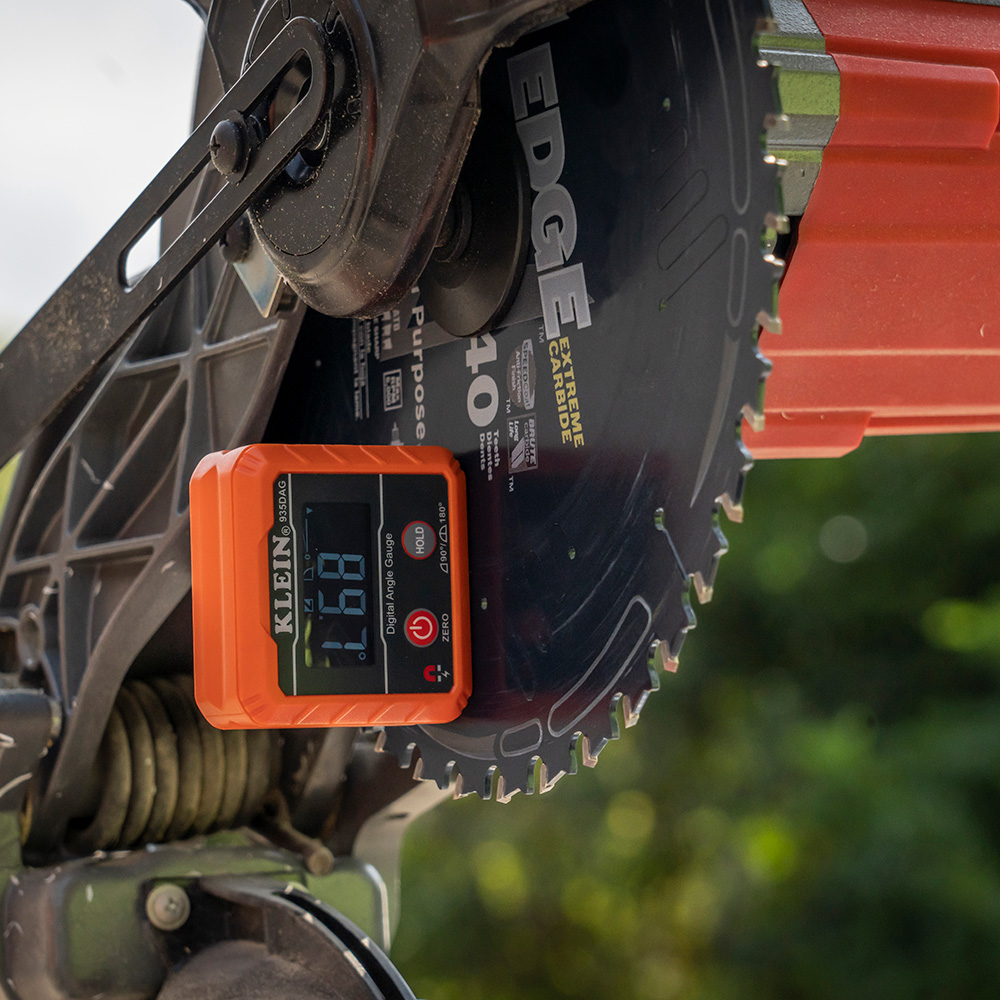

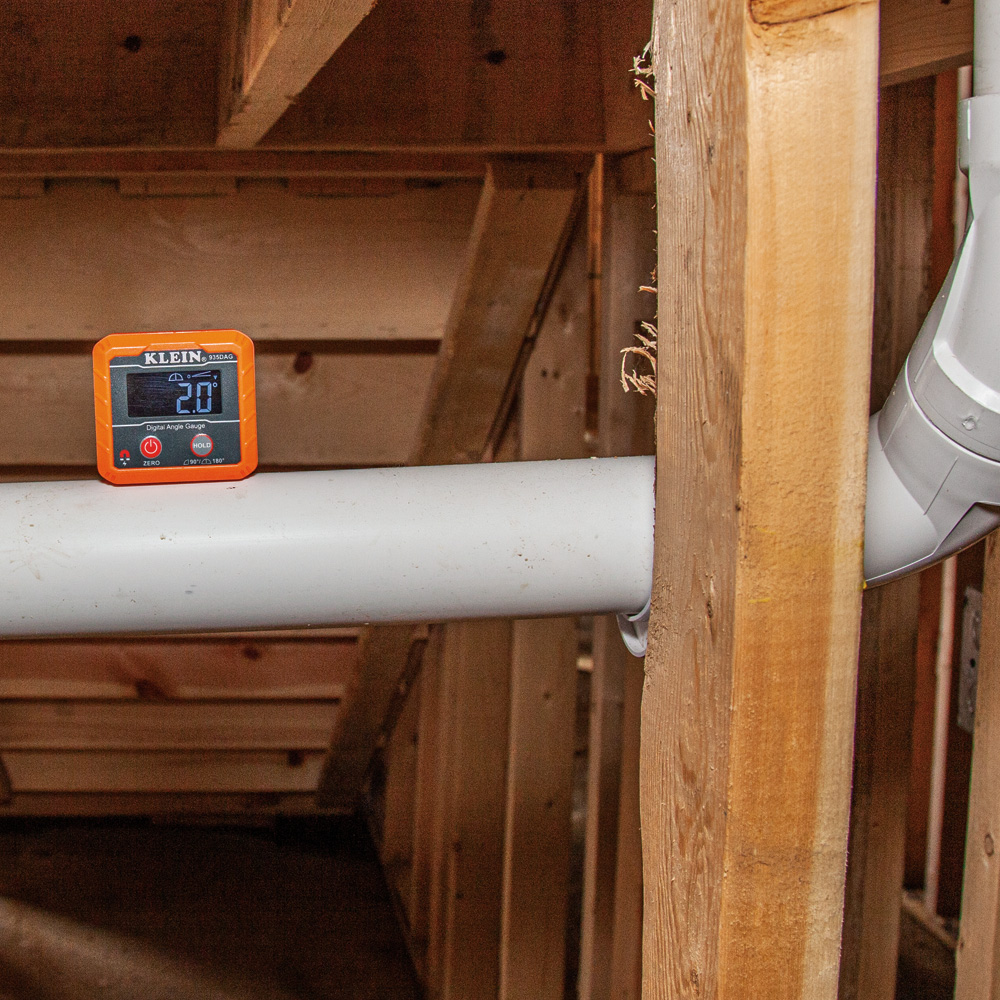

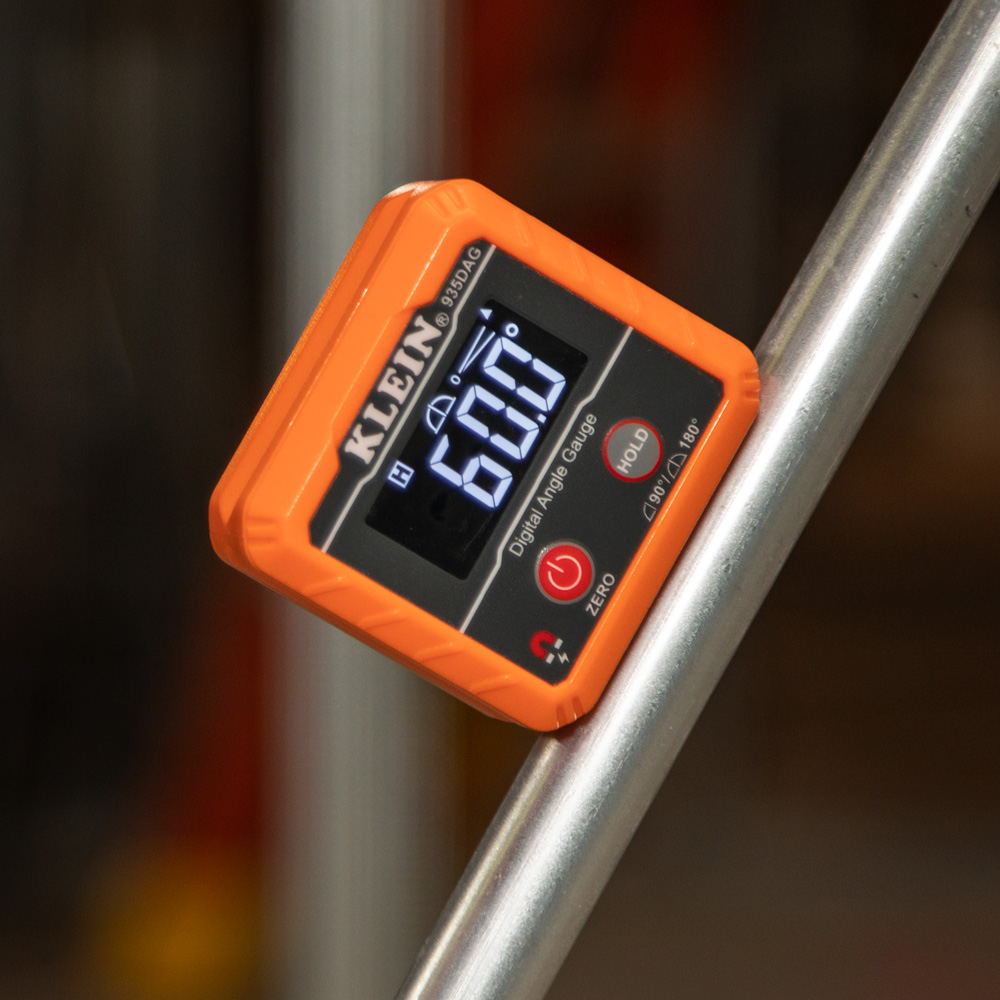

  • Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces

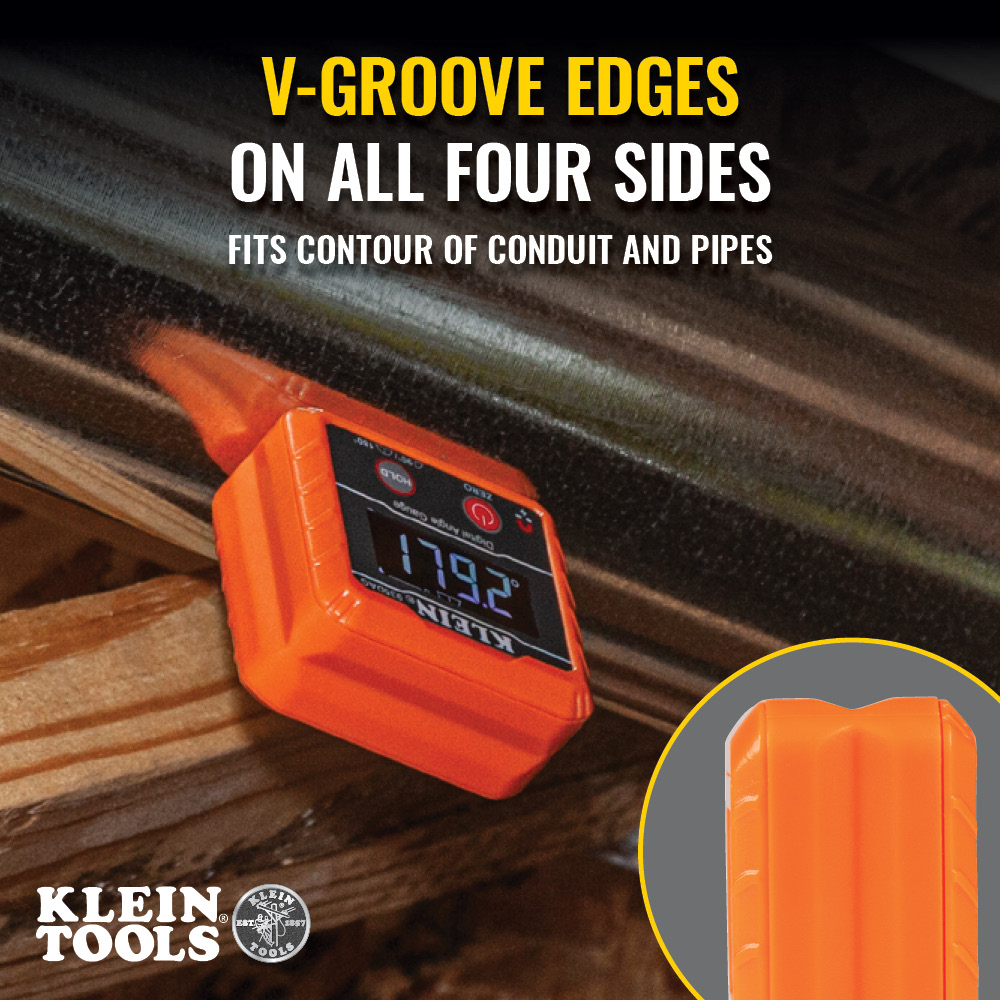

  • V-groove edges enable optimal alignment on conduits and pipes for bending and alignment

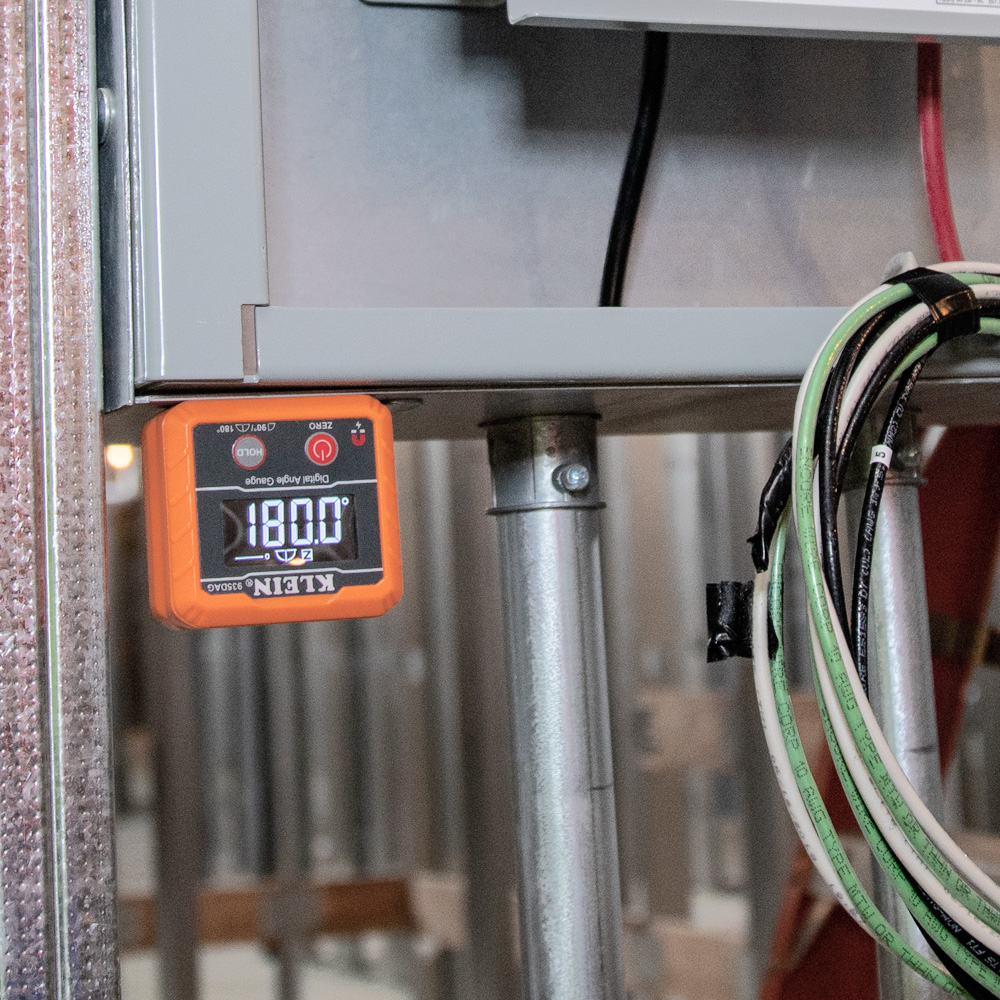

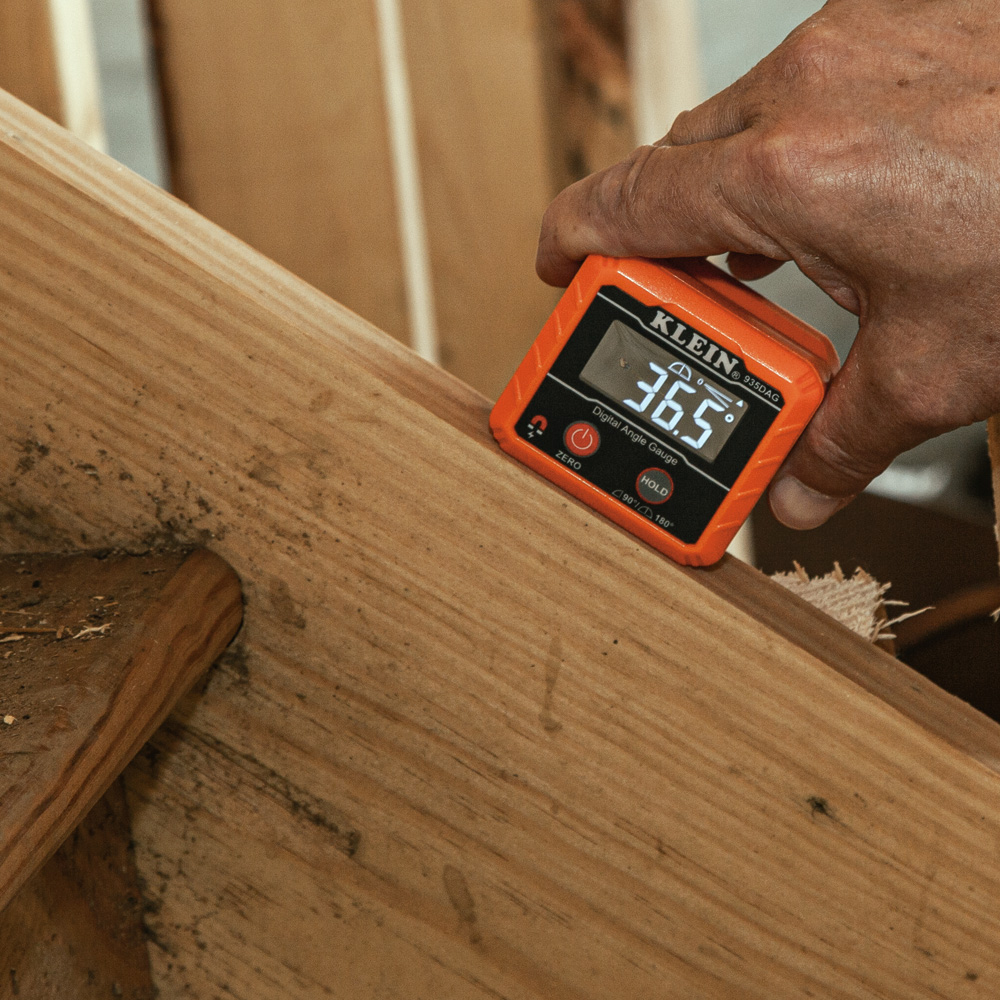

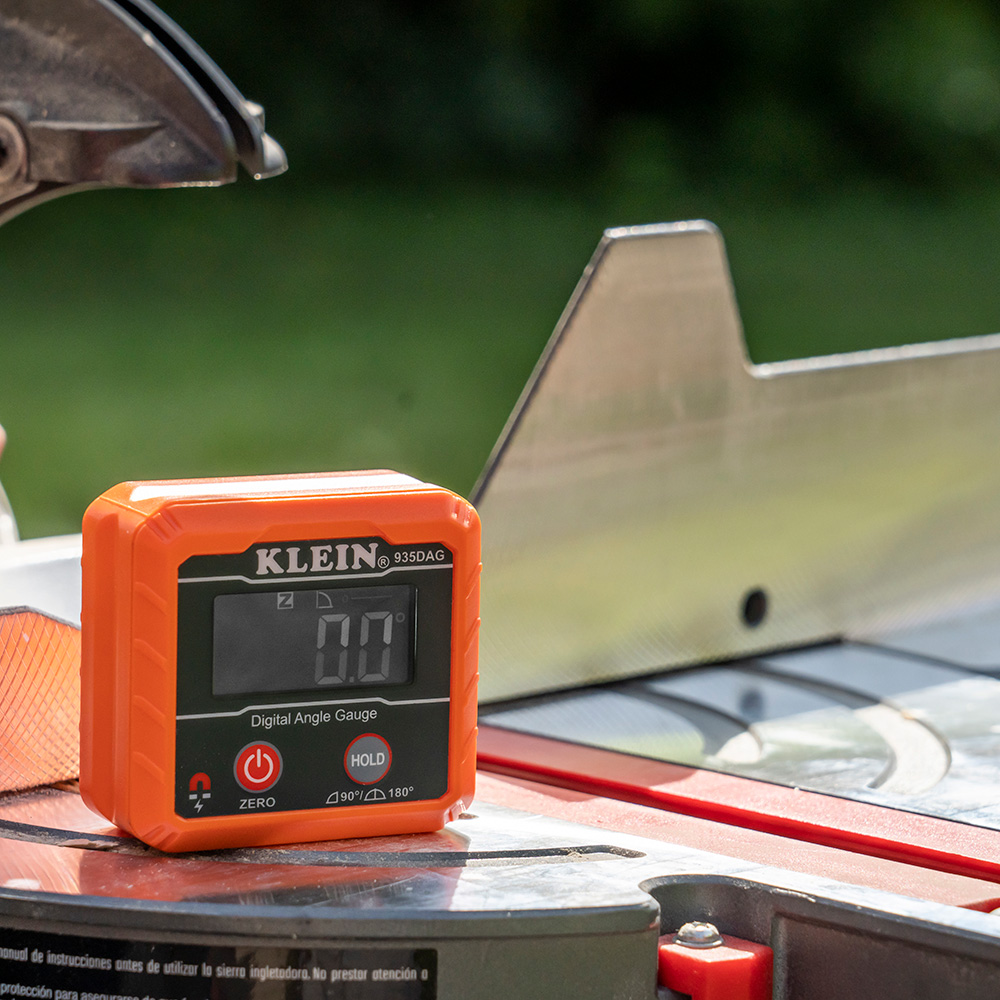

  • 0 to 90-Degree and 0 to 180-Degree measurement ranges provide easy use in applications such as woodworking, bending conduit, installing electrical panels, and working on machinery

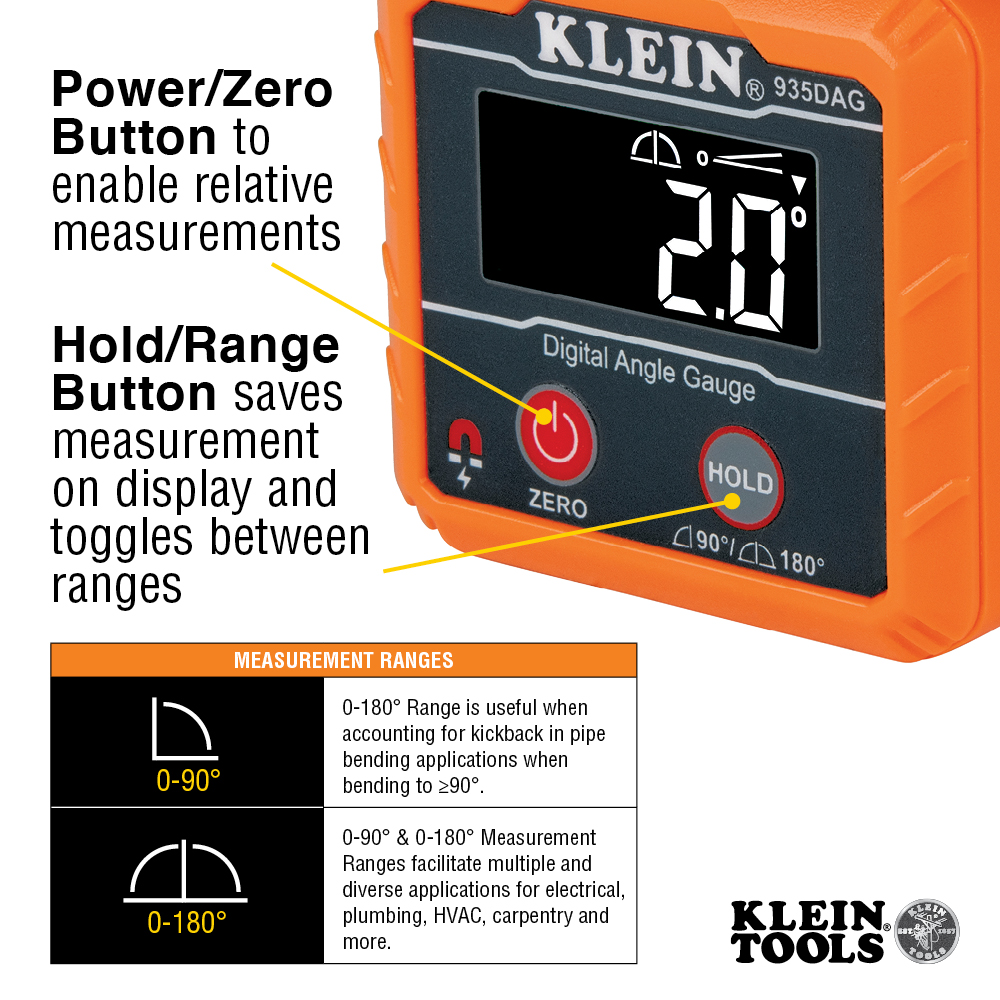

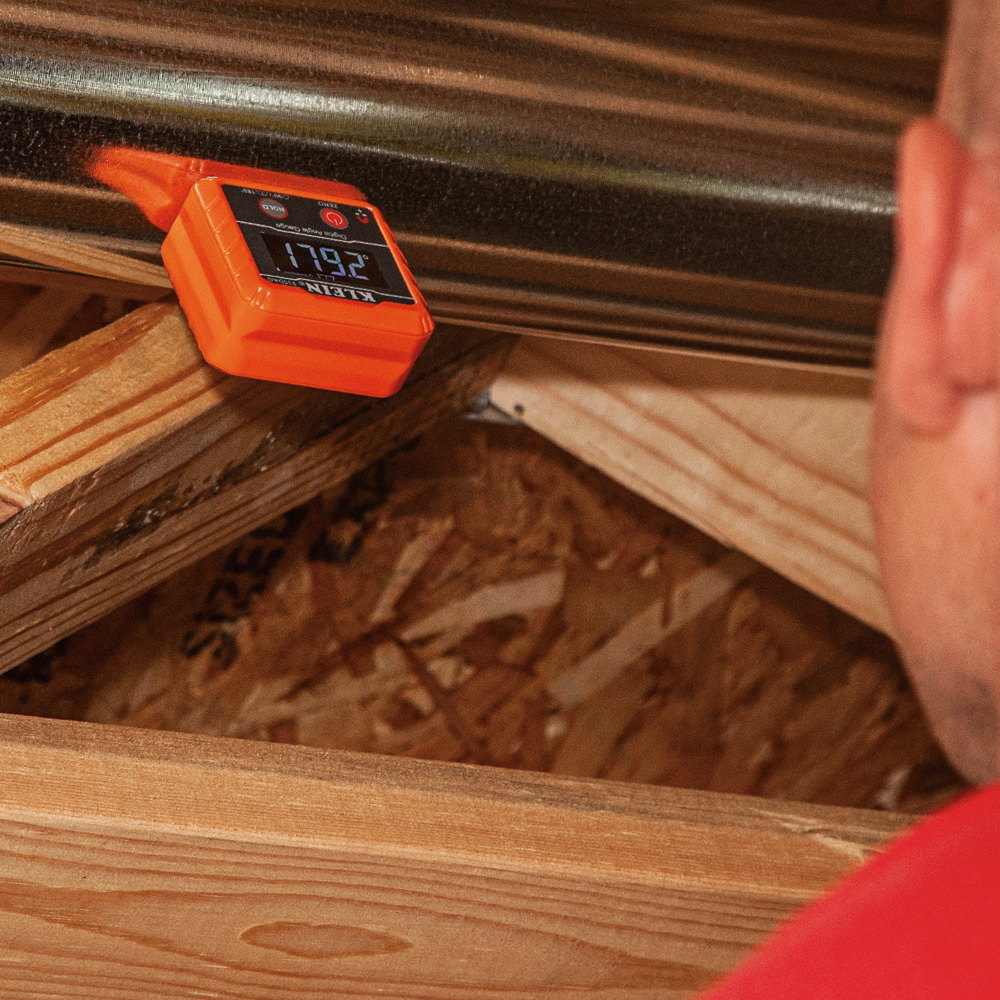

  • 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more

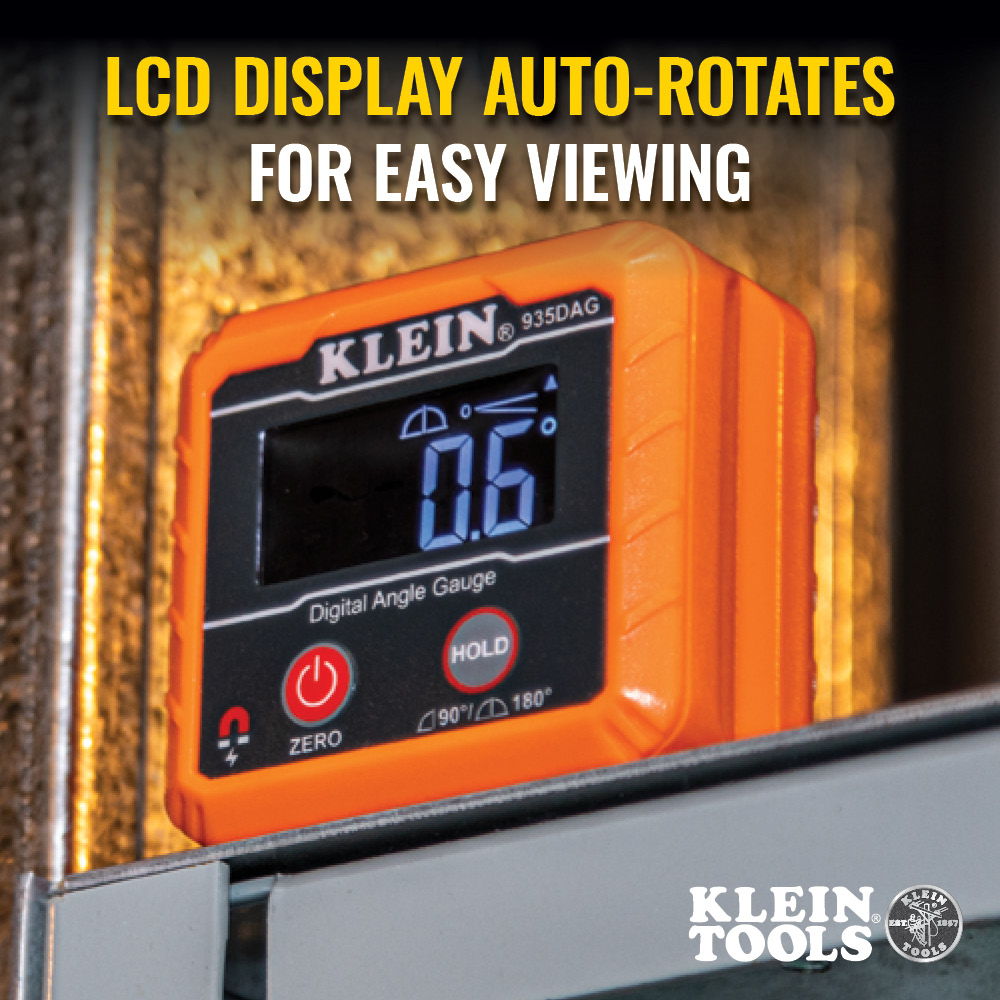

  • Display auto-rotates when upside-down for easy viewing
  • Water and dust resistant with rating of IP42

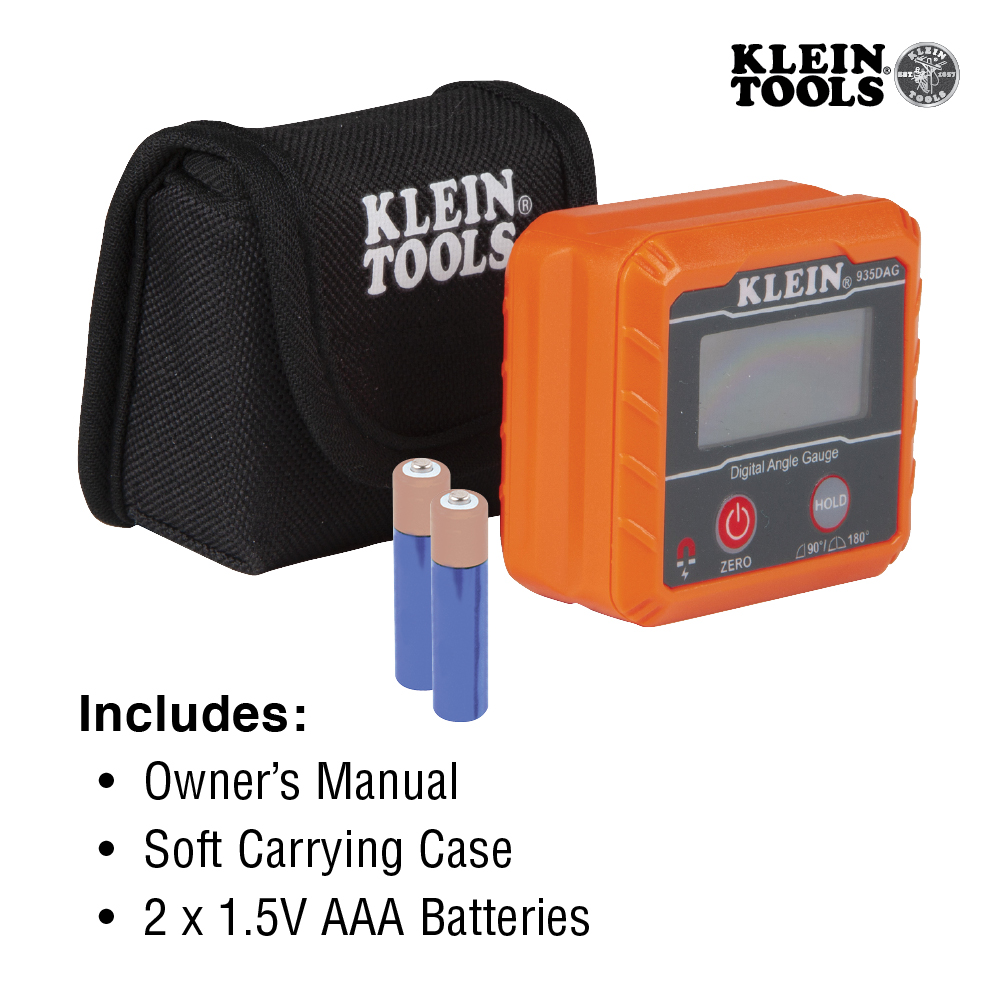

  • Soft carrying case and two AAA batteries included
wf_magnetic Product Icon
wf_ce Product Icon
ukca Product Icon
High-Res JPG 935dag_photo.jpg
Interactive Catalog

The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.

Digital Level
Measure or Set Angles, Check Relative Angles, or Use as a Digital Level
Special Features:
V-grooves Around Entire Perimeter, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast
ABS Plastic Housing and Electronic Components
Magnet Type:
Permanent Rare Earth
+/- 0.1° from 0° to 1°, 89° to 91°, 179° to 180°; +/- 0.2° at All Other Angles
Drop Protection:
6.6' (2 m)
Ingress Protection:
IP42: Water and Dust Resistant
2 x 1.5 AAA
Digital Angle Gauge and Level; Soft Carrying Case; Instruction Manual; Batteries
Overall Length:
2.36'' (6 cm)
Overall Height:
2.2'' (5.6 cm)
Overall Width:
1.2'' (3 cm)
3.5 oz (99.2 g)
Additional Information
  • Read, understand, and follow instructions to ensure safe operation
  • Always wear approved eye protection
  • See instruction manual for additional warnings
