Digital Level with Programmable Angles


  • Digital level measures 0 to 90-Degree, 0 to 180-Degree, or dual axis bullseye ranges
  • Pre-programmed commonly used target pitches for efficiency and ease-of use: 1/8-Inch, 1/4-Inch, 3/8-Inch and 1/2-Inch per foot

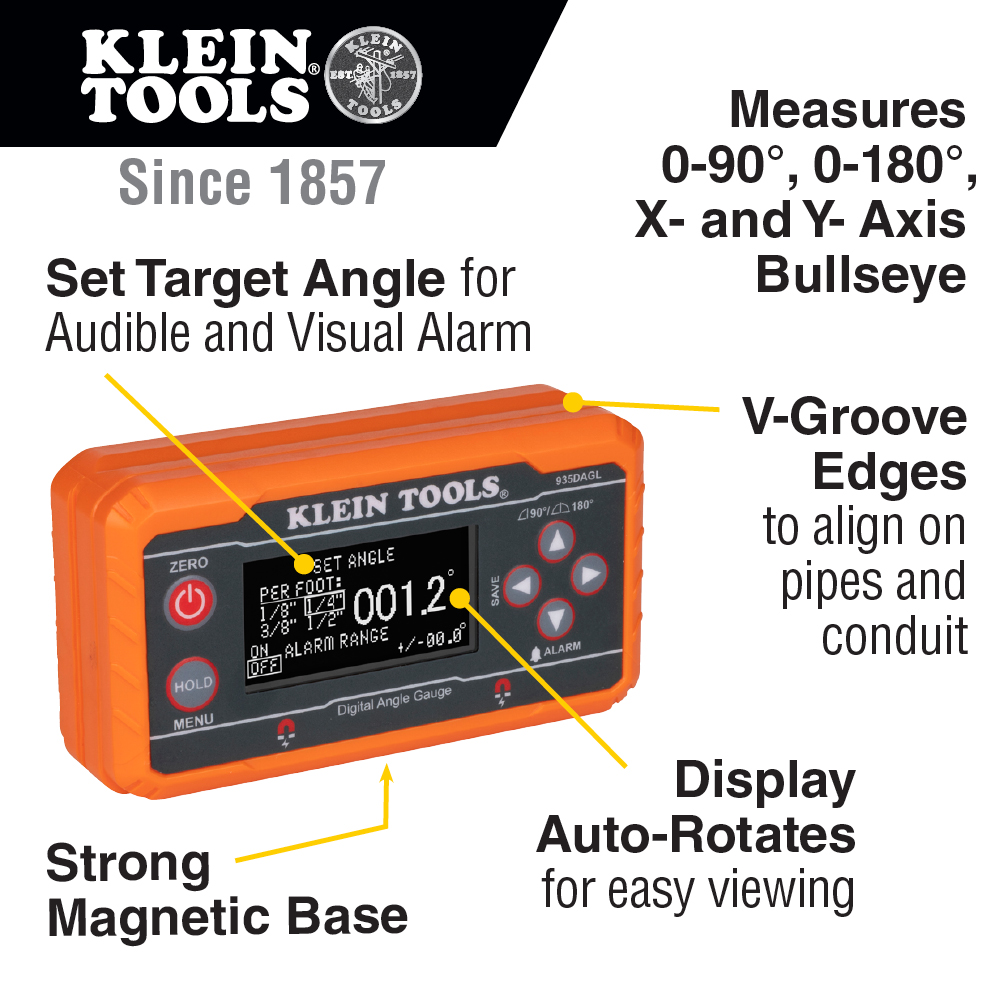

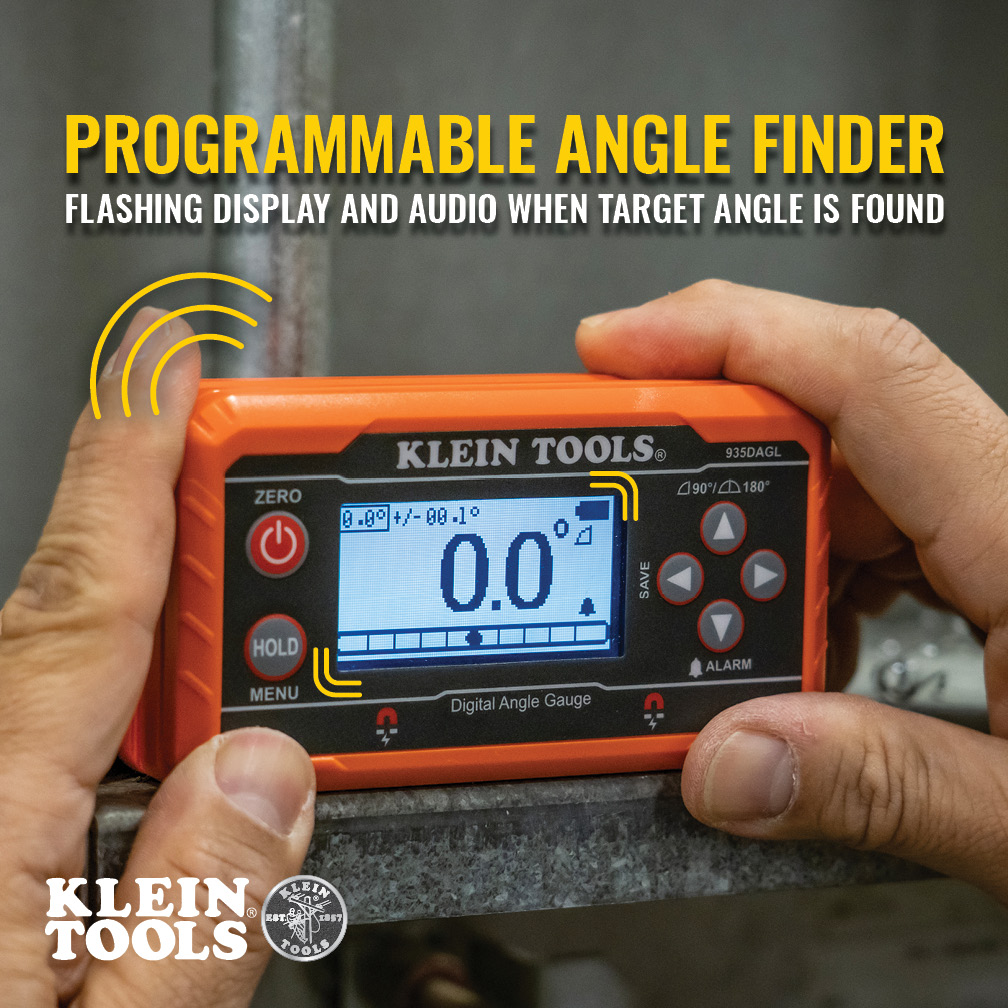

  • Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle

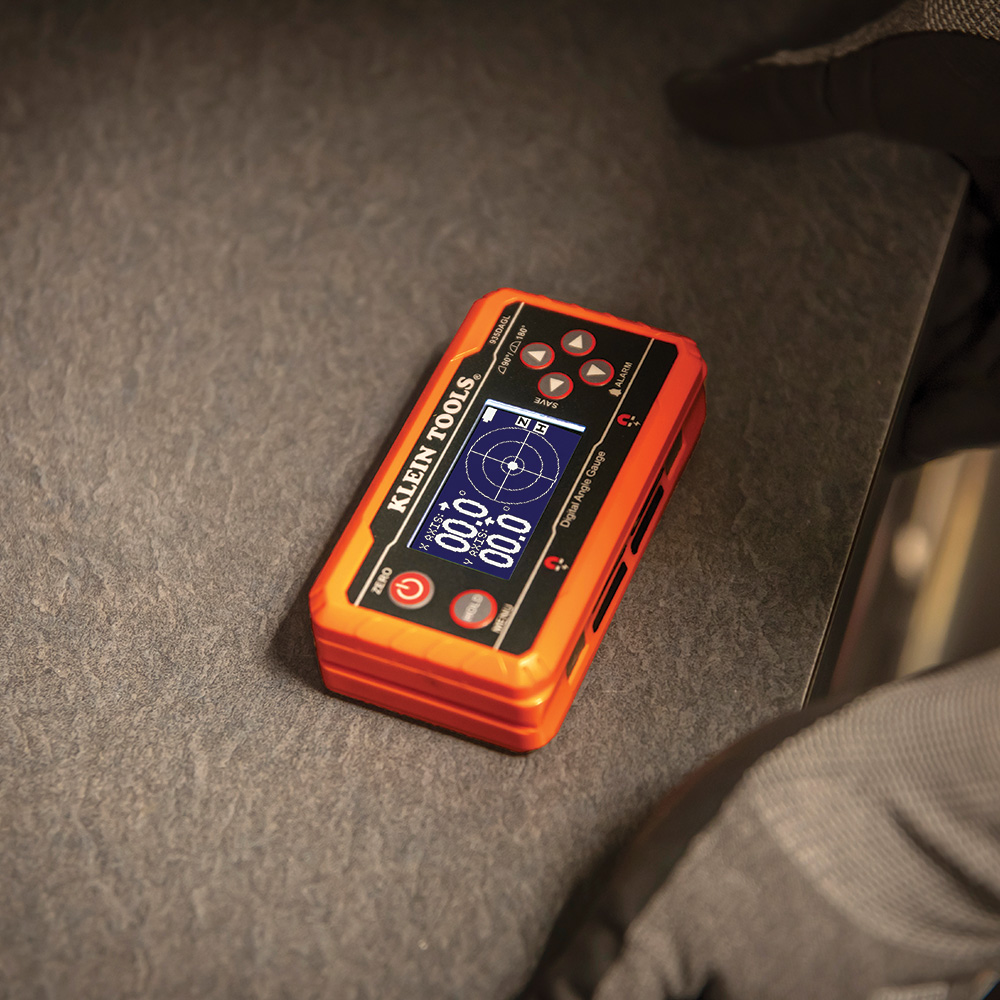

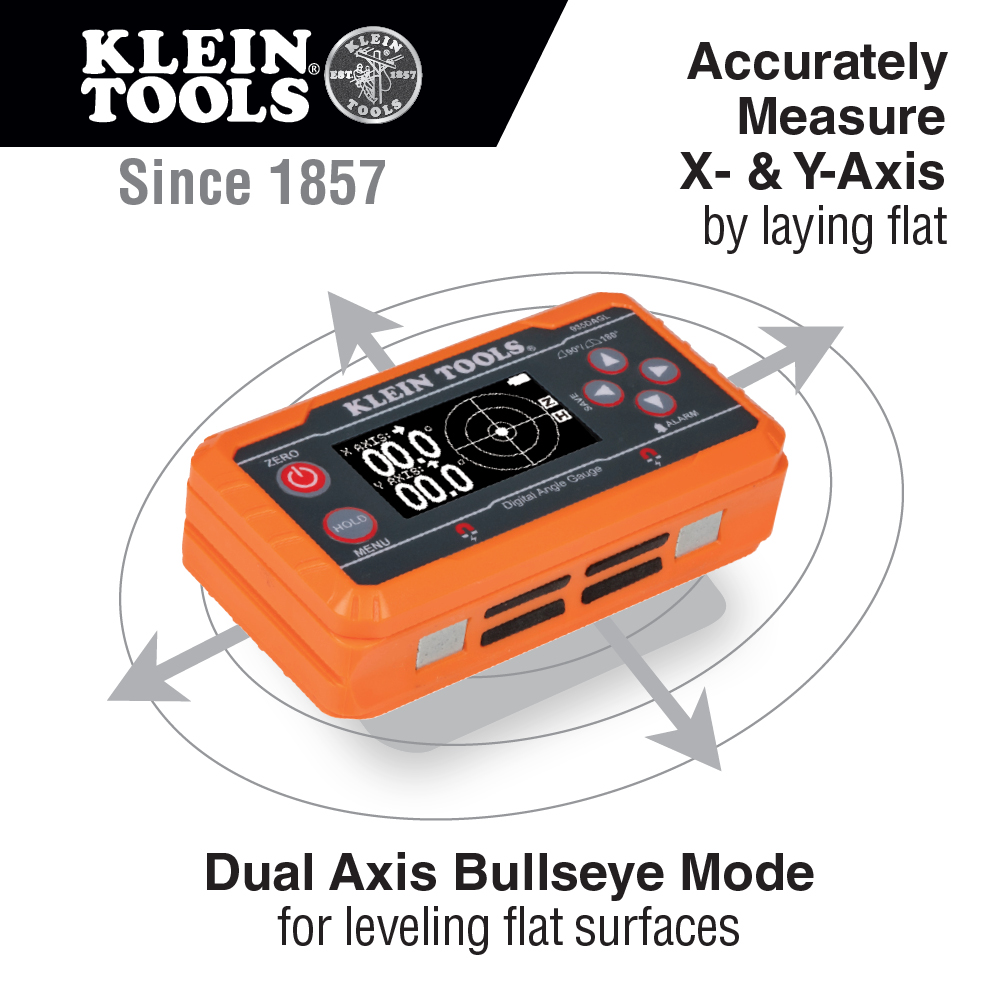

  • Use in bullseye orientation to accurately determine X- and Y-axis
  • Display auto-rotates when used in horizontal or vertical orientation
  • High visibility reverse contrast display improves visibility in dimly lit work environments
  • Strong magnetic base attaches to ferromagnetic surfaces

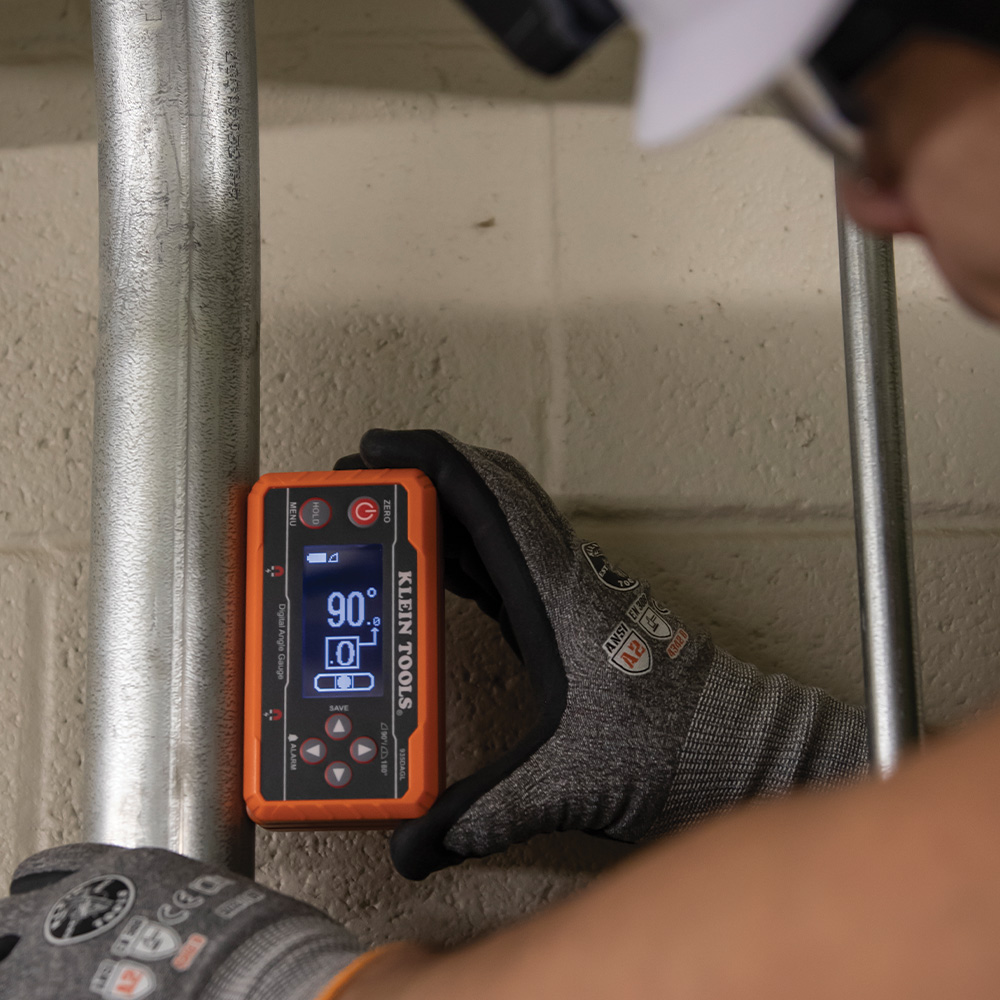

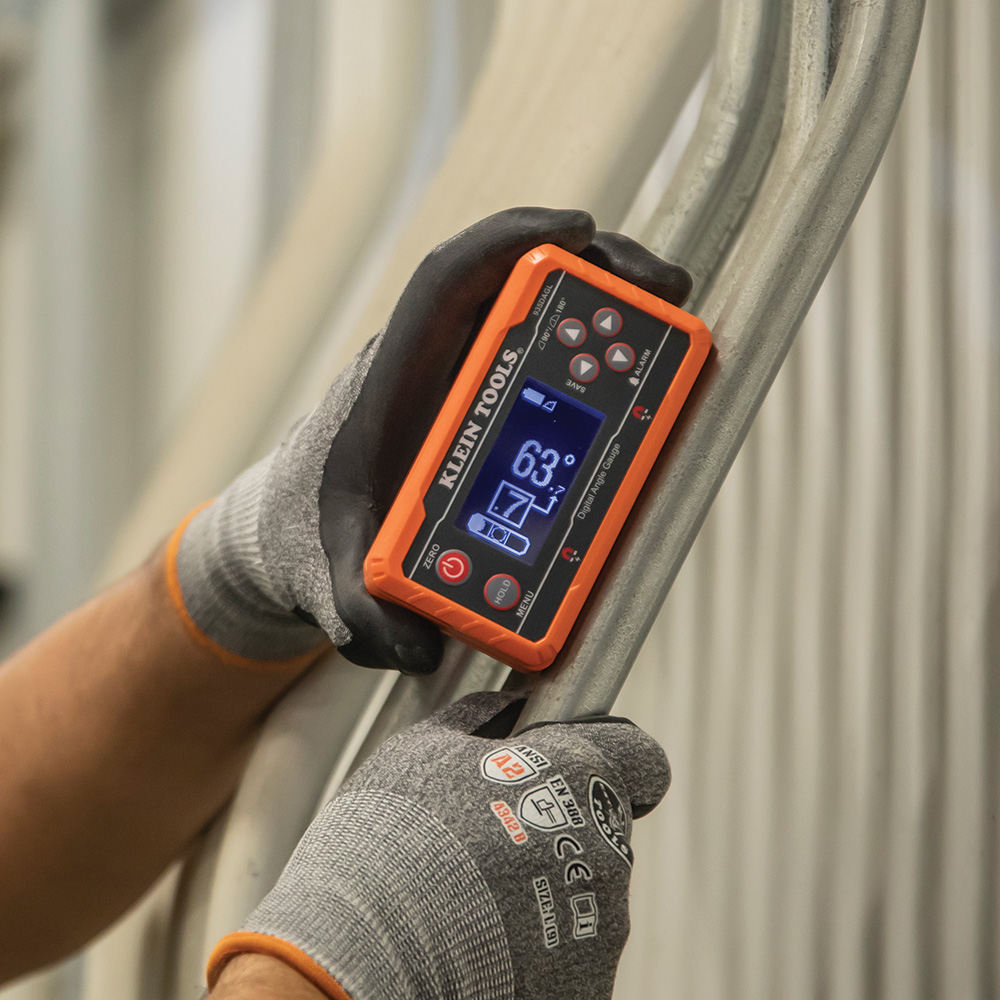

  • V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment
  • Language selectable menu for English, Spanish, and French

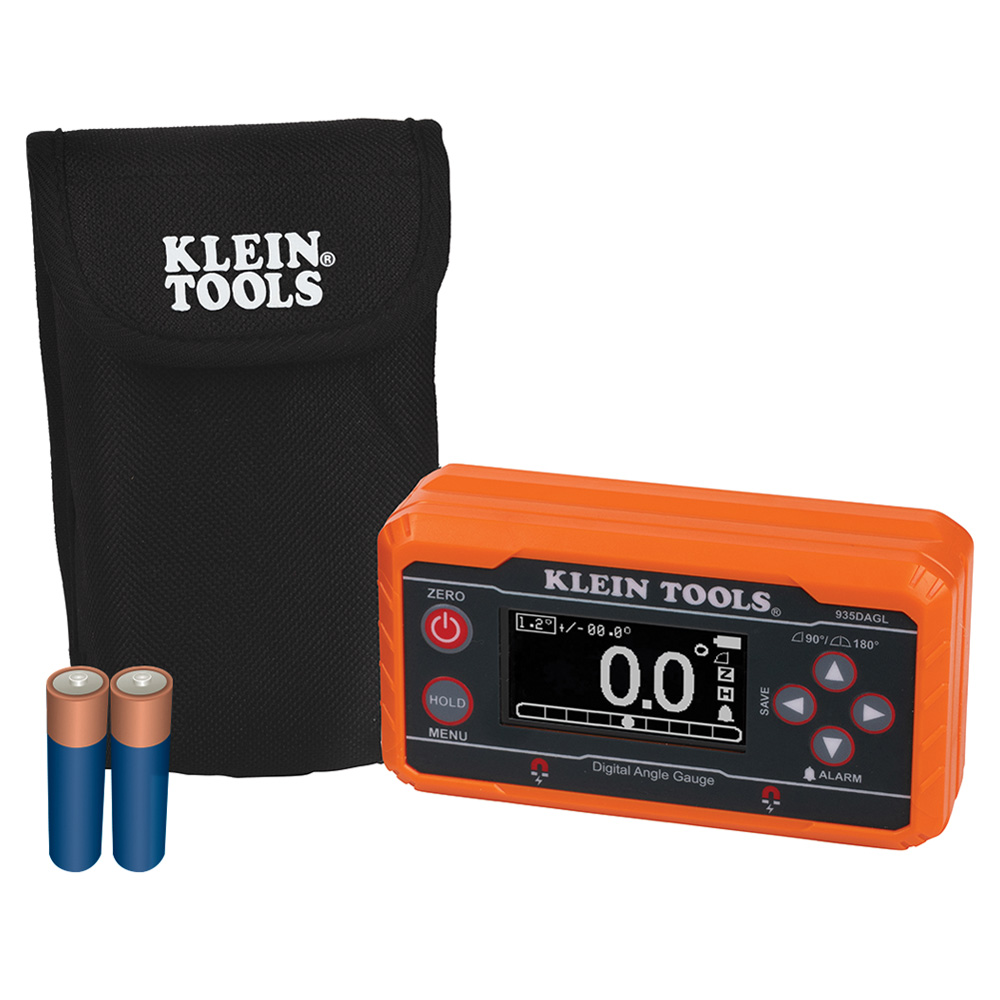

  • Soft carrying case and 2 x AA batteries included
  • Optional Plumber's Kit (Cat. No. 69346) allows the level to be used with PVC and other non-magnetic pipes and Conduit, up to 6 inches of outer diameter
wf_ce Product Icon
drop_protection-2m Product Icon
ukca Product Icon
High-Res JPG 935dagl_photo.jpg
Interactive Catalog

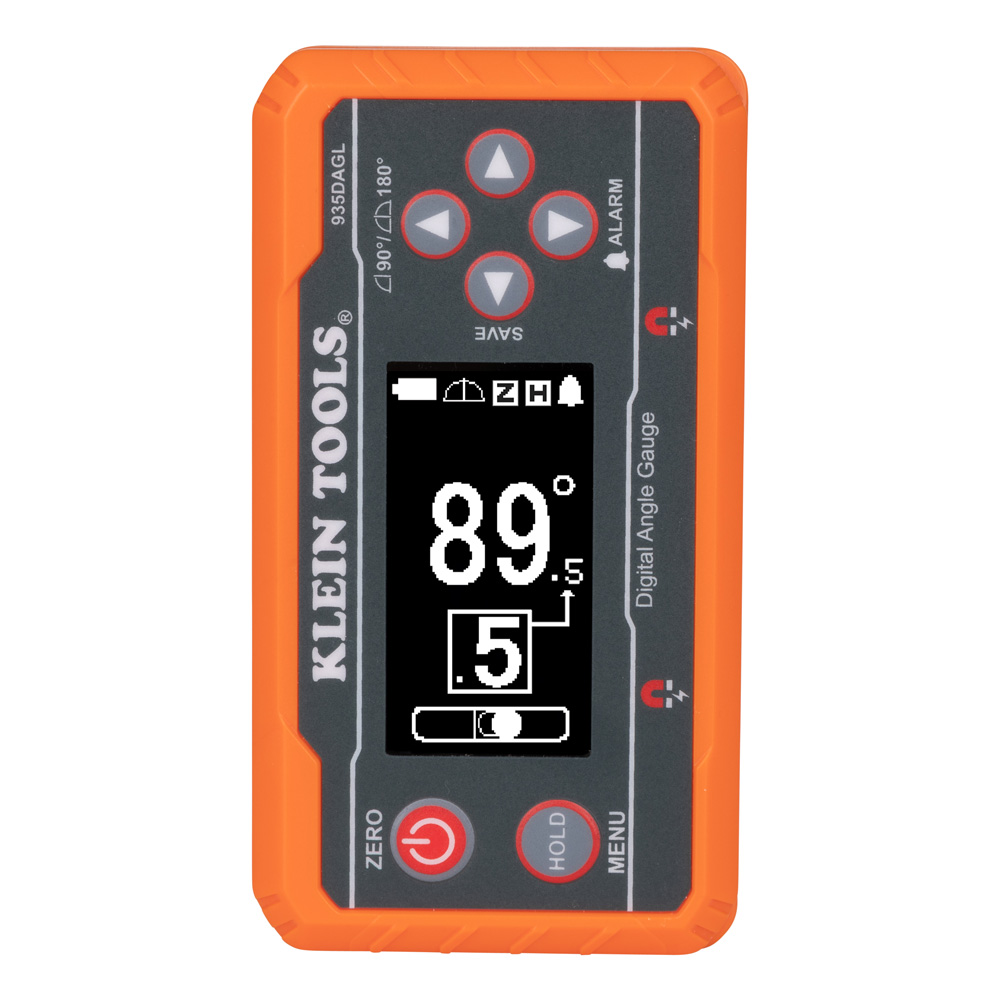

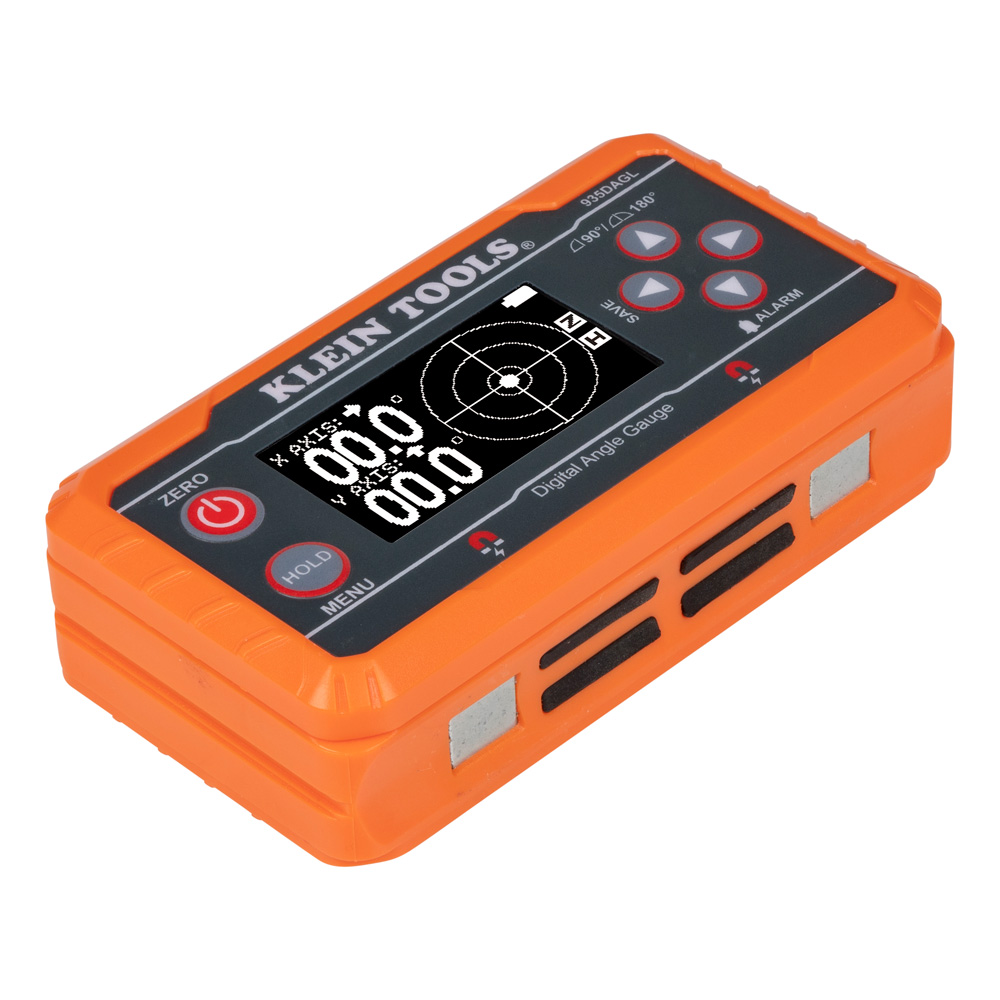

The Klein Tools 935DAGL is a digital level tool that detects and measures angles much more accurately than traditional spirit bubble levels. This inclinometer can measure ranges from 0 to 90-Degree or 0 to 180-Degree with a display that rotates when used in vertical or horizontal orientations. A target angle with audible alarm can be set, allowing the user even greater efficiency. The V-groove magnetic base can attach to a miter saw, table saw, conduit, pipe, and other round or ferromagnetic surfaces.

Digital Level
Measures Angles; Use as a Digital Level
Special Features:
Audible Alarm, Magnetic Base, V-Grooves on Top and Bottom
ABS Plastic Housing and Electronic Components
Magnet Type:
Permanent Rare Earth
Vertical and Horizontal Orientation: +/- 0.2°; Bullseye Orientation: +/- 0.5°
Drop Protection:
6.6' (2 m)
Ingress Protection:
IP42 Dust and Water Resistant
2 x AA
Digital Level; Soft Carrying Case; Instruction Manual; Batteries
Overall Length:
4.57'' (11.6 cm)
Overall Height:
2.48'' (6.3 cm)
Overall Width:
1.36'' (3.5 cm)
7 oz (200 g)
Additional Information
  • Read, understand, and follow instructions to ensure safe operation
  • Always wear approved eye protection
  • See instruction manual for additional warnings
