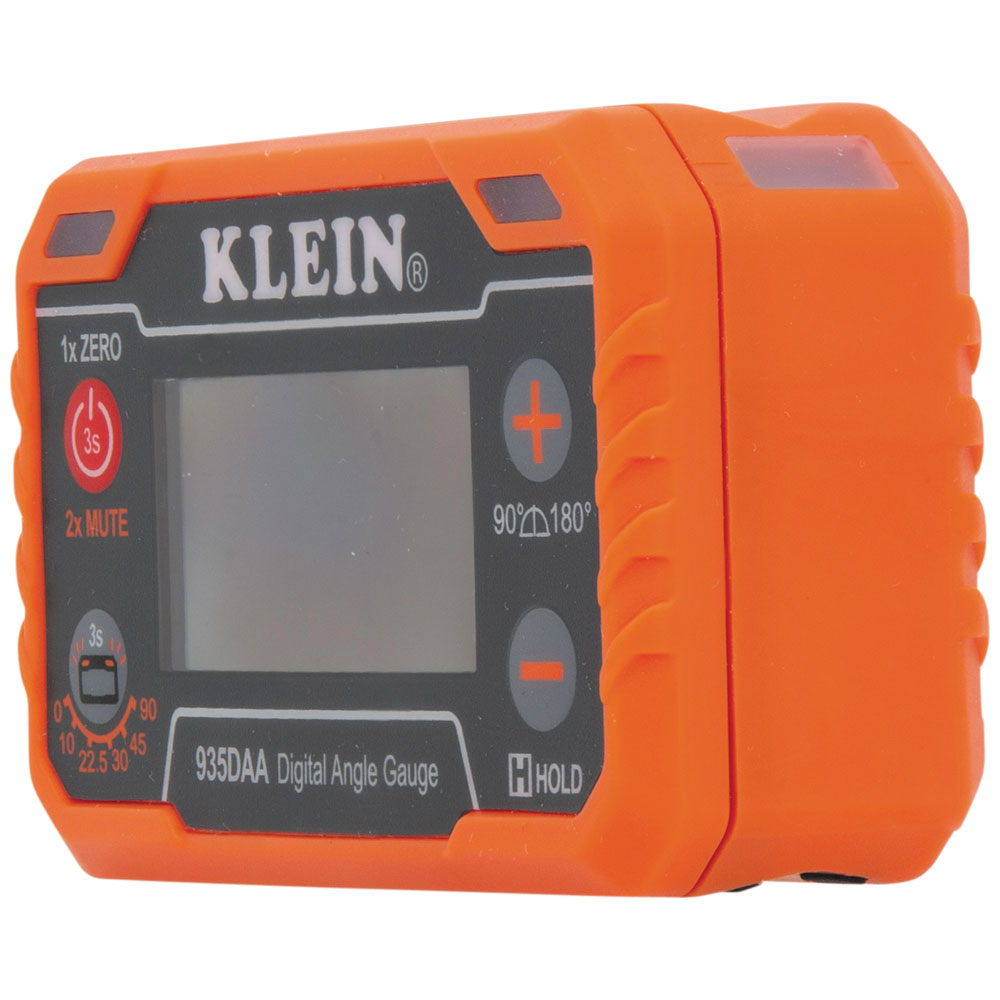

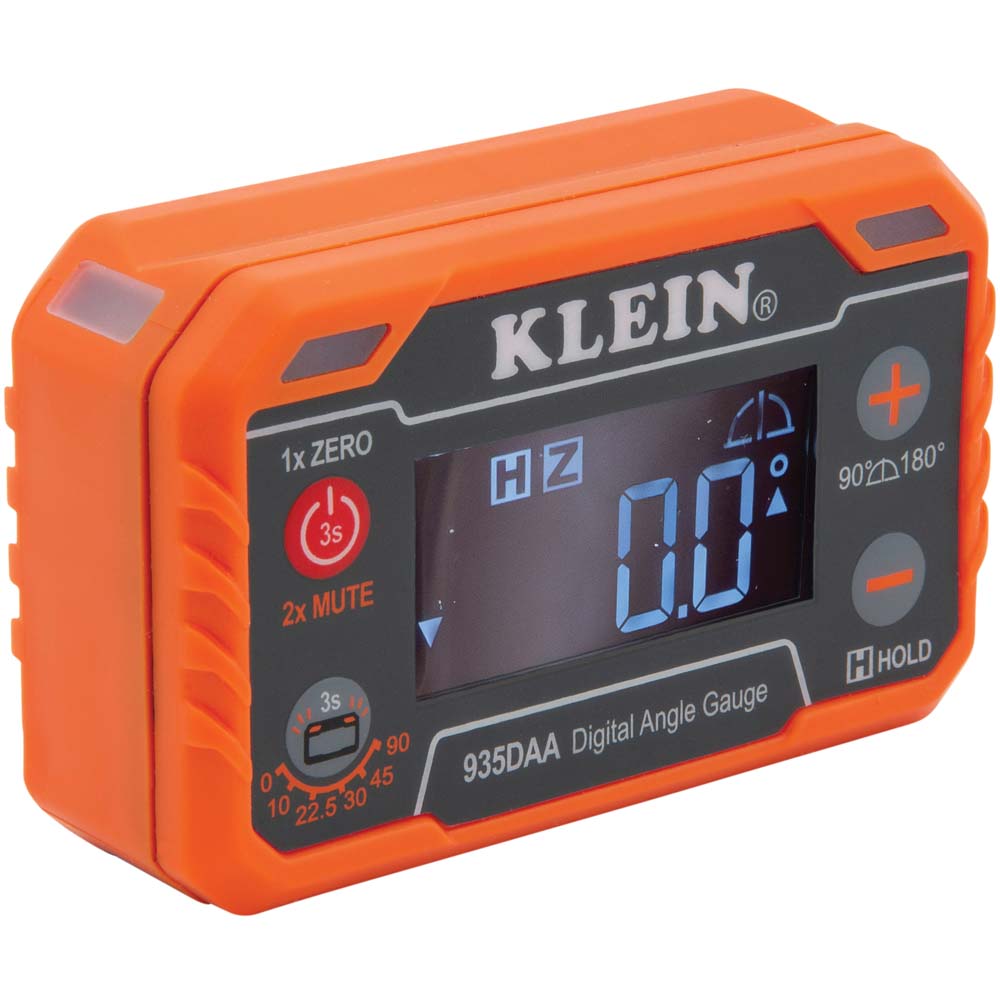

Digital Angle Gauge with Angle Alert

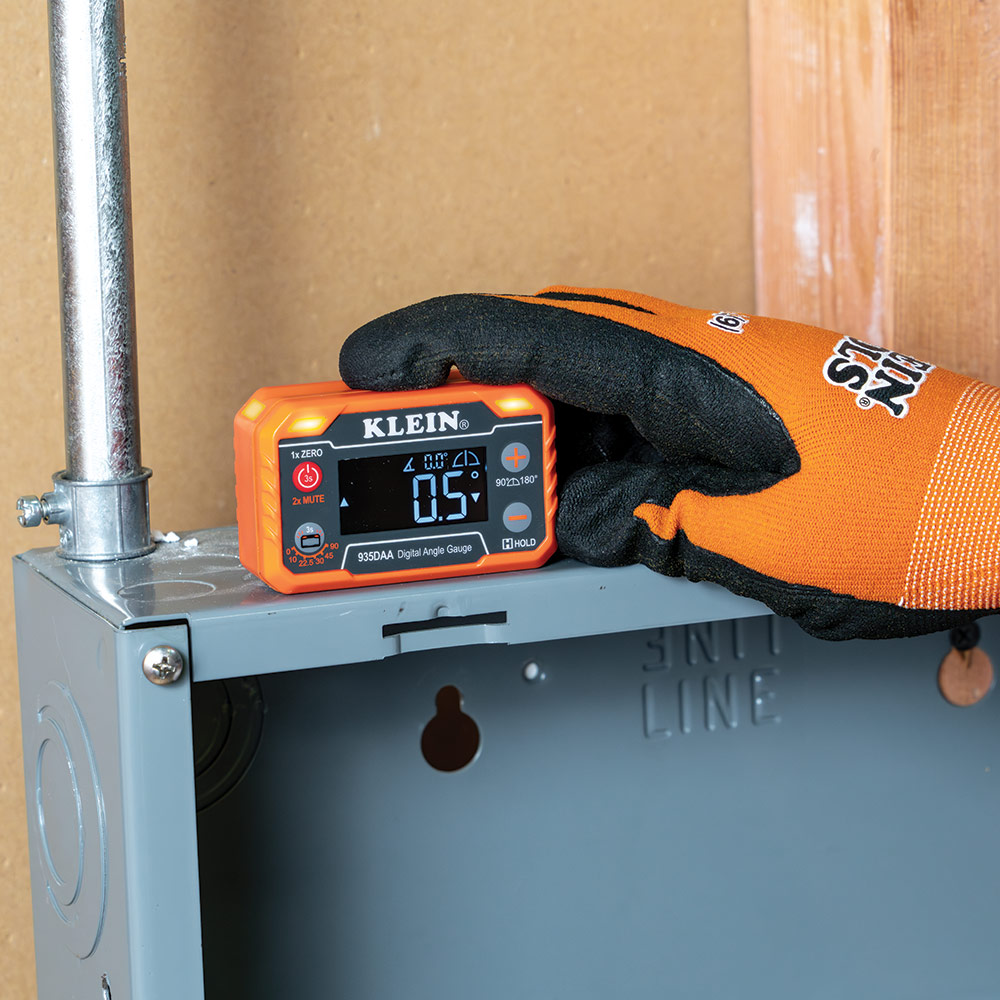

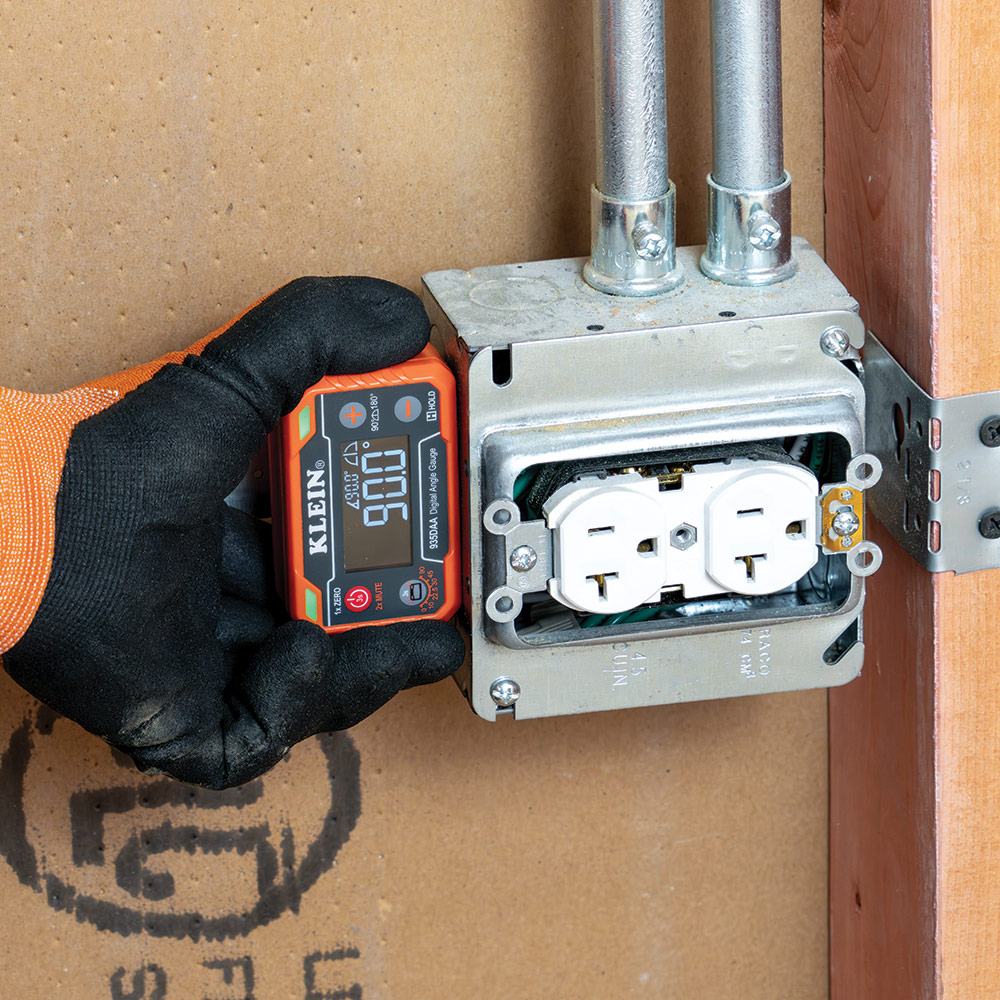

  • This Digital Angle Gauge can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level

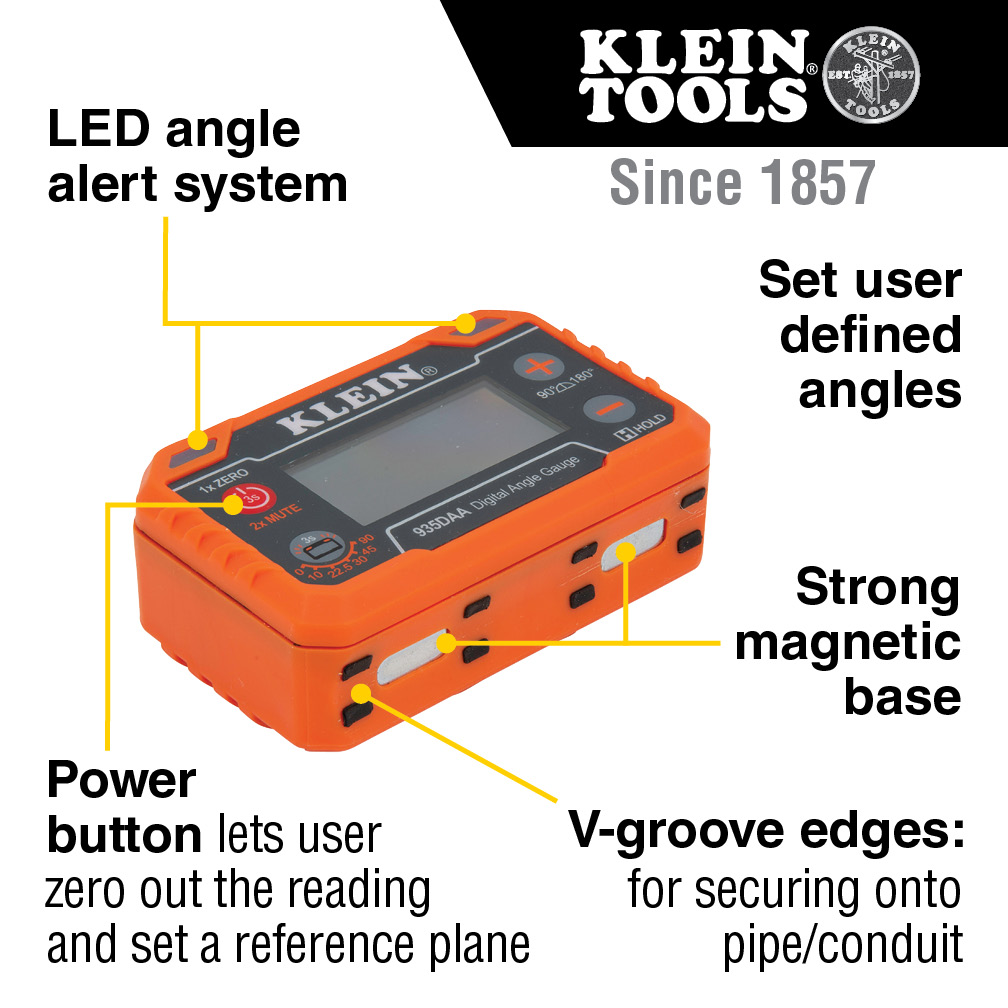

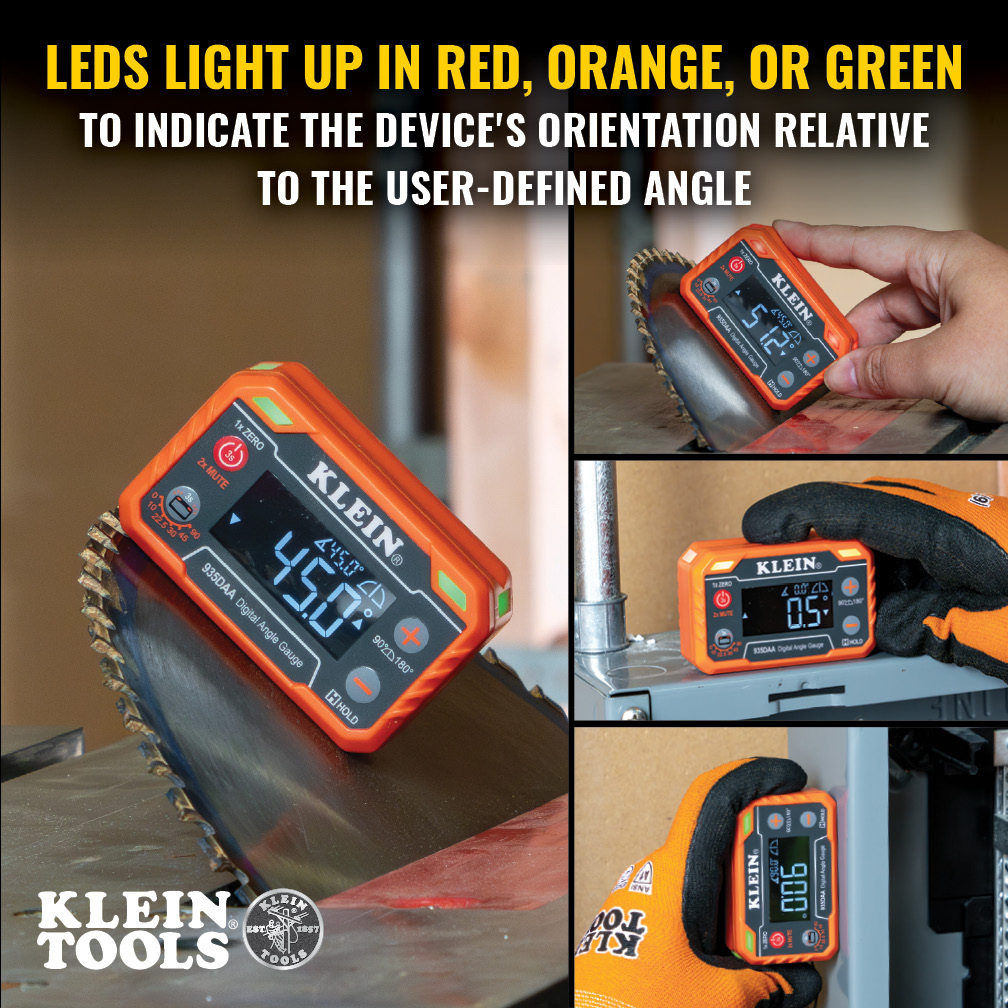

  • LEDs light up red, orange, or green based on how close the device's orientation is to the user defined angle

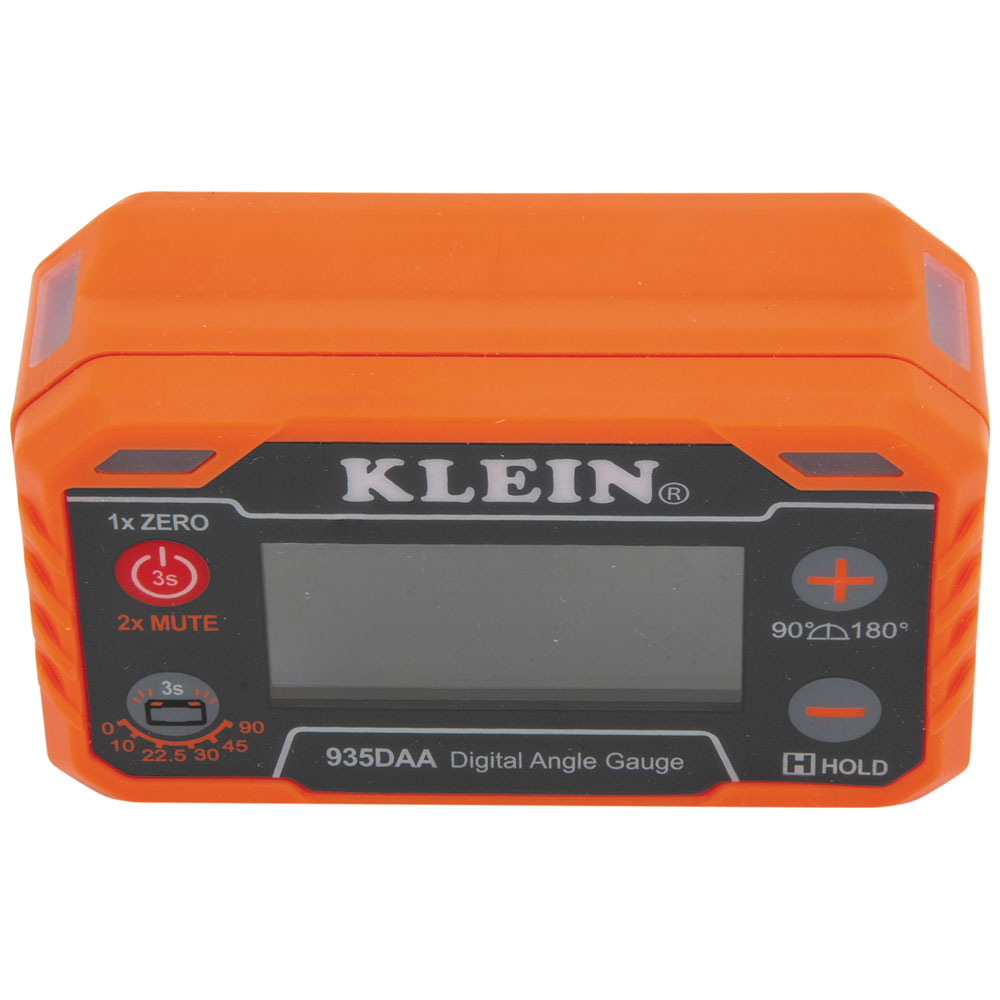

  • Bright reverse contrast display is easy to see in all lighting conditions

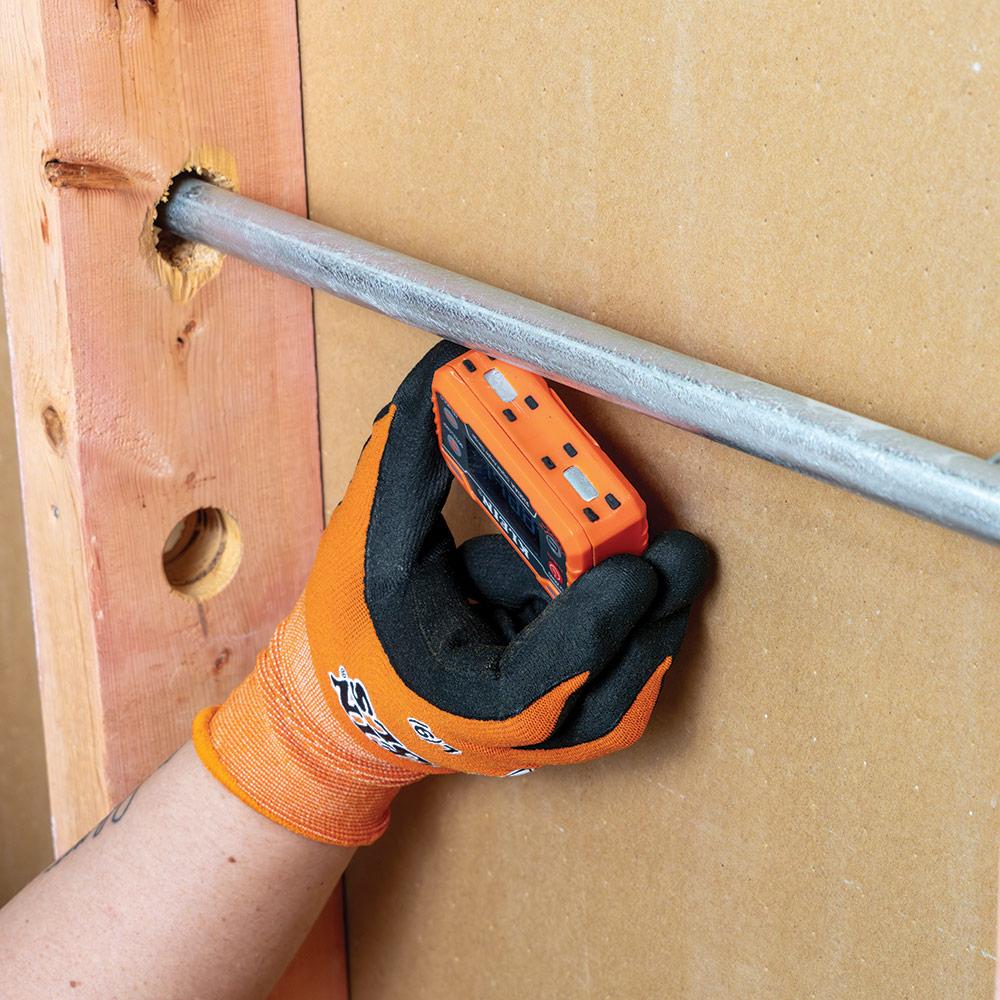

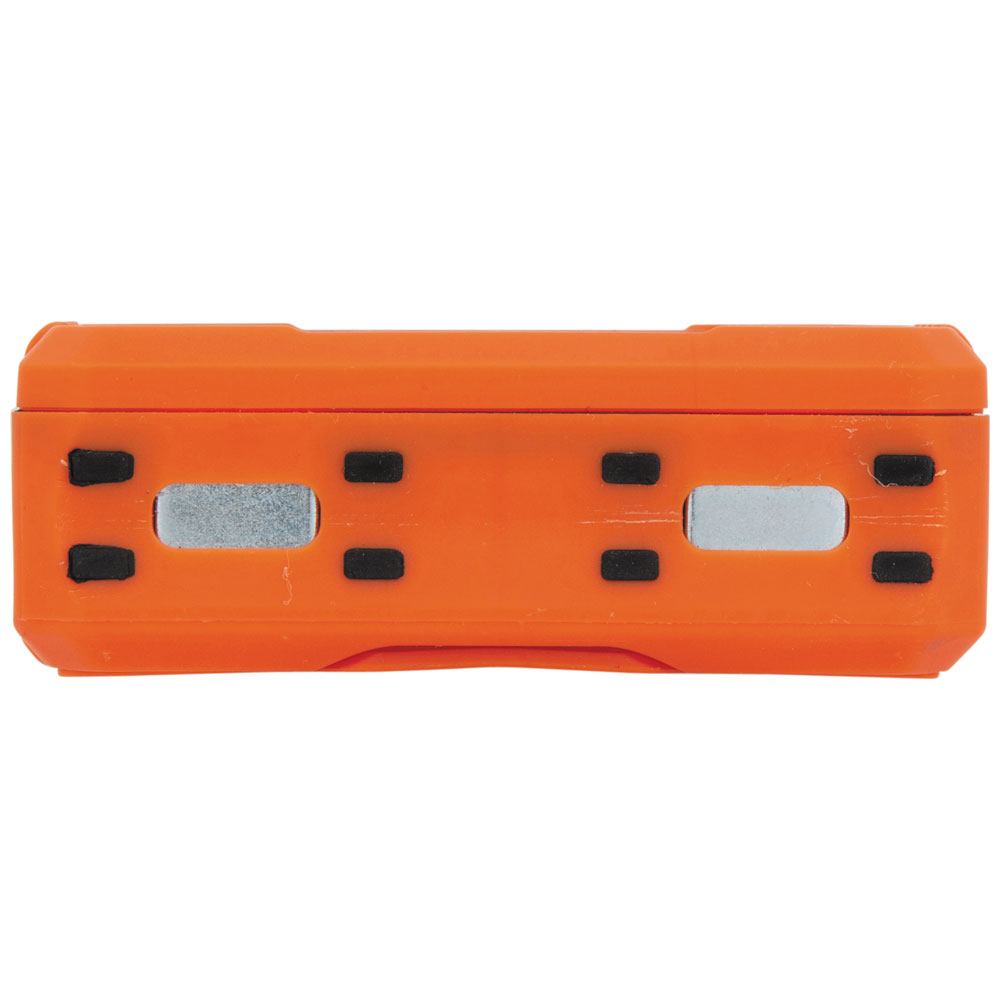

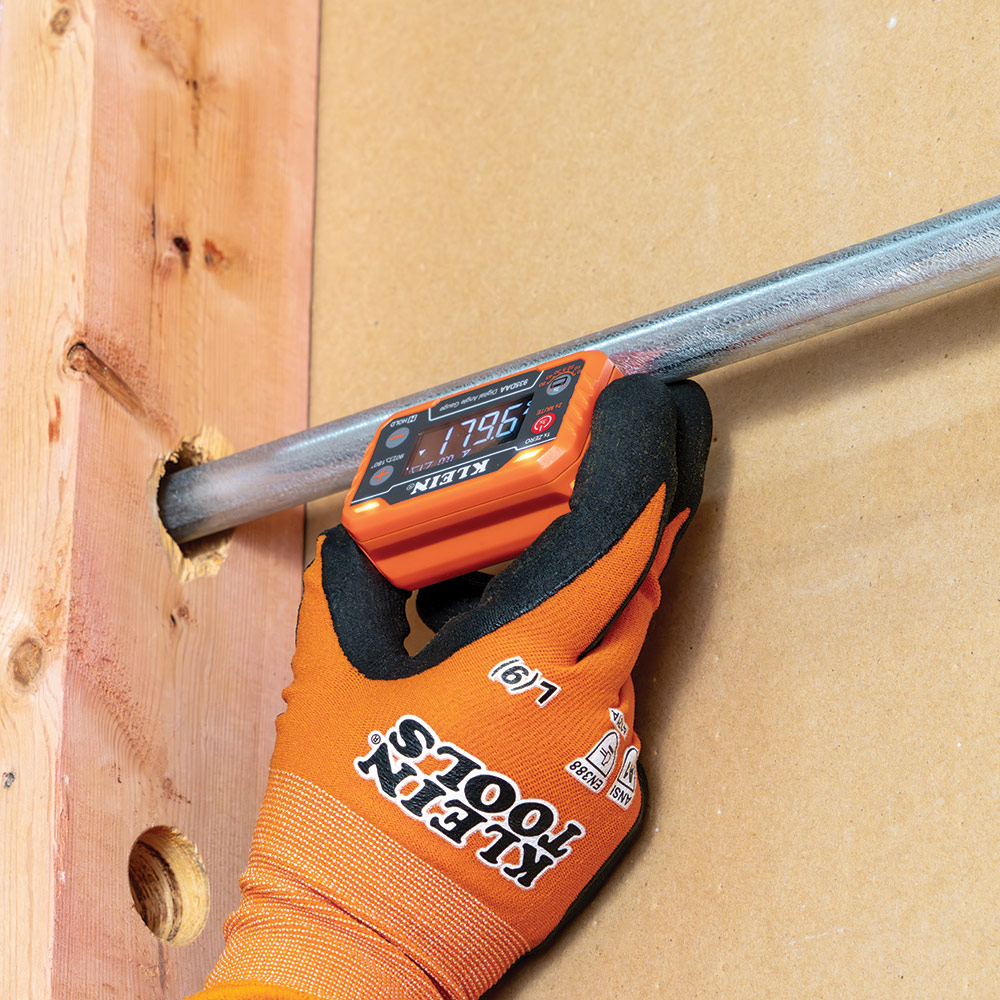

  • Strong magnetic base attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
  • V-Grooves ensure a secure fit on the contours of conduit or pipe
  • Display auto-rotates when upside-down for easy viewing
  • Water and dust resistant with rating of IP54

The Klein Tools Digital Angle Gauge with Angle Alert can measure or set angles, check relative angles, or be used as a digital level. Users can set defined angles easily and quickly. The Angle Alert features uses LEDs and a buzzer to notify the user when their desired angle is reached without looking at the screen. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. The Digital Angle has dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree and also has a high visibility reverse contrast display for easy viewing.

Digital Level
Measure or Set Angles, Check Relative Angles, or Use as a Digital Level
Special Features:
3 Color LED Alerts, V-grooves On Top and Bottom Faces, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast
PC/ABS Plastic Housing, TPR, PET and Electronic Components
Magnet Type:
Permanent Rare-Earth
0.1⁰ from 0⁰ to 1⁰ , 89⁰ to 91⁰, 179⁰ to 180⁰ and 0.2⁰ for all Other Angles (When Measuring Relative to the Magnetic Base)
Drop Protection:
6.6' (2 m)
Ingress Protection:
IP54: Water and Dust Resistant
Low Battery Alarm:

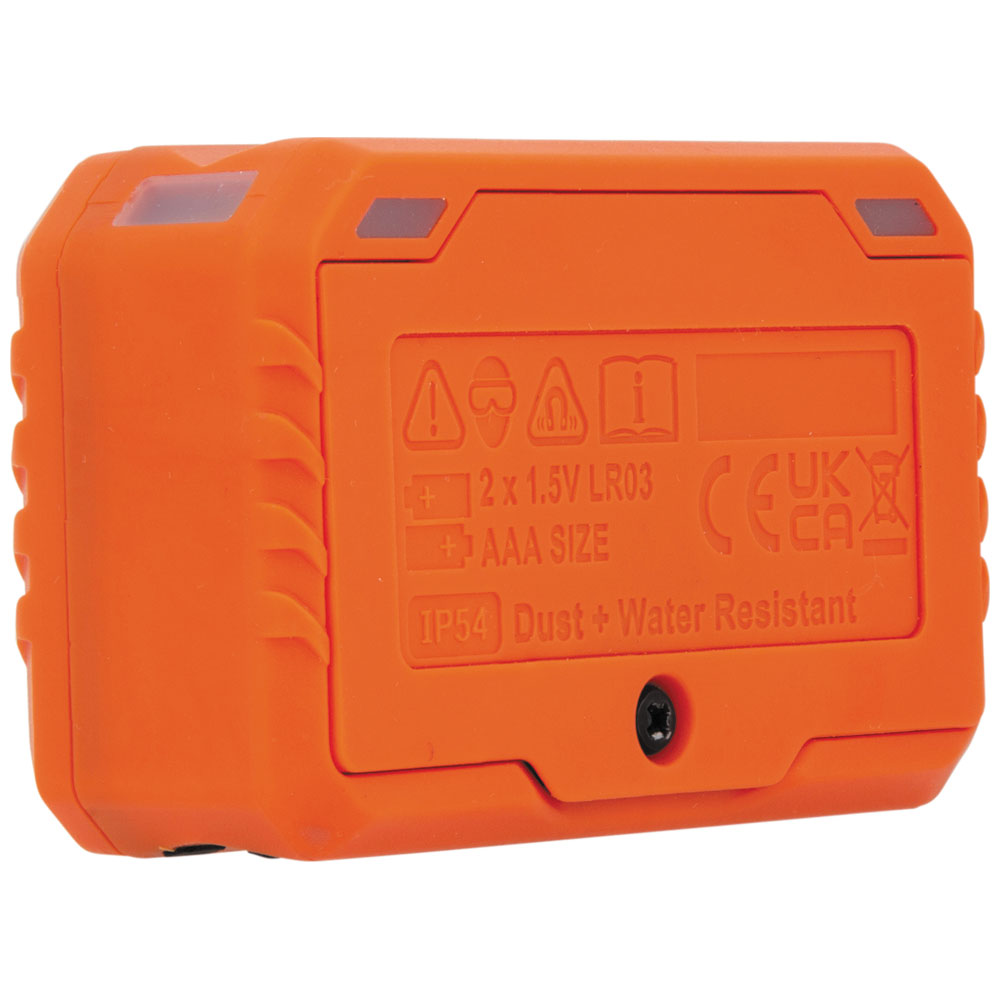

2 x 1.5 V AAA
Digital Angle Gauge; Soft Carrying Case; Instruction Manual; Batteries
Overall Length:
1.02'' (2.6 cm)
Overall Height:
1.77'' ( 4.5 cm)
Overall Width:
2.82'' (7.2 cm)
3.2 oz (91 g)
Additional Information

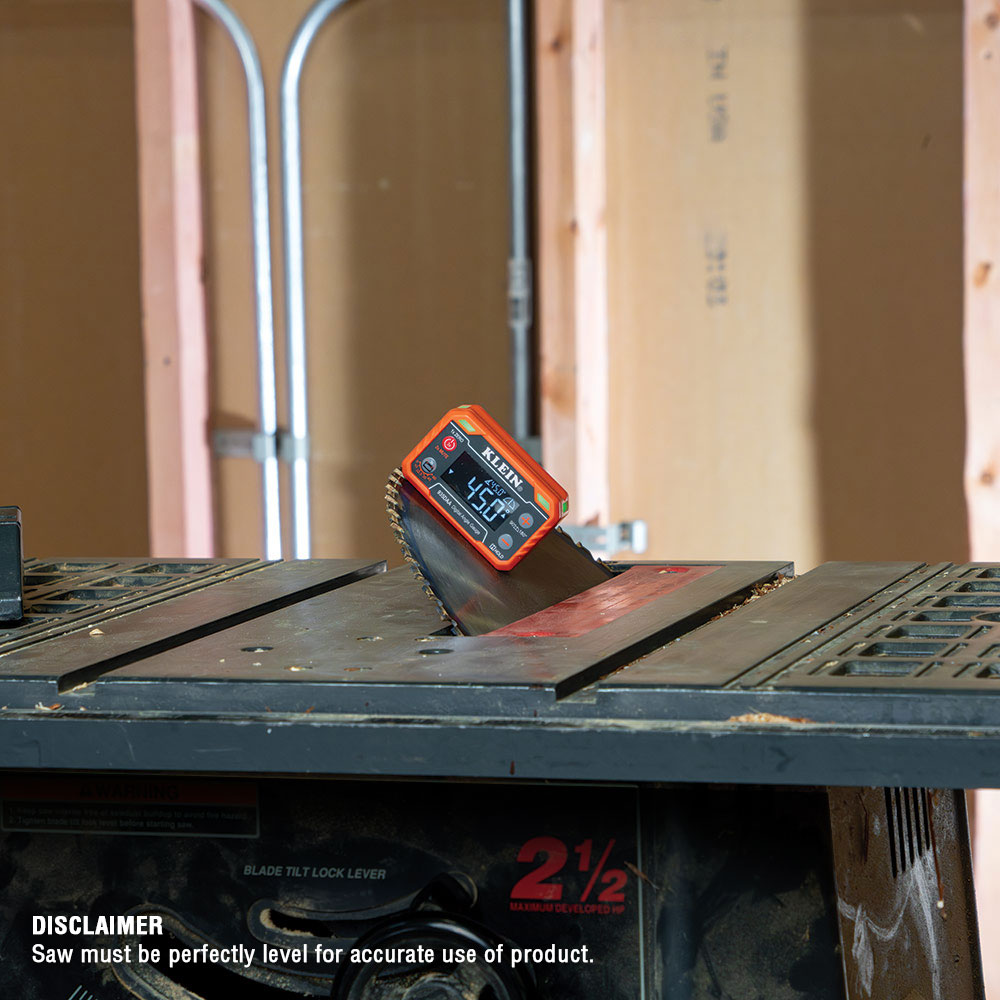

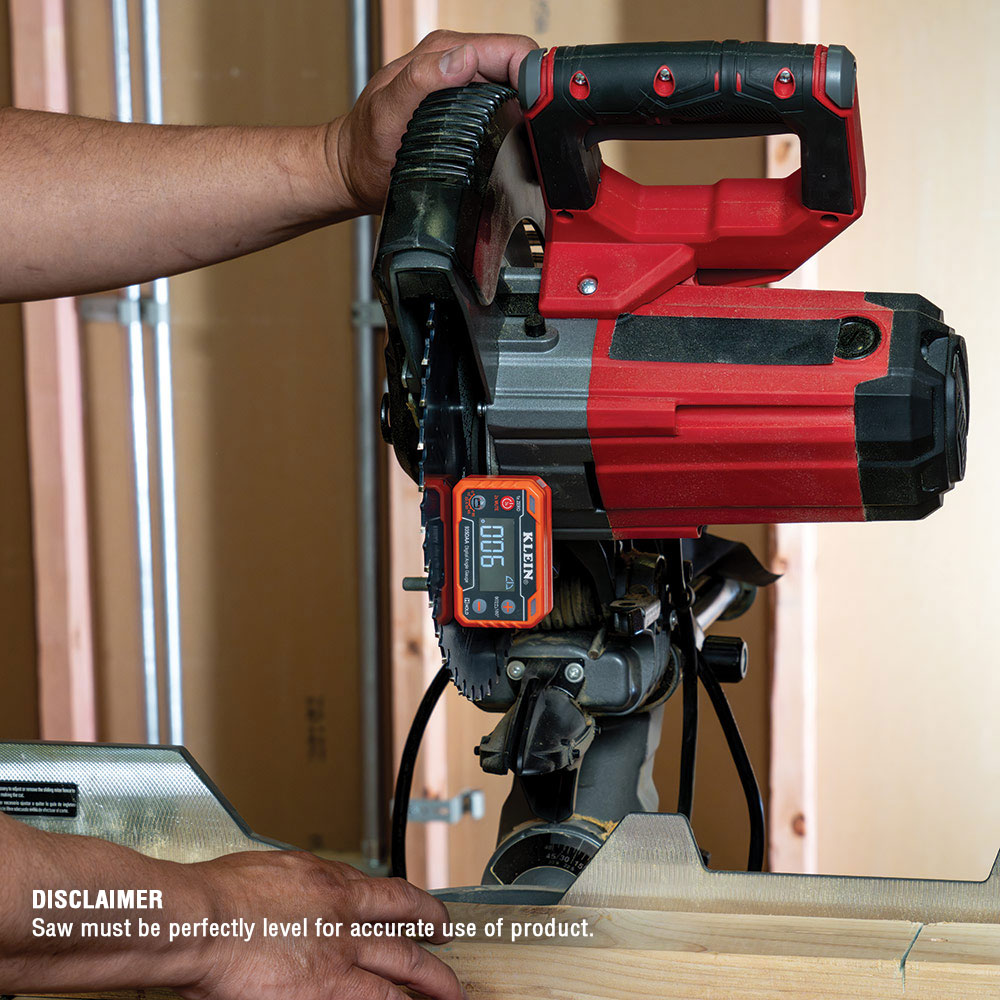

  • Saw must be perfectly level for accurate use of product
