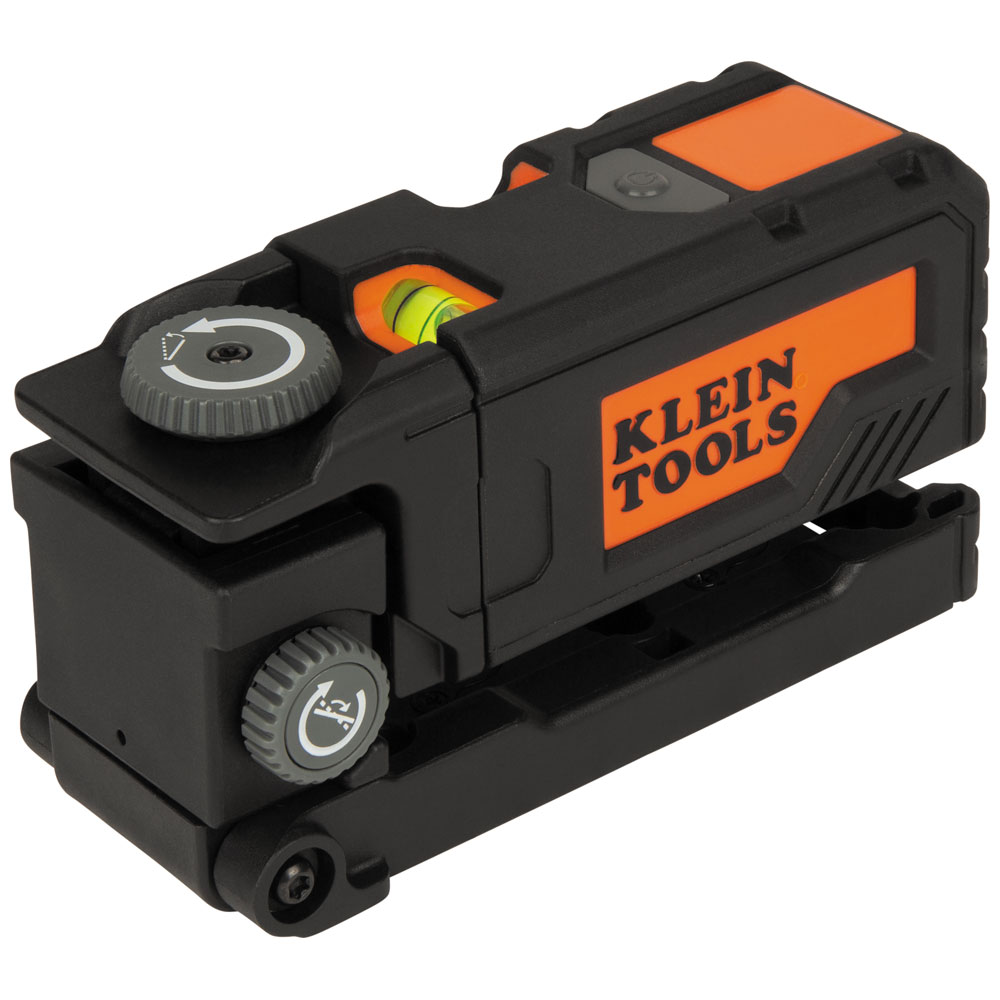

Red Pocket Laser Level
93PTL

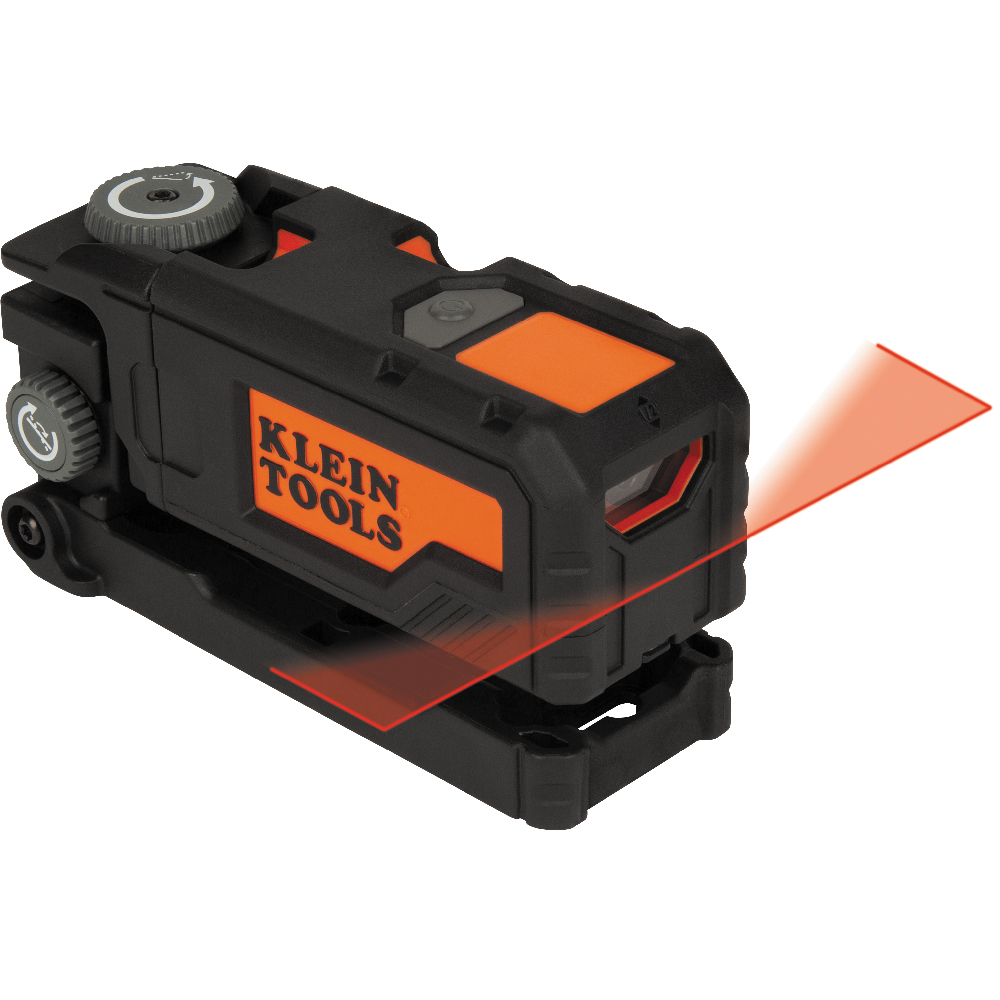

- Projects single red laser line up to 30 feet (9.1 m) indoors, providing ample coverage for a wide range of applications

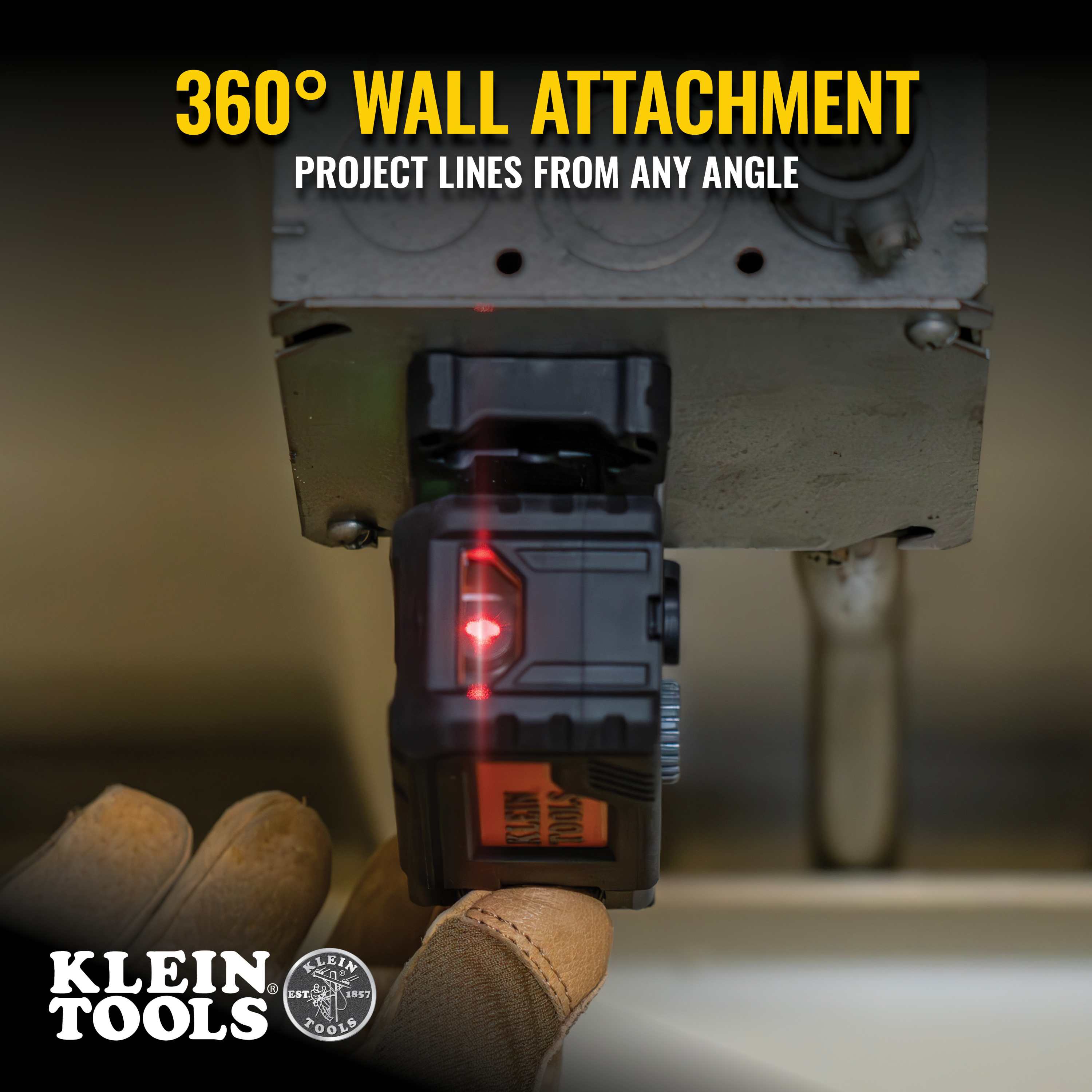

- Laser body has a 360-Degree rotation for projecting lines at any angle

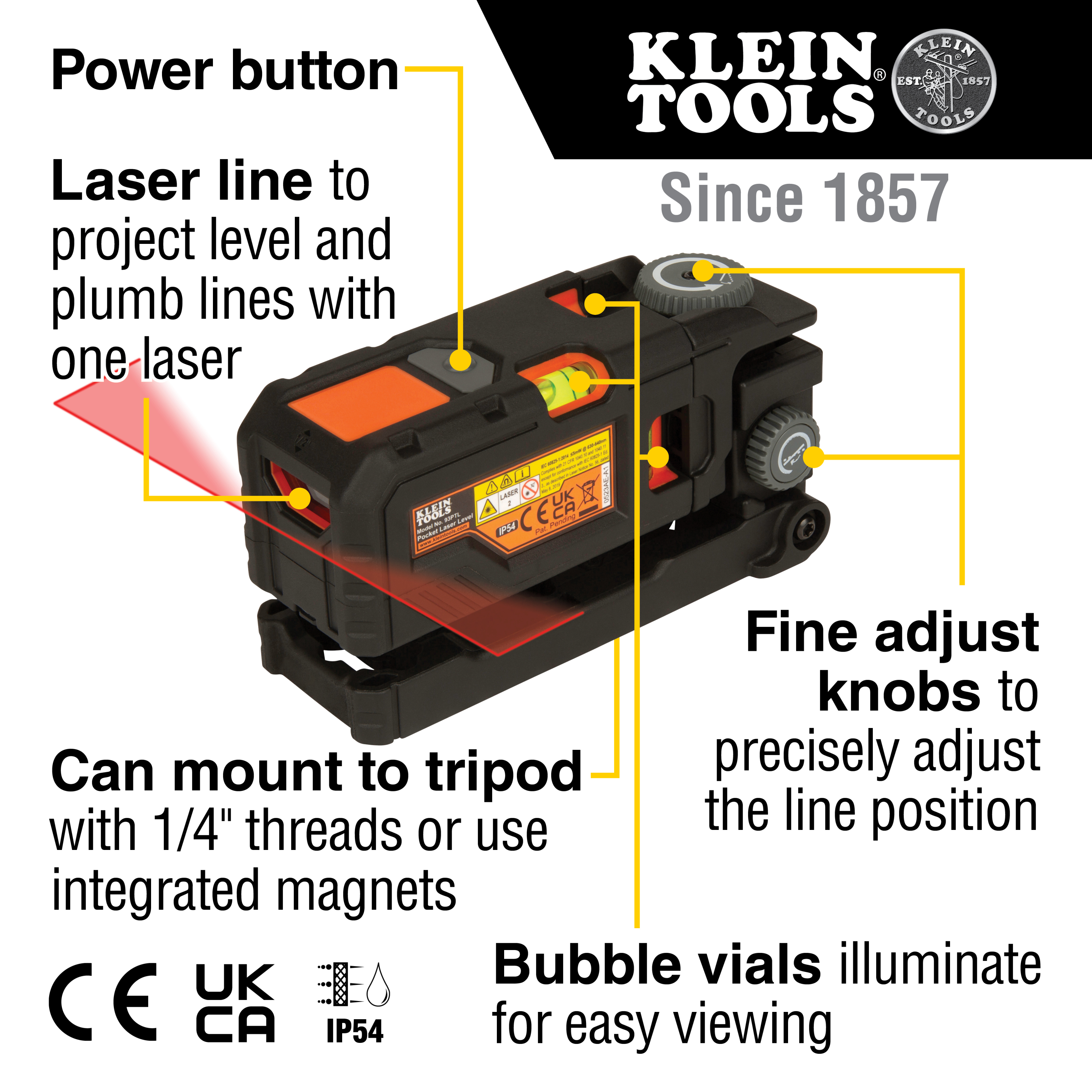

- Horizontal and vertical fine adjust knobs allow for easier precision adjustment of the laser line without having to move the unit

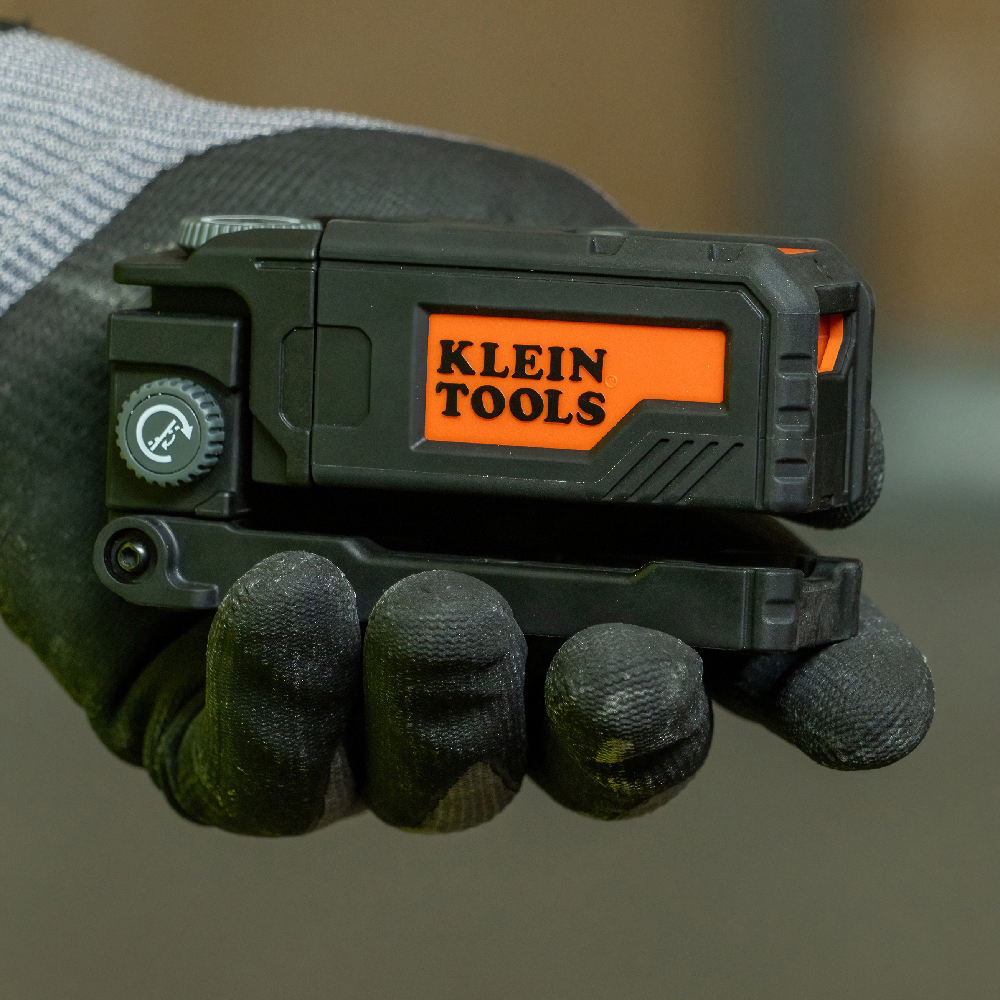

- Compact design is easy to use and transport at home, on the job, or anywhere in between

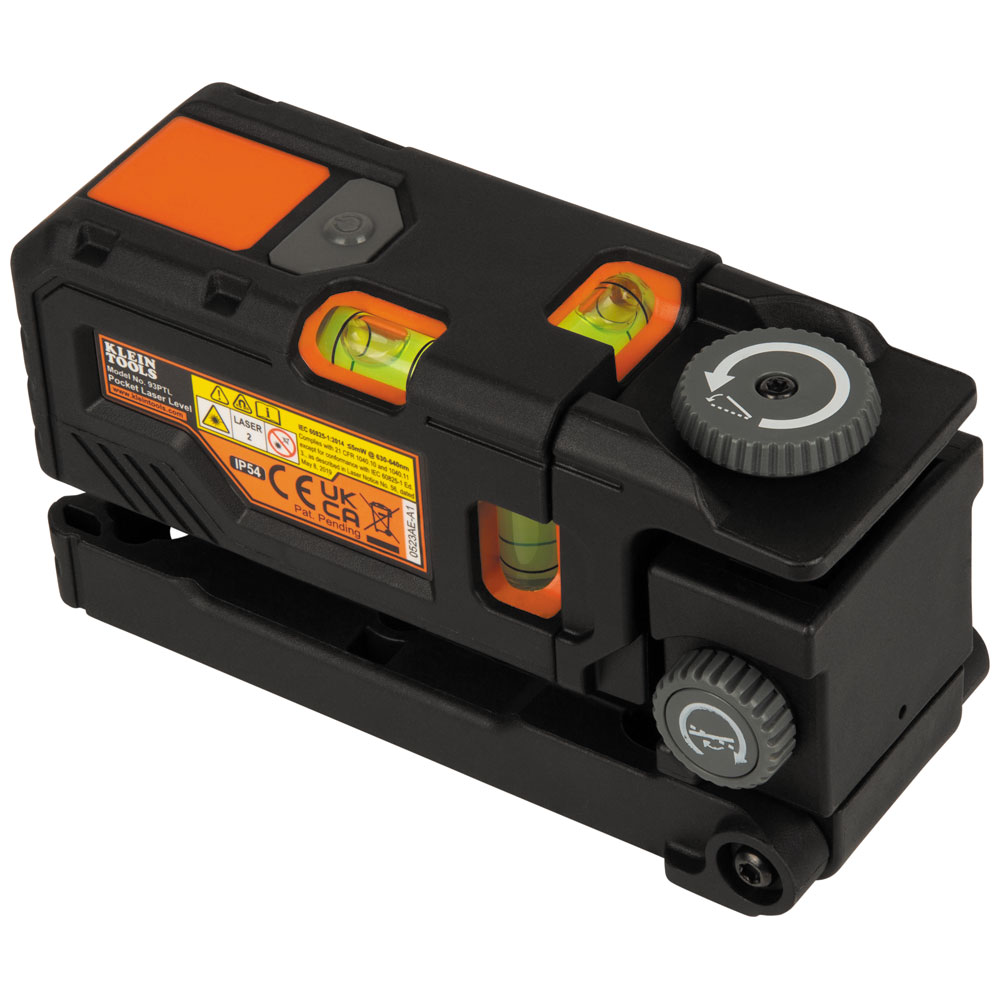

- 3-axis bubble vials illuminate for enhanced viewing and leveling

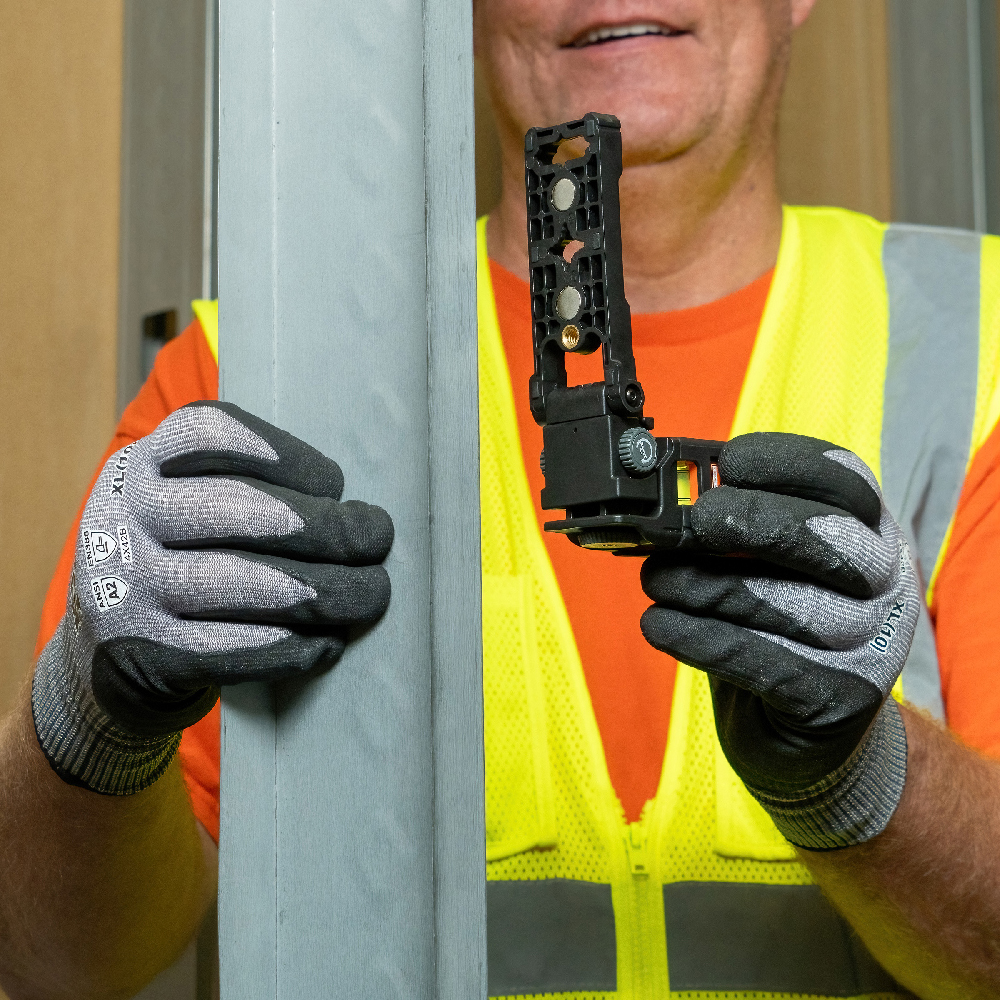

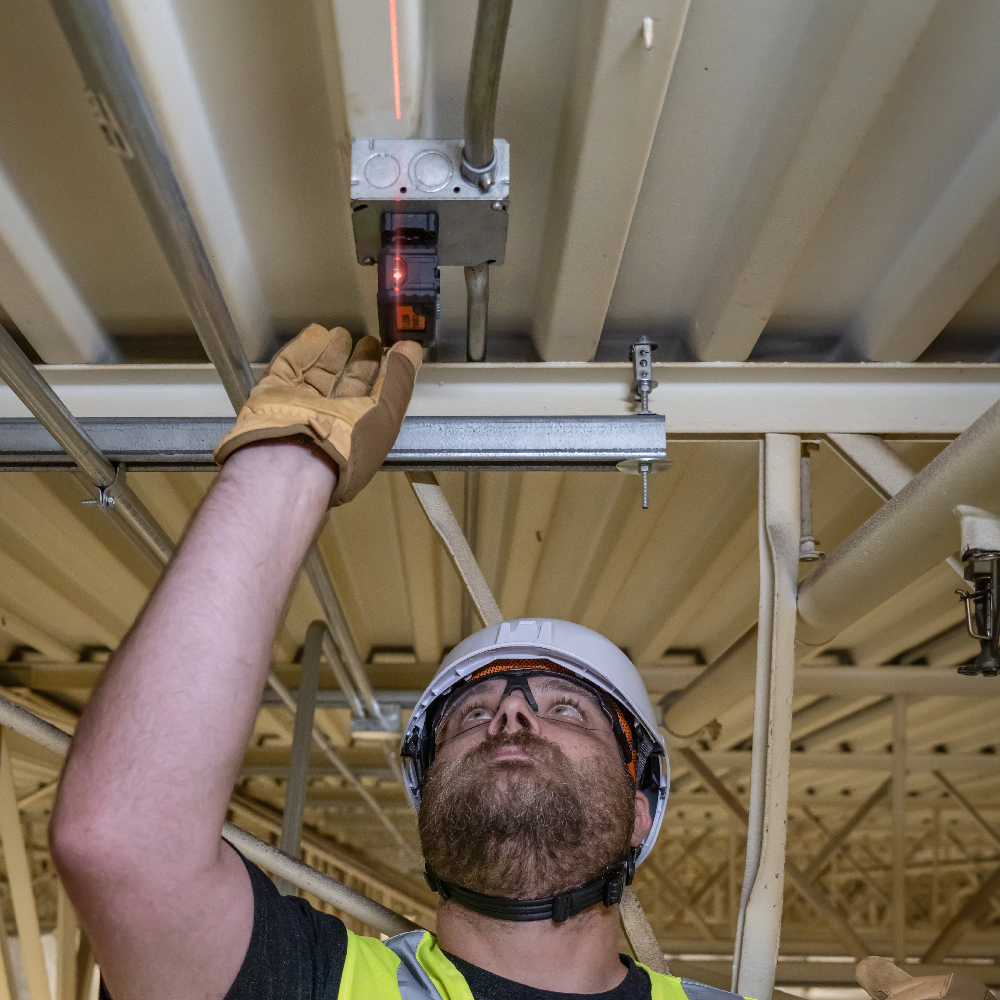

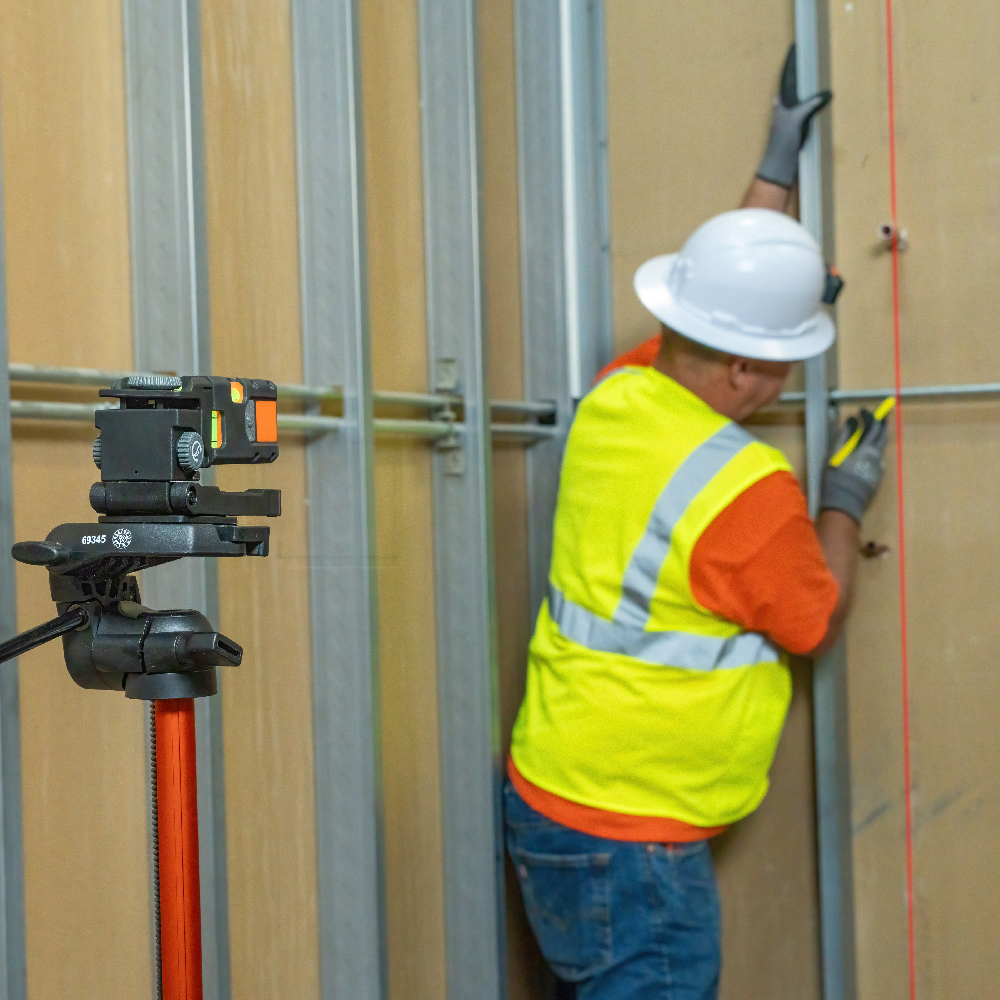

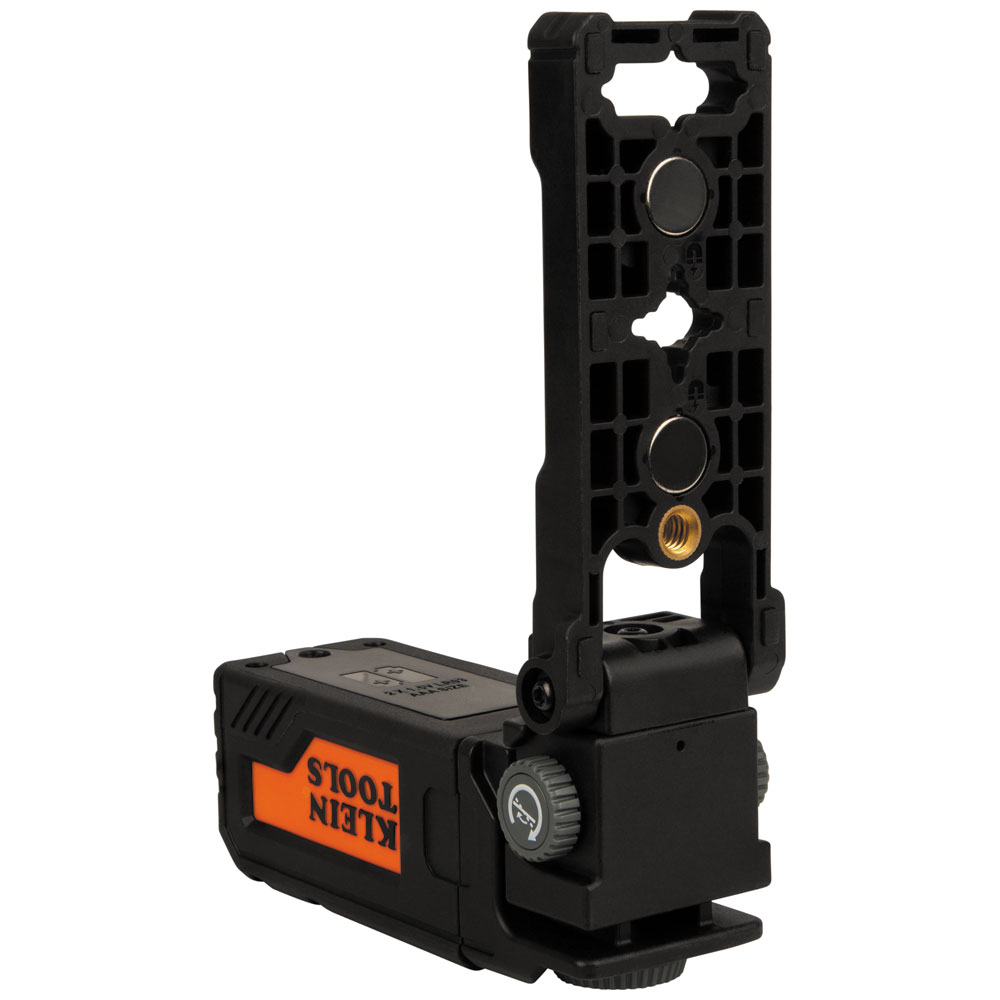

- Two powerful magnets, 1/4-20 thread tripod mounting, a hang hole, and built-in kickstand give a variety of mounting options
- Over 12-Hour runtime with 2 AAA alkaline batteries and low battery warning

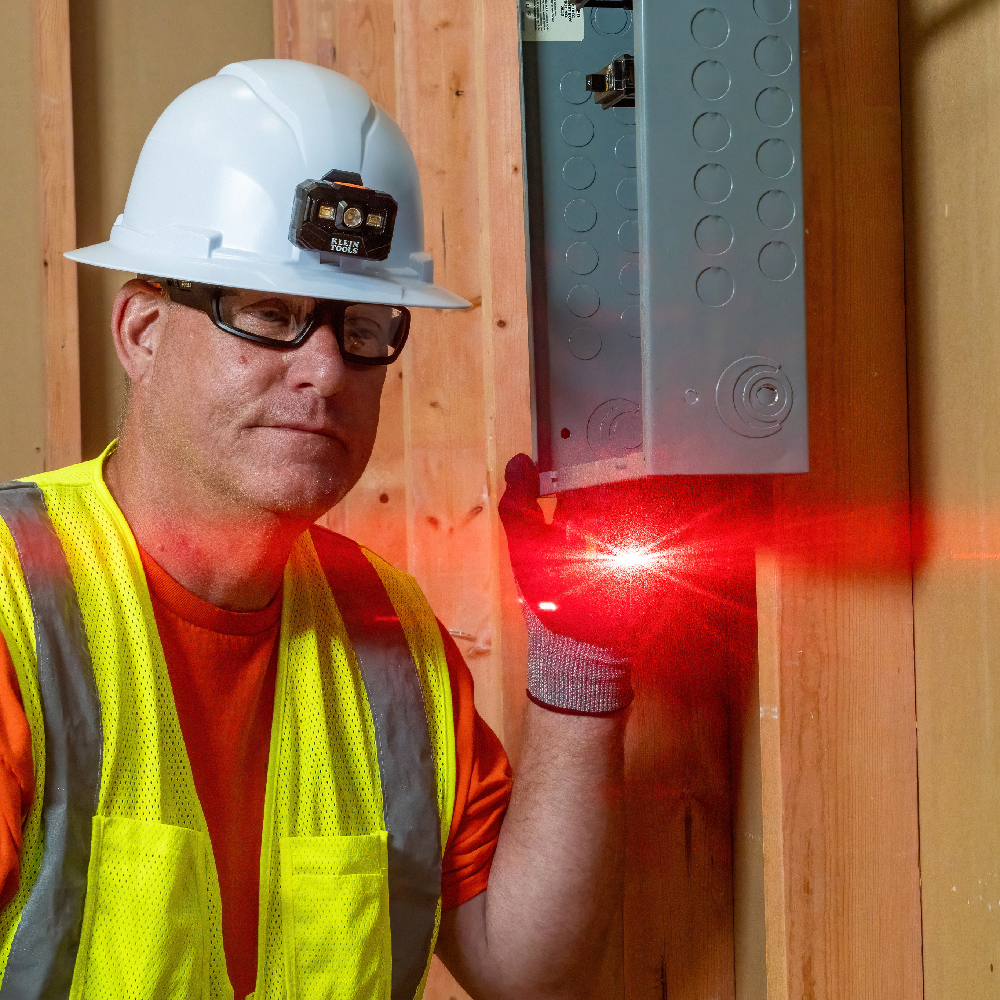

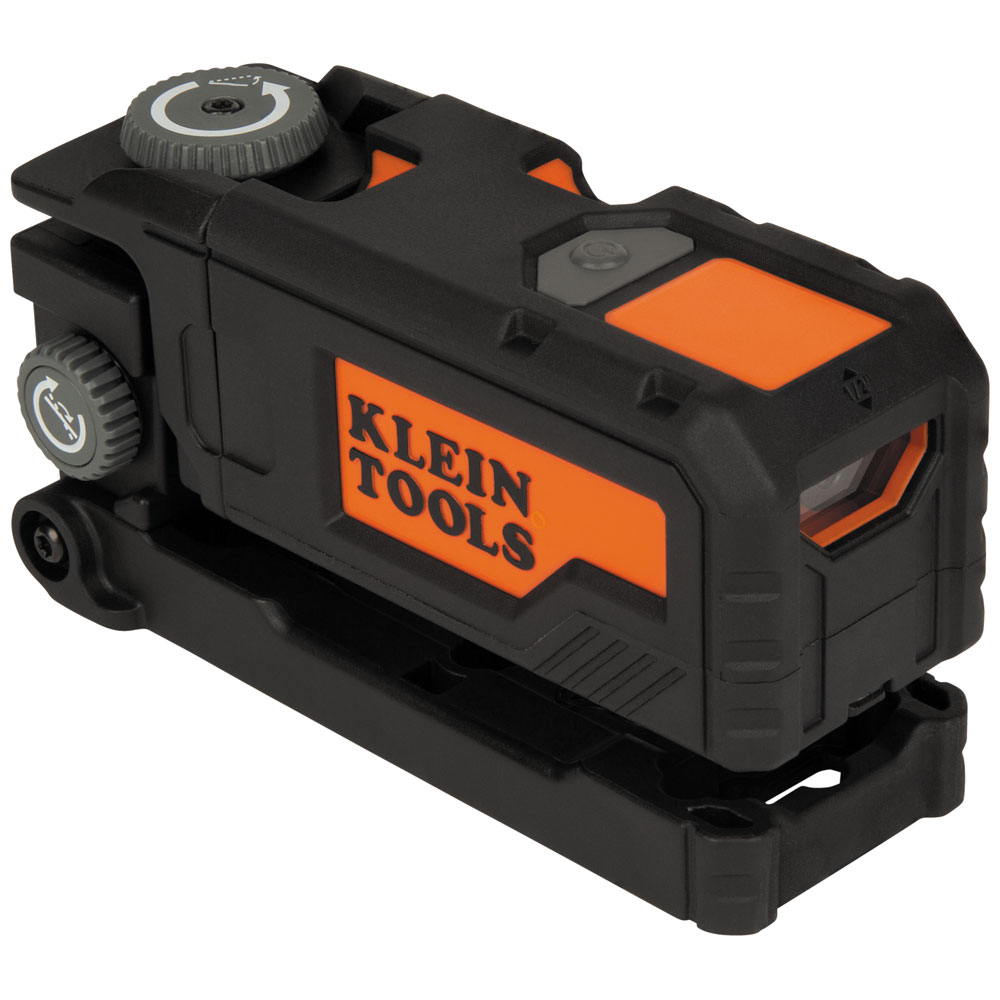

The Klein Tools' Red Pocket Laser Level is a high-performance laser leveling and alignment tool for DIY'ers and professionals alike. The powerful red laser line is easy to see and use in all lighting conditions. The adjustable body and 3-axis lighted bubble vials allow a user to project laser lines at any angle the user needs. The fine adjust knobs enable easier precision adjustments than other laser levels.
Specifications
Type:
User Adjustable Pocket Laser Level
Application:
Leveling Alignment Tool
Special Features:
Embedded Kickstand, 3-Axis Vials, Fine Adjust Knobs
Material:
Resins, Elastomers, Metalic
Batteries:
2 x AAA
Laser Wavelength:
630-640nm
Laser Safety:
IEC 60825-1:2014/A11:2021, EN 50689:2021
Number of Beams:
1
Laser Color:
Red
Plumb Laser:
No
Indoor Range:
30' (9.1 m)
Outdoor Range:
30' (9.1 m)
Maximum Distance:
30' (9.1 m)
Display:
No
Number of Vials:
3
Type of Vials:
Lighted Bubble
Accuracy:
Vials; 0.043-Degree (0.75mm/1,000mm)
Pulse Mode:
No
Receiver:
No
Magnet Type:
Rare Earth - Neodymium
Drop Protection:
3' (1 m)
Ingress Protection:
IP54
Transit Locking Mechanism:
No
Low Battery Alarm:
Yes
Low Battery Indicator:
Yes
Out-of-Level Indicator:
No
Standard:
Complies with 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Mounting Type:
Magnetic Bracket
Bag or Case:
No
Included:
Batteries, Manual
Overall Length:
4.27'' (10.8 cm)
Overall Height:
2.3'' (5.8 cm)
Overall Width:
1.76'' (4.5 cm)
Weight:
6.6 oz (186 g)
Battery Life:
12 hr
UPC:
092644930096
Additional Information
Warnings
- Exposing eyes to laser radiation can result in severe and permanent eye injuries.
- Do not use the instrument if it appears to be damaged.
- Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
- Strong magnetic field.
- See instruction manual for additional warnings.
