Klein Tools - For Professionals Since 1857

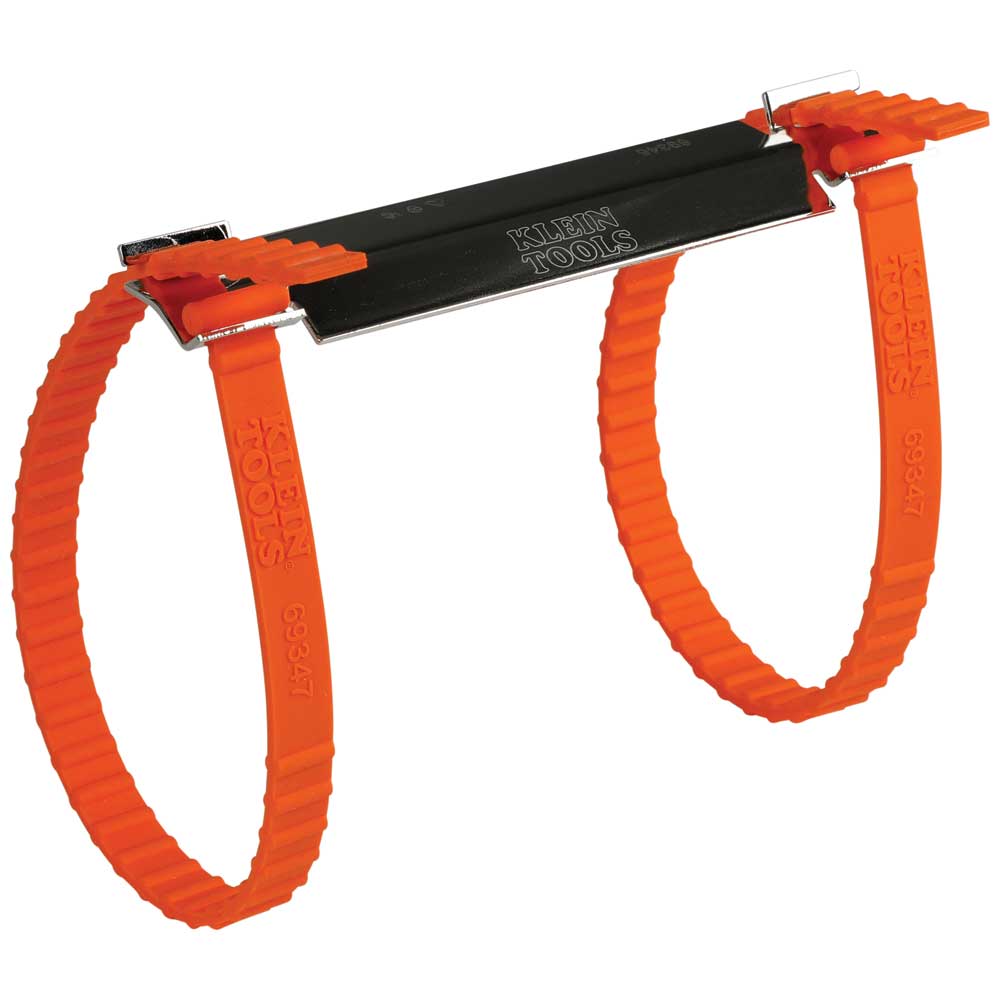

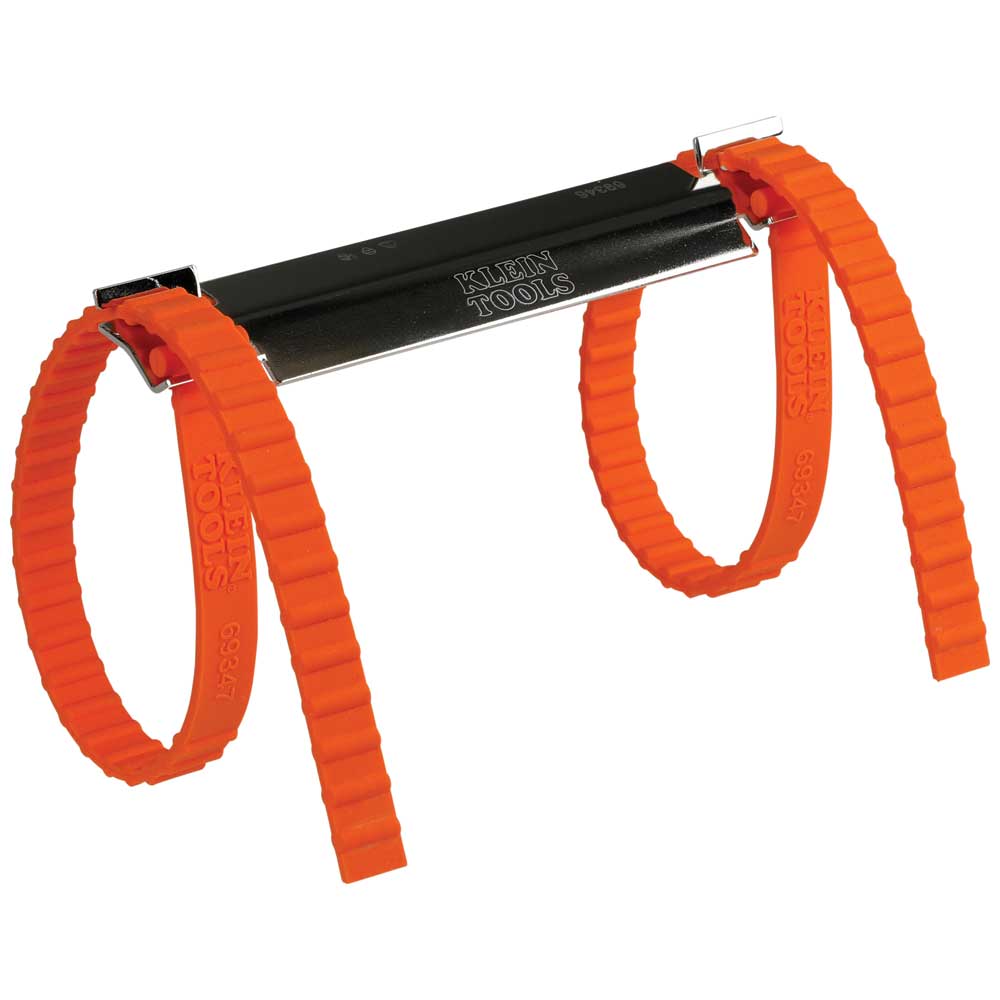

Plumbers Kit for Cat. No. 935DAGL

69346

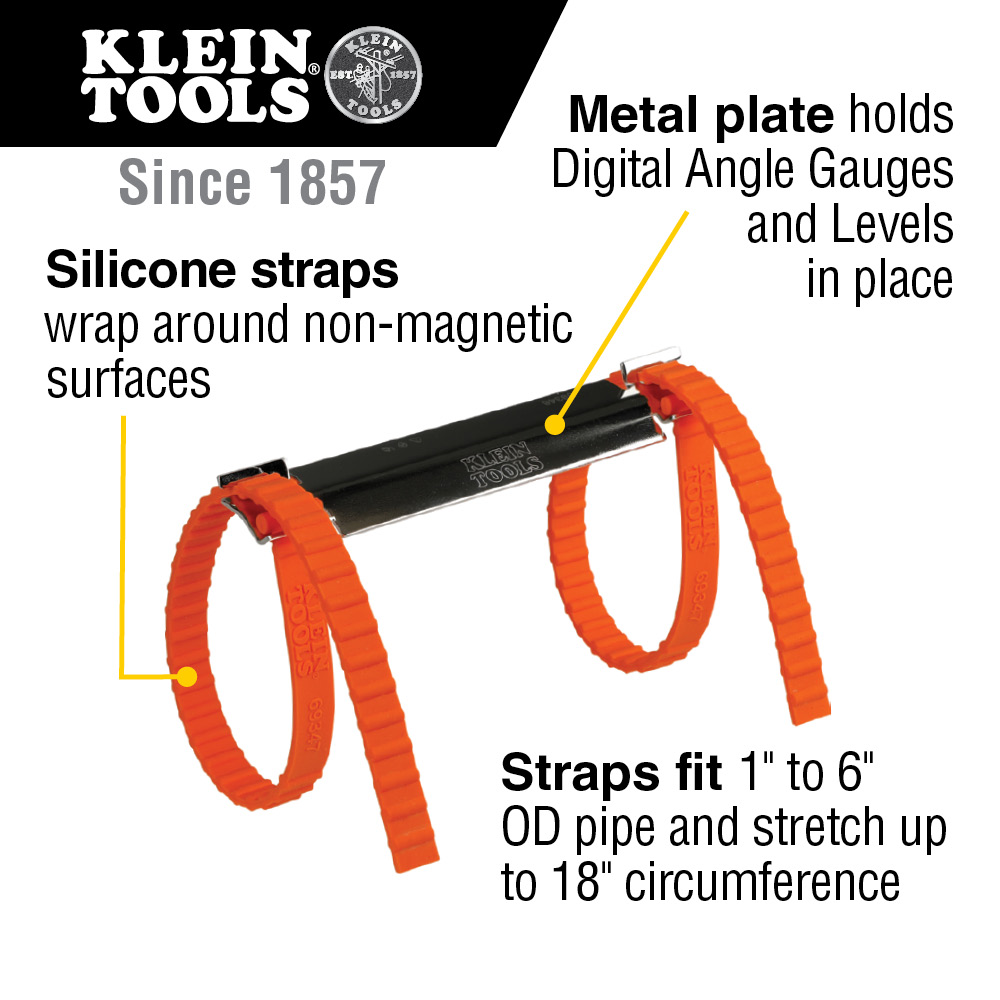

  • Plumber's Kit straps to brass, copper, PVC, and other non-magnetic pipes and conduits to present a magnetic surface to which Digital Angle Gauges and Levels may be mounted

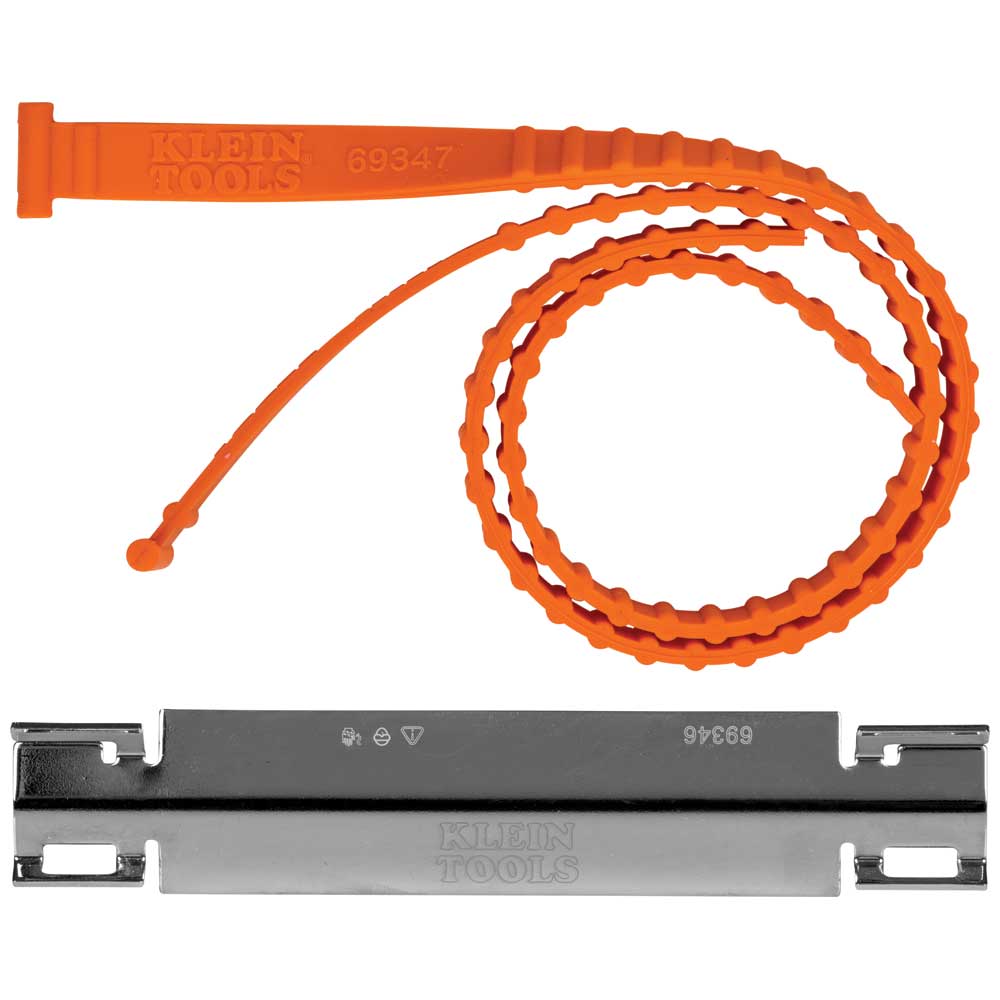

  • Two flexible, adjustable length straps connect the metal plate to pipes, conduit, or other objects
  • Fits common PVC pipe sizes from 1- to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch
  • Attach magnetic side of Digital Angle Gauges and Levels to the metal plate to use the gauge in a hands-free fashion to easily set and measure angles
  • Metal plate holds Digital Angle Gauges and Levels in place while the desired angle, pitch, or tilt is set or measured

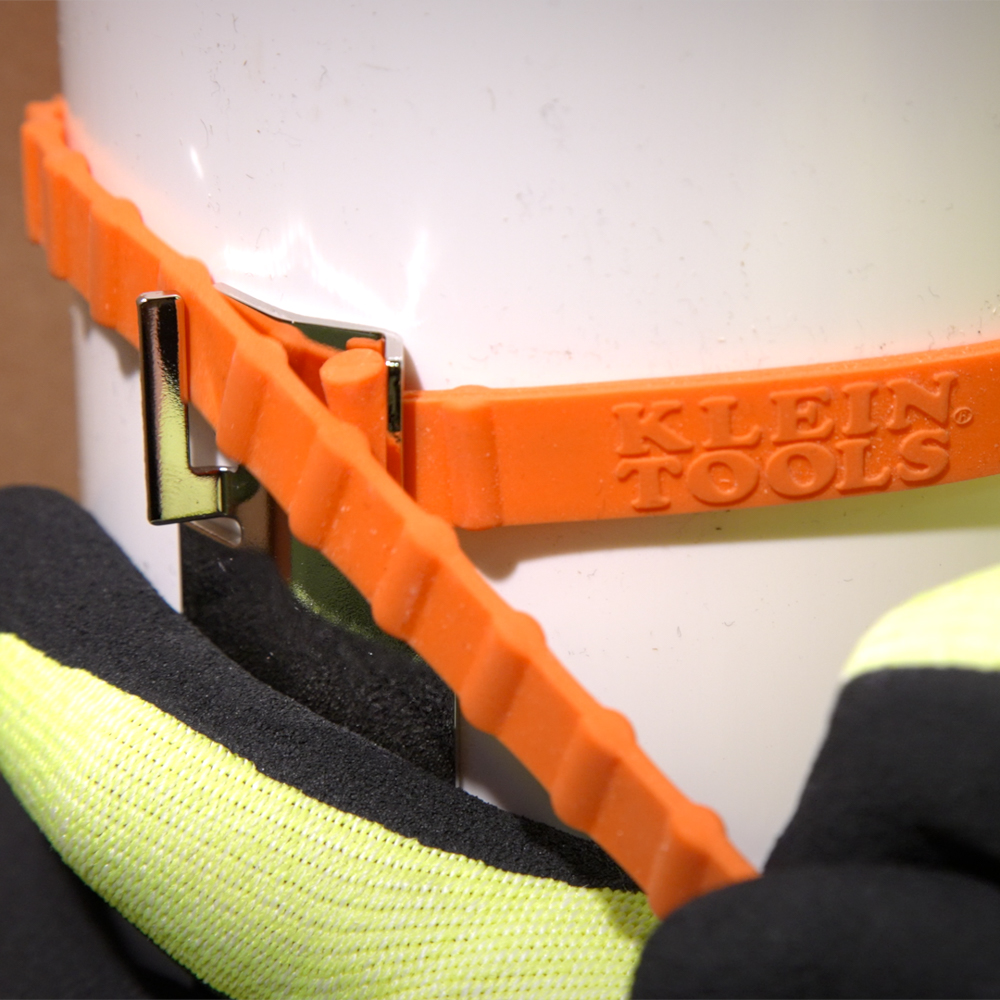

  • Secure the Plumber Kit in place by adjusting the silicone straps to the required length
  • Use with Klein Tools Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG)
  • Replaceable Straps for Plumber's Kit (Cat. No. 69347) sold separately
Video
Downloads
Images
JPG (High Resolution) 69346_photo.jpg
PNG (Transparent Background) 69346.png

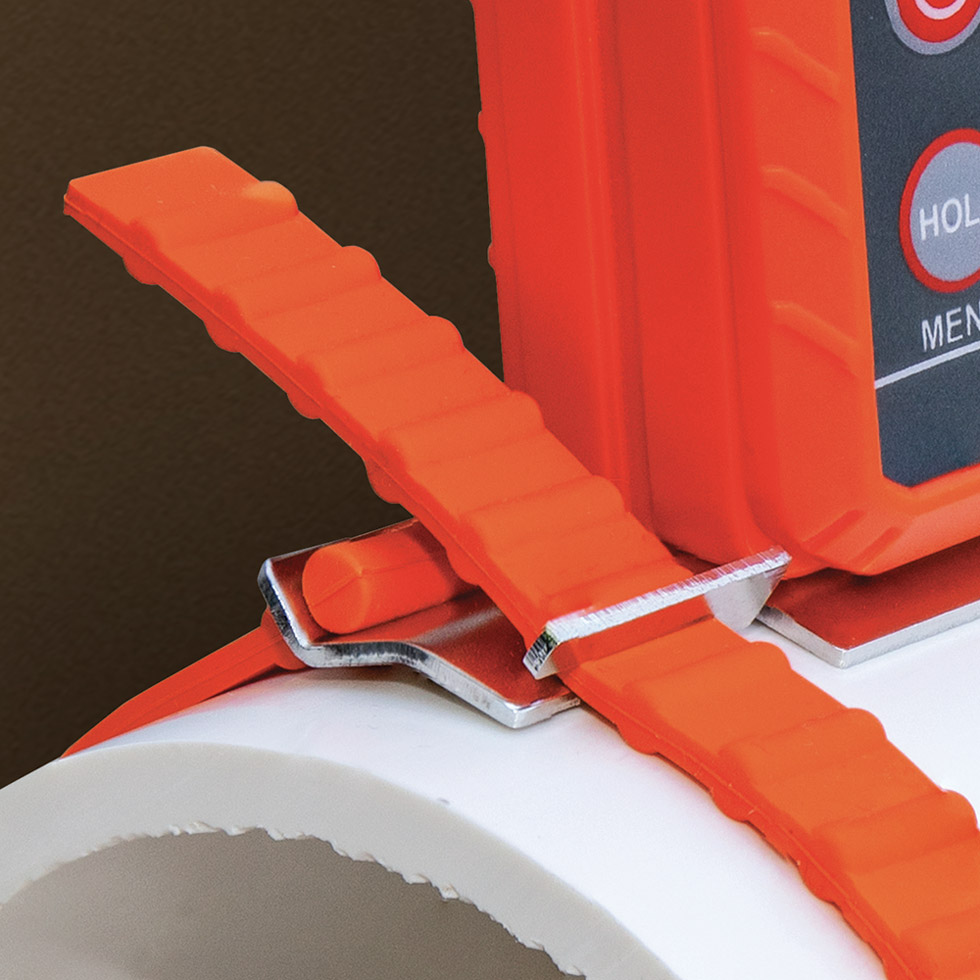

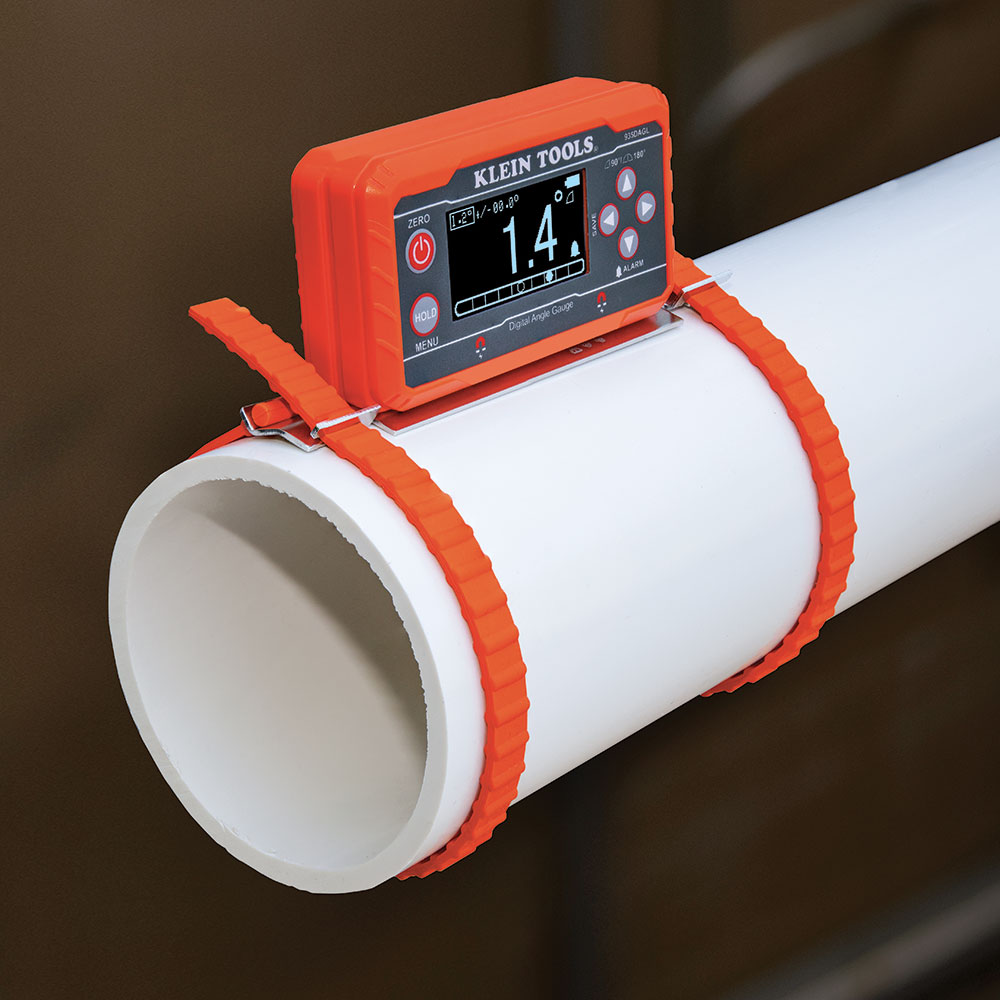

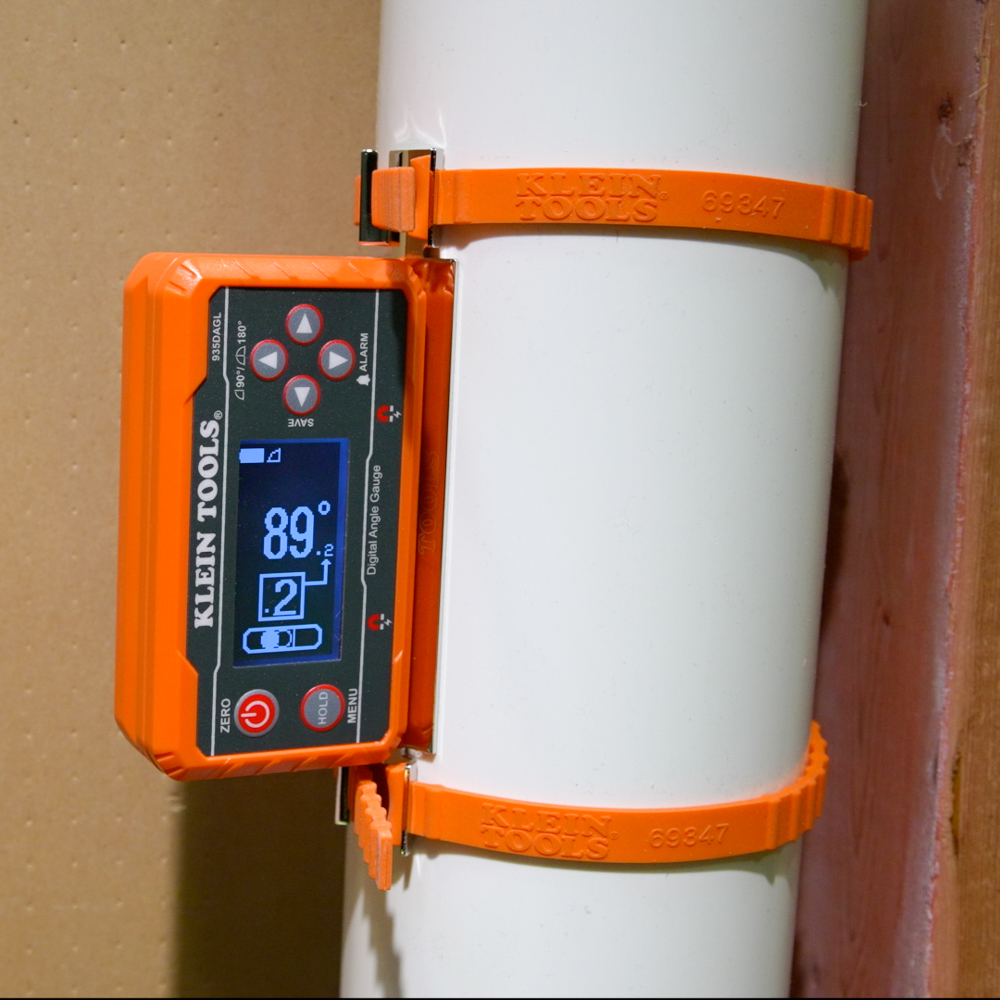

The Klein Tools' 69346 Plumber's Kit is designed to bring the benefits of the magnetic attachment of digital angle gauges to non-magnetic pipes, conduits or other objects. It consists of a metal plate and silicone straps which may be strapped to the non-magnetic object. When attached it presents a ferromagnetic surface aligned with the non-magnetic pipe to which the Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG) may be attached. This facilitates hands-free operation of the angle gauge when working to align non-magnetic pipes or conduits. Two adjustable silicone straps wrap around non-magnetic pipes from 1- to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch. Once the digital angle gauge or level has been magnetically mounted to plate setting pitches or measuring angles can be efficiently achieved.

Specifications
Type:
Level Accessory
Application:
Magnetic Attachment of Digital Angle Gauges to Non-Magnetic Objects
Special Features:
Silicone Straps
Overall Length:
15.1'' (38.4 cm)
Overall Height:
0.4'' (1.0 cm)
Overall Width:
1.3'' (3.3 cm)
Material:
Steel, Silicone
Weight:
3.2 oz (91 g)
UPC:
092644693465
Additional Information
Warnings
  • Read, understand, and follow instructions to ensure safe operation
  • Always wear approved eye protection
