Spud Wrench 1-7/16-Inch Nominal Opening for Heavy Nut

3213

  • Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
  • Extra heavy-duty head area gives maximum strength and durability

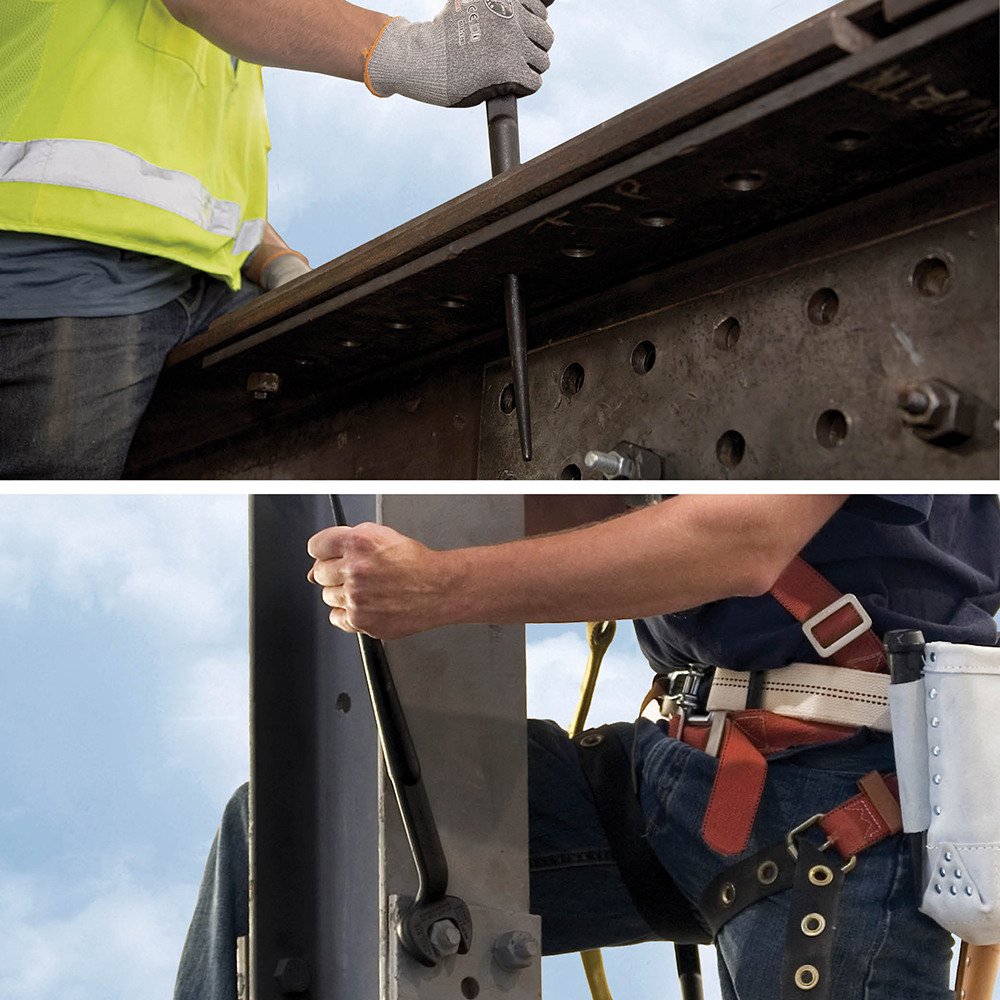

  • Continuous taper of the handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
  • Extra-large hub area works on larger diameter holes better than other wrenches

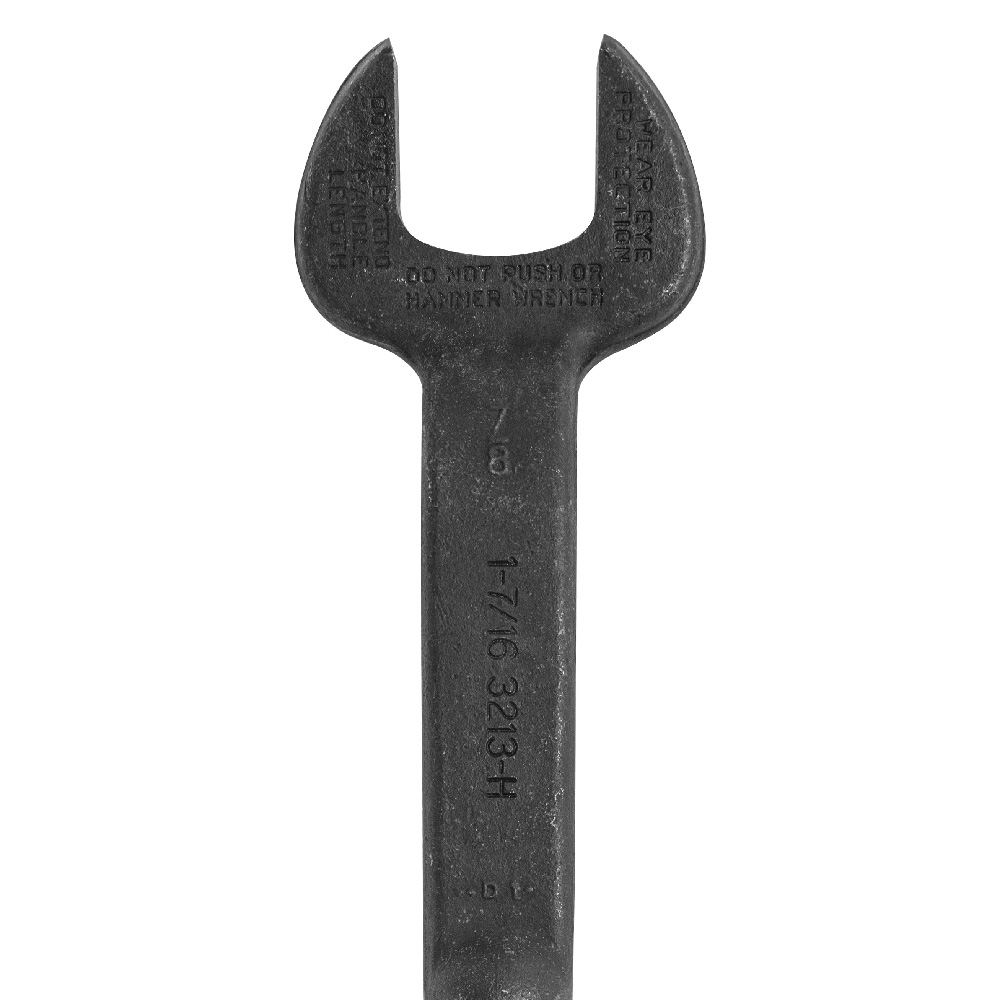

  • Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
  • American Bridge design
Videos
Downloads
Images
High-Res JPG 3213_b_photo.jpg
Interactive Catalog

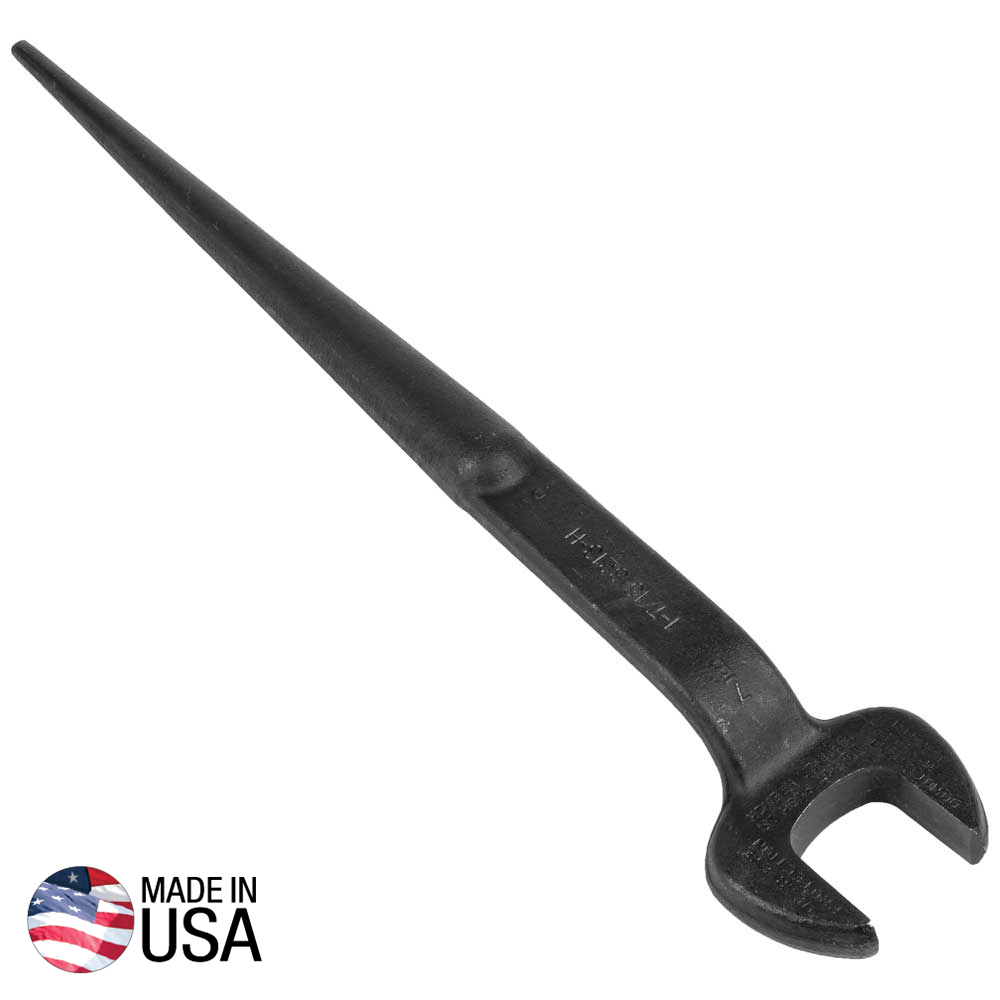

Forged from select alloy steel, the Klein Tools 1-7/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 7/8-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Specifications
Type:
Spud Wrench
Application:
Connecting Steel Members
Special Features:
Extra Heavy-Duty Head for Maximum Strength
Overall Length:
17.375'' (44.1 cm)
Overall Height:
1'' (2.54 cm)
Overall Width:
3'' (7.6 cm)
Material:
Alloy Steel
Finish:
Black Oxide with a Rust Preventative
Nut Type:
U.S. Heavy
Heavy Nut Size:
7/8'' (2.2 cm)

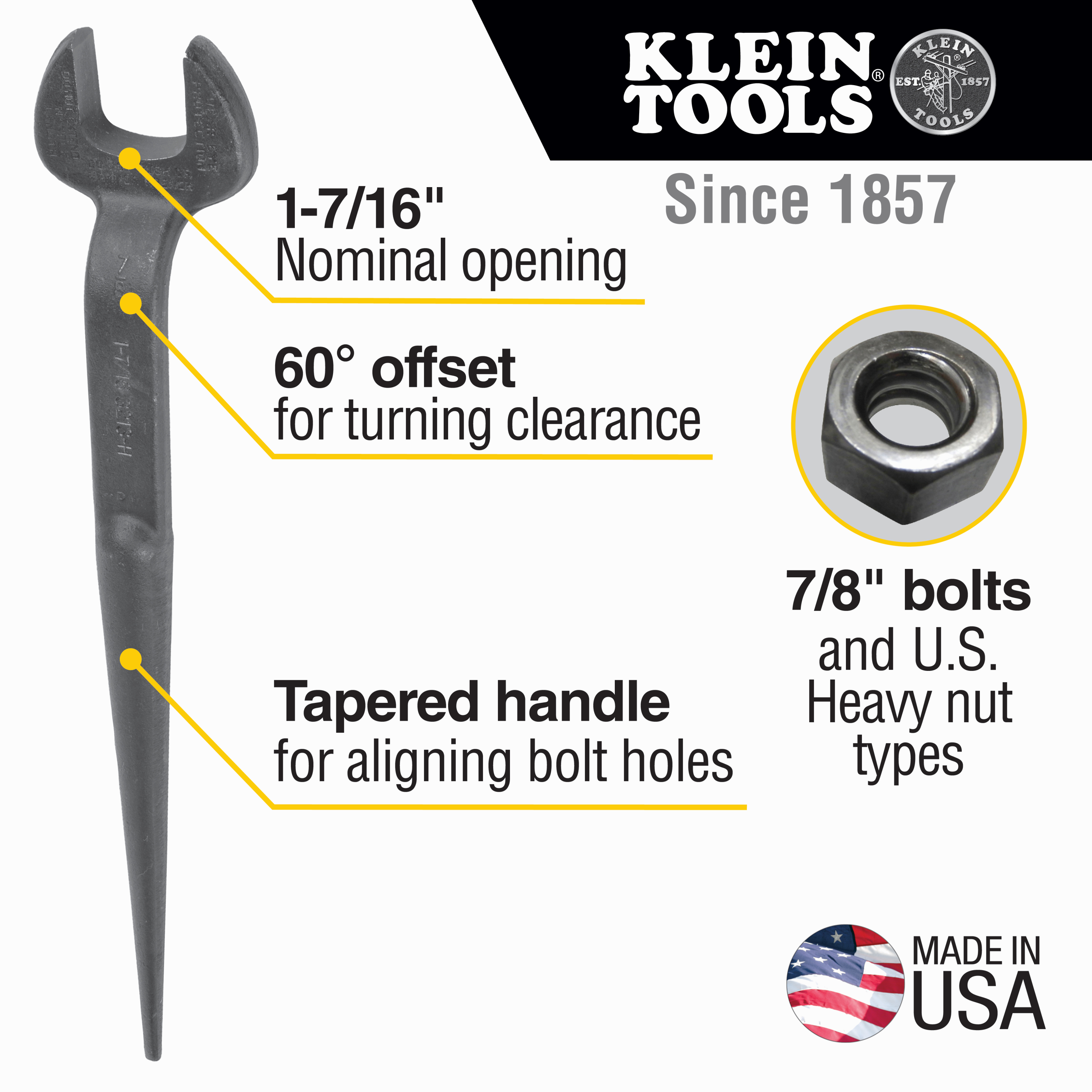

Nominal Opening:
1-7/16'' (3.7 cm)
Head Width:
3'' (7.6 cm)
Taper Diameter:
1-1/8'' to 9/32'' (2.9 to 0.7 cm)
Offset Angle:
60°
Weight:
2.7 lb (1.2 kg)
UPC:
092644680090
Additional Information
Warnings
  • Always wear approved eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.
