Spud Wrench, 1-Inch Nominal Opening for Regular Nut

3221

  • Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
  • Extra heavy-duty head area gives maximum strength and durability

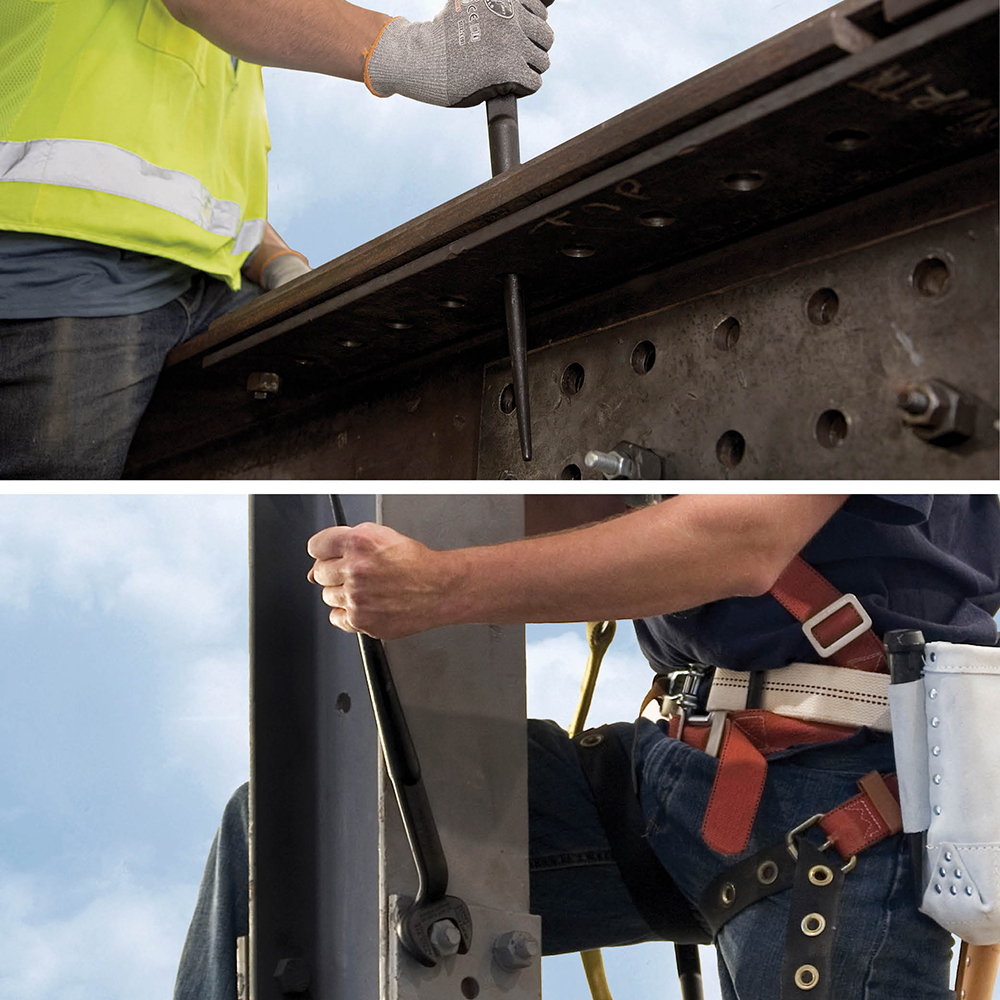

  • Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
  • Extra-large hub area works on larger diameter holes better than other wrenches

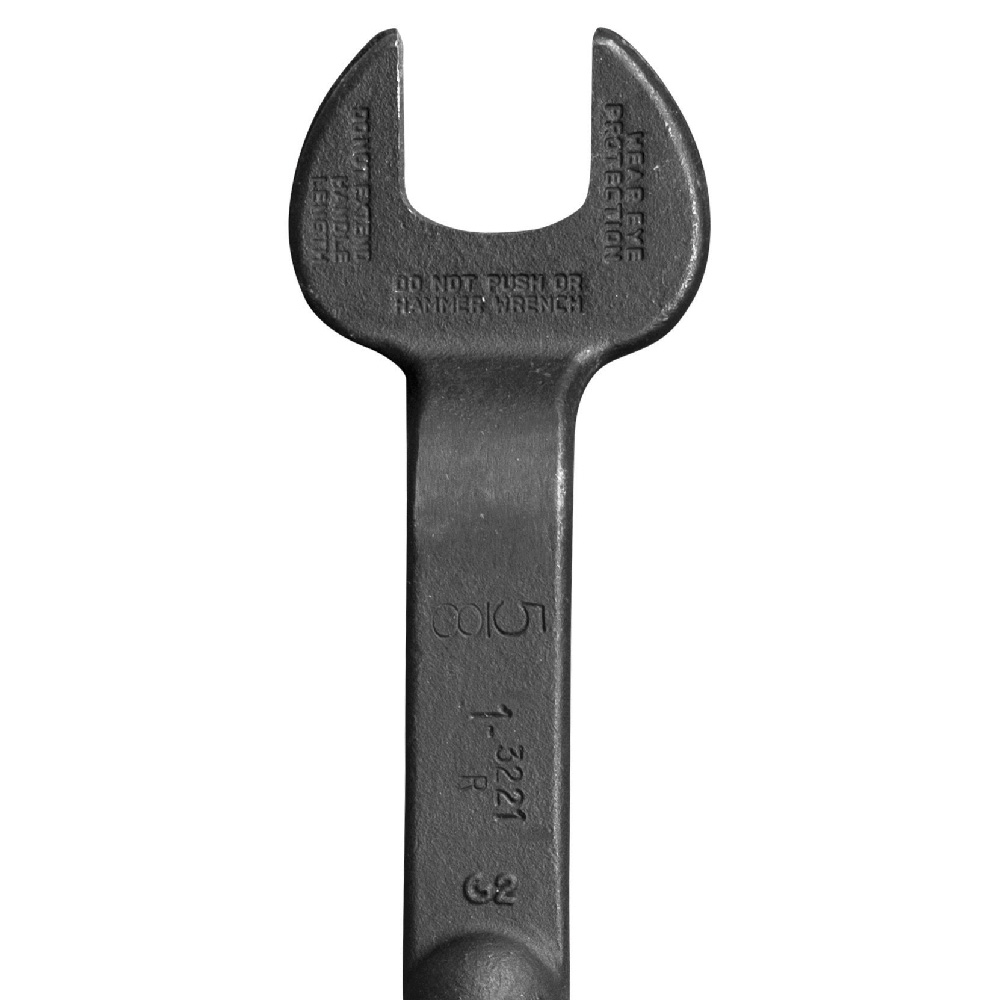

  • Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
  • American Bridge design
Videos
Downloads
Images
High-Res JPG 3221_b_photo.jpg
Interactive Catalog

Forged from select alloy steel, the Klein Tools 1-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 5/8-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Specifications
Type:
Spud Wrench
Application:
Connecting Steel Members
Special Features:
Made in USA
Overall Length:
14.75'' (37.5 cm)
Overall Height:
1'' (2.54 cm)
Overall Width:
2.25'' (5.7 cm)
Material:
Alloy Steel
Finish:
Black Oxide with a Rust Preventative
Nut Type:
U.S. Regular
Square Nut Size:
5/8'' (1.6 cm)
Nominal Opening:
1'' (2.5 cm)
Head Width:
2.25'' (5.7 cm)
Taper Diameter:
7/8'' to 3/16'' (2.2 to 0.5 cm)
Offset Angle:
60°
Weight:
1.3 lb (0.6 kg)
UPC:
092644680168
Additional Information
Warnings
  • Always wear approved eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.
