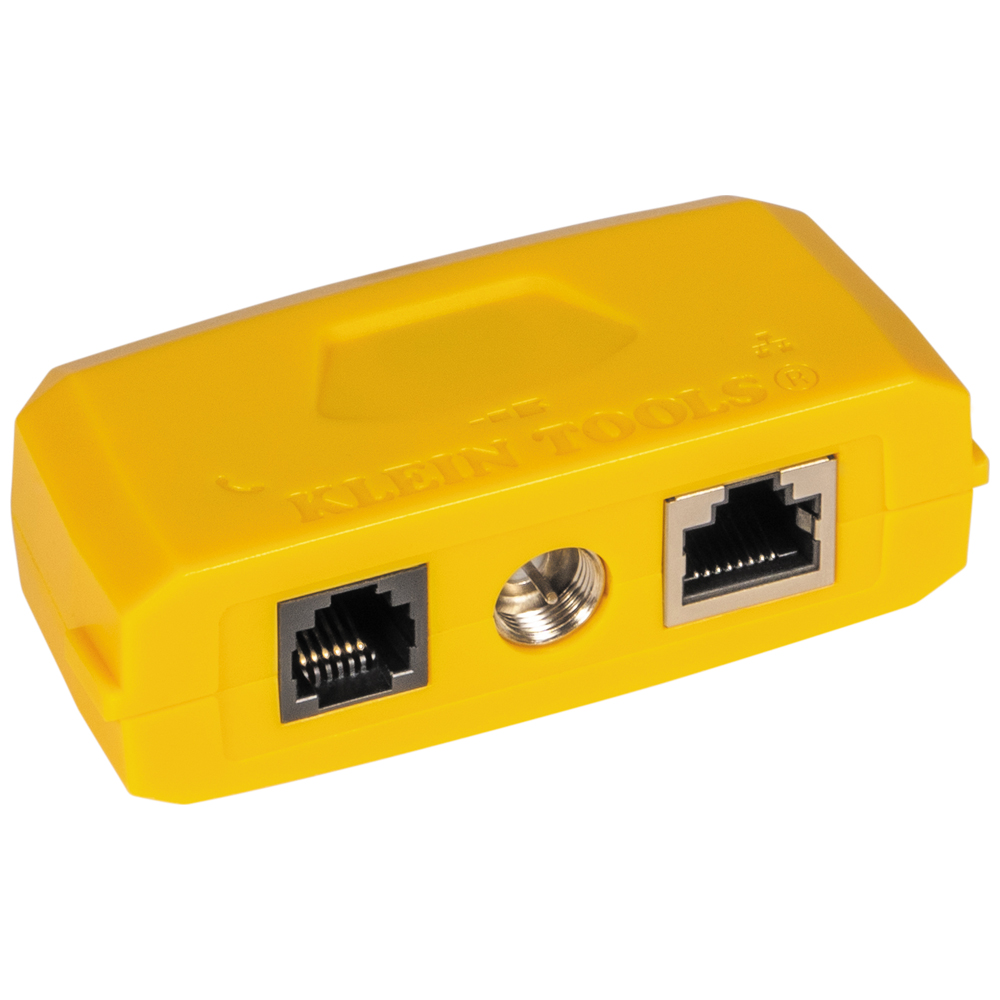

Self-Storing Test + Map™ ID Replacement Remote for Scout™ Pro Max

VDV770-770

  • Replacement remote identifies, tests and maps a location in one step when used with the Scout® Pro Max Network Cable Tester With Remote Set (Cat. No. VDV501-770), sold separately

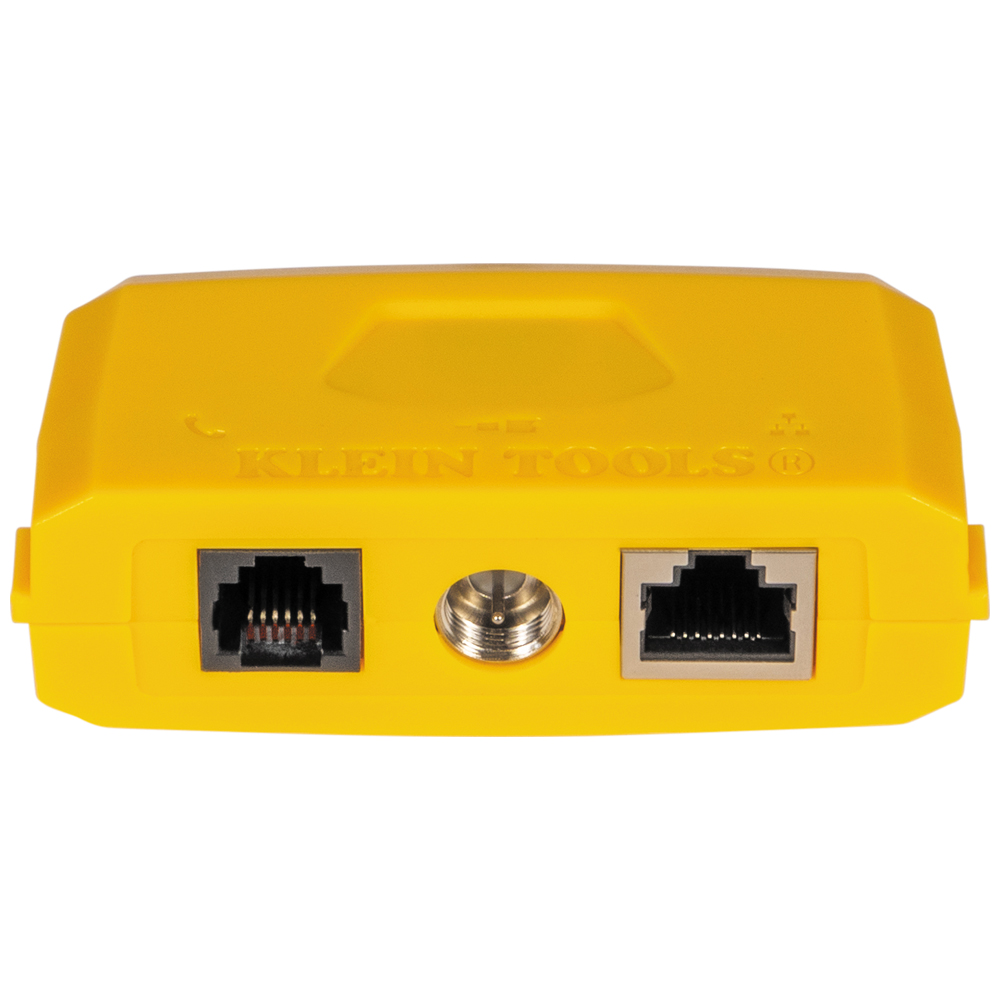

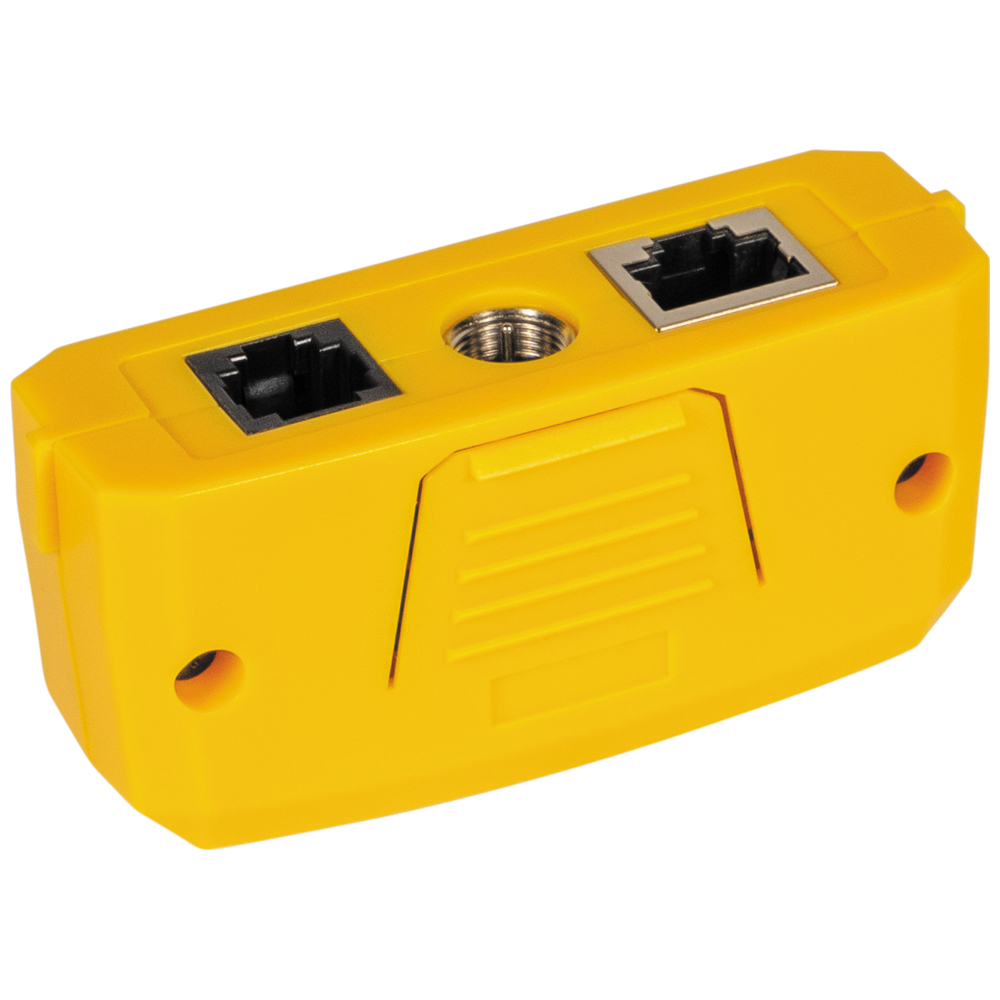

  • Test voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables
  • RJ11/12 jack tests voice cables
  • RJ45 jack tests data cables
  • Male F-Connector interface tests Female F terminated coax cables

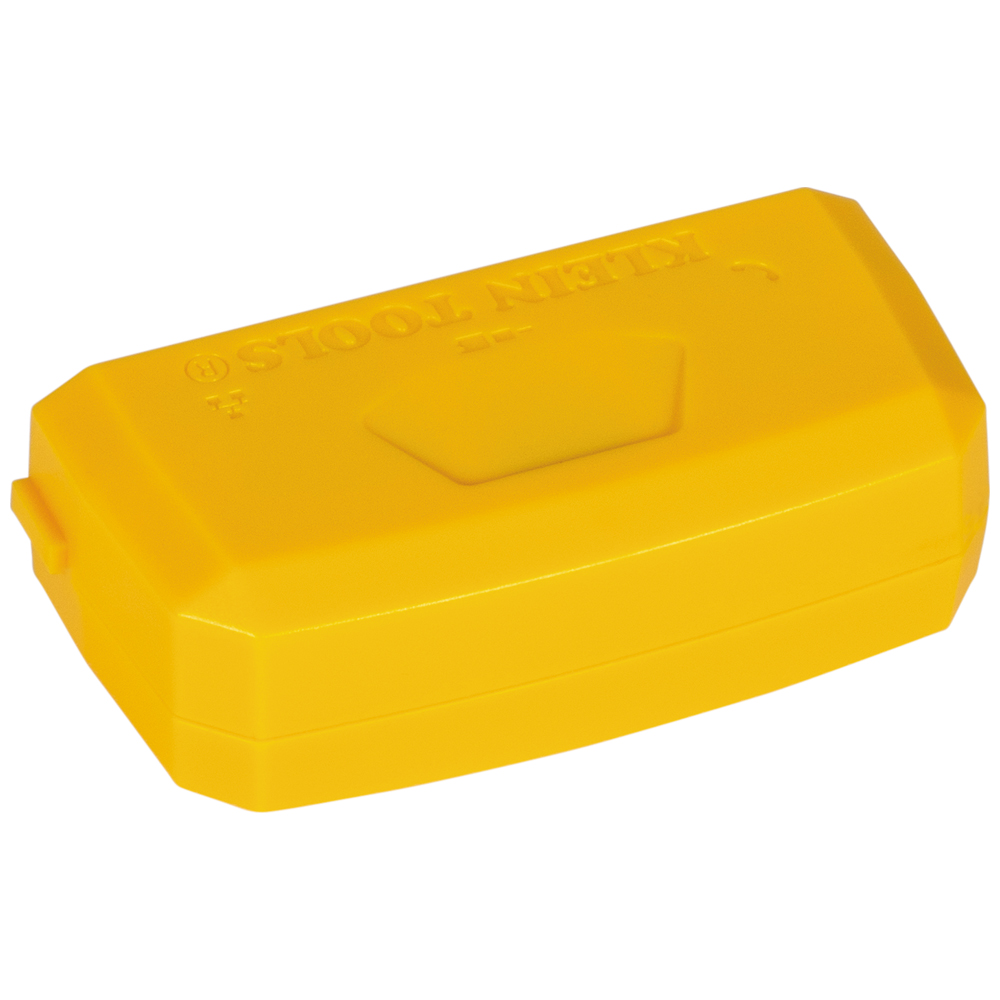

  • Remote is clearly marked for easy identification

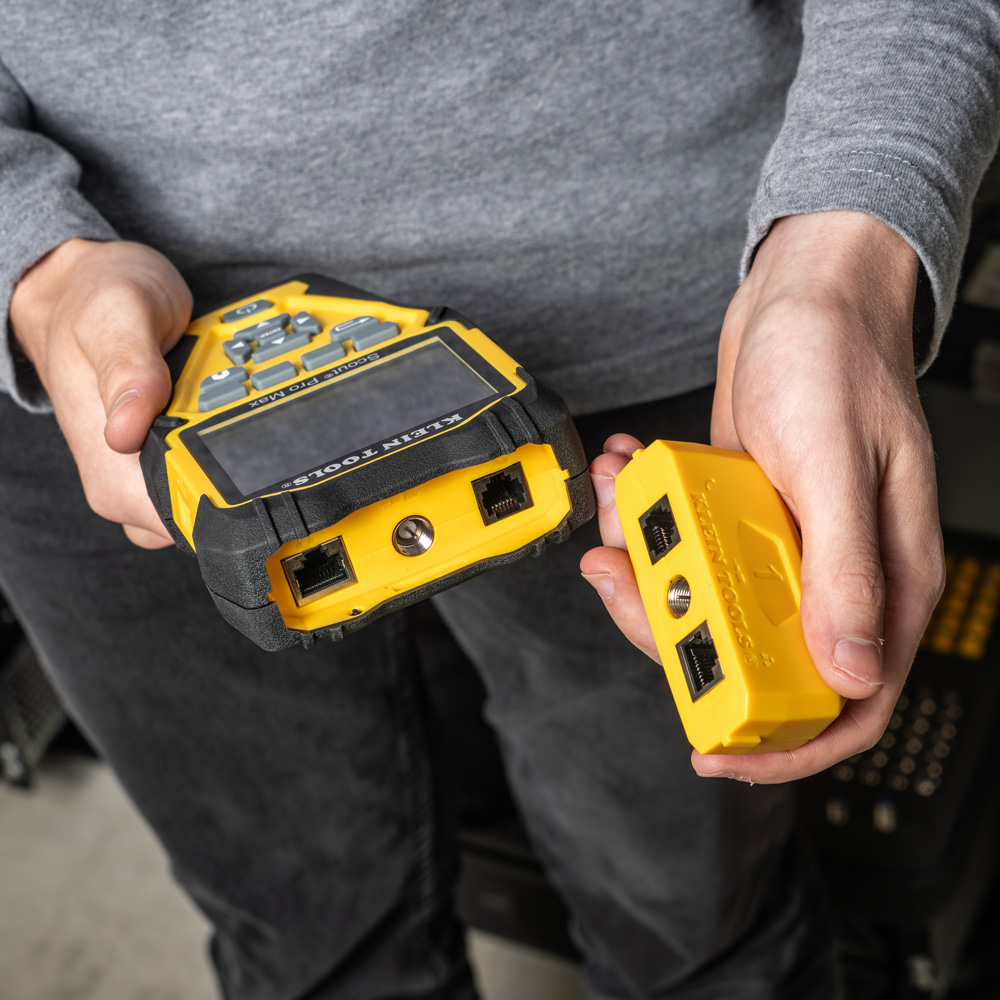

  • Use with the Scout® Pro Max Network Cable Tester (Cat. No. VDV501-770), sold separately
Downloads

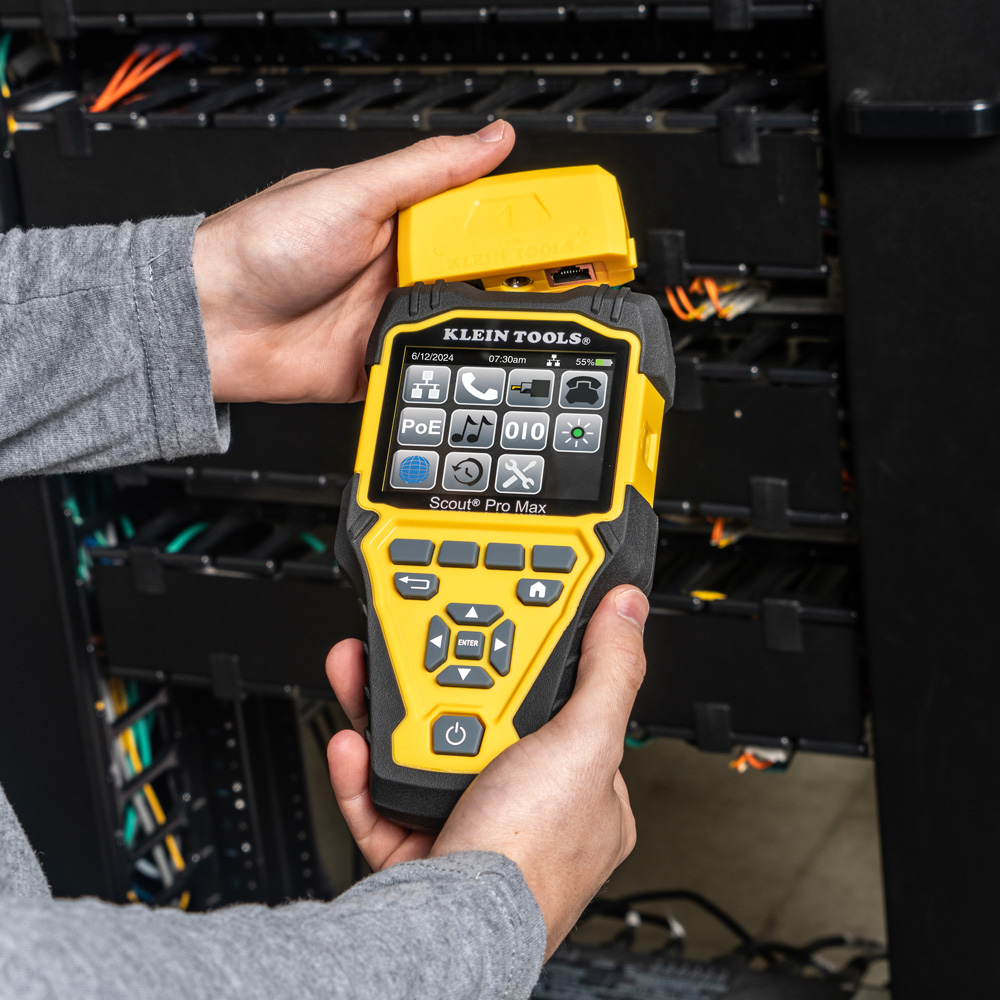

This replacement remote tests, maps and identifies a location in a single step. Use with Klein's Scout® Pro Max Tester (Cat. No. VDV501-770) to test voice, data and video coax cable connections.

Specifications
Type:
Self-Storing Remote
Application:
Cable Testing
Special Features:
Overmold Grip, RJ11/R12, RJ45 and Coax F Connectors
Overall Length:
4.84'' (12.3 cm)
Overall Height:
1.05'' (2.7 cm)
Overall Width:
3.15'' (8 cm)
Material:
Plastic
Connection & Adapter Types:
RJ11, RJ12, RJ45, Coax F
For Use With:
VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set
Weight:
3.2 oz (108 g)
UPC:
092644584015
Additional Information
Warnings
  • The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
  • Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.
  • Always wear approved eye protection.
