Coax Cable Installation Kit with Zipper Pouch

Cat. No.:
VDV026-211
Product Features

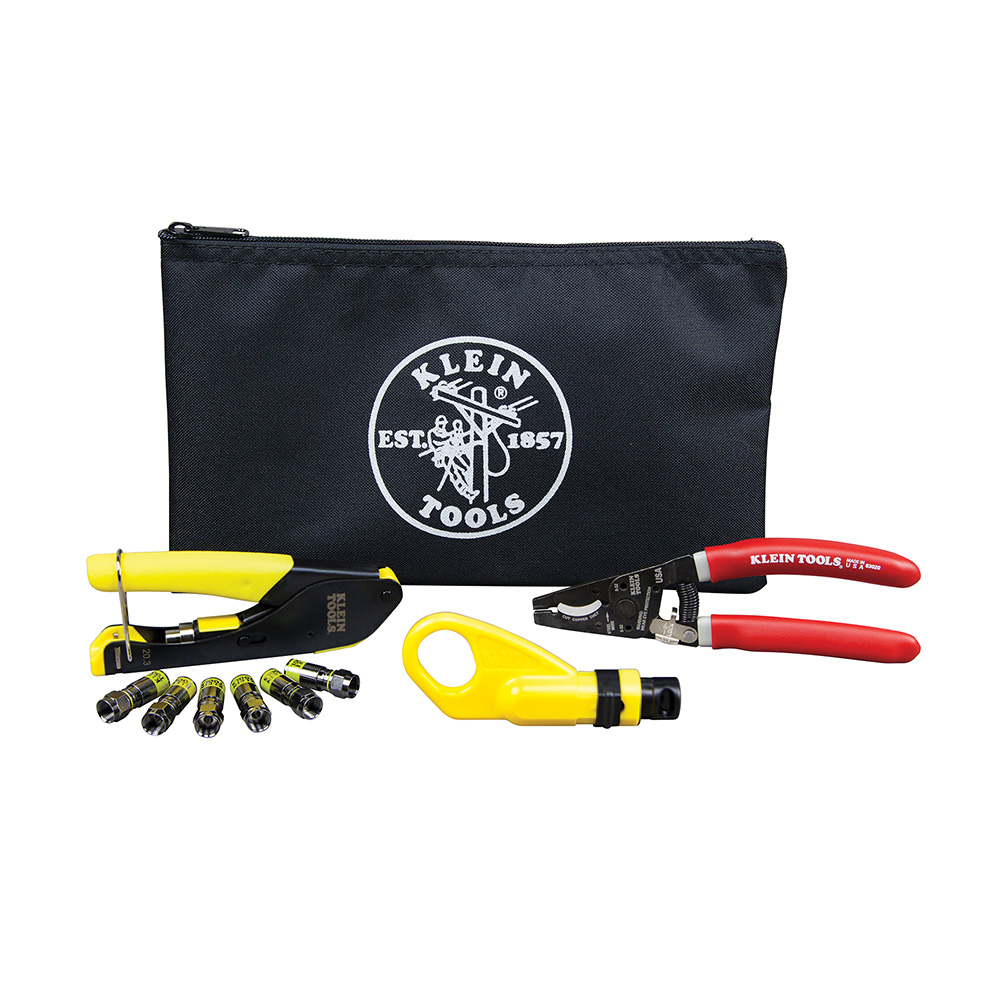

Includes a Multi-Cable Cutter, Coaxial Cable Radial Stripper, Compression Crimper for F-Connectors, Universal F-Compression Connectors, and a Zip Bag

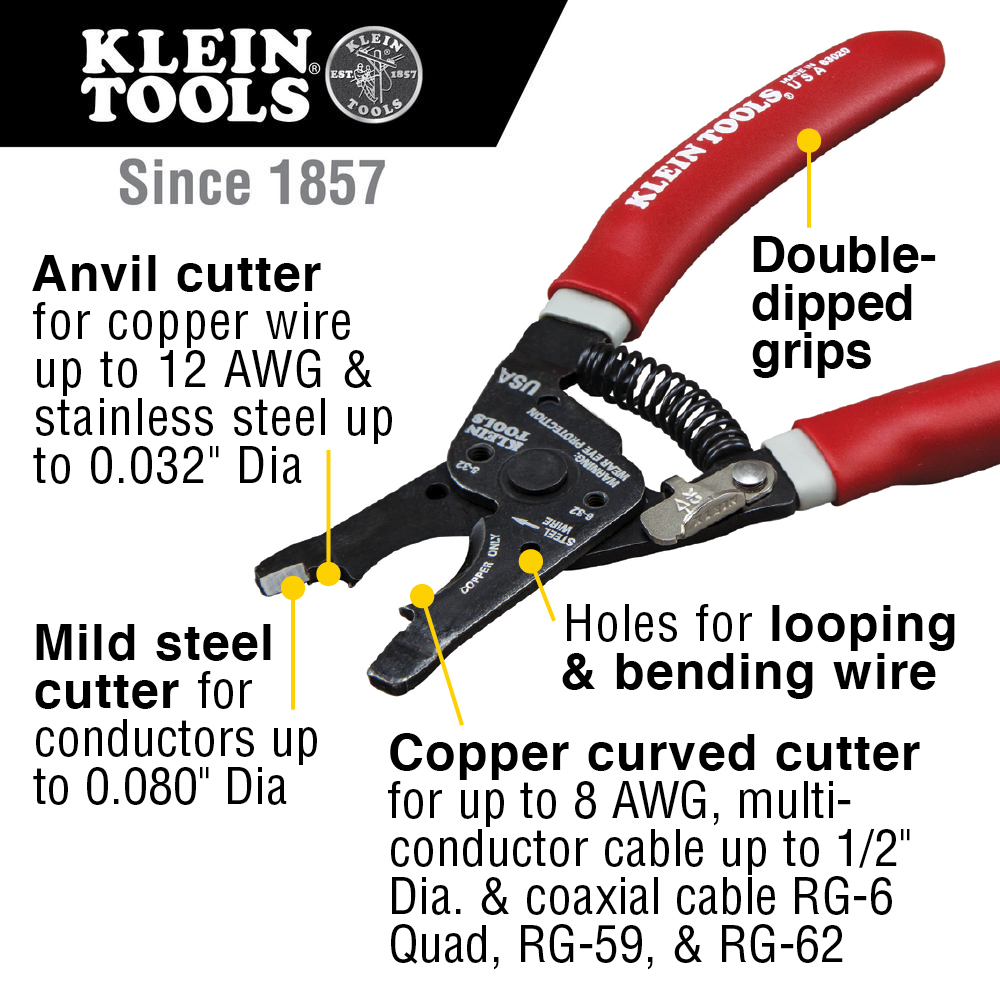

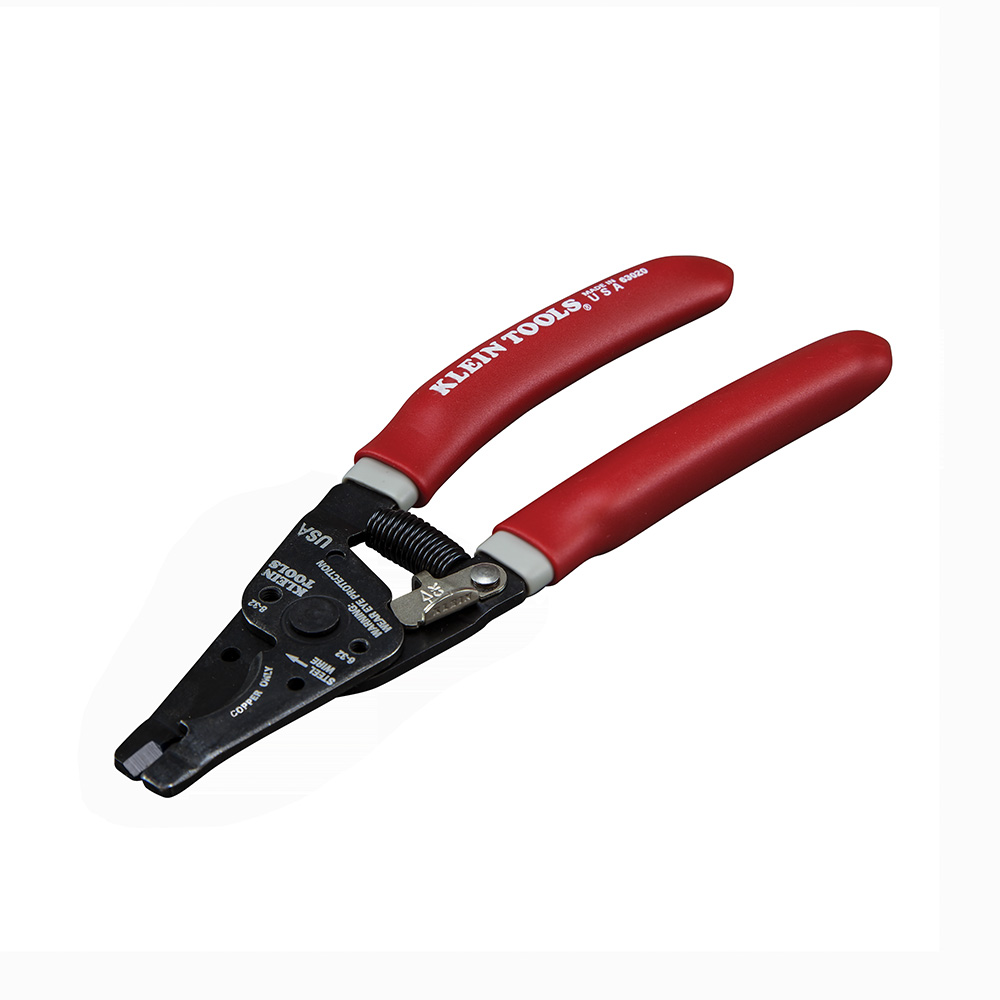

Multi-Cable Cutter (Cat. No. 63020) has precision shear-type cutting blades for easier cutting and double-dipped comfort grips with curved handles and is made in USA

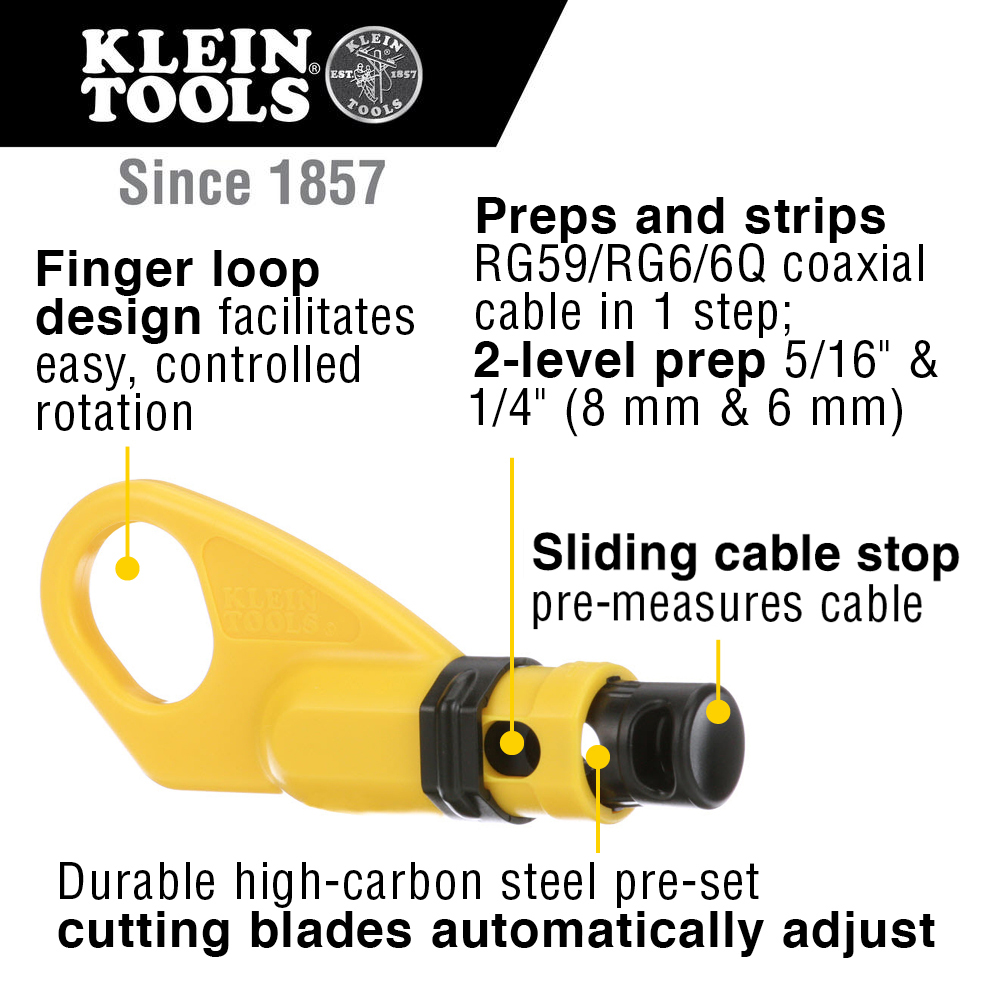

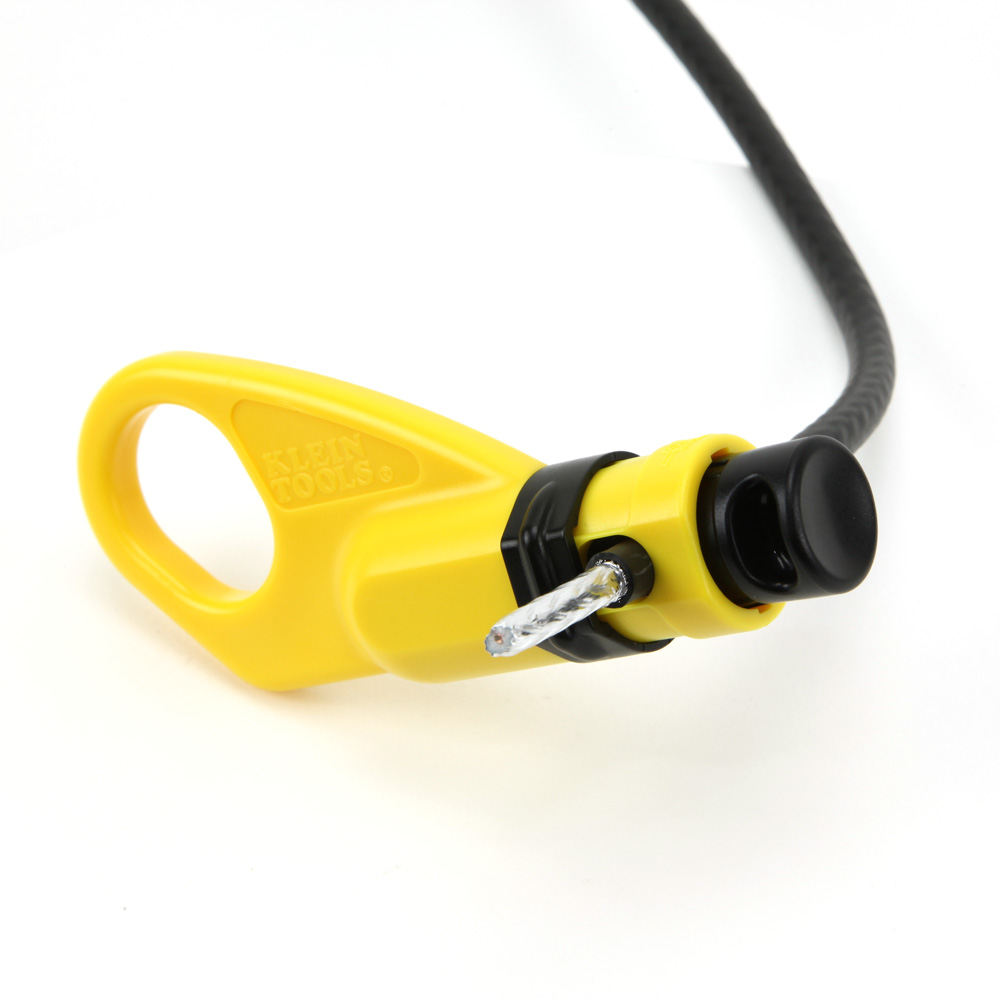

Coaxial Cable Radial Stripper (Cat. No. VDV110-061) with 2-level, one step prep has durable high-carbon steel pre-set cutting blades for precise, accurate cable stripping

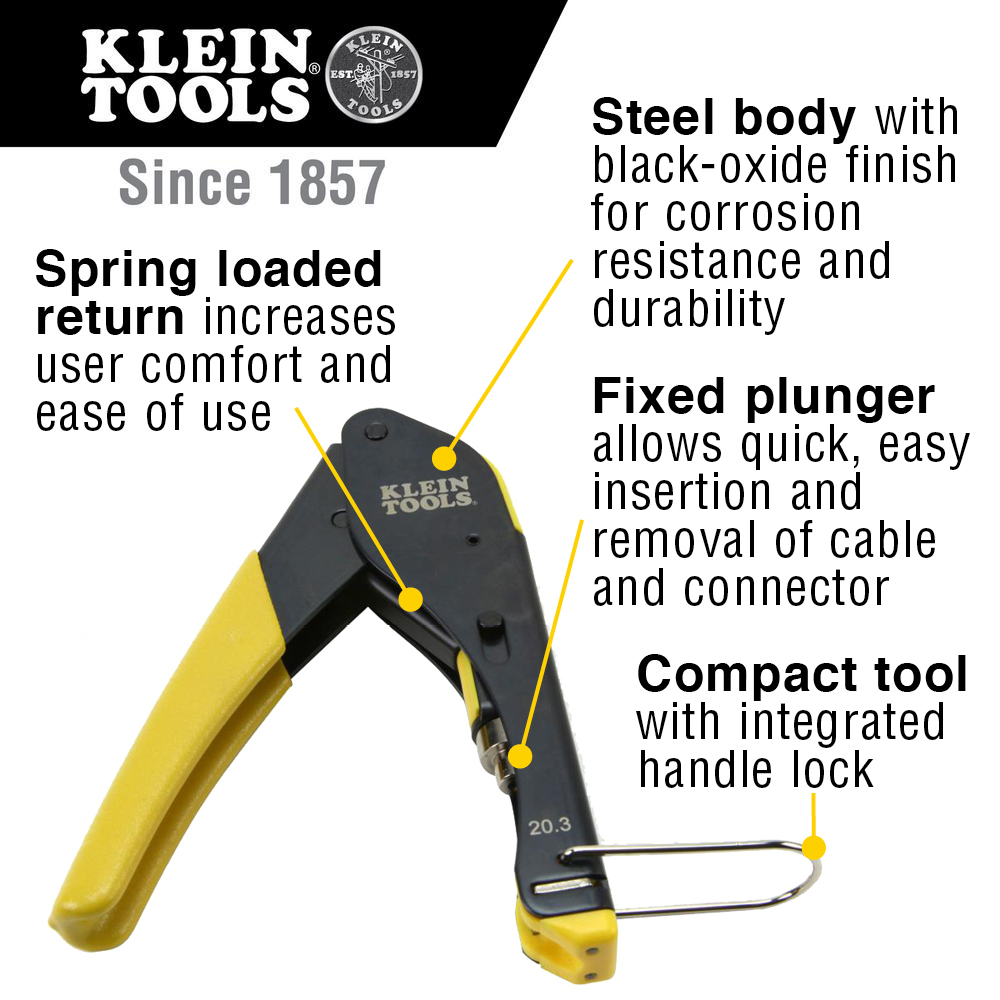

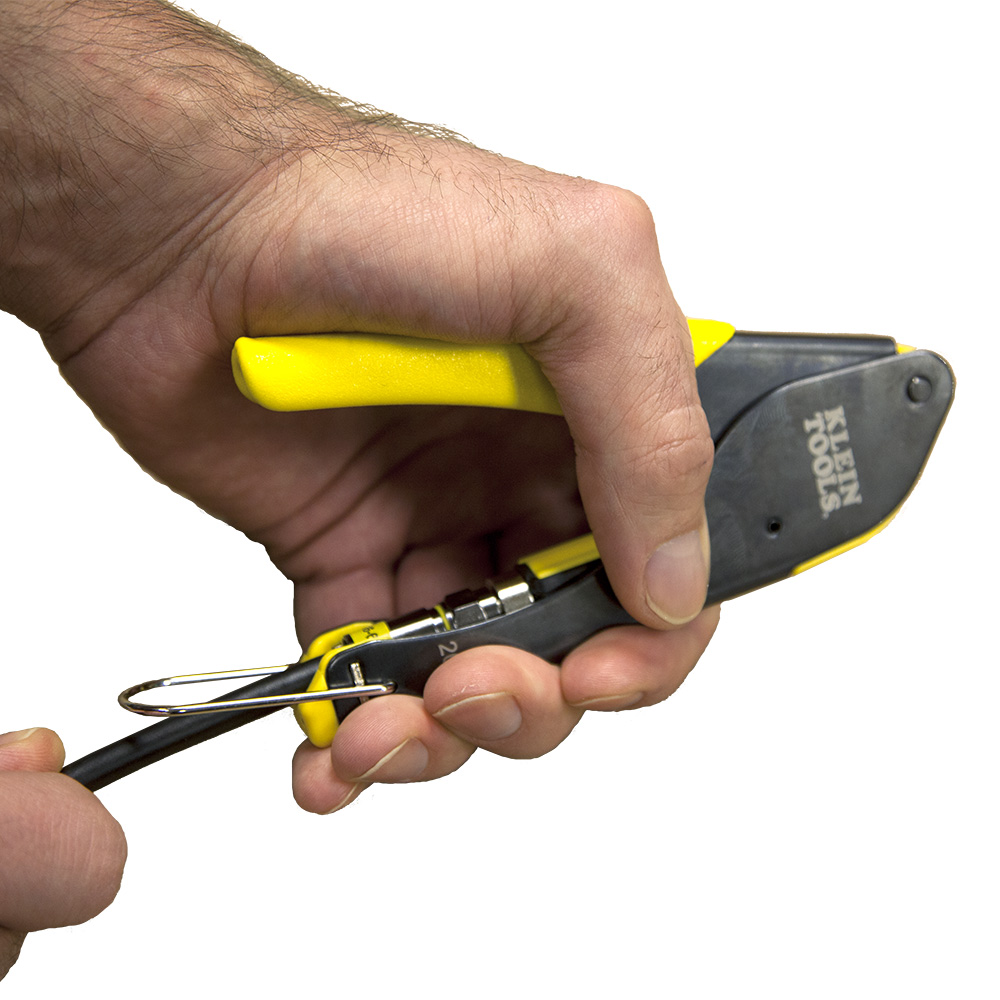

Compression Crimper (Cat. No. VDV212-008SEN) crimps compression F-Connectors to coaxial cable; fixed plunger allows quick, easy insertion and removal of cable and connector

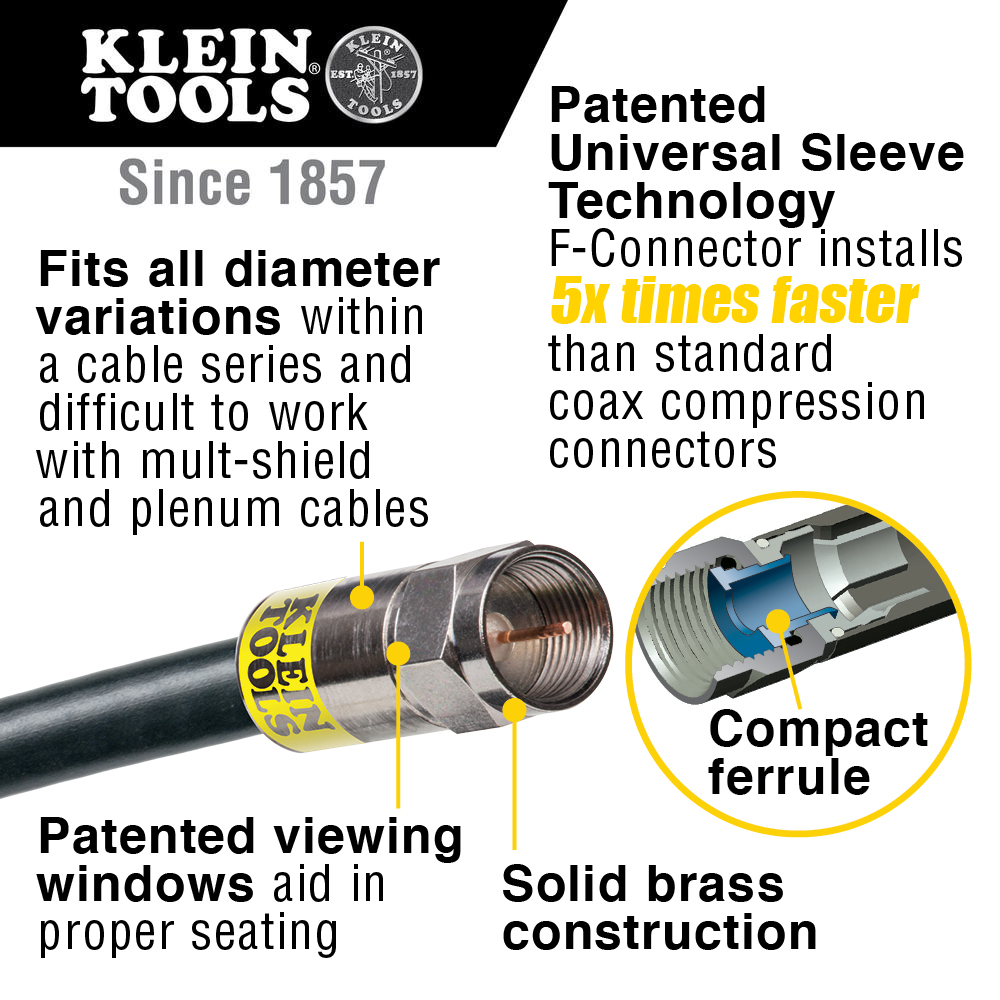

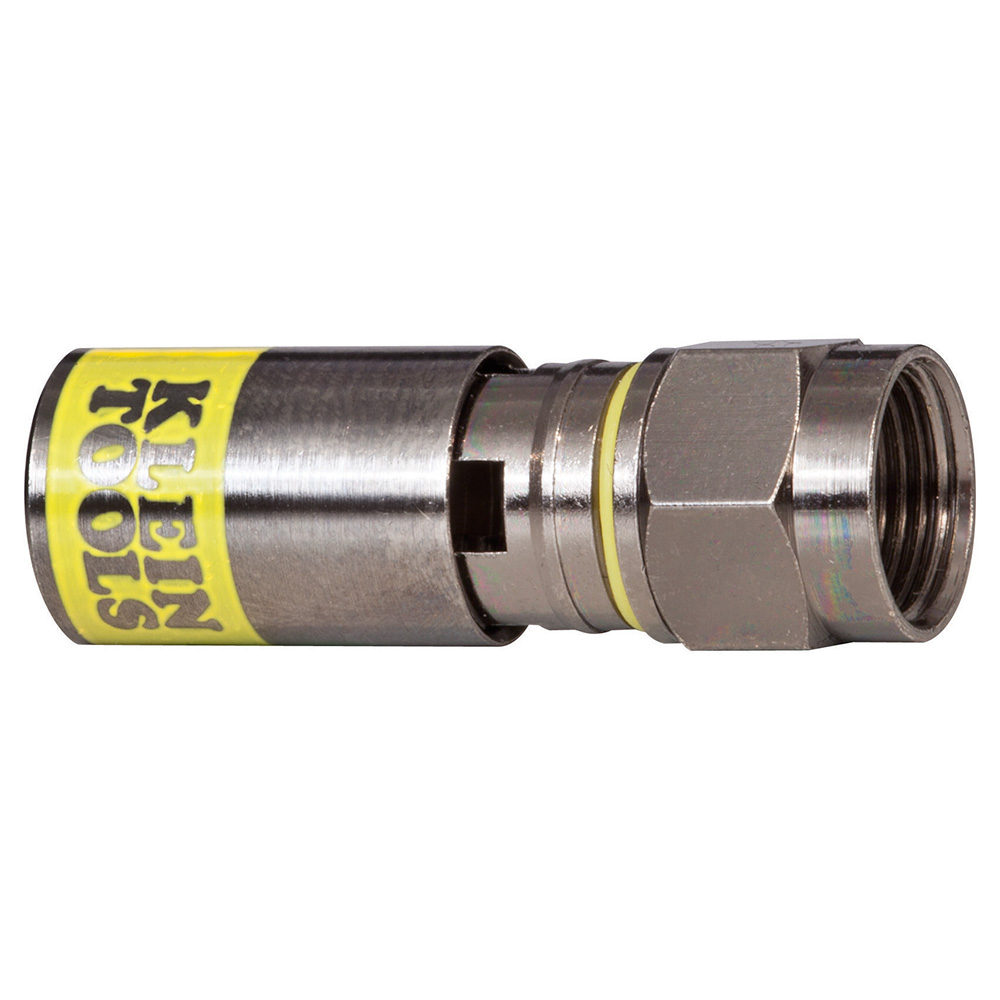

Includes 6 Universal F-Compression Connectors, (also available as a 10-pack, Cat. No. VDV812-606)
Polyester zipper bag 7-inch x 12-1/2-inch (178 mm x 318 mm) keeps all components together
Everything needed for preparing and connecting coax cables with F-Connectors
Specifications
Type:
Coaxial Cable Compression F-Connector
Application:
F-Connector Installation Preparation
Special Features:
Complete Kit for Preparing and Connecting F Connectors
Overall Length:
12.75'' (323.9 mm)
Overall Height:
1.75'' (44.5 mm)
Overall Width:
7'' (177.8 mm)
Material:
High Carbon Steel, Polycarbonate Plastics, Stamped Steel, Vinyl
Cable Type:
Coaxial
Included:
Multi-Cable Cutter, Coaxial Cable Radial Stripper, Compression Crimper F-Connector, Universal F-Compression Connectors, Polyester Zipper Bag
Weight:
1.5 lb (0.7 kg)
UPC:
092644691232
Downloads
Warnings

Do NOT use on energized circuits or cabling systems.
