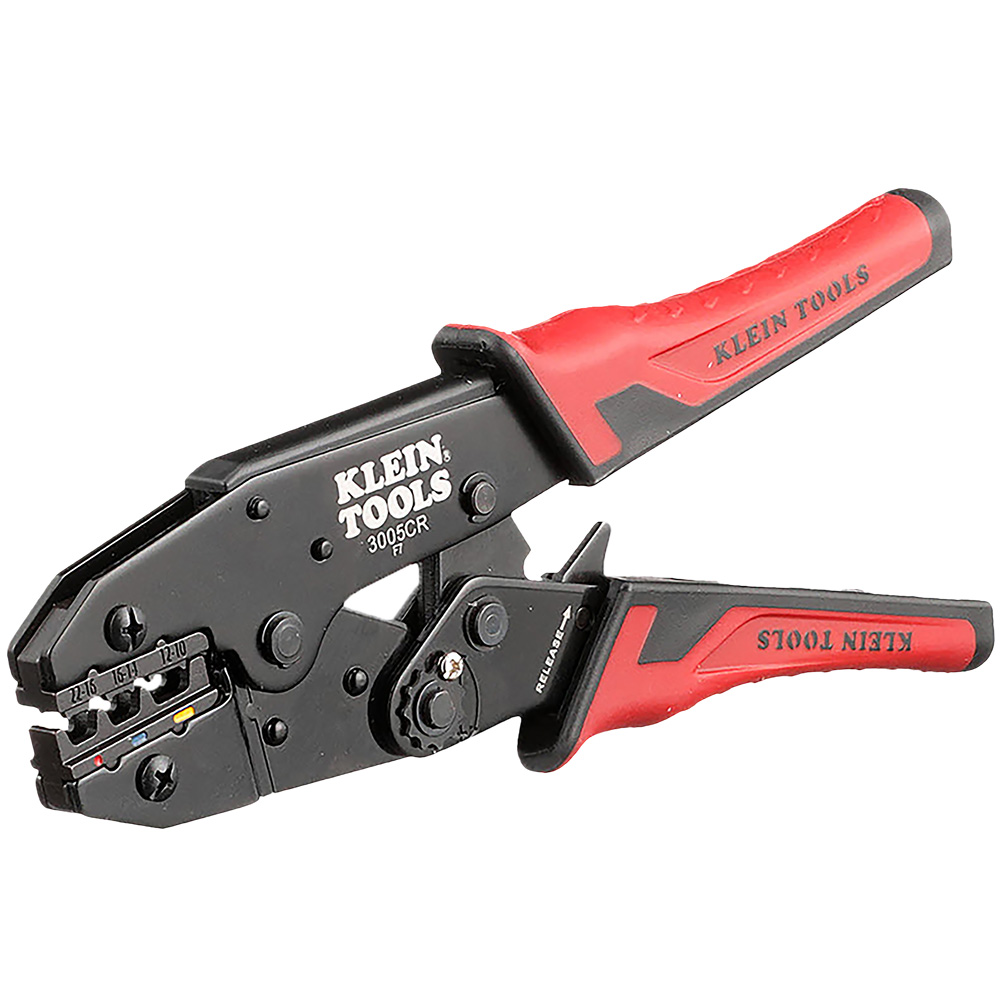

Ratcheting Crimper, 10-22 AWG - Insulated Terminals

3005CR

  • Crimps insulated terminals onto 10-22 AWG stranded copper wire
  • Adjustable compound action design puts more crimping power into each squeeze
  • Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
  • Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
  • Unique cavity design provides consistent crimp from either side of the tool
  • Dial adjusts the amount of force applied to the crimp
  • Dual-material molded grips provide added comfort
Videos
Images
High-Res JPG 3005cr_photo.jpg
Interactive Catalog

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

Specifications
Type:
Ratcheting Crimper
Application:
Wire Crimping
Special Features:
3 Crimping Cavities
Material:
Steel
Handle Color:
Red, Black
Handle Finish:
Dual-Material
Cable Size:
Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals
Connector Type:
Insulated
Overall Length:
9'' (22.9 cm)
Overall Height:
0.09'' (0.2 cm)
Overall Width:
3'' (7.6 cm)
Weight:
1.3 lb (0.6 kg)
UPC:
092644344008
Additional Information
Warnings
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
