Klein Tools - For Professionals Since 1857

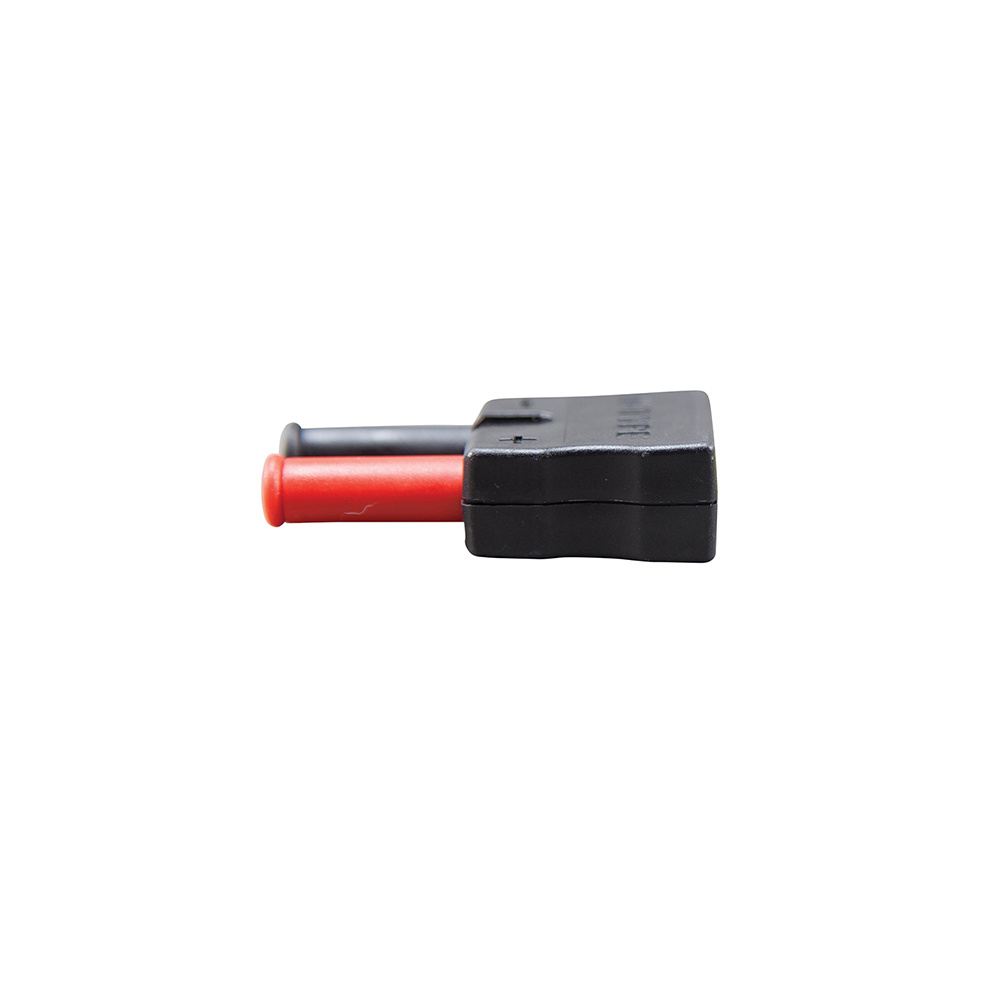

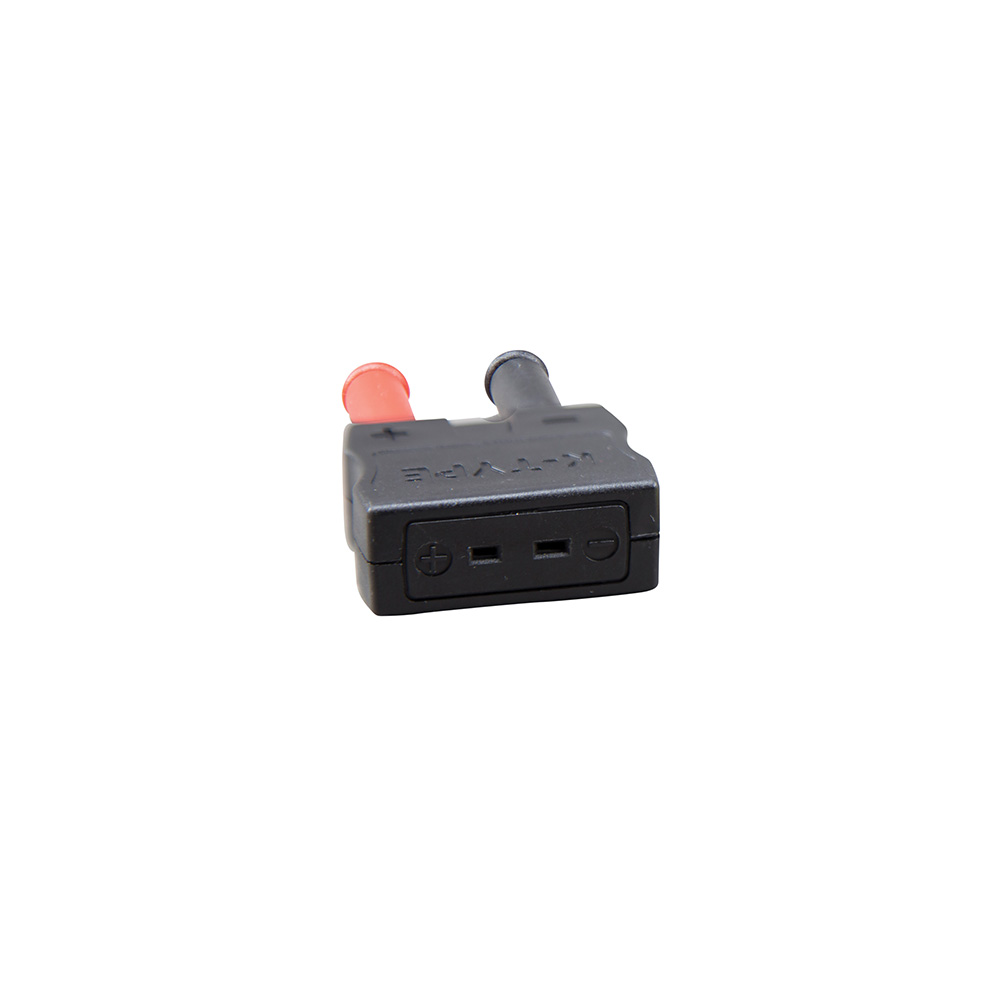

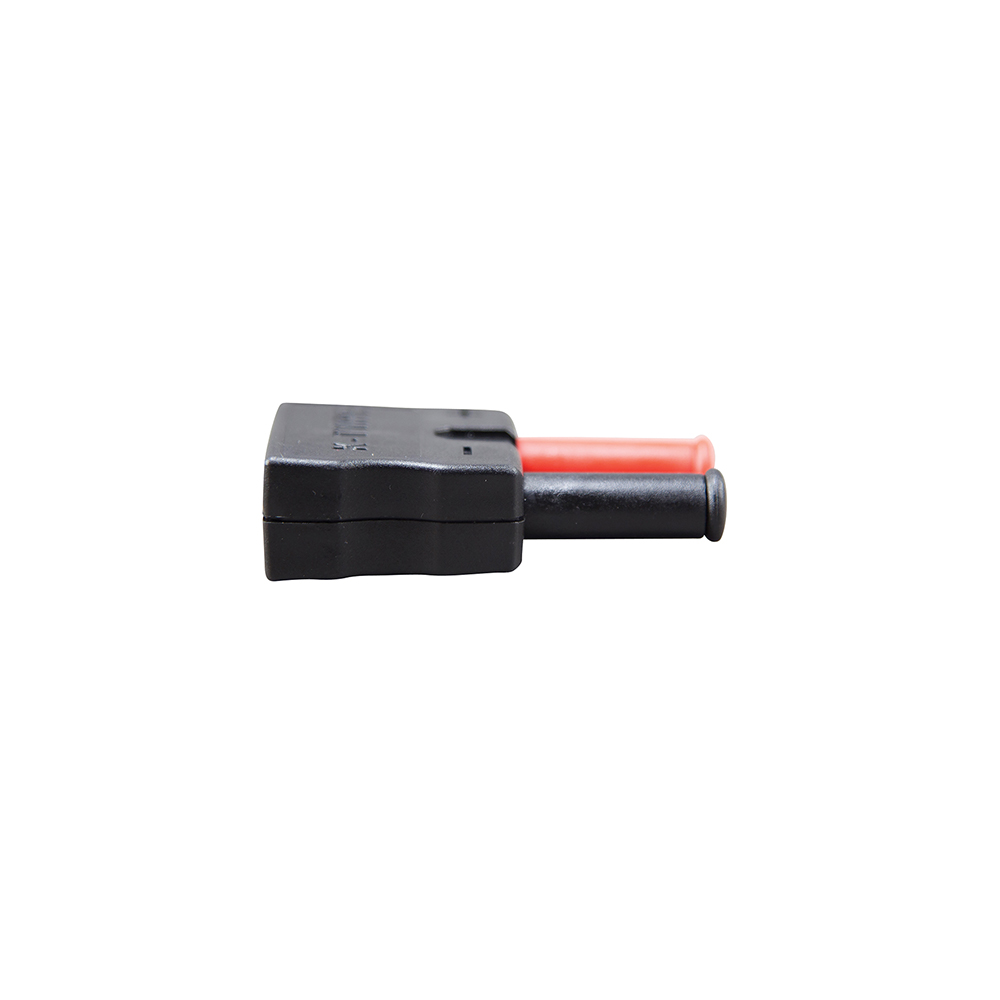

K-Type to Banana Plug Adapter

69146

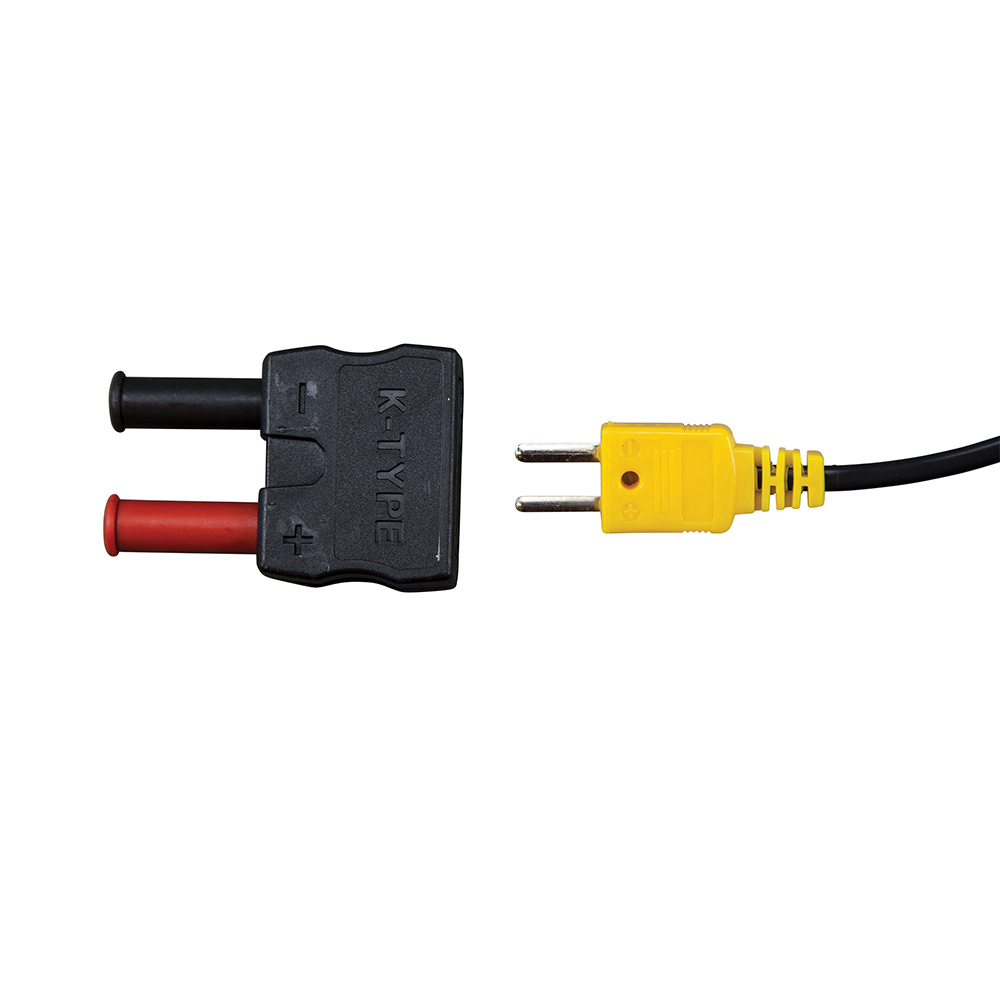

  • Allows K-Type temperature thermocouples to be used with a meter with banana plug ports
  • Works with any digital multimeter that measures temperature
  • Works with any clamp meter that measures temperature
  • Drop protection to 3m
  • Works with other brand meters that measure temperature
  • Same adapter that comes with most Klein clamp and multimeter accessories
  • Adapter provides customer flexibility with their digital multimeter or clamp meter
Downloads
Images
JPG (High Resolution) 69146_photo.jpg
PNG (Transparent Background) 69146.png

Specific for HVAC applications, this Banana Plug Adapter (and other Klein K-Type Accessories) extend working temperature ranges for Klein’s HVAC Digital Multimeters and Clamp Meters.These accessories work with all Klein digital multimeters and clamp meters that measure temperature, as well as any other brand with meters that measure temperature. Other accessories include Temperature Pipe Clamp, High Temperature Thermocouple Wire, and Temperature Probe.

Specifications
Type:
K-Type Banana Plug Adapter
Application:
HVAC
Special Features:
Allows use of K-Type Thermocouples into Banana Jacks
Overall Length:
2.125'' (54 mm)
Overall Height:
0.5'' (12.7 mm)
Overall Width:
1.5'' (38.1 mm)
Material:
ABS
For Use With:
Any Clamp or Digital Multimeter that Measures Temperature
Weight:
0.4 oz (11 g)
UPC:
092644690709
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
