S1656-20H
Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch

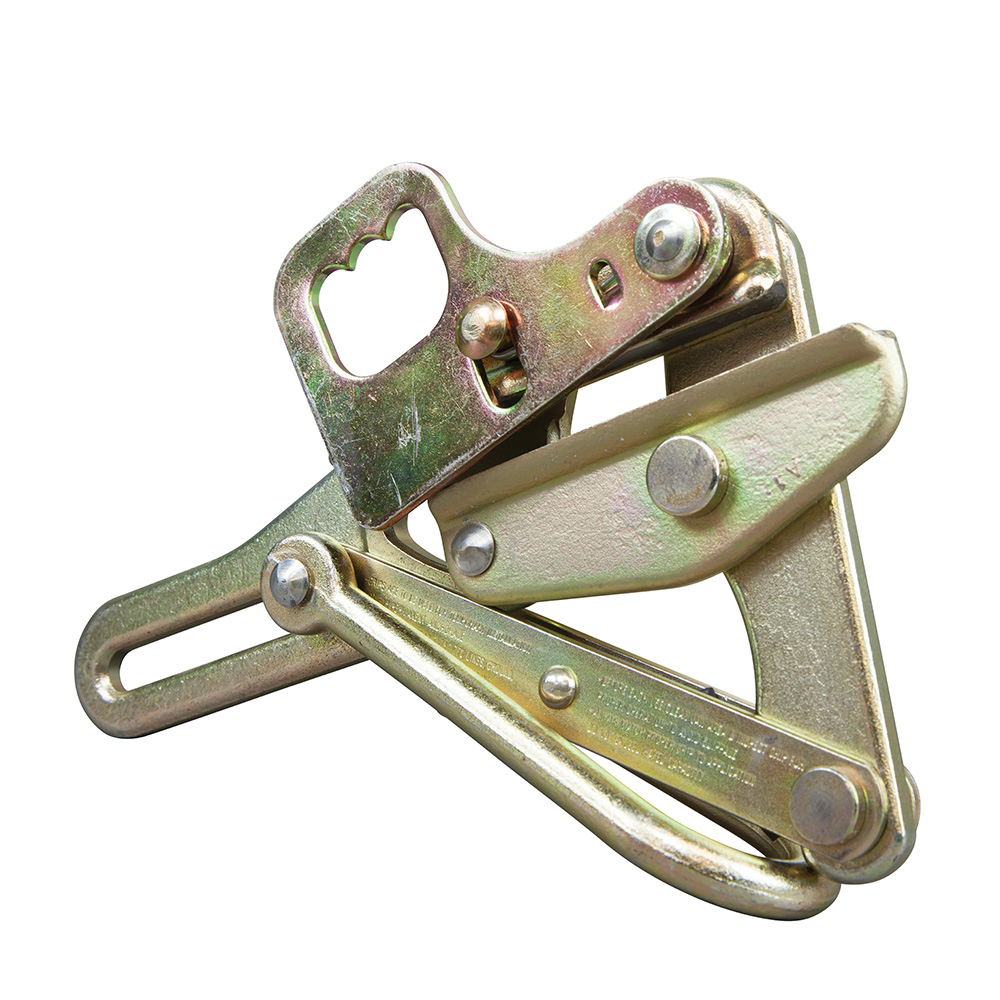

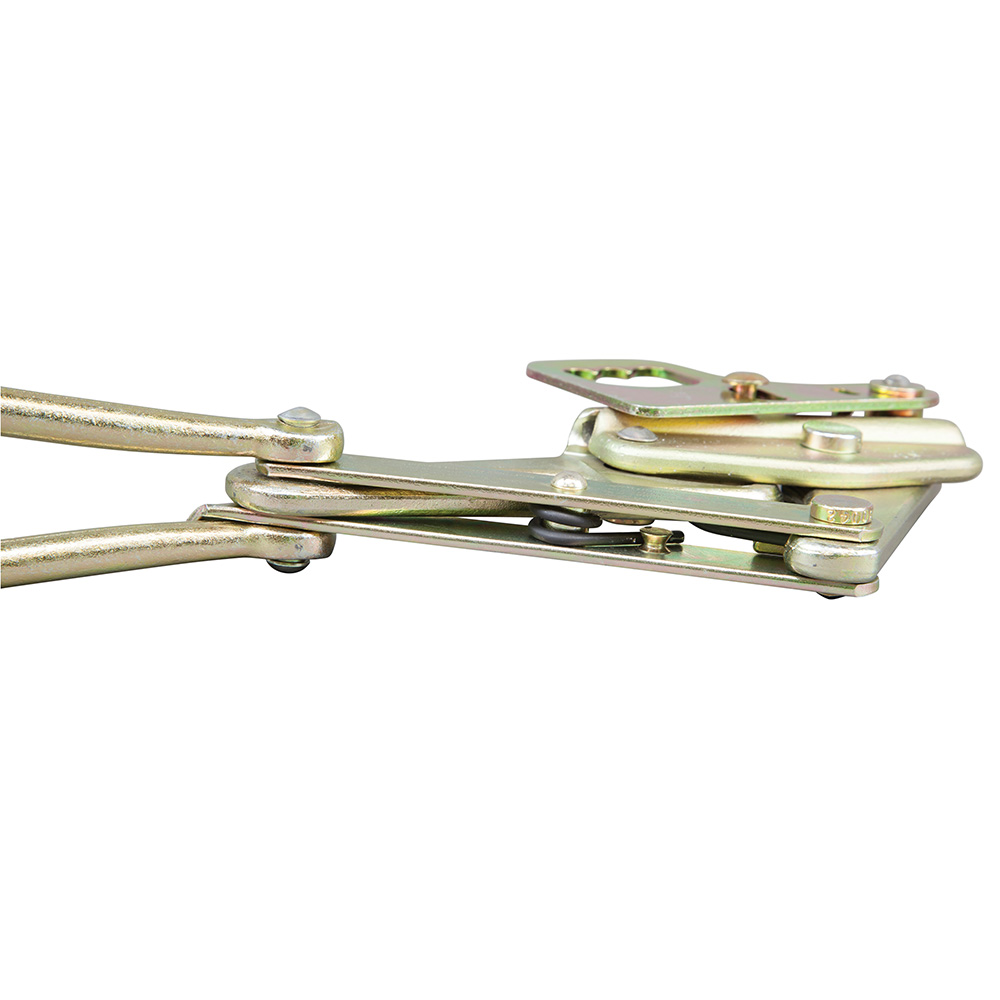

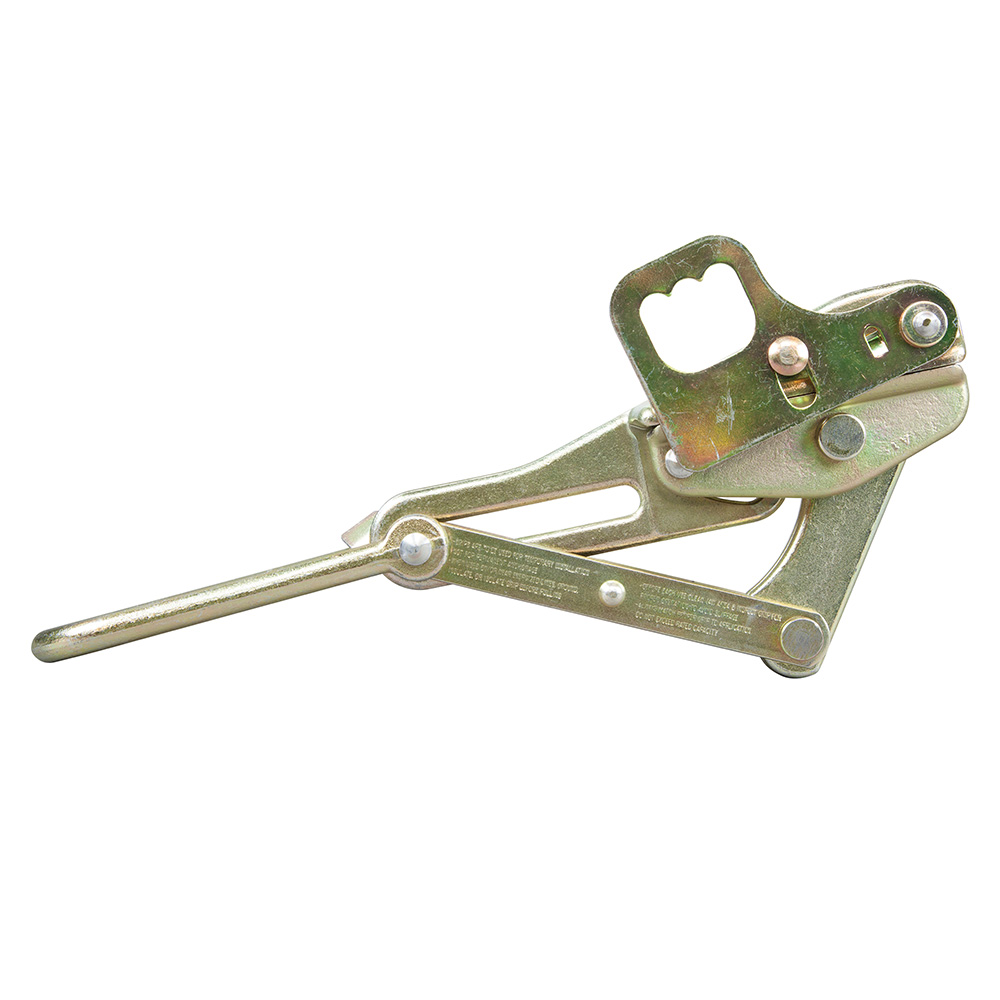

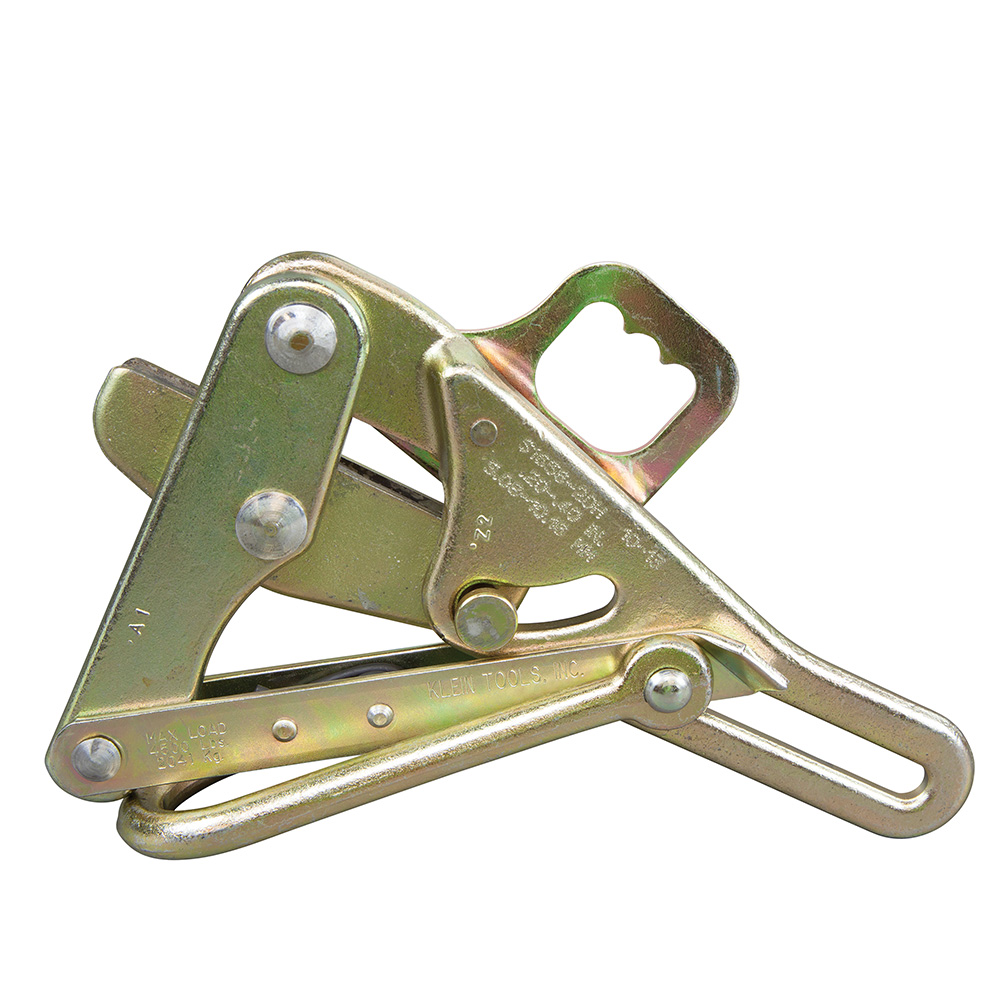

- The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
- Jaw length: 4-3/16-Inch
- Maximum safe load of 4,500 pounds
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
Specifications
Type:
Chicago Grip
Application:
Wire Pulling
Overall Length (Inch):
12.5
Overall Length (cm):
31.8
Overall Width (Inch):
2.13
Overall Width (cm):
5.4
Material:
Steel
Cable Type:
Copper, ACSR, AAC
Cable Diameter:
0.2'' to 0.4'' (5.08 to 10.16 mm)
Hot Latch:
Yes
Swing Latch:
No
Spring:
Yes
Locking Handle:
Yes
Jaw Type:
Round
Teeth Type:
Smooth
Jaw Length (Inch):
4
Jaw Length (cm):
10.2
Maximum Safe Load (lb):
4500
Maximum Safe Load (kg):
2041.2
Weight (lb):
3.15
Weight (kg):
1.4
UPC:
092644471063
Additional Information
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
