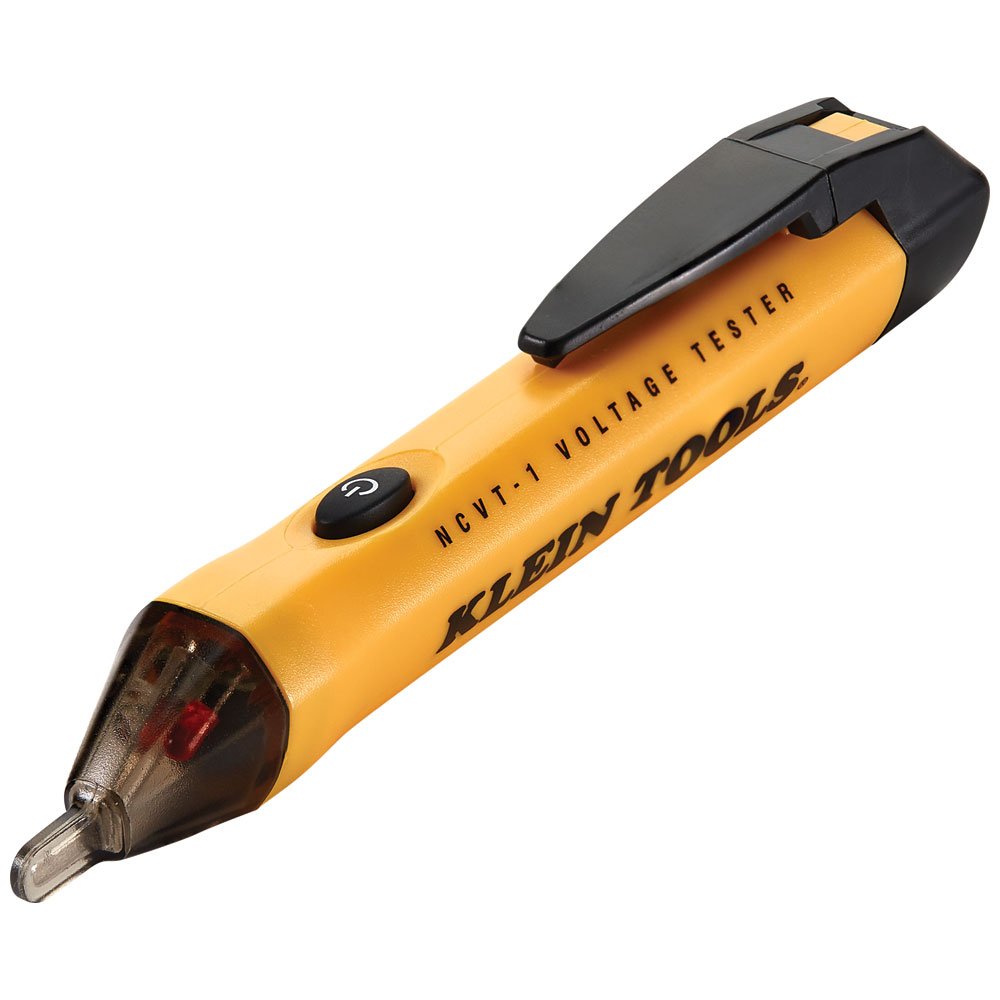

Non-Contact Voltage Tester Pen, 50 to 1000 Volts

NCVT-1

This product is no longer in production
  • Voltage Tester provides non-contact detection of voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
  • Volt Pen with high intensity, bright green LED that indicates the tester is operational and aids in illuminating the workplace
  • When voltage is detected, a high intensity, bright red LED illuminates and a warning tone sounds
  • Discreet digitally controlled ON/OFF power button
  • Auto power-off feature conserves and extends battery life
  • Microprocessor controlled low-battery indicator and tester shutdown
  • CAT IV 1000 Volt safety rating provides expanded operation and protection
  • Product not recommended for testing tamper-resistant outlets; use NCVT2P or NCVT3P in low voltage mode
  • 50 to 1000 Volt AC power operating range allows broad application
  • Durable polycarbonate plastic resin construction
  • Lightweight compact design with a convenient clip to fit securely in your pocket
  • Includes instructions and 2 x AAA 1.5 volt batteries
  • 6.6-Foot (2 m) drop protection
  • Conforms to CE requirements
tough-meter Product Icon
ce Product Icon
Videos

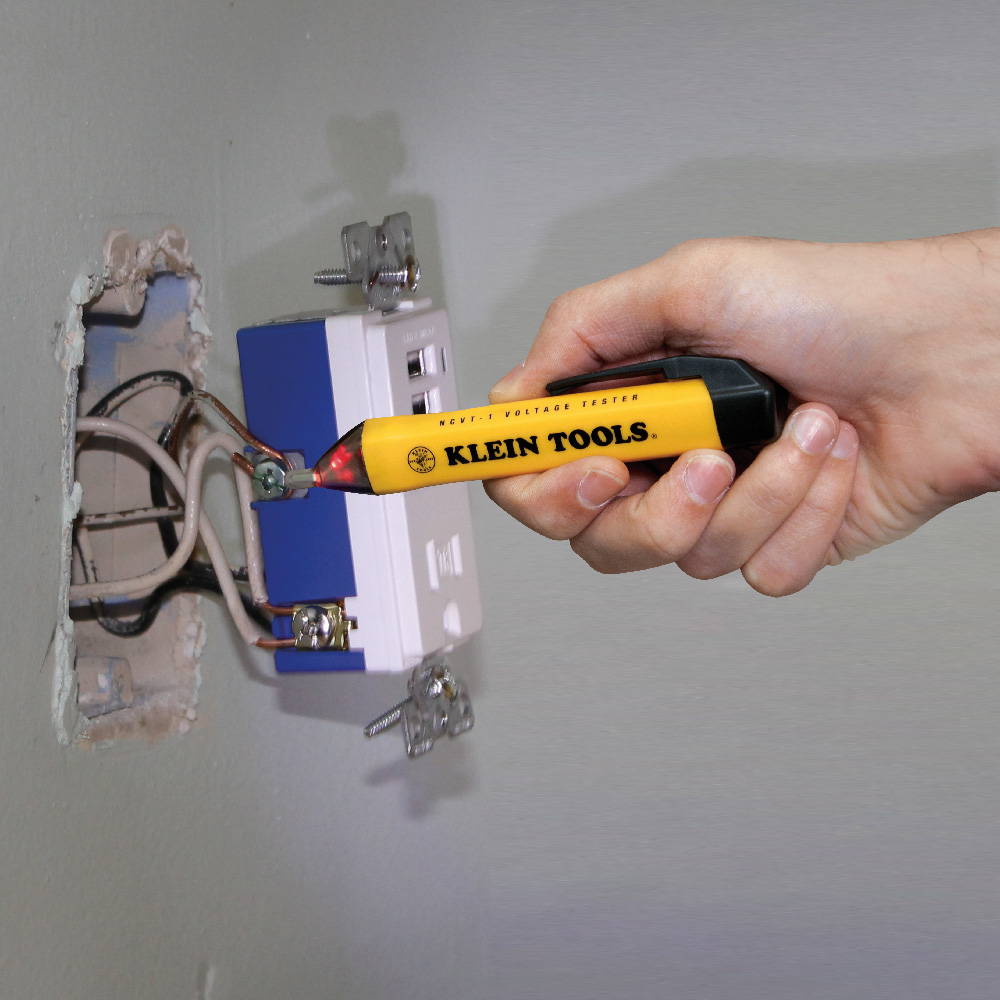

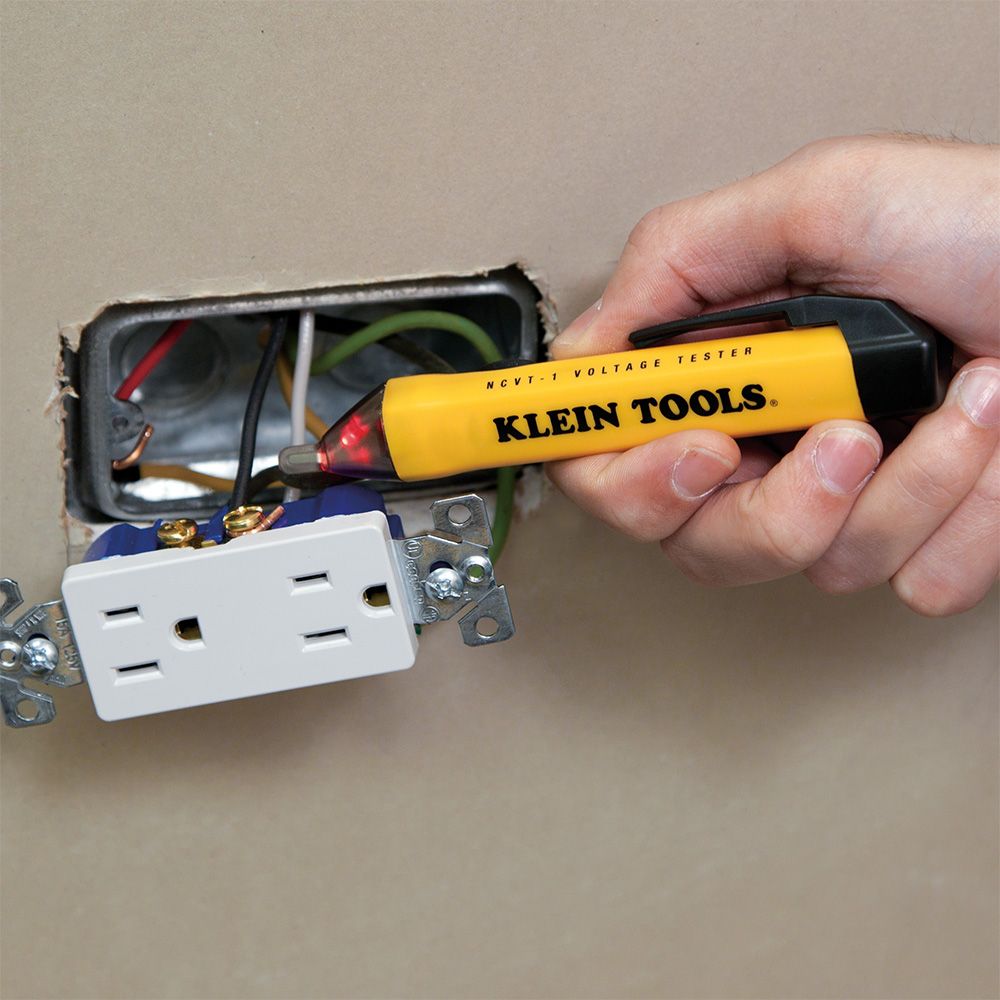

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. A bright green LED will tell you the tester is working and also functions as a worklight. It changes to red and warning tones sound when voltage is detected.

Specifications
Application:
Non-Contact Detection and Testing of AC Voltage; Not Recommended for Tamper-resistant Outlets
Special Features:
Green Led Turns Off and Red Led Illuminates Continuously
Drop Protection:
9.8' (3 m)
Voltage:
50 - 1000V AC
Frequency:
50 - 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V
Included:
Owner's Manual and 2 AAA 1.5 volt Batteries
Batteries:
2 x AAA
Overall Length:
5.50'' (14 cm)
Overall Height:
1.00'' (2.5 cm)
Overall Width:
0.72'' (1.8 cm)
Weight:
0.80 oz (22.70 g)
UPC:
092644690006
Additional Information
Warnings
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
