Klein Tools - For Professionals Since 1857

AC/DC Voltage/Continuity Tester

ET260

This product is no longer in production.

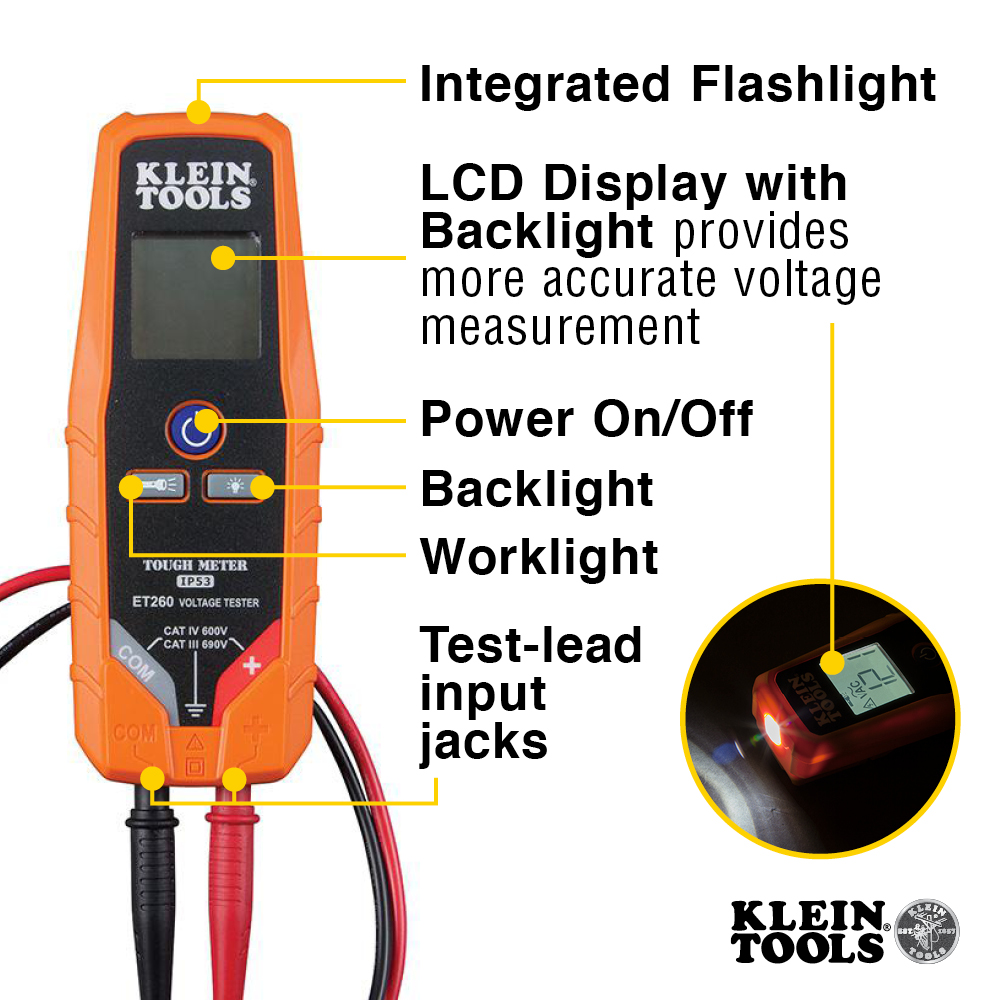

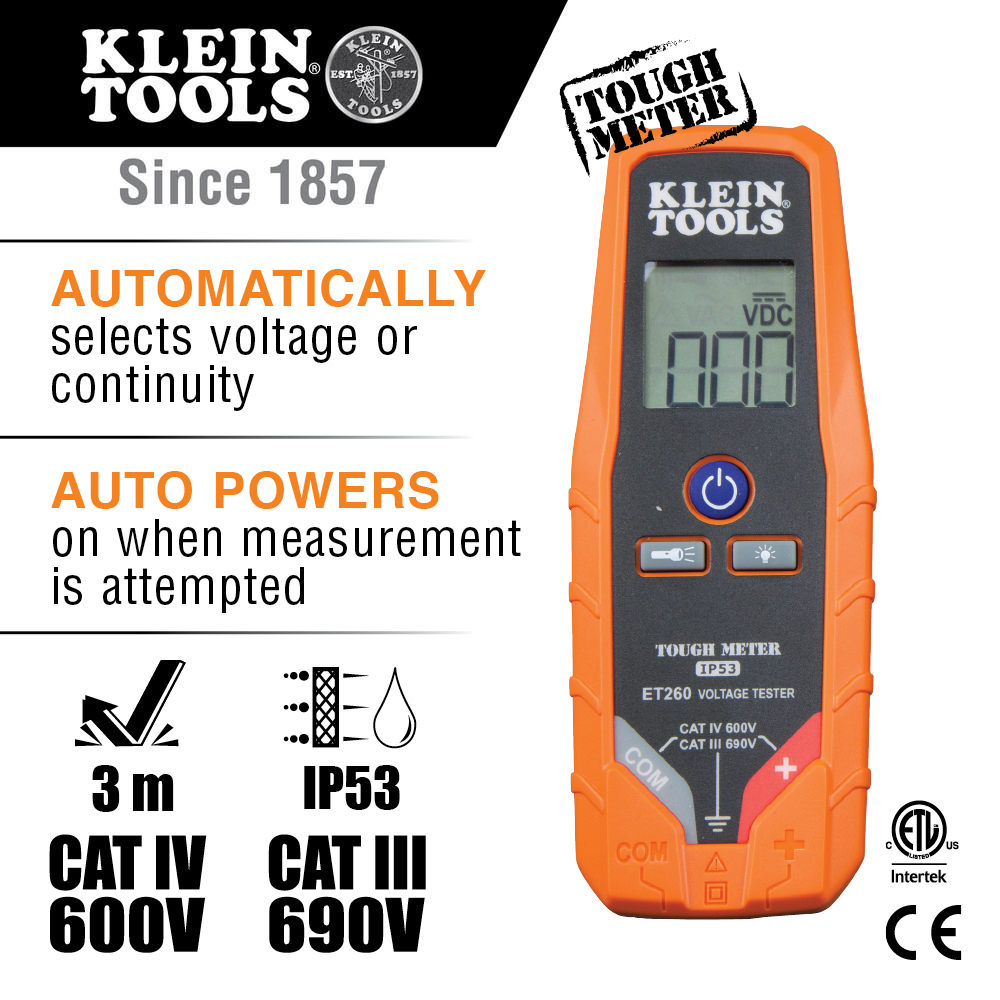

  • Automatically selects voltage or continuity; automatically powers on when measurement is attempted
  • Backlit LCD display
  • CAT IV 600V (CAT III 690V)
  • Uses standard replaceable multimeter test leads

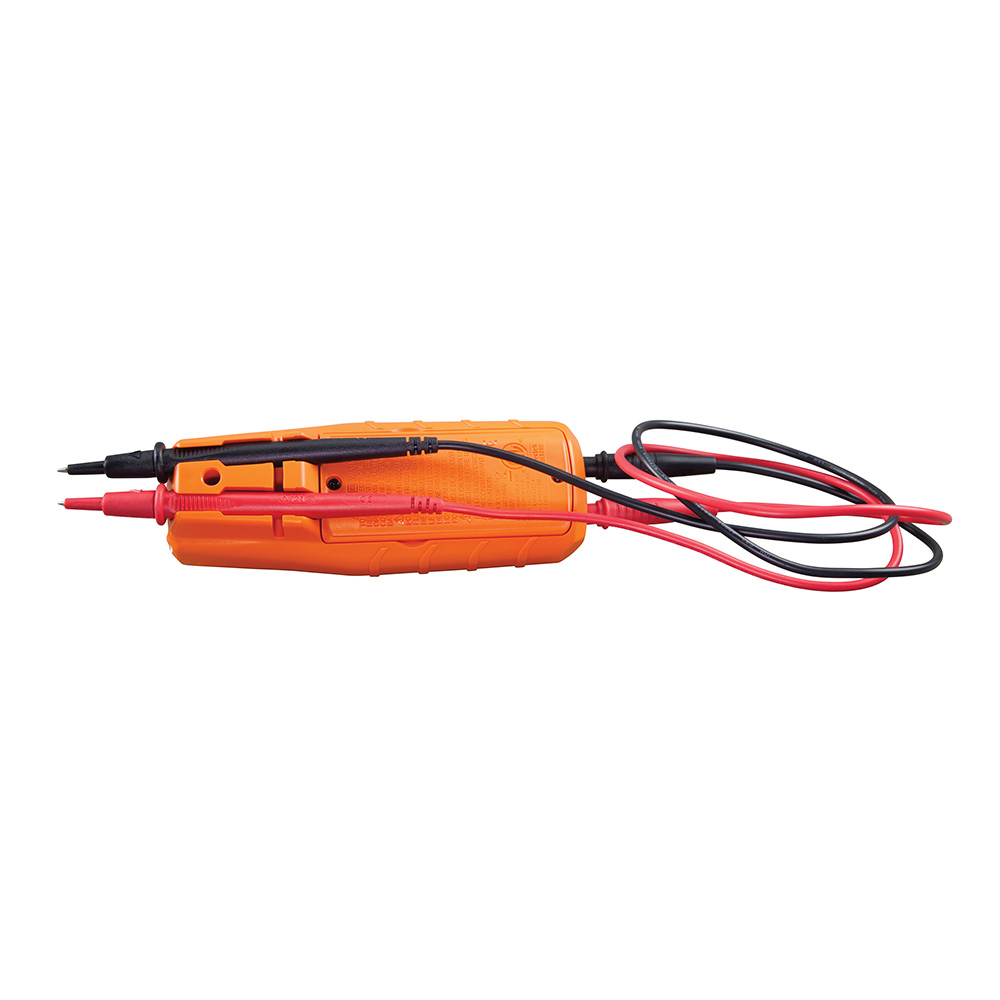

  • Features built-in test lead holders on back of meter

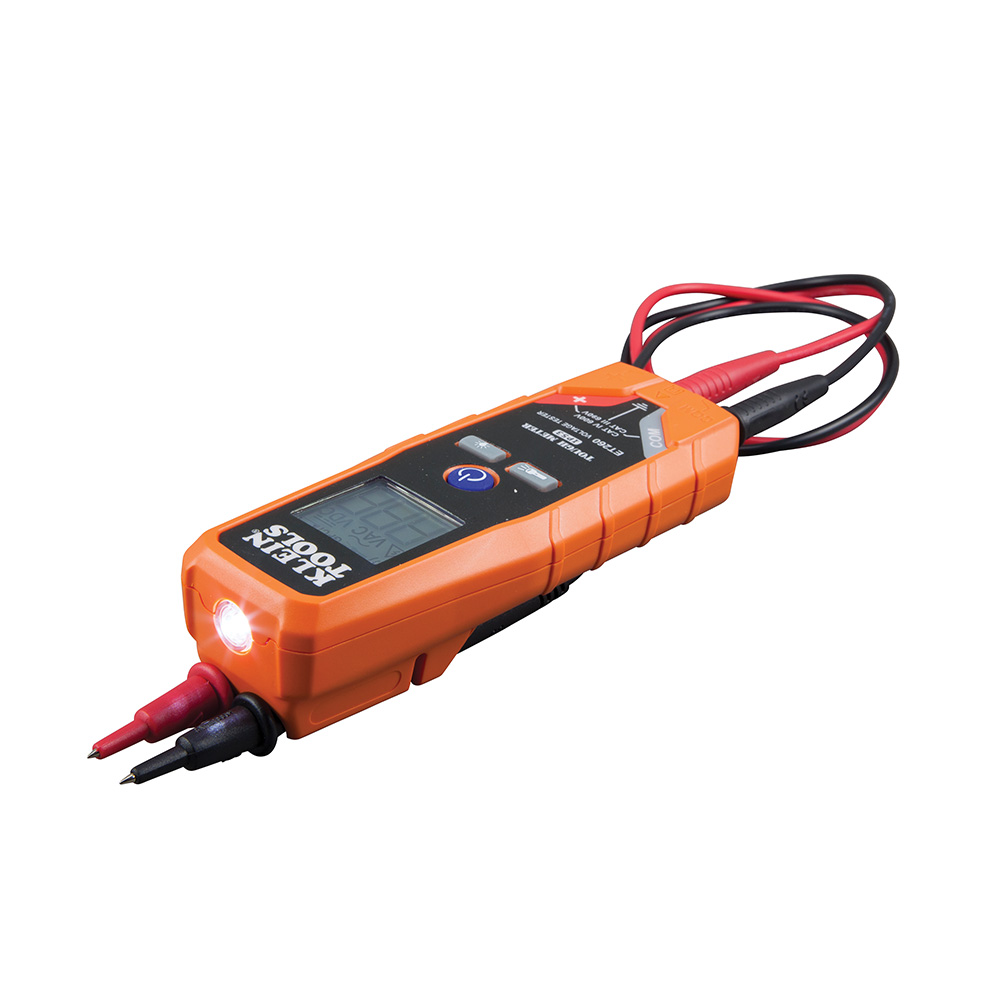

  • Integrated flashlight
  • 9.8-Foot (3m) drop protection
  • IP53 dust and water resistant
Images
JPG (High Resolution) et260_photo.jpg
PNG (Transparent Background) et260.png

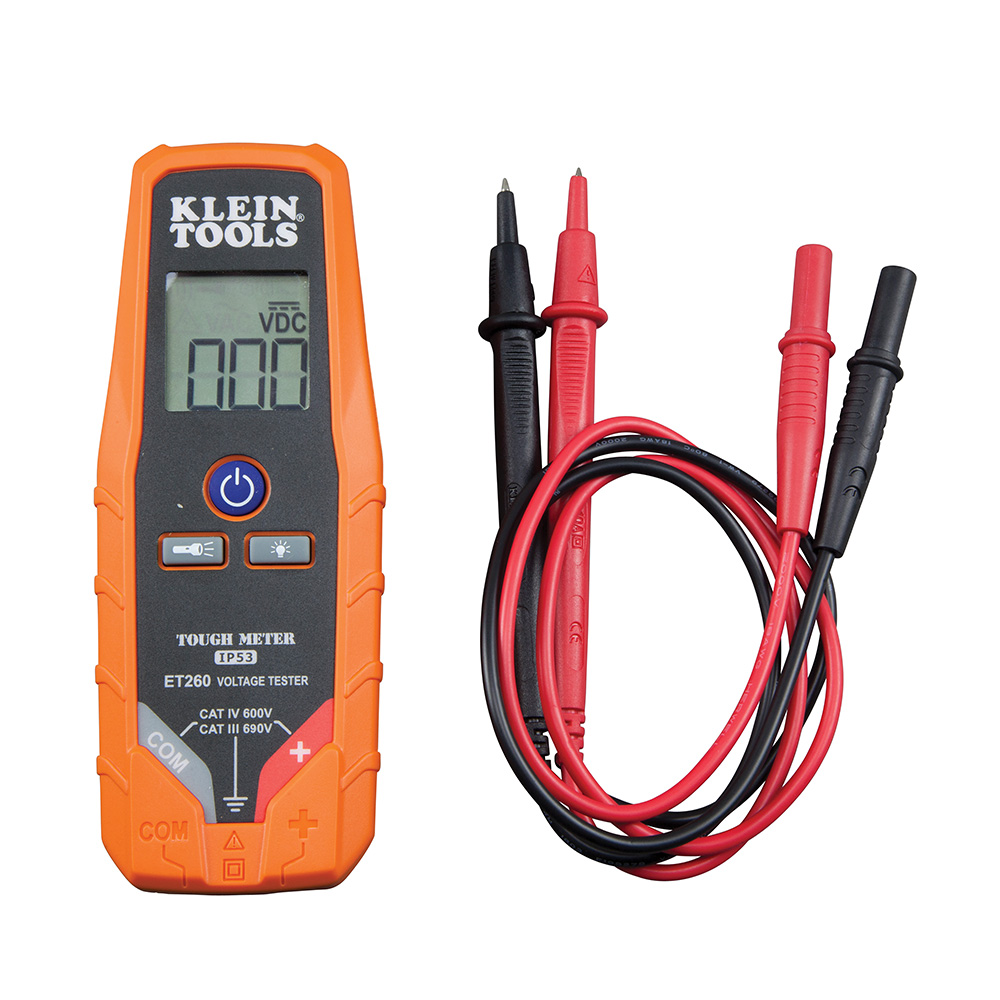

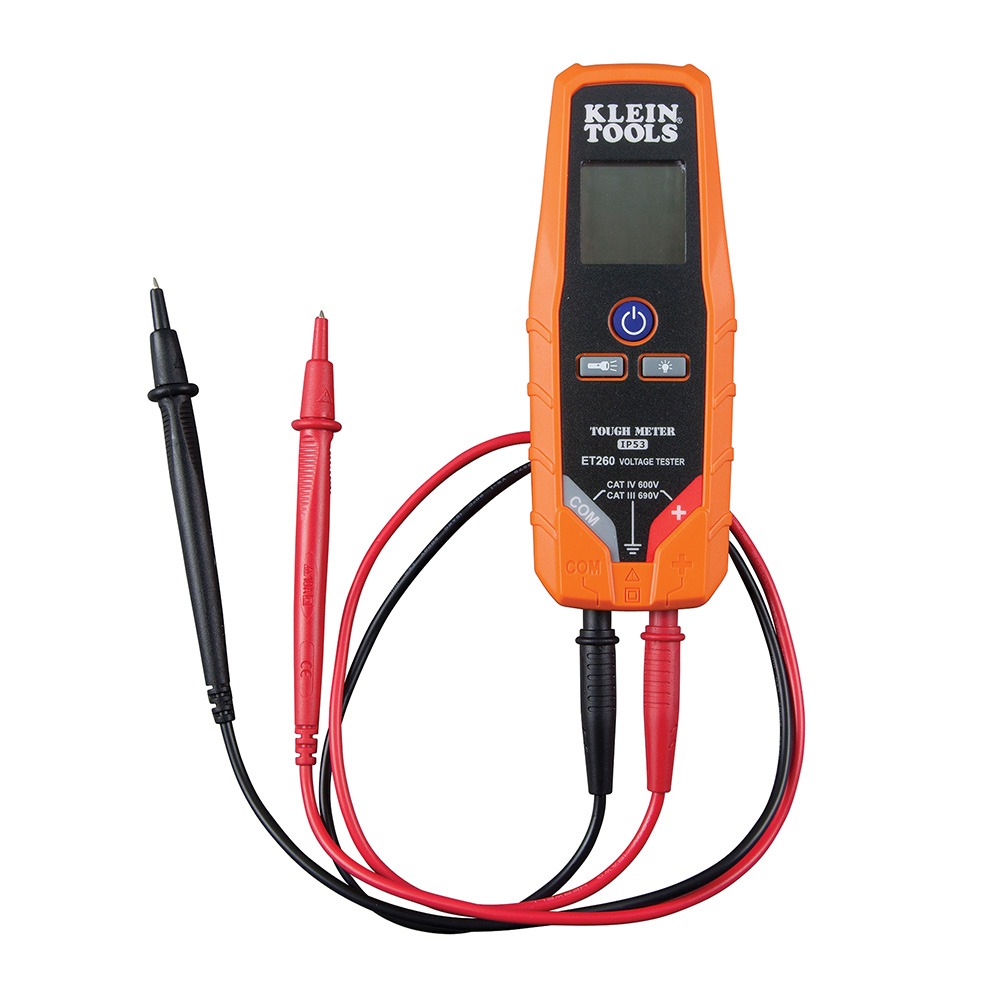

Klein Tools ET260 is a solid-state, digital voltage and continuity tester. It measures AC/DC voltages up to 690V and tests for continuity. The tester includes a backlight and integrated flashlight for working in reduced ambient lighting conditions.

Specifications
Type:
International
Application:
AC/DC Voltage Testing and Continuity Testing
Special Features:
Integrated Flashlight
Material:
Thermoplastic; Electronics
Batteries:
3 x AAA
Drop Protection:
9-27/32 ft (3m)
Display:
Digital LCD
Control Type:
Digital
Voltage:
2 to 690V AC/DC
Frequency:
45 to 400 Hz
Ingress Protection:
IP53 (Except Test Lead Jacks)
Pollution Degree:
2
Tests Continuity:
Yes
Integral Lead Storage:
Yes
Interchangeable Leads:
Yes
Lead Length:
30.00'' (762.0 mm)
Standard:
CAT IV 600V; CAT III 690V
Case Included:
No
Included:
Test Leads, Batteries
Overall Length:
6.06'' (154.0 mm)
Overall Height:
1.64'' (41.7 mm)
Overall Width:
2.31'' (58.8 mm)
Weight:
6.00 oz (170.0 g)
UPC:
092644690389
Additional Information
Warnings
  • Before each use, verify tester operation by measuring a known voltage.
  • Never use the tester on a circuit with voltages that exceed the category based rating of this meter.
  • Do not use the tester or test leads if they appear to be damaged.
