Ratcheting Crimper, 10-22 AWG - Insulated Terminals
3005CR
- Crimps insulated terminals onto 10-22 AWG stranded copper wire

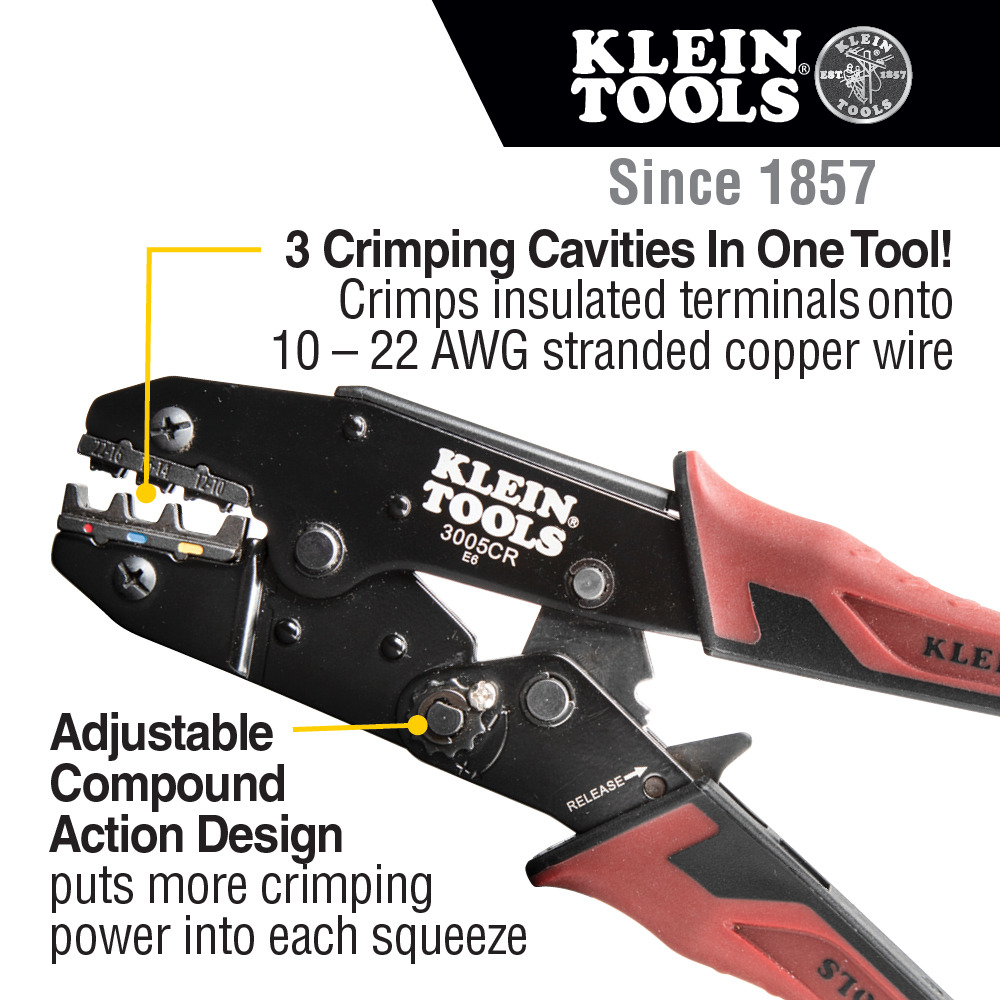

- Adjustable compound action design puts more crimping power into each squeeze
- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort

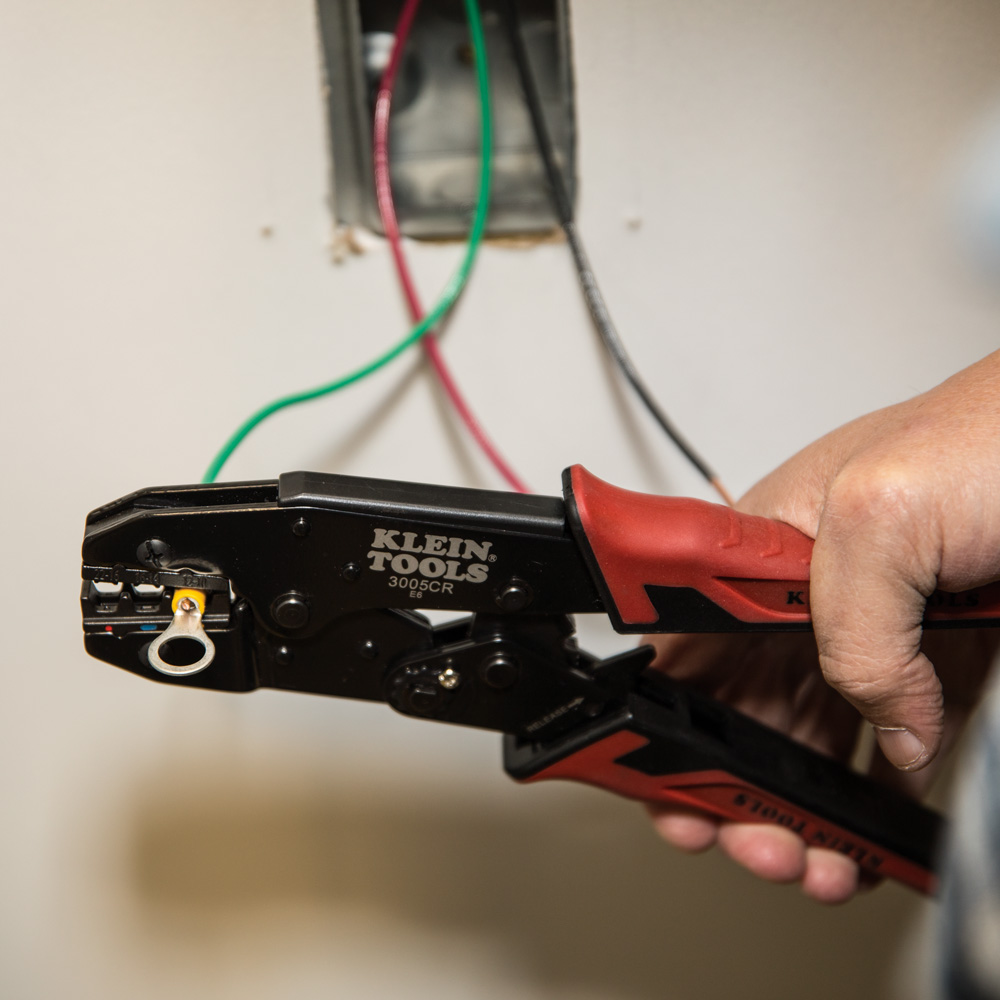

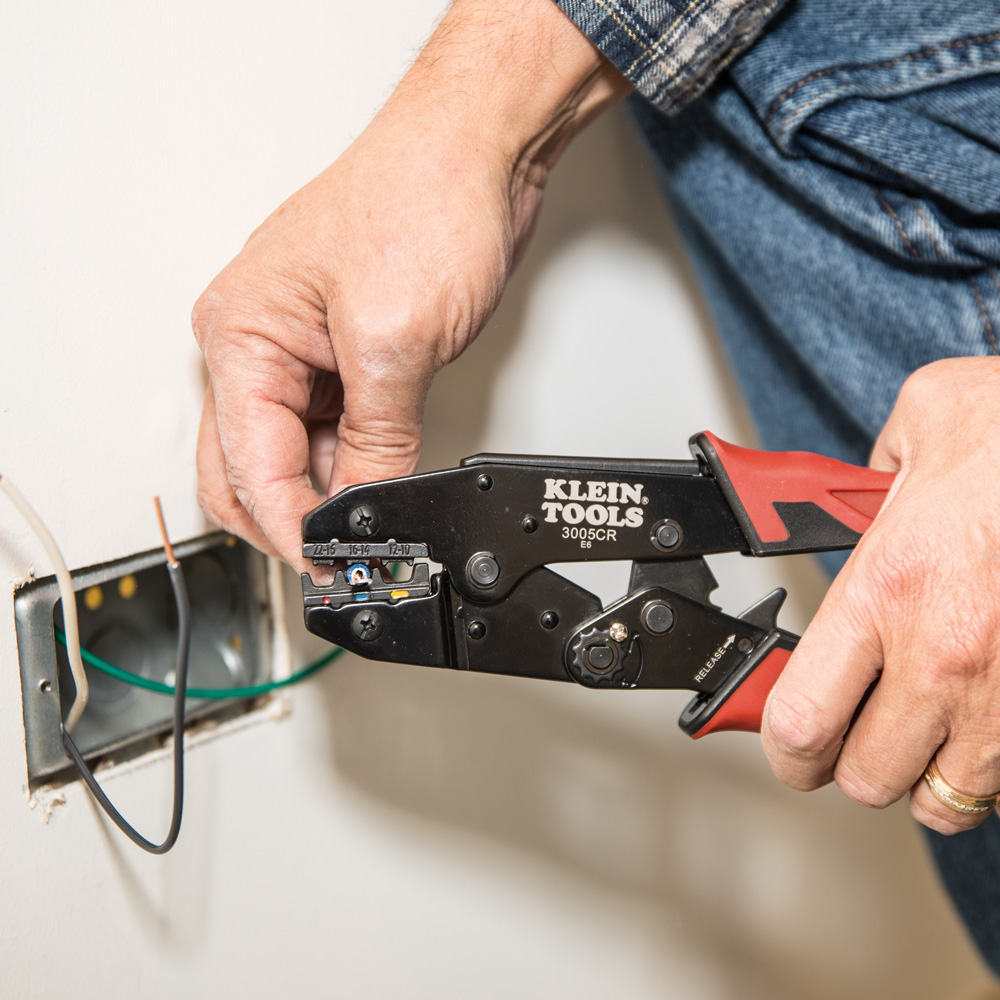

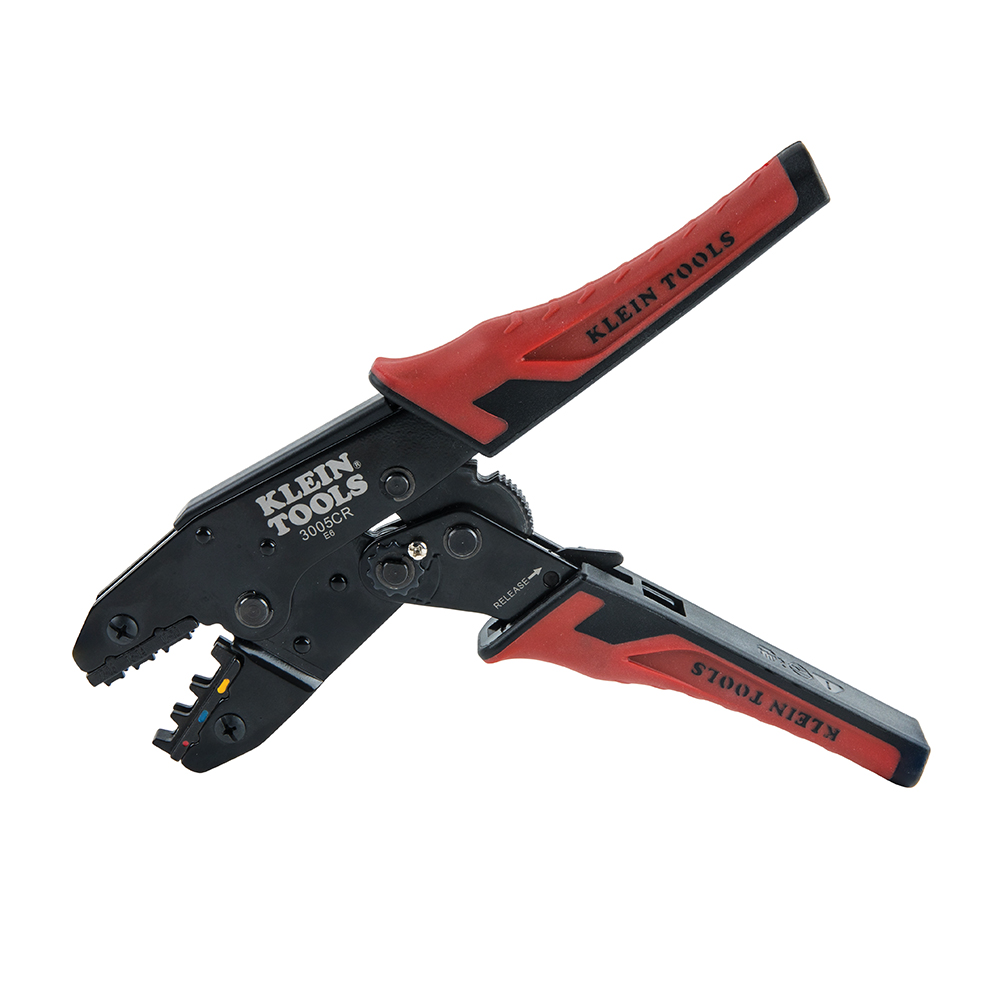

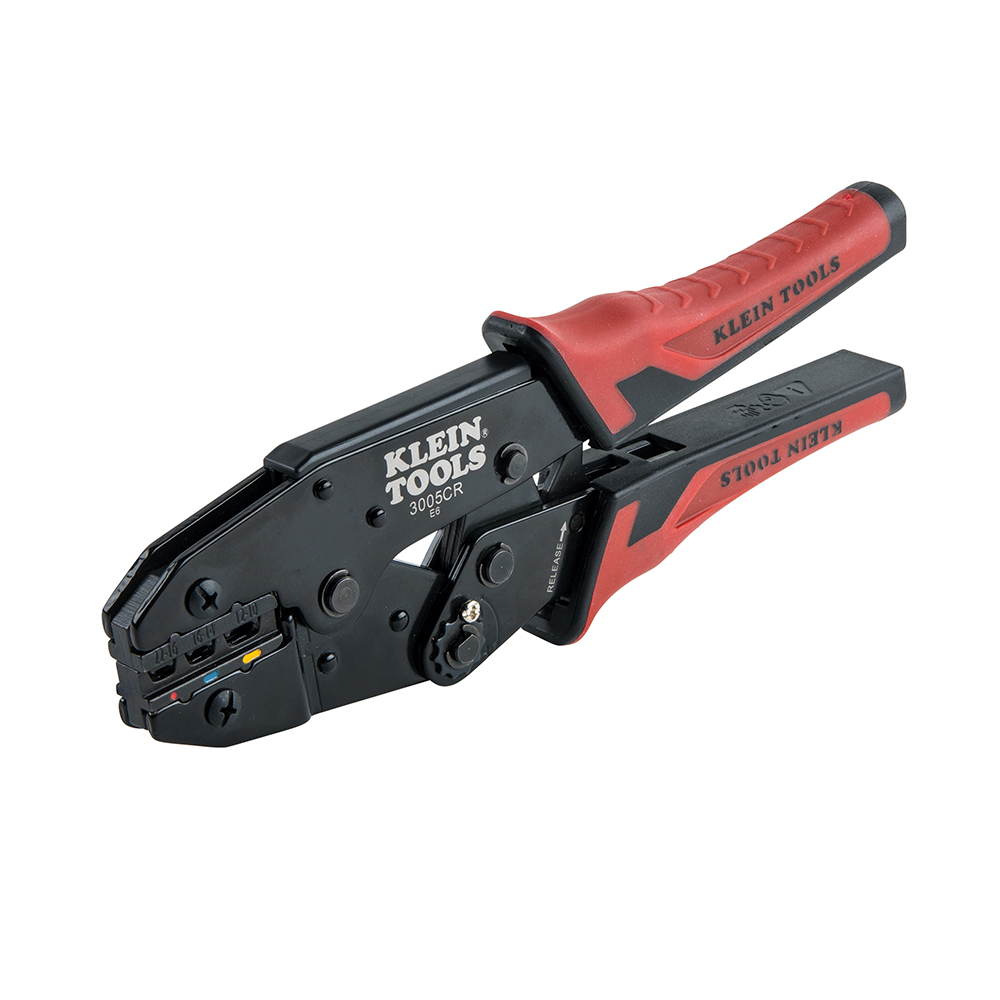

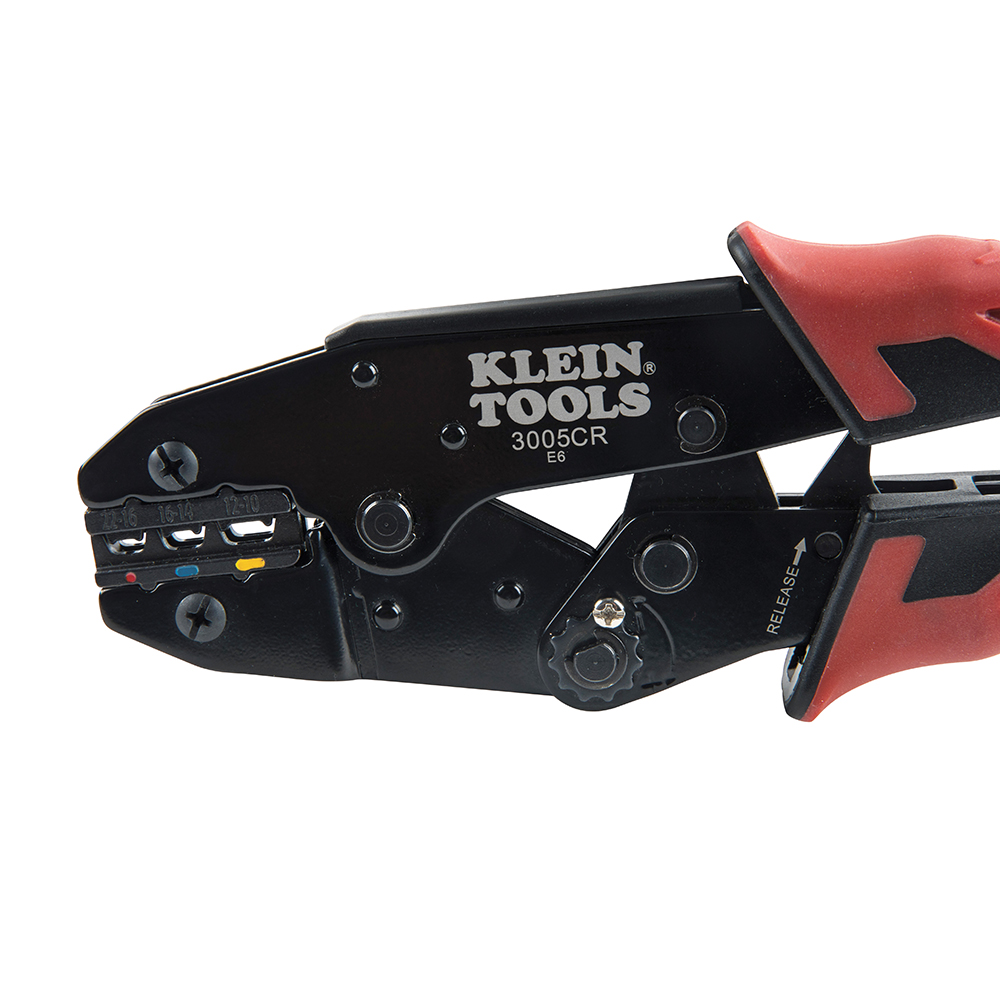

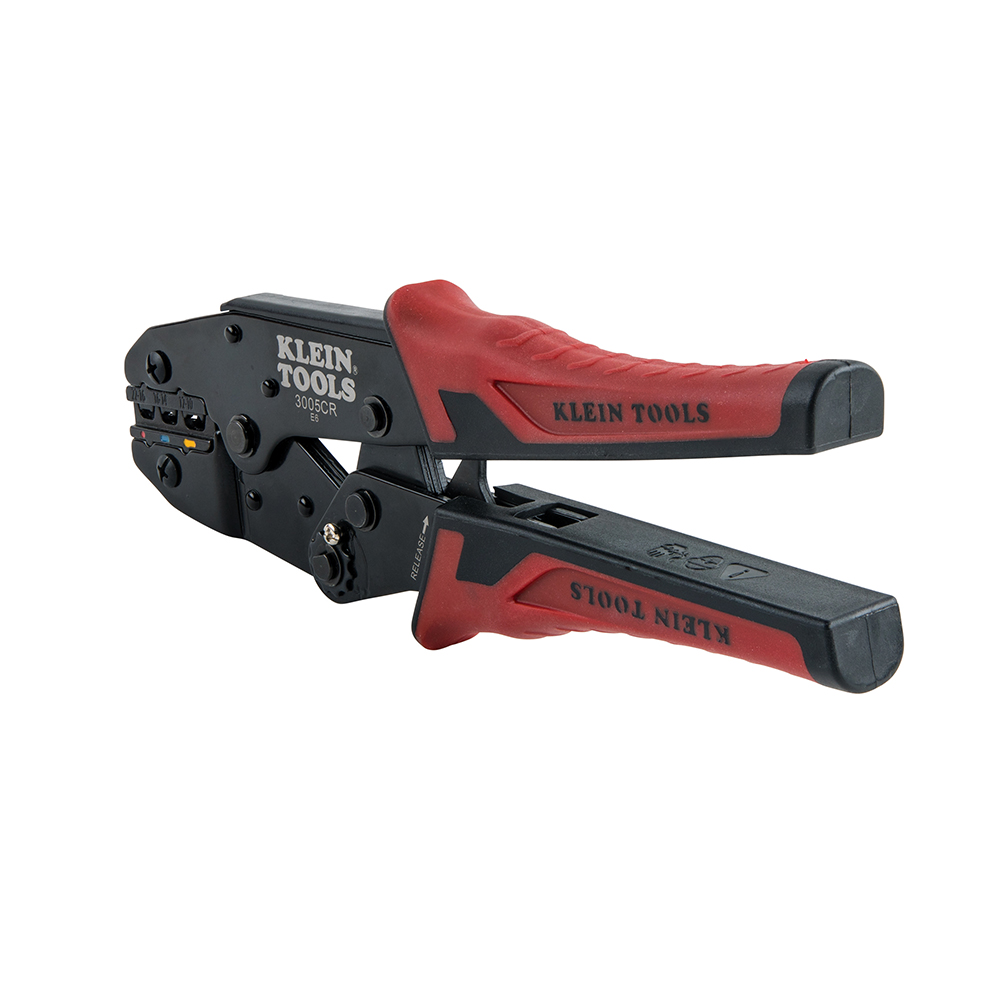

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Specifications
Type:
Ratcheting Crimper
Application:
Wire Crimping
Special Features:
3 Crimping Cavities
Material:
Steel
Handle Color:
Red and Black
Cable Size:
10-22 AWG Stranded
Connector Type:
Insulated
Overall Length:
9'' (2.3 cm)
Overall Height:
0.09'' (0.2 cm)
Overall Width:
3'' (7.6 cm)
Weight:
1.3 lb (0.6 kg)
UPC:
092644344008
