Klein Tools - For Professionals Since 1857

Clamp Meter, HVAC Digital AC Auto-Ranging Tester, 400 Amp with Temp

CL312

This product is no longer in production.

  • Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Measures AC current via the clamp and AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and test diodes via the test leads
  • Thermocouple probe measures temperature
  • Built to withstand a 3.3-Foot (1 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Backlit display for clear readings
  • Powers off automatically after 15 minutes of non-use to conserve battery life

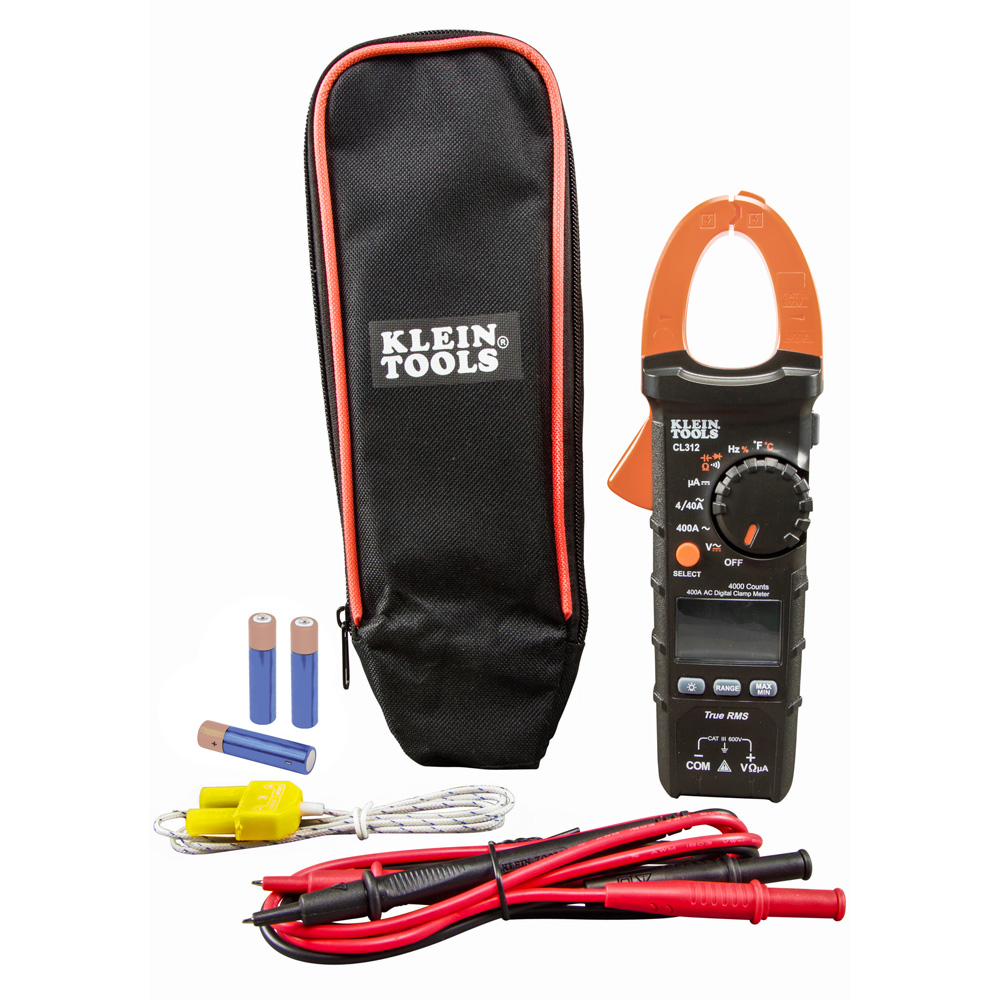

  • Includes a carrying case, test leads and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
COIN-CATIII1MDROP Product Icon
CE Product Icon
ETL-INTERTEK Product Icon
Video
Images
JPG (High Resolution) cl312_photo.jpg
PNG (Transparent Background) cl312.png
Interactive Catalog

Klein Tools CL312 Electrical Tester is an automatically ranging true root mean square (TRMS) digital clamp meter. It measures AC current via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Specifications
Type:
Voltage, Current, Resistance, Continuity
Application:
Measures AC Current, DC micro-Amp current
Special Features:
Low Battery Indicator, DC micro-Amps (uA)
Material:
ABS
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.12'' (2.9 cm)
Drop Protection:
3.3' (1 m)
Display:
4000 Count LCD
Functions:
AC current, AC/DC voltage, DC micro-Amps, resistance, continuity, frequency, capacitance and test diodes.
Voltage:
600V AC; 600V DC
Frequency:
10Hz - 1 MHz
Current:
400A AC
Capacitance:
4000µF
Ohms (Resistance):
40MΩ
AC Voltage:
600
DC Voltage:
600
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Standard:
CAT III 600V; CE Certified
Included:
Carrying Case, Test Leads, Thermocouple, Batteries
Overall Length:
8.7'' (22.1 cm)
Overall Height:
1.61'' (4.1 cm)
Overall Width:
3.02'' (7.7 cm)
Weight:
10.1 oz (286 g)
UPC:
092644691379
Additional Information
Warnings
  • Do not attempt to measure resistance or continuity on live circuits.
  • Follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
