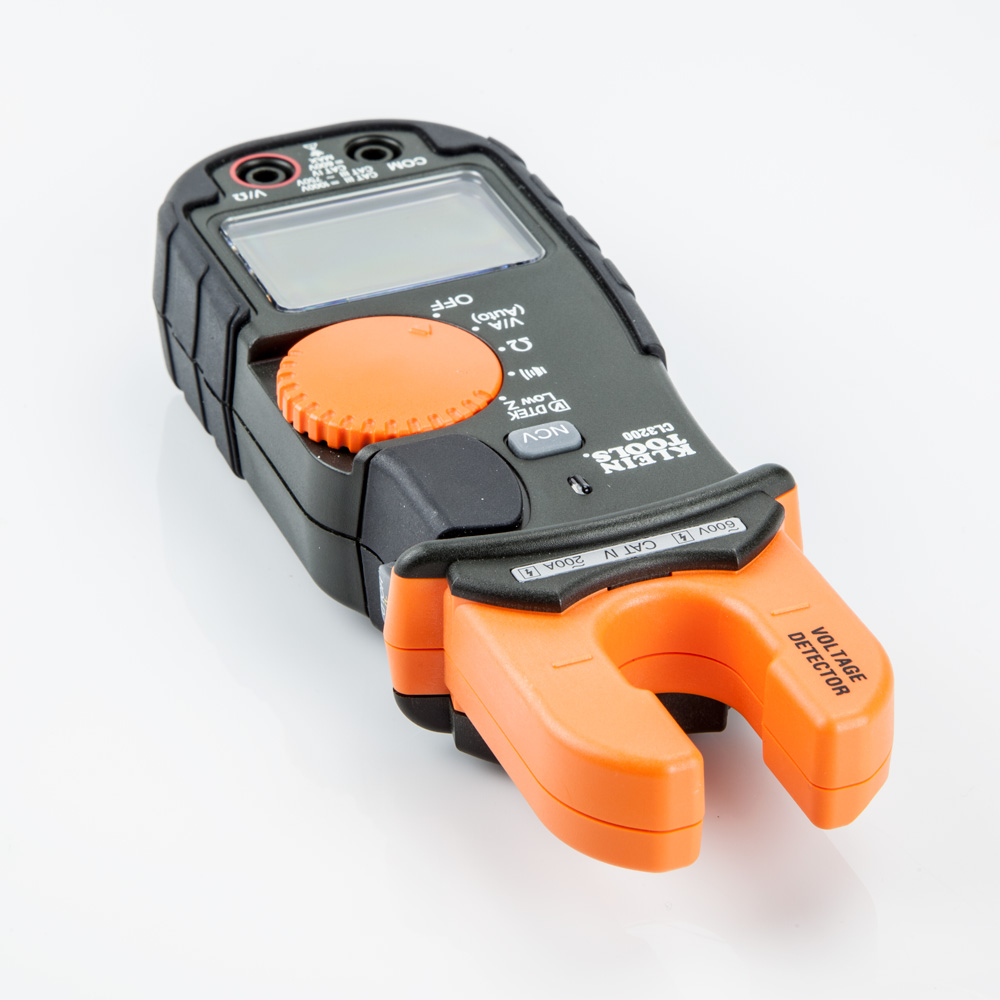

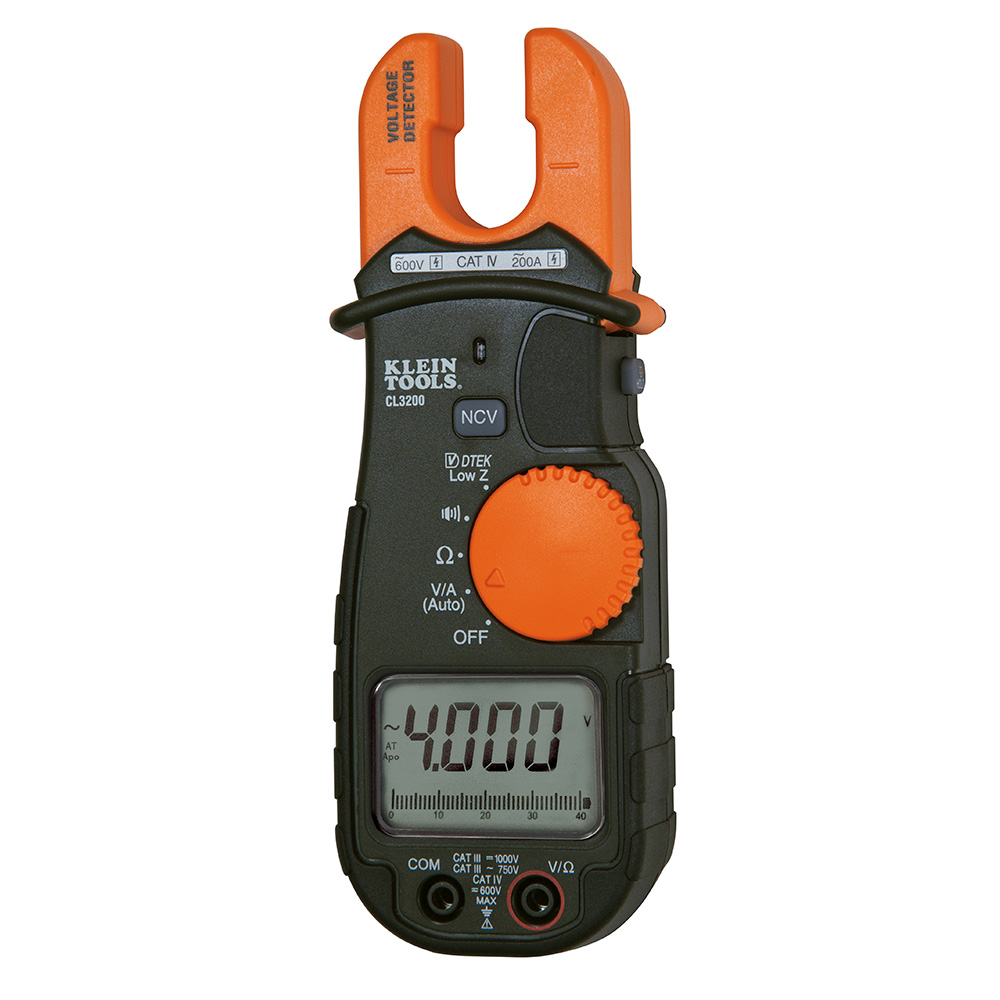

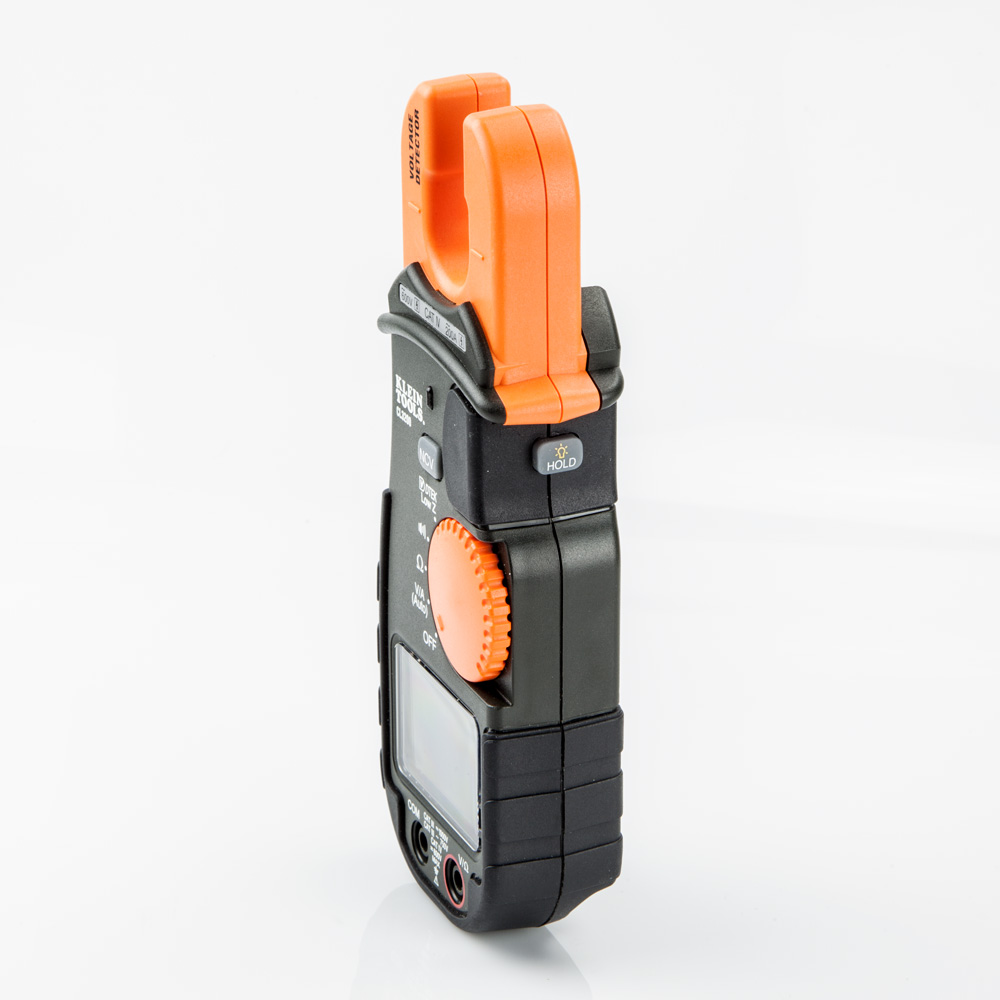

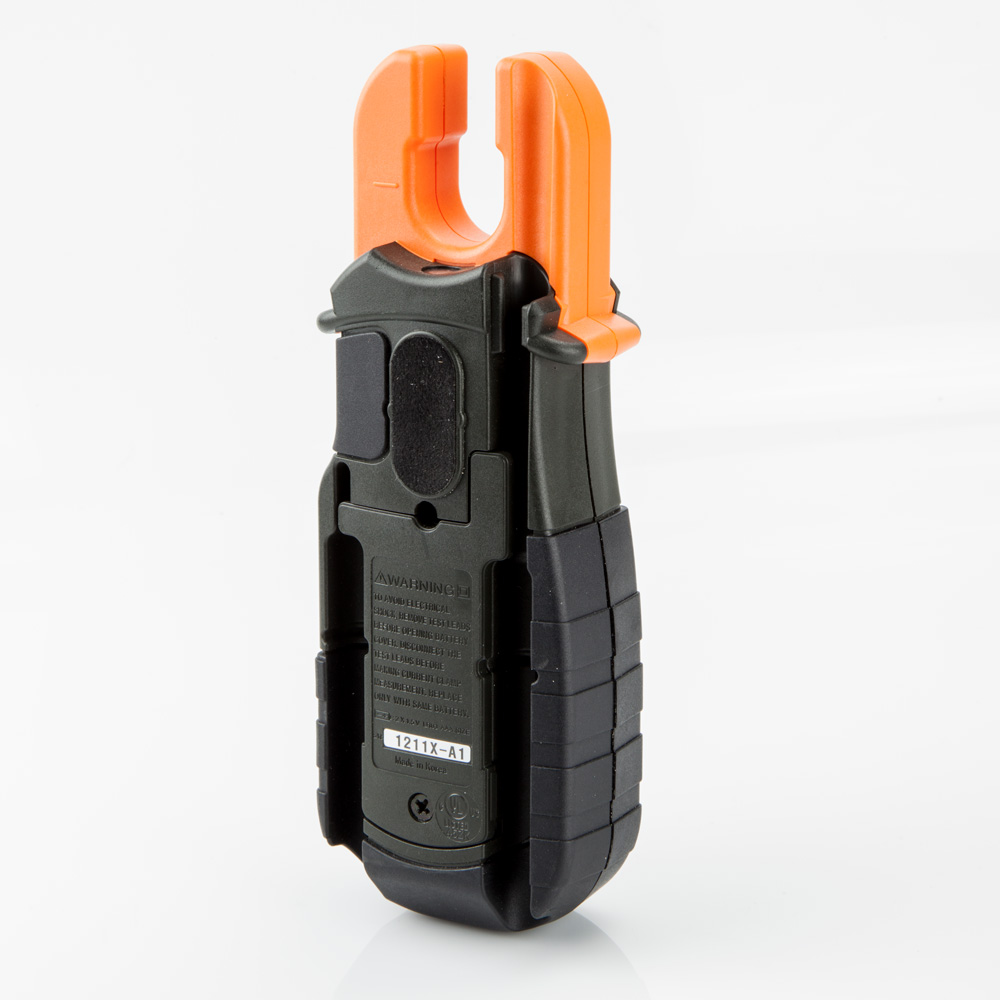

200A AC Fork Tester

CL3200

  • Extra large jaw opening accepts 3/0 wire.
  • Short jaw depth for increased access in tight spaces.
  • Worklight in jaw area.
  • Magnetic Mount on back secures meter and frees hands.
  • Non-Contact Voltage Tester.
  • Backlit display is brighter than most competitive units.
  • Measures low impedance.
  • Analog bar graph.
  • CAT IV safety rating for 600V
  • 6.6 ft / 2 m drop protection
  • Replacement Test Lead Sets (Cat. No. 69410 or 69416)
Videos
Images
JPG (High Resolution) cl3200_photo.jpg
PNG (Transparent Background) cl3200.png

The Klein Tools 200A AC Fork Tester features an extra large jaw opening that accepts 3/0 wire. It also has a shorter jaw depth making it easier to reach into tight spaces. Use the magnetic mount on the base to use this fork meter hands free.

Specifications
Batteries:
2 x AAA
Jaw Size:
5/8'' (15.9 mm)
Drop Protection:
3.3 ft (1 m)
Display:
4000 Count LCD
Voltage:
750V AC; 1000V DC
Current:
200A
Ohms (Resistance):
40MO
Ingress Protection:
IP30
Standard:
CAT IV 600V
Included:
Test Leads, Case and Batteries
Overall Height:
7-1/16'' (179.4 mm)
Overall Width:
2-9/16'' (65.1 mm)
Weight:
0.49 lb (0.22 kg)
UPC:
092644692086
