KWHSCRN
Phoenix™ Series Panoramic Welding Helmet Auto-Darkening Screen

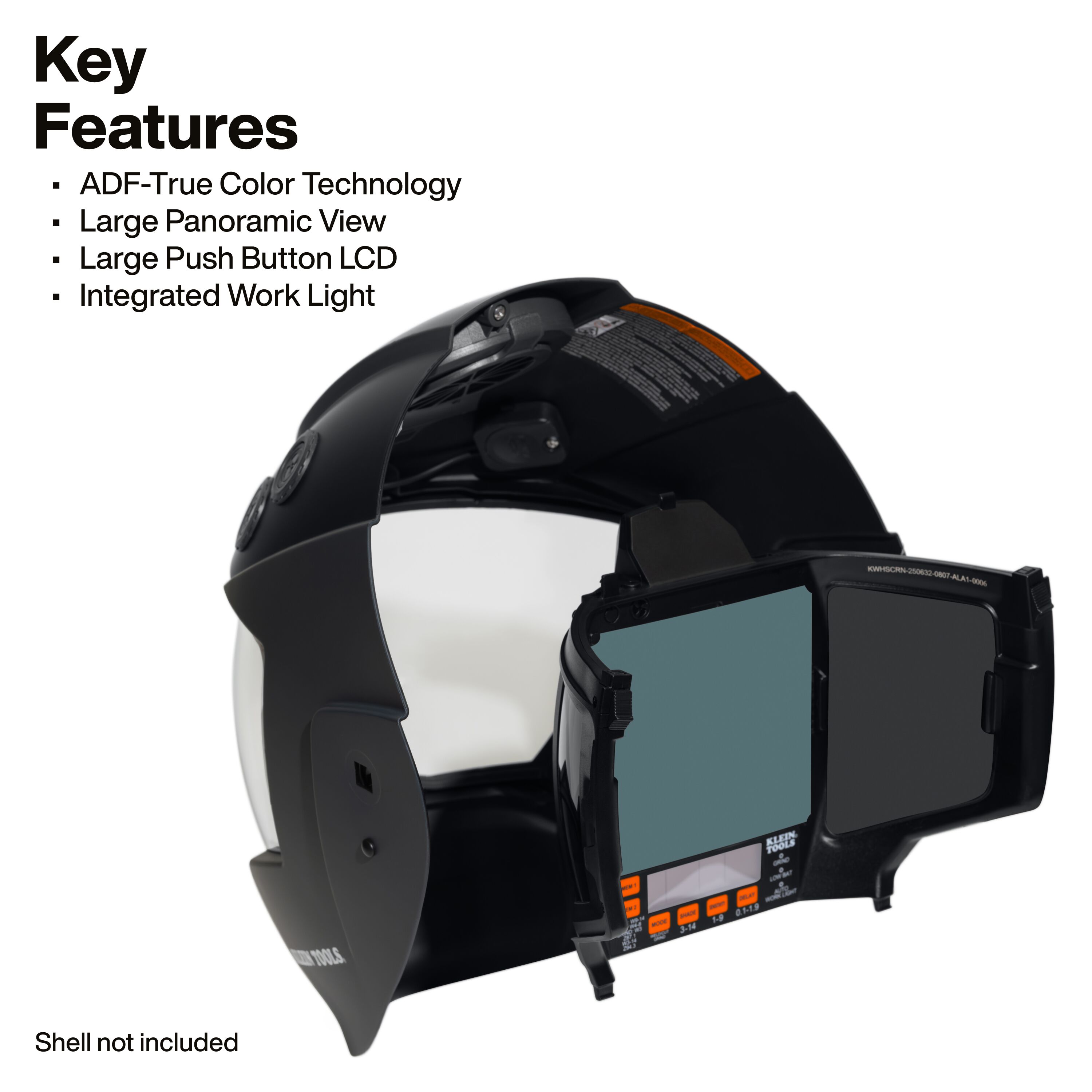

- True Color Technology delivers enhanced contrast and clarity to help reveal finer weld details
- Large 15.3-Square-Inch panoramic viewing area supports both precision welding and larger work areas
- Four-sensor design provides fast, reliable arc detection and consistent performance
- Large LCD screen with push-button controls allows easy adjustments on the job

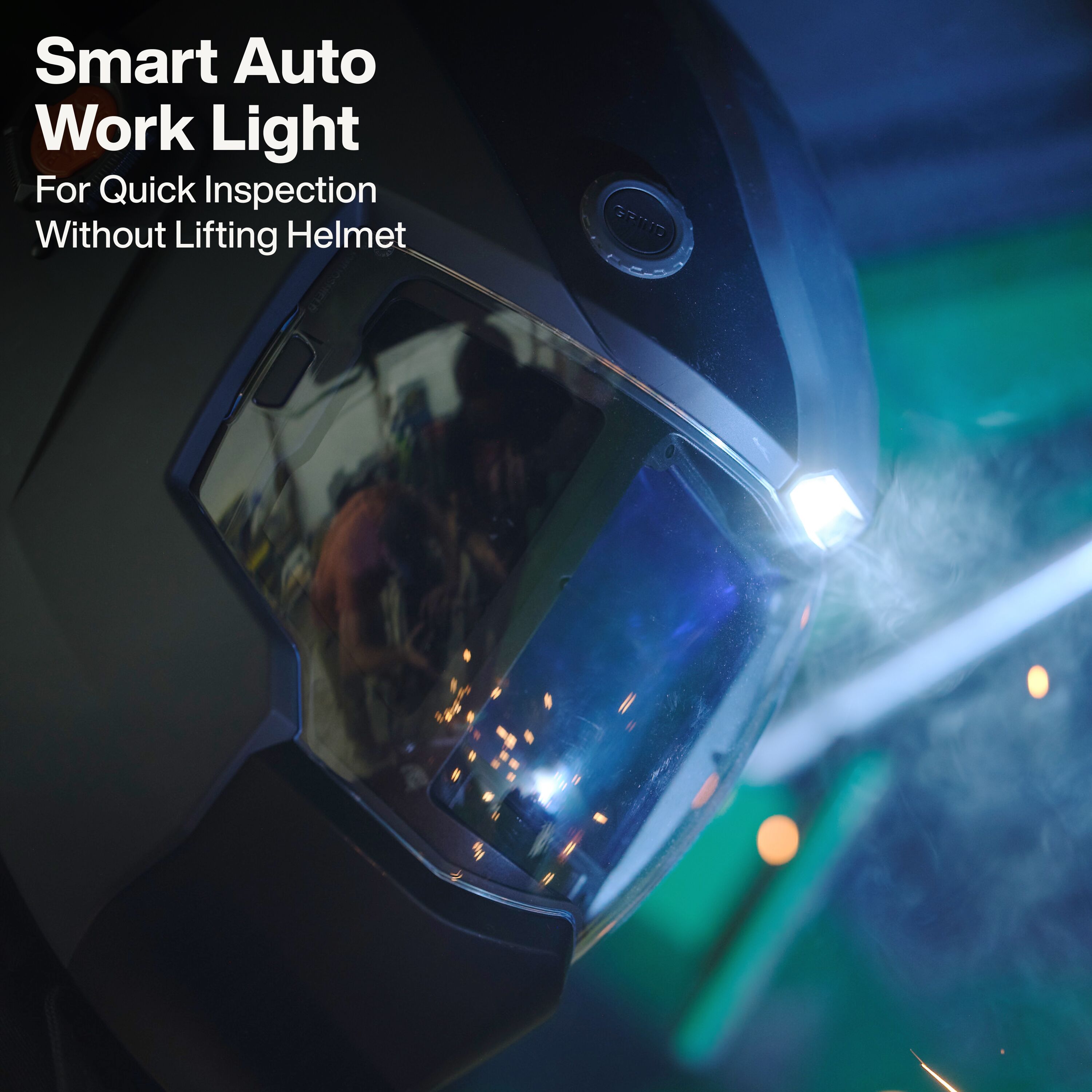

- Integrated LED auto worklight allows for a quick weld inspection without removing the helmet
- Designed specifically for panoramic welding to maximize visibility and awareness

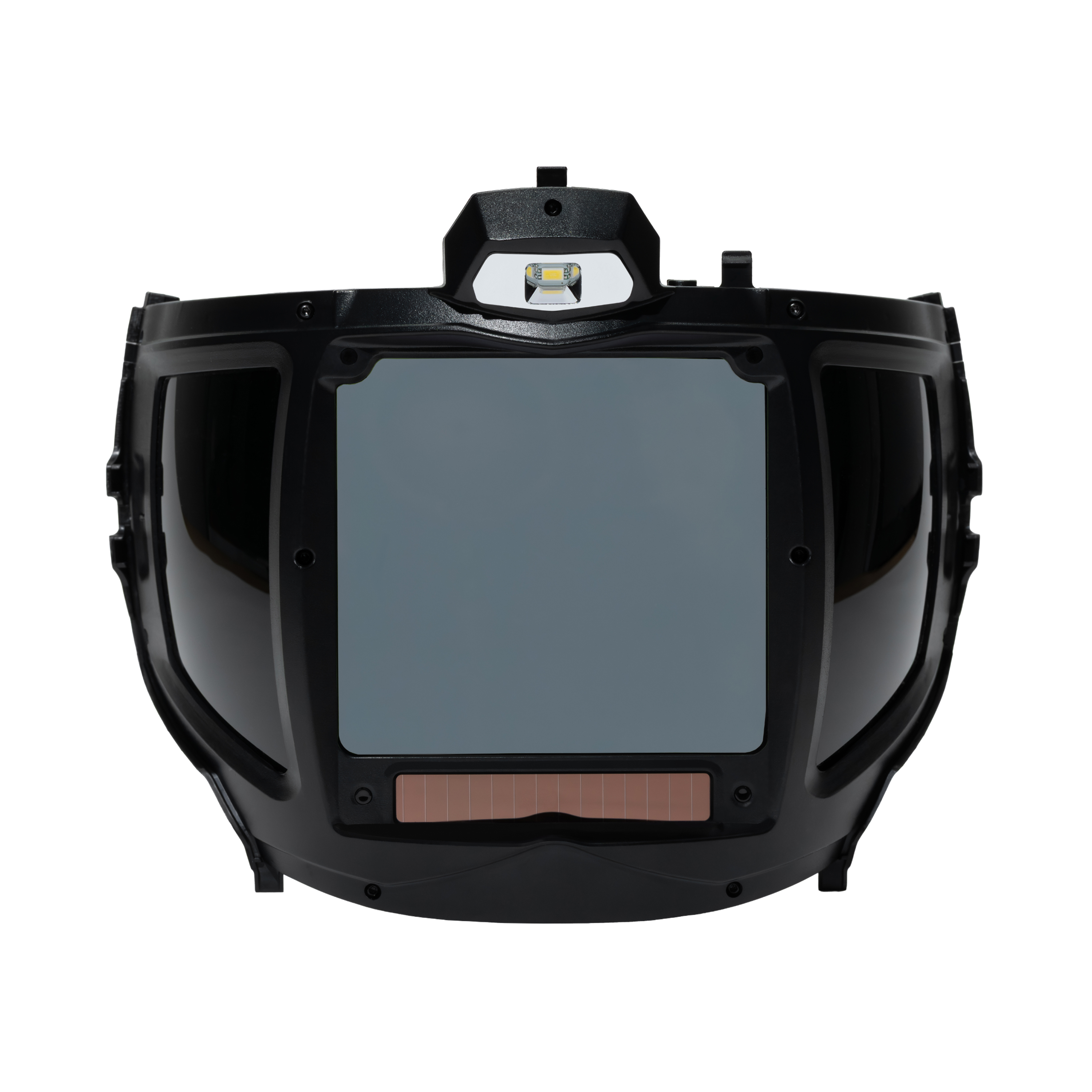

The Welding Helmet Auto-Darkening Screen Replacement is designed for use with the Klein Tools Phoenix Series™ Panoramic Welding Helmet (Cat. No. 60141). It features True Color Technology, a large panoramic viewing area, and a four-sensor design for fast, reliable arc detection. The large LCD screen with push-button controls and integrated LED auto worklight allow easy adjustments and quick inspection without lifting the helmet.
Specifications
Type:
True Color ADF
Application:
Auto Darkens When Arc Is Lit, Must Be Properly Secured to Cat. No. 60141 Welding Helmet
Special Features:
Half-Shade Increments Up to Shade 14
Overall Length (Inch):
8.52
Overall Length (cm):
21.6
Overall Height (Inch):
6.62
Overall Height (cm):
16.8
Overall Width (Inch):
4.67
Overall Width (cm):
11.9
Material:
LCD Glass Panel
Window Dimensions:
3.63'' x 3.91'' (9.2 cm x 9.9 cm)
Thickness (Inch):
4.67
Thickness (cm):
11.9
Lens Color:
True Color ADF
For Use With:
Phoenix™ Series Panoramic Welding Helmet
Weight (oz):
9.4
Weight (g):
266
UPC:
092644605710
