60141

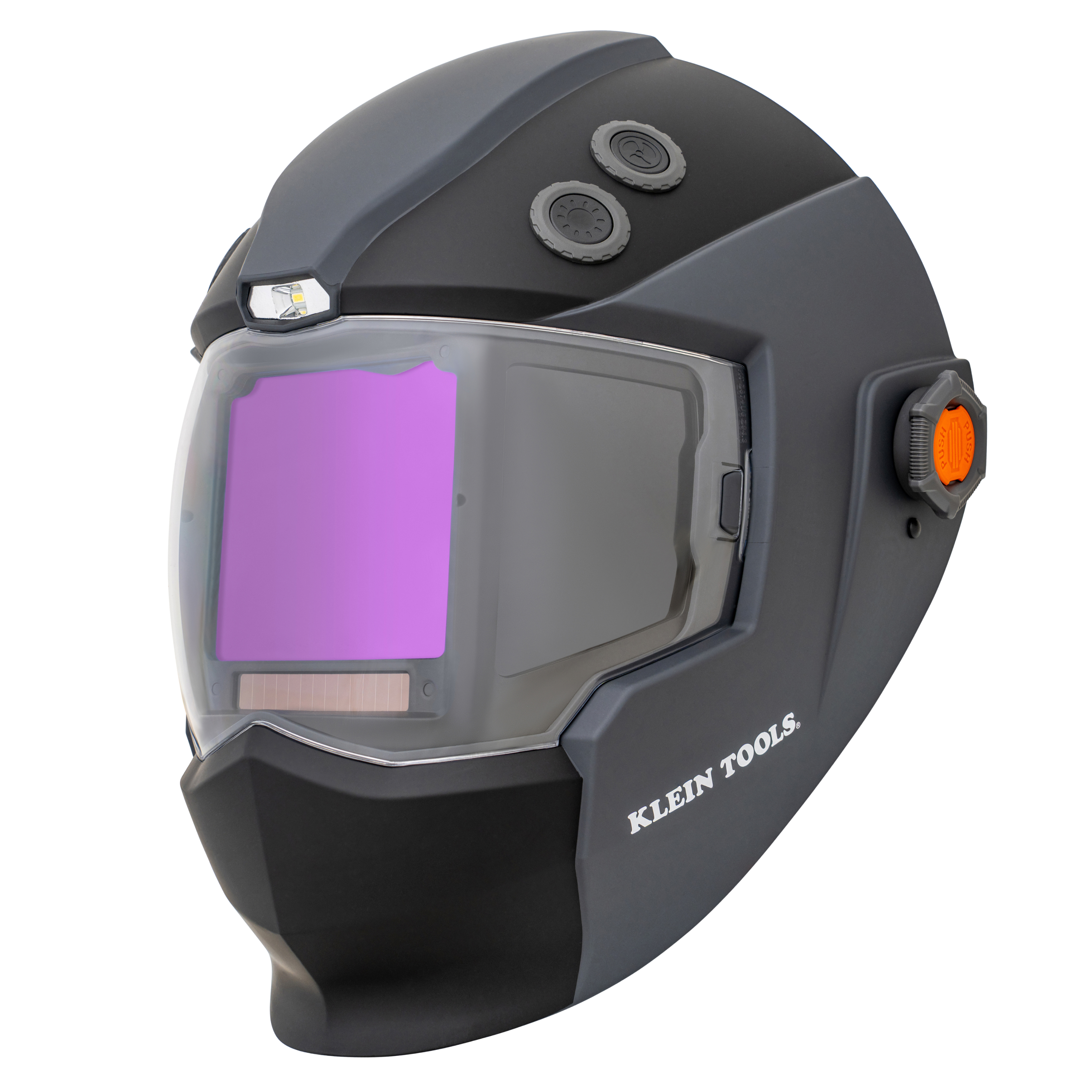

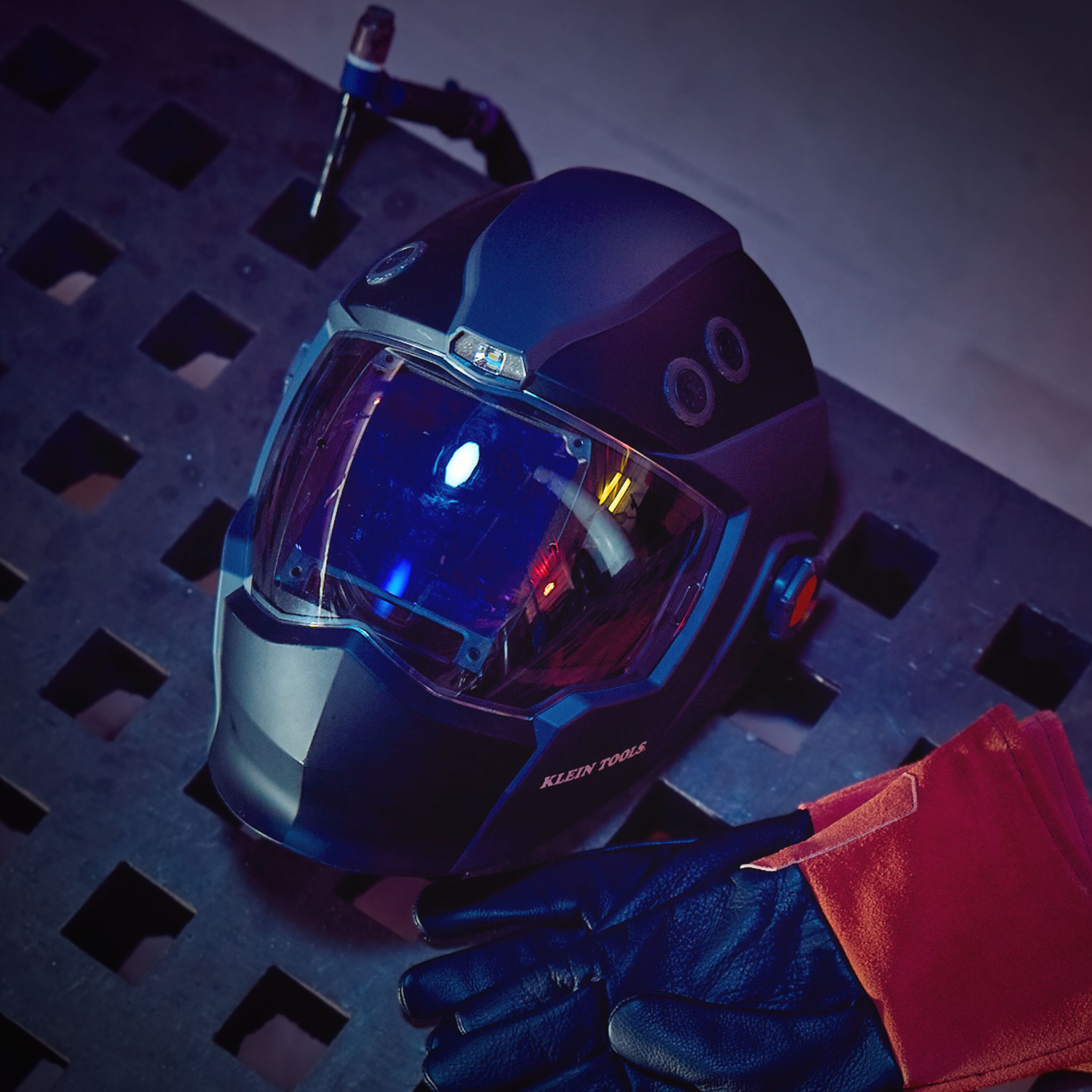

Phoenix™ Series Panoramic Welding Helmet

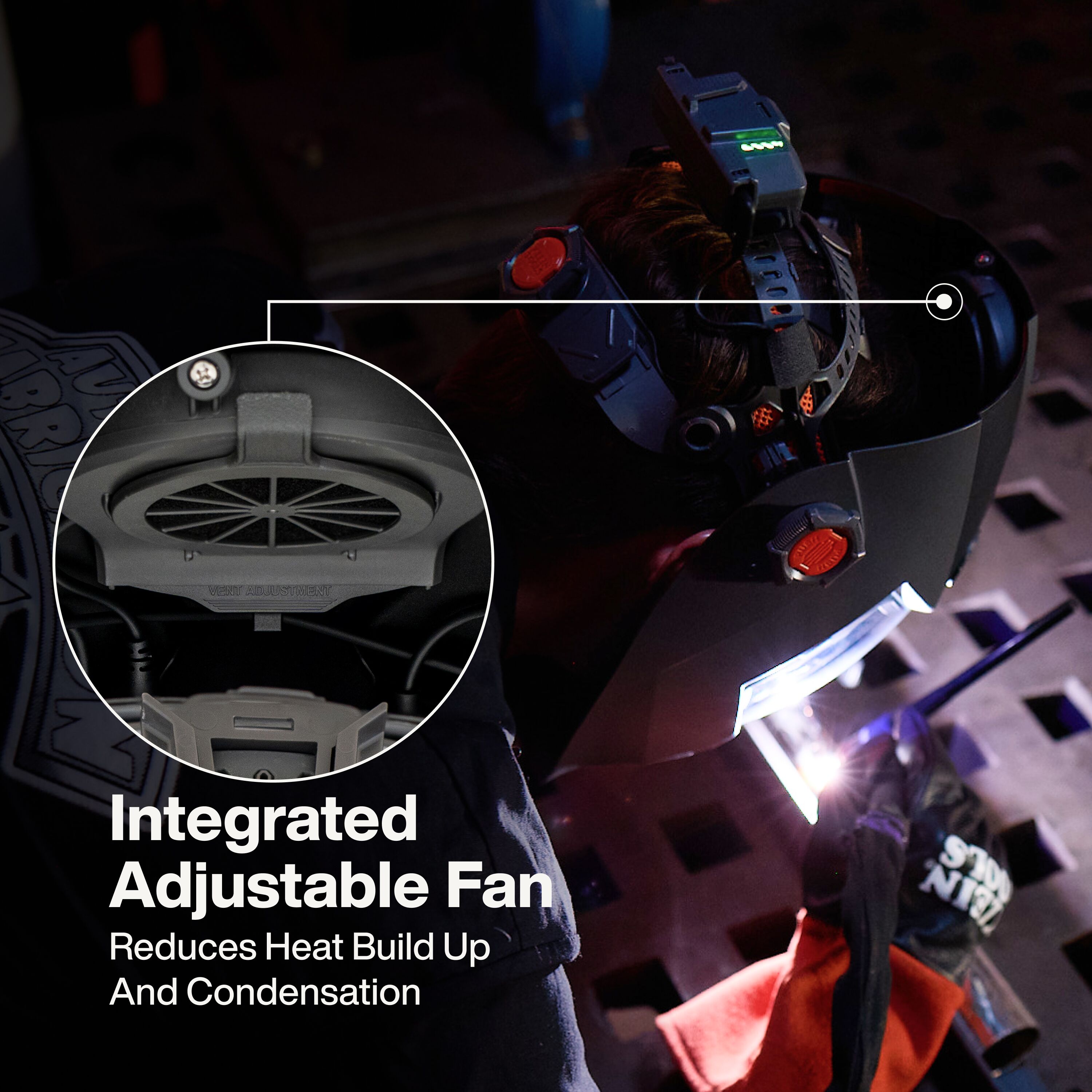

- Welding helmet features an integrated adjustable fan that provides continuous airflow to reduce heat buildup and condensation for enhanced comfort and focus

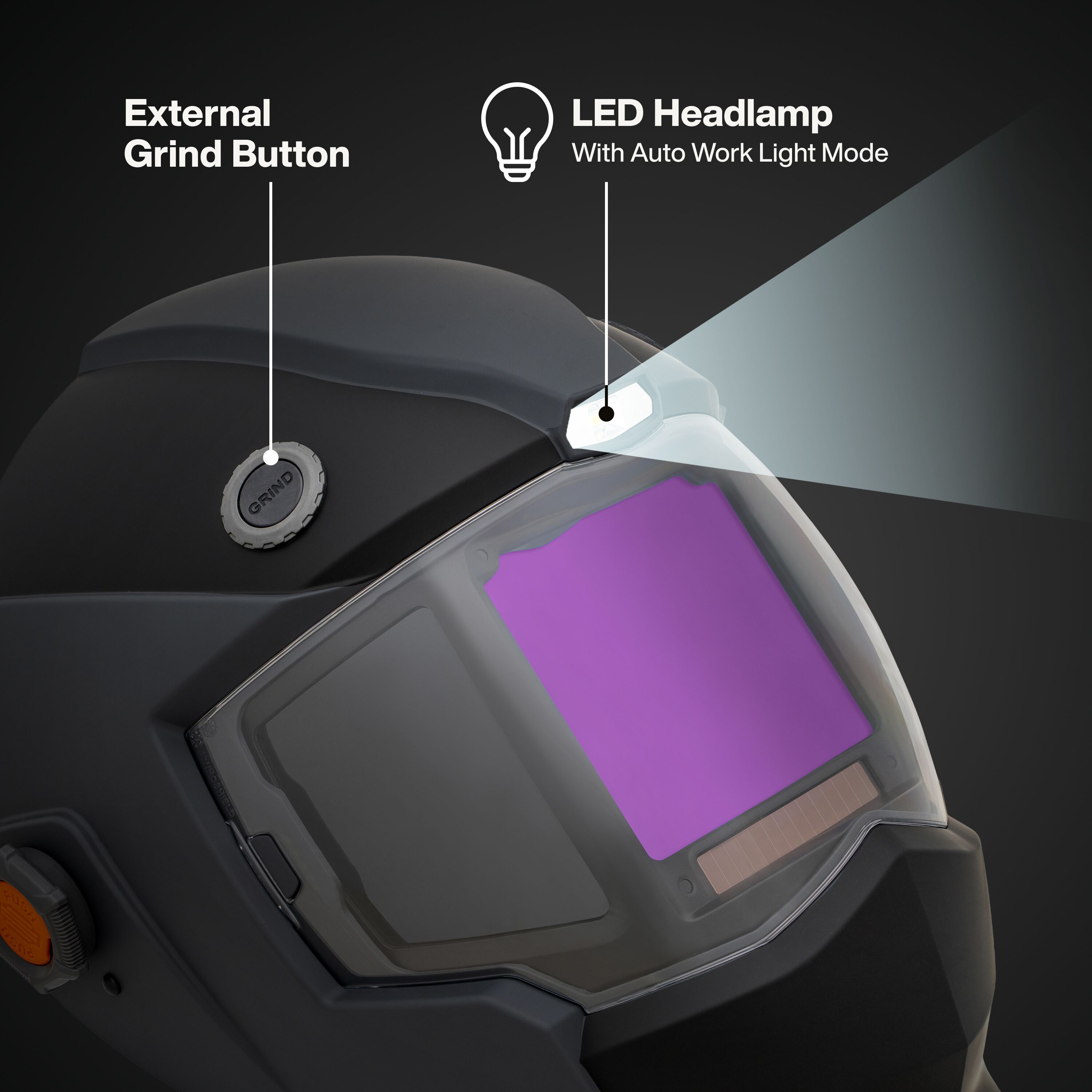

- LED headlamp with Auto Work Light Mode provides immediate weld inspection lighting and workspace illumination without additional equipment

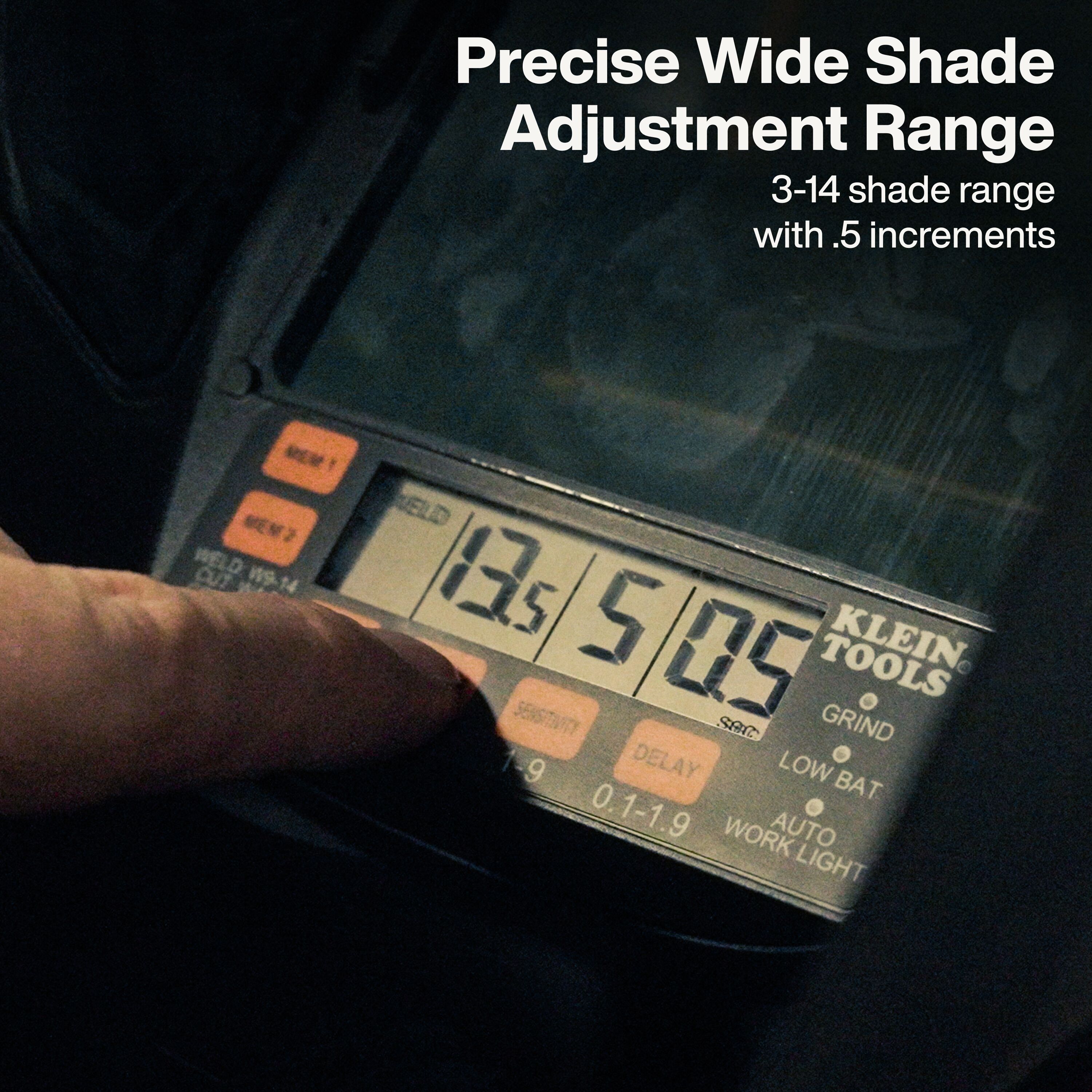

- True Color ADF with shade levels 3-14 with half-shade increments for more precise user adjustment and welding processes

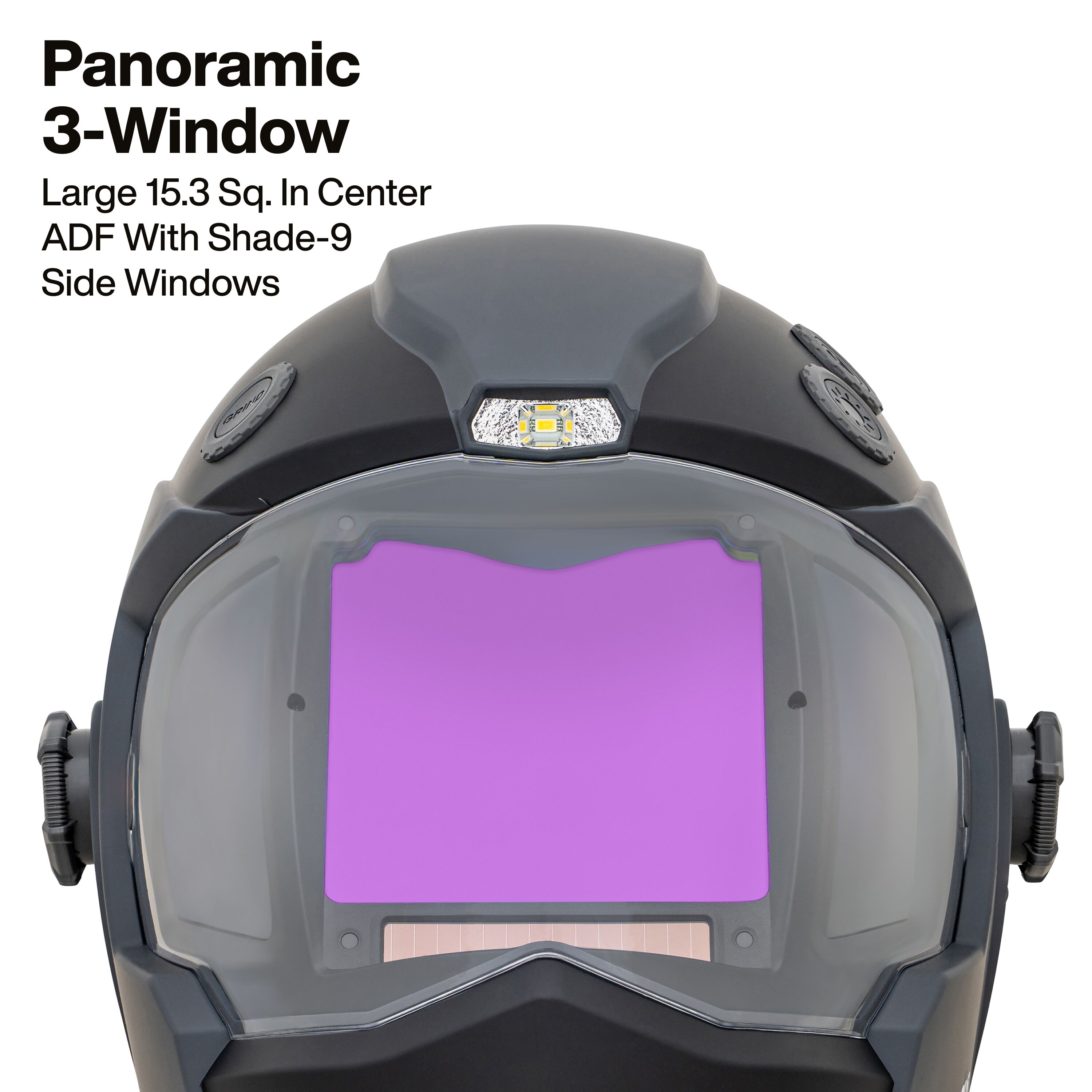

- Panoramic Three-Window design features a large center 15.3-Square-Inch with True Color ADF for optimal clarity and two fixed shade 9 side windows to provide a wide field of vision

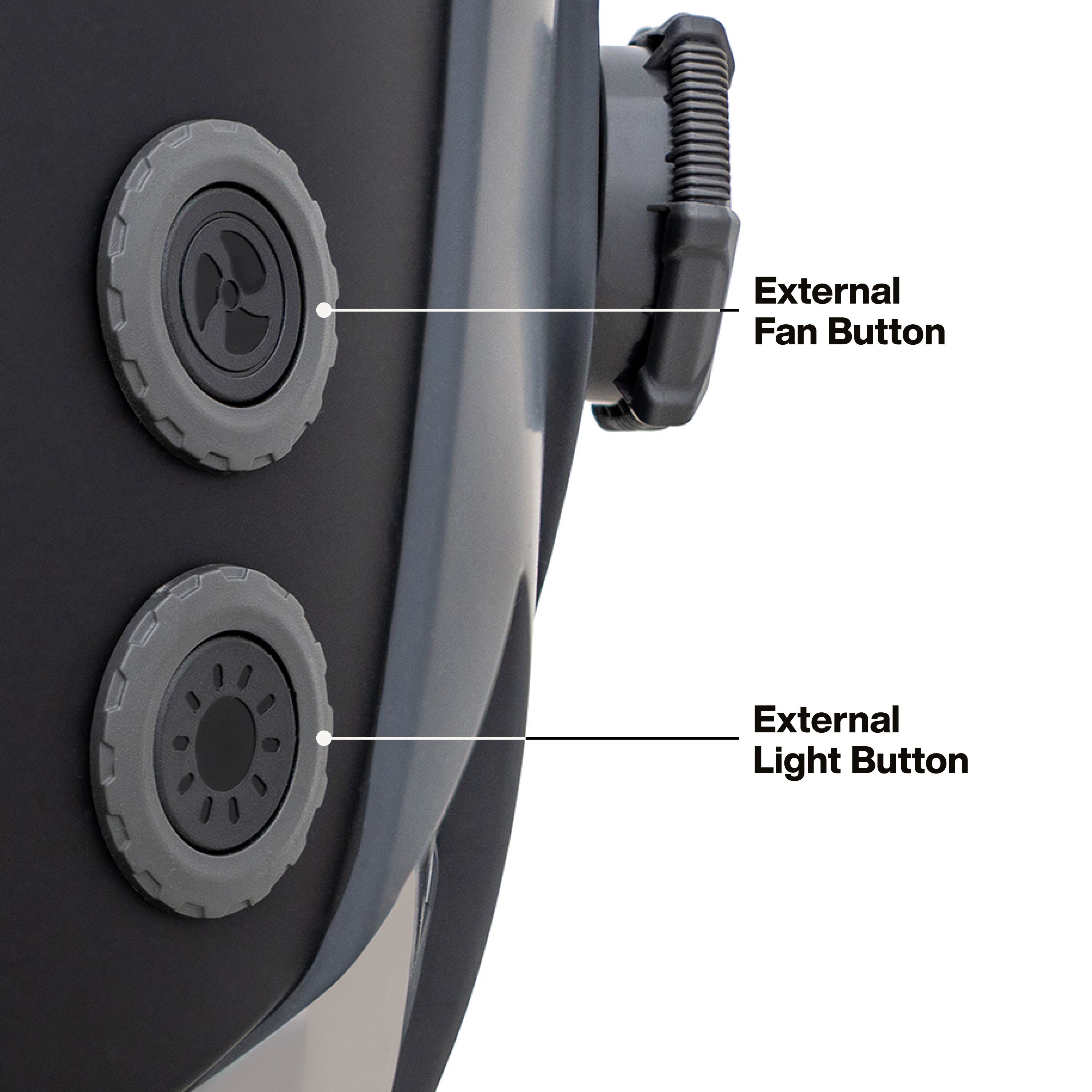

- Large external buttons enable easy access to fan, light, and grind settings without helmet or glove removal
- Multi-point suspension has multiple adjustment points for optimal fit while the padded sweatband offers comfort and reduced fatigue during all-day welding
- Versatile mounting options accommodate direct head wear or hard hat attachment via optional headmount accessory for maximum job site adaptability
Klein Tools Phoenix™ Series Panoramic Welding Helmet features an integrated cooling fan that maintains optimal airflow within the helmet cavity to stay cool and fog-free. An LED headlamp with automatic work mode provides instant weld inspection and workspace illumination. The panoramic Three-Window design features a large 15.3-Square-Inch True-Color auto-darkening filter with fixed shade side windows, delivering an exceptionally wide field of vision essential for complex welding positions.
Specifications
Hat Style:
Cap-Style Hard Hats and Safety Helmets
Type:
Welding Helmet
Application:
Welding
Special Features:
Integrated Cooling Fan, 15.3-Square-Inch ADF, Panoramic Viewing, Large Glove-Friendly External Buttons, Shade Levels 3-14 with 0.5 Increments
Standard:
ANSI Z87.1-10, CSA Z94.3-20
Venting:
Not Rated
Suspension:
Padded Headgear
Suspension Adjustment:
Racket Knob
Shell Material:
Nylon
Shell Color:
Black/Gray
Hat Size:
6.5-8
Material:
Nylon-Shell
Mounting Type:
Headgear or Hard Hat Adapter
Power Type:
Battery
Number of Speeds:
2 Fan Speeds (High and Low)
Air Flow:
High/Low
Wattage:
12.06 Wh
Voltage:
3.6 V
Decibel Rating:
N/A
Batteries:
1 x CR2450 Coin Cell Battery, 1 x 18650 Li-Ion Battery
Battery Life:
300 Cycles
Included:
Helmet, (2) Front Outer Shield, (2) Front Inner Shield, Headgear, Sweatband, Fan, Side Windows, Auto-Darkening Filter, Modular Battery
Overall Length:
13.92'' (35.4 cm)
Overall Height:
8.84'' (22.5 cm)
Overall Width:
10.91'' (27.7 cm)
Diameter:
2.3'' (5.8 cm)
Weight:
3.6 lb (1.6 kg)
UPC:
092644601415
Warnings
- Before Use: Read all instructions or risk serious injury or death.
- Welding helmets do not provide unlimited eye, ear, and face protection. Other protective equipment/apparel is recommended to be used with helmet when necessary.
- Welding arc rays can burn eyes and skin.
- NOT for laser welding processes.
- Use enough ventilation or exhaust at the arc, or both, to keep fumes and gases from your breathing zone and general area.
