Compact Green Planar Self-Leveling Laser Level
93CPLG

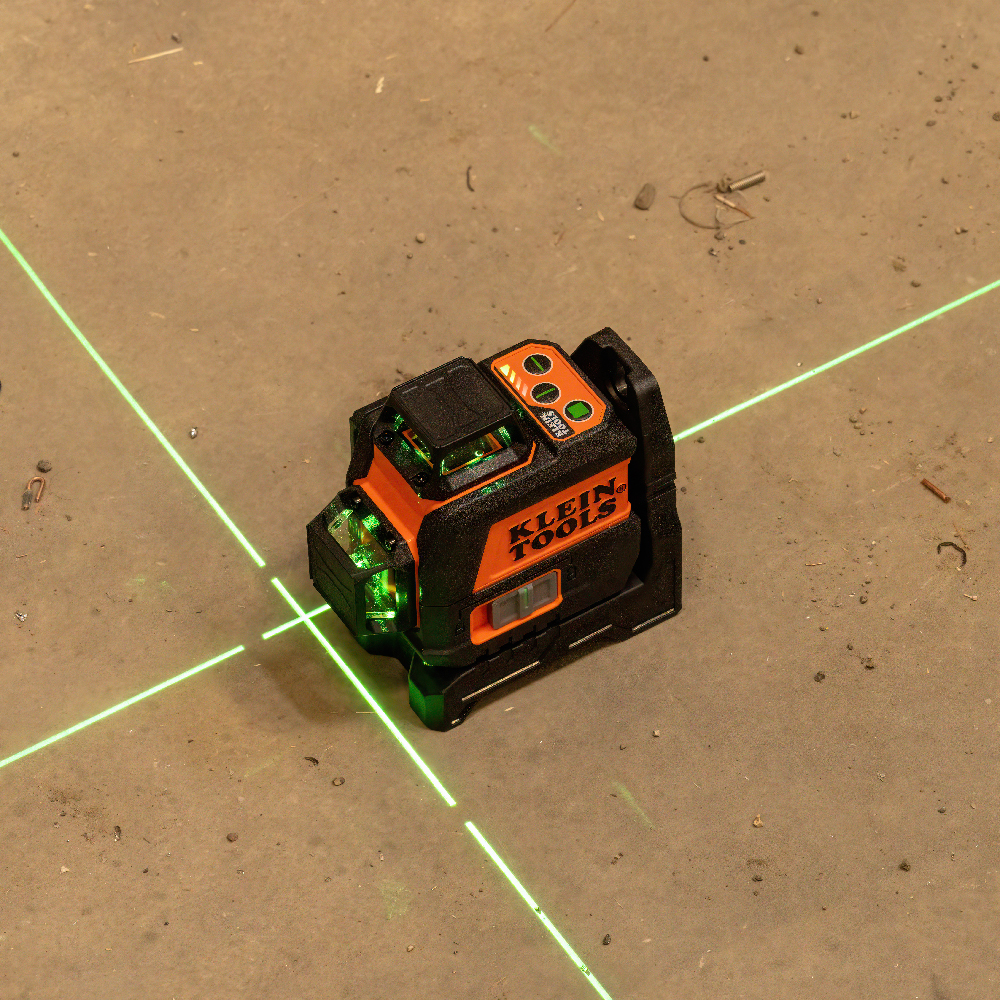

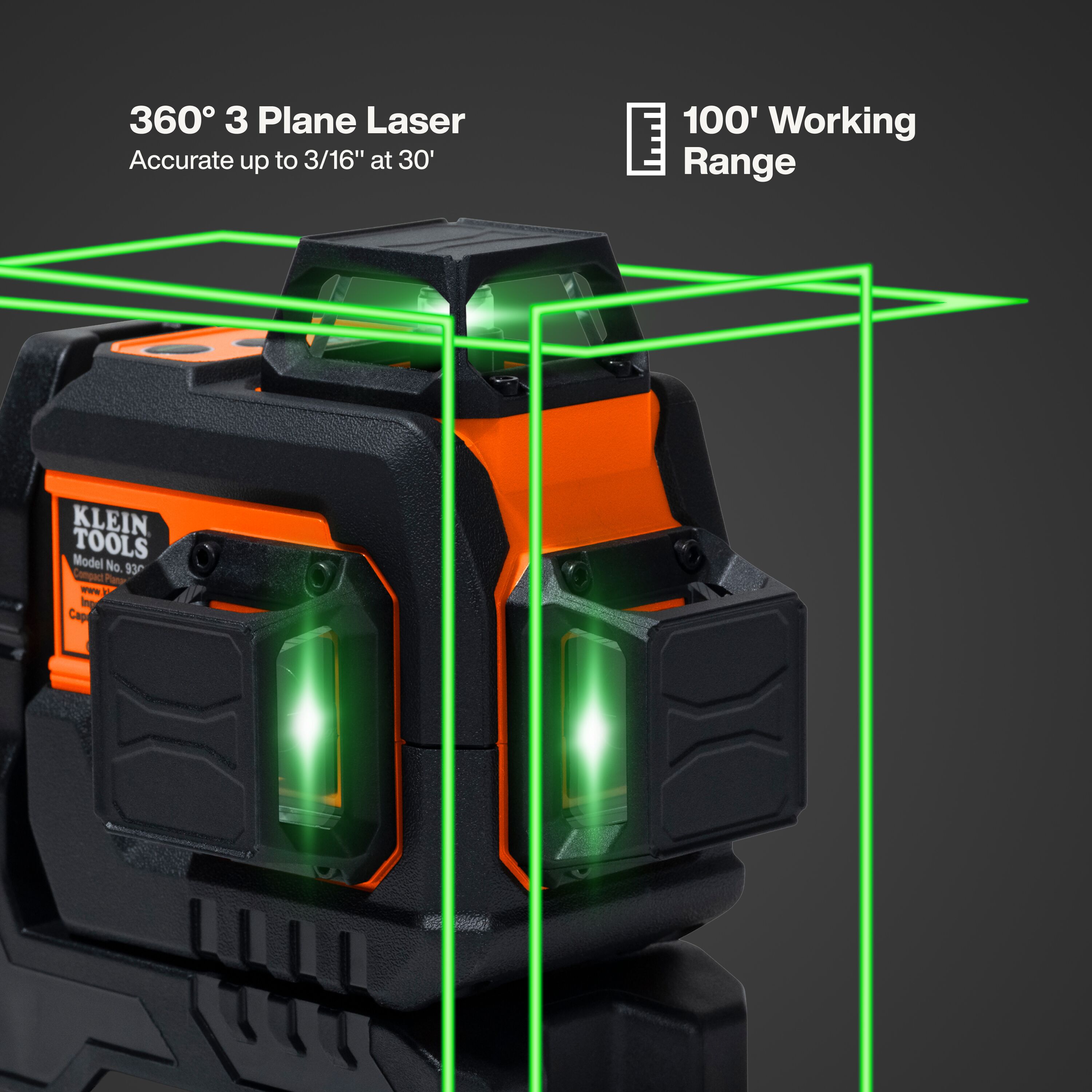

- Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams

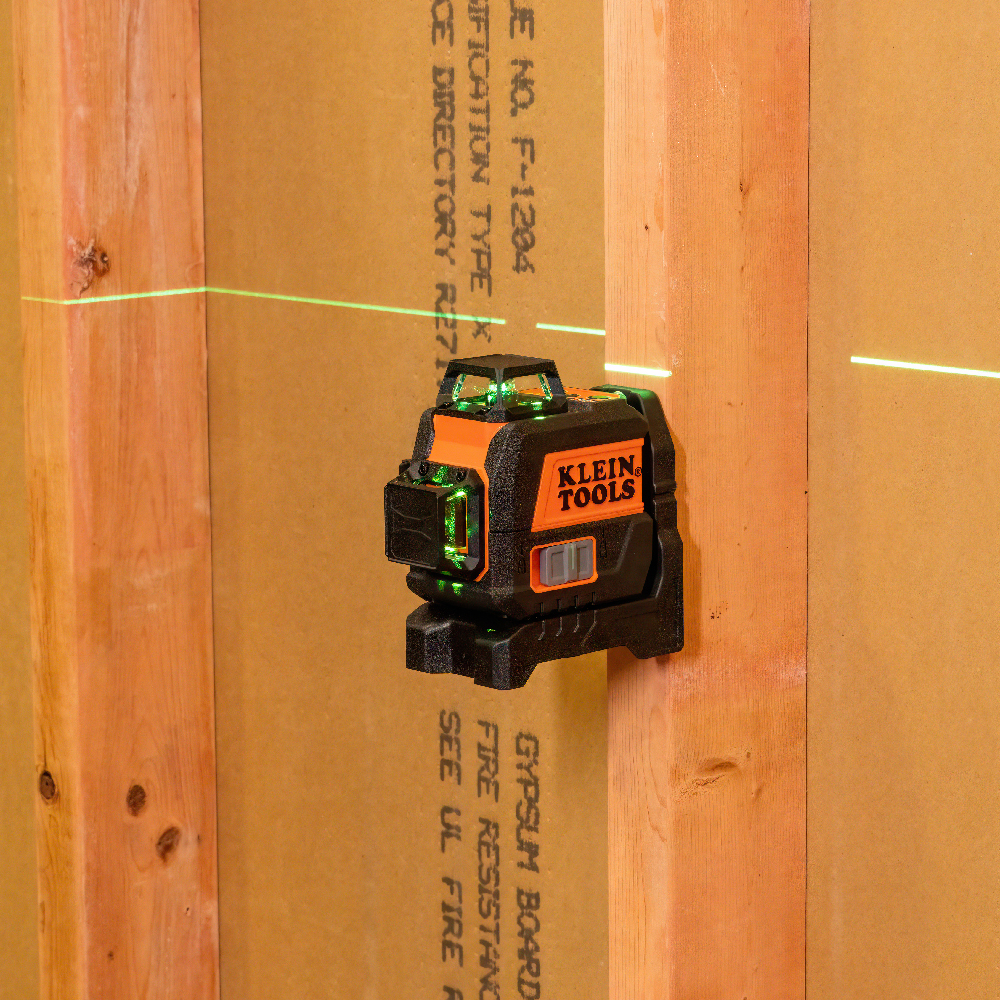

- Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use

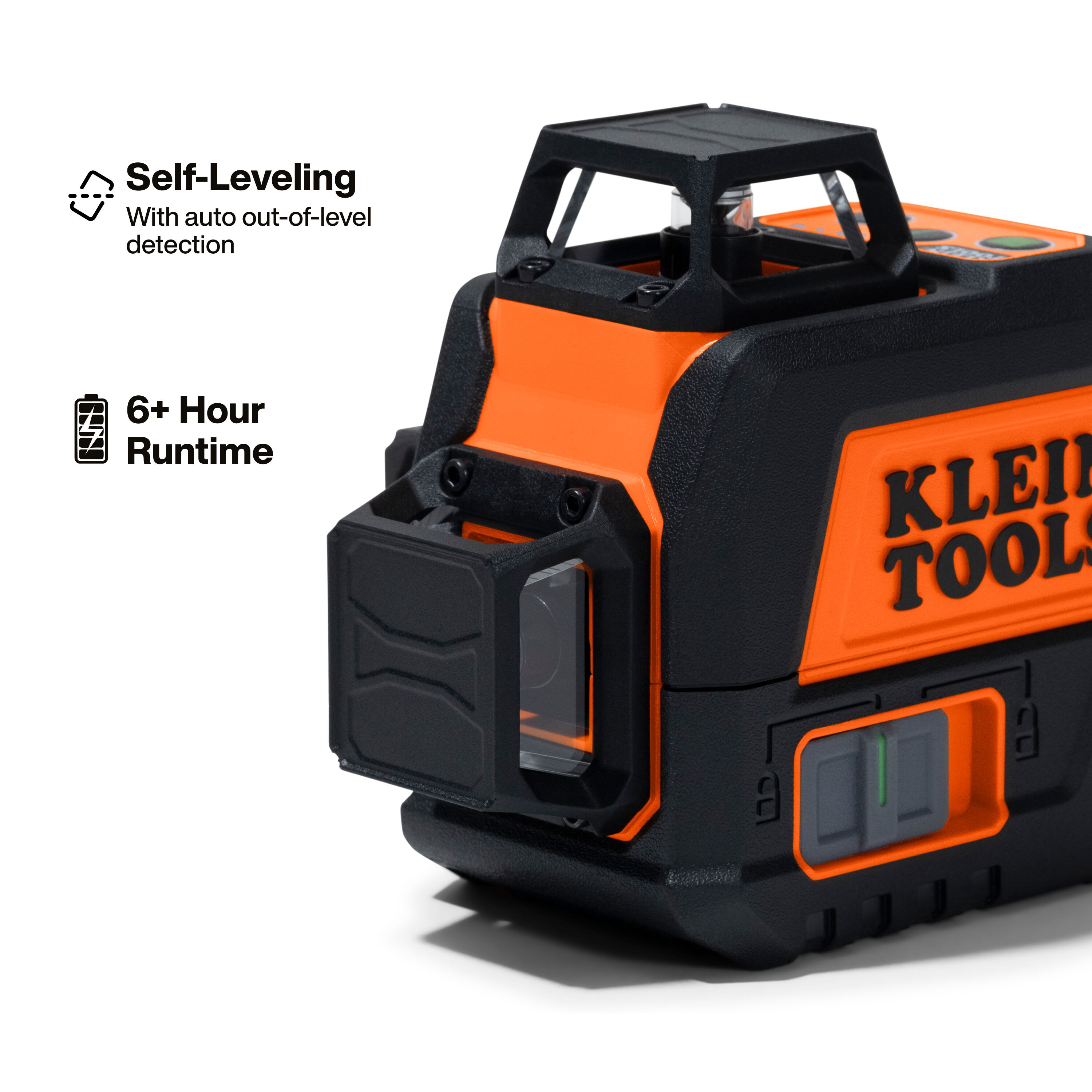

- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level

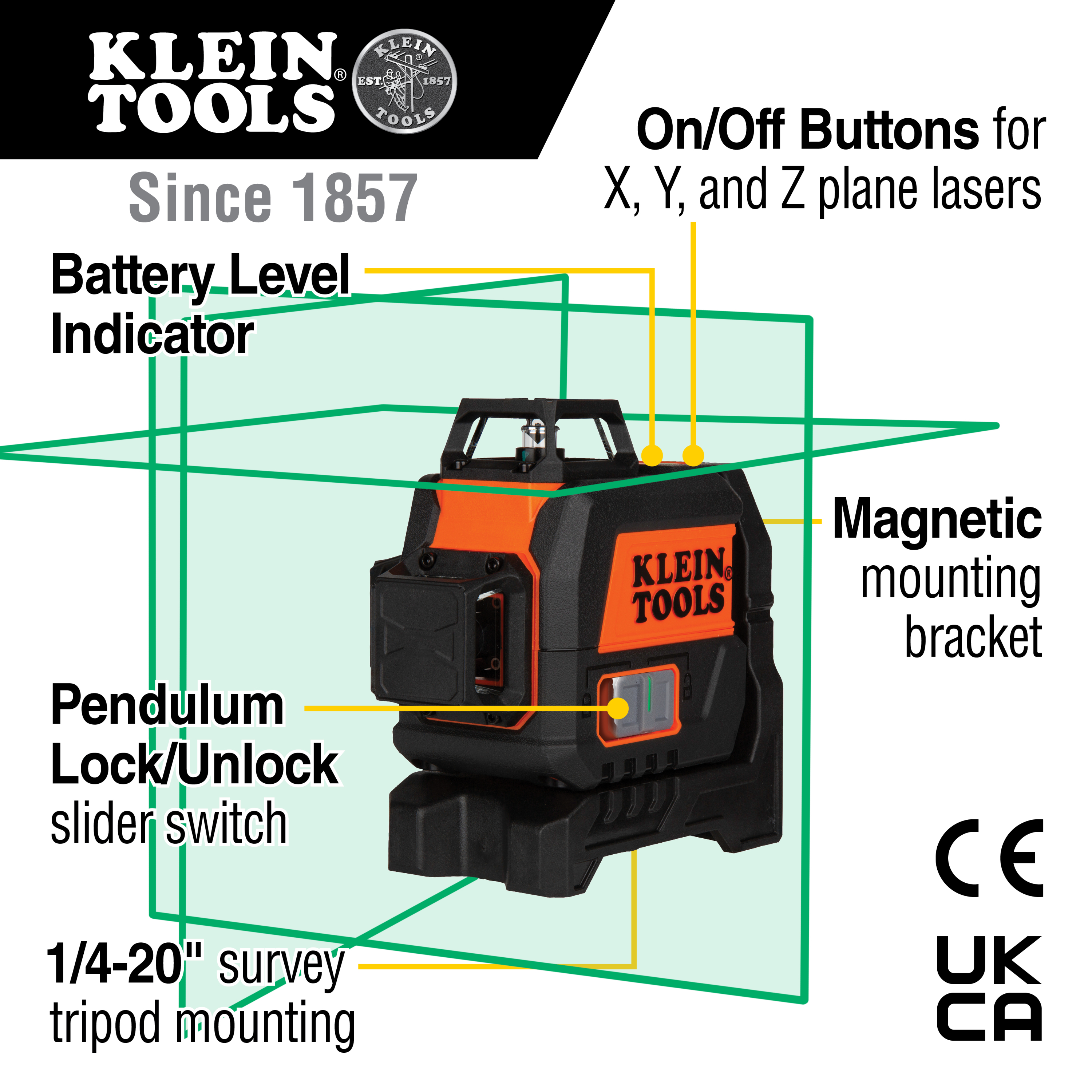

- Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles

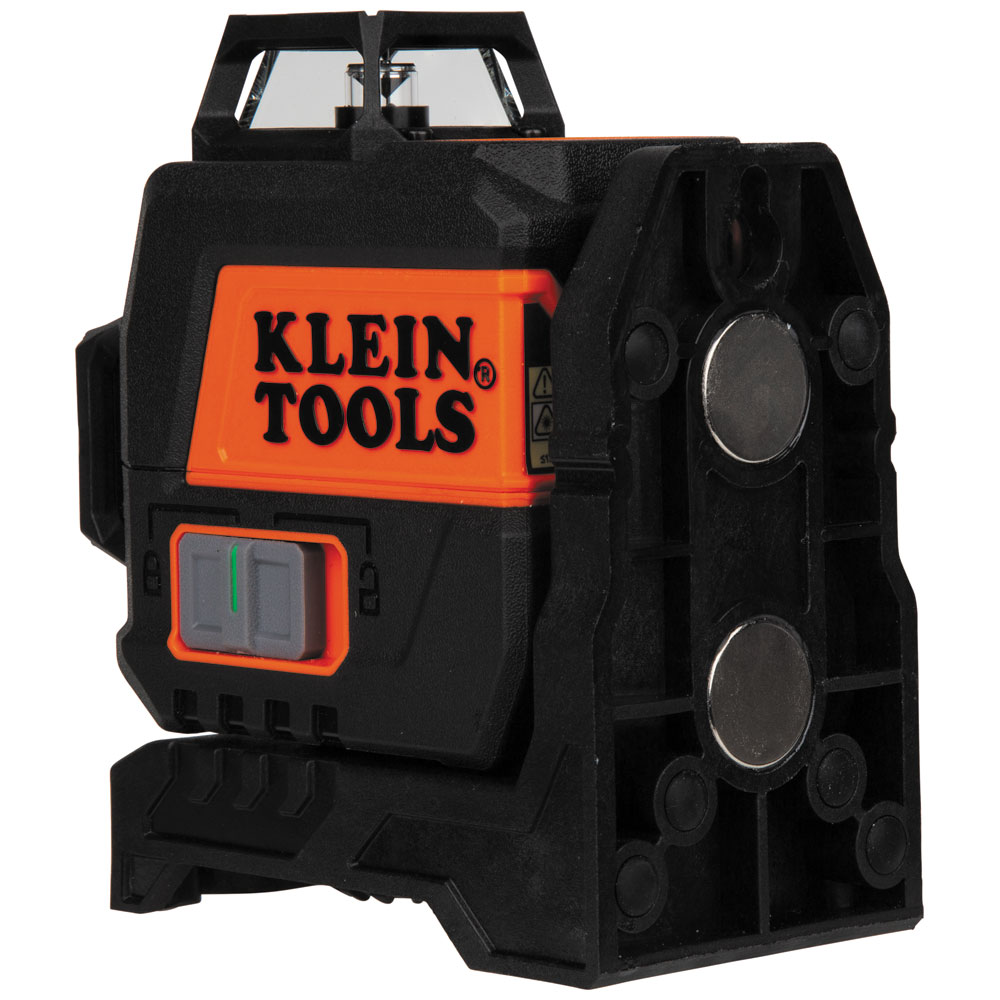

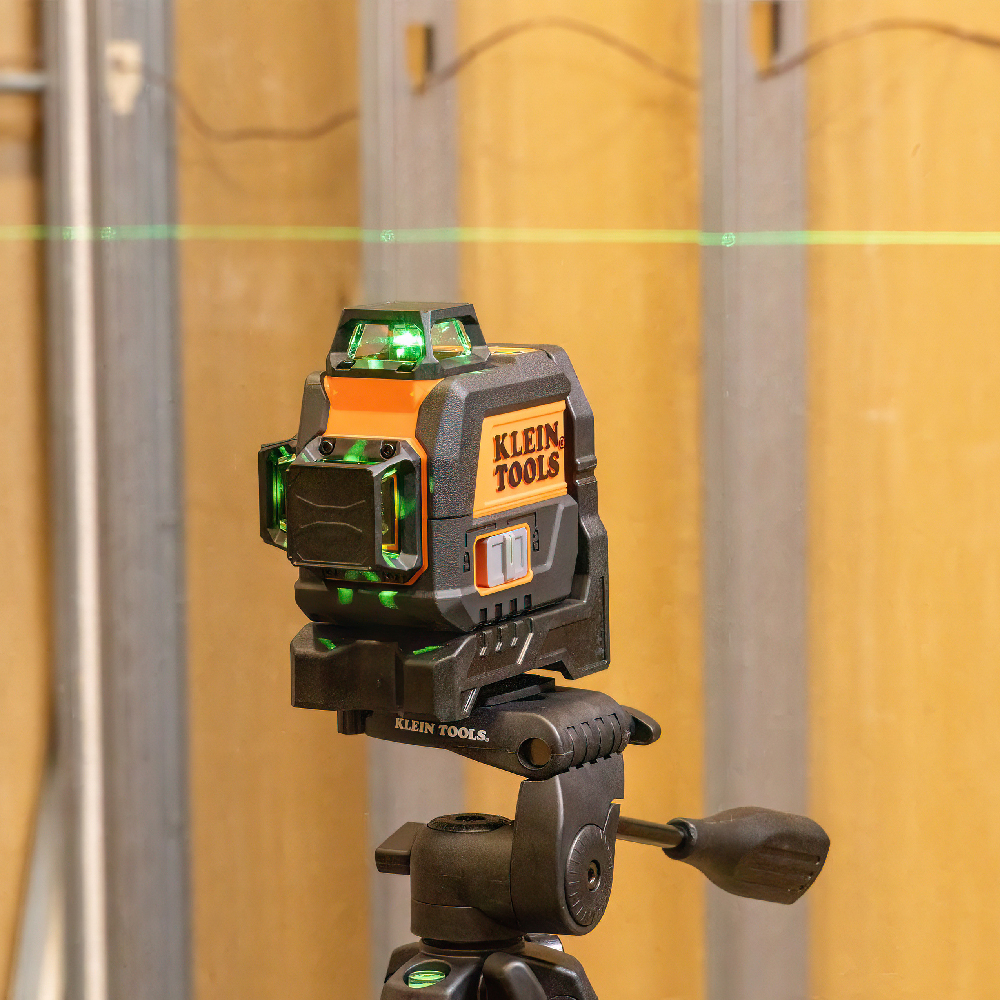

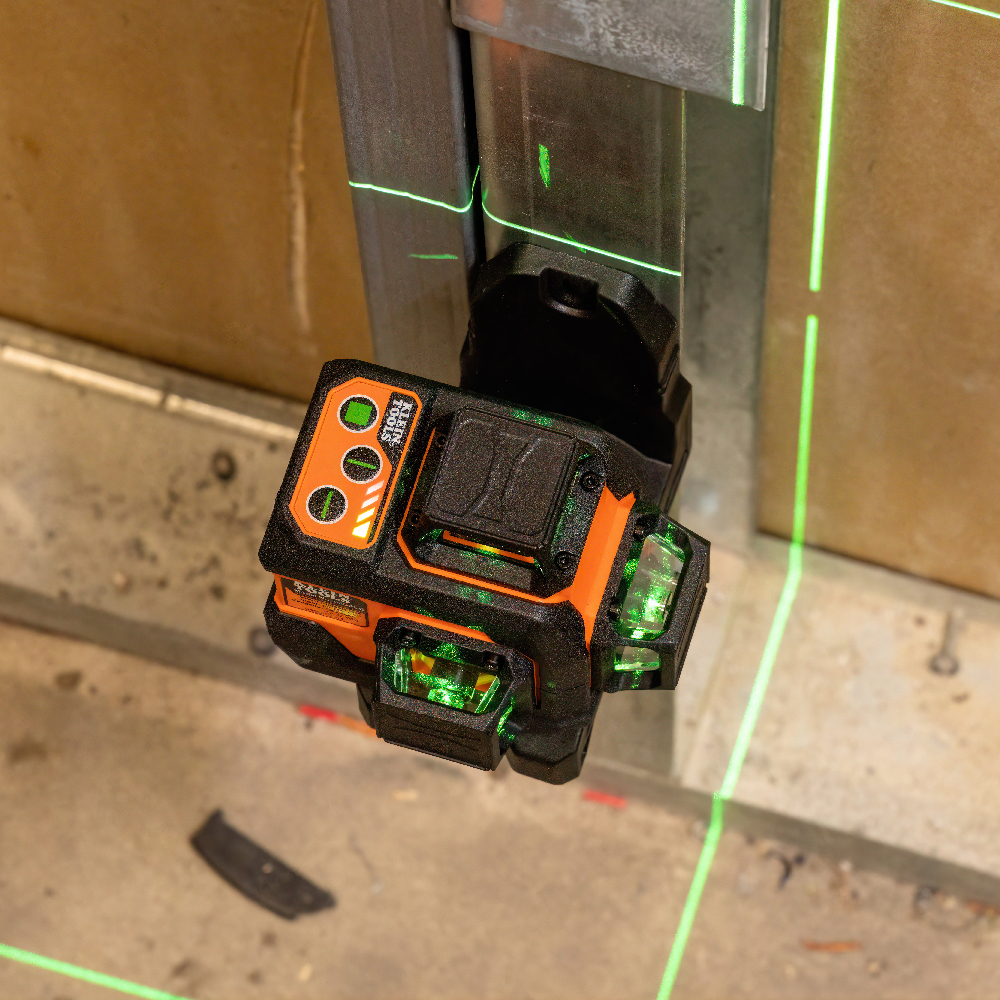

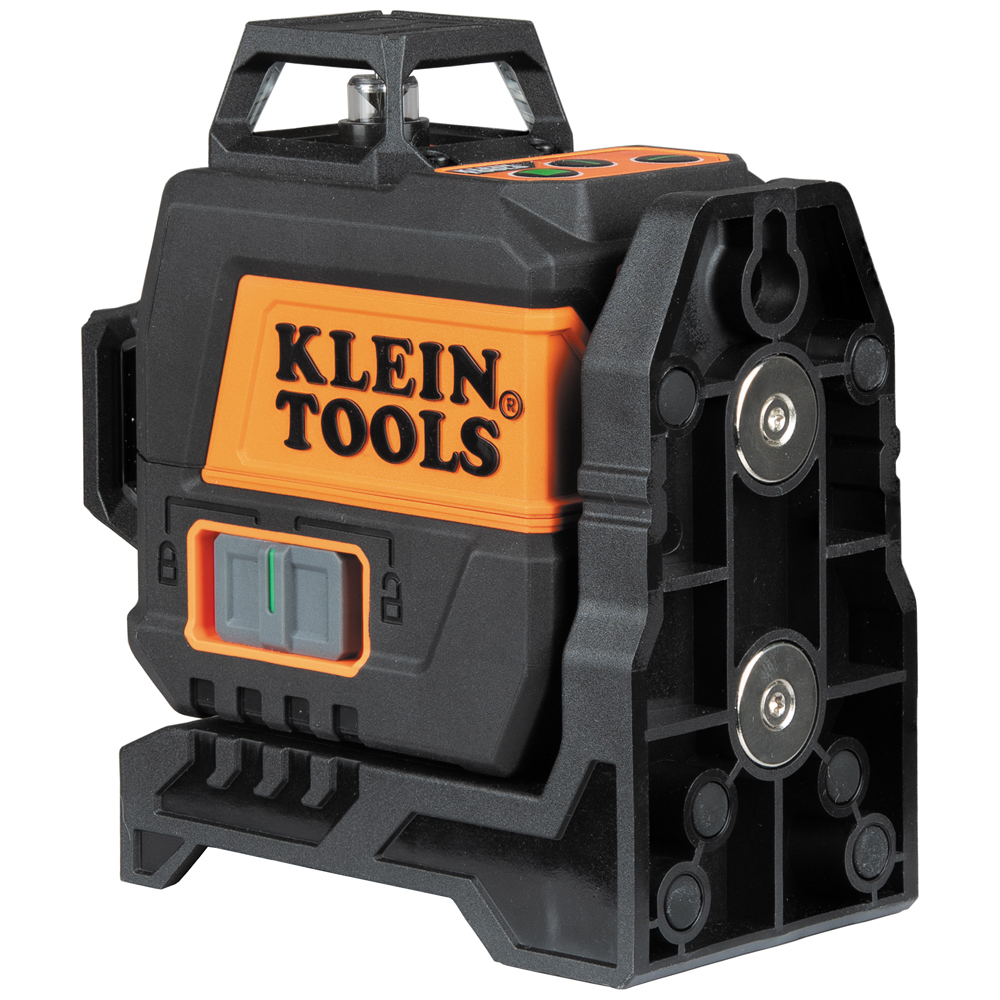

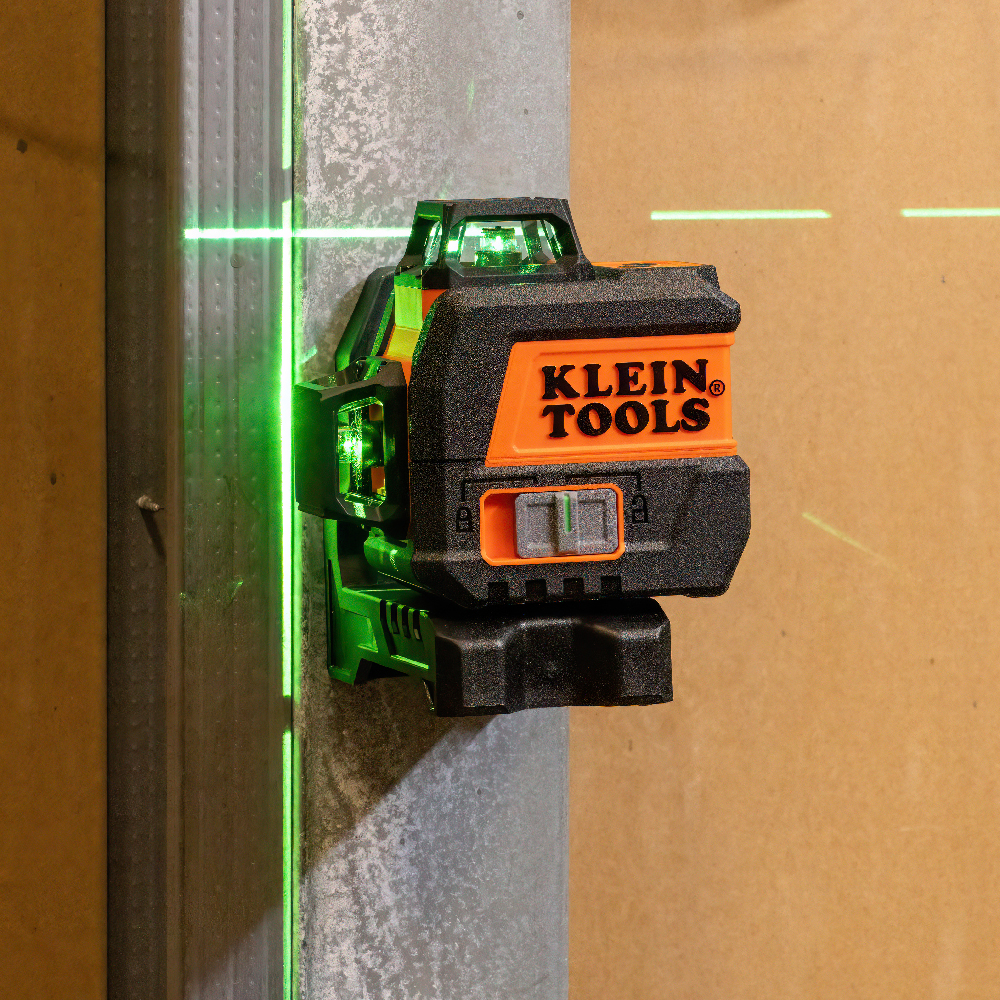

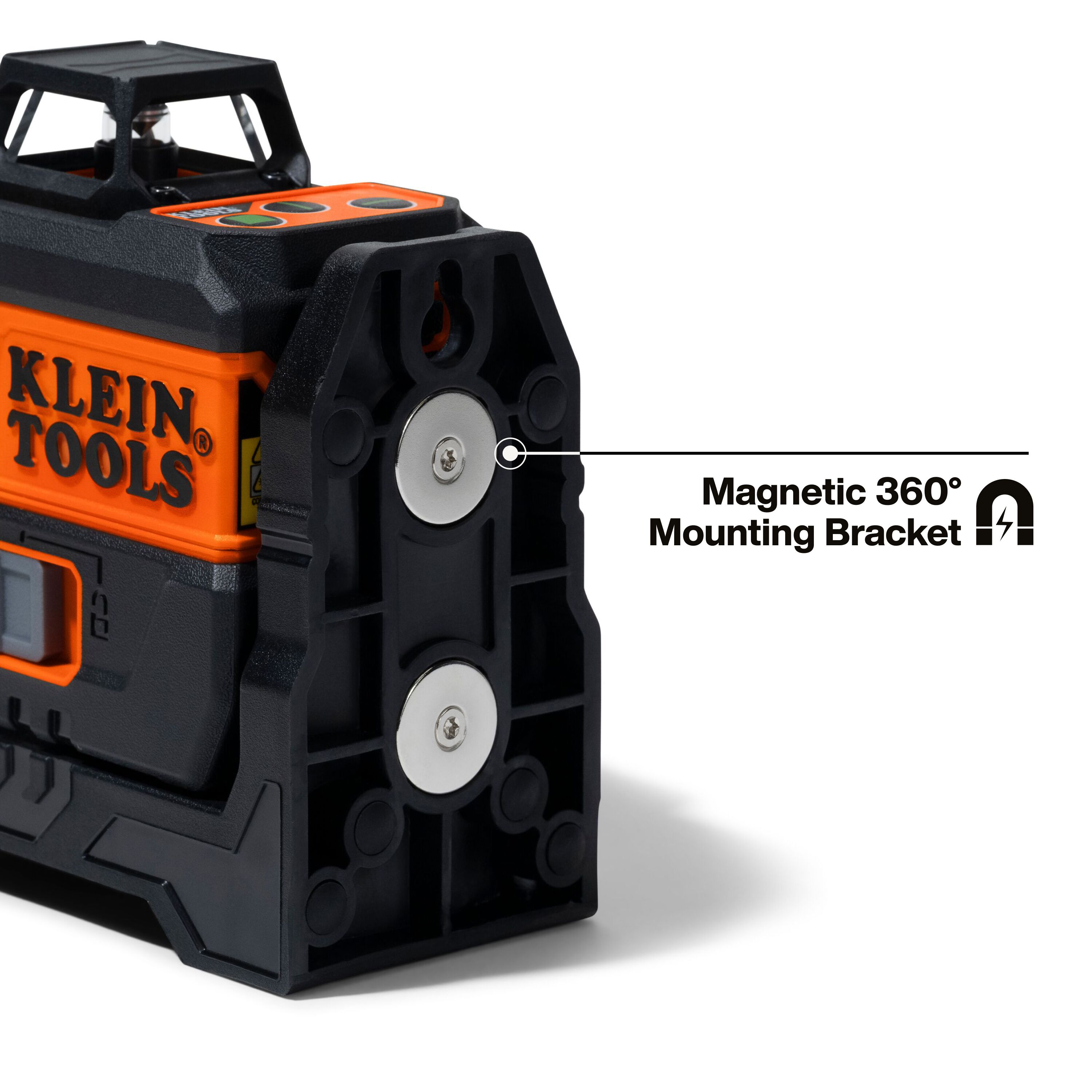

- Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
- More than 6-Hour runtime provides lasers power for all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust

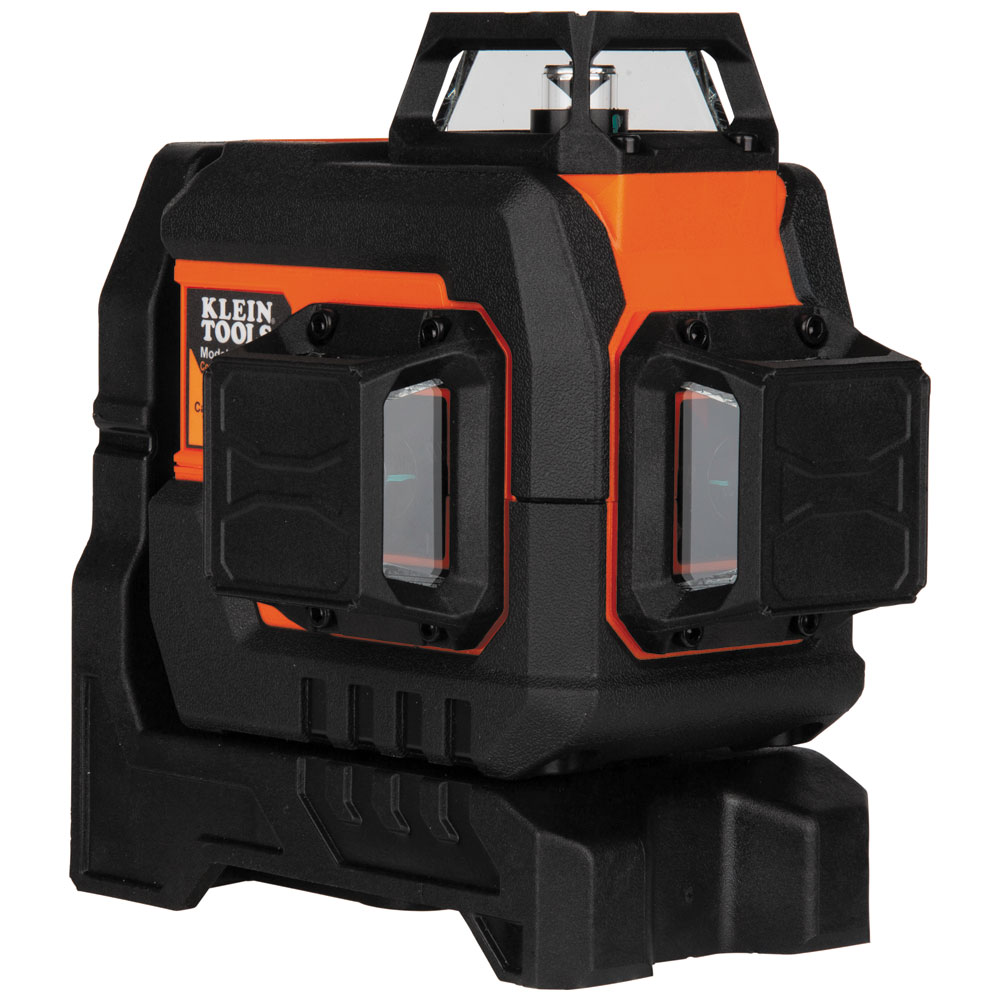

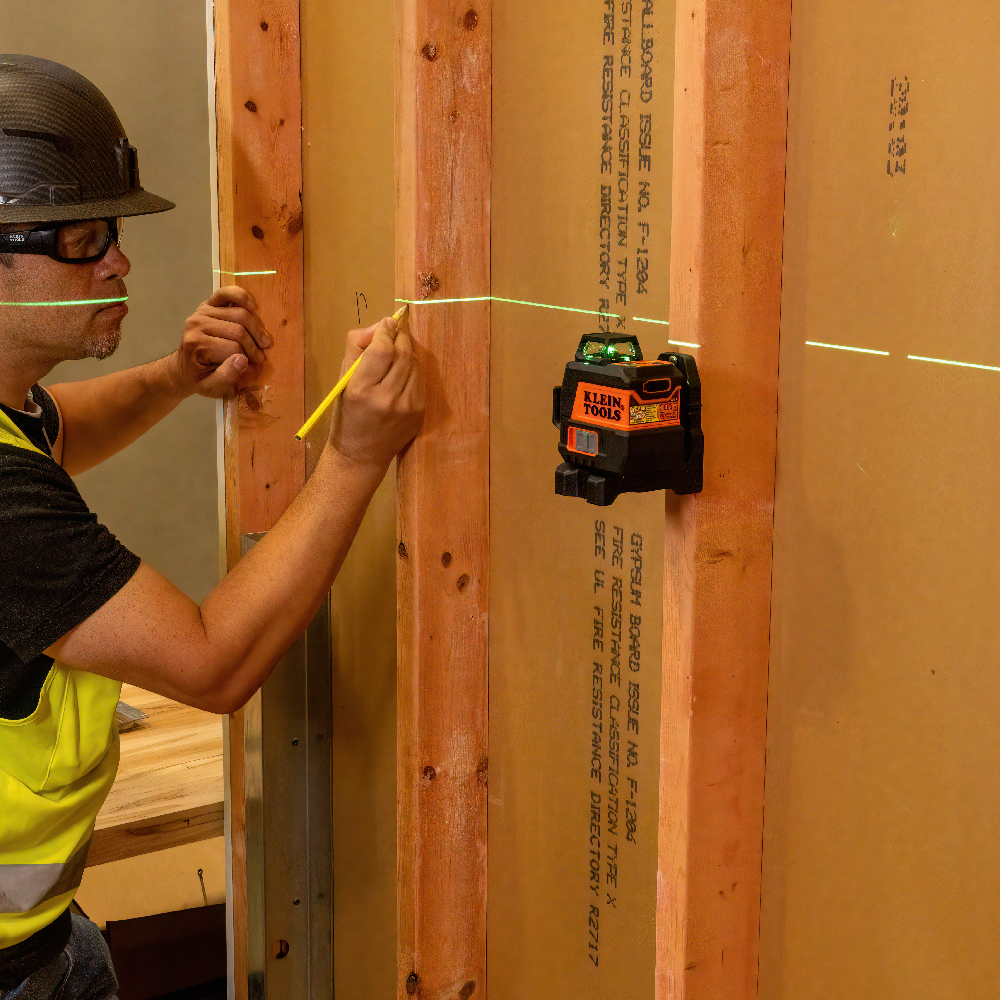

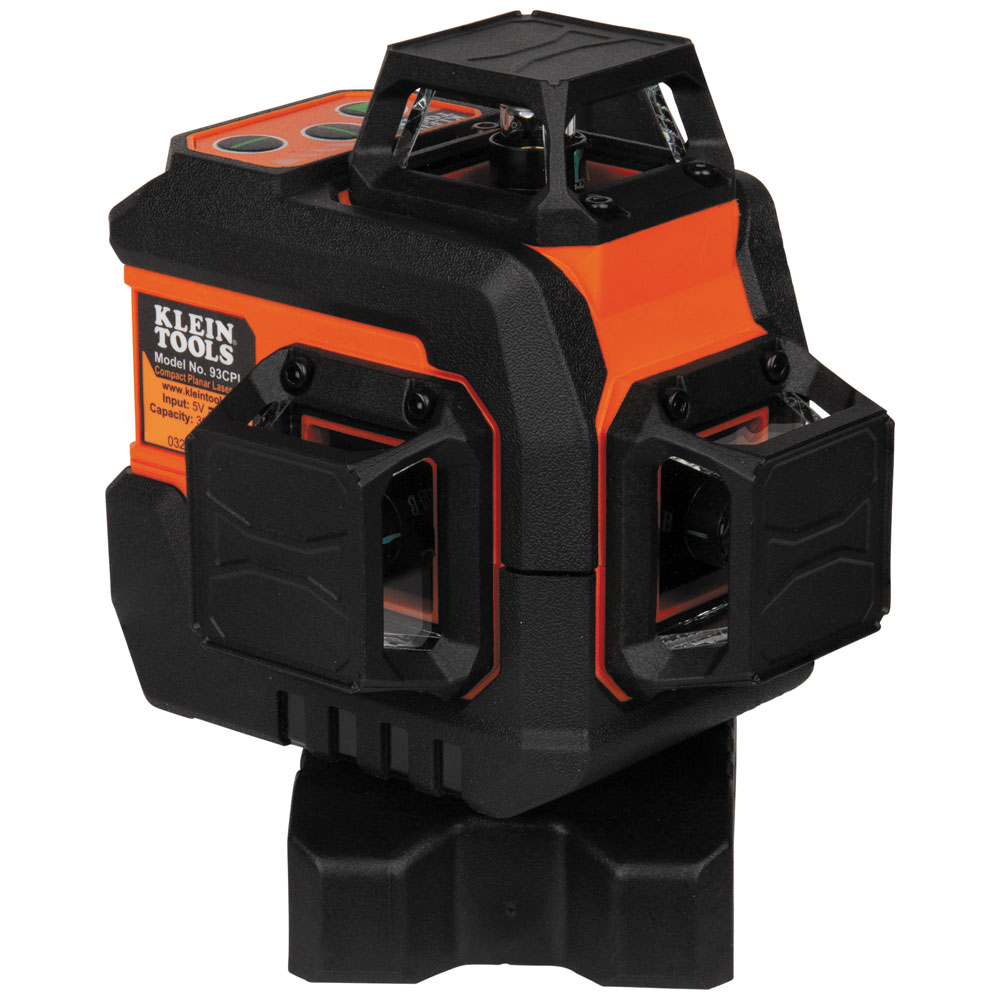

The Klein Tools’ Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 508-530nm).
Specifications
Type:
Self-Leveling Laser Level
Application:
Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
Special Features:
Manual Tilt Mode, Out of Angle Notification, Battery Fuel Gauge
Material:
PC+ABS+TPE
Batteries:
Lithium-Ion
Laser Wavelength:
508-525 nm
Laser Safety:
21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Number of Beams:
3
Laser Color:
Green
Plumb Laser:
No
Indoor Range:
100' (30.5 m)
Outdoor Range:
100' (30.5 m)
Maximum Distance:
100' (30.5 m)
Display:
No
Accuracy:
33' (10m)
Pulse Mode:
No
Receiver:
No
Magnet Type:
Rare Earth - Neodymium
Drop Protection:
3' (1 m)
Ingress Protection:
IP54: Water and Dust Resistant
Transit Locking Mechanism:
Yes
Low Battery Alarm:
Yes
Low Battery Indicator:
Yes
Out-of-Level Indicator:
Yes
Standard:
Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
Mounting Type:
Magnetic Bracket, Tripod Mount
Bag or Case:
Soft Case

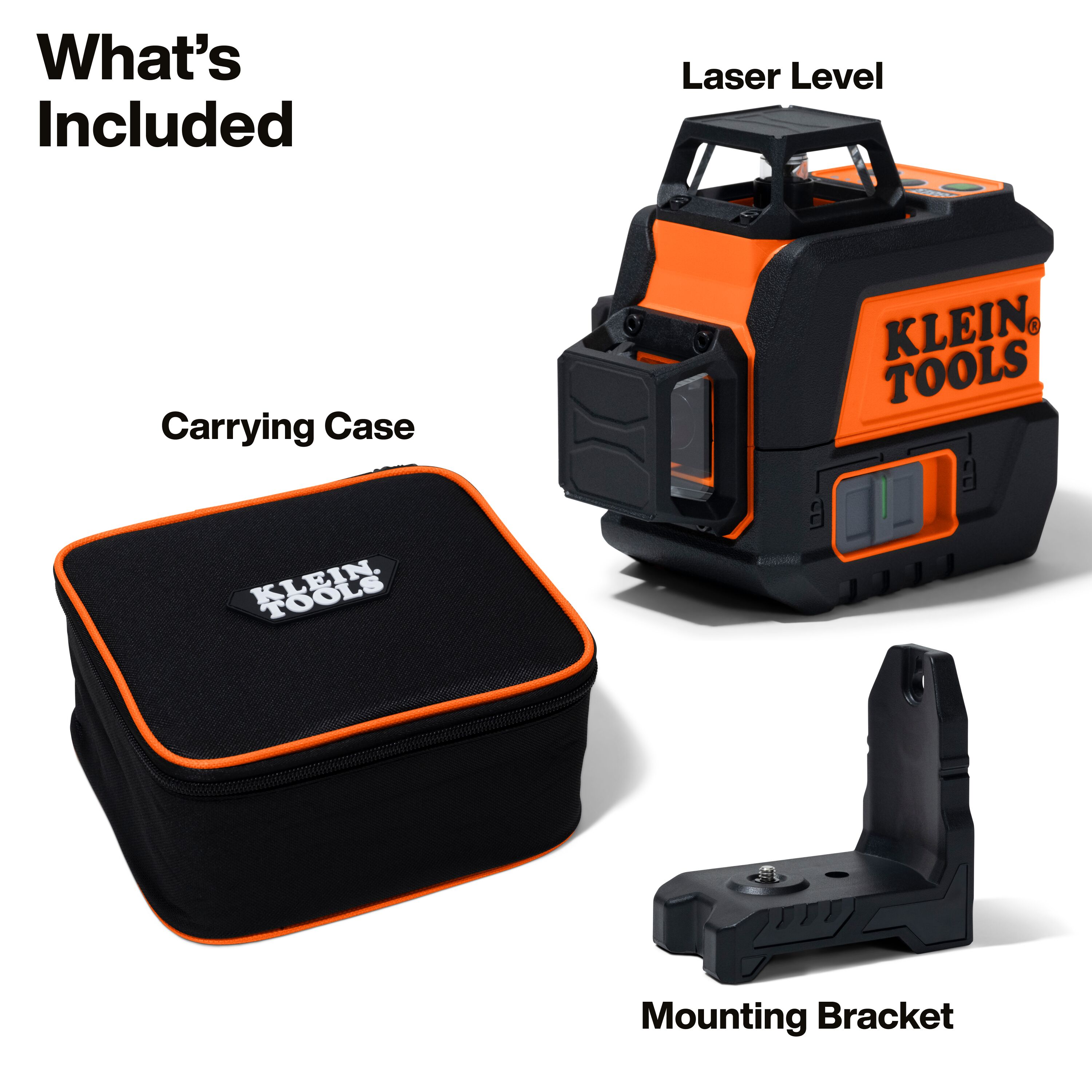

Included:
Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp
Overall Length:
4.2'' (10.7 cm)
Overall Height:
4'' (10.2 cm)
Overall Width:
3.2'' (8.1 cm)
Weight:
19.6 oz (556 g)
Battery Life:
6 hr
UPC:
092644930133
