Receptacle Tester

RT110
  • Light sequence indicates correct/incorrect wiring
  • Conforms to UL Std 1436, Certified to CSA Std C22.2 #160
  • Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
  • Built to withstand a 6.6-foot (2m) drop
  • Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
  • Designed to detect the most common wiring problems in standard receptacles
Video
Downloads
Images
JPG (High Resolution) rt110_photo.jpg
PNG (Transparent Background) rt110.png

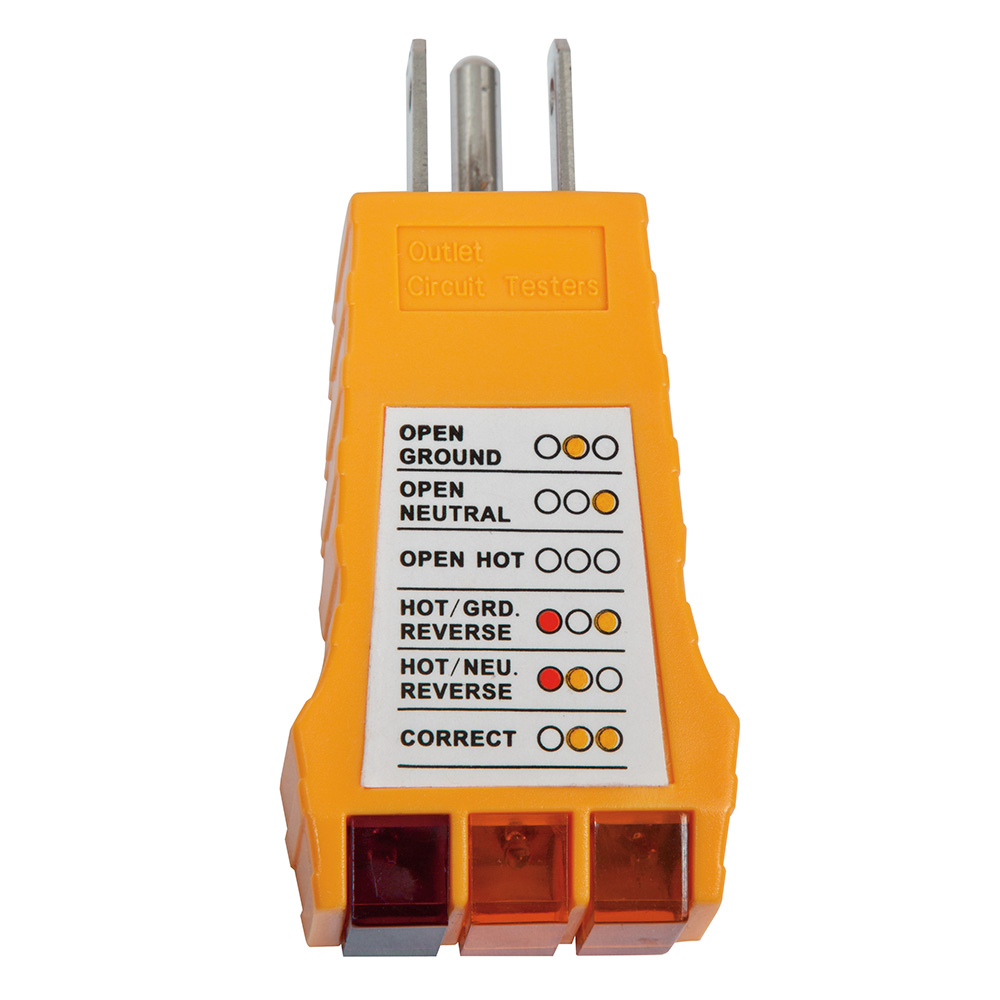

Klein Tools RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.

Specifications
Drop Protection:
6.6 ft (2 m)
GFCI:
No
Voltage:
110/125V AC at 50/60Hz in 3-Wire Outlet
Overall Length:
1.625'' (41.3 mm)
Overall Height:
2.875'' (73 mm)
Overall Width:
1.875'' (47.6 mm)
Weight:
0.12 lb (0.06 kg)
UPC:
092644690266
Additional Information
Warnings
  • Read, understand, and follow all warnings and instructions before operating testers.
  • Always consult a qualified electrician to resolve wiring problems.
  • Always wear approved eye protection.
