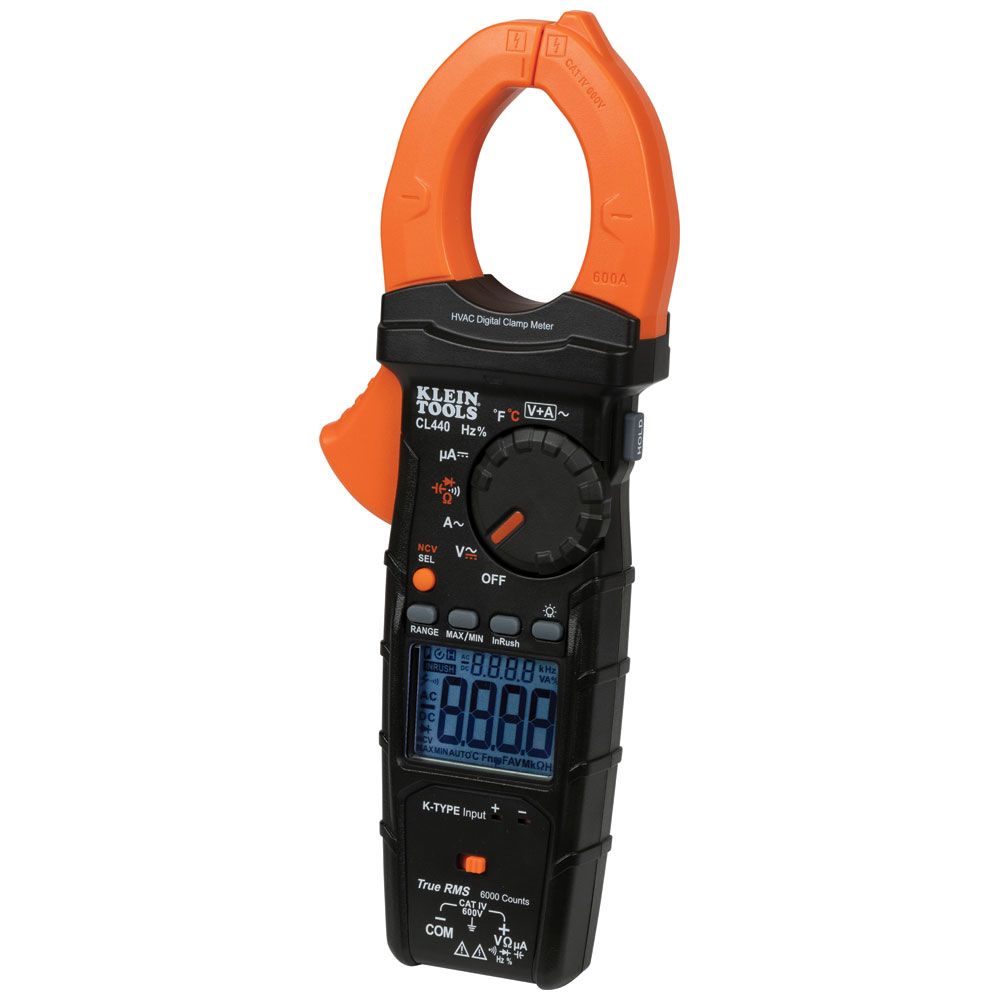

HVAC Clamp Meter

CL440

This product is no longer in production

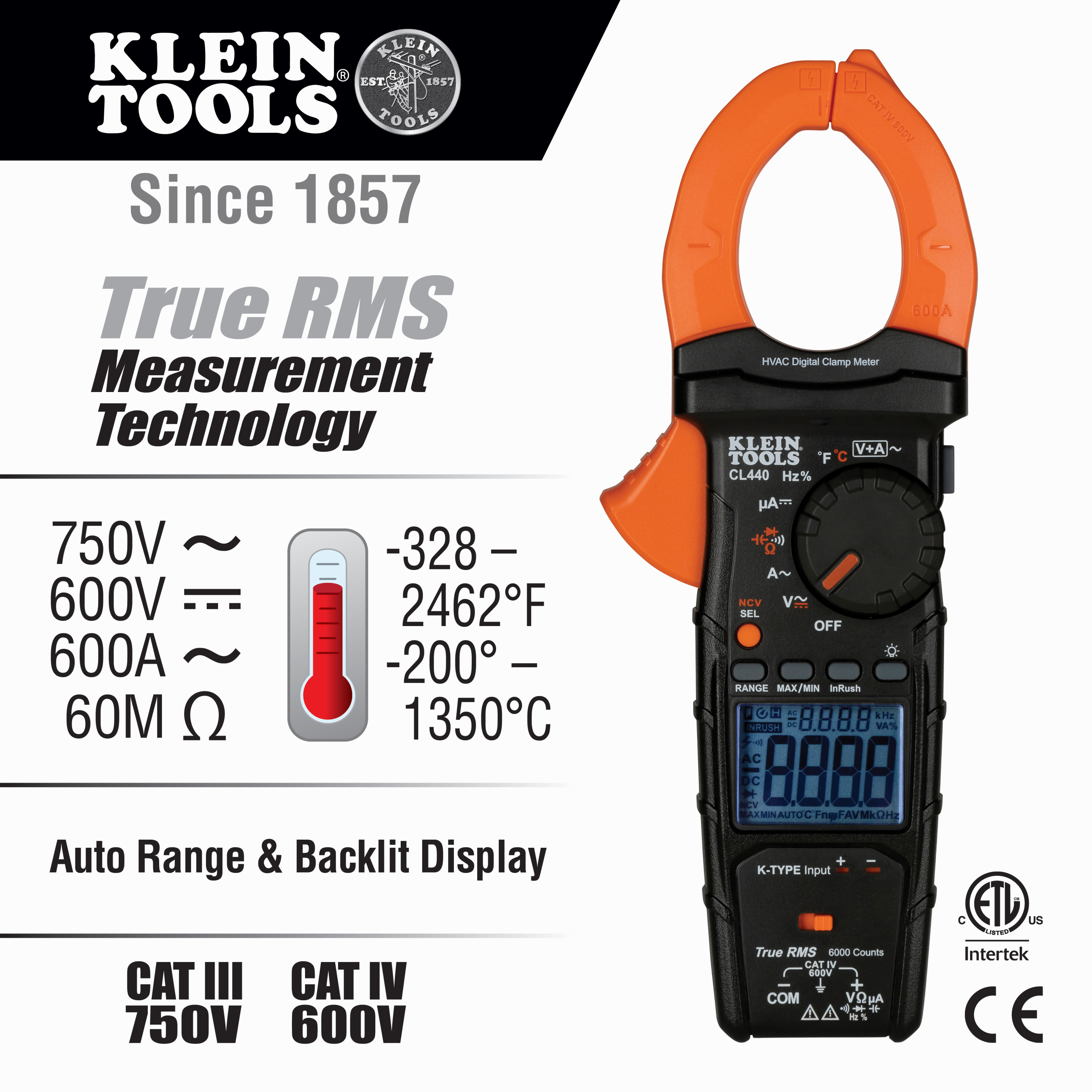

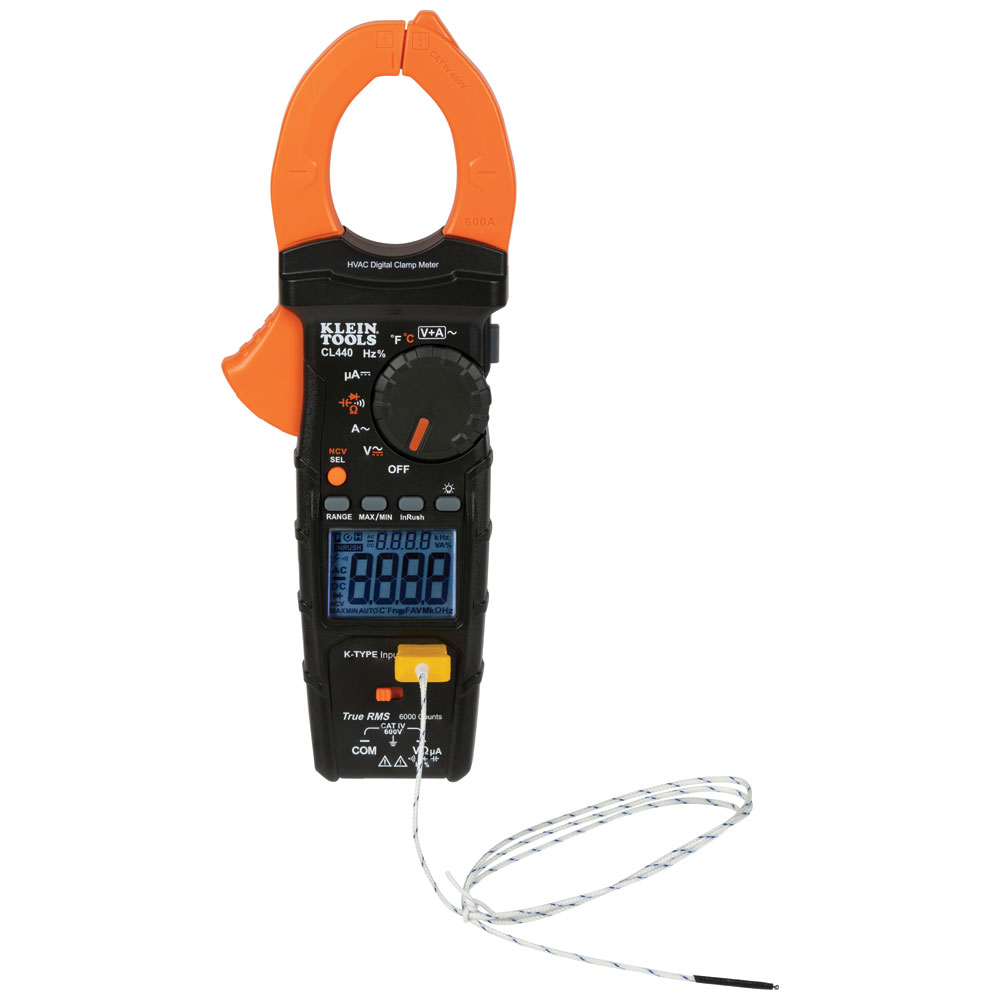

  • CL440 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
  • Digital clamp measures 600.0 A AC current and inrush current
  • Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
  • K-Type thermocouple port for measuring temperature from -328 to 2462 Degrees Fahrenheit (-200 to 1400 Degrees Celsius)
  • Detect AC current with non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
  • Dedicated mode for capturing DC micro amp and inrush current
  • CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

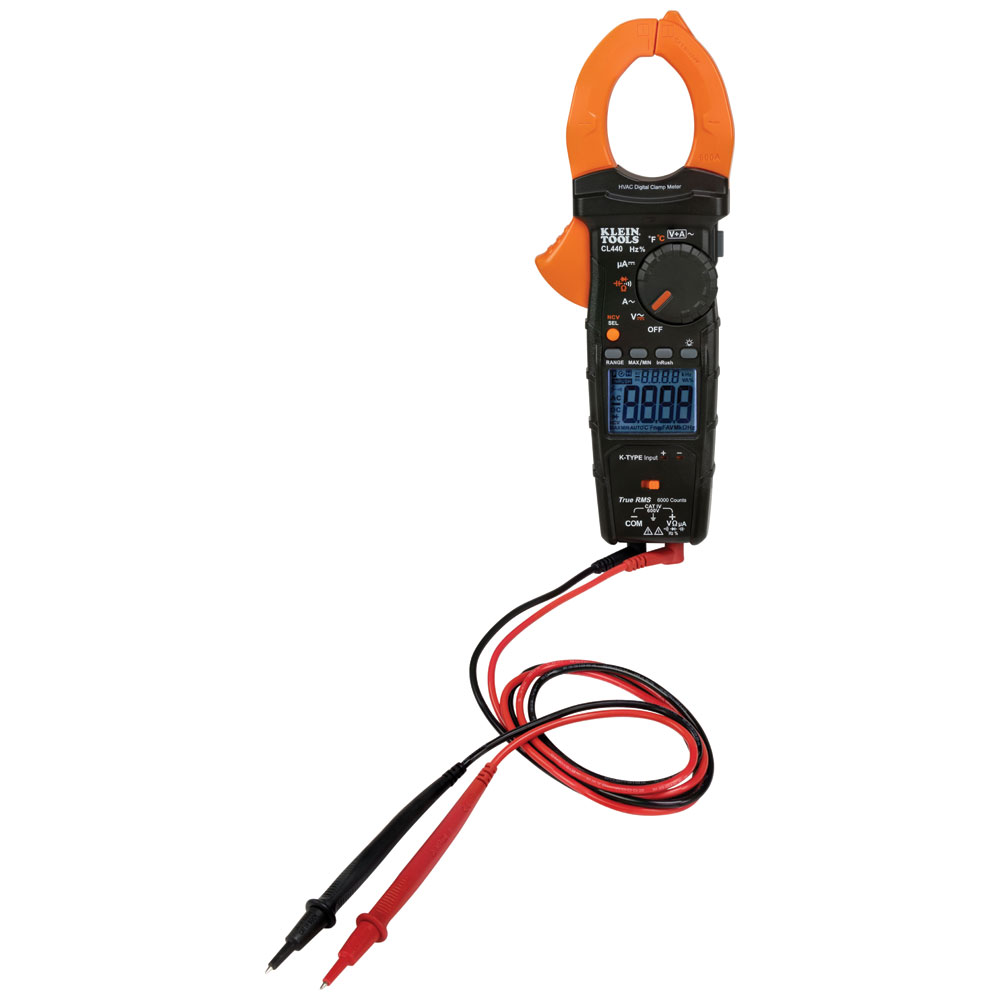

  • Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately) for hands free operation
Videos

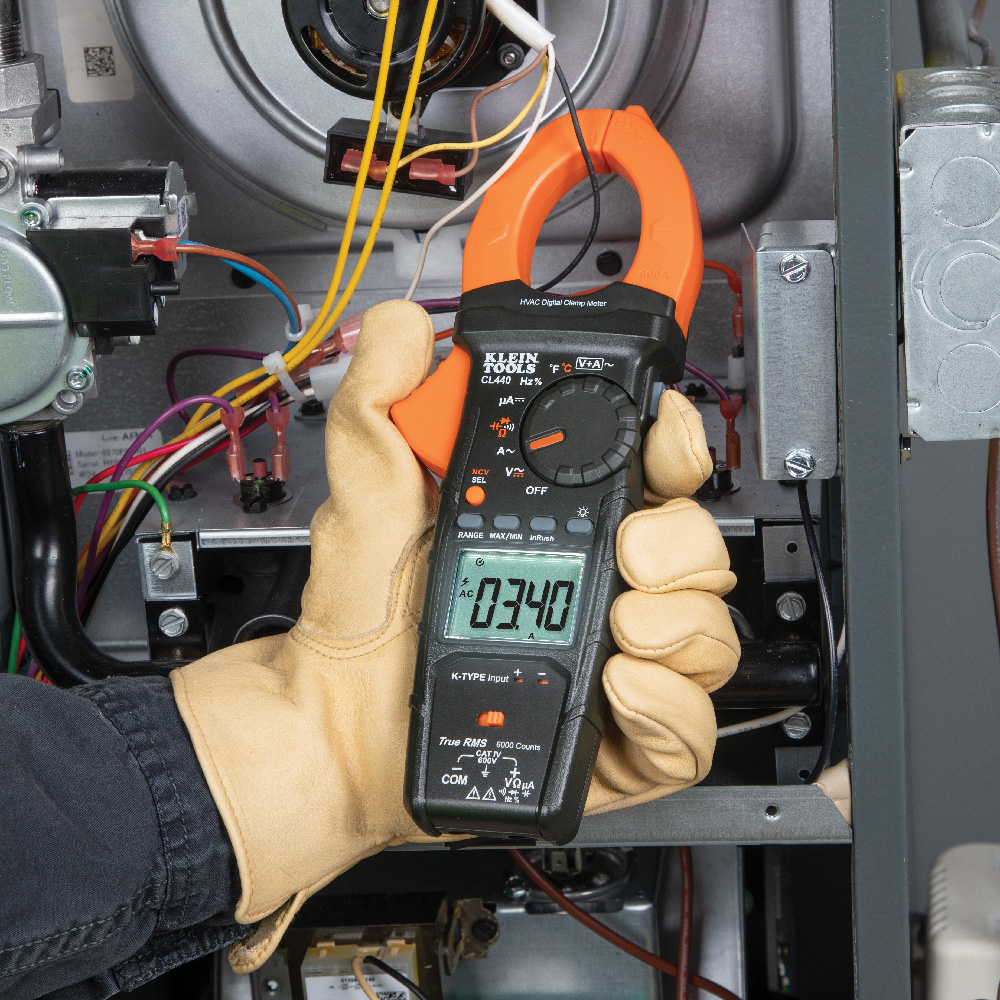

Klein Tools CL440 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.

Specifications
Type:
HVAC TRMS Clamp Meter
Application:
Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More
Special Features:
Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Material:
ABS and Electrical Components
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
2'' (5.1 cm)
Drop Protection:
3.3' (1 m)
Display:
6000 Count LCD
Functions:
TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
Voltage:
750V AC; 600V DC
Frequency:
60 kHz
Current:
600A
Capacitance:
6.000mF
Ohms (Resistance):
60MΩ
AC Voltage:
750V
DC Voltage:
600V
DC Polarity Indicator:
Yes
DC Micro-Amp:
600µA
Temperature Range:
-328° to 2462°F (-200° to 1350°C)
Standard:
CAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating
Included:
Right-angle Input Test Leads, Push-on Alligator Clips, K-Type Thermocouple, Storage Pouch, Instruction Manual, and 3 x AAA Batteries
Overall Length:
10.04'' (25.5 cm)
Overall Height:
1.57'' (4 cm)
Overall Width:
3.77'' (9.6 cm)
Weight:
14.2 oz (402 g)
UPC:
092644693359
Additional Information
Warnings
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
