1000A AC/DC TRMS Clamp Meter

CL2500

This product is no longer in production.

  • Extra wide jaw opening accommodates a greater measuring area.
  • True RMS accurate readings for all signals.

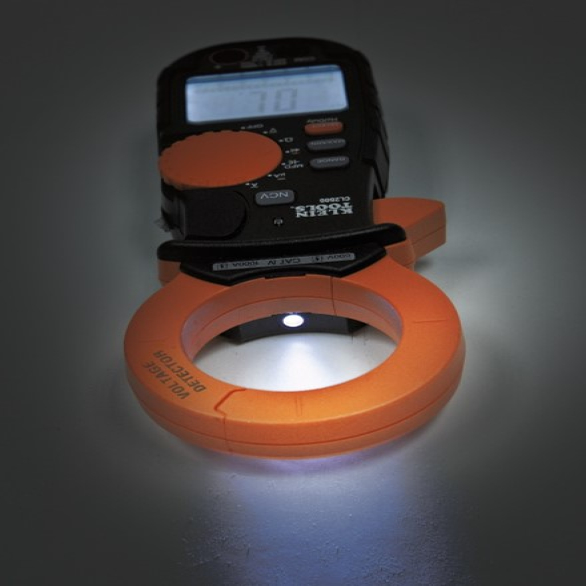

  • Worklight in jaw area.
  • Magnetic Mount on back secures meter and frees hands.
  • Non-Contact Voltage Tester.
  • Backlit display is brighter than most competitive units.
  • Measures capacitance; great for HVAC work.
  • Analog bar graph.
  • IP42
  • 3.3 feet / 1 meter drop protection.
  • CAT IV safety rating for 600V.
  • For more ''tough meter'' details, visit: www.kleintools.com/tougherthan
  • Optional Accessories:
  • Replacement Test Lead Sets (Cat. No. 69410 or 69416)
  • Line Splitter (Cat. No. 69400)
  • Tradesman Pro Carrying Cases: small, medium, large (Cat. No. 69406, 69407, 69408)
Videos
Images
JPG (High Resolution) cl2500_photo.jpg
PNG (Transparent Background) cl2500.png

Designed by electricians for electricians, this professional series true RMS auto-ranging clamp meter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle. The built-in magnetic mount allows for hands-free convenience. The unit is CAT IV Safety rated and includes case, test leads, test lead holder and batteries.

Specifications
Batteries:
2 x AAA
Jaw Size:
1.97'' (50.03 mm)
Drop Protection:
3.3 ft (1 m)
Display:
6000 Count LCD
Voltage:
750V AC; 1000V DC
Current:
1000A AC; 1000A DC
Capacitance:
6000µF
Ohms (Resistance):
60MO
Ingress Protection:
IP42
Standard:
CAT IV 600V
Included:
Test Leads, Case and Batteries
Overall Height:
8.09'' (205.48 mm)
Overall Width:
2.56'' (65.02 mm)
Weight:
0.85 lb (0.39 kg)
UPC:
092644692079
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all Test and Measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
