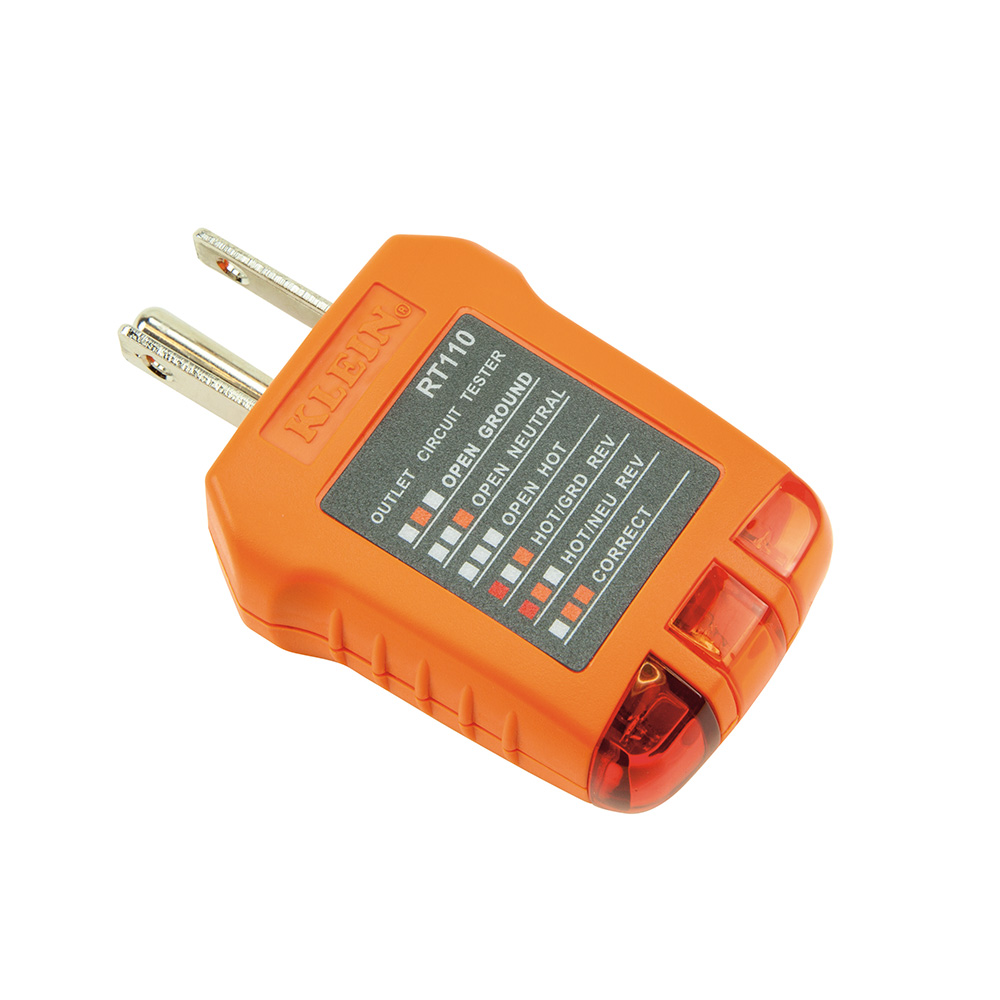

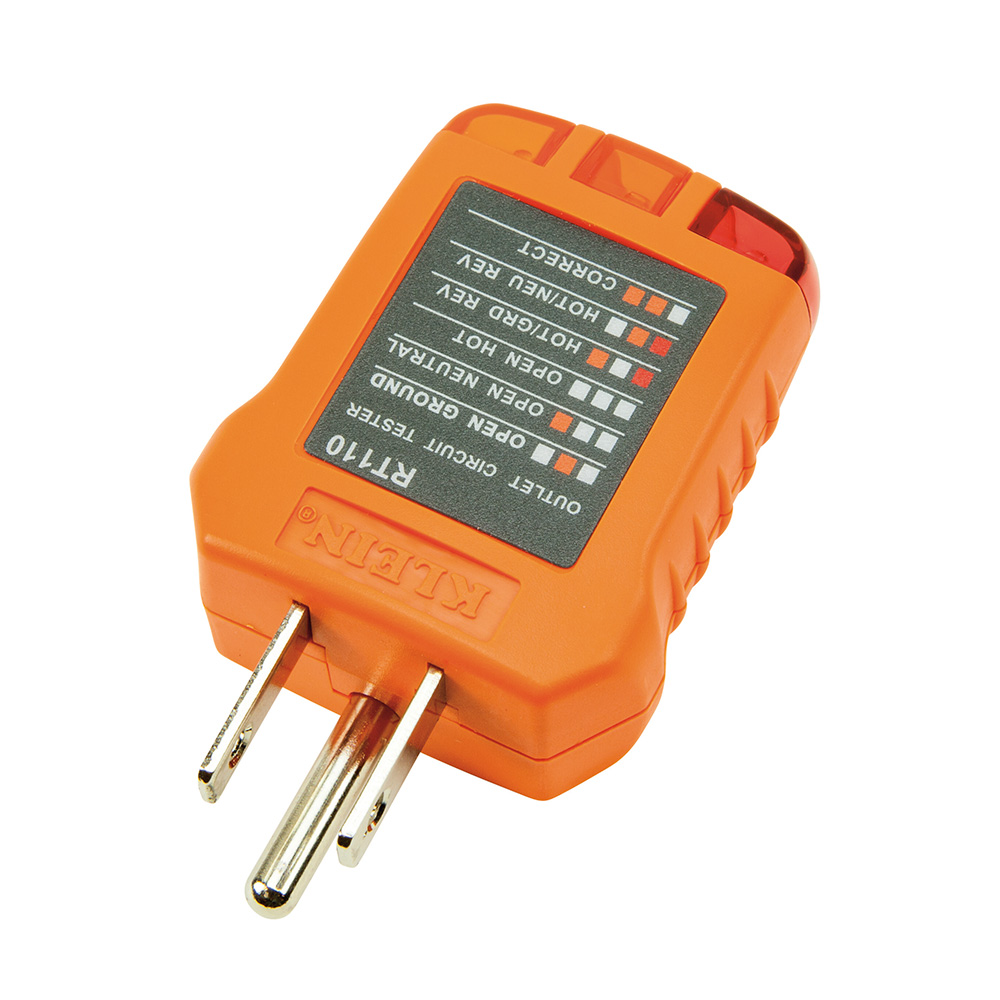

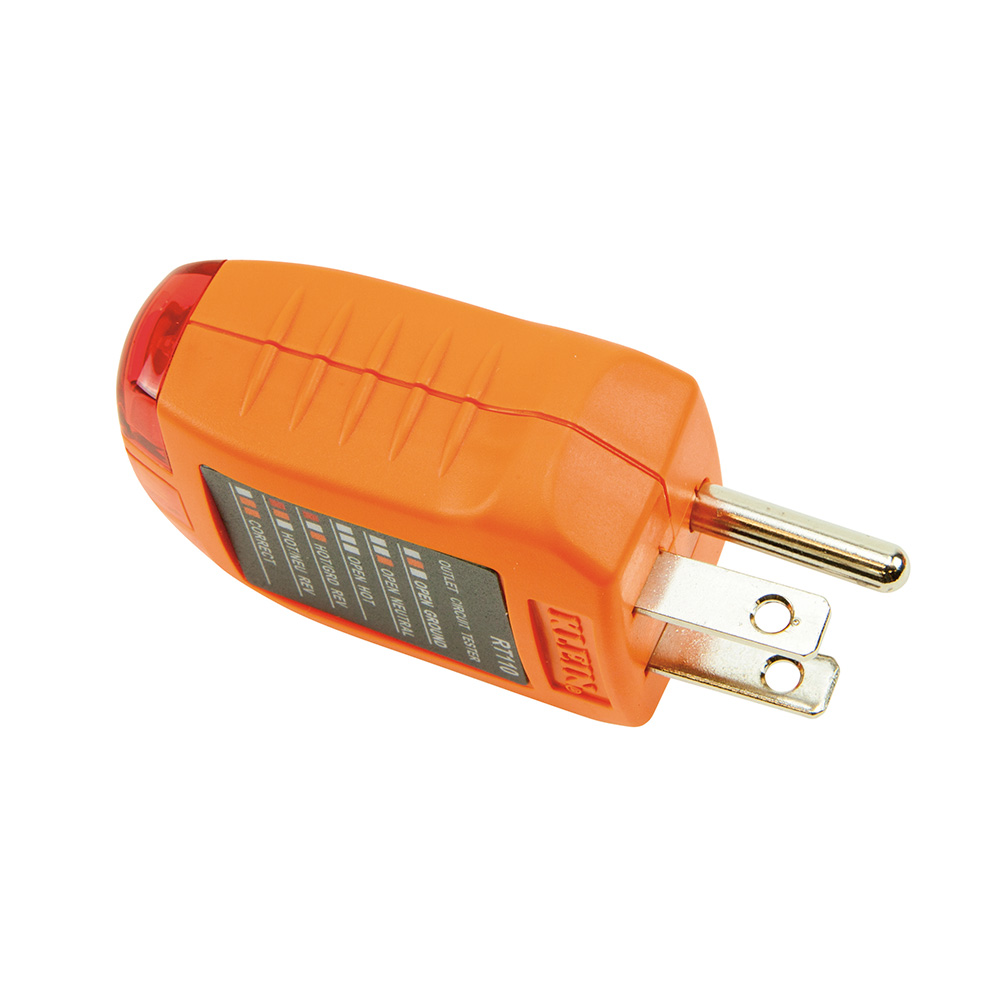

Receptacle Tester

Cat. No.:
RT110
Product Features

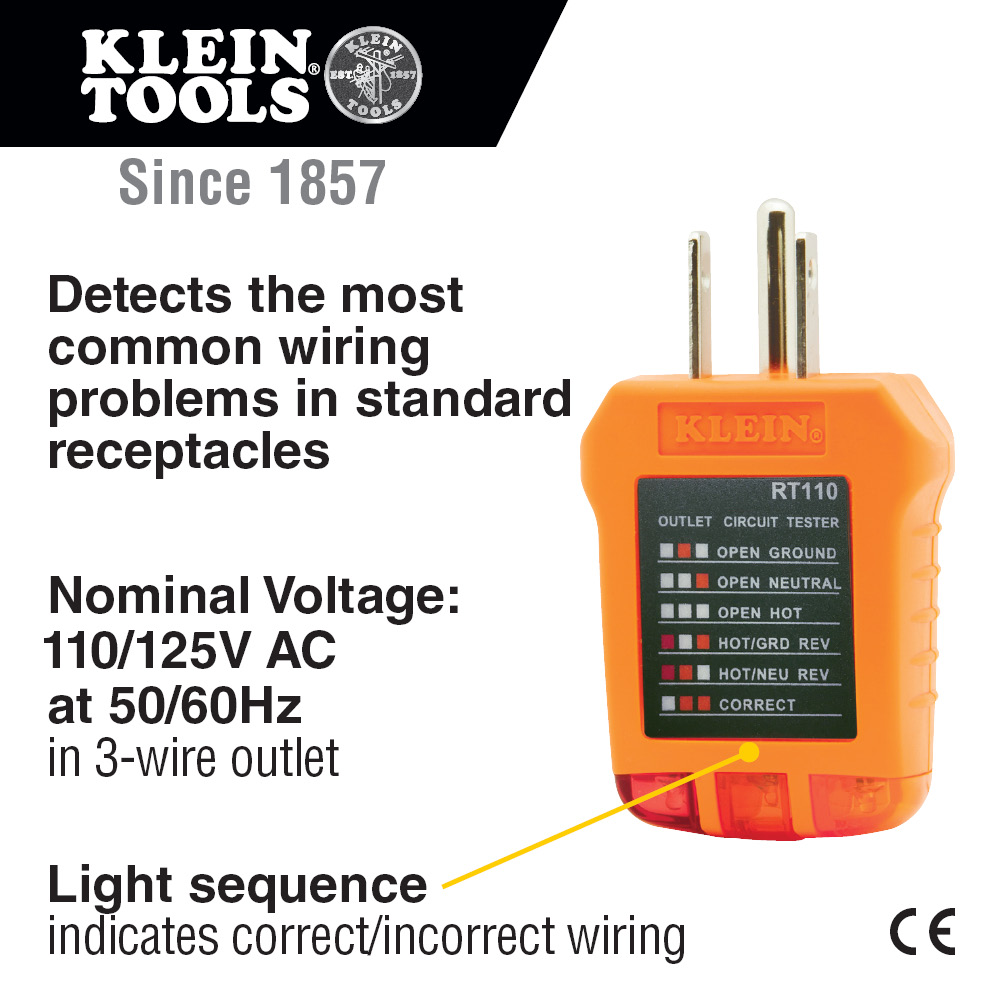

Light sequence indicates correct/incorrect wiring.
Conforms to UL Std 1436, Certified to CSA Std C22.2 #160.
Operating temp: 32°F to 140°F (0°C to 40°C).
Built to withstand a 6.6 ft. (2m) drop.
Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet.
Designed to detect the most common wiring problems in standard receptacles.
Specifications
Overall Length:
1-5/8'' (41.3 mm)
Overall Height:
2-7/8'' (73.0 mm)
Overall Width:
1-7/8'' (47.6 mm)
Drop Protection:
6.6 ft (2 m)
GFCI:
No
Voltage Range:
110/125V AC at 50/60Hz in. 3-Wire Outlet
Weight:
0.12 lb (0.06 kg)
Videos

Downloads
Warnings

Read, understand, and follow all warnings and instructions before operating testers.

Always consult a qualified electrician to resolve wiring problems.

Always wear approved eye protection.
