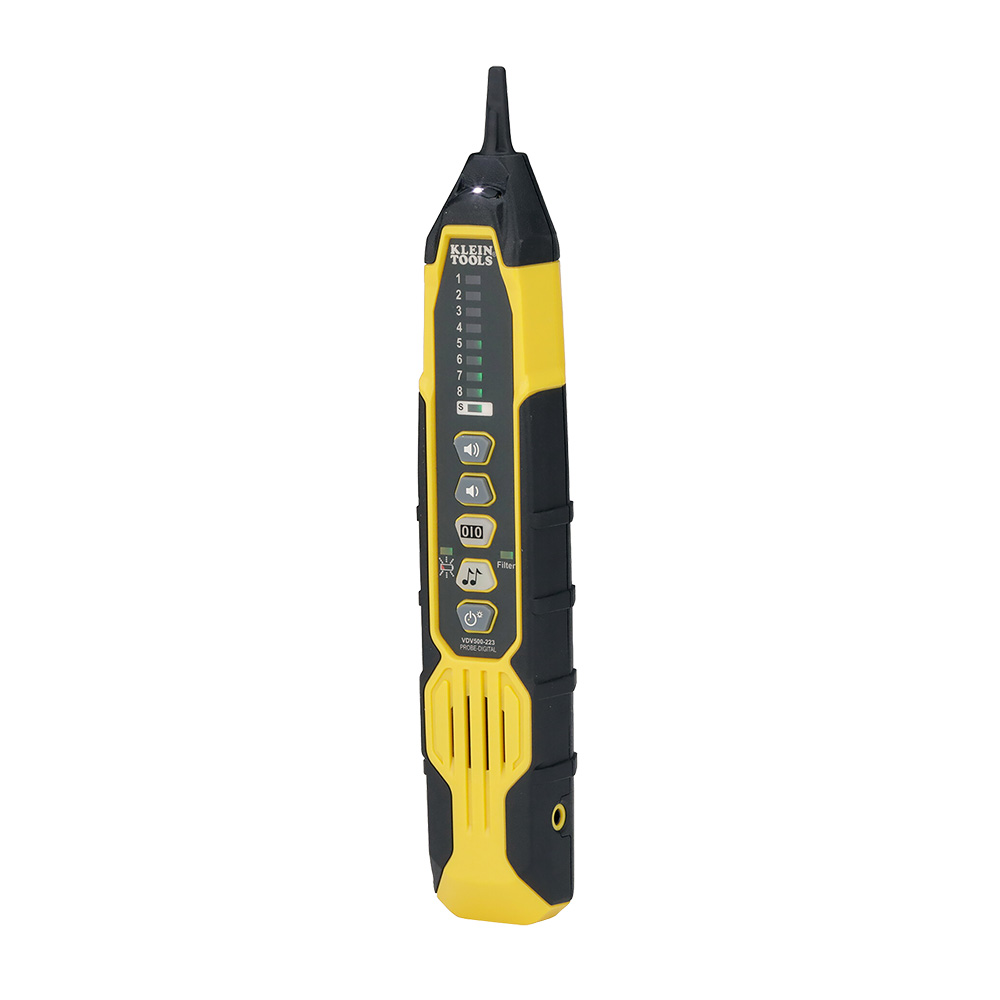

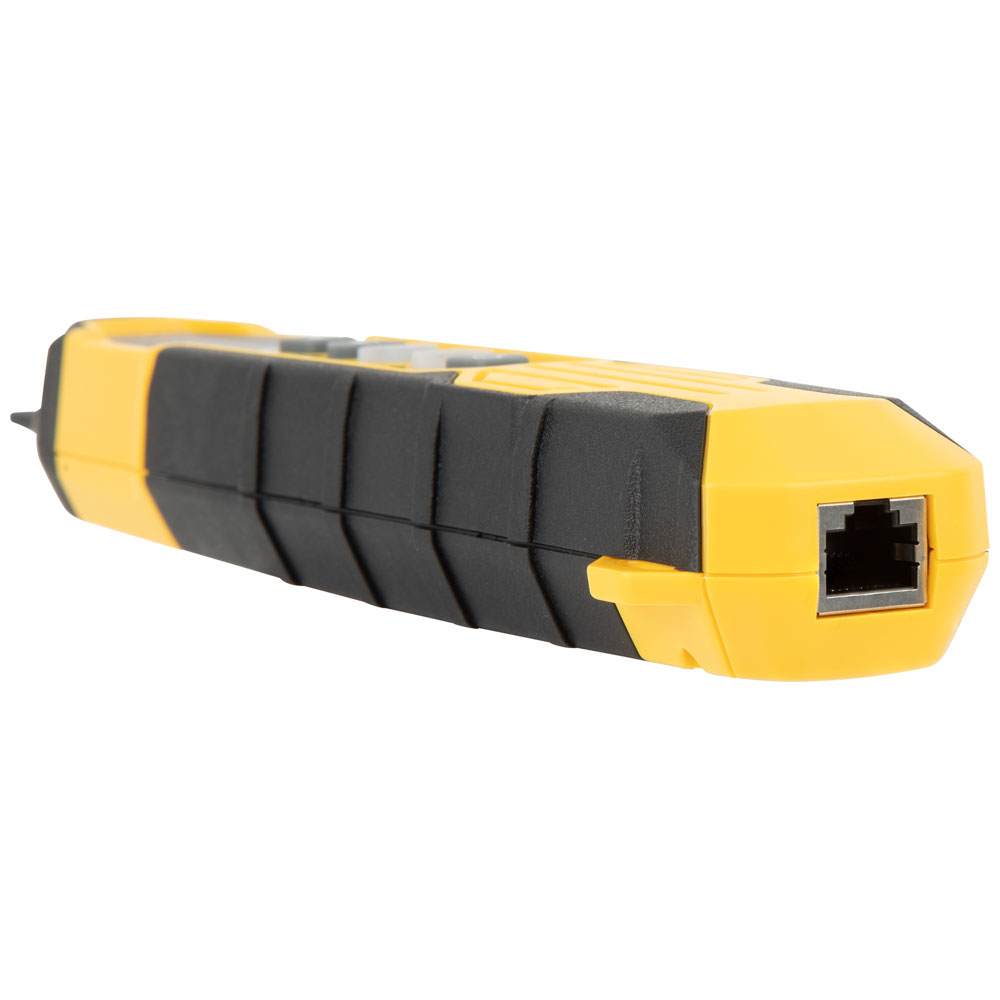

VDV500-223
Digital Tracing Probe
- Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

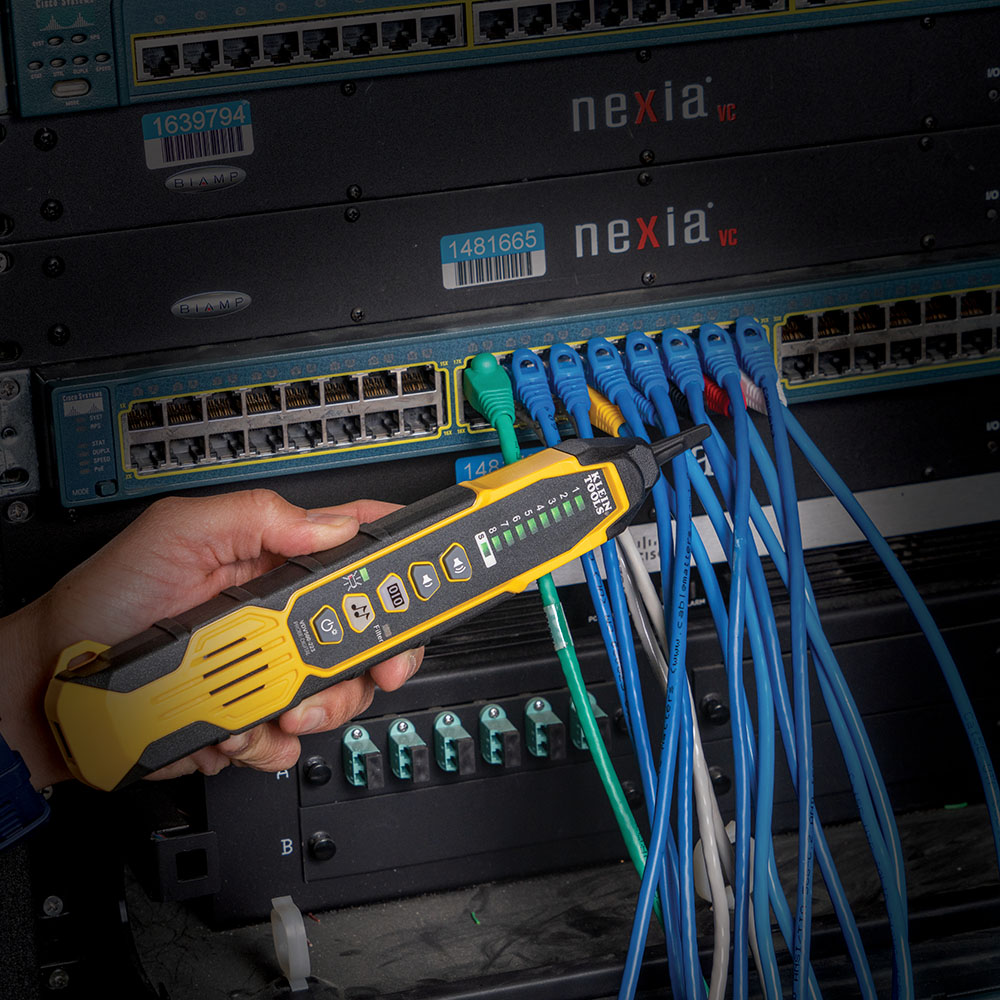

- Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
- Work light for use in dark spaces
- 3.5 mm headphone jack for use in noisy environments (headphones not included)

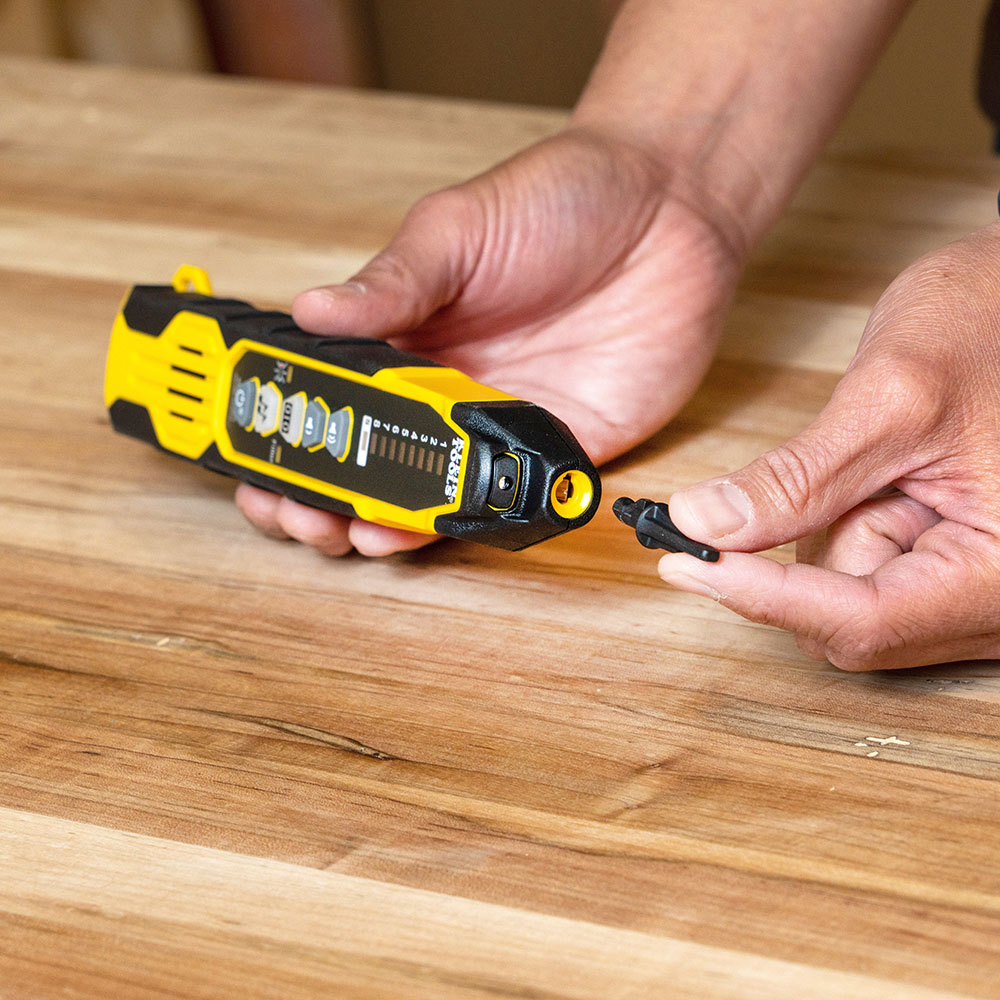

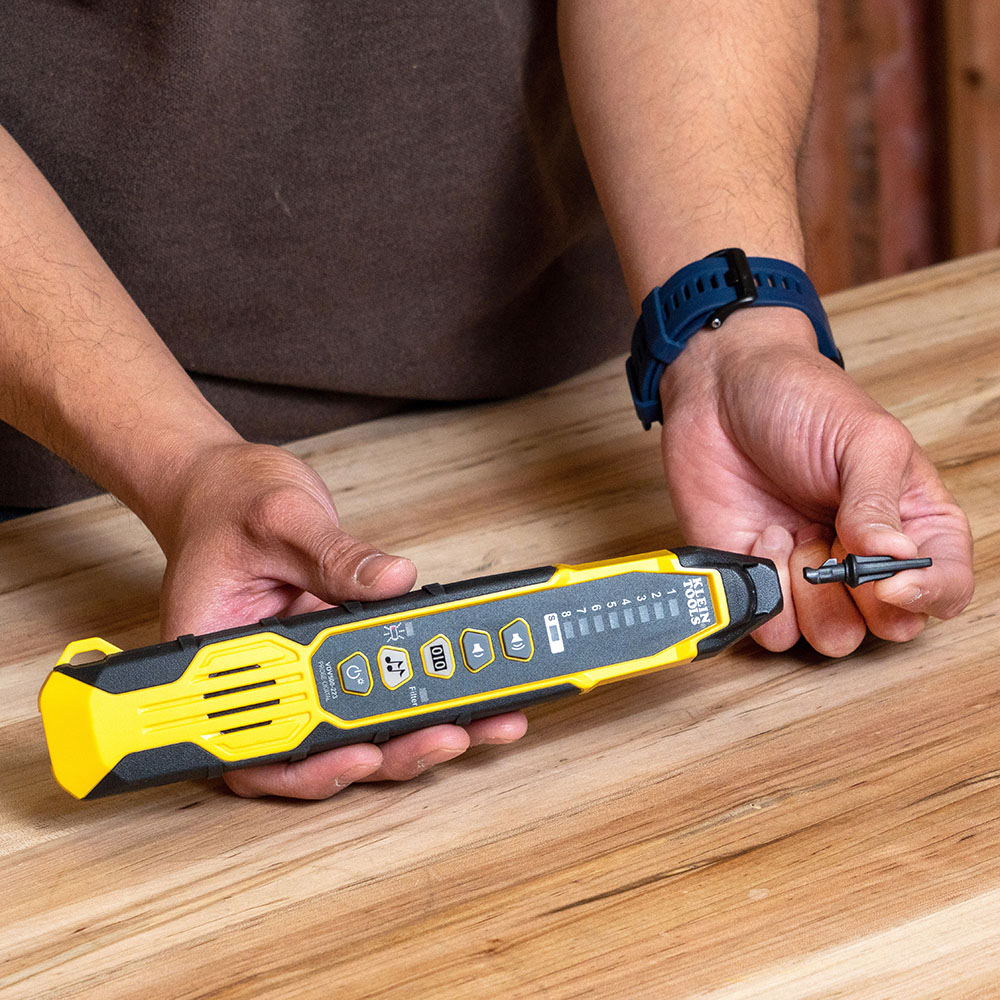

- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
- 60Hz filter for accurate tracing, works with Klein's Scout® Pro and Lan Scout® Jr. testers
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

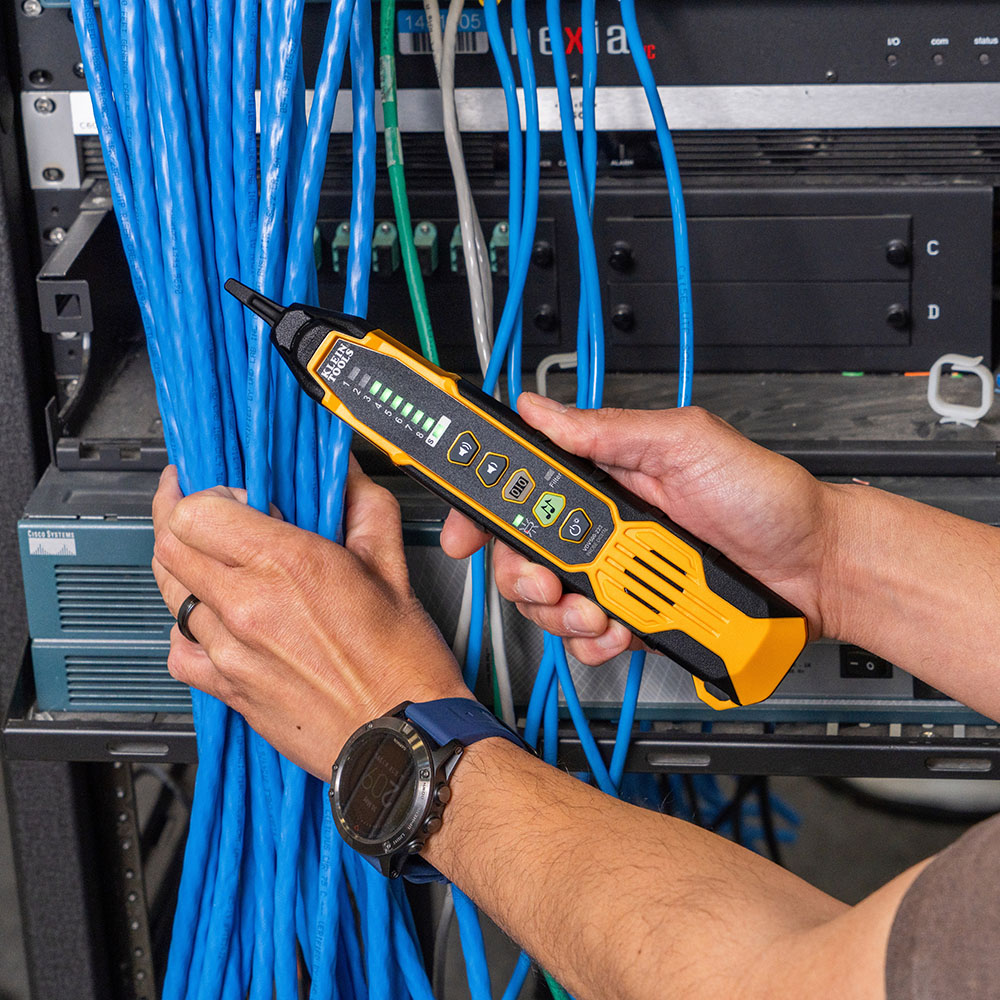

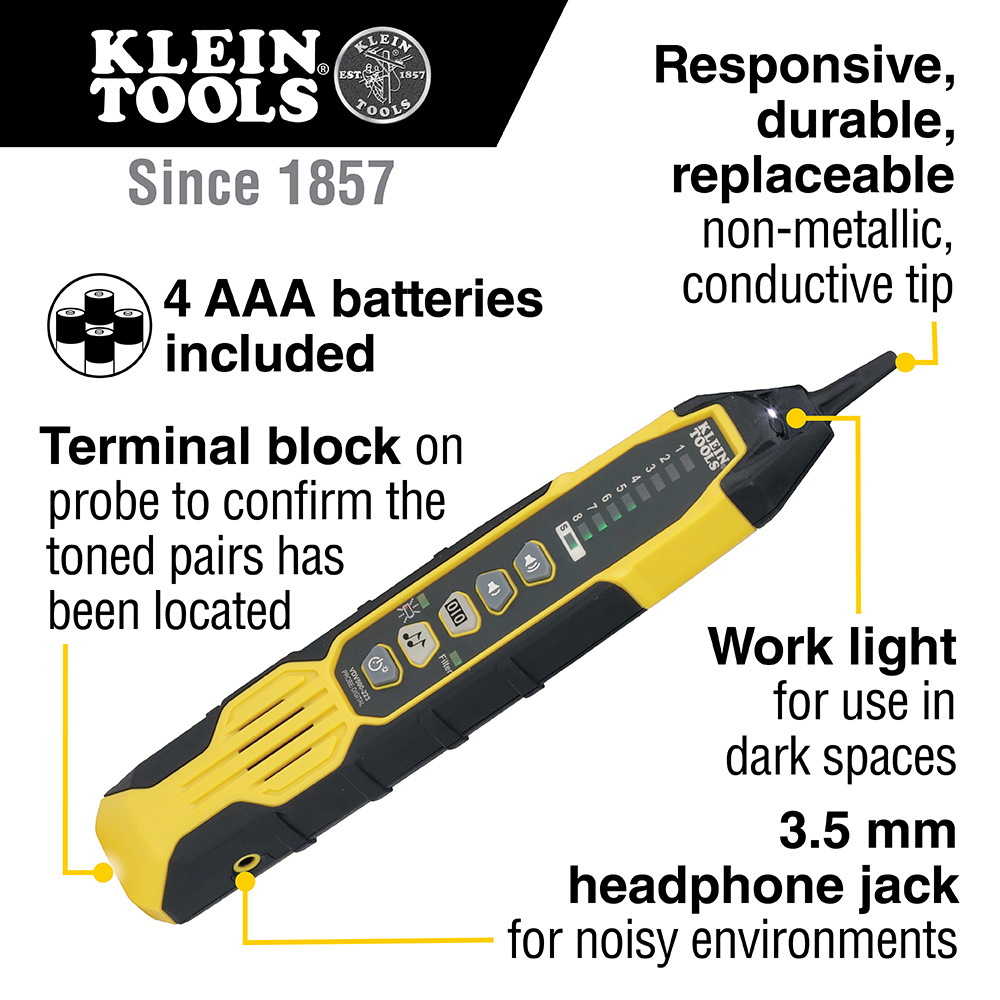

Use the Klein Tools Digital Tracing Probe to trace cables and wires on active and non-active networks when used with the Digital Tone Generator (Cat. No. VDV500-163; sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments.
Specifications
Type:
Digital Wire Tracing
Application:
Wire Tracing
Special Features:
Work Light, Stay On Power Button
Material:
ABS
Batteries:
4 x AAA
Battery Life:
20 hr
Low Battery Indicator:
Yes
Power On LED Indicator:
Yes
Auto-Power Off:
Yes
Adjustable Volume:
Yes
Amplifier Overload Indication:
No
Continuity Testing:
No
Visual Notification:
LED
Replaceable Tip:
Yes
Self-Storing Remote:
No
Included:
Tracing Probe; 4 x AAA Batteries
Overall Length (Inch):
1.9
Overall Length (cm):
4.8
Overall Height (Inch):
9.9
Overall Height (cm):
25.1
Overall Width (Inch):
1.3
Overall Width (cm):
3.3
Weight (oz):
5.2
Weight (g):
147
UPC:
092644583889
