Impact-Rated Flip Socket Conduit Reamer Driver
85191HD

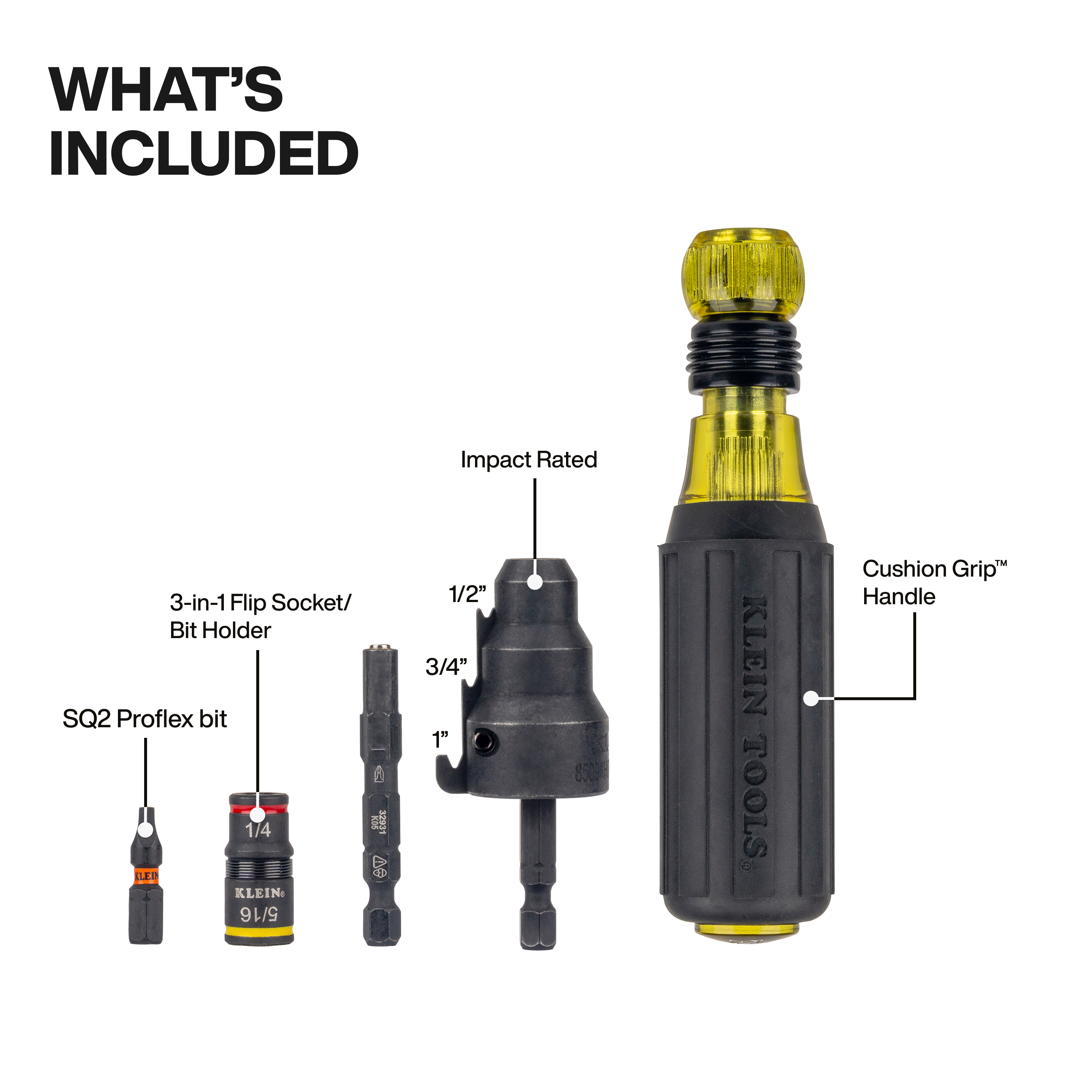

- All-in-one solution combines 3-in-1 conduit reamer with integrated quick-connect handle
- Efficiently reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit
- Innovative design allows conduit reaming without removing flip sockets or bits, significantly reducing task time

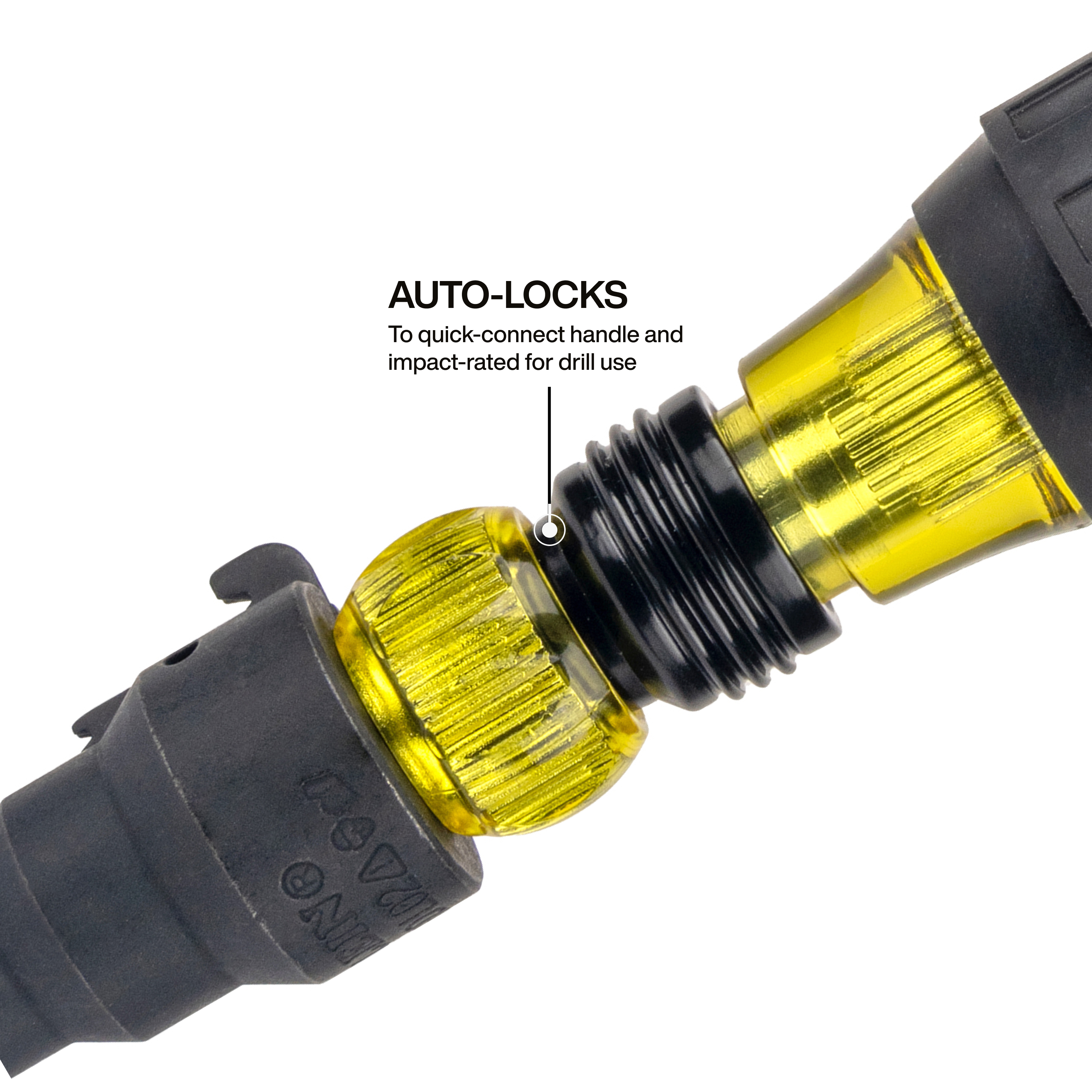

- Automatically locks into quick-connect handle; pull collar back to release for secure, convenient operation

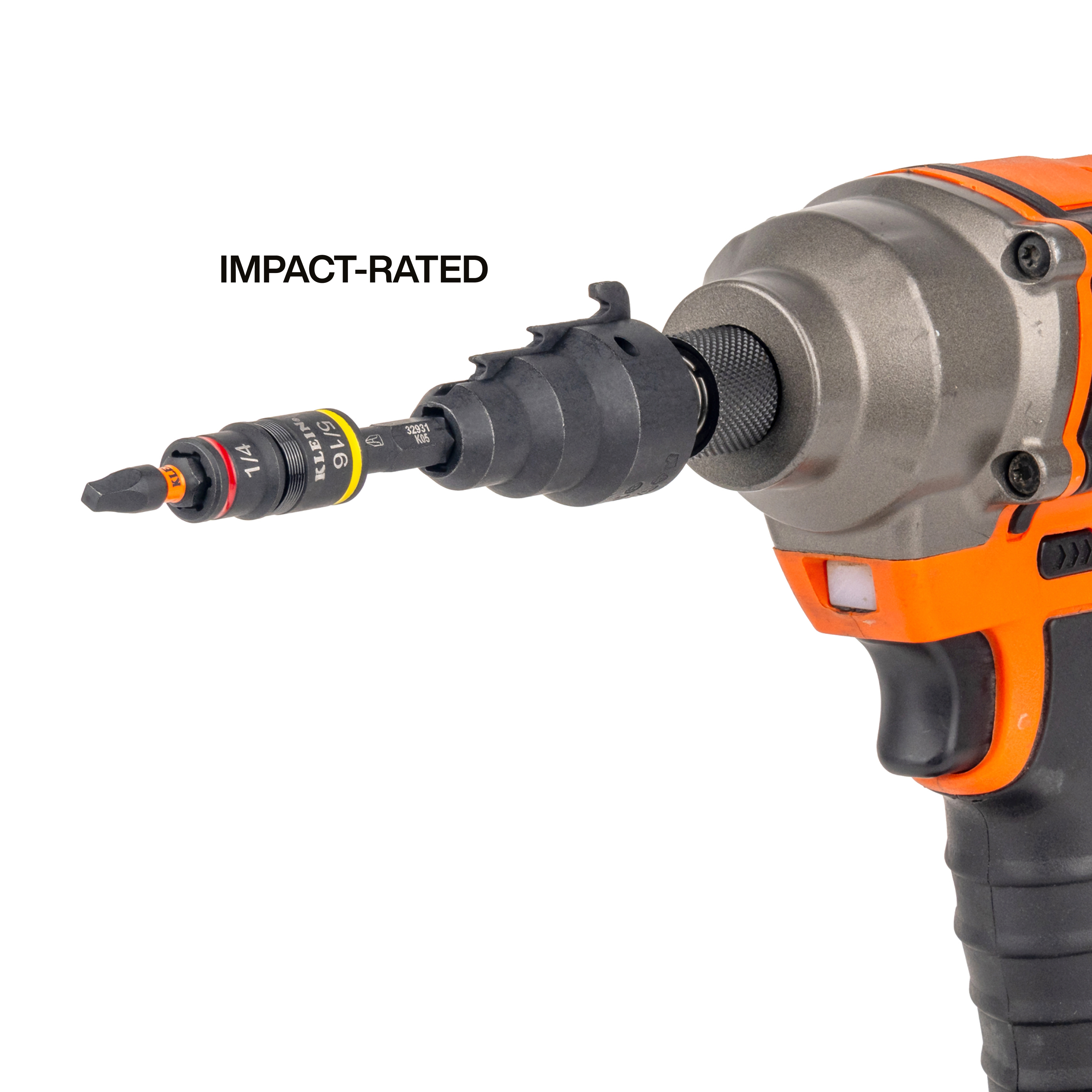

- Impact-rated construction withstands the high torque of impact drivers
- Improved leaf spring design enhances shaft connection to provide a secure grip that won't fall out while remaining easy to insert and remove
- Replaceable reaming blade held with 1/16-Inch hex socket set screw; replacement blades (Cat. No. 19353) available

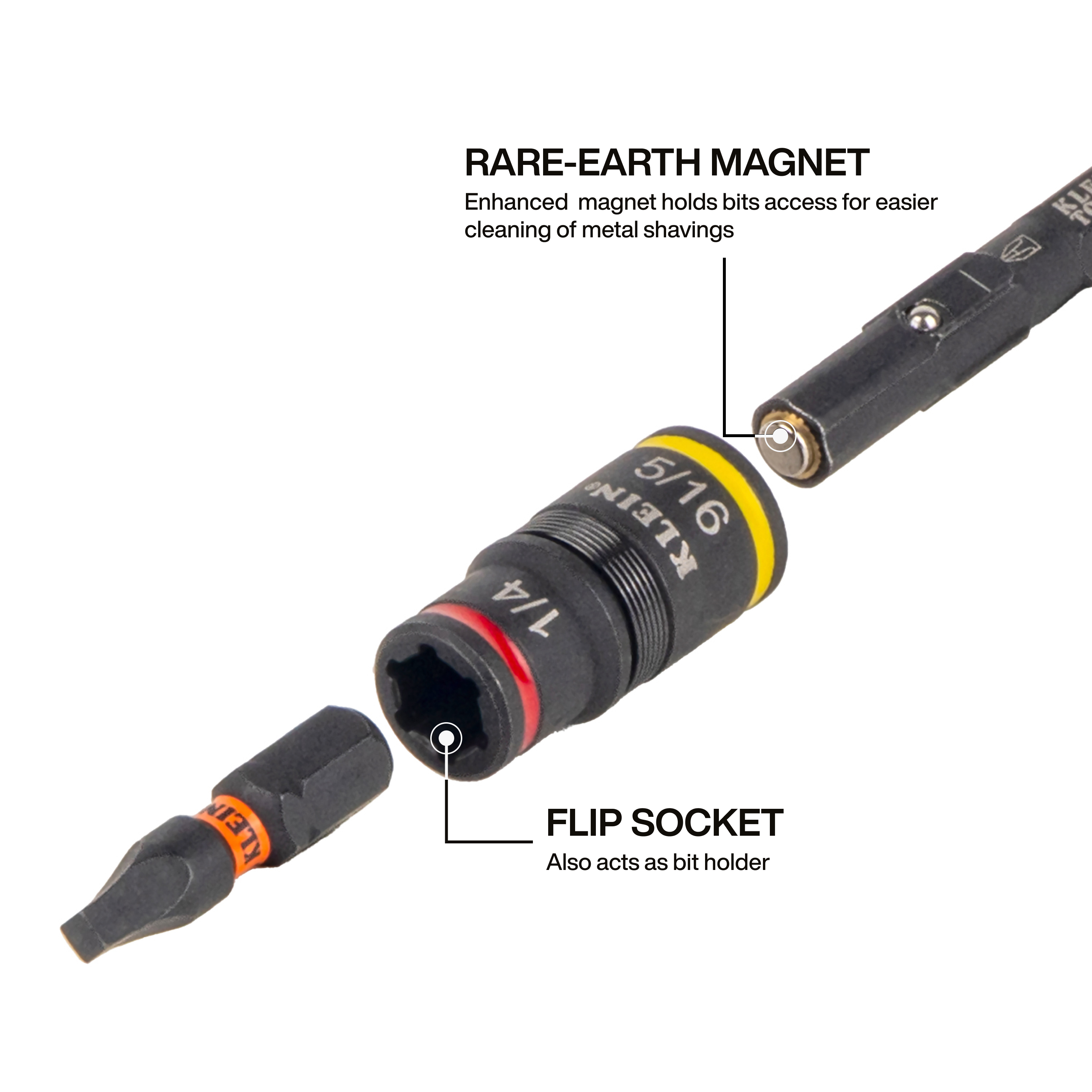

Klein Tools 85191HD Flip Socket Conduit Reamer Driver reams and smooths 1/2-inch (13mm), 3/4-inch (19mm), and 1-inch (25mm) conduit without requiring component removal. This tool features an improved leaf spring design that provides a secure grip, while the auto-lock mechanism securely connects to quick-connect handles, with a simple collar pull-back to release. The 3-in-1 flip socket functions as a magnetic bit holder, and the Cushion-Grip™ handle provides extra torque and comfort.
Specifications
Application:
Electrical Metallic Tubing (EMT)
Special Features:
3-in-1 Flip Socket, SQ #2 Bit
Conduit Size:
1/2'', 3/4'', 1'' (1.3 cm, 1.9 cm, 2.5 cm)
Tip Size:
5/16'' (7.9 mm)
Blade Material:
Steel
Blade Finish:
Black Oxide
Blade Length:
1.29'' (3.3 cm)
Blade Width:
0.03'' (0.07 cm)
Material:
Steel
Shank Length:
2.5'' (6.4 cm)
Overall Length:
7.5 (19.1 cm)
Overall Height:
1.2'' (3 cm)
Overall Width:
1.26'' (3.2 cm)
Type:
Conduit Reamer Driver
Weight:
8 oz (227 g)
UPC:
092644851414
