Impact-Rated Flip Socket Conduit Reamer

85091HD

  • Pipe reamer efficiently reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit

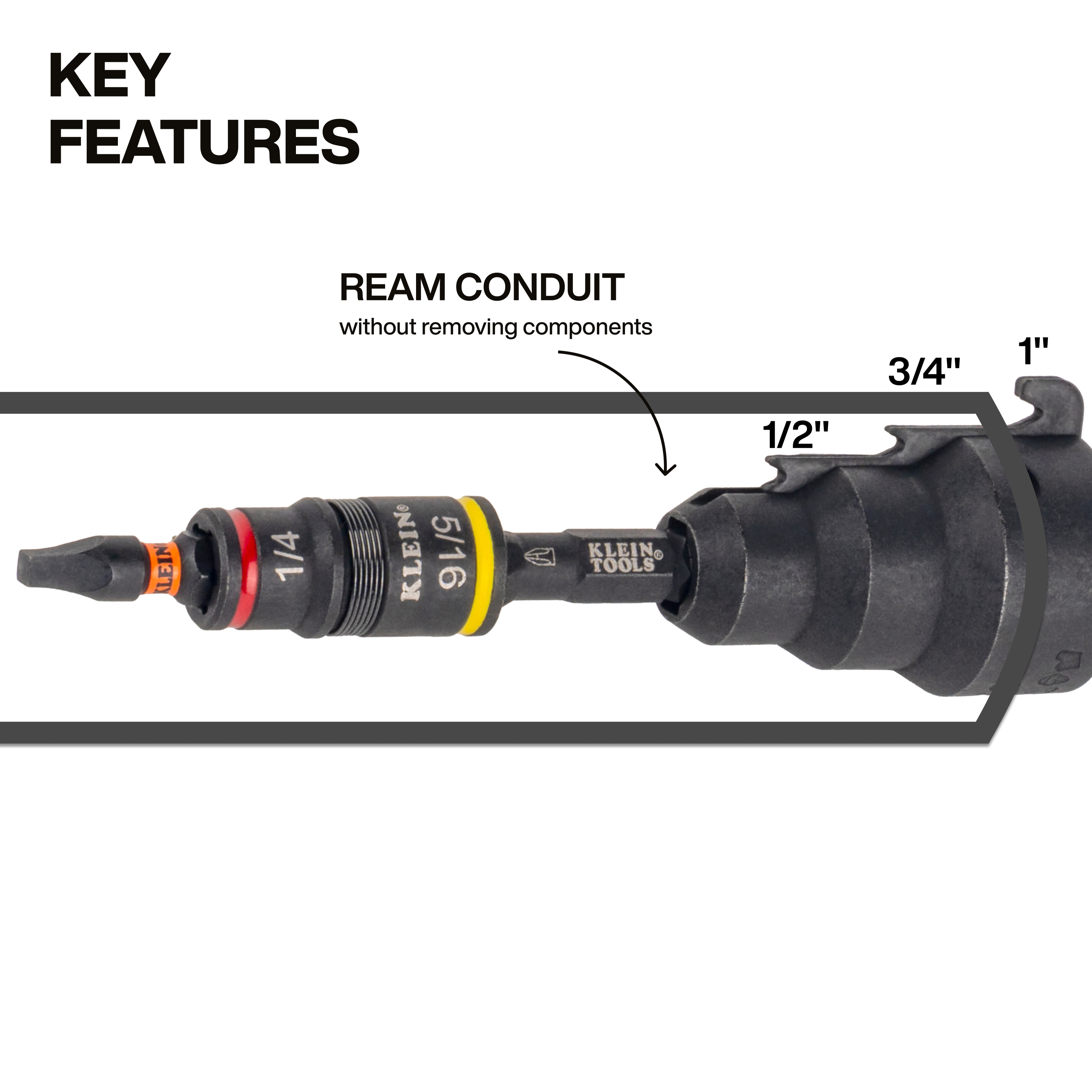

  • Innovative design allows conduit reaming without removing flip sockets or bits, significantly reducing task time
  • Integrated magnetic bit holder accommodates both 1/4-inch and 3/16-inch bits for versatile application

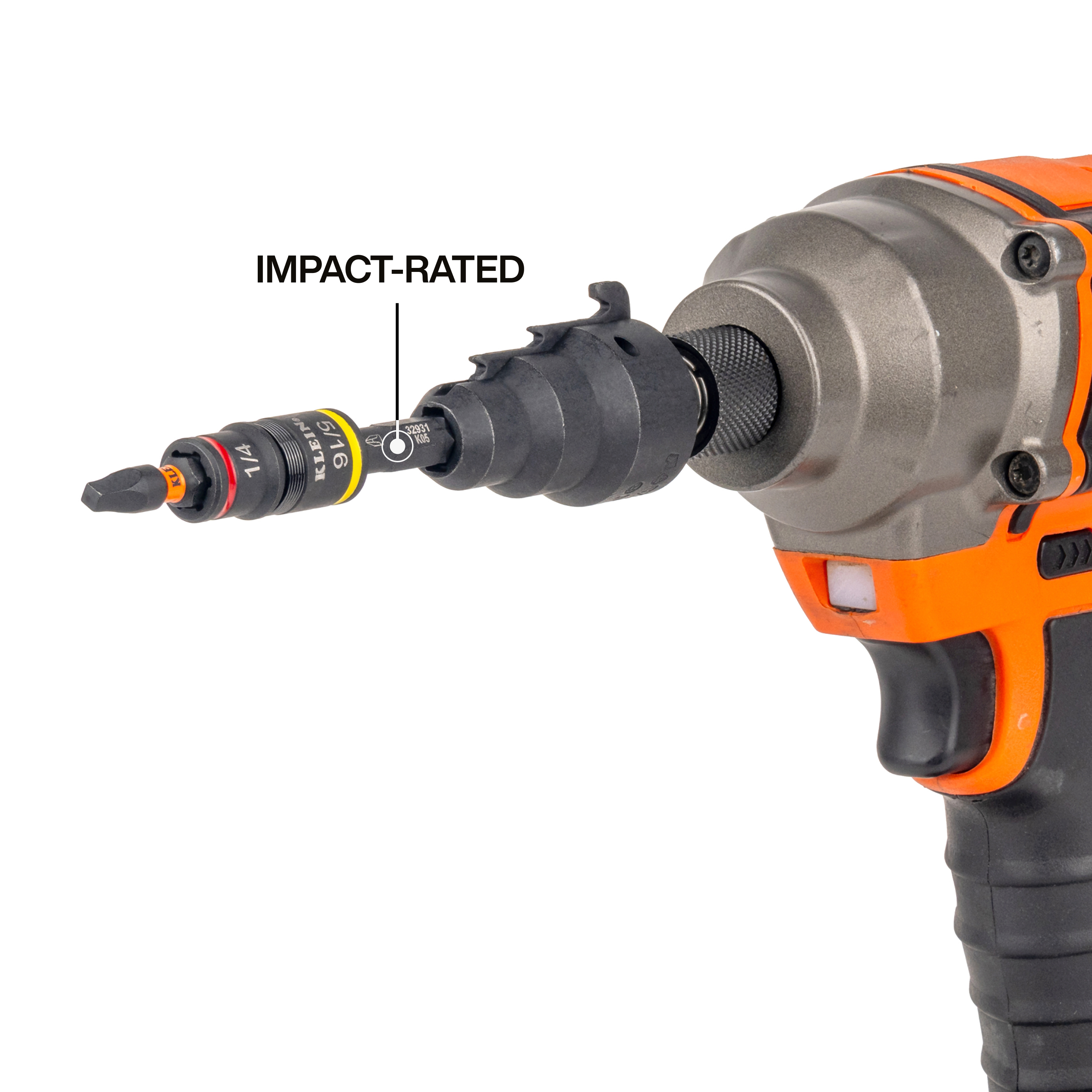

  • Impact-rated construction designed to withstand the high torque of impact drivers
  • Improved leaf spring design enhances shaft connection to provide a secure grip that won't fall out while remaining easy to insert and remove

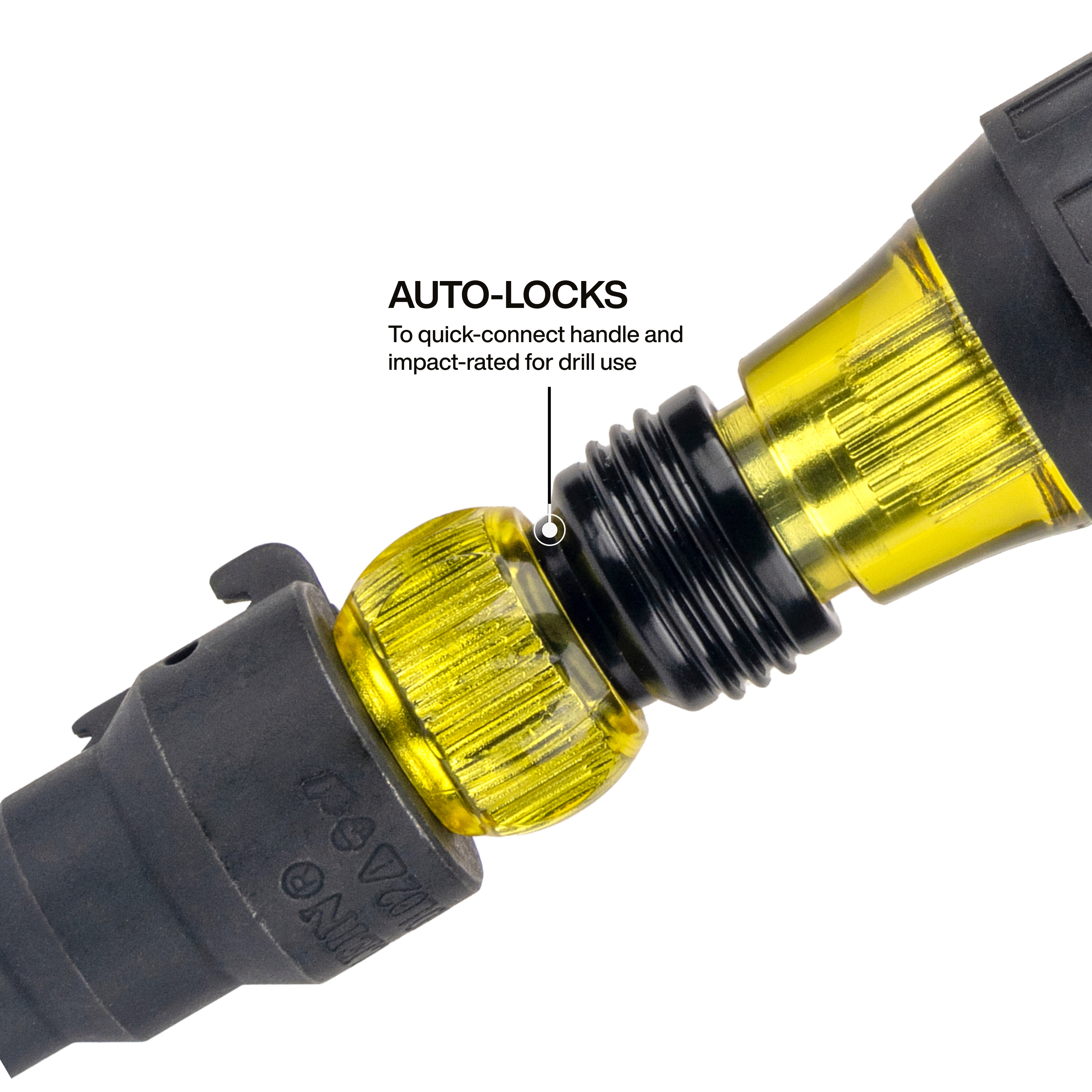

  • Automatically locks into quick-connect handle; pull collar back to release for secure, convenient operation
  • Replaceable reaming blade held with 1/16-Inch hex socket set screw; replacement blades (Cat. No. 9353) available
Downloads
Images
High-Res JPG 85191hd_photo.jpg

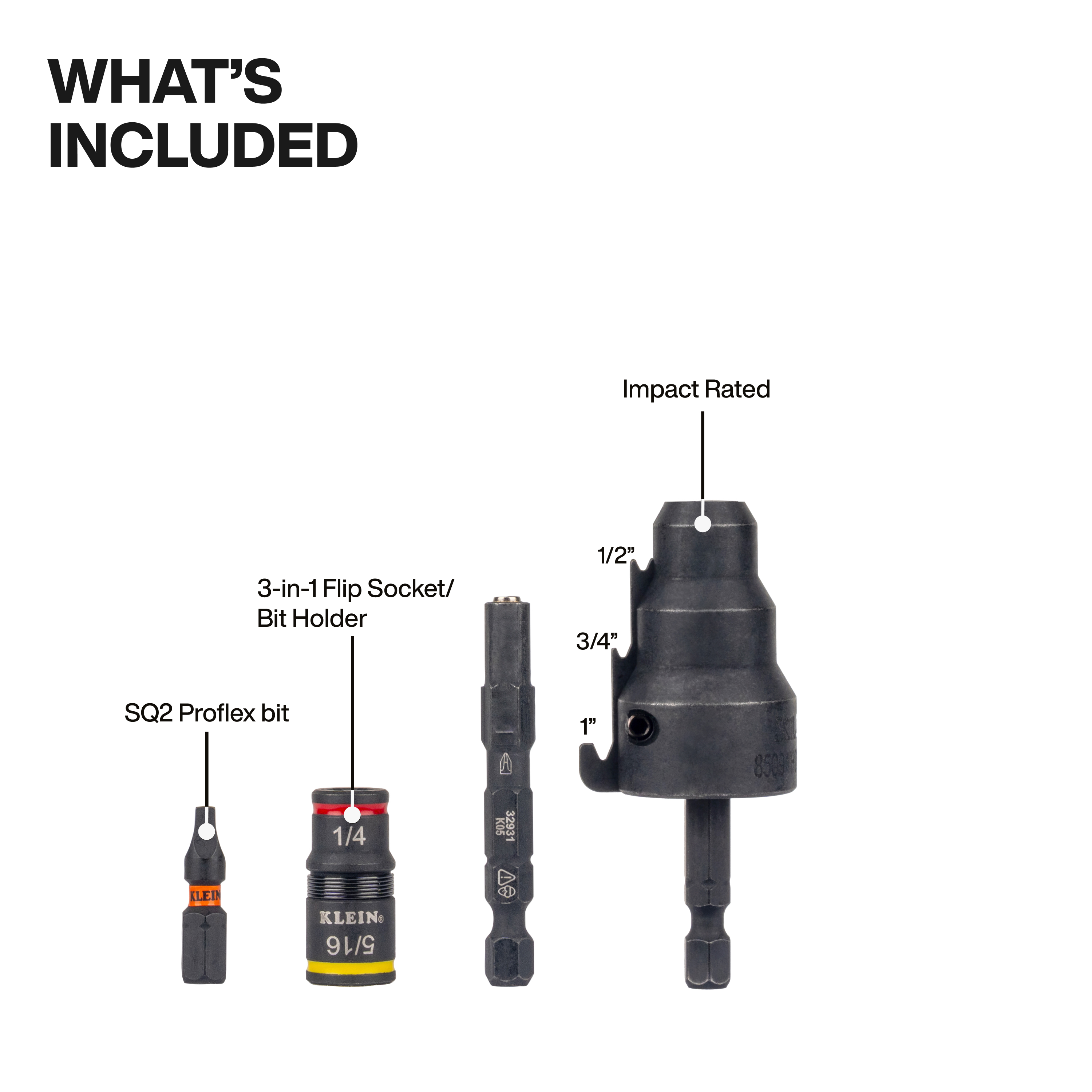

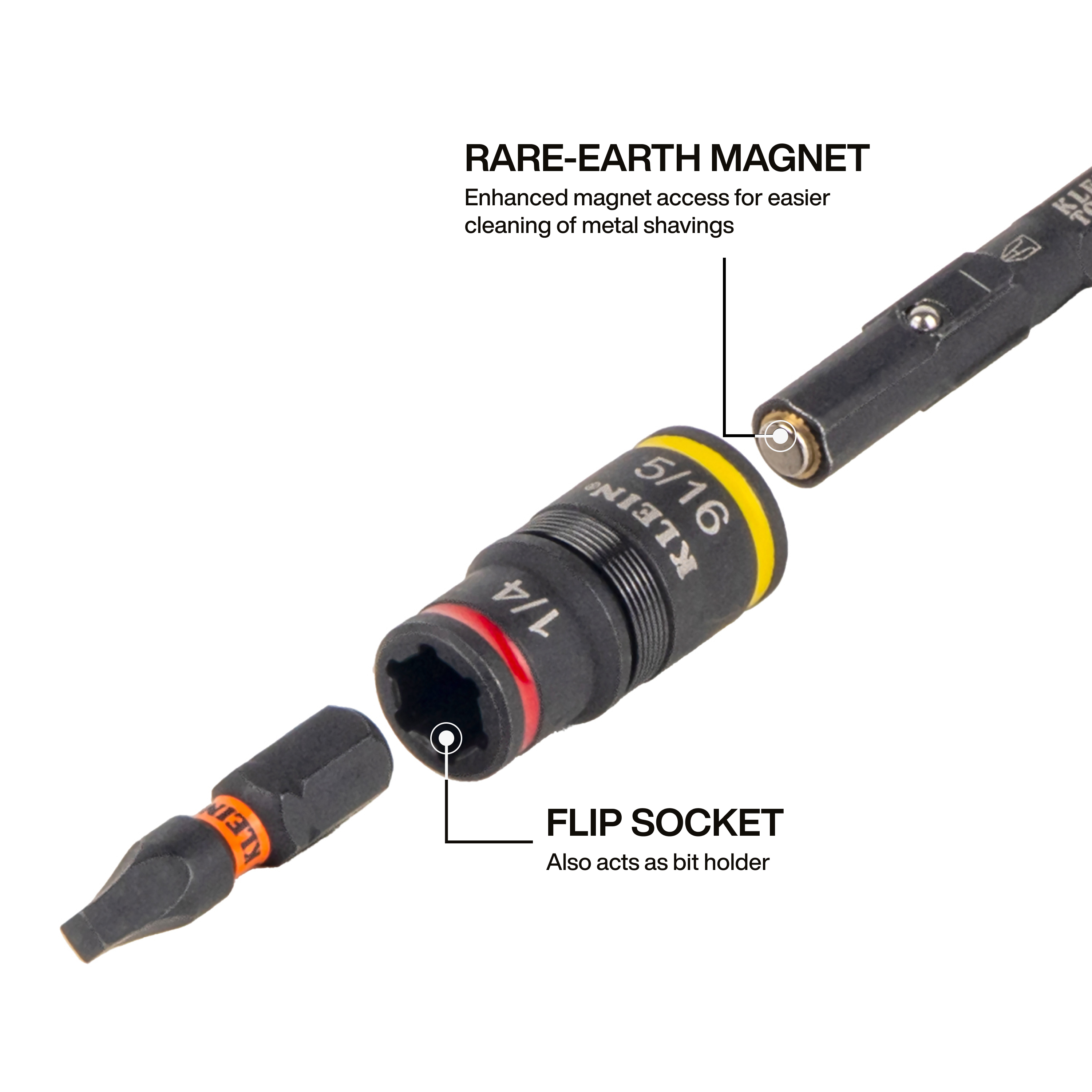

Klein Tools Cat. No. 85091HD Flip Socket Conduit Reamer reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit without requiring component removal. This tool features an improved leaf spring design that provides a secure grip, while the auto-lock mechanism securely connects to quick-connect handles, with a simple collar pull-back to release. The 3-in-1 flip socket functions as a magnetic bit holder, with enhanced design for easier cleaning of metal shavings.

Specifications
Application:
Electrical Metallic Tubing (EMT)
Special Features:
3-in-1 Flip Socket, SQ #2 Bit
Conduit Size:
1/2'', 3/4'', 1'' (1.3 cm, 1.9 cm, 2.5 cm)
Tip Size:
Square #2
Blade Material:
Steel
Blade Finish:
Black Oxide
Blade Length:
1.29'' (3.3 cm)
Blade Width:
0.03'' (0.08 cm)
Material:
Steel
Shank Length:
2.15'' (5.5 cm)
Overall Length:
5.22'' (13.3 cm)
Overall Height:
1'' (2.5 cm)
Overall Width:
1.2'' (3 cm)
Type:
Conduit Reamer Drill Head for 1/2'', 3/4'', 1''
Weight:
5.3 oz (150 g)
UPC:
092644851421
Additional Information
Warnings
  • Always wear approved eye protection.
  • Always wear gloves.
