Replacement Blades and Bit for Adjustable Hole Saw 53710

53701

  • Replacement blades and bit for the Adjustable Hole Saw with Auto-Set Arms (Cat. No. 53710)

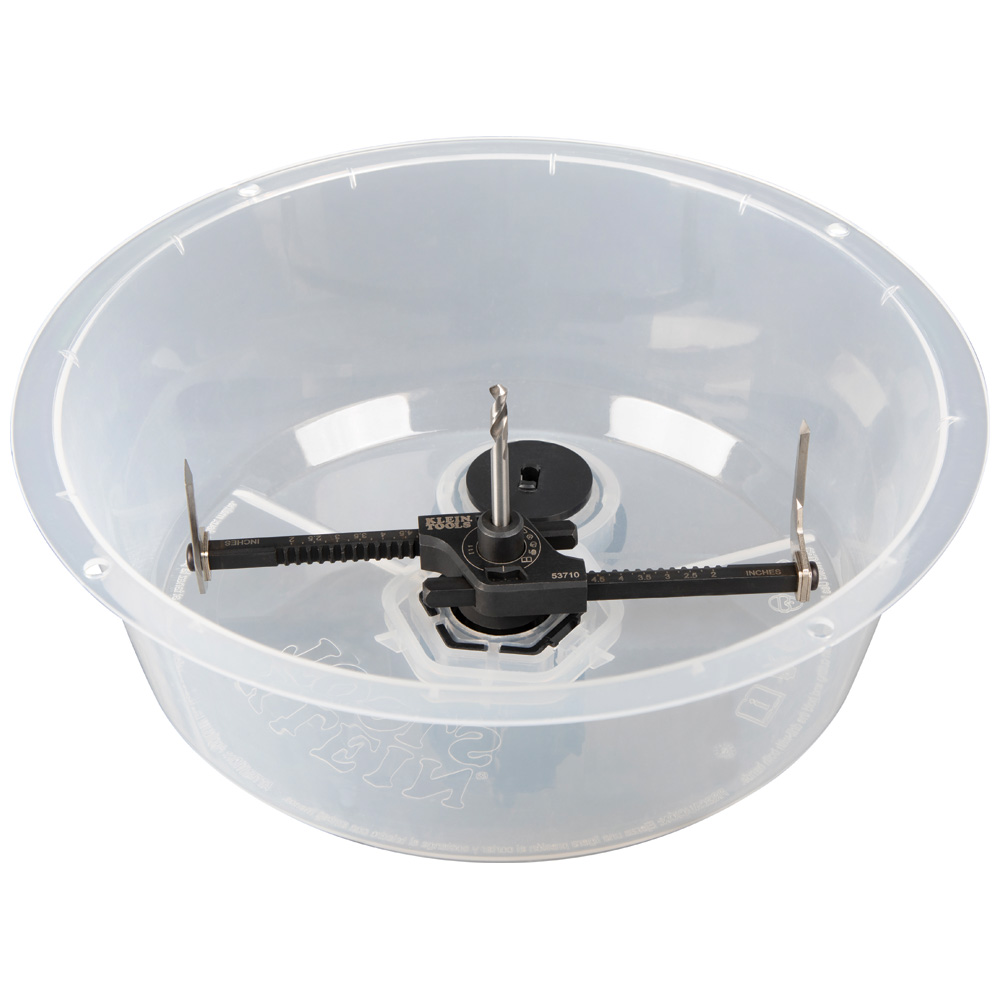

  • The Adjustable Hole Saw with Auto-Set Arms provides smooth cuts from 2 to 7-Inches (5.1 to 17.8 cm) in drywall and ceiling tile
  • Features integrated gears for easy blade adjustment and centered pilot bit
  • Replacement kit comes with 2 blades, 1 pilot bit, 2 hex keys, 4 washers, 2 end screws and 1 set screw

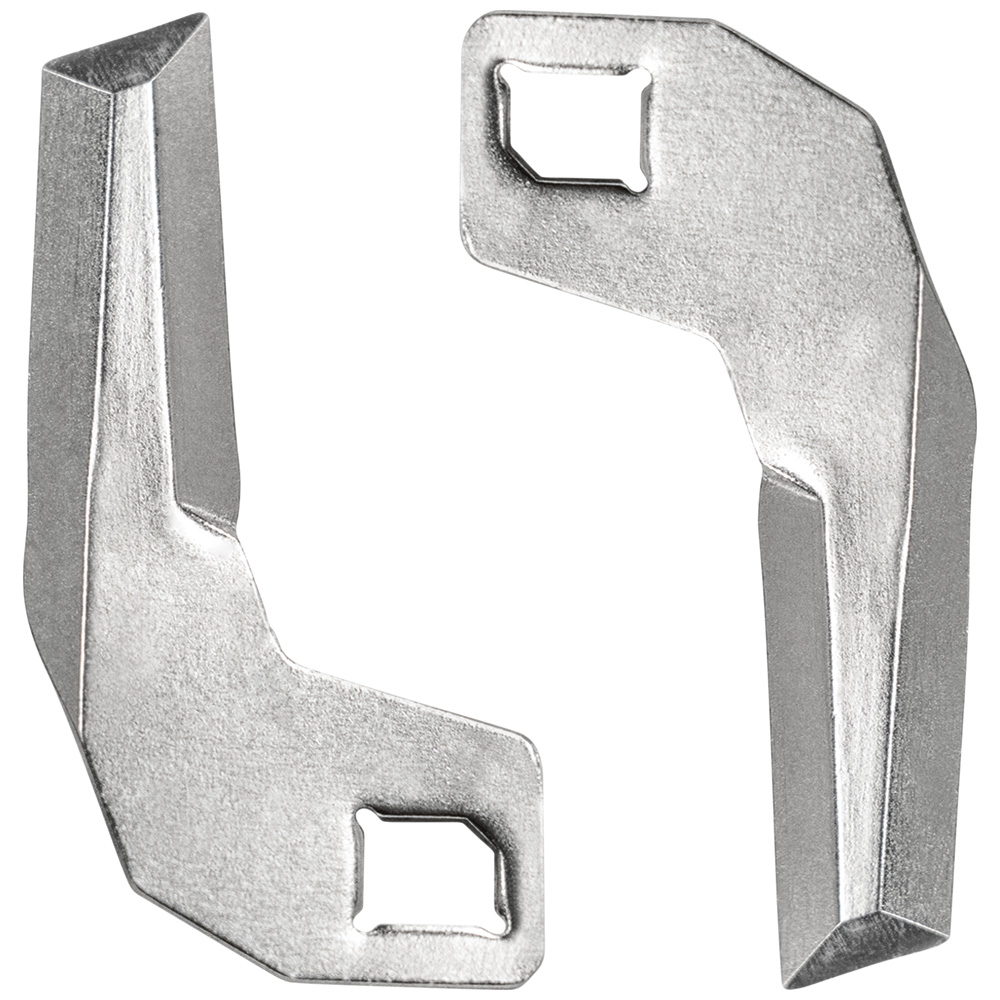

  • Using the large hex key, remove and replace end screw, washers, and blade

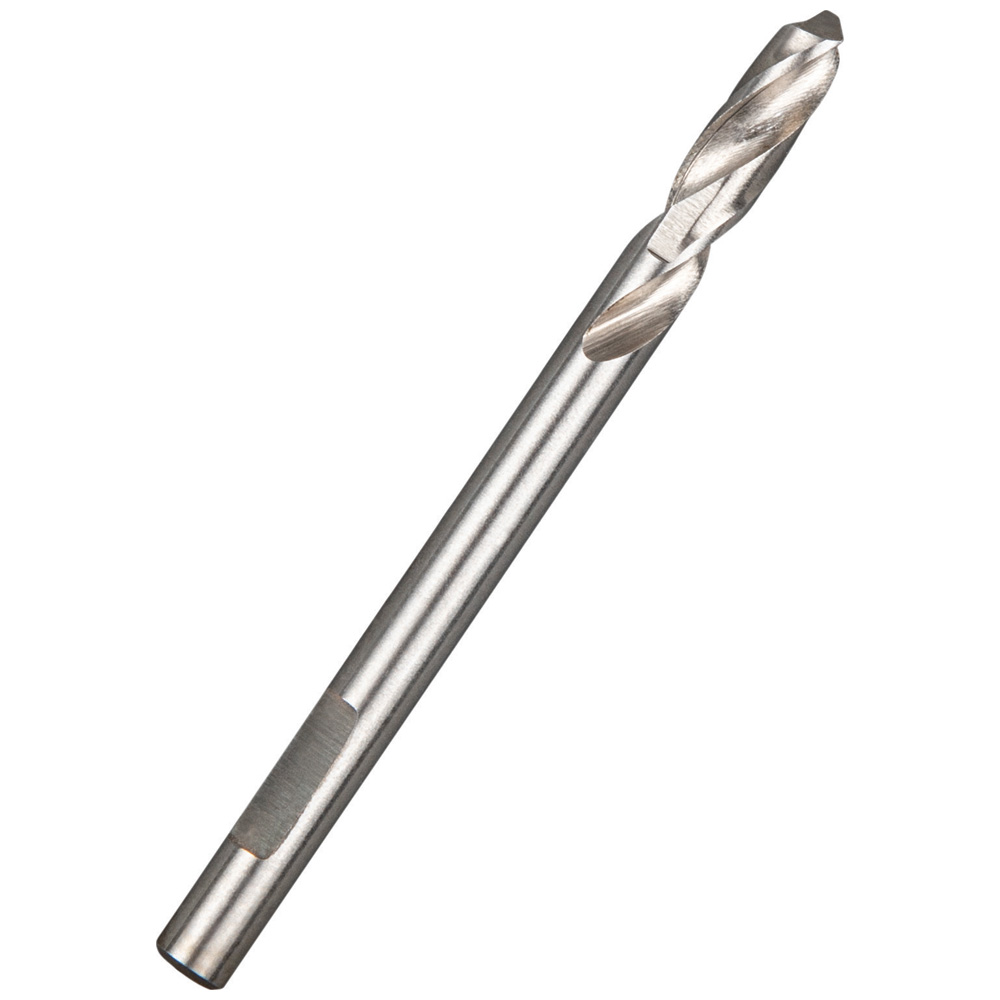

  • Using the small hex key, remove and replace pilot bit set screw and pilot bit
  • After replacing, ensure all screws are fully seated and snug-tight before using the Adjustable Hole Saw with Auto-Set Arms to cut drywall or ceiling tile
Videos
Downloads
Images
High-Res JPG 53701_photo_b.jpg

The Replacement Blades and Bit for the Adjustable Hole Saw with Auto-Set Arms (Cat. No. 53710) come with all the necessary components, including 2 Blades, 1 pilot bit, 2 hex keys, 4 washers, 2 end screws, and 1 set screw. These replacements allow for smooth cuts ranging from 2 to 7-Inch (5.1 to 17.8 cm) in drywall and ceiling tile. The integrated gearing mechanism of the Adjustable Hole Saw with Auto-Set Arms ensures easy adjustment in 1/4-Inch (0.6 cm) increments and keeps the pilot bit consistently centered for precise cutting.

Specifications
Type:
Replacement Parts
Application:
Replacement Blades, Pilot Bit, Hex Keys, and Hardware
Special Features:
Integrated Gears
Overall Length:
1'' (2.5 cm)
Overall Height:
2.52'' (6.4 cm)
Overall Width:
0.19'' (0.5 cm)
Material:
Steel
Size:
3/16''
Tip Type:
Regular-Point
Shaft Length:
1.56'' (4 cm)
For Use With:
53710 Adjustable Hole Saw with Auto-Set Arms
Includes:
(2) Blades, (1) Pilot Bit, (2) Hex Keys, ( 4) Washers, (2) End Screws, (1) Set Screw
Weight:
1.1 oz (31.2 g)
UPC:
092644310065
Additional Information
Warnings
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • Always wear approved respiratory protection.
  • Read and follow safety instructions in power tool owners manual.
  • Use light pressure when cutting and hold the drill with both hands.
