Klein Tools - For Professionals Since 1857

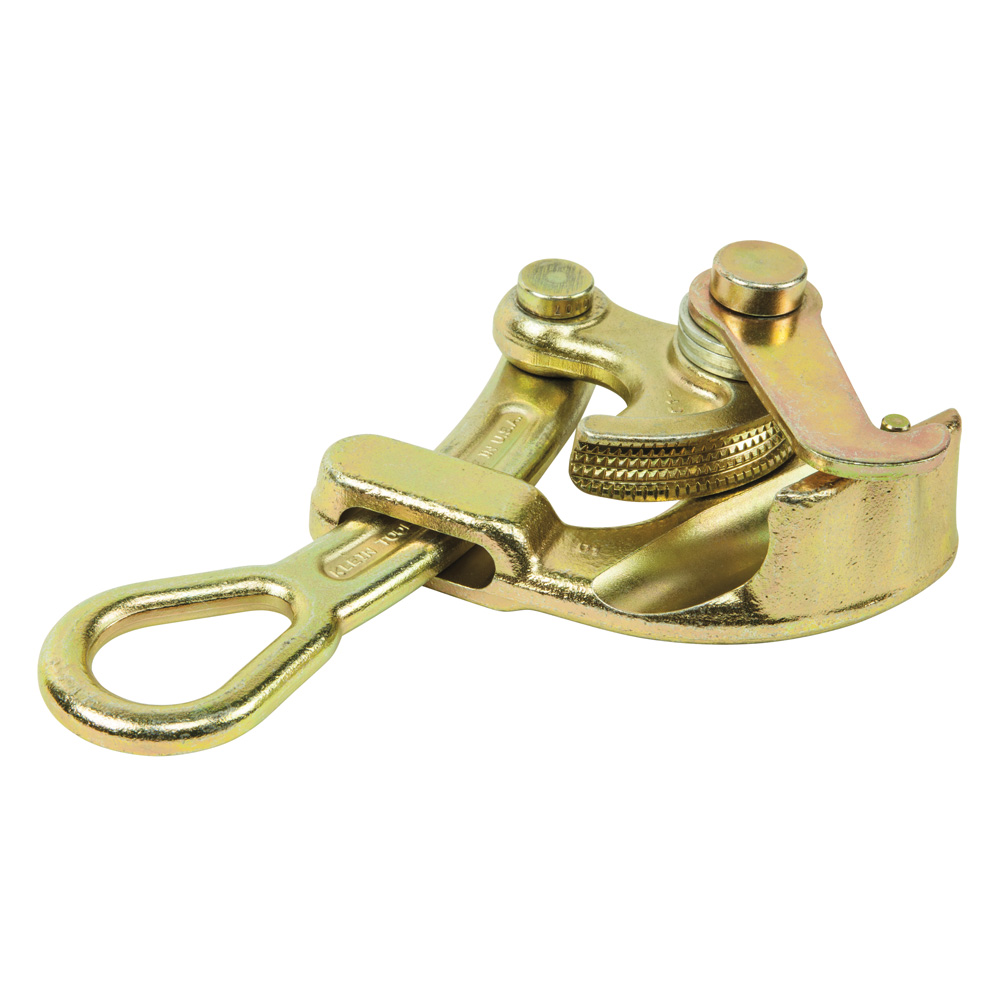

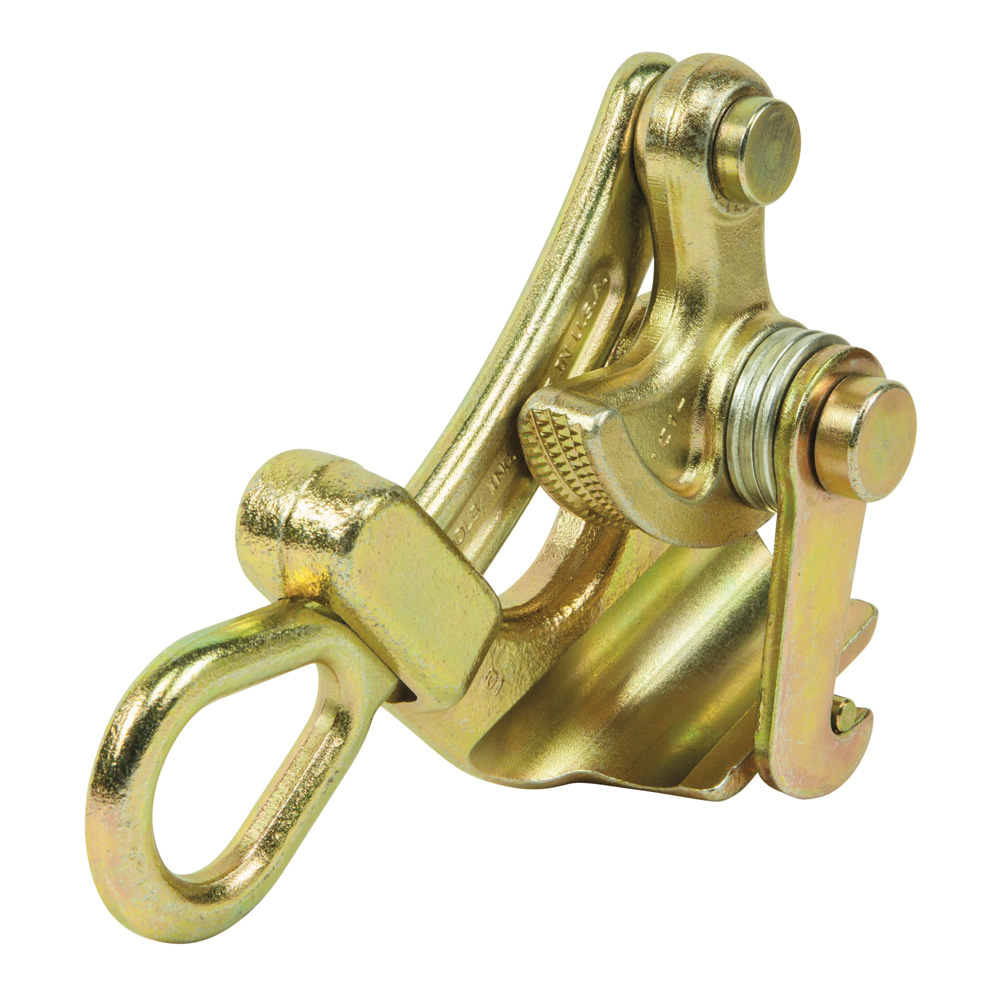

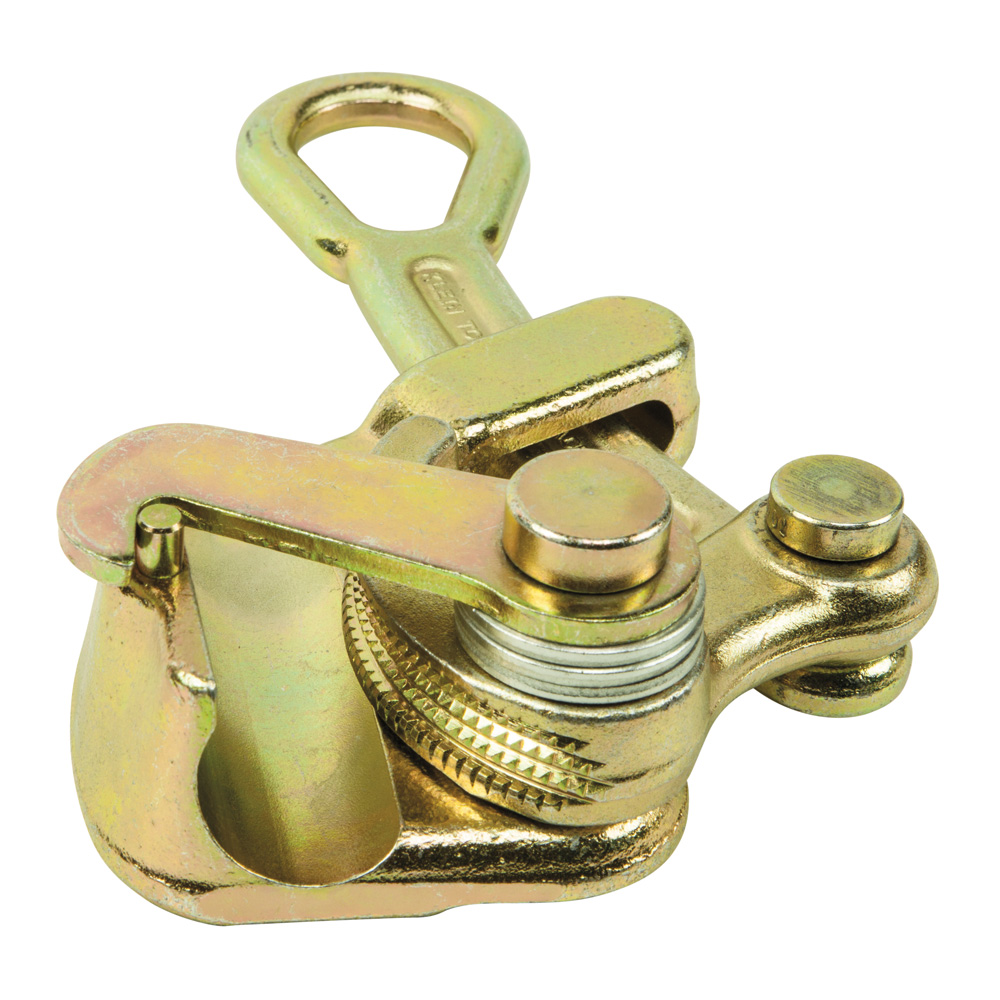

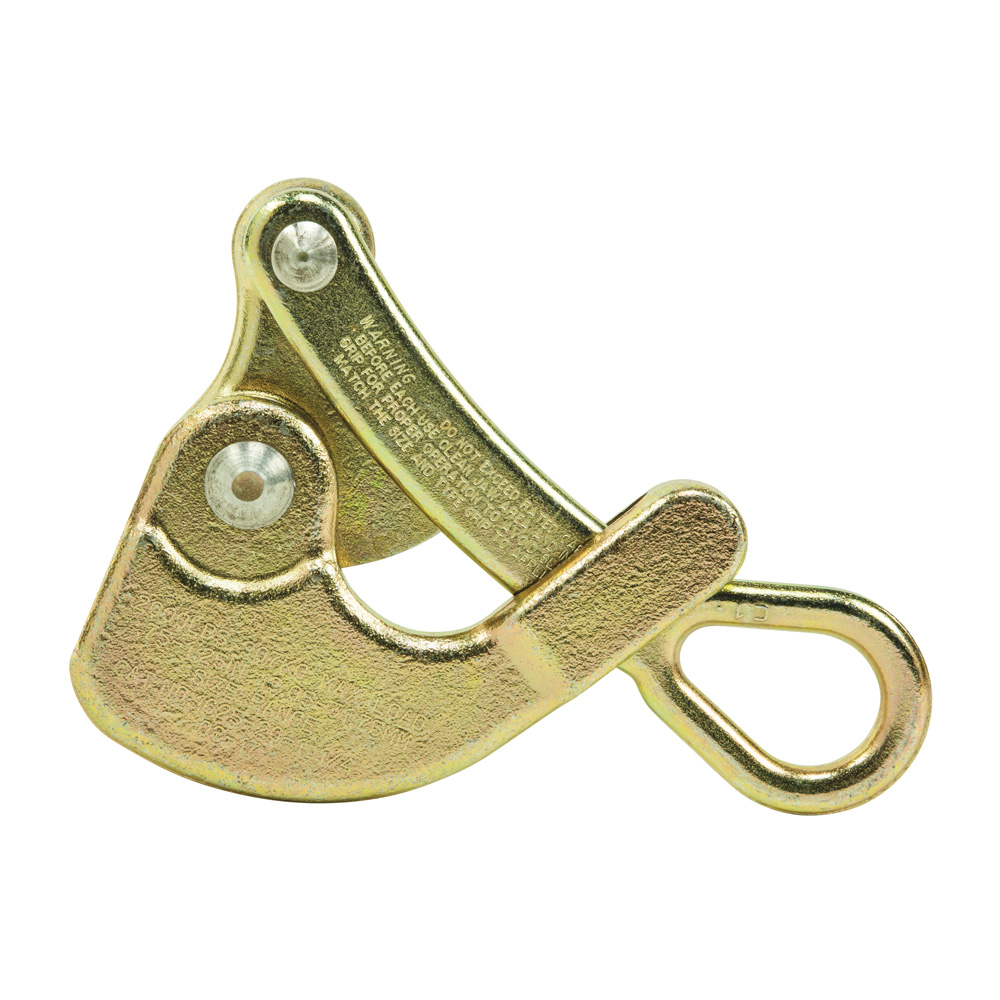

Haven's® Grip Wire Pulling Tool, 1-1/4-Inch

162520-114

  • Ideal for light, compact grip work where conductor damage is not a factor
  • Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range with 2000-Pound (907 kg) maximum safe load
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.4 mm) cable area
  • Swing latch helps hold cable in the jaw
  • Made in USA
  • Made from extremely durable forged and heat treated steel
  • Every grip is inspected by hand and actuated to insure proper function
MADE-USA-EN Product Icon
Video
Images
JPG (High Resolution) 162520114_photo.jpg
PNG (Transparent Background) 162520114.png
Interactive Catalog

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Specifications
Type:
Haven's Grip
Application:
Wire Pulling
Overall Length:
6.86'' (16.9 cm)
Overall Height:
2.20'' (5.6 cm)
Overall Width:
4.05'' (10.3 cm)
Cable Type:
Wire Rope
Cable Diameter:
0.75'' to 1.25'' (1.90 to 3.17 cm)
Hot Latch:
N
Swing Latch:
Y
Spring:
N
Locking Handle:
N
Jaw Type:
Aggressive
Maximum Safe Load:
2000 lb (907 kg)
Weight:
3.7 lb (1.7 kg)
UPC:
092644471988
Additional Information
WF_GRIPS-AGGRESSIVE-JAW Feature Icon
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
