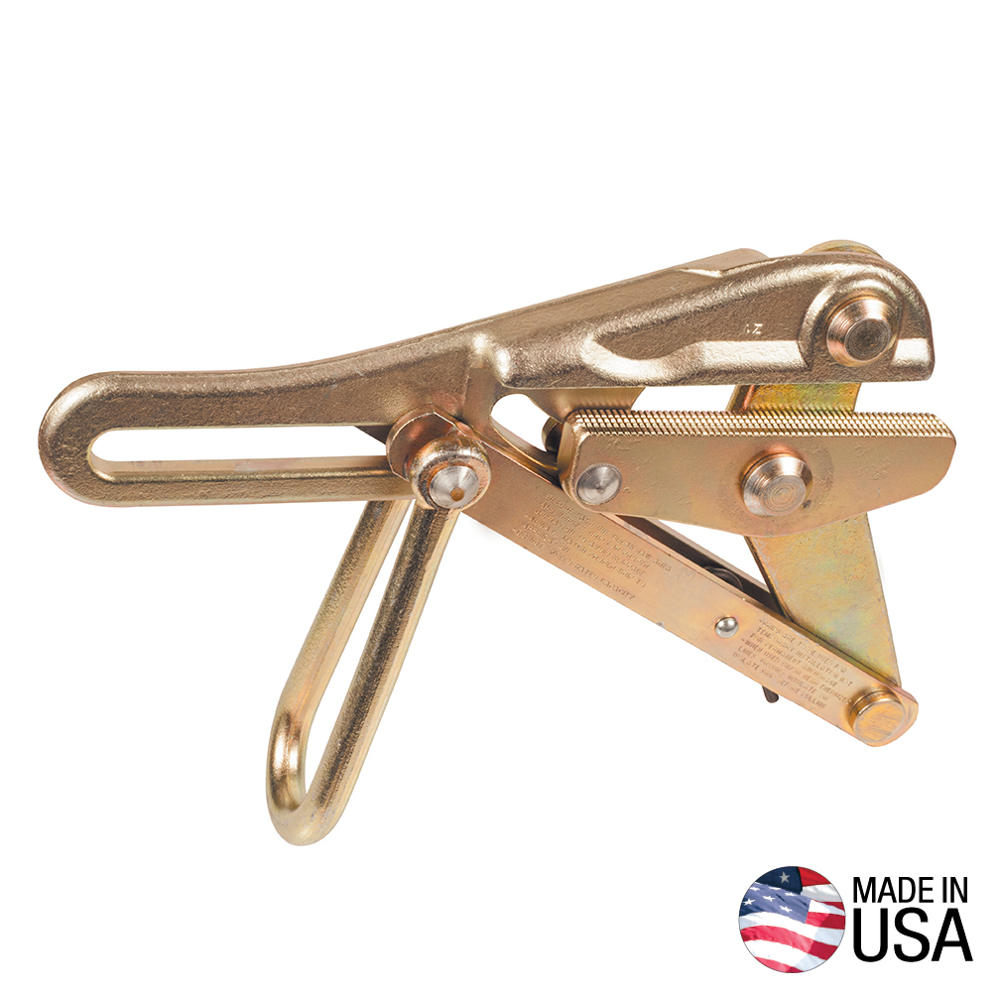

Chicago® Grip Coated Guy Wire

16845C

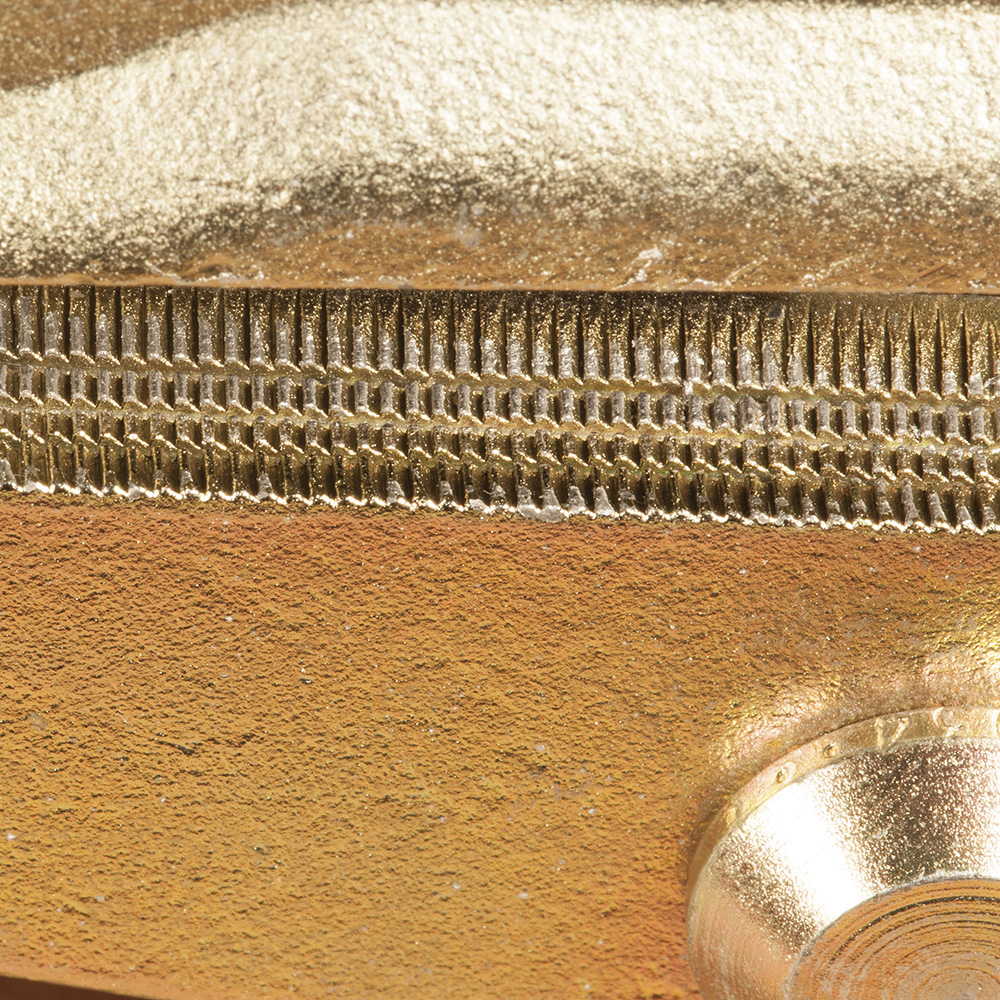

  • Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
  • 5'' jaw length increases surface area contact with the cable, minimizing cable damage
  • Designed for cable sizes 0.218-Inch to 0.55-Inch (5.54 mm to 13.97 mm)
  • Manufactured from drop-forged, heat-treated steel for excellent durability with a spring that closes grip on cable helping to maintain initial position
  • Made in USA
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Maximum Safe Load is 8000-Pound (3629 kg)
Videos
Images
High-Res JPG 16845c_photo.jpg
Interactive Catalog

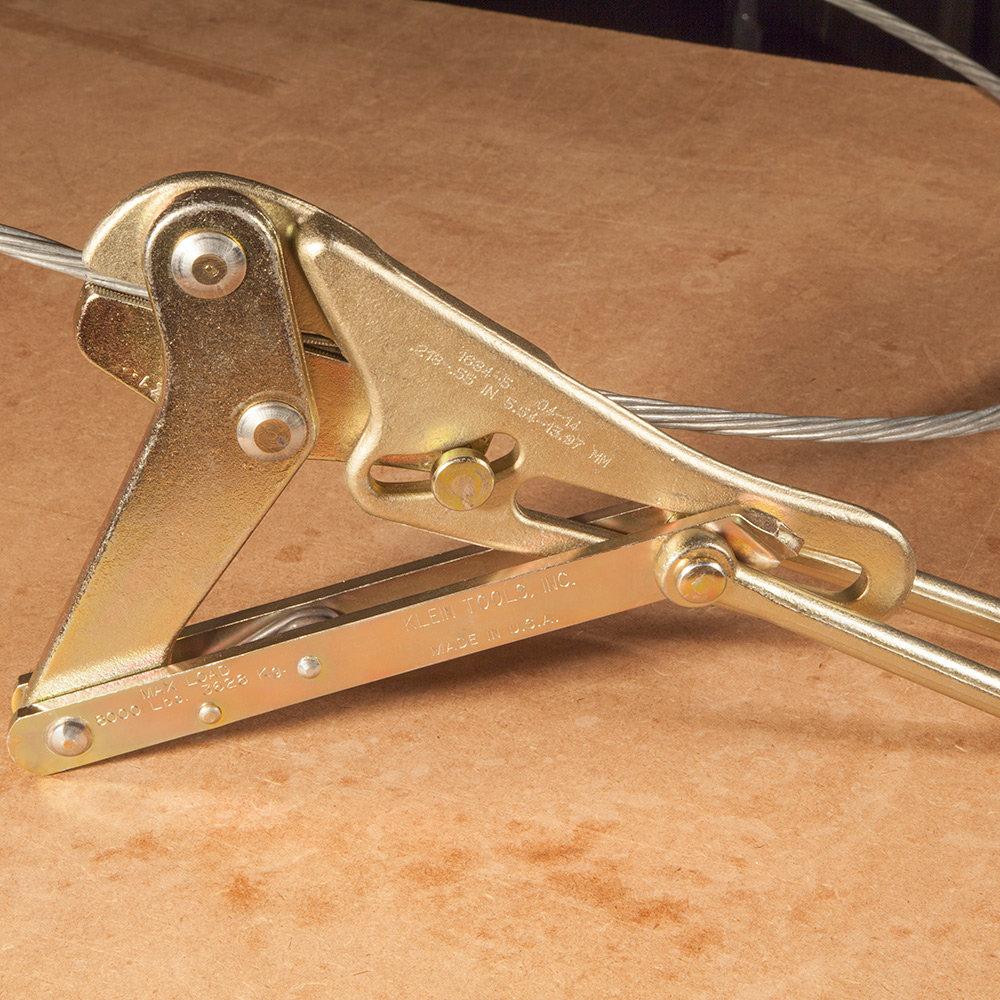

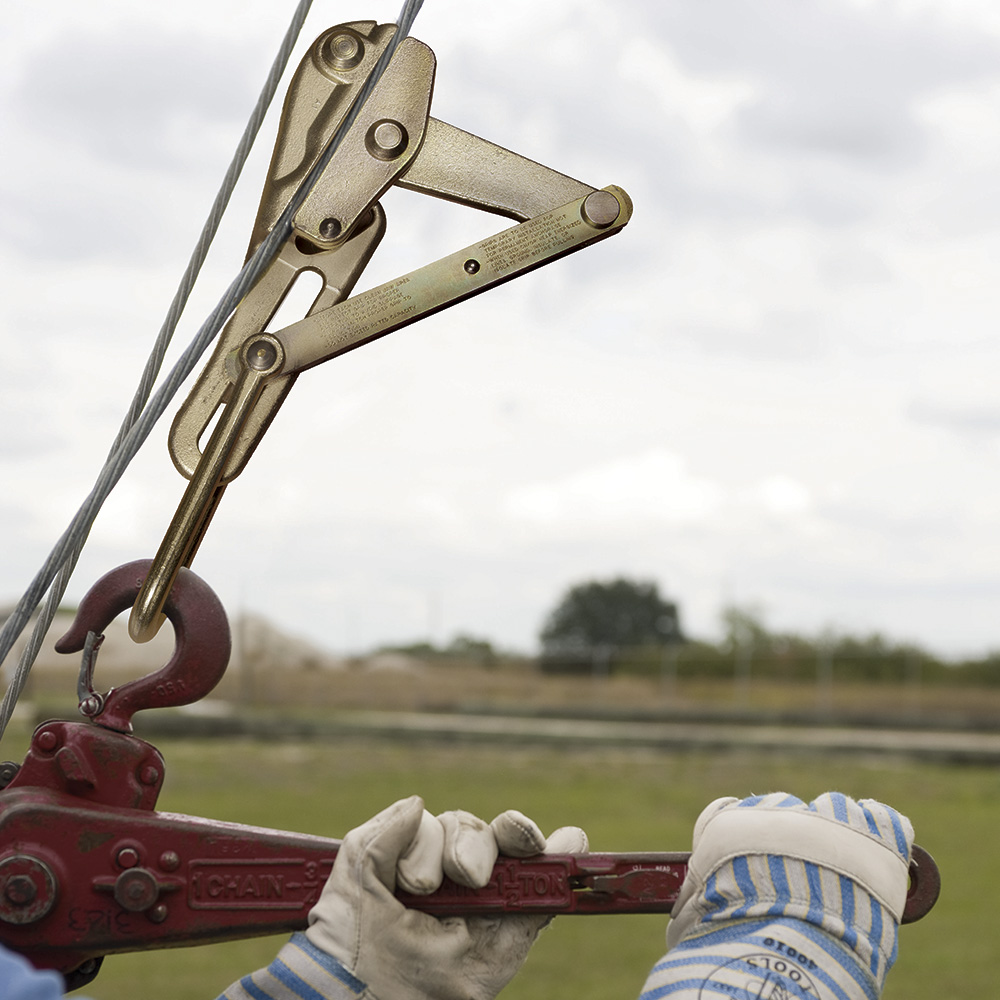

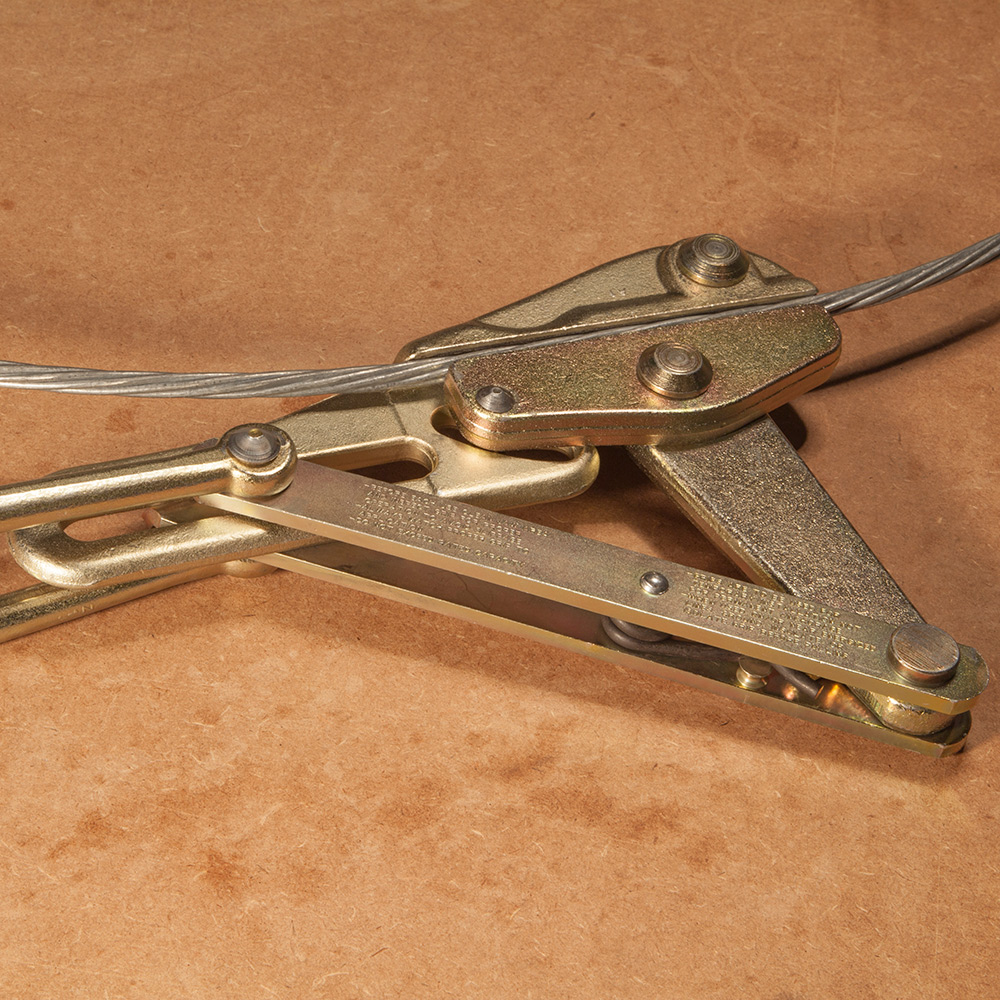

This Chicago Grip is designed specifically to work with coated guy wire. This authentic Klein Grip is manufactured, inspected and tested in the USA. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability.

Specifications
Type:
Chicago Grip
Application:
Wire Pulling
Special Features:
Sawtooth Jaw Profile Resists Build-up
Overall Length:
13.3'' (33.8 cm)
Overall Height:
2.5'' (6.4 cm)
Overall Width:
7.6'' (19.3 cm)
Material:
Alloy Steel
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218'' to 0.55'' (5.54 to 13.97 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Aggressive
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
6.0 lb (2.7 kg)
UPC:
092644479458
Additional Information
Feature Icon klein/wf_grips-aggressive-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
