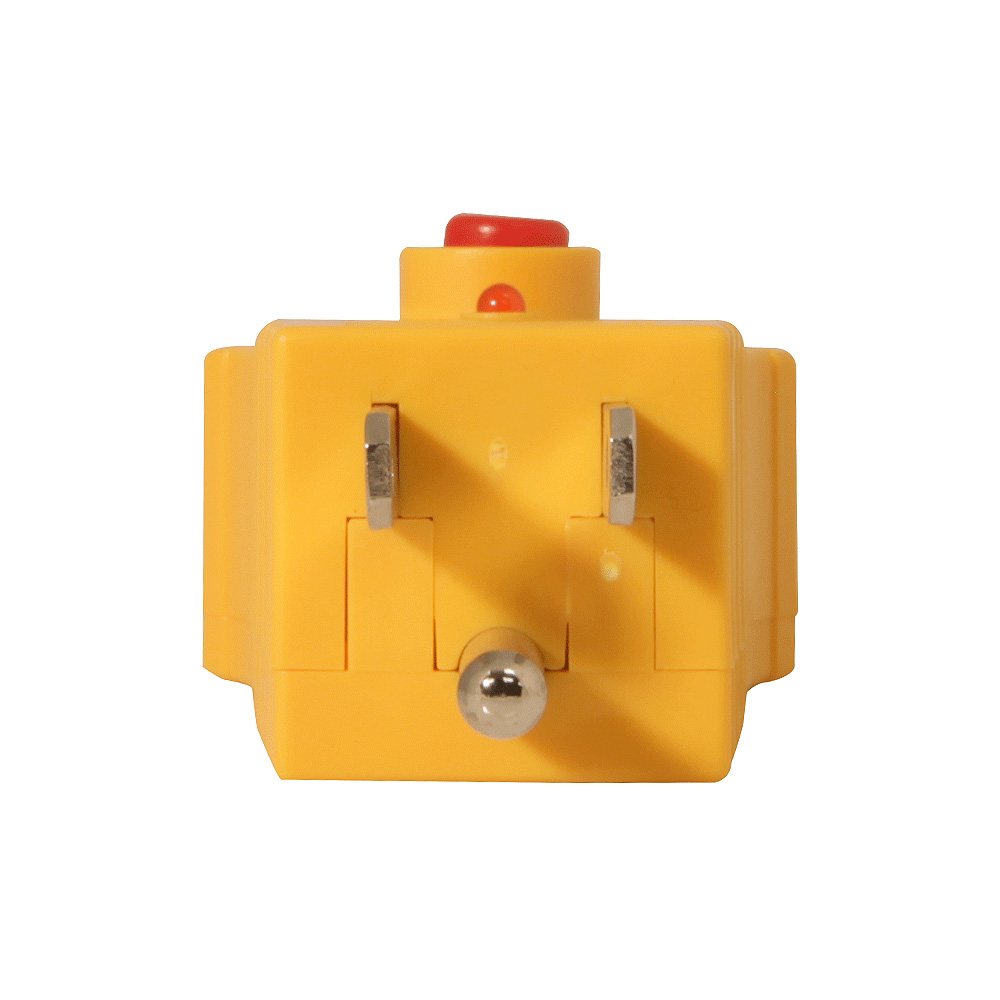

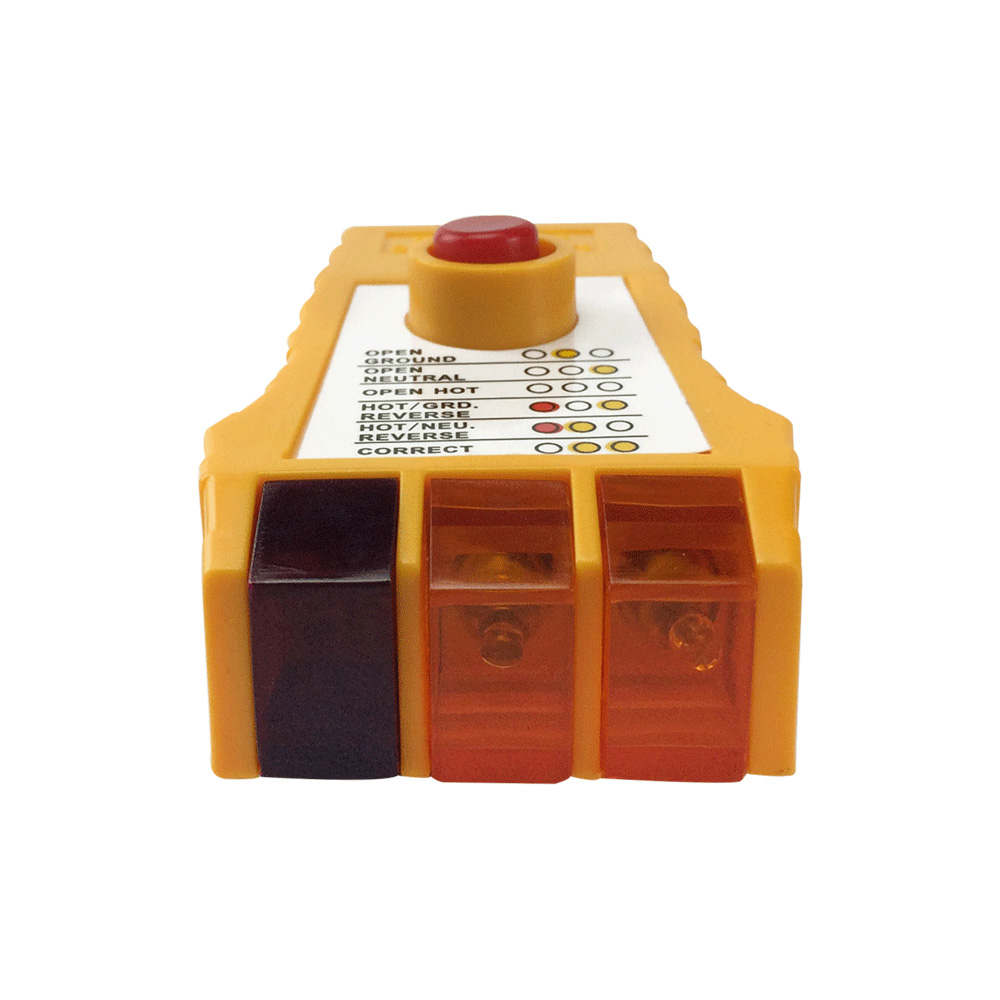

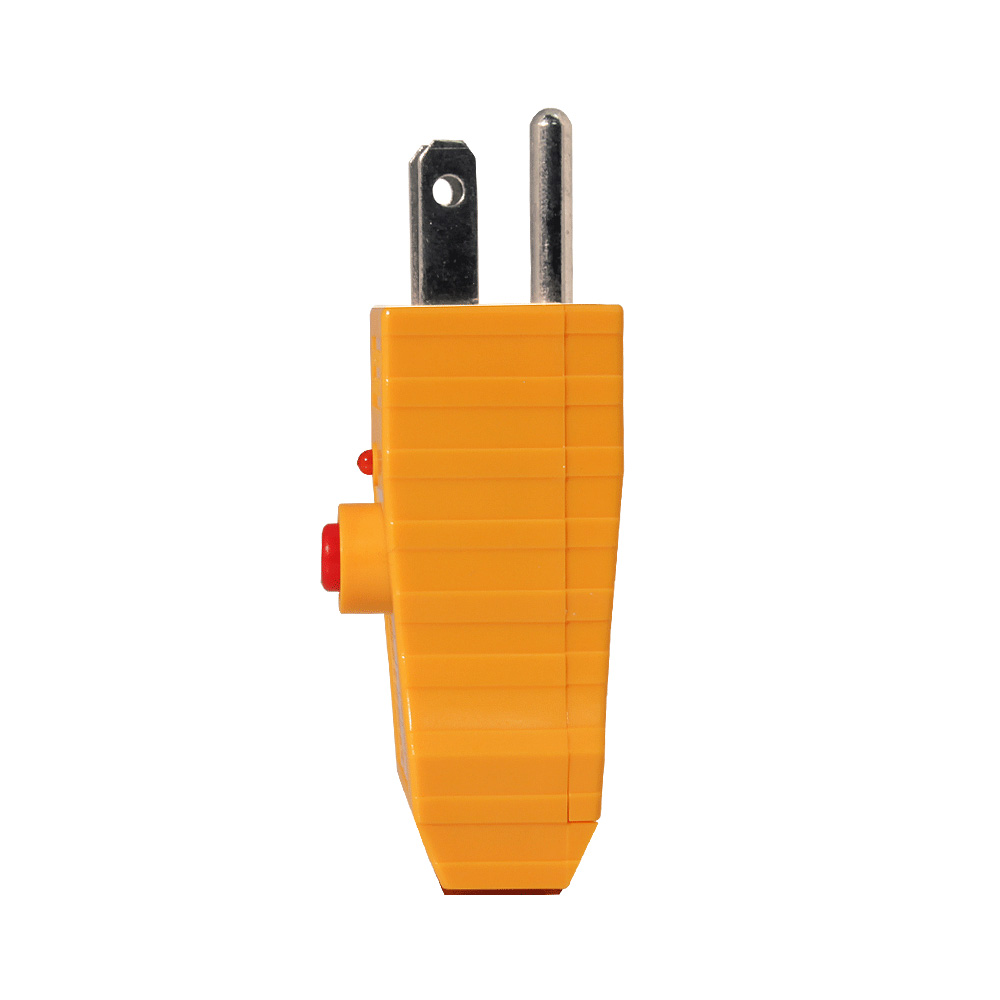

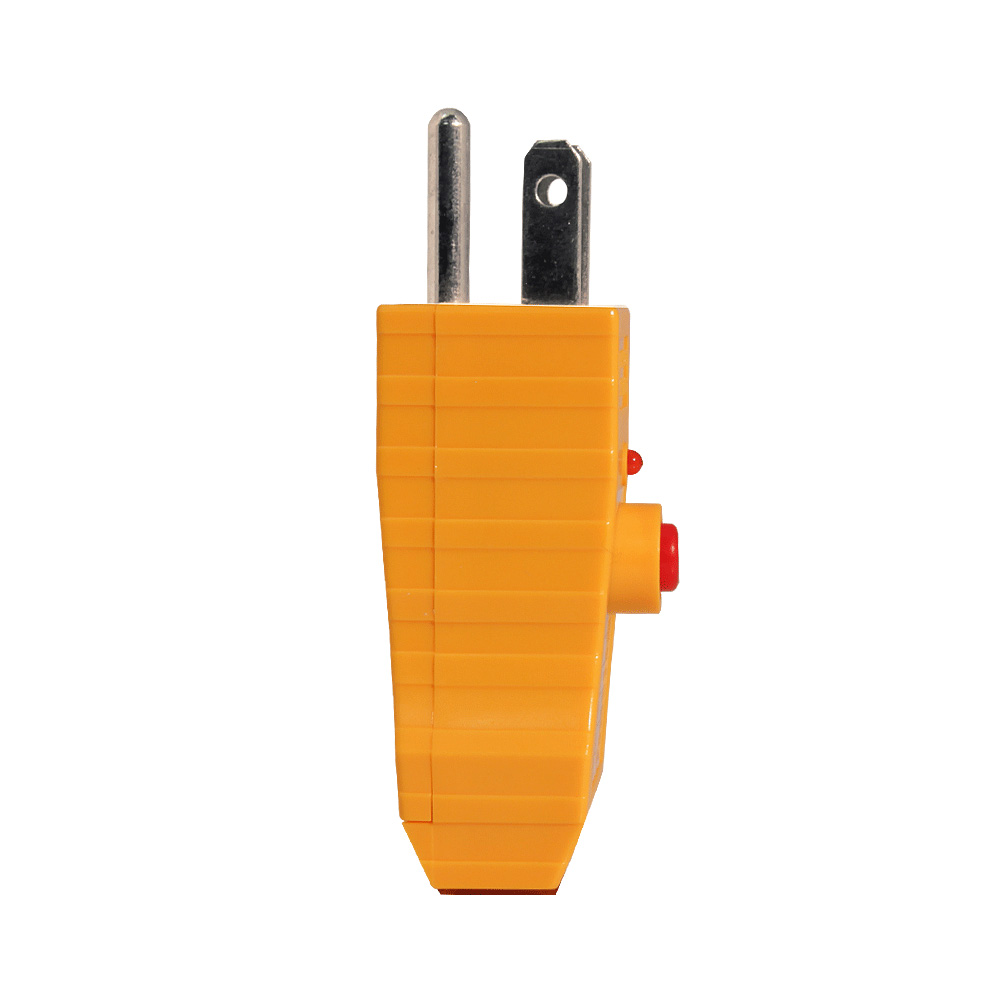

GFCI Receptacle Tester
RT210
- Detects the most common wiring problems in standard and GFCI receptacles
- Works on GFI outlets and confirms operation of the ground fault protective device
- Conforms to UL Std 1436, Certified to CSA Std C22.2 #160
- Built to withstand a 6.6-foot (2m) drop
- Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
- Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet

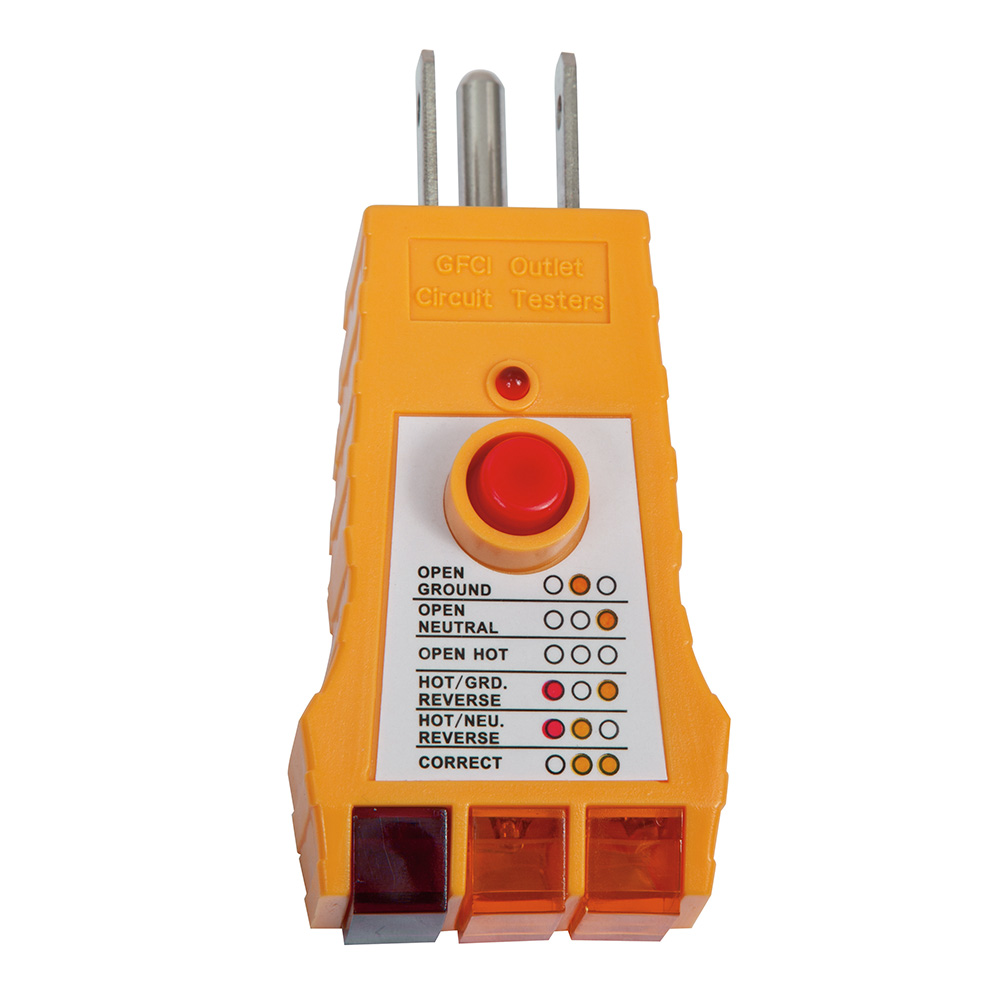

Klein Tools Receptacle Testers are designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot/ground reversed.
Specifications
Type:
GFCI and Standard Receptacle Tester
Application:
Determine Wiring Condition in Outlet
Special Features:
Convenient Chart on the Tester
Drop Protection:
6.6 ft (2 m)
GFCI:
Yes
Voltage:
110/125V AC at 50/60Hz in. 3-Wire Outlet
Overall Length:
1.62'' (41.3 mm)
Overall Height:
2.88'' (73.0 mm)
Overall Width:
1.88'' (47.6 mm)
Weight:
0.12 lb (0.06 kg)
UPC:
092644690273
