Klein Tools - For Professionals Since 1857

1/2-inch Iron Conduit Bender Head

51608

  • 1/2-Inch Iron Bender Head made of heavy duty cast ductile iron is designed for 1/2-Inch EMT

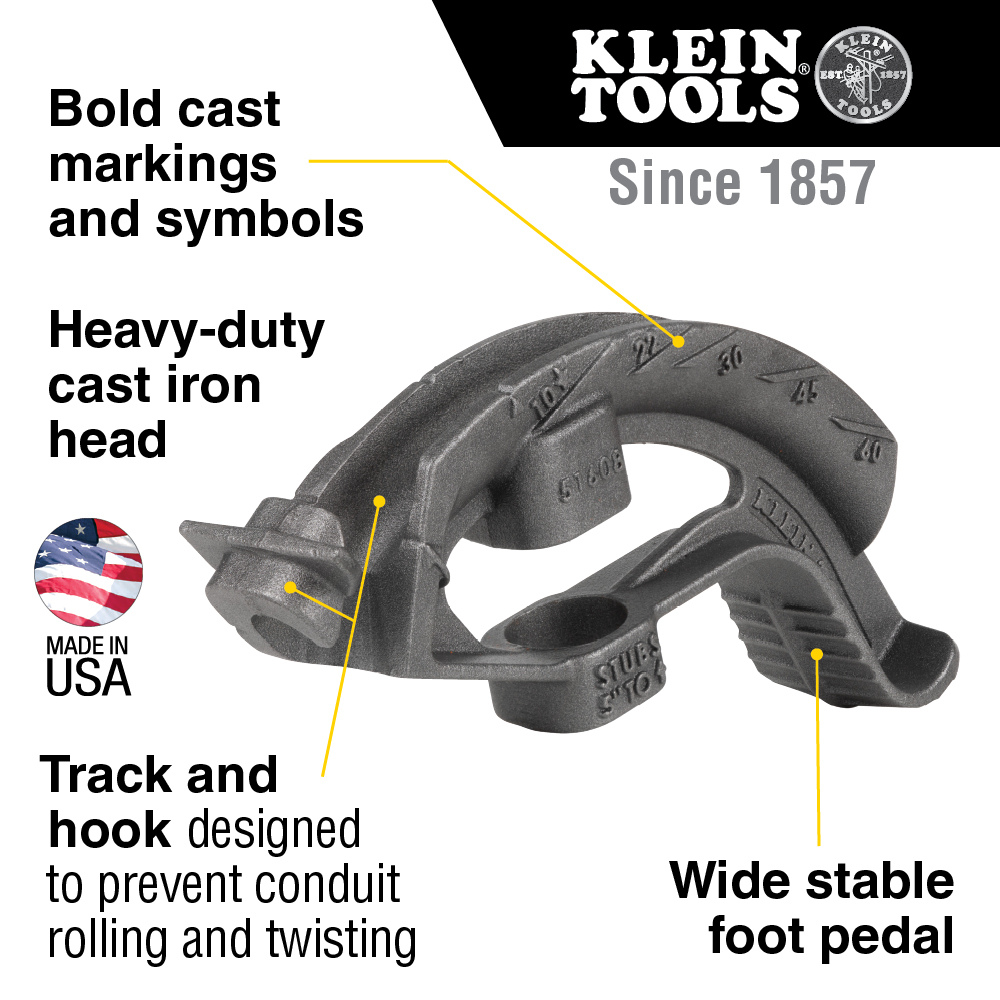

  • Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
  • Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
  • Compatible with Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends (Patent pending Angle Setter™ Cat. No. 51611) and works with Klein Tools' bender handle Cat. No. 51427 (sold separately)
  • Made in USA
  • Wide foot pedal provides excellent stability, leverage, and comfort
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Advanced casting process for ultimate core strength
Videos
Images
JPG (High Resolution) 51608_photo.jpg
PNG (Transparent Background) 51608.png
Interactive Catalog

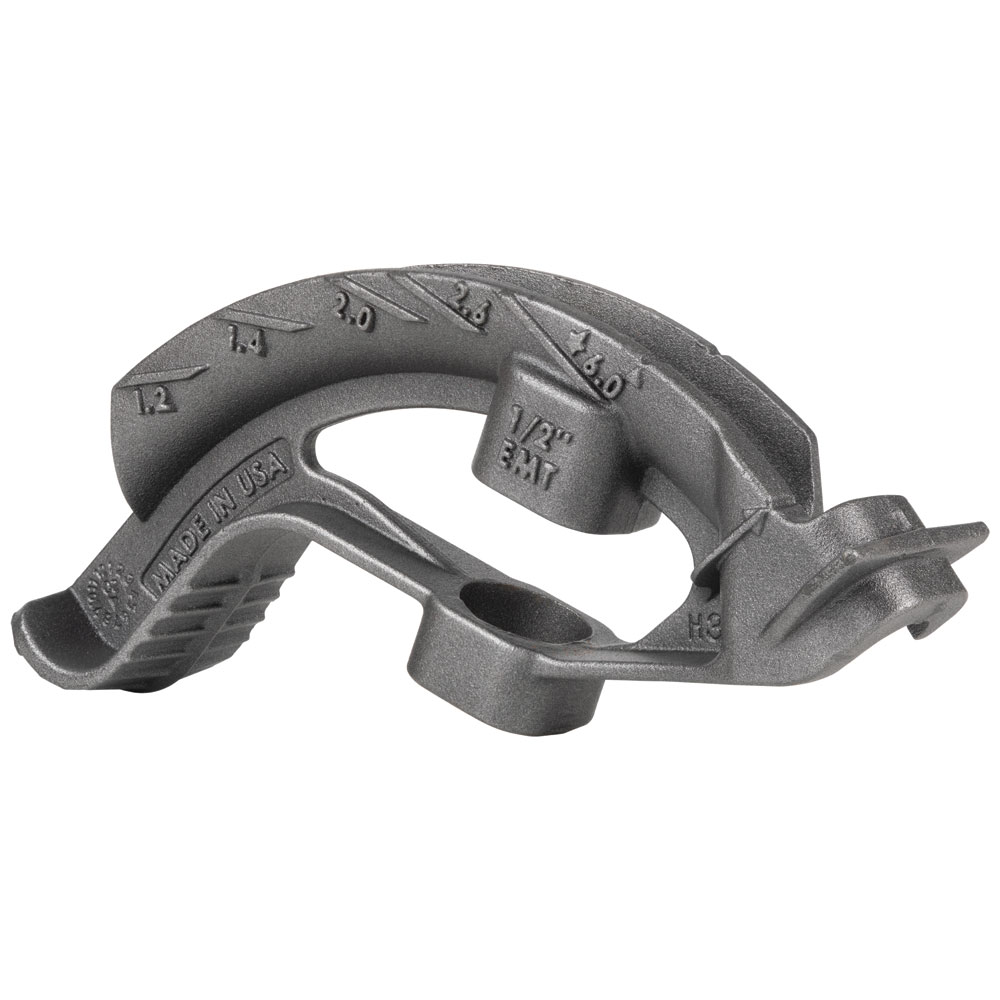

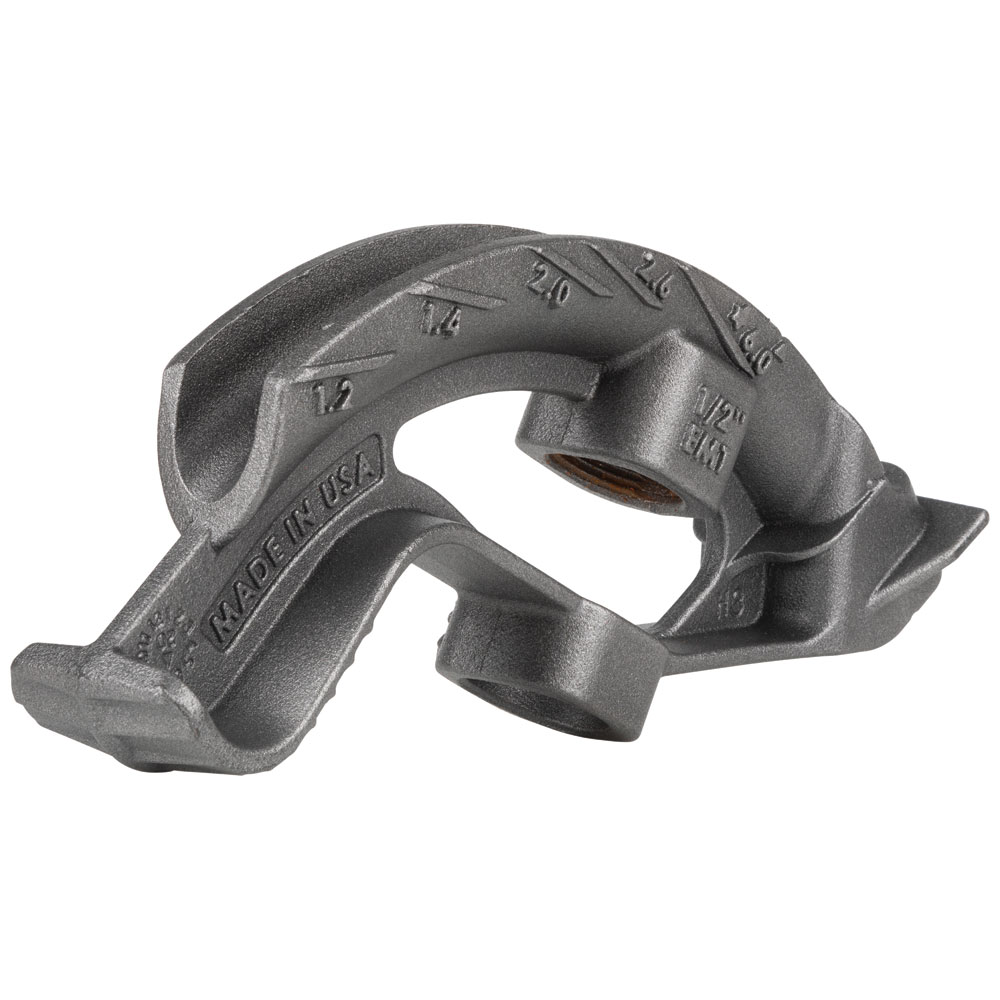

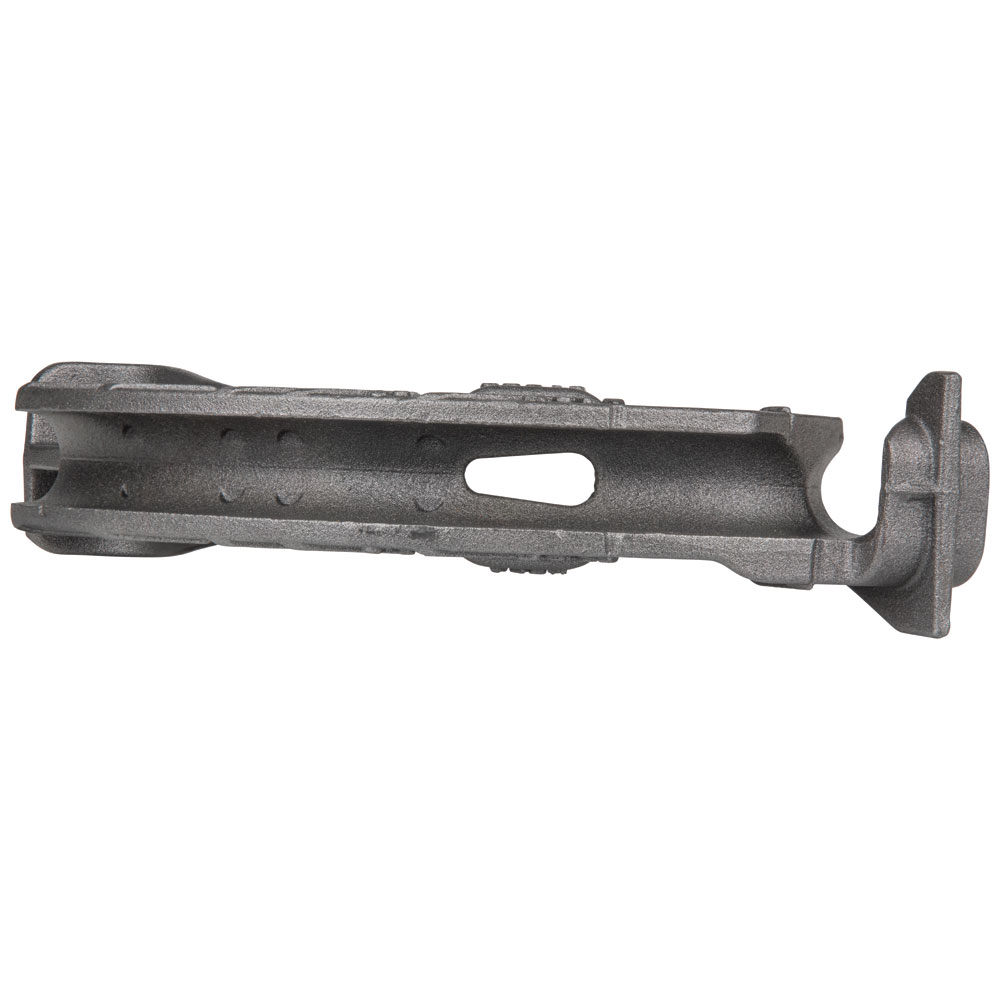

Klein Tools Conduit Bender Head is designed to handle thin wall EMT up to 1/2-Inch. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters™ (Cat. No. 51611) for quick, repeated bends and the Klein Handle (Cat. No. 51427), which are both sold separately.

Specifications
Type:
Iron Bender Head
Application:
Conduit Bending
Special Features:
Bold, Cast Markings, Compatible with Angle Setter™
Overall Length:
1.7'' (4.4 cm)
Overall Height:
5.2'' (13.1 cm)
Overall Width:
8.1'' (20.6 cm)
Material:
Iron
Centerline Bend Radius:
4''- Stub-up Height 5'', Centerline Radius 4-5/8''
Thinwall/EMT:
1/2'' (1.3 cm)
Conduit Size:
1/2''
Marking:
10°, 22º, 30°, 45°, 60°
For Use With:
Angle Setter™ Cat. No. 51611
Weight:
2.2 lb (1.0 kg)
UPC:
092644516085
Additional Information
MADE-USA-EN Feature Icon
Warnings
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
