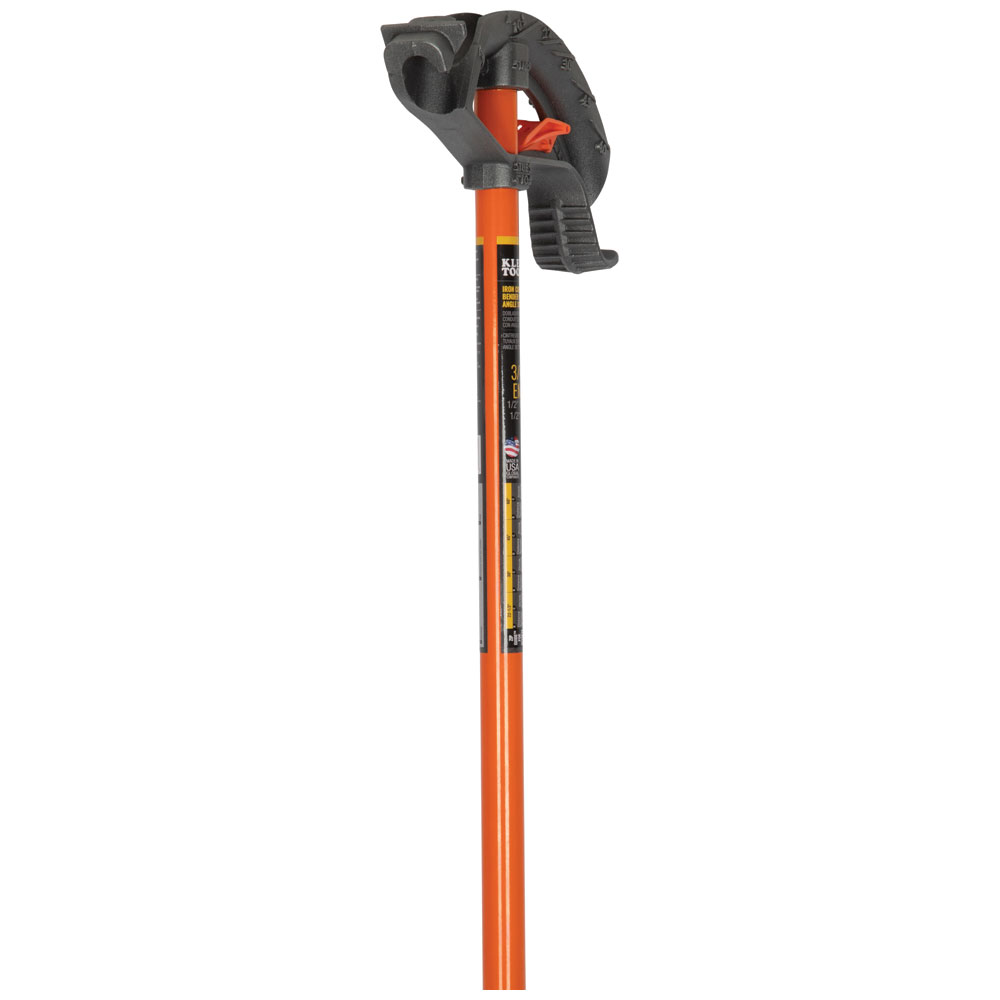

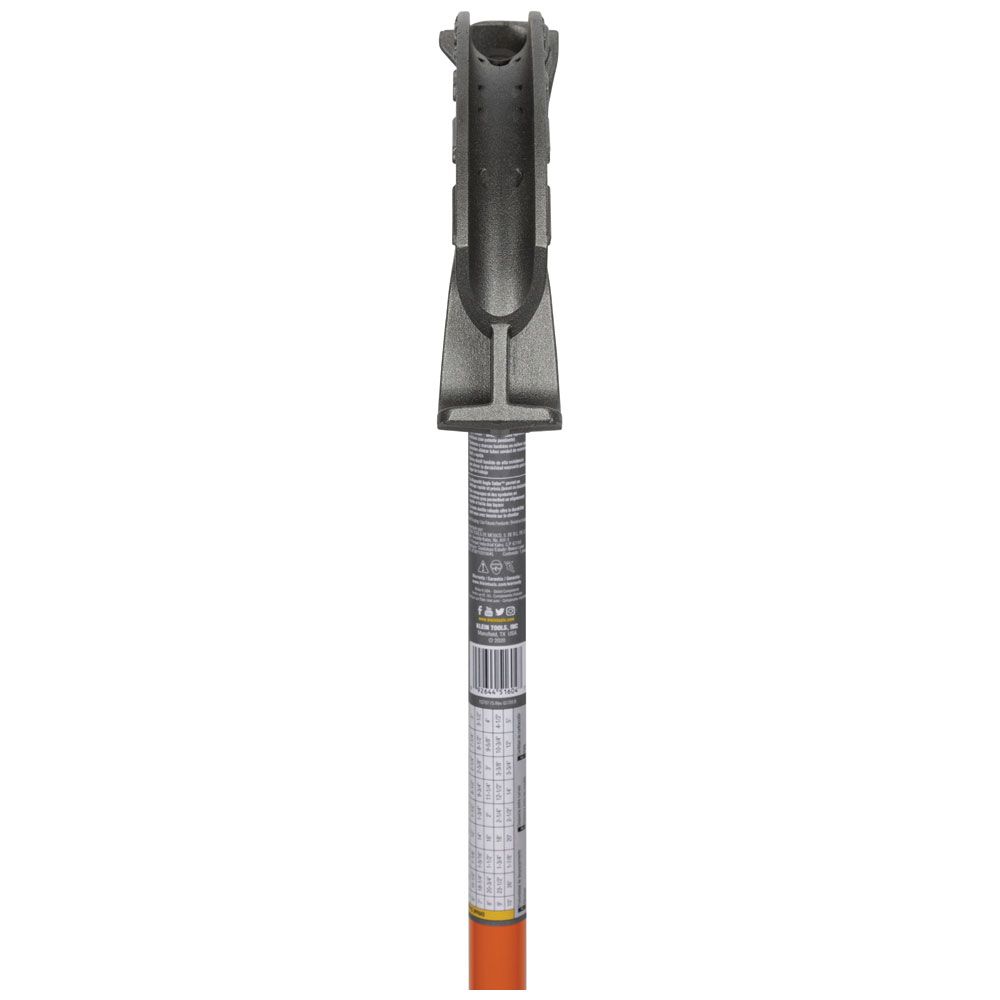

Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™

51603

  • 1/2-Inch assembled Iron Bender includes Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
  • Heavy duty cast ductile iron has the durability needed on the job site

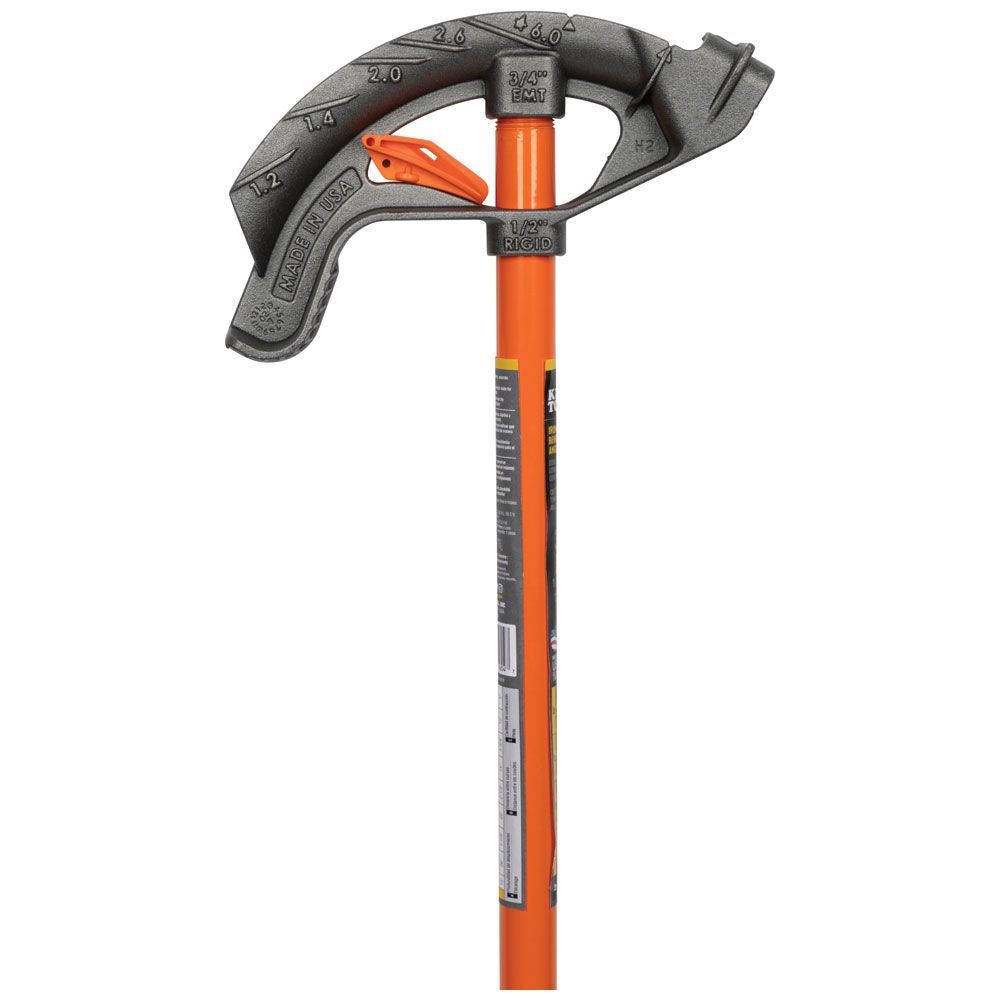

  • Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
  • Wide foot pedal provides excellent stability, leverage, and comfort
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
  • Features Klein’s 1/2-Inch Angle Setter™ (Cat. No. 51611) that creates a hard stop for quick, accurate, and consistent bends
Videos
Images
High-Res JPG 51603_photo.jpg
PNG 51603.png
Interactive Catalog

Klein Tools’ conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Specifications
Type:
Iron Conduit Bender
Application:
Bending Conduit
Special Features:
Patent Pending Angle Setter™ Technology
Overall Length:
1.7'' (4.4 cm)
Overall Height:
43.1'' (109.5 cm)
Overall Width:
8.1'' (20.6 cm)
Material:
Iron
Handle Length:
38'' (96.5 cm)
Centerline Bend Radius:
4''- Stub-up Height 5'', Centerline Radius 4-5/8''
Thinwall/EMT:
1/2'' (1.3 cm)
Conduit Size:
1/2''
Conduit Type:
EMT
Marking:
10°, 22°, 30°, 45°, 60°
Included:
51608 Bender Head; 51427 Handle; 51611 Angle Setter™
Weight:
5.5 lb (2.5 kg)
UPC:
092644516030
Additional Information
Feature Icon klein/wp_made-usa-global-en.jpg
Warnings
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
